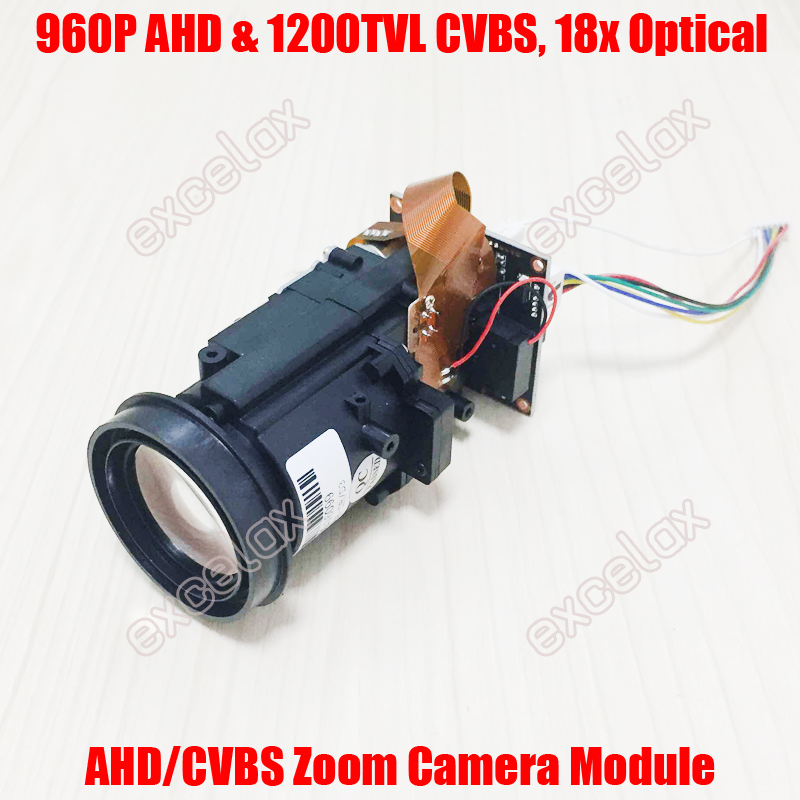

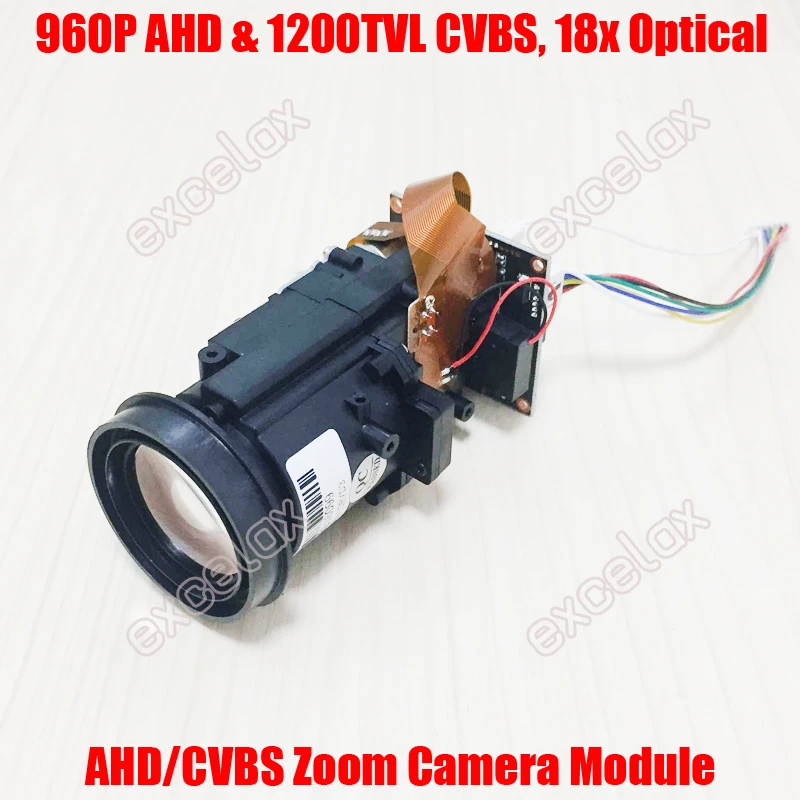

1080P 2MP and 960P 1.3MP 18x Optical AHD/CVBS Analog CCTV Zoom Camera Module
Notice:
1. No user manual is provided. Please don't place order if you are not very professional in CCTV field.
2. In AHD mode, AHD supported DVR is required to output camera images.
3. Default PAL. NTSC is switchable in OSD menu.
4. Default camera address ID 001 and baud rate 9600bps are not changeable.
Features:
-
2-in-1 AHD/CVBS zoom camera module (1080P model: 4-in-1 AHD/TVI/CVI/CVBS)
-
1/3″ Aptina CMOS image sensor (1080P model: 1/2.8″ Sony IMX307 CMOS sensor)
-
18x optical zoom, display 30x zoom
-
IR CUT (ICR), double-filter switch, more natural color at day time and clearer images at night
-
Minimum illumination: Color 0.01lux, B/W 0.001lux
-
Default 1200TVL CVBS analog output, 960P 1.3MP AHD optional in OSD (1080P 2MP model optional)
-
Default PAL, NTSC optional in OSD menu
-
Default camera address ID 001 and baud rate 9600bps (Not changeable).
-
Auto focus, auto exposure and auto white balance control
-
Support Pelco-D protocol
-
Lower power consumption, current low to about 70mA (1080P model: about 100mA)
-
RX-TX voltage level 3.3V
Specifications:
|
Effective Pixel |
1280(H)x960(V), 1920(H)x1080(V) optional |
|
|
Horizontal esolution |
960P, 1080P optional |
|
|
Minimum Illumination |
Color: 0.01Lux, B/W: 0.001Lux |
|
|
Sync System |
Internal sync |
|
|
Focus Length |
5~90mm |
|
|
Optical Zoom |
18x optical, display 30x |
|
|
Focus |
Auto/Manual/Auto Zoom |
|
|
Gain Control |
Auto/Manual |
|
|
White Balance |
Auto |
|
|
Iris |
Auto/Manual |
|
|
S/N Ratio |
>50dB (Enhanced) |
|
|
Electronic Shutter |
PAL: 1/25s~1/10,000s, NTSC: 1/30~1/100,000s |
|
|
Video Output |
1.0Vp-p 75 Ω |
|
|
Language |
Chinese/English |
|
|
OSD Menu |
AWB, Digital Noise Reduction, Highlight Compensation, Mirror |
|
|
Control |
Pelco-D, 9600bps |
|
|
Gama Correction |
0.45 |
|
|
Interface Mode |
6-pin/9-pin connector |
|
|
Power Supply |
DC 12V, 70~120mA |
|
|
Working Temperature |
-20°C ~ +50°C |
|
|
Dimension |
90(L)x40(W)x40(H)mm |
|
|
Weight |
About 100g |
|
Remarks:
1. No user manual is provided. Please don't place order if you are not professional in CCTV field as it is a very professional device.
2. In AHD mode, AHD supported DVR is required to output camera images.
3. Default PAL. NTSC is switchable in OSD menu.
4. Default camera address ID 001 and baud rate 9600bps are not changeable.
5. NTSC countries and districts list:
America, American Samoa, Antigua, Antilles (Dutch), Aruba, Bahamas, Barbados, Barbuda, Belize, Bermuda, Bolivia, Brazil, British Virgin Islands, Burma, Canada, Chile, Colombia, Costa Rica, Cuba, Curacao, Diego Garcia, Dominica, Dominican Republic, Ecuador, El Salvador, Fiji, Grenada, Guam, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan, Johnston Islands, Korea South, Leeward Islands, Mariana Islands, Marshall Islands, Mexico, Micronesia, Midway Islands, Montserrat, Myanmar, Nicaragua, Okinawa, Palau, Panama, Peru, Philippines, Puerto Rico, Samoa, St Kitts and Nevis, St Lucia, St Vincent, Surinam, Taiwan of China, Trinidad and Tobago, United States of America, Venezuela, Vietnam, Virgin Islands
Package Content:
1* Zoom Camera Module

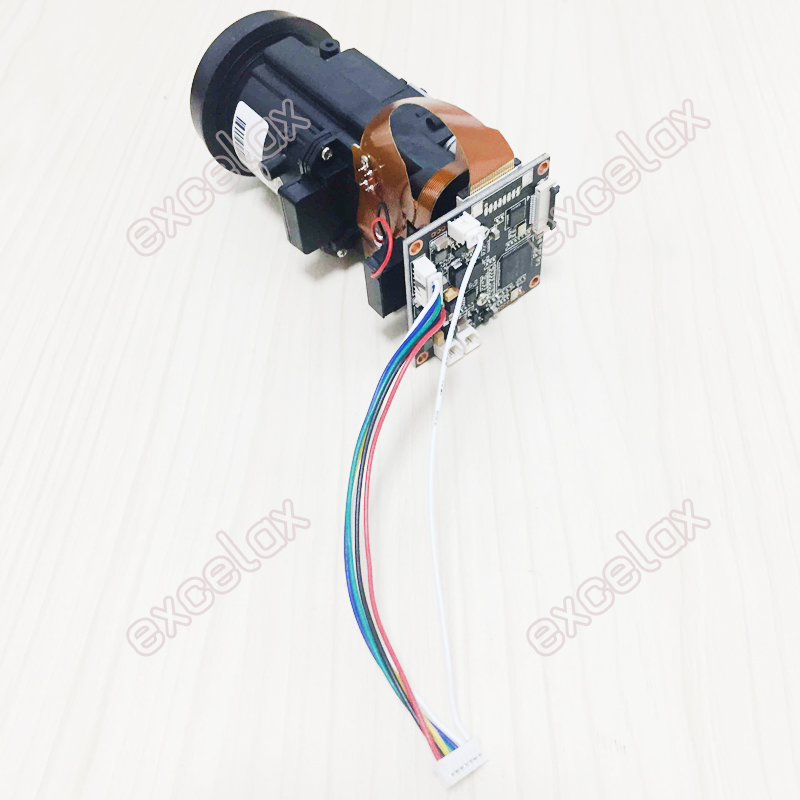

1* 6-pin Color Cable
