Various logo patterns can be customized, please contact online customer service

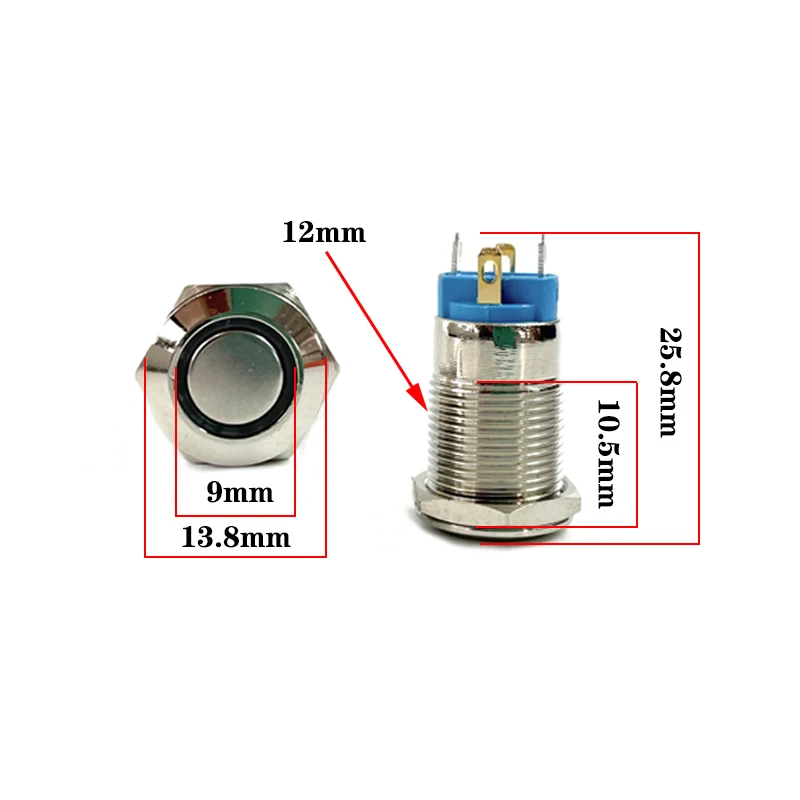

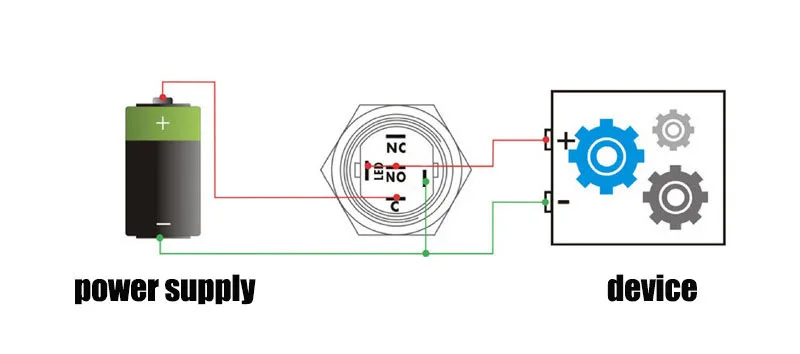

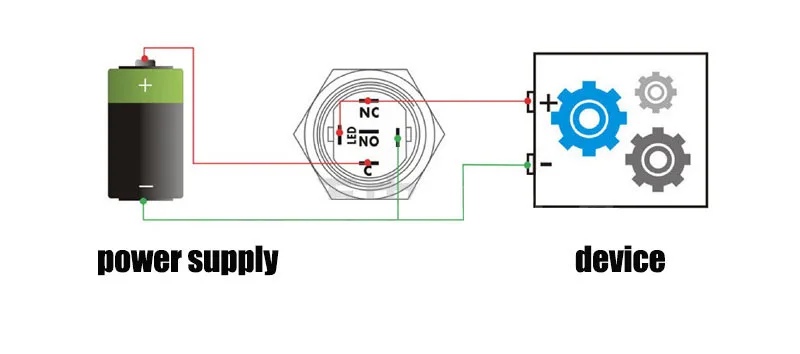

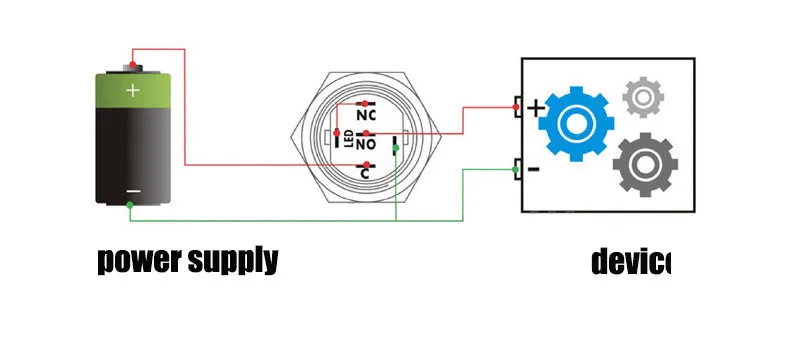

12mm wiring diagram

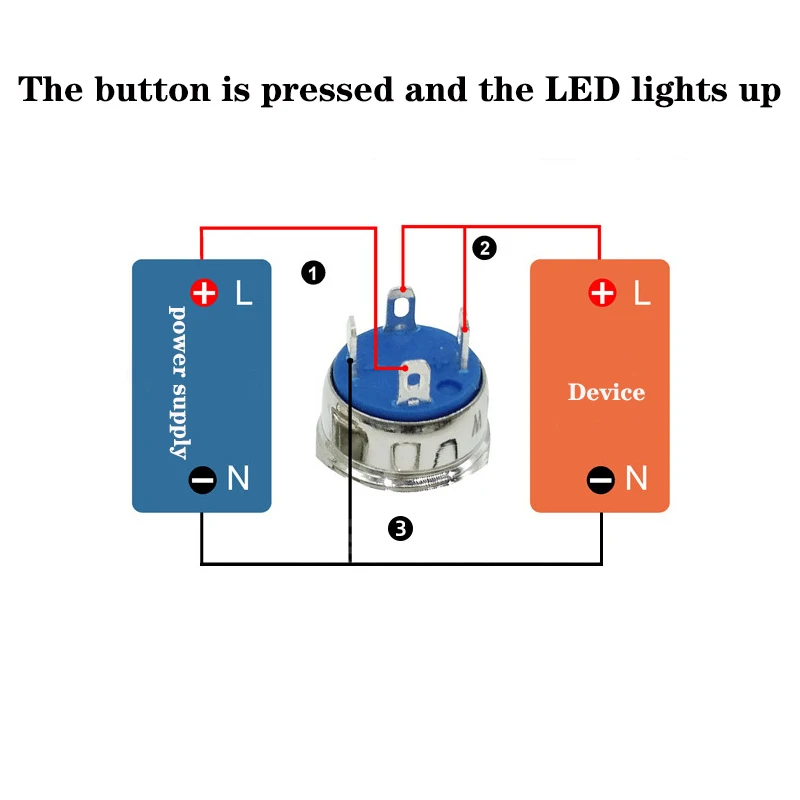

Press the switch, the load is energized, and the LED lights at the same time. Press the switch again, the button is reset, the load is powered off, and the LED goes out.

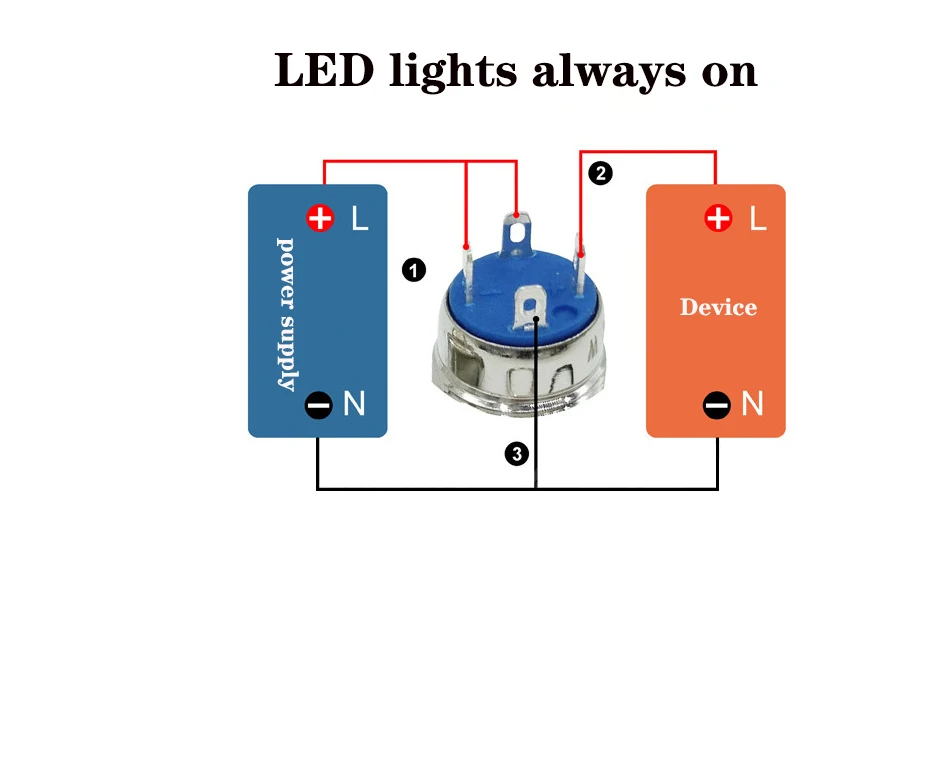

Turn on the power, the LED lights, press the switch, and the load is energized. Press the switch again, the button is reset, and the load is powered off. Turn off the power and the LED goes out.
Press the switch, the load is energized, and the LED turns off Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time.
Press the switch, the load is powered off, and the LED turns off at the same time. Press the switch again, the button is reset, the load is energized, and the LED lights at the same time.
Turn on the power and the LED lights up. Press the switch, the load is powered off. Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out.
