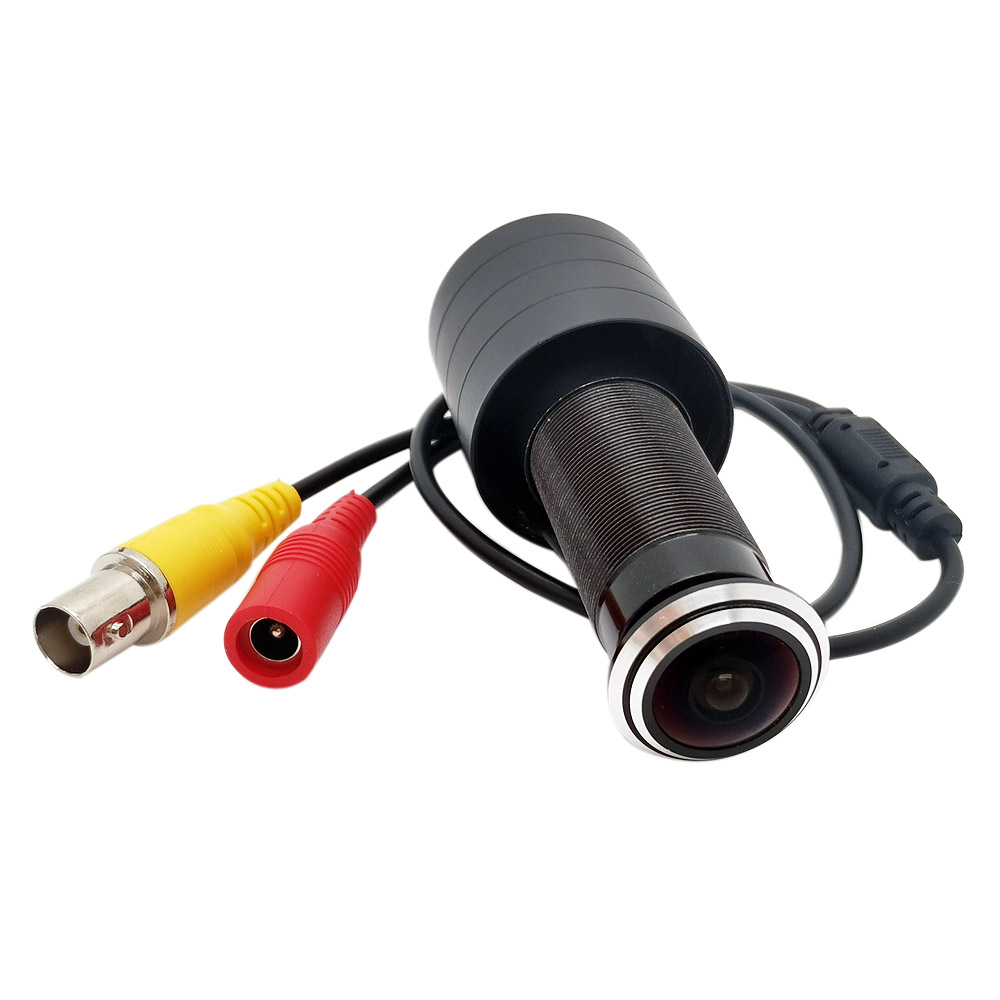

1200TVL / 800TVL Door Eye Peephole Analog Camera Wide Angle Indoor Home CVBS Video Surveillance Camera For TV/ Monitor /DVR Systems
Specification:

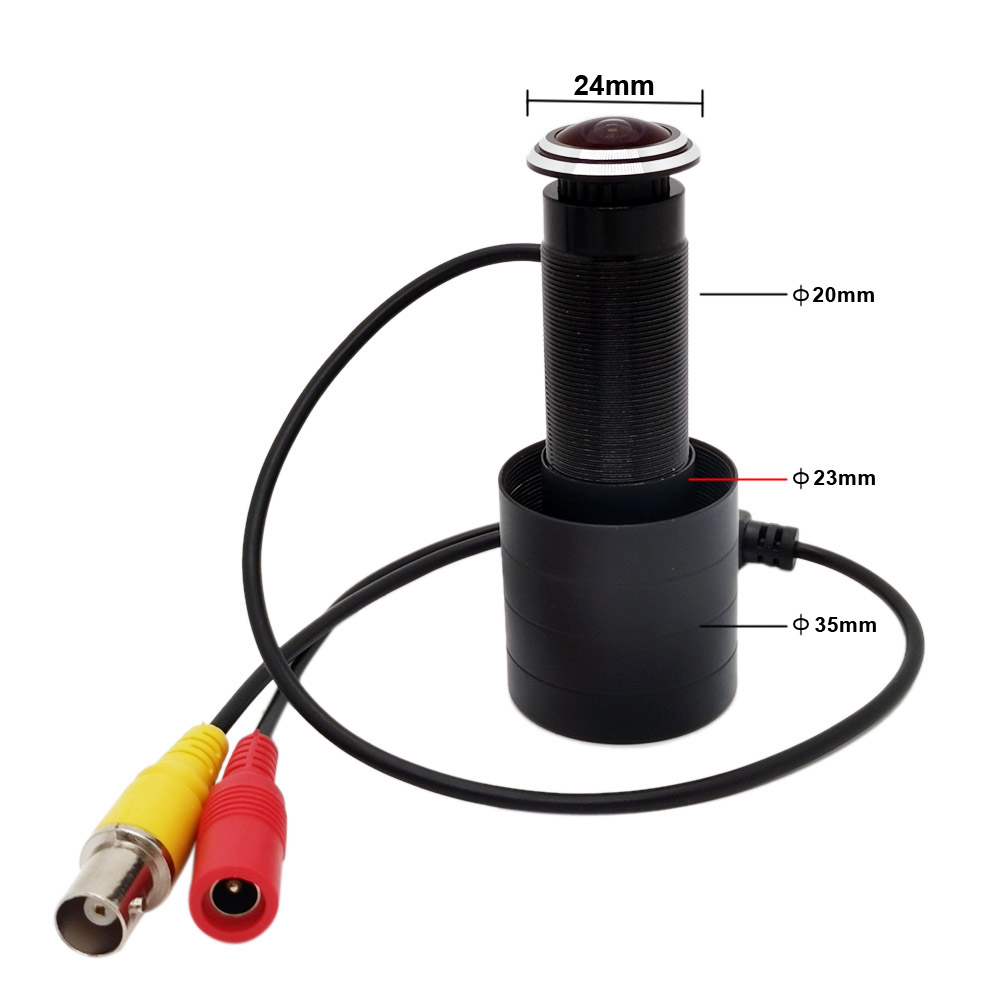

1. The total length 30MM – 85MM adjustable
2. At the bottom of the thickest part of the 35MM
3. Horizontal resolution 800 TV Lines / 1200 TV Lines
4. No amount of infrared light (without IR)
5. Scanning frequency PAL: 15.625 kHz / 50 KHz
6. Scanning System 2: 1lnterlace, 2: 1 interlace
7. Minimum illumination 0.5 Lux
8. Internal Synchronization Internal / DC12V
9. Signal / noise ratio greater than 48dB Better than
10. Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.
11. Video Output 1 Vp-p, 75 composite signal
12. Power supply 12V DC ( 10%) (not include)
13. 1.8mm lens configuration
14. View Angle About 120degree
15. Power Consumption 800mA / DC12V
