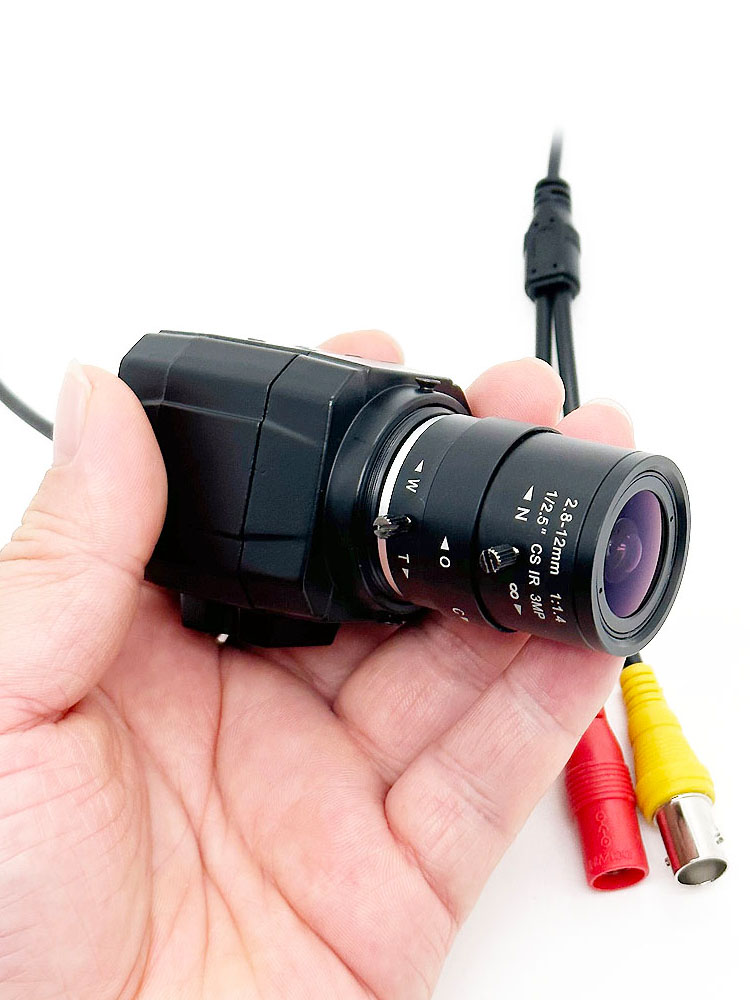

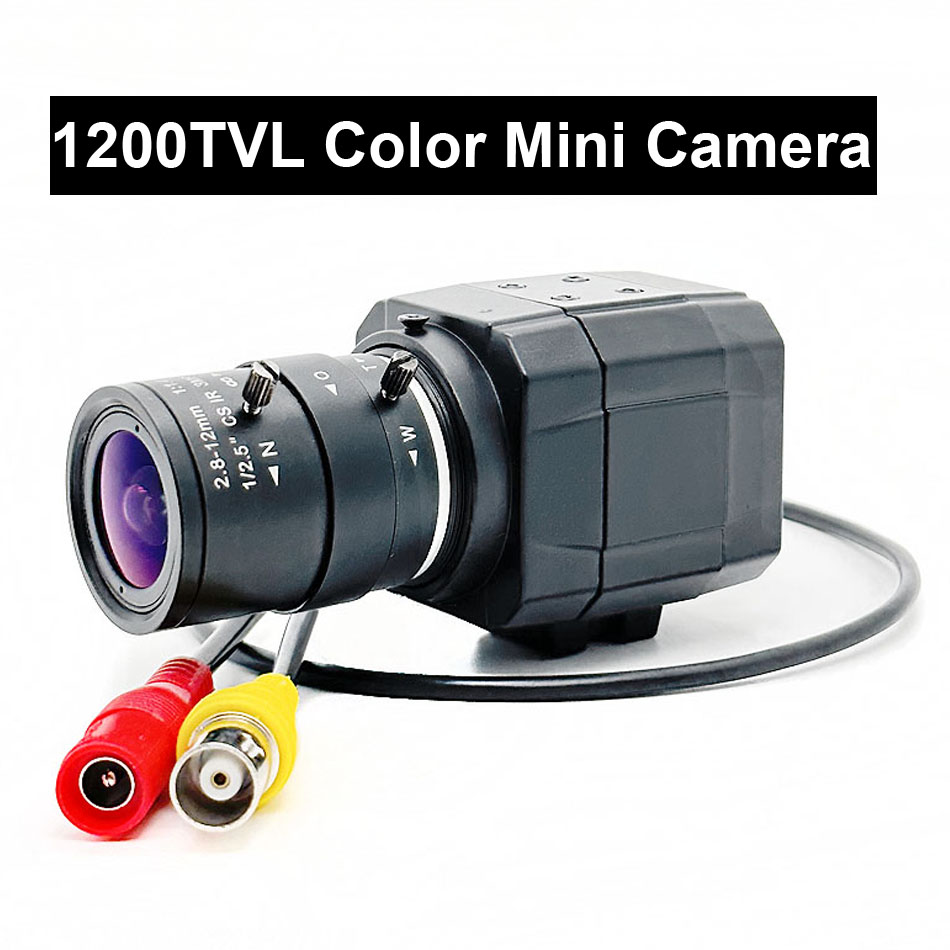

1200TVL CCTV Analog Camera 2.8-12mm /5-50mm Adjustable Lens Support tv Monitor Home Video Security Mini Box Camera
Specifications:
-
Horizontal Resolution:1200 TV Lines
-
Image Sensor: 1/4 CMOS Camera Sensor
-

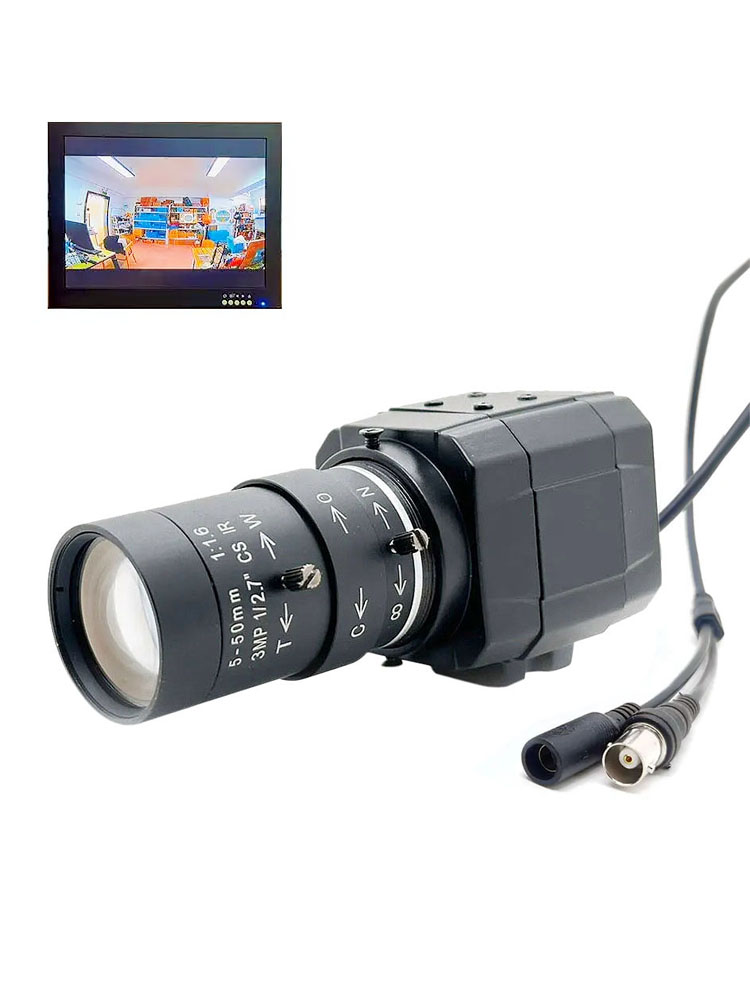

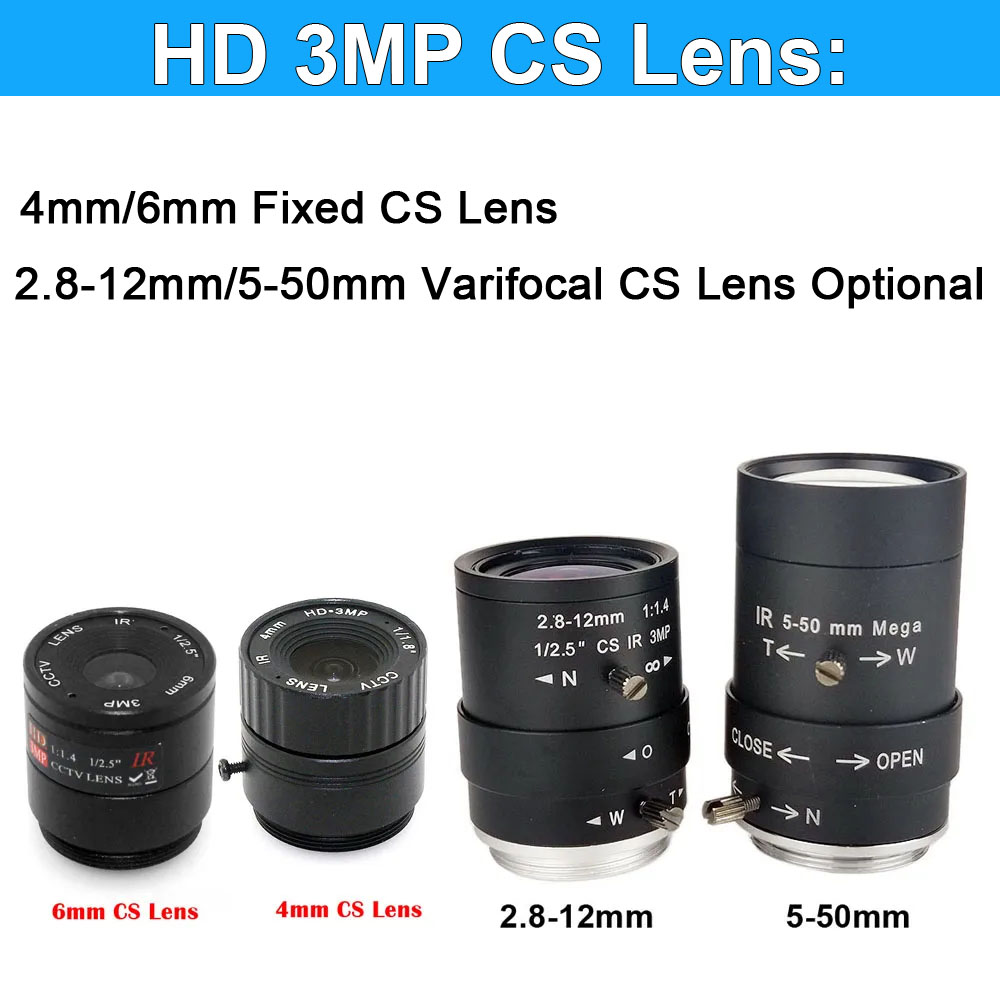

Lens:2.8-12mm / 5-50mm / 6mm/4mm
-
Sync Speed: Internal
-
Connection Type: BNC
-
Effective Pixels:
– PAL: 976 (H) x 582 (V)
– NTSC: 976(H) x 492 (V) -
IR lamps wavelength: 850nm
-
White Balance: Auto
-
Scanning mode: 2:1
-
Backlight Compensation: ON
-
Video Output: 1Vp ~ p.75 Ω
-
Shutter Speed: 1/50 ~ 1/100,000 second
-
CDS Sensor: YES
-
S/N Ratio: > 48db
-
Power Requirement: DC 12V, 1000mA
-
Operating Temperature: -20 ~ 50 Degrees Celsius
