Instruction:

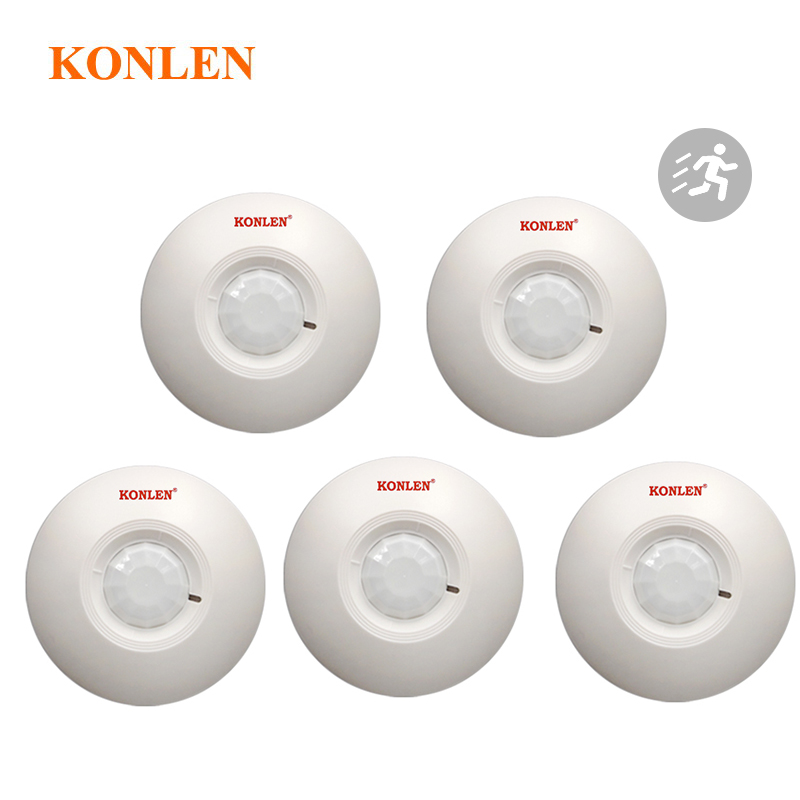

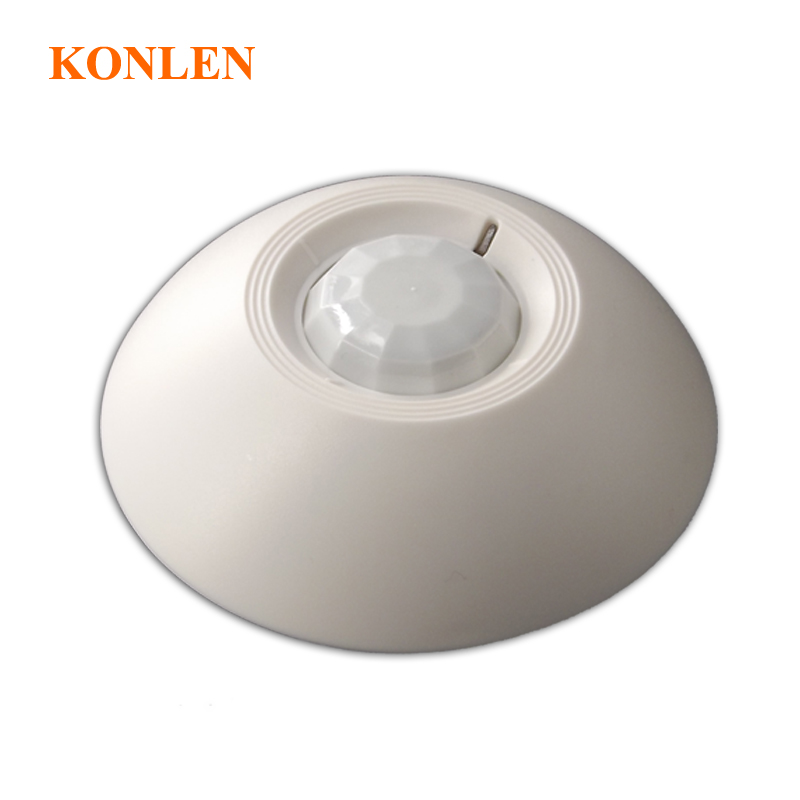

The product is passive infrared detector with high stability. It has adopted advanced technology in signal processing and provided superhigh detection ability and antii error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement. The product is suitable for the safety of residential house, villas, factories, marekts, warehouses, office building etc.
Power +: 9 to 16VDC Positive +
Power – : 9 to 16VDC Negative –
Temper: Anti-Temper Switch
Alarm: Alarm Relay Output Port
Jumper on N.C postion: normal closed,
Jumper on N.O position: normal open.
Note: 1. it is Wiring Ceiling Mounted PIR Motion Detector, not wireless type. User must connect it to wired alarm control panel or other wired equipments via wiring connection.
2. Before buy, please make sure you are a proffessional wired detector buyer, who can understand the wiring terminals and know how to connect it to your wired equiments in order to avoiding wrong item ordered.
Specification
Operating voltage: DC9V to 16V, (DC12V recommended)
Current comsuption: 18mA(DC12V)
Detecting distance: diameter 7m (when the height is 3.6m)
Detecting angle: 360 Degree
Working temperature: -10 ~+50
Alarm indicator: red LED
Alarm output: N.C. or N.O., DC28V,150mA
Temper output: N.C., DC28V, 200mA
Sensor: dual element infrared sensor
Operating temperature: -10 to +50 centigrade
Environment humidity: 95% RH (no congelation)
Anti RF interference: 10MHz 1GHz 20V/m
Installation mode: ceiling mounted
Installation height: 2.5 to 6m
Outline Size: 106mm dia. * 36mm deep
