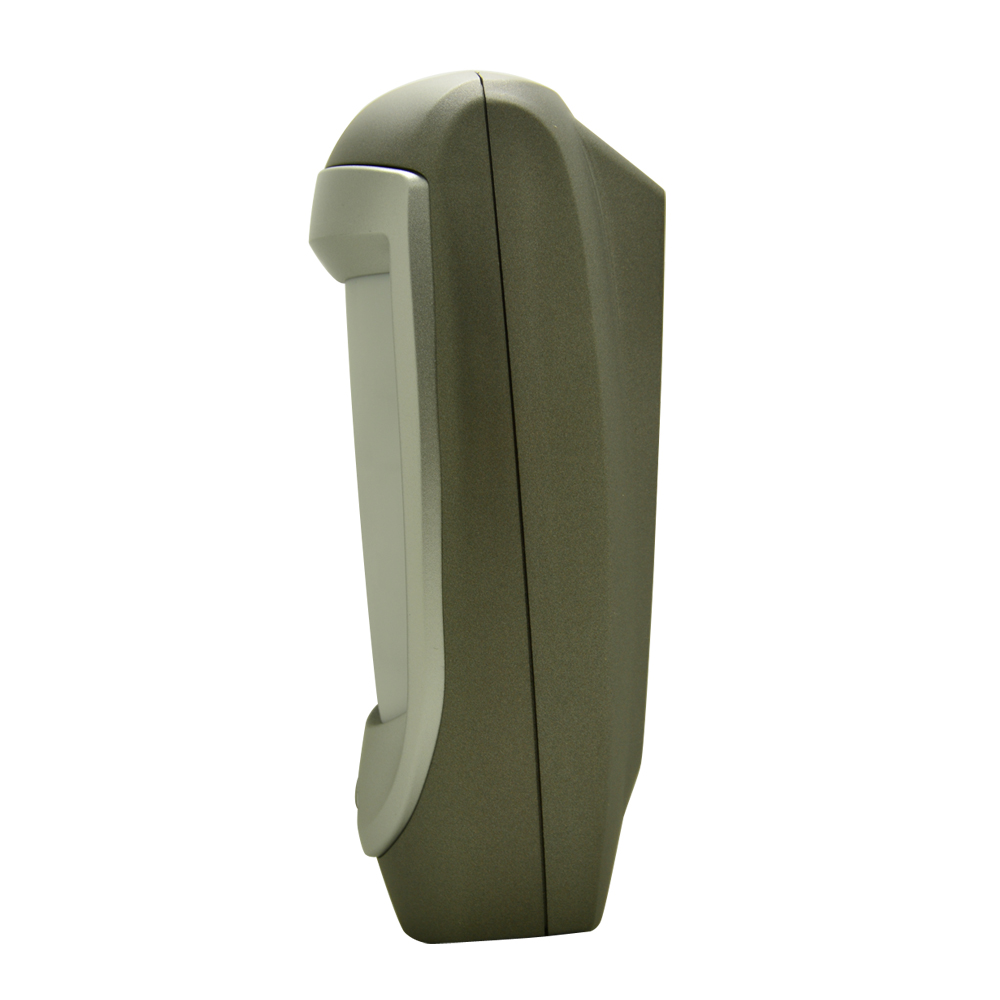

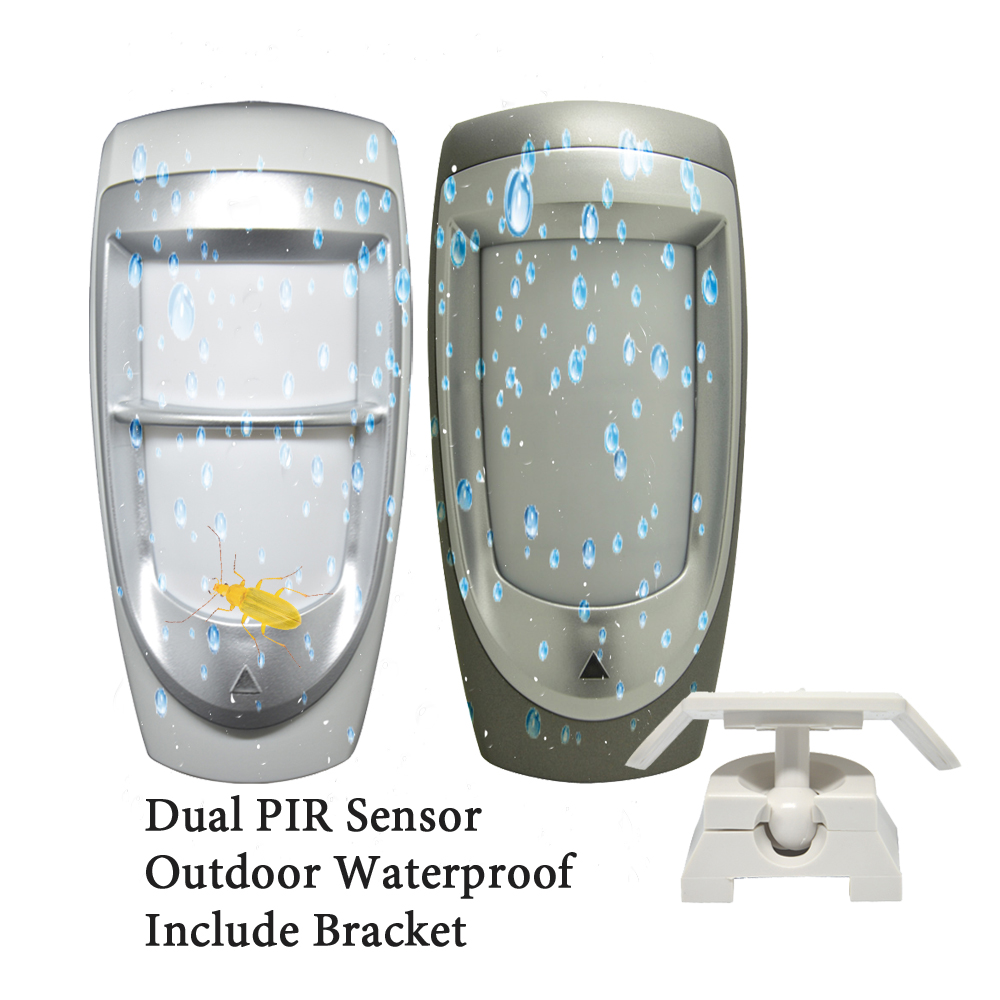

1Pcs Outdoor IP45 Waterproof 12Vdc Wire Infrared Detector Home Security DG85 Dual Motion Sensor Pet Friendly NC Relay Signal
Parameter:
Input voltage: DC9-16V
current drain:30mA 12VDC
Detection range:11.6*11.6
Alarm output:NC over100mA/28VDC
anti white light resistance: over 20000LUX
Installation height: 2-2.7m
Tamper switch: NC 100mA/28VDC
PIR section: Lens date
NO of curtain beams: (11+11+9)*2=62
Tripping indication: indicator light for about 10-30 seconds
anti-EMI/RFI: 10V/m(10Mhz-1000Mhz)
Motion test:0.2m/s-3.5m/s
BR-1:surface mounted swivel bracket,adjustable 30 down and 45 left/right
environmental:
Operating temp: -10 to 50 degree
humidity:5% to 95%
storage temp:-20 to 60 degree
Package box:
