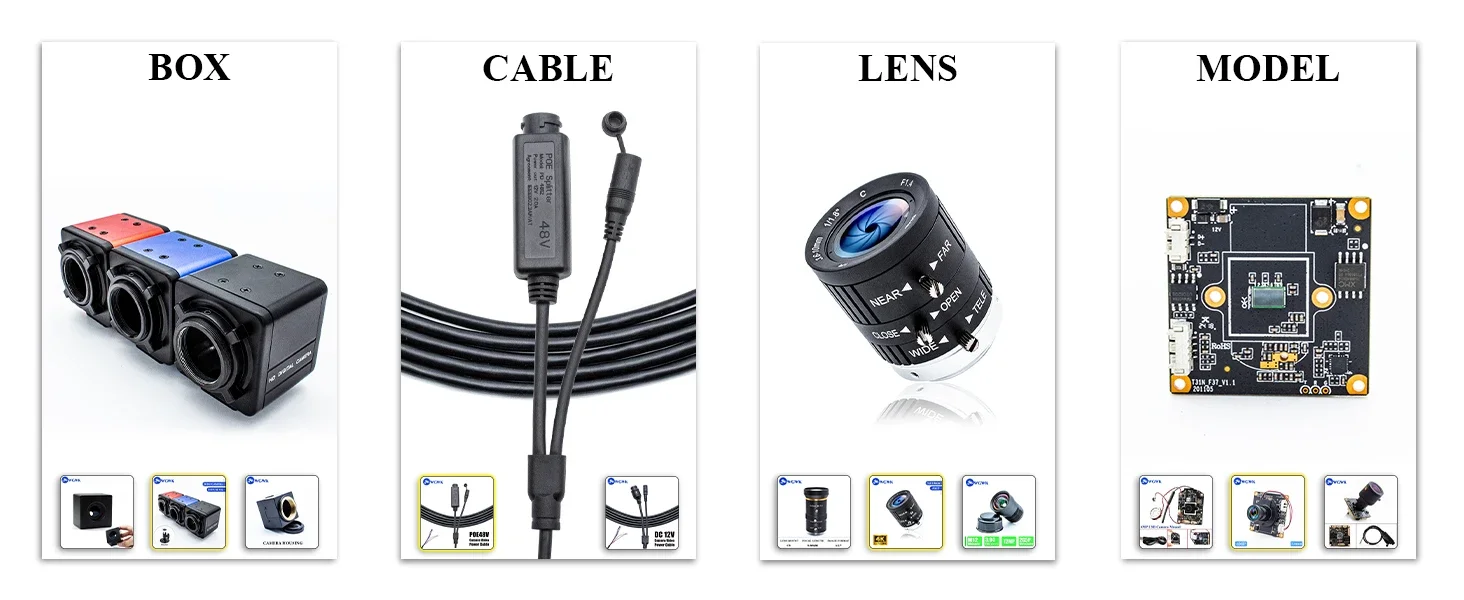

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

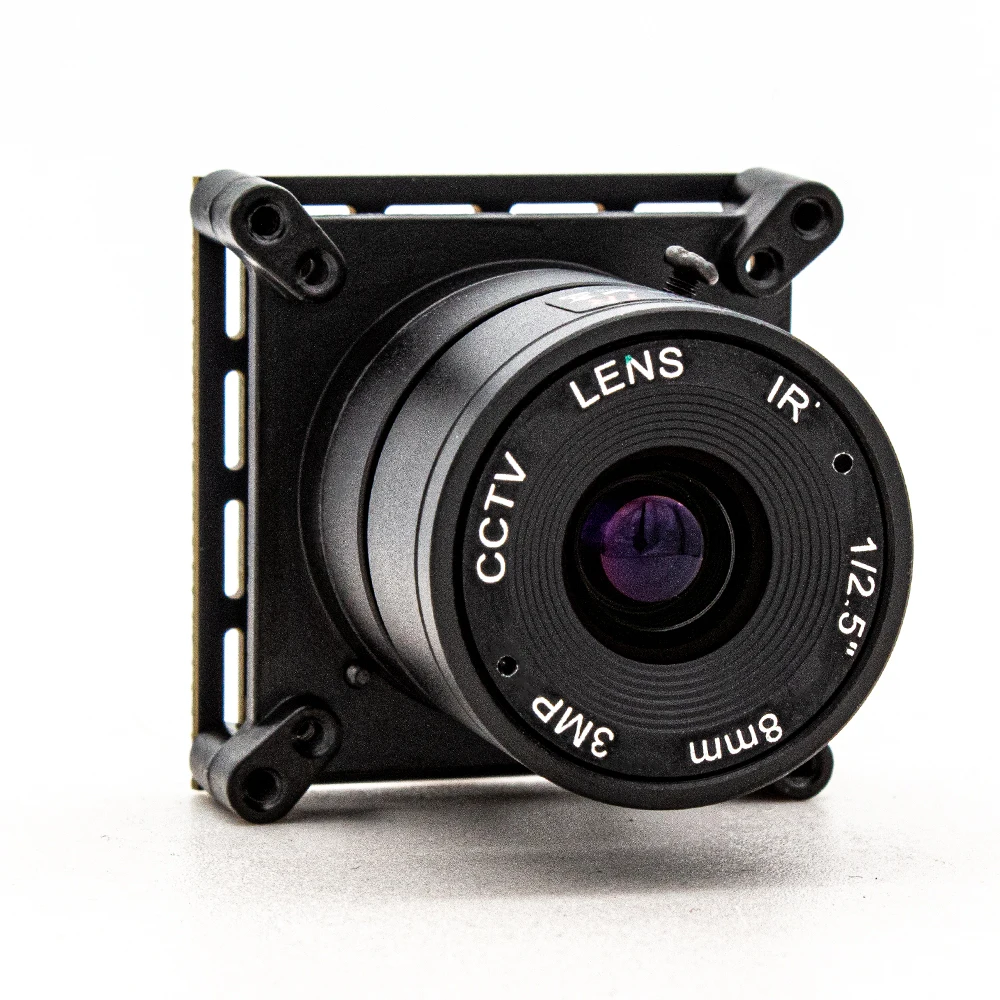

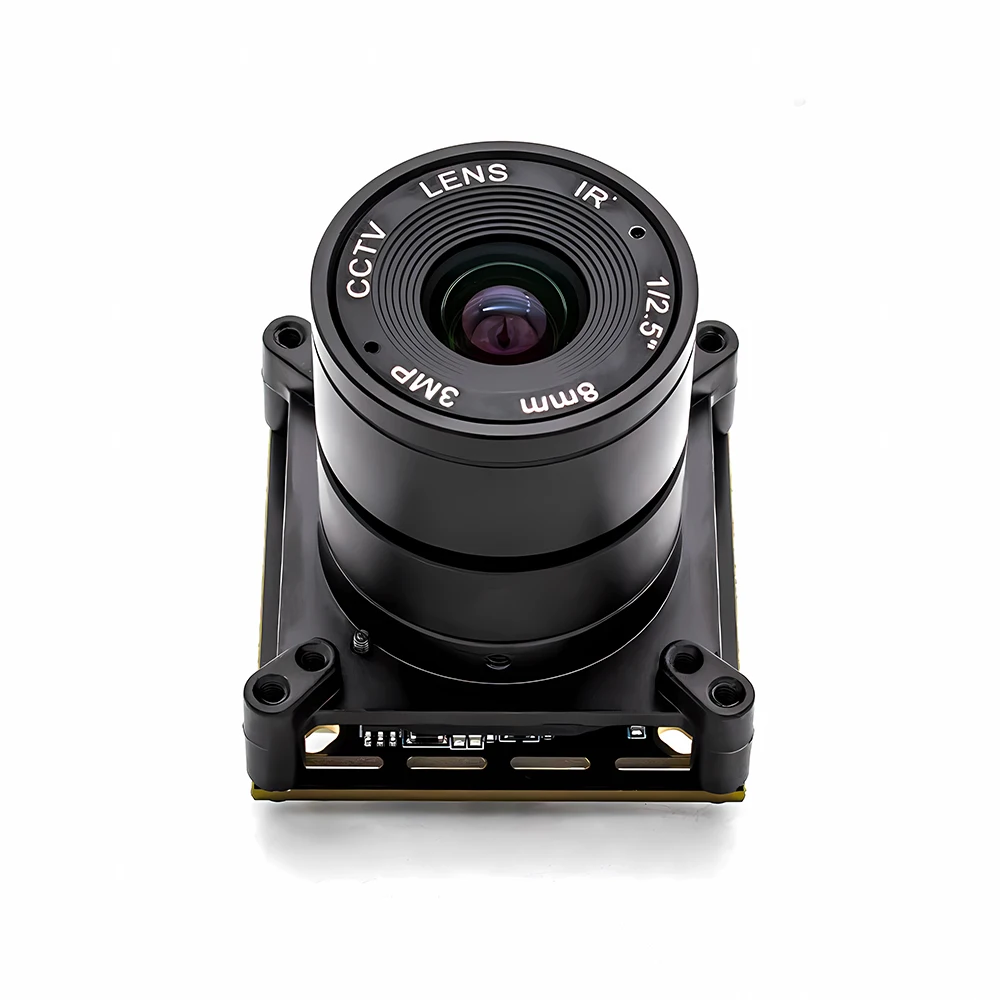

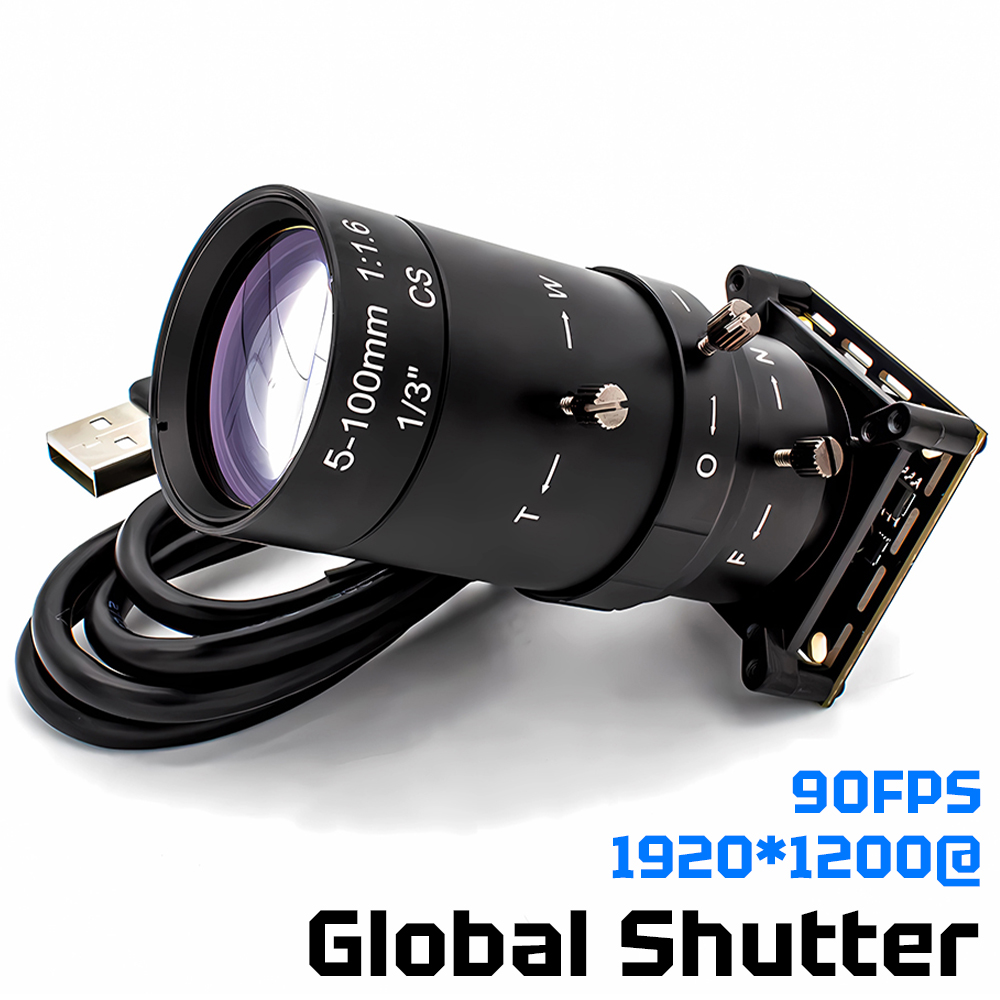

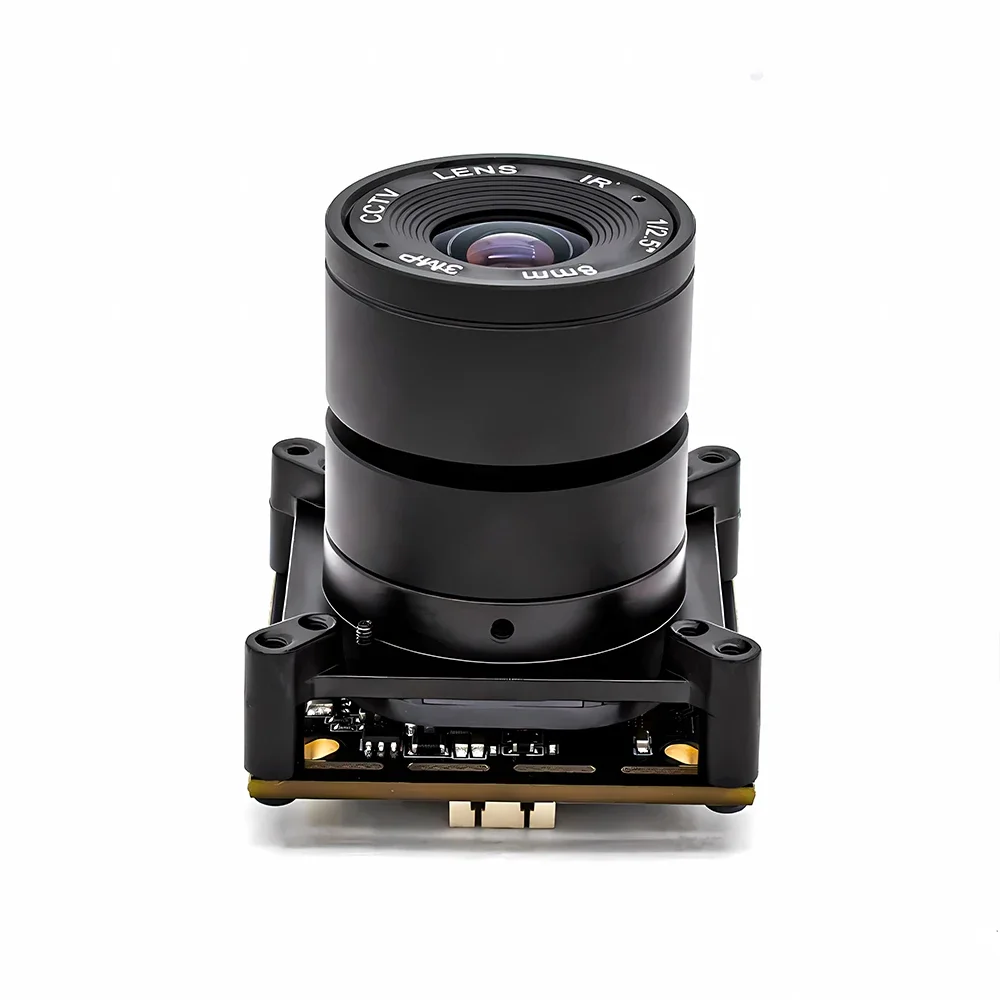

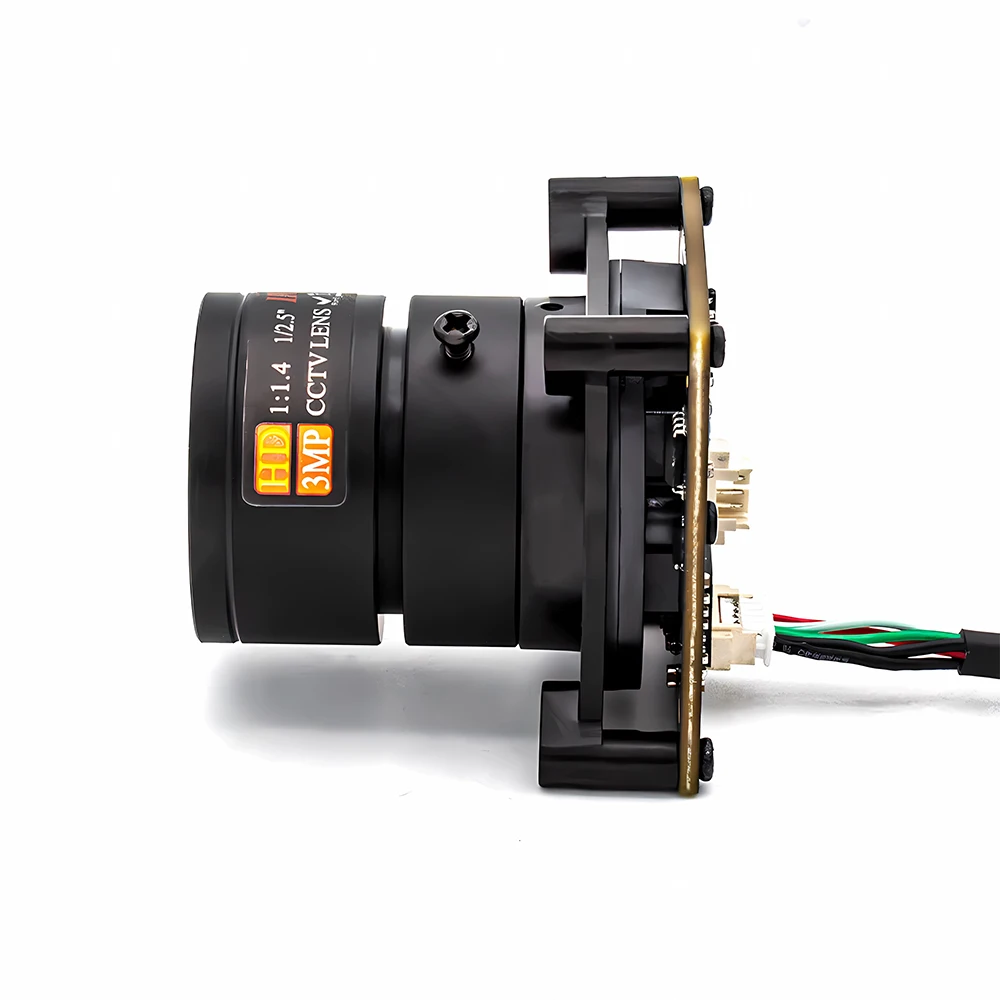

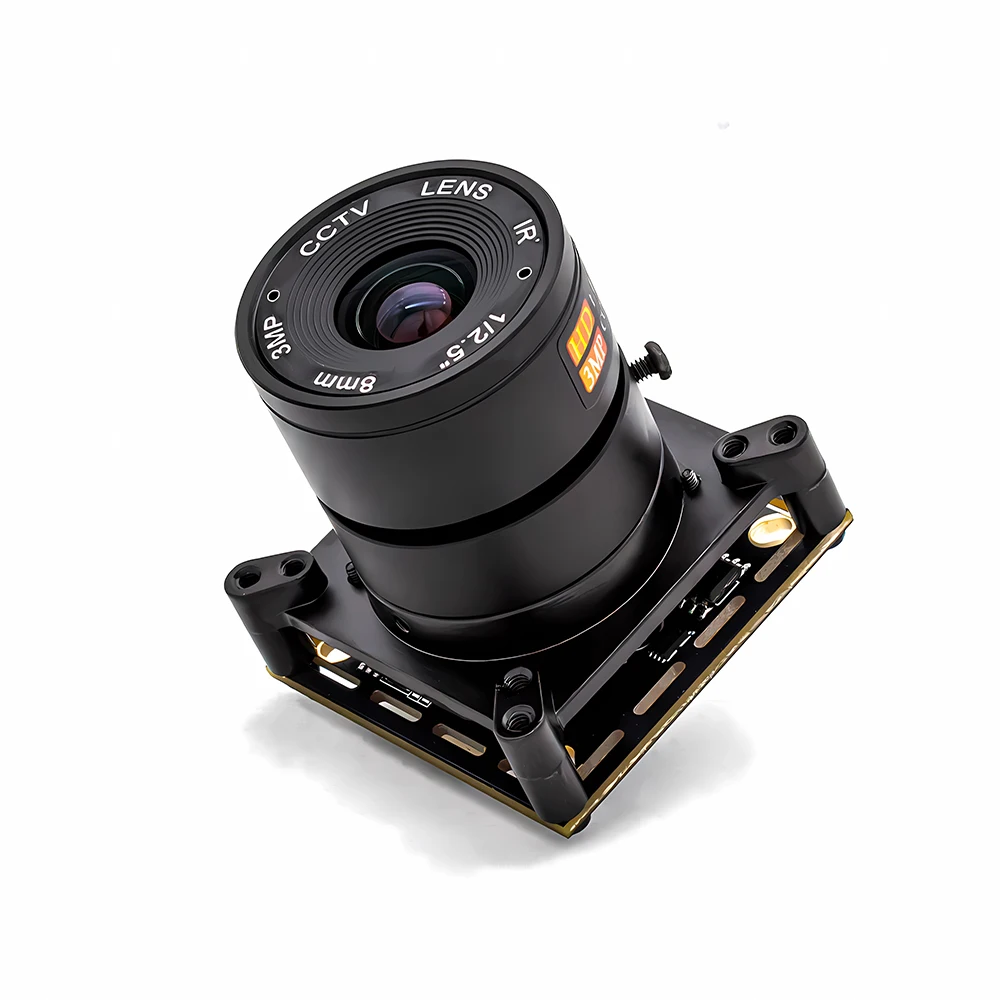

2.3MP HD Global Shutter USB Camera Module 1080P 90FPS 1/2.6″ SONY CMOS USB2.0 Plug And Play With 5-100mm Varifocal CS Mount Lens
1080P 90FPS Global Shutter Aptina AR0234 Sensor Overview
-
Sensor Specifications: The Aptina AR0234 is a 1080P global shutter sensor (1/2.6”) designed for high-quality imaging.
-
Shutter Type: Featuring a global shutter, this camera excels at capturing high-speed moving subjects with crisp, sharp images. It effectively eliminates rolling artifacts, providing a more accurate and complete picture compared to rolling shutter cameras.
-
High Frame Rate: The camera supports high frame rates, delivering MJPEG video at 90fps in resolutions
-

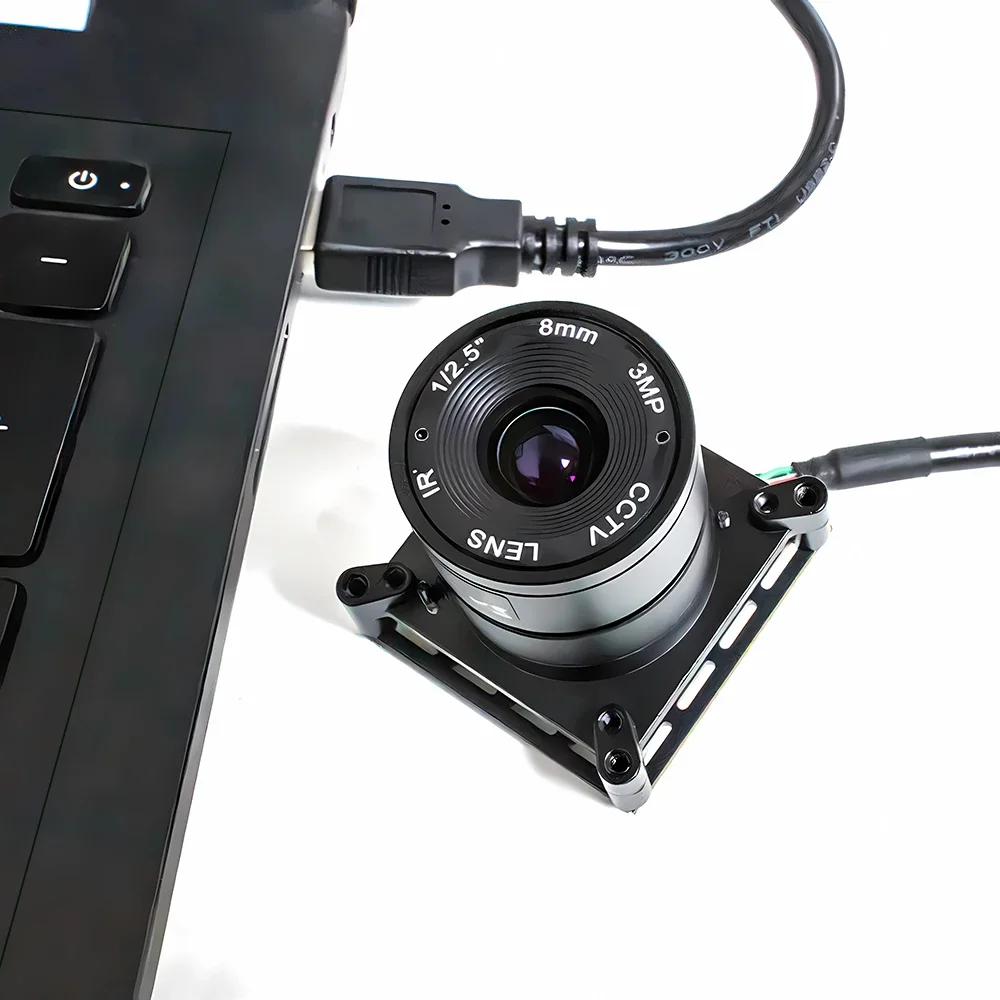

Plug & Play: This camera is UVC-compliant, allowing for easy connectivity. Simply plug it into a PC, laptop, Android device, or Raspberry Pi via USB—no additional drivers required.
-
Lens Options: An optional fixed focus lens is available for enhanced versatility.

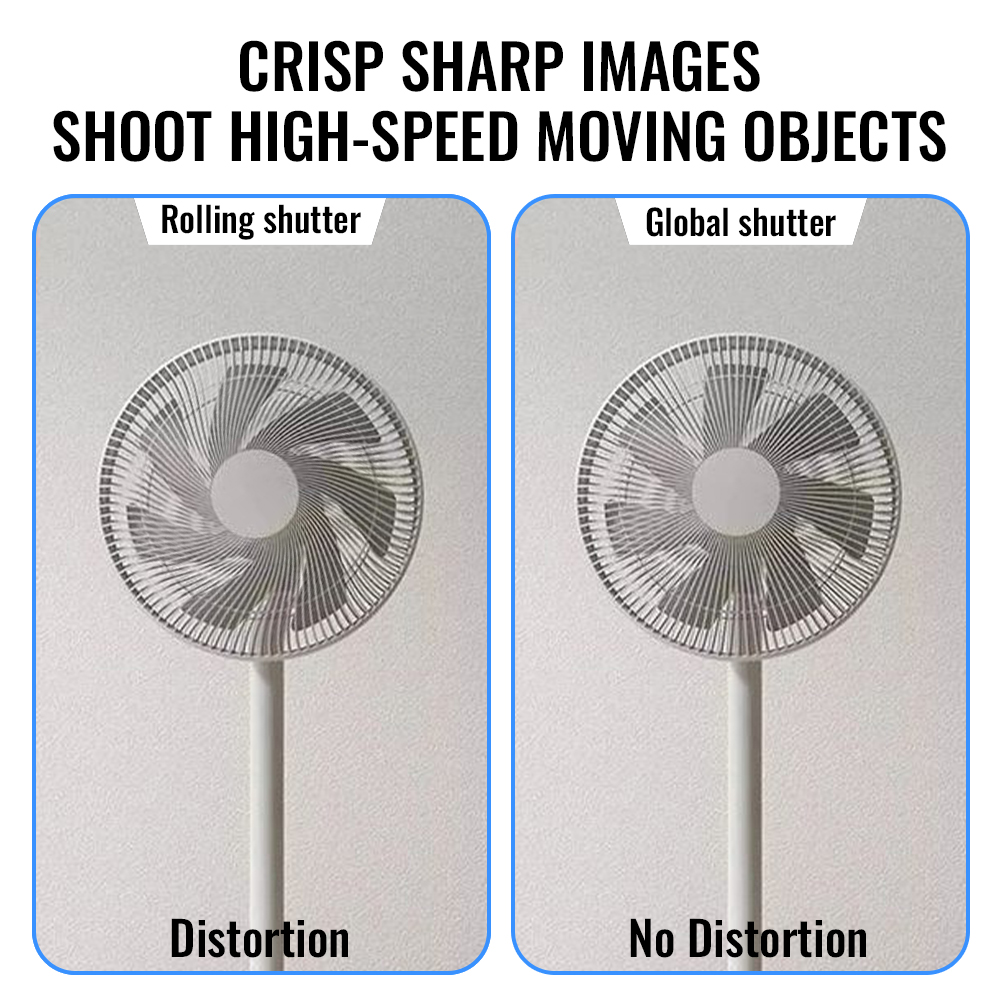

Global Shutter vs. Rolling Shutter:
Global Shutter Cameras: Perfect for capturing high-speed motion with clarity, these cameras prevent issues like partial exposure, skew, and wobble, which are common with rolling shutter cameras.They are particularly effective for short exposure times (e.g., <500µs).
Rolling Shutter Cameras: Better suited for longer exposure times (e.g., >500µs), making them more suitable for different imaging scenarios.
Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:
-
High-speed sports photography
-
Industrial inspection
-
Video applications
-
Industrial automation
-
Robotics
-
Scientific imaging
-
Augmented and virtual reality
-
Gesture and eye tracking
-
Depth and motion detection
|
Model No. |
WGWK-QJ200 |
|
|
Sensor |
AR0234(1/2.6” )Global Shutter |
|
|
Max Resolution |
1920(H) *1200(V) |
|
|
Lens Size |
1/2.6 inch（16：9） |
|
|
Pixel Size |
3.0um *3.0um |
|
|
Image area |
TBD |
|
|
Compression Format |
MJPEG / YUV2（YUYV） |
|
|
Supported resolution and frame rate |

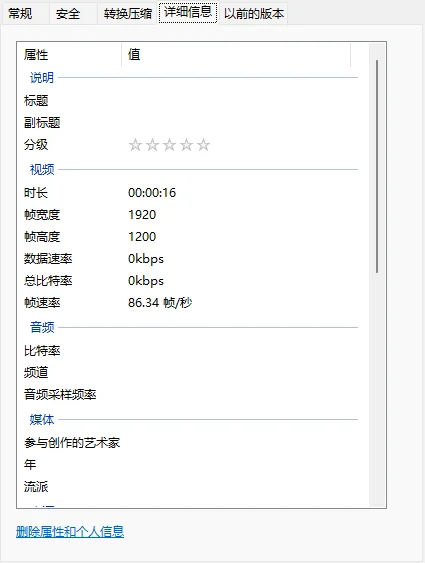

1920*1200 @ 90fps MJPEG |
1920*1200 @ 5fps YUV |
|
1920*1080@ 90fps MJPEG |
1920*1080 @ 5fps YUV |
|
|
1280*960 @ 90fps MJPEG |
1280*960 @ 5fps YUV |
|
|
1280*720 @ 120fps MJPEG |
1280*720 @ 15fps YUV |
|
|
800*600 @ 120fps MJPEG |
800*600 @ 20fps YUV |
|
|
640*480 @ 120fps MJPEG |
640*480 @ 30fps YUV |
|
|

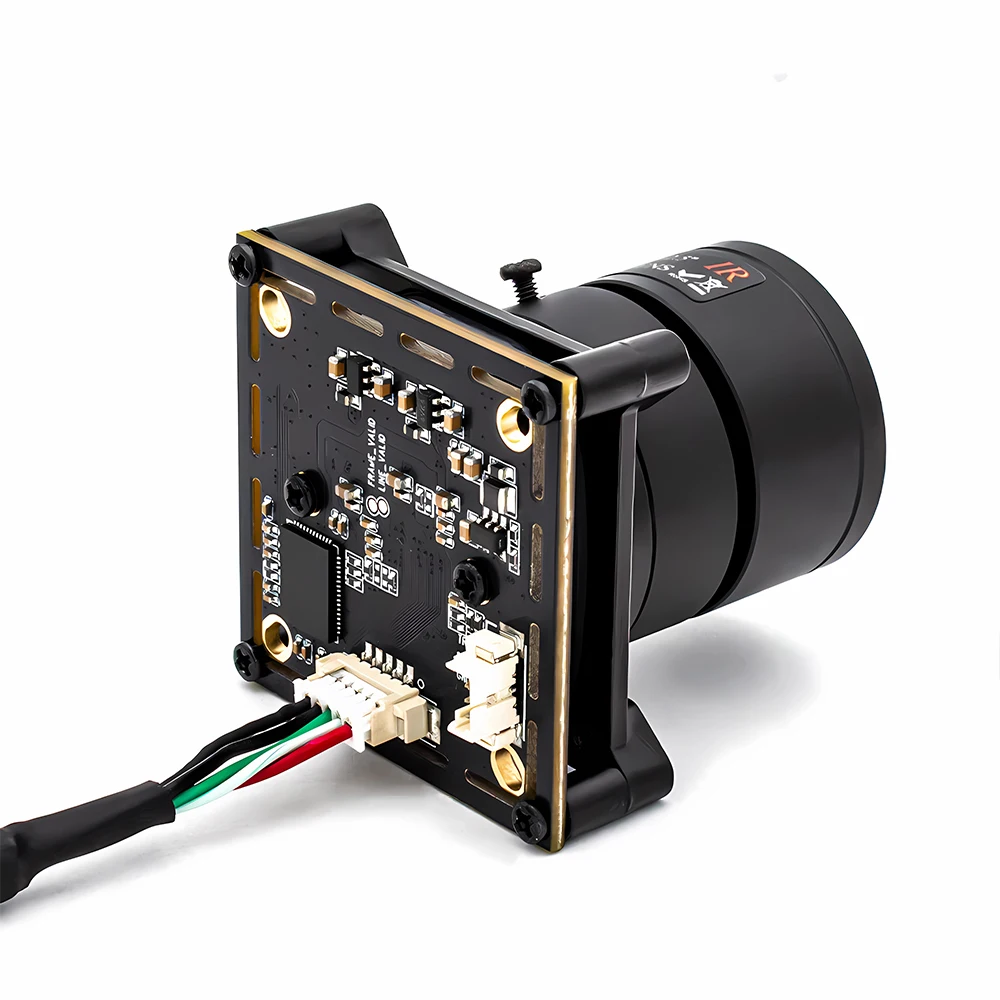

Camera Board Assembly Technology |
SMT |
|
|
Focus |
fixed |
|
|
Center clarity |
600LW/PH (Center) |
|
|
Signal-to-Noise Ratio |
38dB |
|
|
Dynamic Range |
71.4dB |
|
|
Sensitivity |
1.4V/lux-sec@550nm |
|
|
Minimum illumination |
0.3lux |
|
|
Shutter type |
Global shutter |
|
|
Interface Type |
USB2.0 |
|
|
Automatic Exposure Control AEC |
support |
|
|
Automatic White Balance AEB |
support |
|
|
Automatic Gain Control AGC |
support |
|
|
Adjustable parameters |
Brightness Contrast Color Saturation Hue Sharpness Gamma White Balance Backlight Contrast Exposure |
|
|

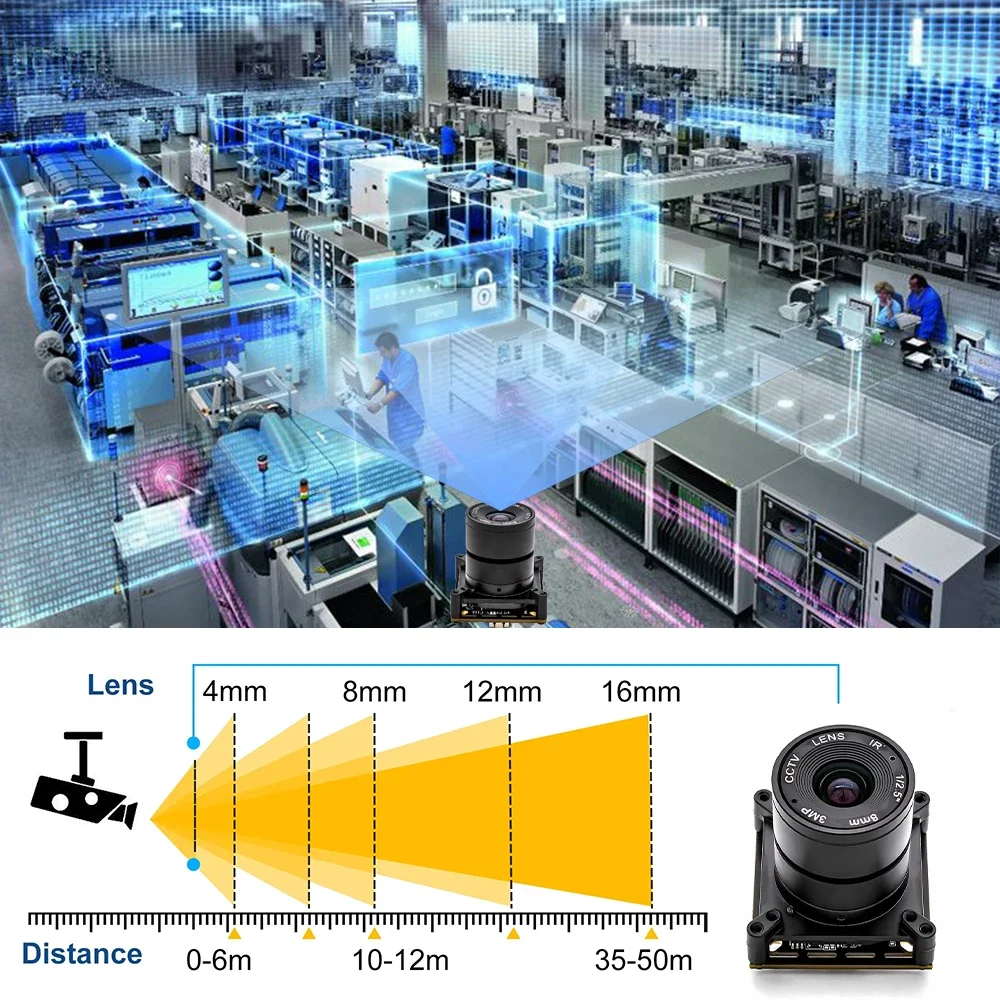

Lens specifications |
CS Mount Lens:4mm/6mm/8mm/12mm/16mm/2.8-12mm/3.6-10mm/5-50mm/5-100mm |
|
|
Light board power supply interface |
/ |
|
|
Power supply and interface |
CON_5PIN1.25 Vertical Seat |
|
|
Voltage |
USB-5V |
|
|
Current |
80mA- 280mA |
|
|
size |
38mm(L) × 38mm(W) x24mm(H) |
|
|
Storage temperature |
-40°C to 85°C |
|
|
Operating temperature |
0°C to 70°C |
|
|
USB cable |
1M(2M/3M/5M optional) |
|
|
System Support |
Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） |
|
|
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
||
Step 1: Install Computer USB Camera Software – amcap
Contact customer service to obtain the software installation package.
Step 2: Connect the computer using a USB cable.
Step 3: Adjust the focal length to achieve a clear image.
