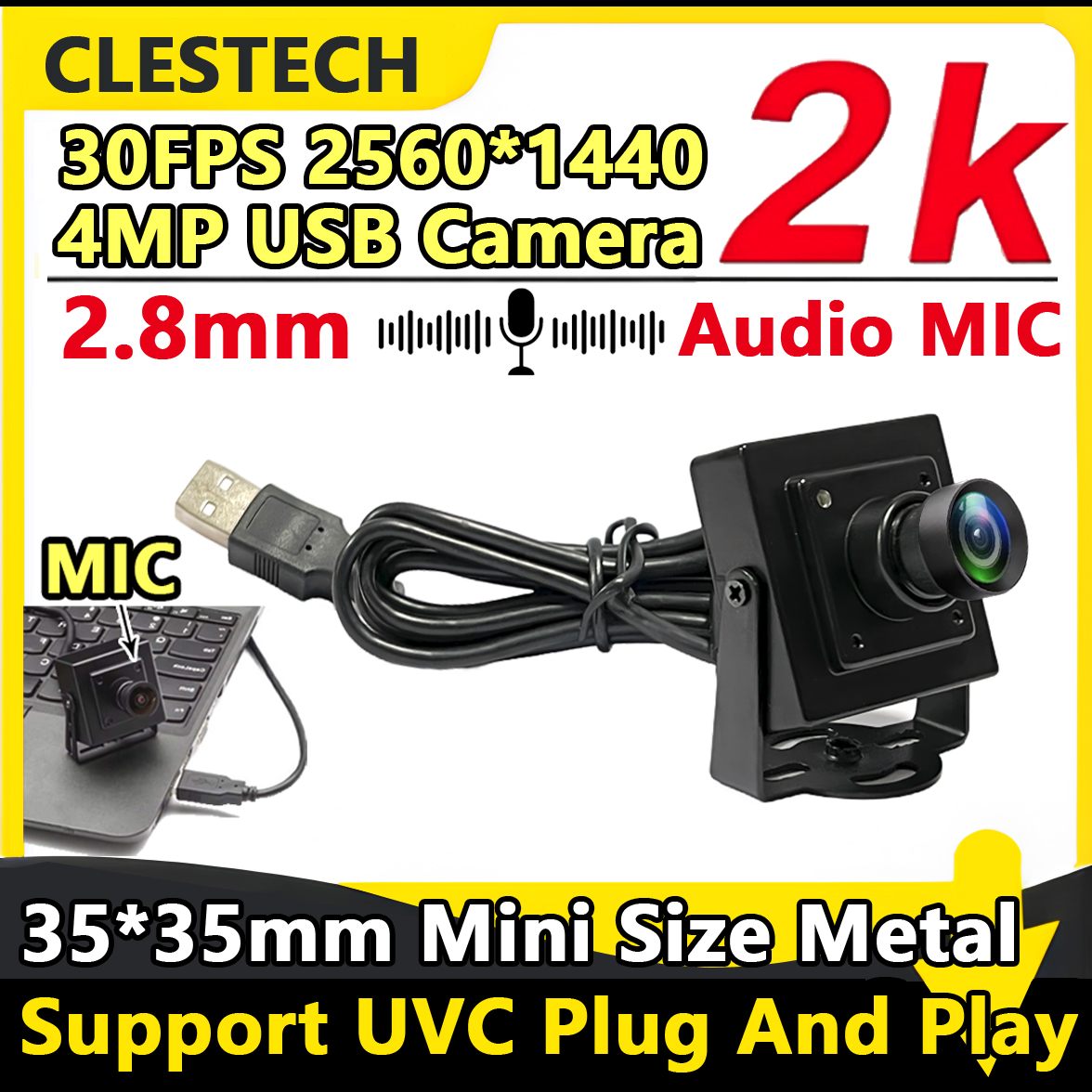

4MP USB Camera Feature:
1.High Speed 4MP HD USB Camera
2.5MP 2.8mm Lens
3.High frame rate MJPG– deliver 30 fps in 2560×1440 resolution, 30 fps in 1920X1080 resolution.
4.CMOS F5253 Sensor for high quality image and low power consumption.
5.High speed USB 2.0 interface for high resolution PC camera interface.
6.high pixel technology for sharp image and accurate color reproduction.
7.low light performance – ideal for any lighting condition.
8.Super small outline and thin profile for embedded applications.
9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

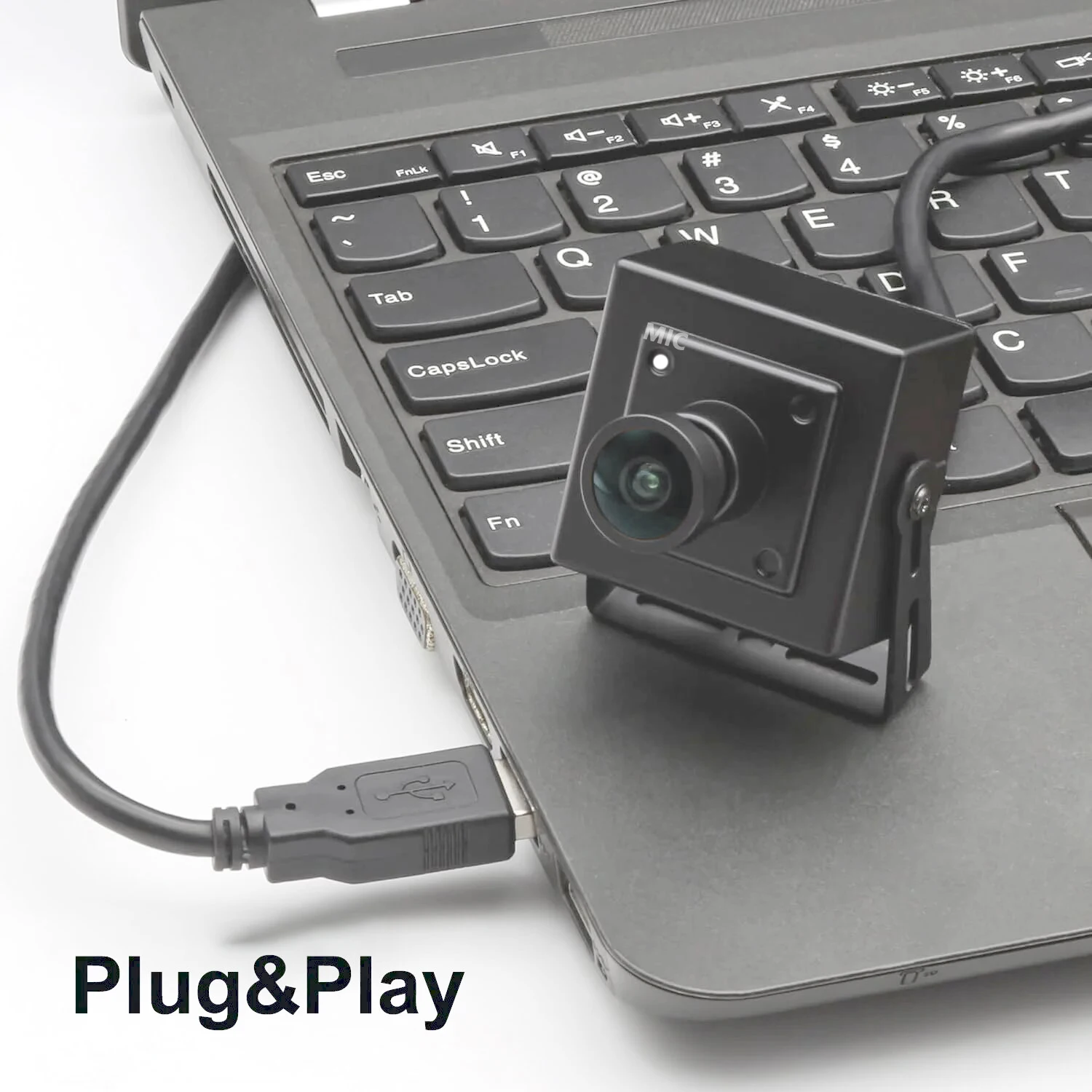

10.Camera With UVC, Drive-free.
Specification:
Sensor：1/2.9” CMOS F5253
Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels
Max resolution: 2560×1440
Output image format: MJPEG
USB protocol: USB2.0 HS/FS

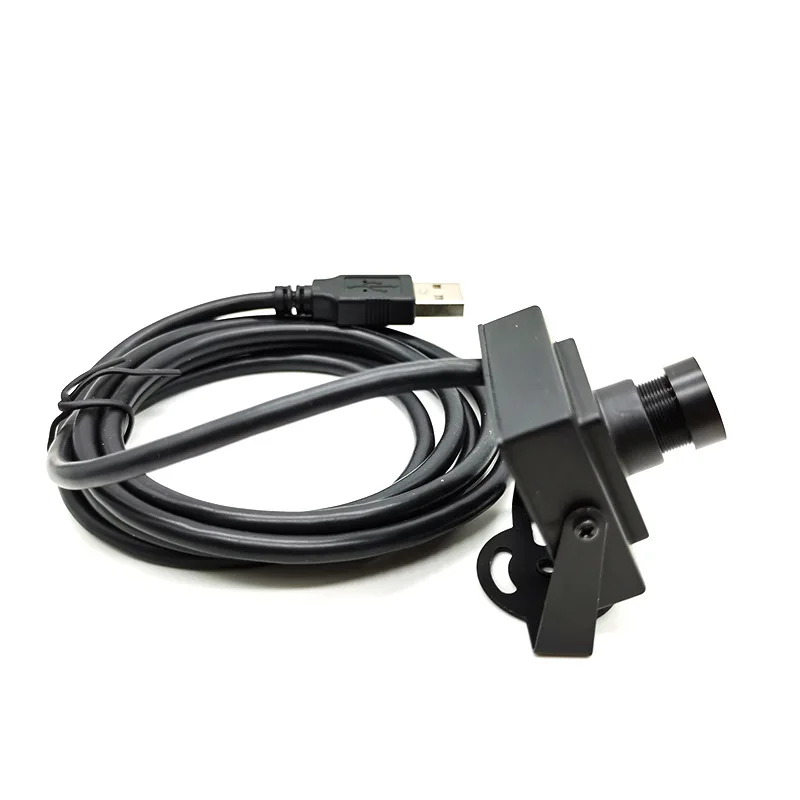

Cable: USB 1.5M
Support free drive protocol: USB Video Class (UVC)1.1

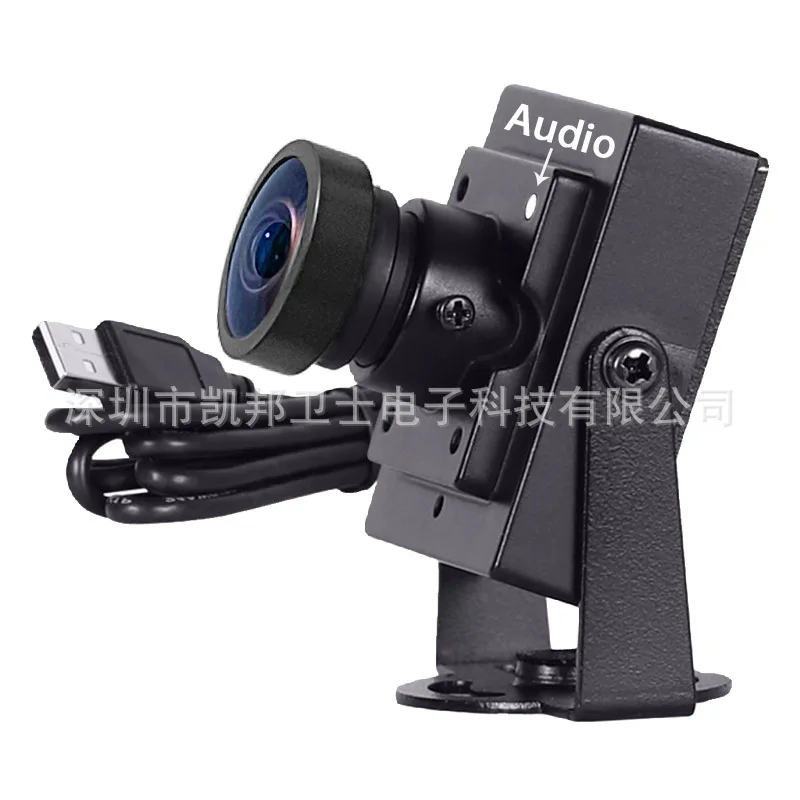

Audio: With Microphone
Automatic exposure control AEC: Support
Automatic white balance AEB: Support

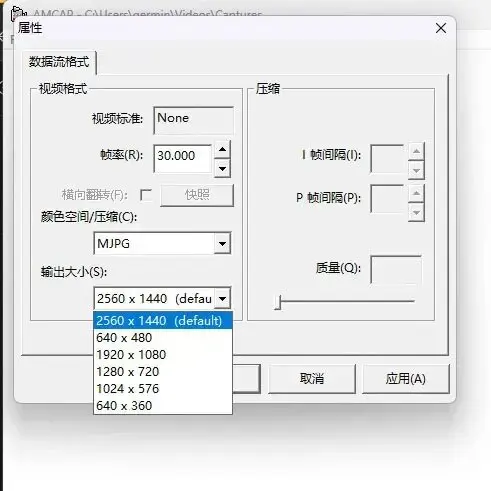

Frame rate:
2560(H)x1440 （V）Pixels MJPEG 30fps
1920(H)x1080 （V） Pixels MJPEG 30fps
1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps
640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps
Adjustable parameters: brightness, contrast, color saturation, Gamma, WB
Night Vison: no
Minimum illumination: 0.1(F1.2，AGC ON)
View Angle : Wide angle
Working voltage: DC 5V
Working current: 150mA
Working temperature: -10～60℃

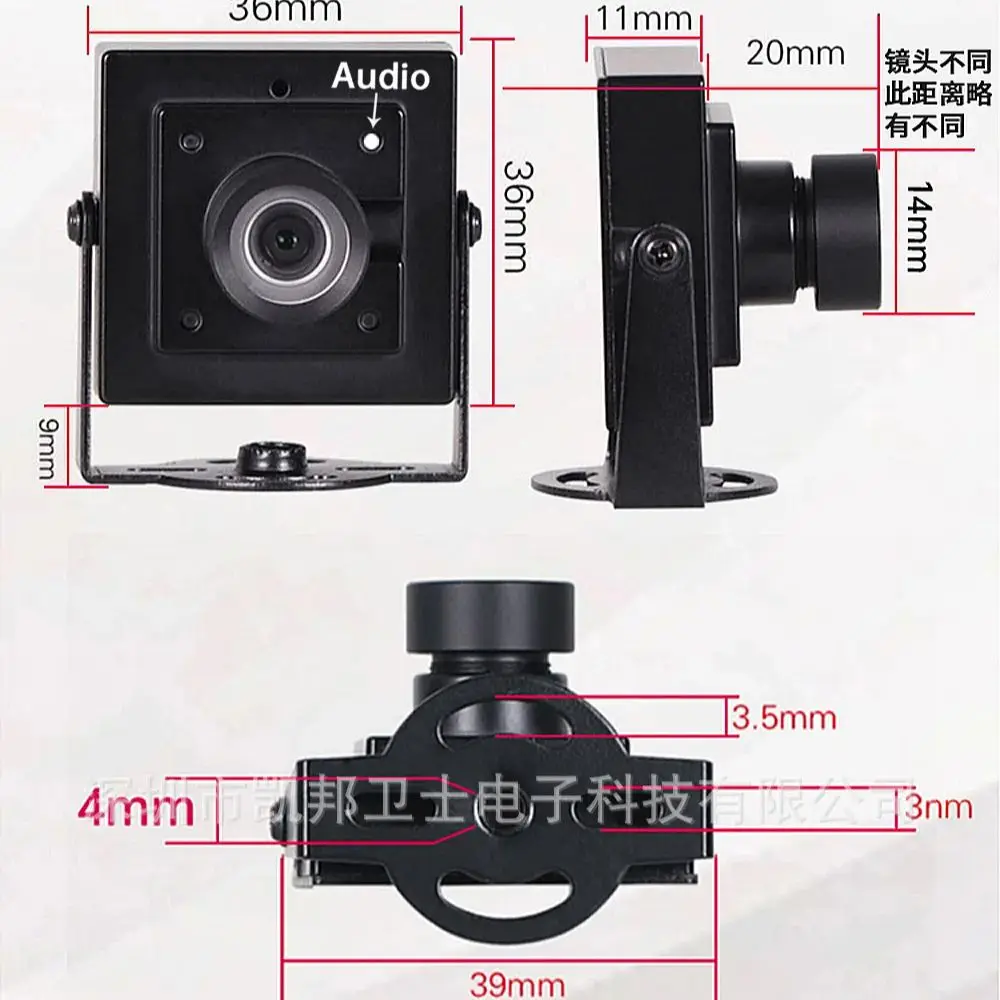

Board size/weight: 32X32mm
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
