2MP 1080P 20x Optical IR 100m/109yd AHD/TVI/CVI/CVBS CCTV PTZ Speed Dome Camera
Notice:
1. The camera is set default AHD output. For switching to TVI/CVI, please make sure your AHD/TVI/CVI DVR supports 2MP or 5MP.
2. If you select “with Power Adapter” option, please leave message in order for your power plug type, US/EU/UK/AU.
Features:
-
4-in-1 4” mini IR PTZ speed dome camera.
-
2MP 1080P resolution (Please refer to our store for 5MP model).
-
4.7-94mm 20x optical zoom lens, auto focus.
-
AHD/TVI/CVI/CVBS output optional in OSD.
-
Support coaxial cable UTC control.
-
360 degrees horizontal and 90 degrees vertical movement, RS485 control.
-
Preset loading speed up to 80 degrees/s.
-
Support presets and patrol functions.
-
Imported dot matrix large-size and high-speed glass LED lamps for up to 100m (109yd) IR distance and 30,000 hours’ service life.
-
Smart IR technology to control Infrared light according to environment, effectively enhance LED service life and guarantee
product stability. -
Constant current circuit design for stable IR light operation so that power supply change doesn’t affect LED life.
-
Efficient physical cooling structure for better heat dissipation to avoid fogging inside camera and ensure product stability.

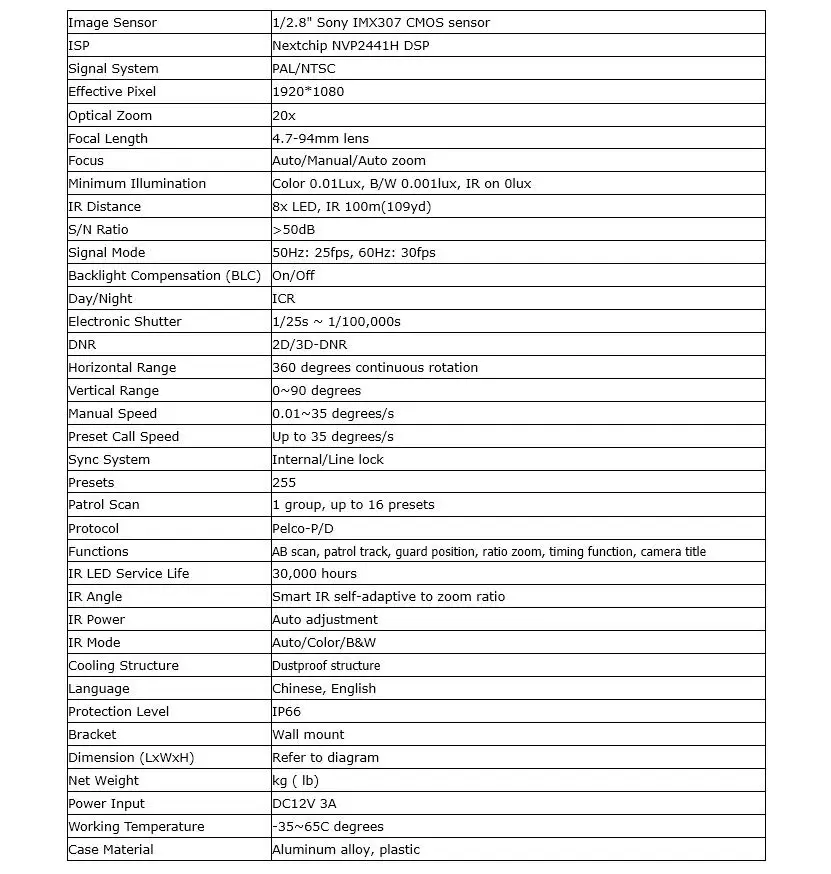

Specifications:
-
What is IR-CUT (ICR) function:
-
NTSC countries and districts list(Switch between PAL and NTSC in OSD menu):
America, American Samoa, Antigua, Antilles (Dutch), Aruba, Bahamas, Barbados, Barbuda, Belize, Bermuda, Bolivia, Brazil, British Virgin Islands, Burma, Canada, Chile, Colombia, Costa Rica, Cuba, Curacao, Diego Garcia, Dominica, Dominican Republic, Ecuador, El Salvador, Fiji, Grenada, Guam, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan, Johnston Islands, Korea South, Leeward Islands, Mariana Islands, Marshall Islands, Mexico, Micronesia, Midway Islands, Montserrat, Myanmar, Nicaragua, Okinawa, Palau, Panama, Peru, Philippines, Puerto Rico, Samoa, St Kitts and Nevis, St Lucia, St Vincent, Surinam, Taiwan of China, Trinidad and Tobago, United States of America, Venezuela, Vietnam, Virgin Islands
More Order Options: Please refer to our store for details.
-
SK-4SDA4N-2MX20: 2 Megapixels, 4.7~94mm 20x optical
-
SK-4SDA4N-5MX20: 5 Megapixels, 4.7~94mm 20x optical
