• Dual Band Ham Two Way Radio :This walkie talkie has both VHF and UHF bands, allowing you to communicate over a wider range of frequencies.
• FM Radio :With an FM radio built-in, you can listen to your favorite stations while on the go.
• Handheld Transceiver :The handheld design makes it easy to carry and use, perfect for outdoor activities like hunting.
• 16KM Maximum Range :With a maximum range of 16 kilometers, you can communicate with other walkie talkies from a distance.
👍Multiple frequency modulation methods:
① Program Manually In VFO Mode:Press “VFO/MR”to switch into Frequency mode,Without being bound by the computer,you can input frequency by keyboard,select CTCSS and store it.
②Program by PC : You can use our programming soft to program your walkie-talkie with PC, easy to operate, suitable for novices, and provide technical guidance.Work with CHIRP!
👍SOS Alarm: When you encounter an emergency, you can short press the side button -CALL, the SOS function will sound a loud siren and flashing light when turned on to alert others to your location.
👍FM Radio &Super-Bright:FM radio allows you to enjoy your leisure time by listening to the FM radio , getting a relaxed mood during the long trip.Baofeng UV-5R radio can also provide light to keep you and your loved ones out of the dark.
👍Dual Standby:Dual Band, Dual Display, Dual Frequency,Dual Standby Help you communicate more freely and without barriers
👍Perfect for Outdoor Adventures: With a lightweight and compact size, the weather solar radio easily fits in your backpack, and the included wrist strap ensures it won’t get lost, ideal as a must survival kit for any outdoor adventure.
8W:

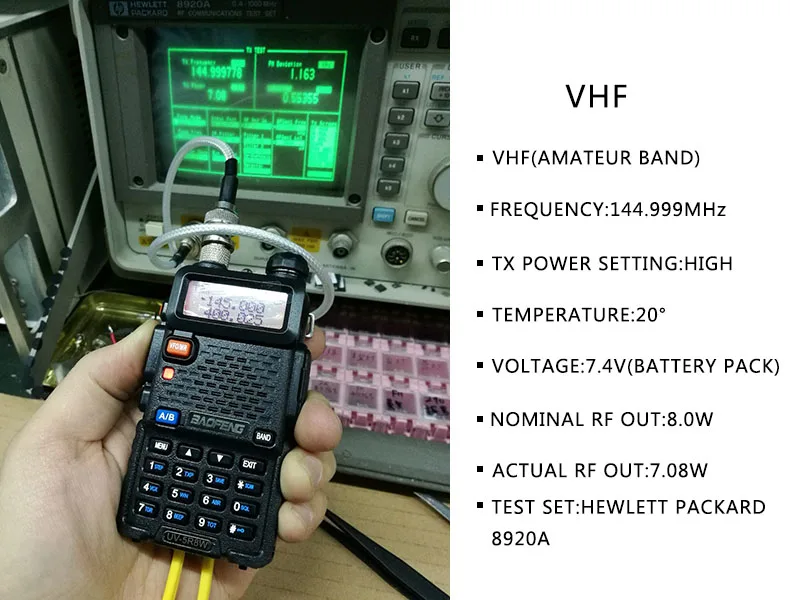

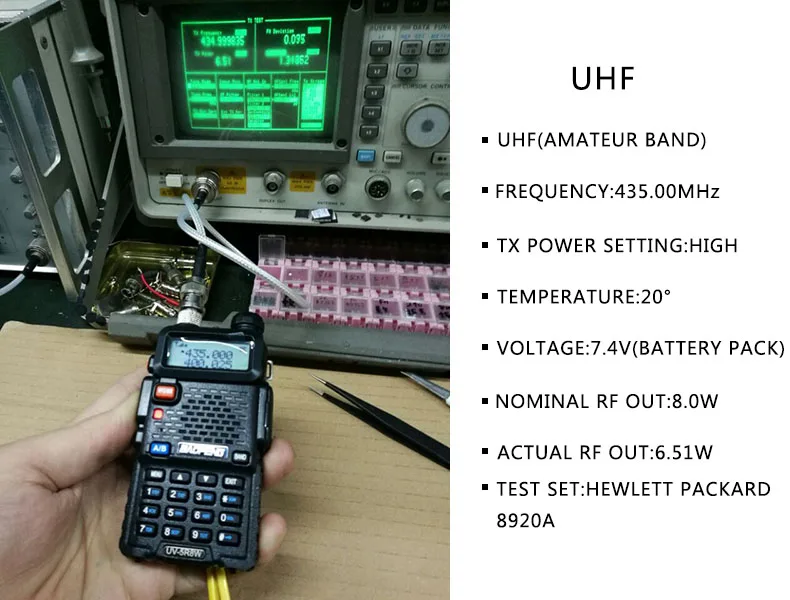

The UV-5R8W is the most powerful BaoFeng capable of transmitting 8 watts!
Low/Medium/High three section TX power1W/4W/8W adjustable.
CE FCC RoHs dual band ham radio transceiver with VOX function UV 5R
|
AllofouritemsareBrandNew |
||
|
Model |
Baofeng UV 5R 5w/8W |
|
|
Dual Band/Dual Display/Dual Standby |
A / B band independent operation (UVUUV) |
|
|
128groups channels storage |
Short cut menu operation mode |
|
|
VFO&Memory channels scan |
Emergency Alarm |
|
|
Time-out Timer(TOT) |
0~9 gradesVOX selectable |
|
|
PTT&ANIES |
FM radio and 25 stations storage |
|
|
Voice companding |
50CTCSS/104DCS |
|
|
High/LowTXpowerselectable |
Busy channel lock-out(BCLO) |
|
|
DTMF function |
OFF SET function |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer(TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Ledtorch |
Yes |
|
|
FM radio |
Yes |
|
|
Wireclone function |
Yes |
|
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
|
|
ROGERSET |
YesYes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Rated Voltage |
7.4VDC±10% |
|
|
Output power |
<=5W |
|
|
Battery type |
Li-ion batteries |
|
|
Battery capacity |
1800mAh |
|
|
Working temperature |
-20~+50 ° C |
|
|
Antenna Impedance |
50ohm |
|
|
Weight |
255g |
|
|
Dimension(LXWXH) |
58X32X110mm(NotAntenna) |
|
|
Frequency stability |
±2.5ppm |
|
|
Carier wave tomerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Max frequency deviation |
<5kHz(Wide) |
|
|
Modulation character |
6dB perfold frequency patch |
|
|
Emission current |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
${132} |
|
|
Silentsensitivity |
${134} |
|
|
Intermediation Distortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacent channel selectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|

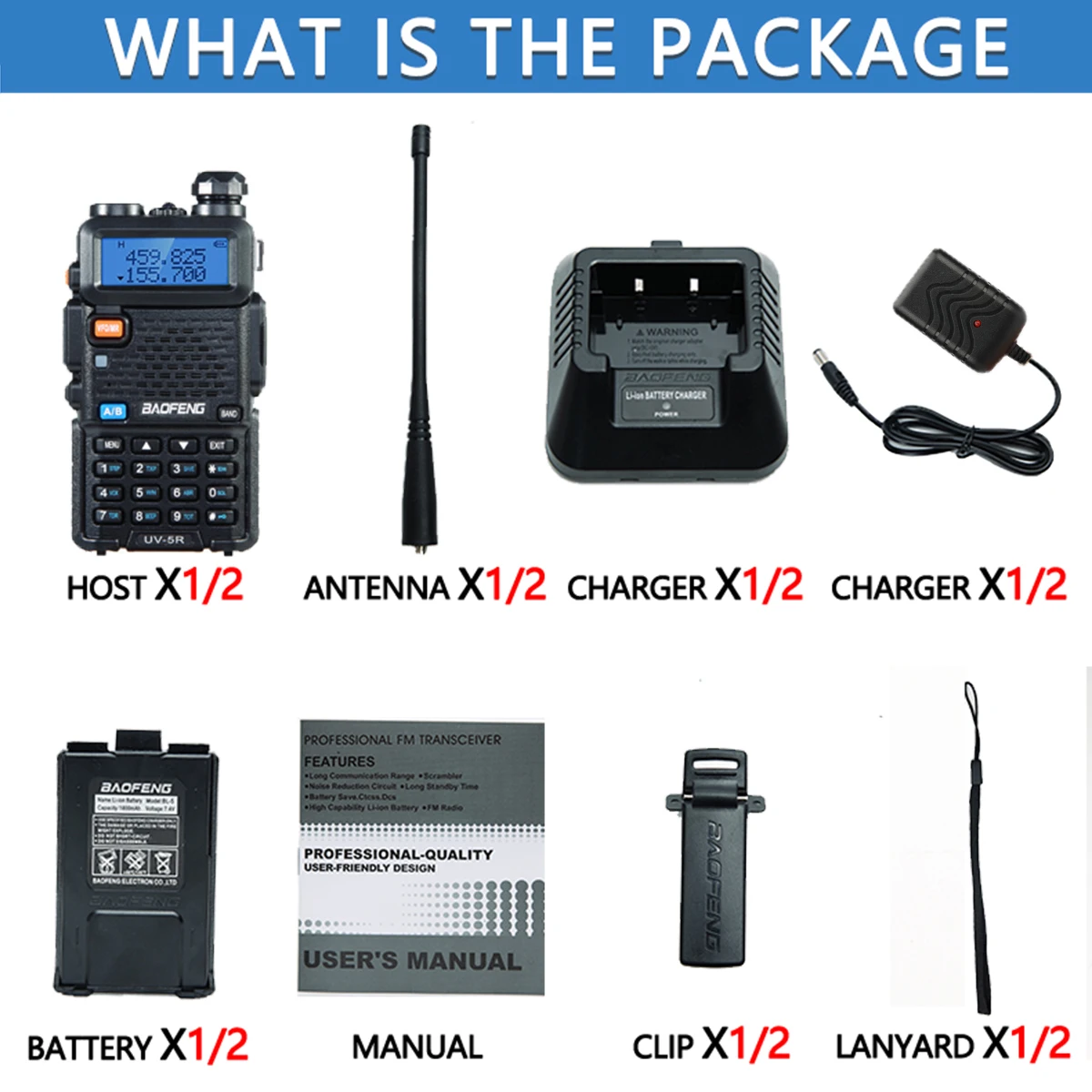

PackageInclude:
1/2 X Portable radio
1/2 X Antenna
1/2 X Li-ion battery pack
1/2 x Li-Ion Charger
1/2 X Belt Clip
1/2 X Thesling
1 X User’smanual
other accessories depend on your choice in the link
NOTICE:
*The warehouse sends EU Plug by default: Russia, Spain, Germany, Korea, France, Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Sweden, India, Italy, Ukraine, Chile, Turkey, etc.
*User Manual: The user manual we provide is English version, including paper version and electronic version, if you need electronic version, please contact us, thanks.
*How to communicate with different walkie talkies: No matter what brand of walkietalkie you use, as long as the frequency is the same, you can communicate.
*Long-Range communication :Walkie talkies long range can reach 3-10km in open areas such as rural areas, suburbs or seaside, etc. where there is no shelter. If in cities or towns, walkie talkies can reach 2-5km in most cases. The actual distance Depends on the obstruction of the current environment.
