3.5X-90X Simul-Focal Stereo Trinocular Microscope 4K 2K 48MP 1080P HDMI USB Digital Video Camera For PCB Phone Soldering Repair

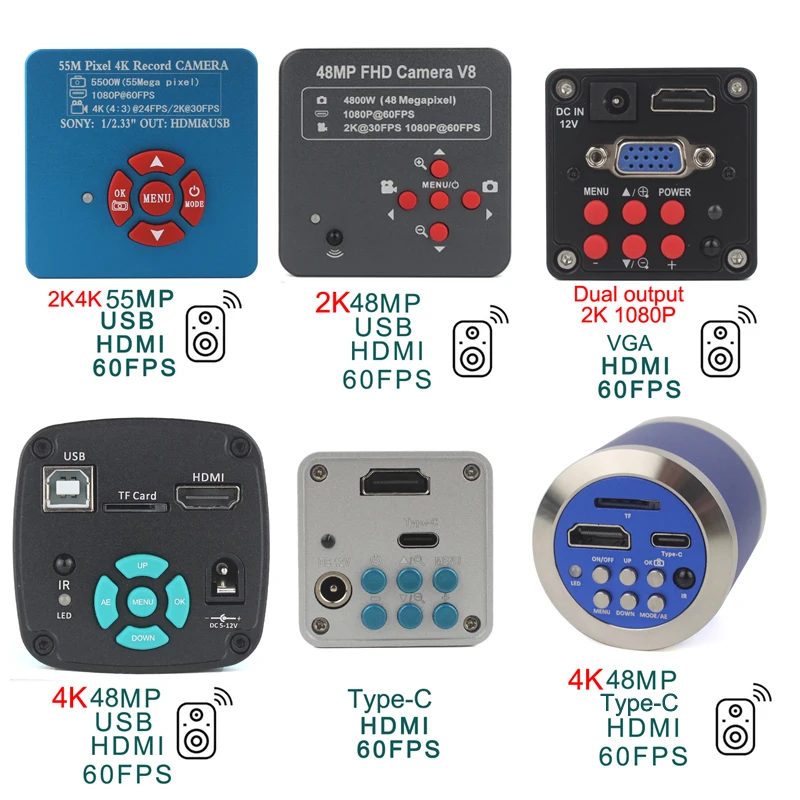

Note: The link has multiple SKU options, each representing a different model of camera.

Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

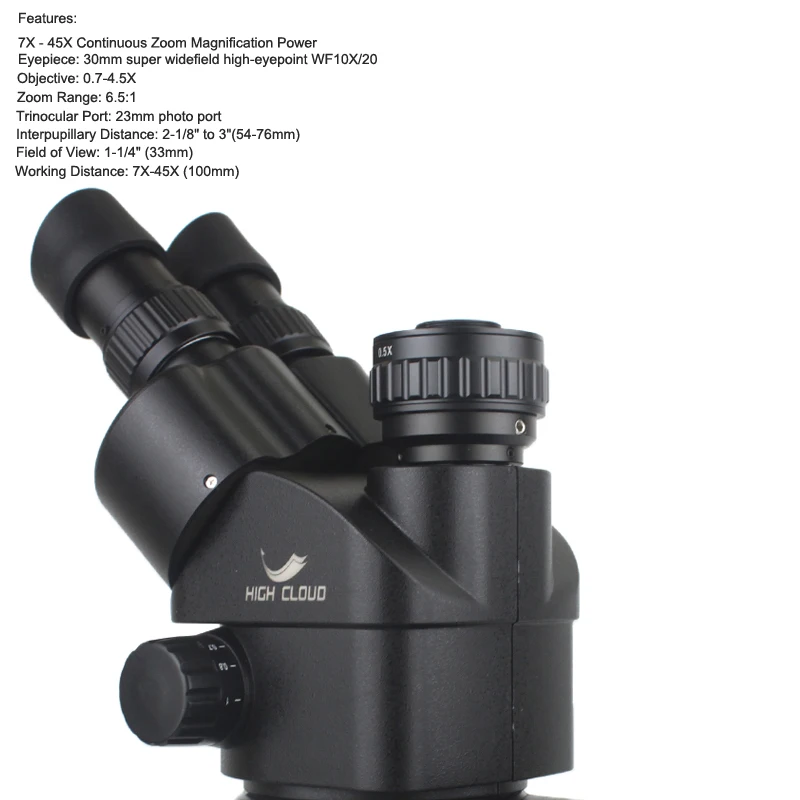

Features:
7X – 45X Continuous Zoom Magnification Power

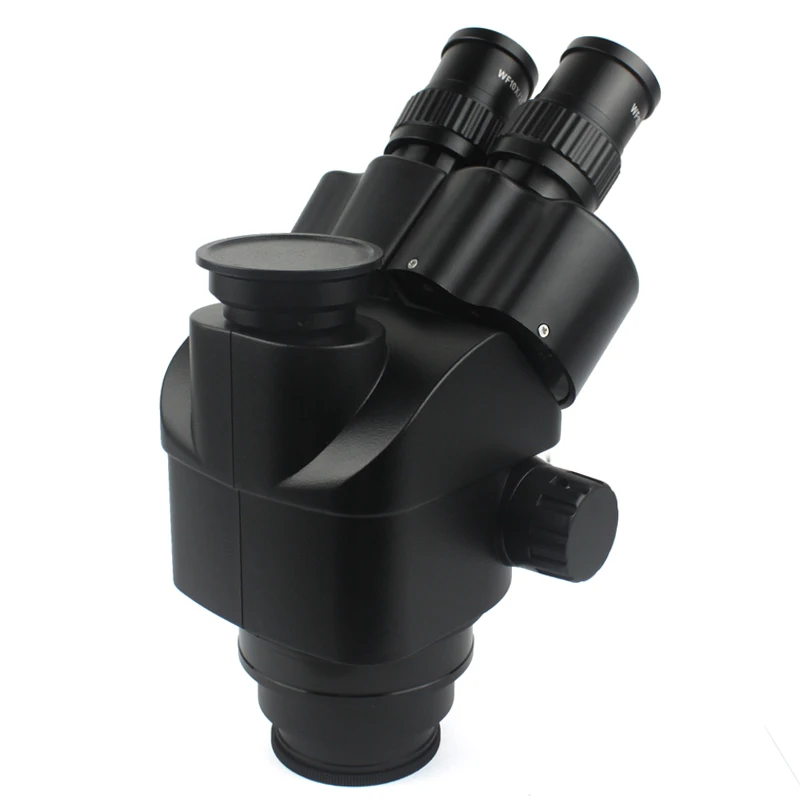

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard

Specifications:Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

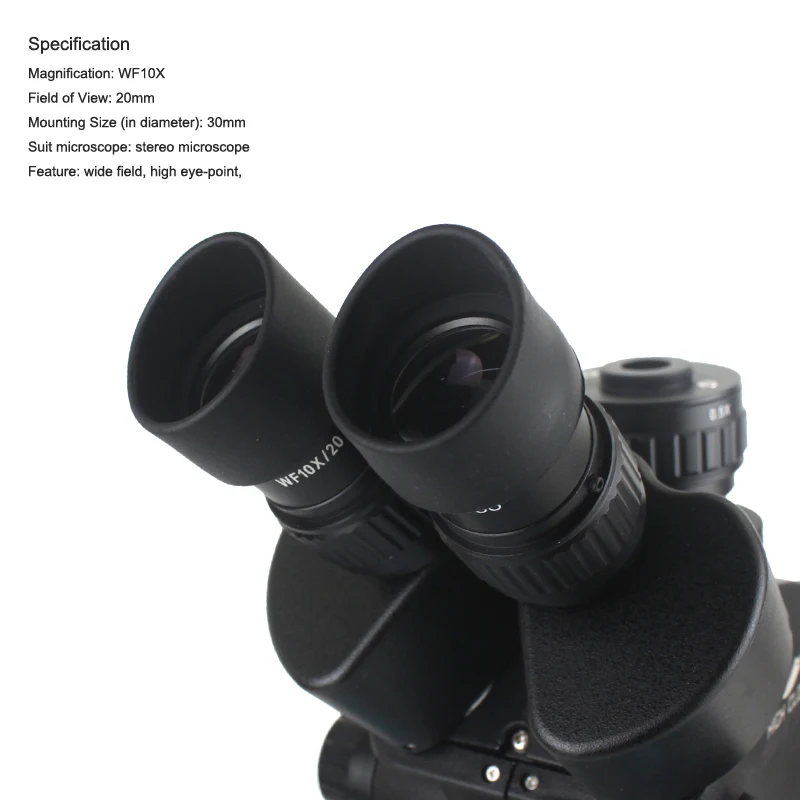

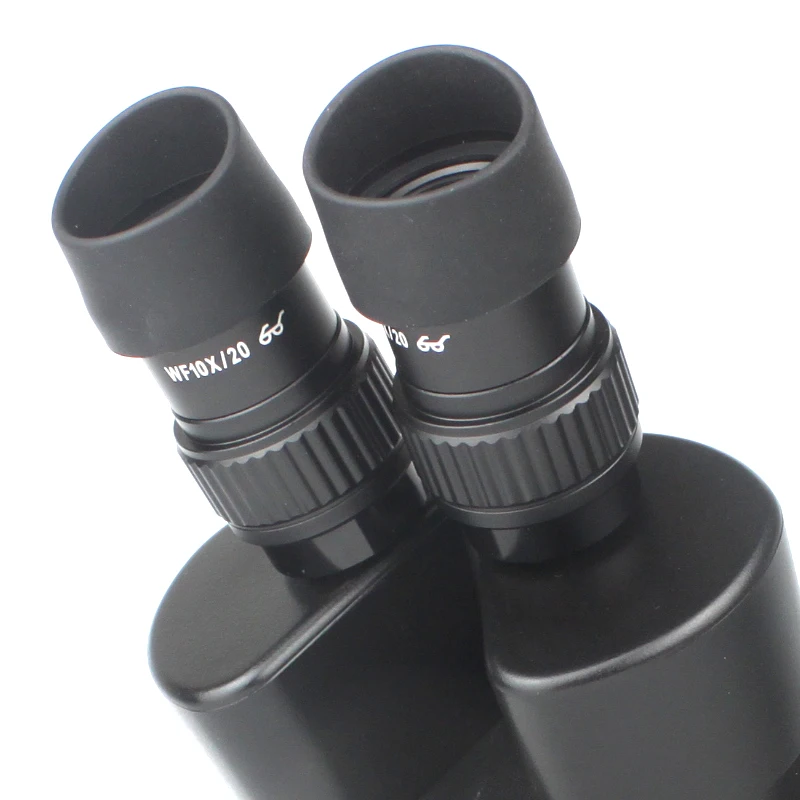

Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8″ to 3″(54-76mm)
Field of View: 1-1/4″ (33mm)

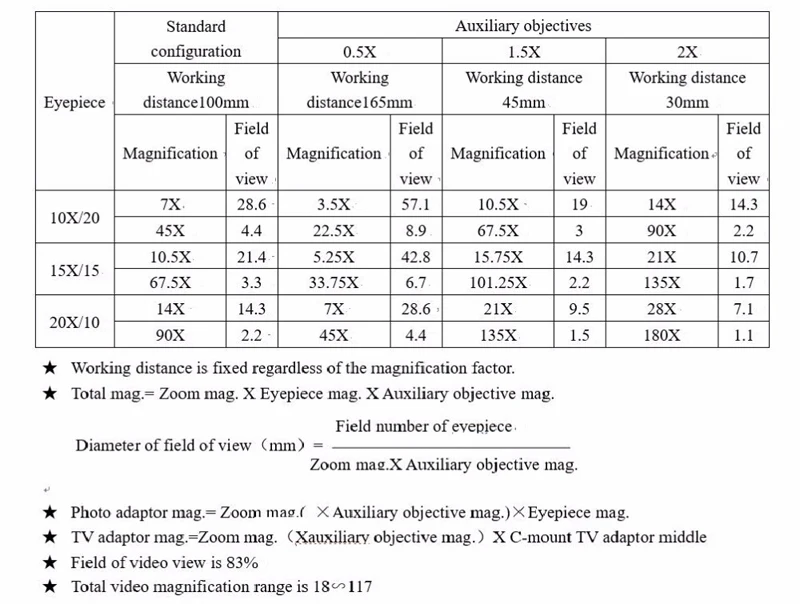

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3″ (76mm) diameter
Accessory Mounting Size: 1-7/8″ (48mm female thread) diameter

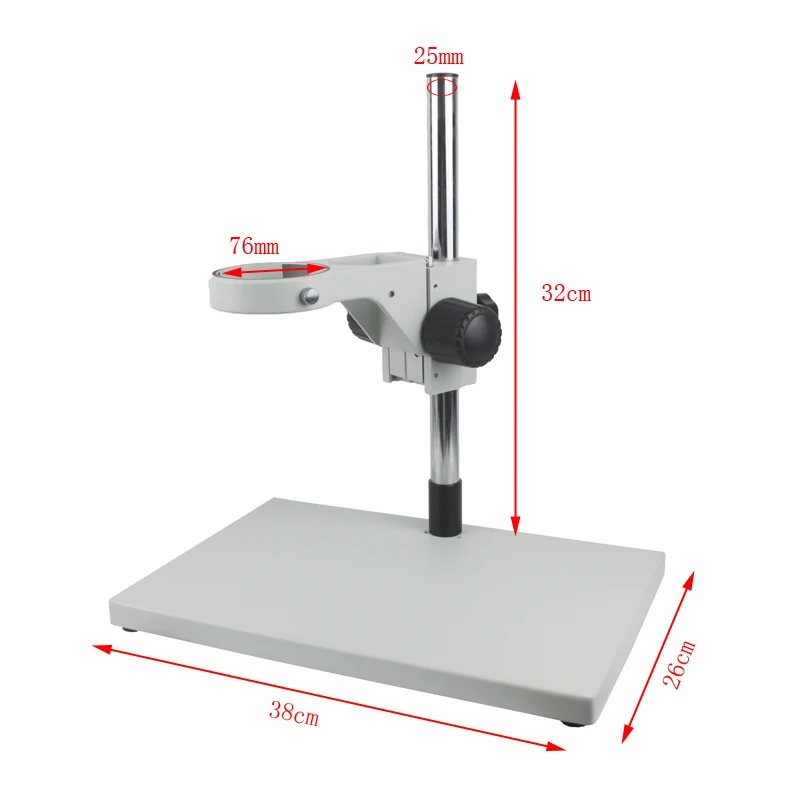

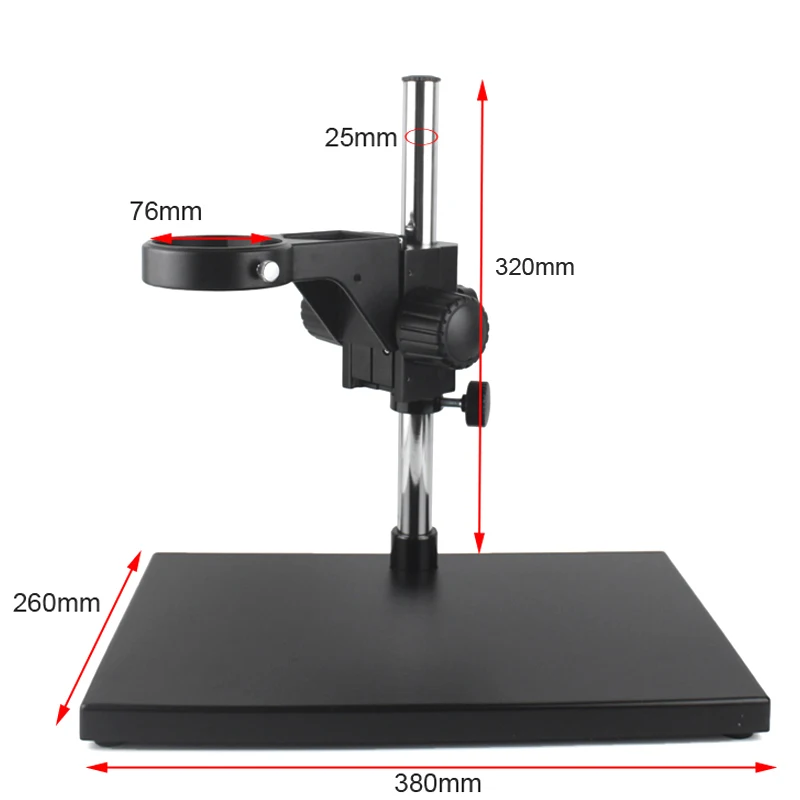

76mm Microscope Stand Features:
Type: Microscope Stand
Material: Metal
Connectiong Objective: DIA 76mm
Connectiong Pillar: DIA 25mm
Stand Size:375 mm x 260mm x 320mm
Applications: Stereo Microscope Binocular Microscope Trinocular Microscope
Support base: 25mm
Boom hole diameter (ie connected to the microscope): 25mm
With the column diameter: ¢ 25mm

Note: The link has multiple SKU options, each representing a different model of camera.

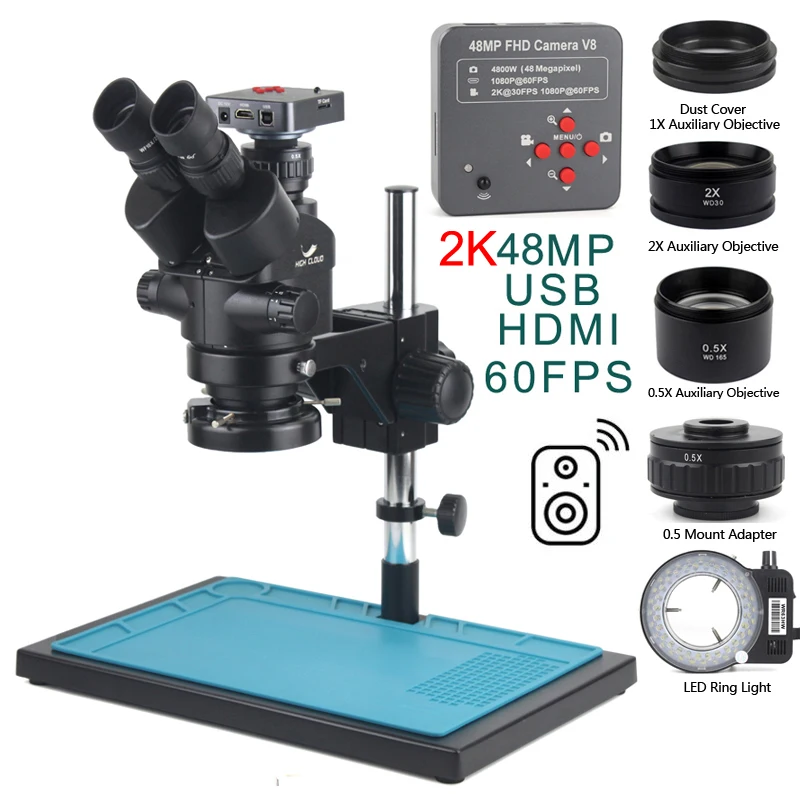

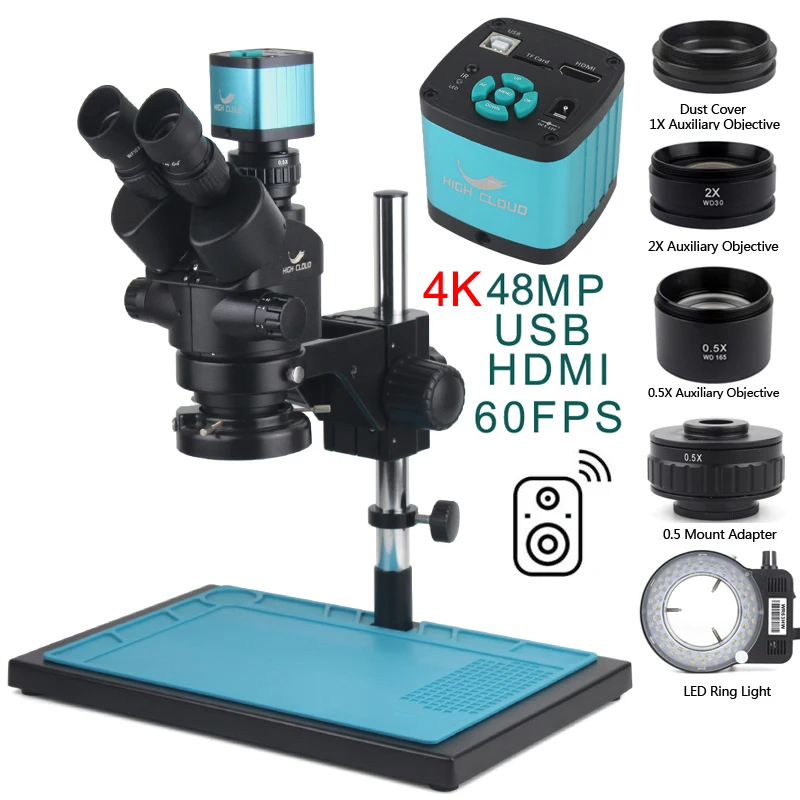

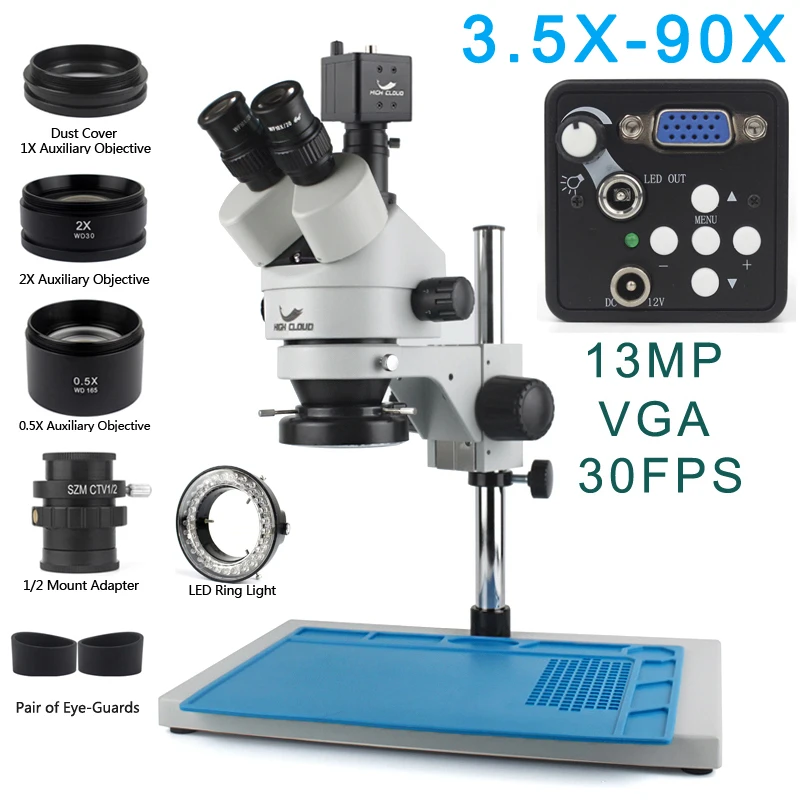

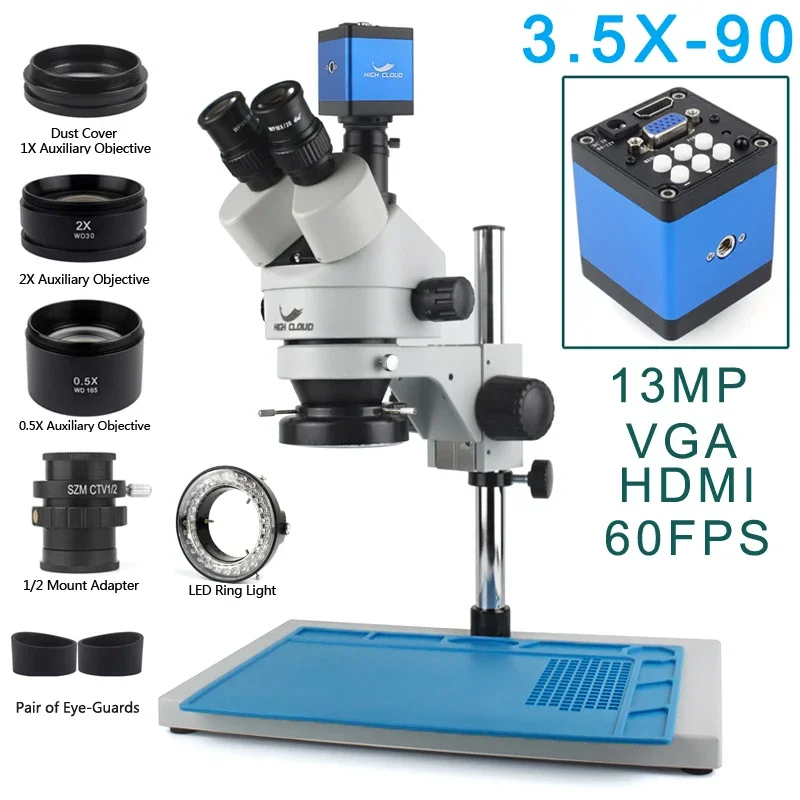

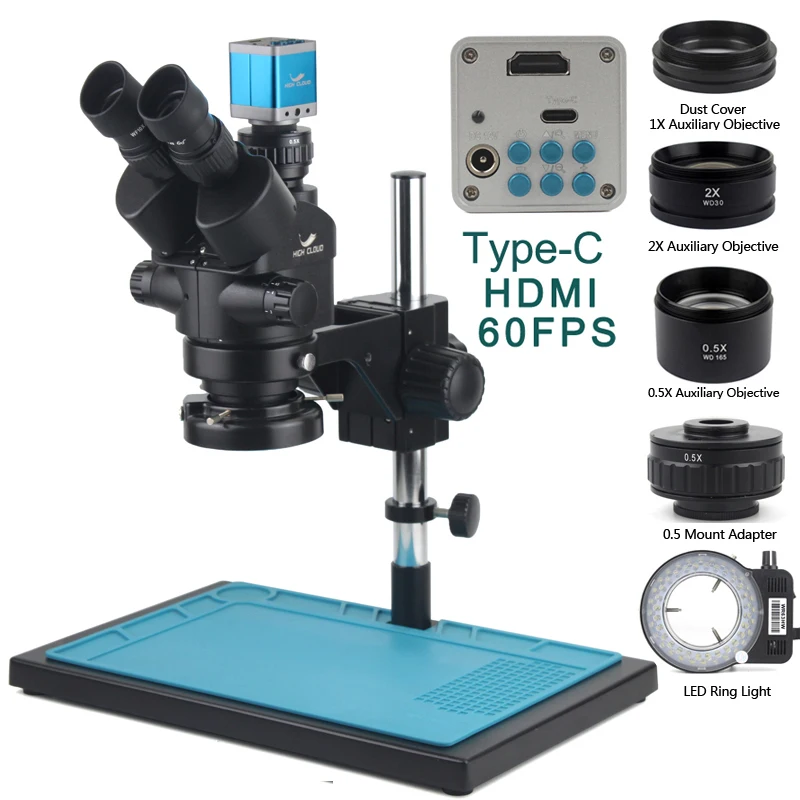

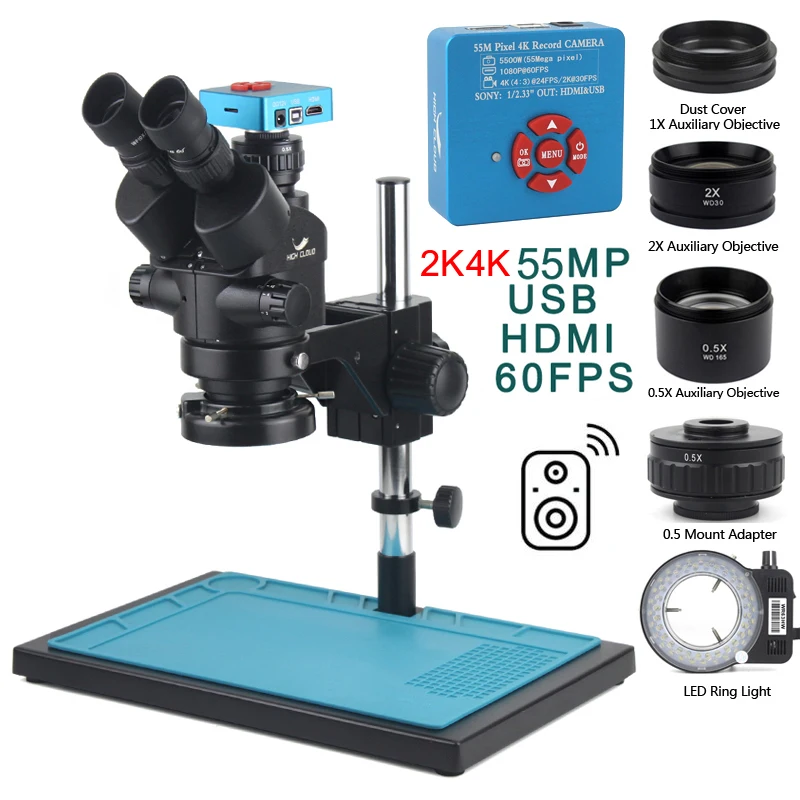

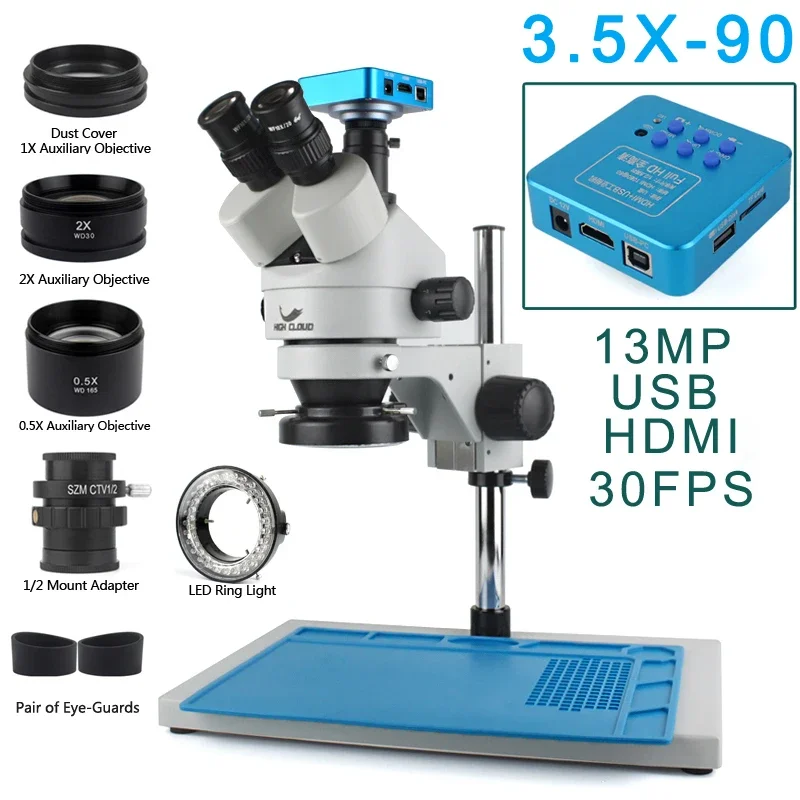

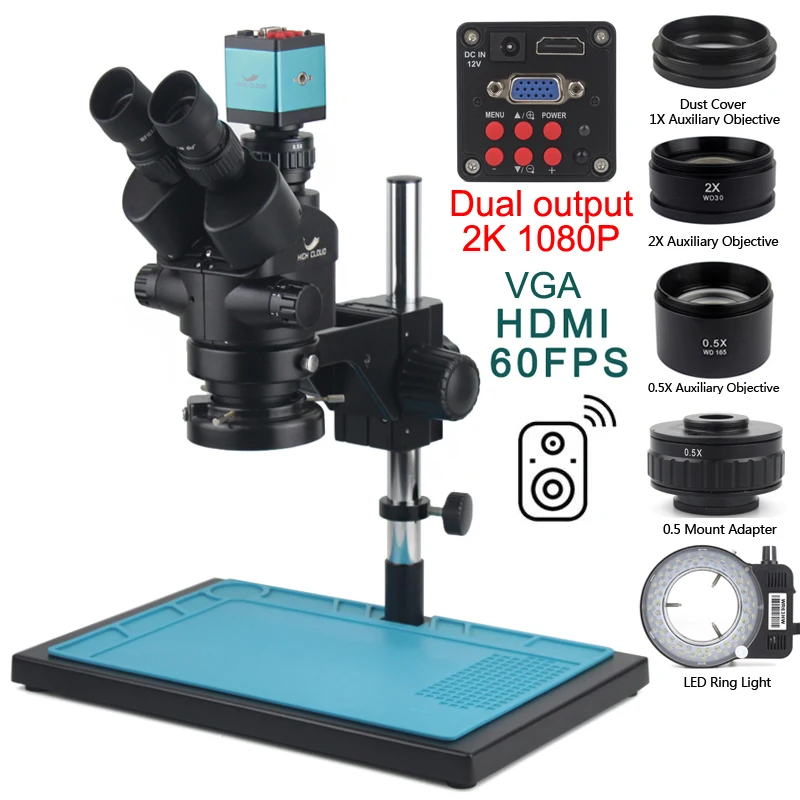

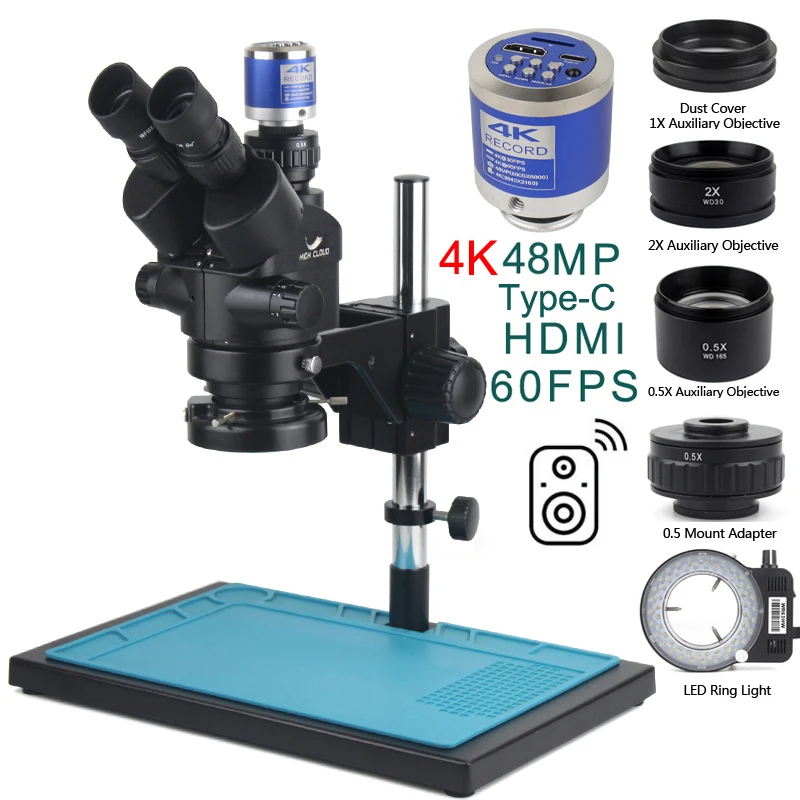

Package Including:

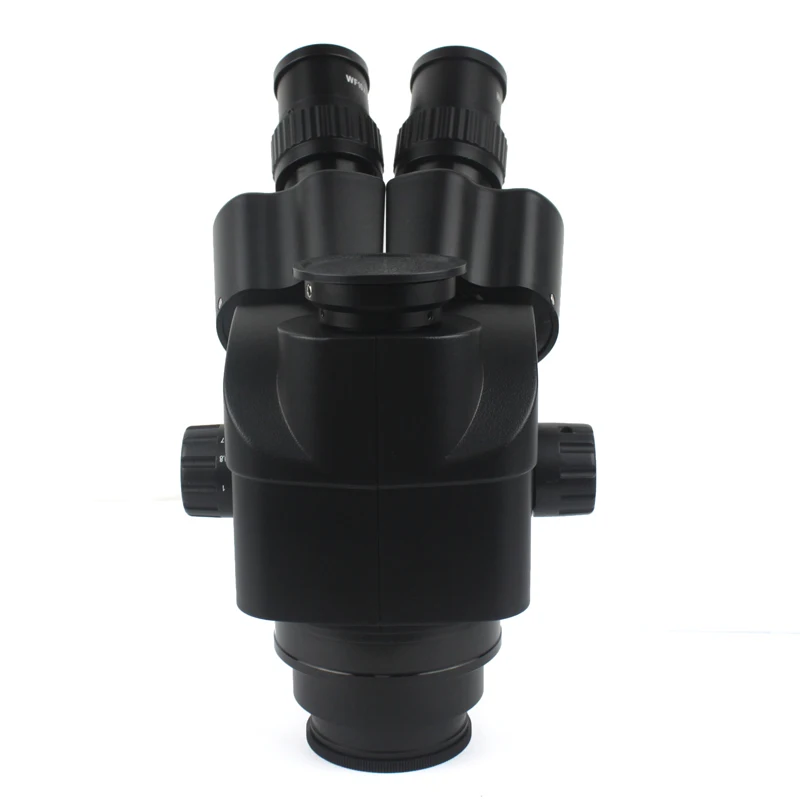

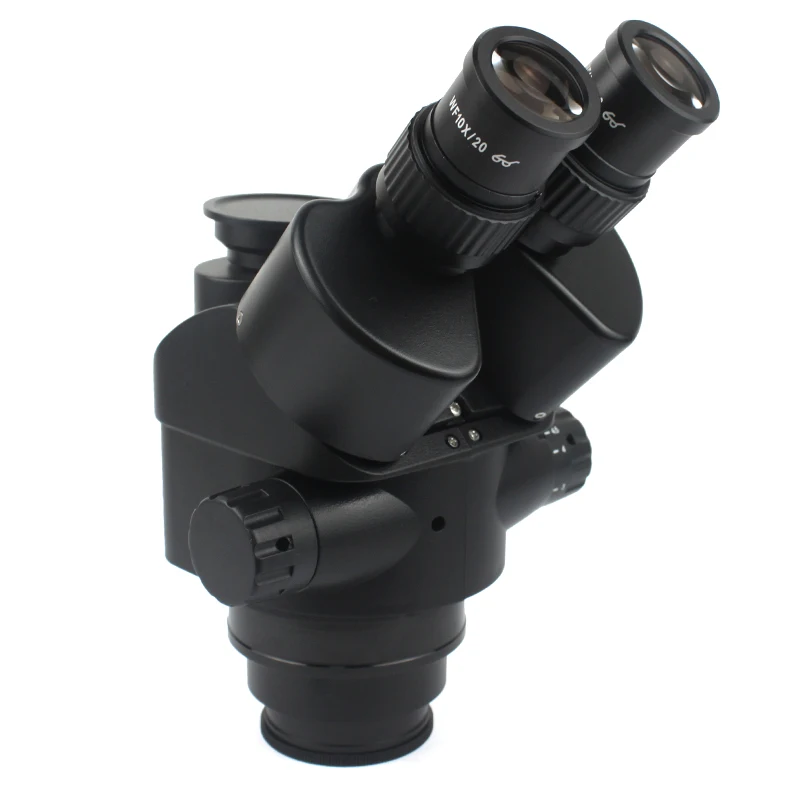

1 x Trinocular Stereo Zoom Head(Working distance is about 10cm)

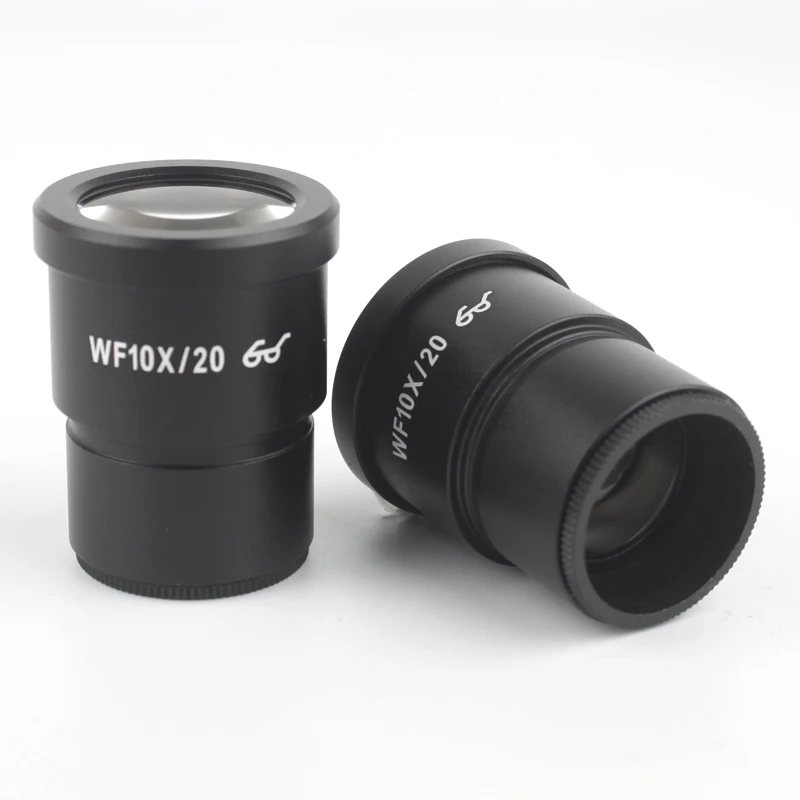

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x Pair of Eye-Guards

1 x Dust Cover

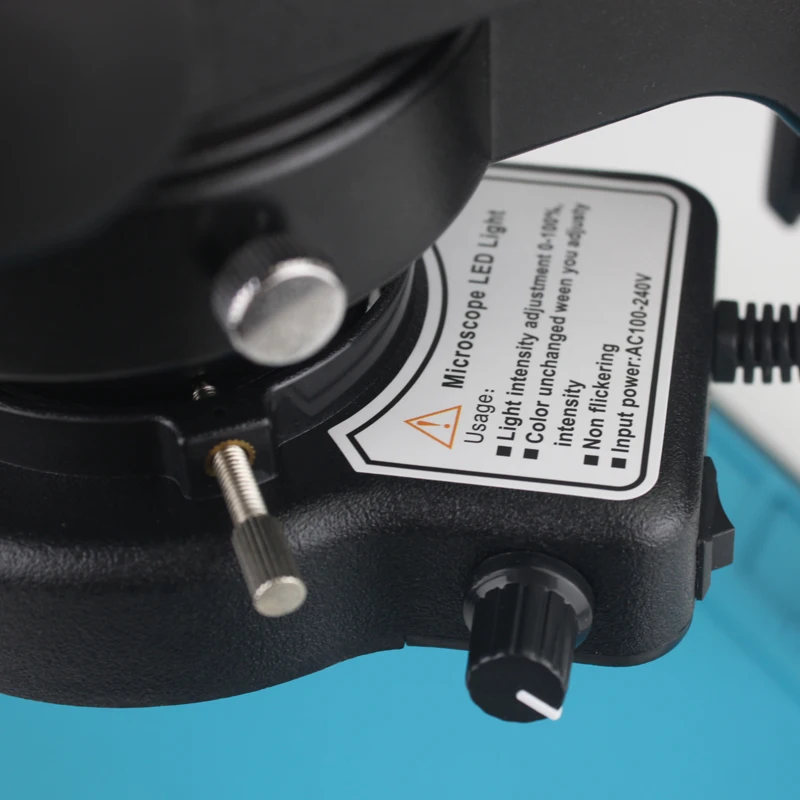

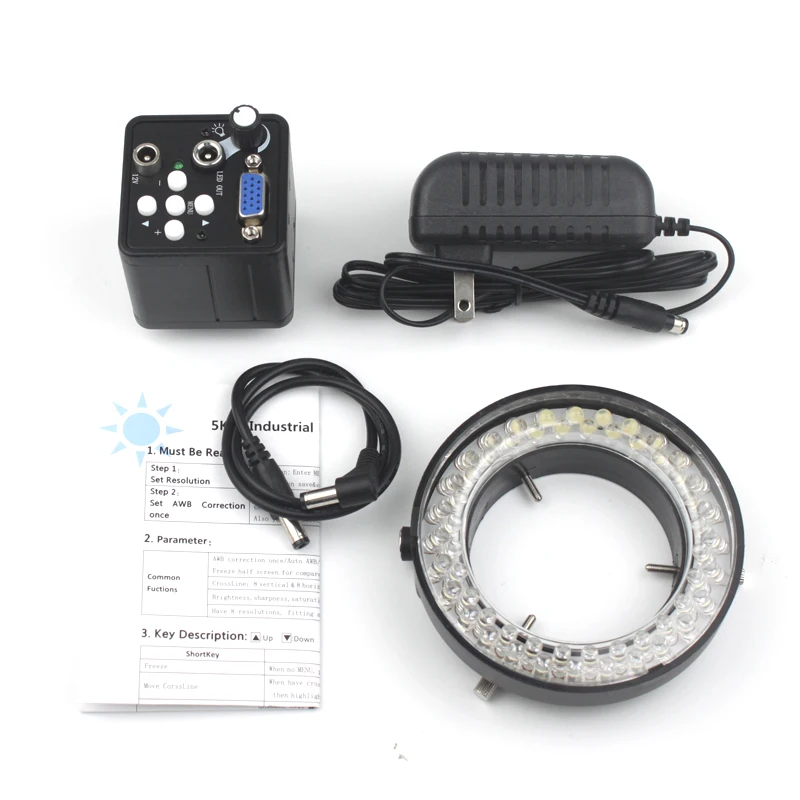

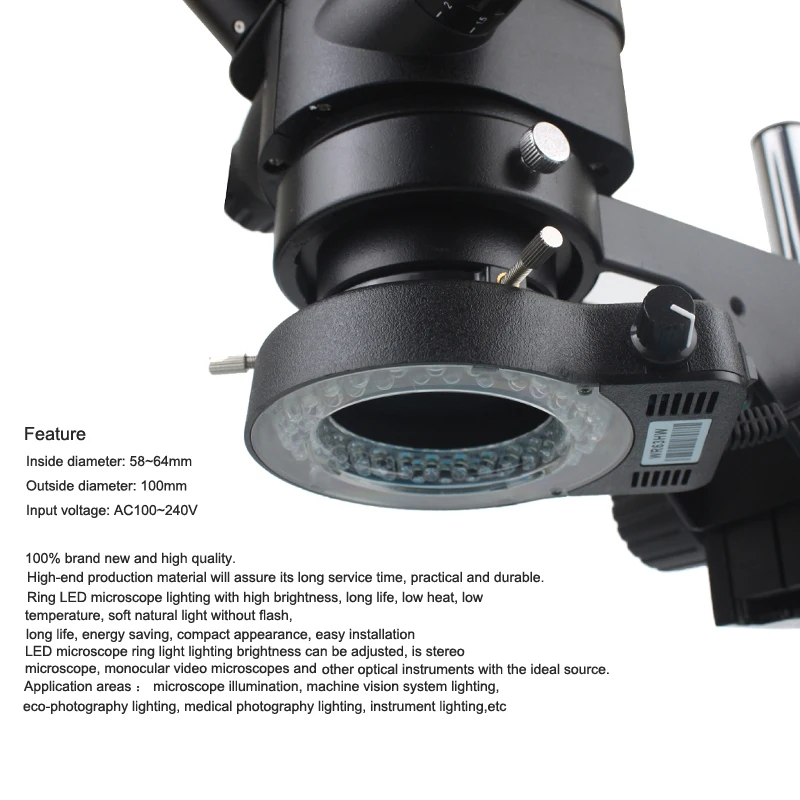

1 x 56-LED Ring Light

1 x Big Stand

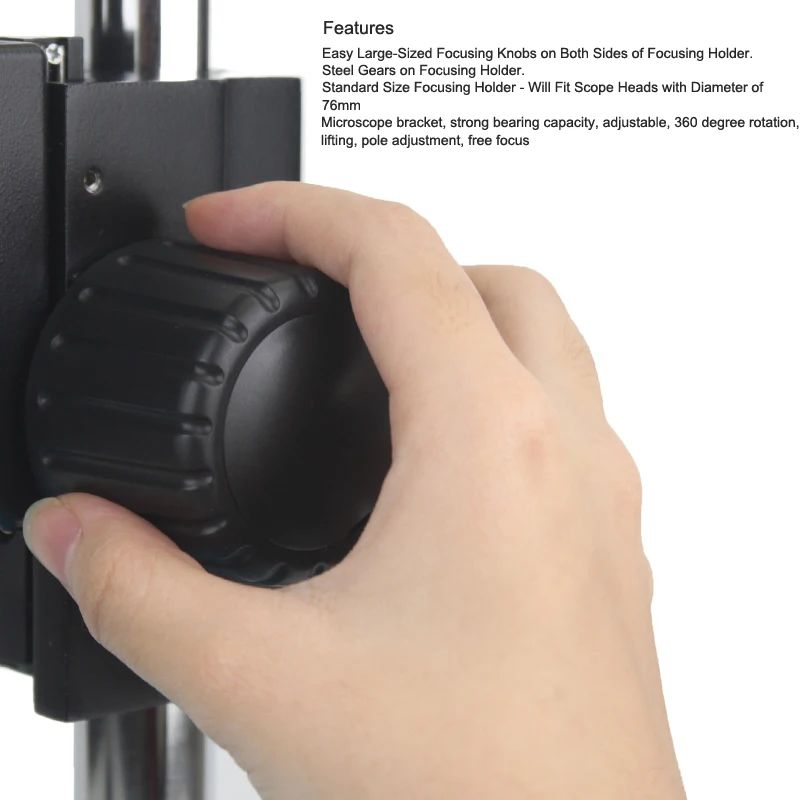

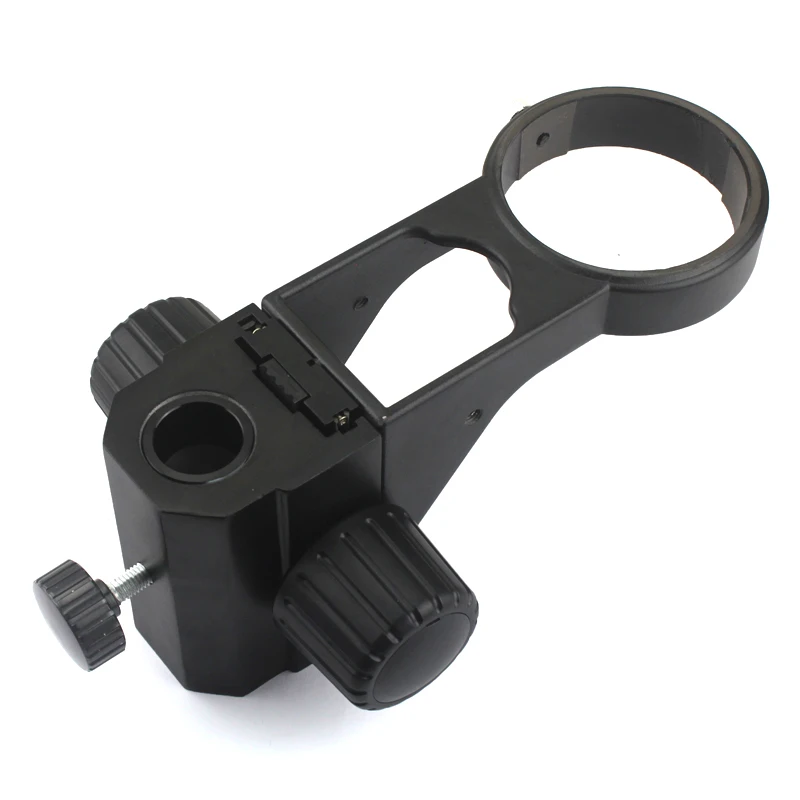

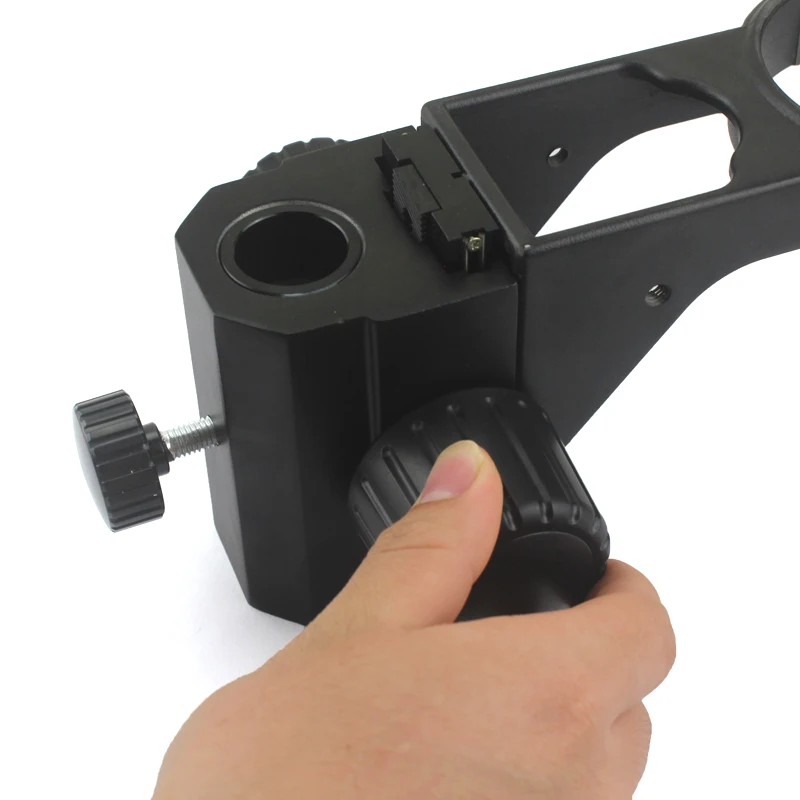

1 x 76mm Focusing Holder

1 x High temperature resistant working pad

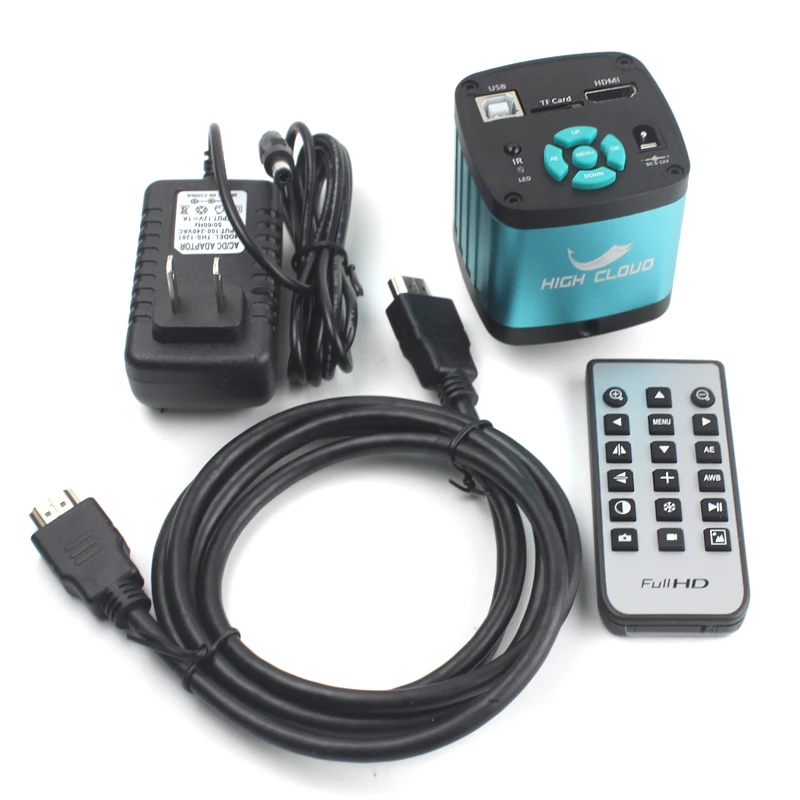

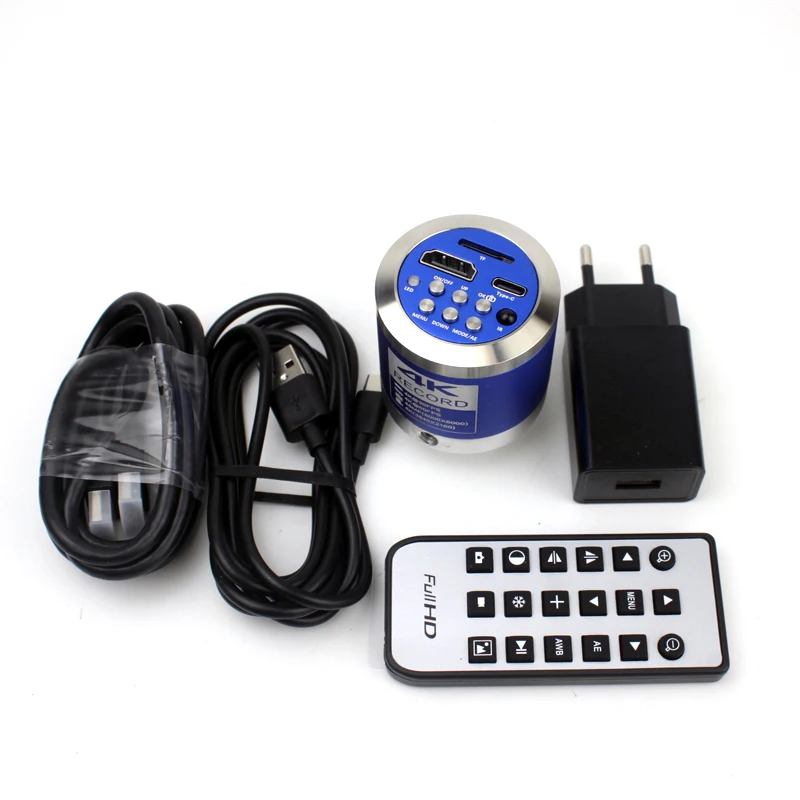

1 x HDMI USB Video Camera

1 x HDMI Cable（6 specifications Optional）

1 x Power Supply Adapter (EU/US)

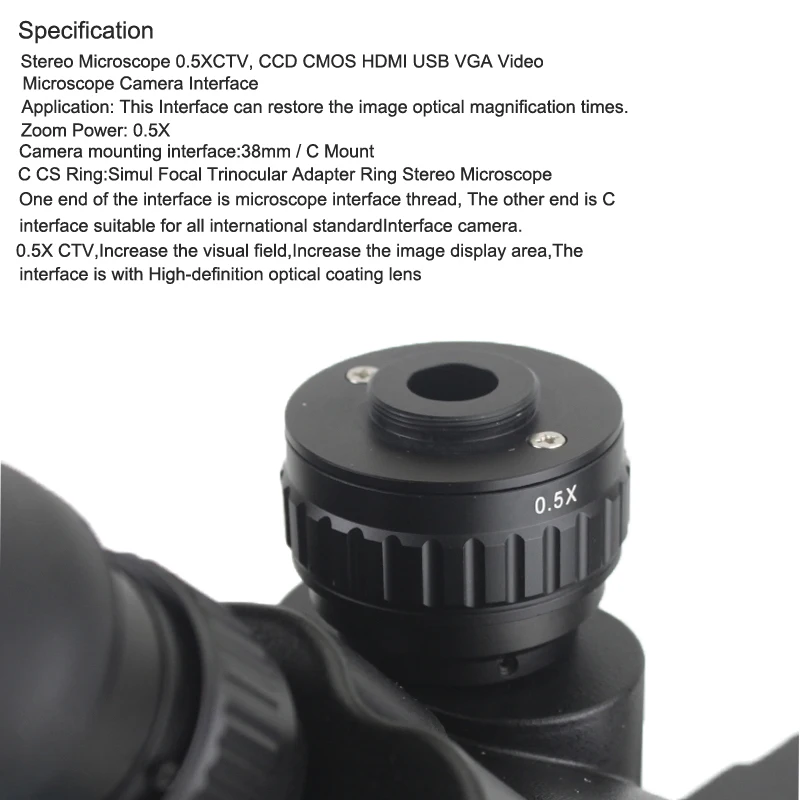

1 x 0.5X C-mount Adapter

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

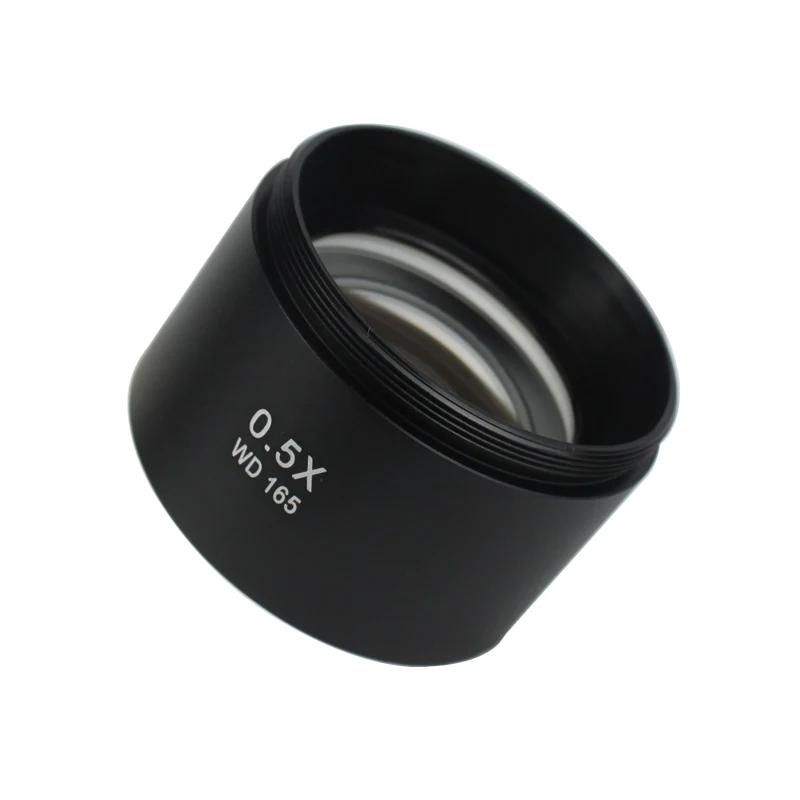

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)

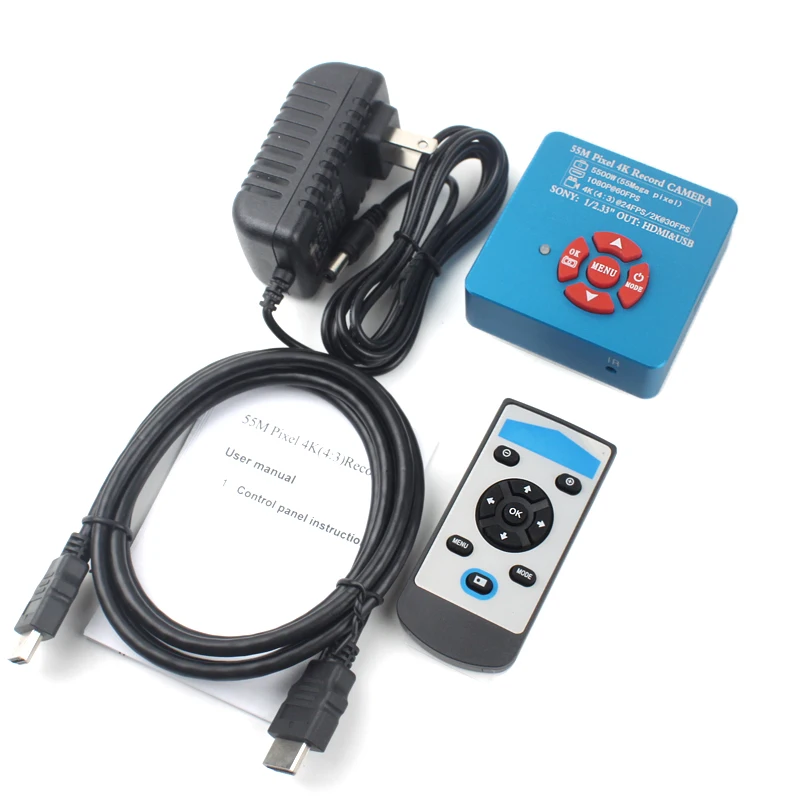

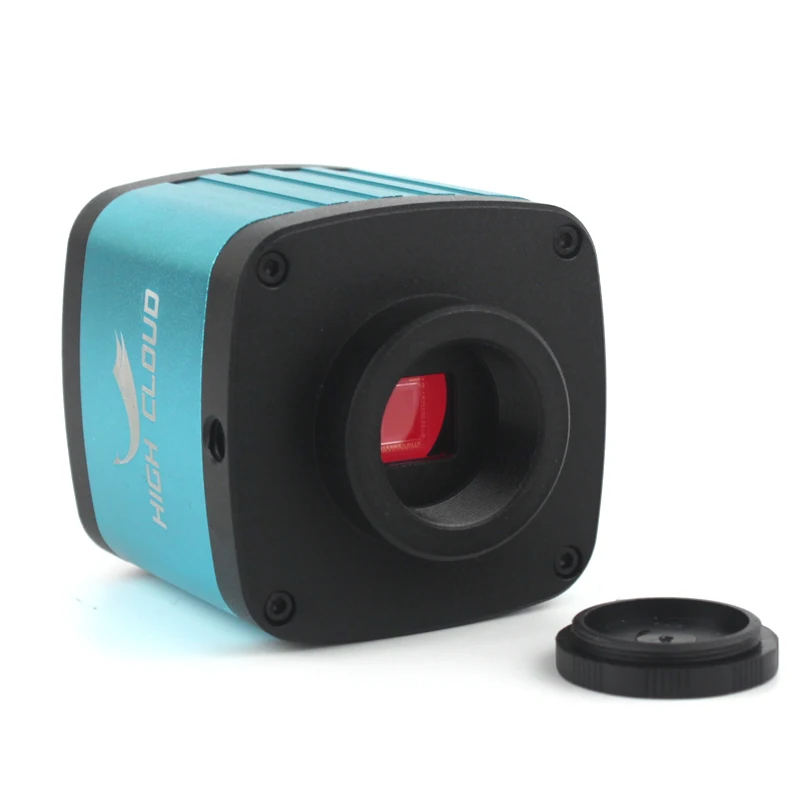

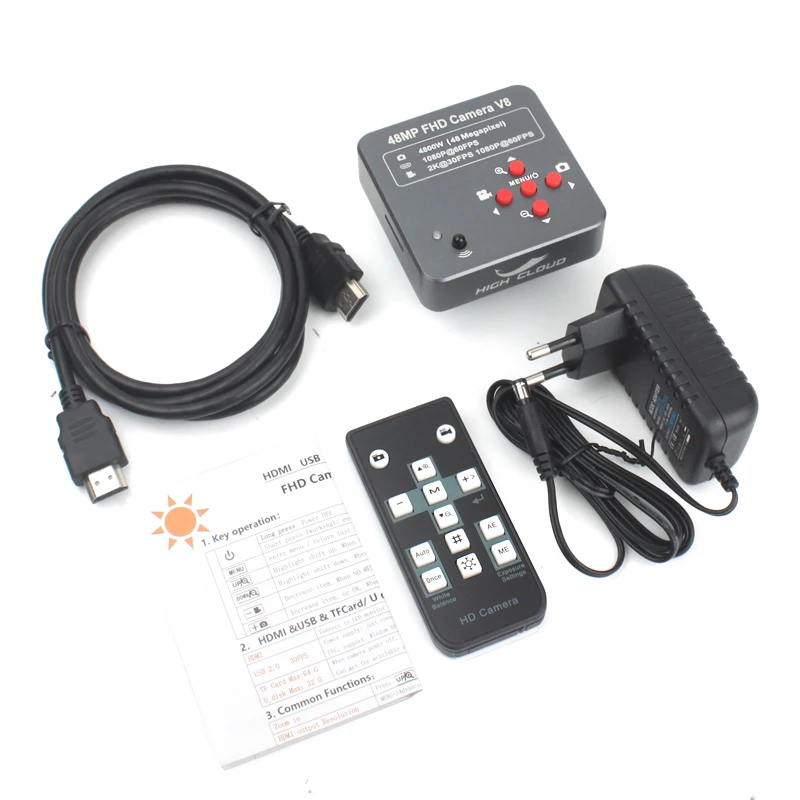

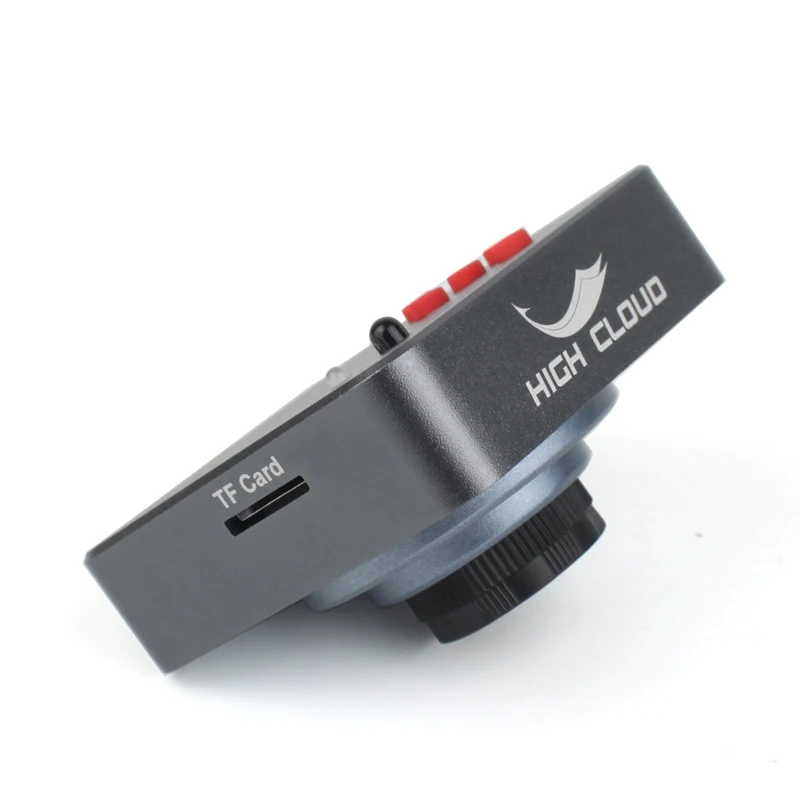

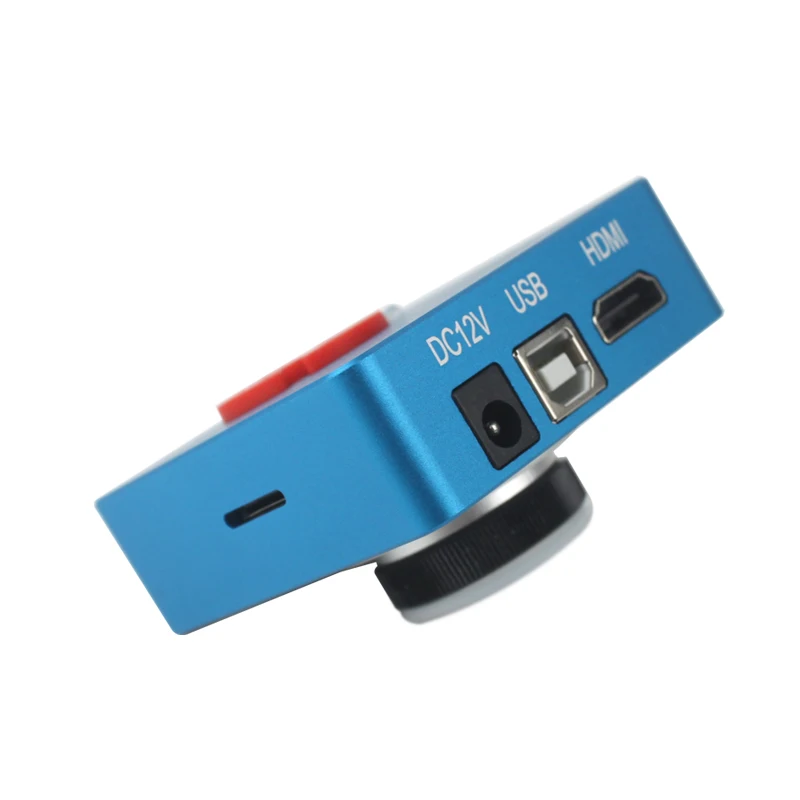

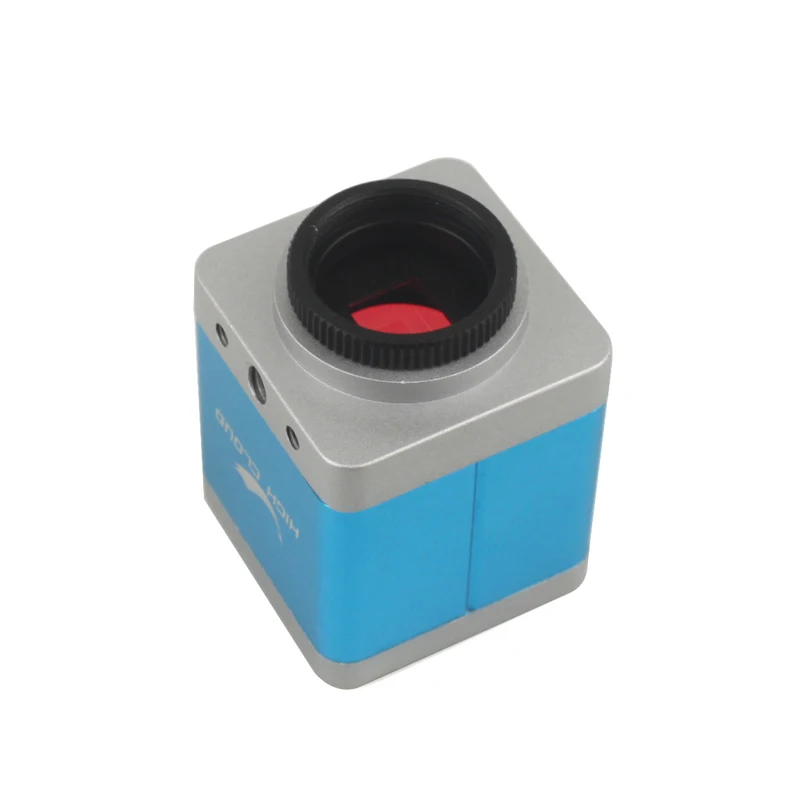

48MP 2K 4K TF HDMI USB Features:

Model: Camera with HDMI USB2.0 two output

Image sensor: 48 megapixel Panasonic sensor

Frame rate: 60F/S @ HDMI output

Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: All metal

Support:C-Mount lens

Digital magnification: 5 times digital zoom

White balance: Auto/manual

Cross cursor: Support multi-color, size adjustable

TF card interface: Max 32G

video format:MOV

HDMI interface: HDMI/USB output

Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456

Language:Chinese/English

Mirroring: Support

Frequency:50Hz/60Hz

Monitor:16:9/16:10/4:3

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

Power supply:5-12V 1A

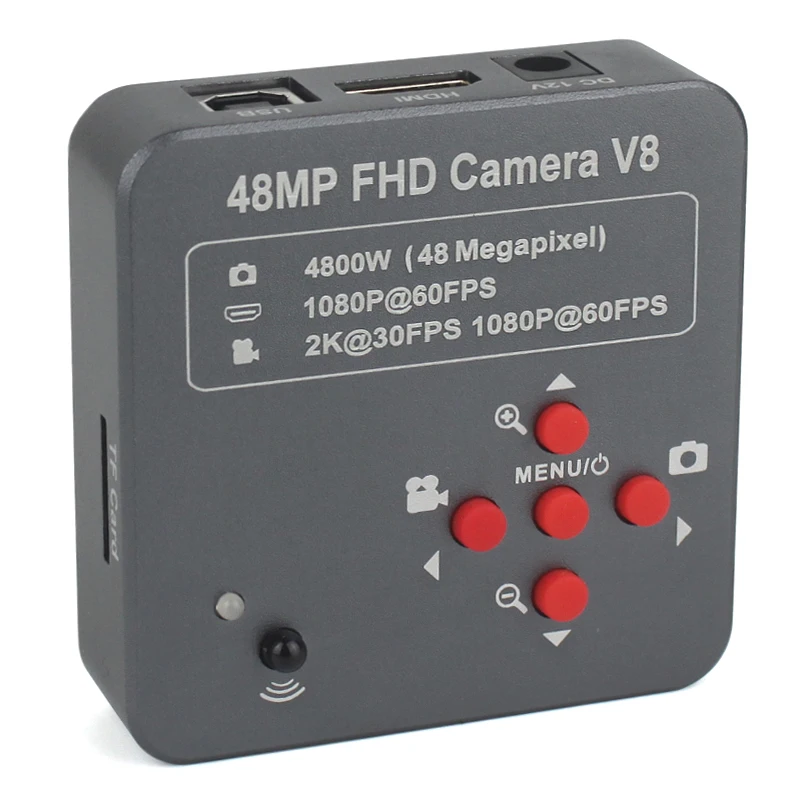

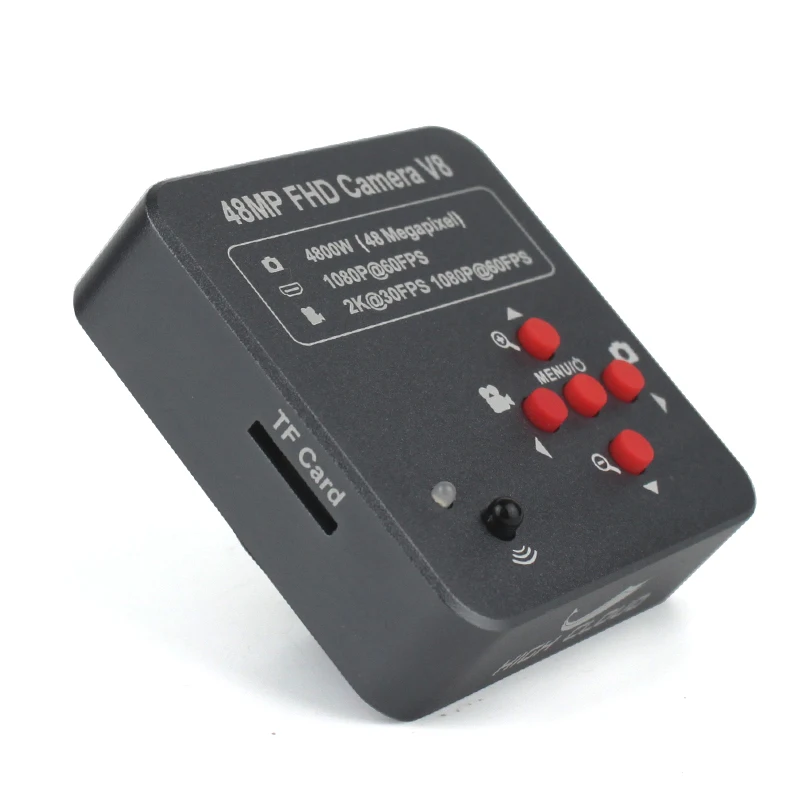

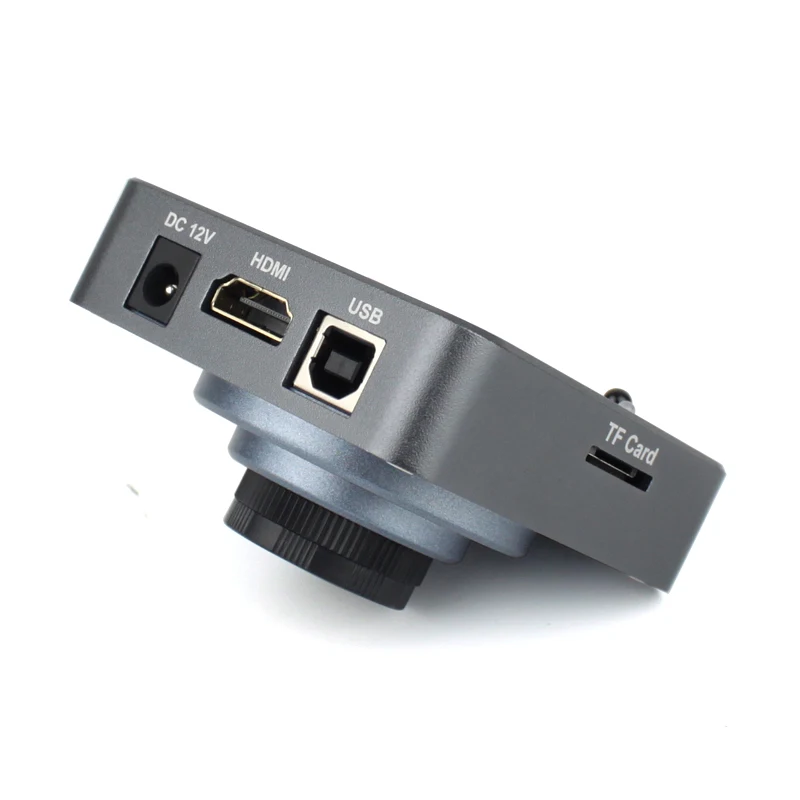

48MP 2K TF HDMI USB

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

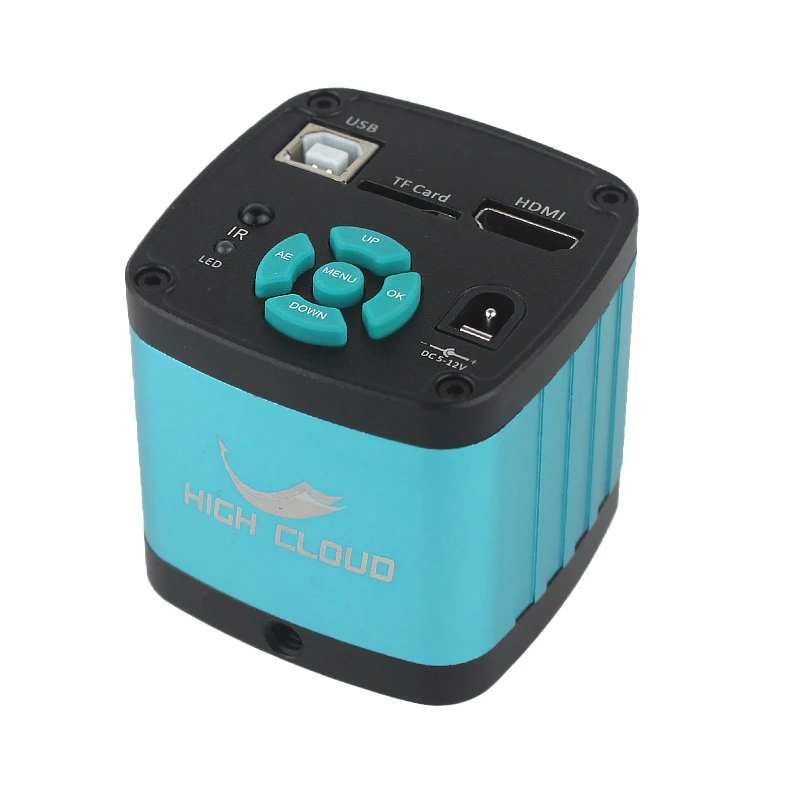

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:48MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Support

Mono Negative:Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

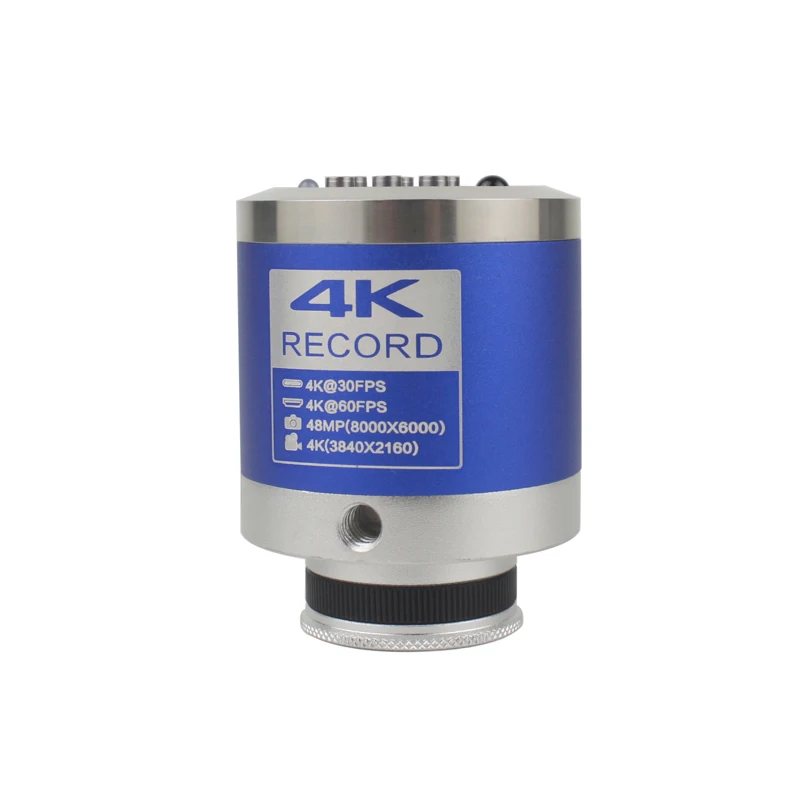

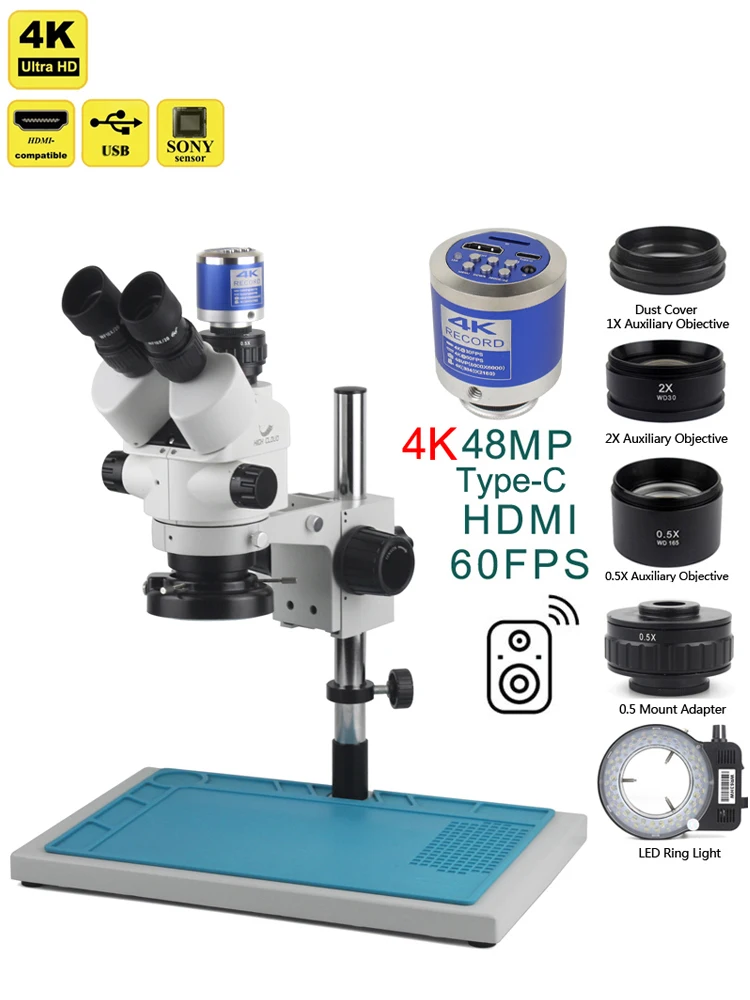

4K 48MP HDMI Type-c Function:

Adopt Imported Sony sensor;

Adopt 1/2.8 inch image sensor;

HDMI 1080P 60 frame image output;

TYPE-C driver-free output 1080P 30/Fps image output;

HDMI port 4K, 1080P video recording, 48MP Pictures were taken;

48MP photos, JPG format, photo size 8000×6000;

One-key freeze/thaw function;

Electronic zoom function;

Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;

Support manual/automatic white balance/one-key white B, R, G, adjustable;

Provide 16 line functions, line color, thickness, position adjustable;

Provide center crosshair display on/off;

Support TF card storage, up to 64GB;

Support remote control operation, take pictures without shaking and the image will be clearer;

Support Chinese and English menu languages;

Support shutdown setting parameter saving;

Aluminum alloy casing processed by CNC precision milling technology;

Sensor: 1/2.8 Sony sensor

Pixel size: 2.9μm × 2.9μm

HDMI output: 1920*1080 60 frames

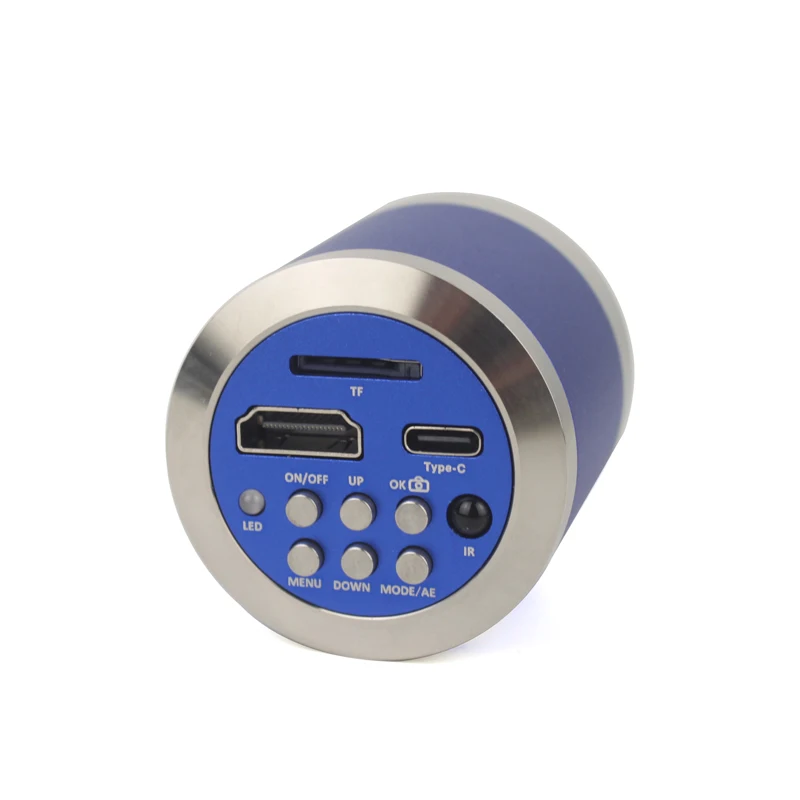

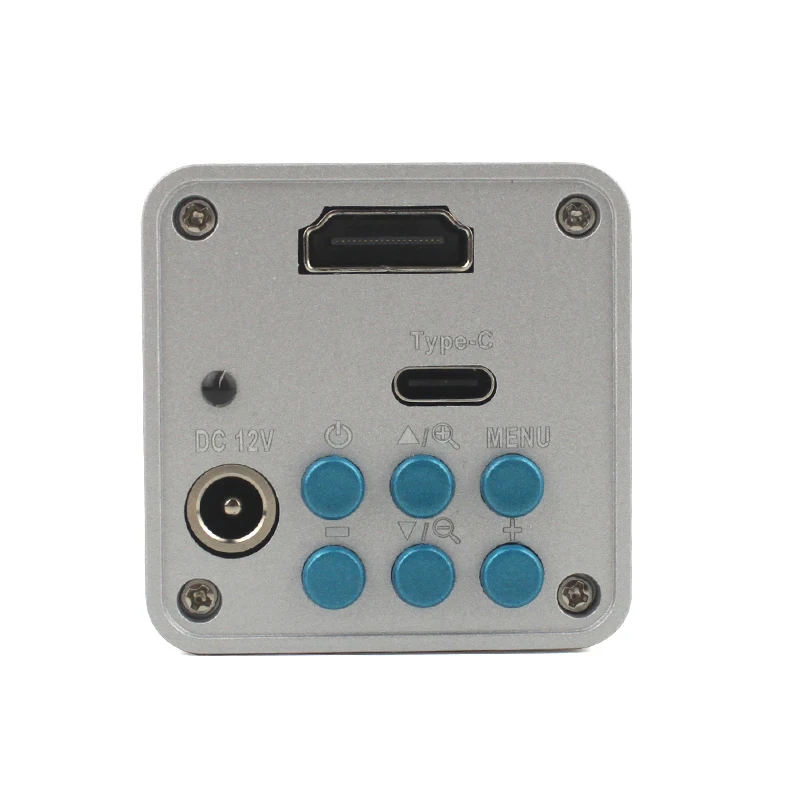

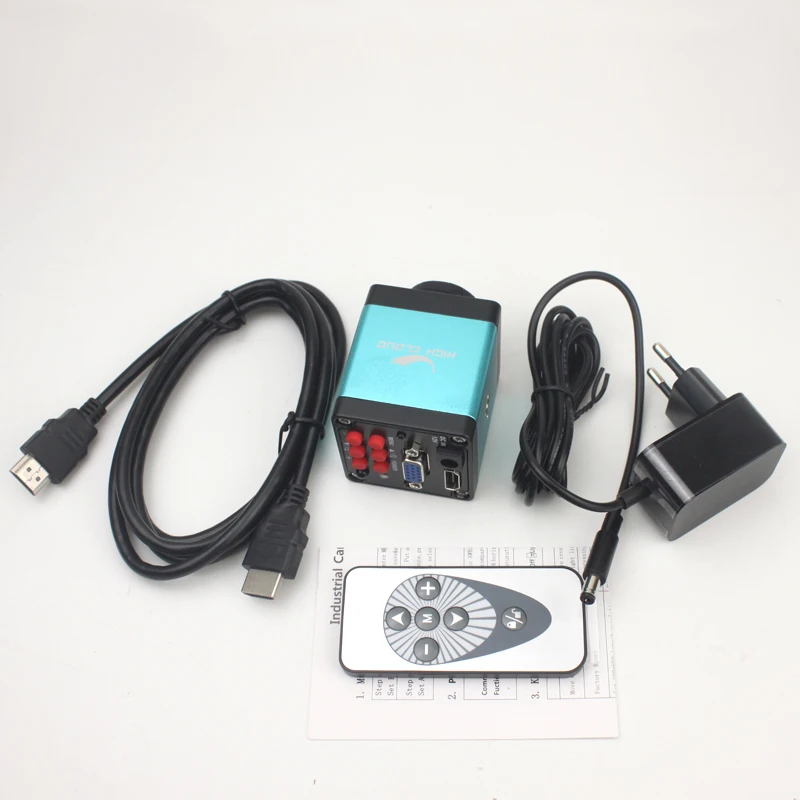

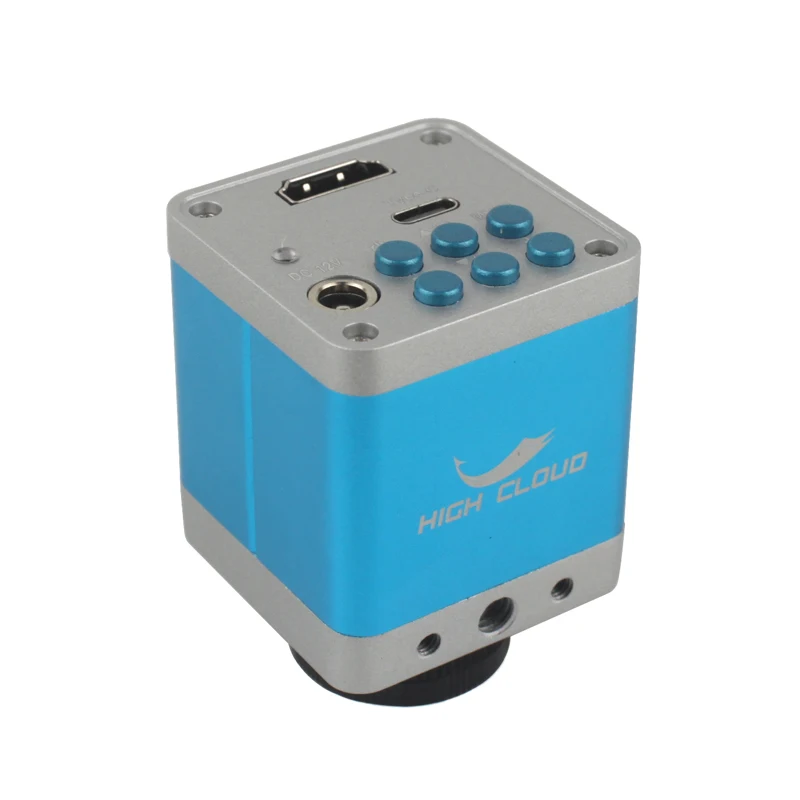

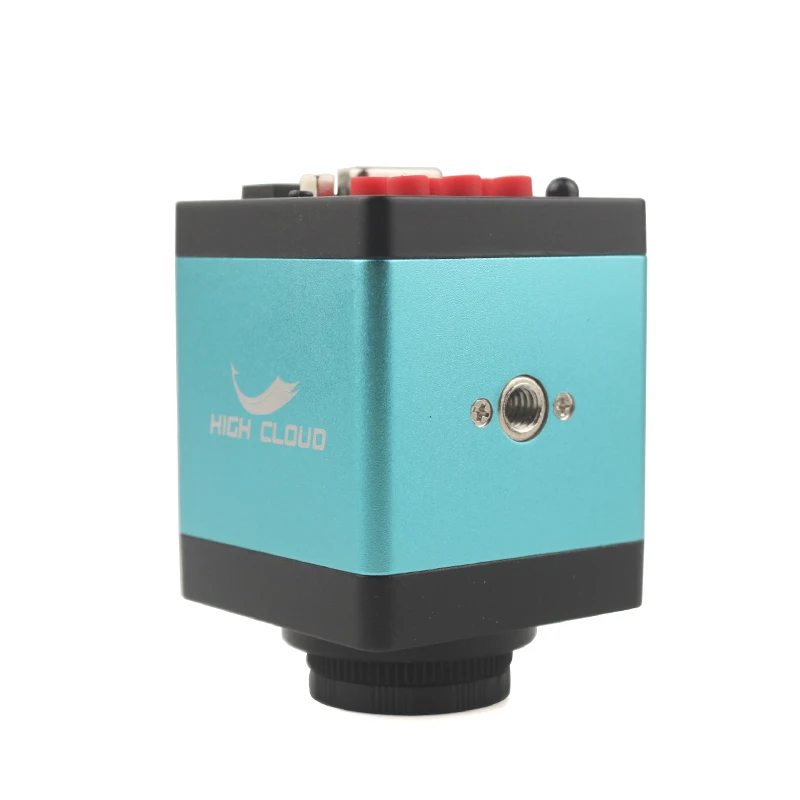

Type-C HDMI Feature:

Sensor type:1/2.8″ Sony Color CMOS

Effective pixels:1920H*1080V

Data bits: 16bit

Pixel size:2.9μm*2.9μm

Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)

Definition:The maximum definition is above 1000TV lines

Scanning method:Progressive

Shutter Type:Electronic Shutter

Dynamic range:>90dB

Signal-to-noise ratio:55dB

Sensitivity:2.0 V/lux-sec (550nm)

Exposure mode:manual/automatic

White balance:automatic/manual

Lens interface:C/CS

Video interface:GA, HDMI and Type-C UVC synchronous output

Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)

Power supply:Type-C power supply, DC 5-12V/1A

Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!

Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.

2. Scale bar, center cursor, center line
