Product Features:
1,Built-in protection circuit PCM for prevent over charging or over discharging
2.Weight: 19 grams

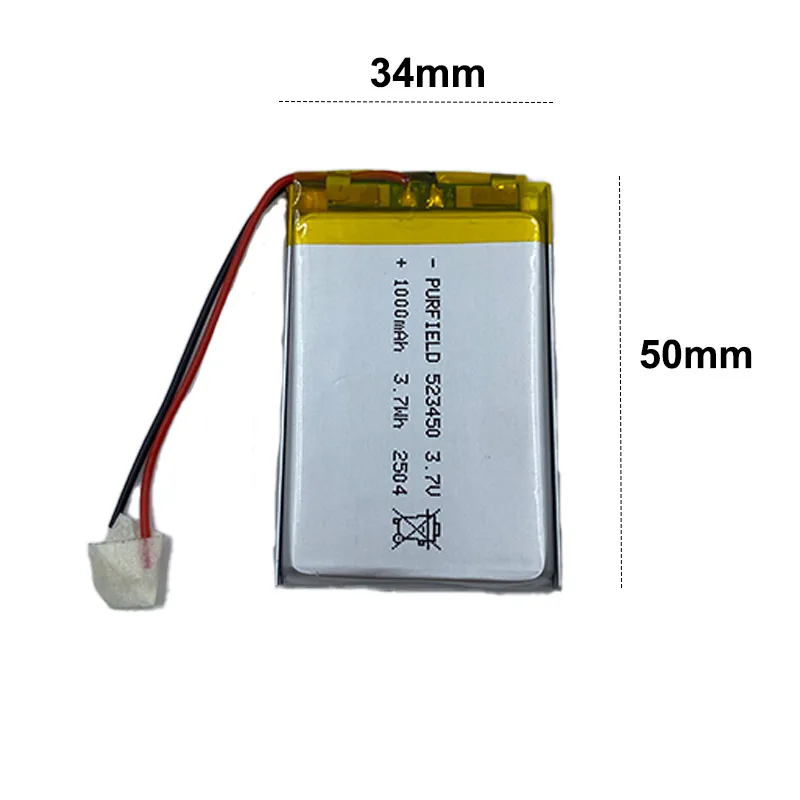

3,Size: 5mm (H)*34mm (W)*50mm (L)

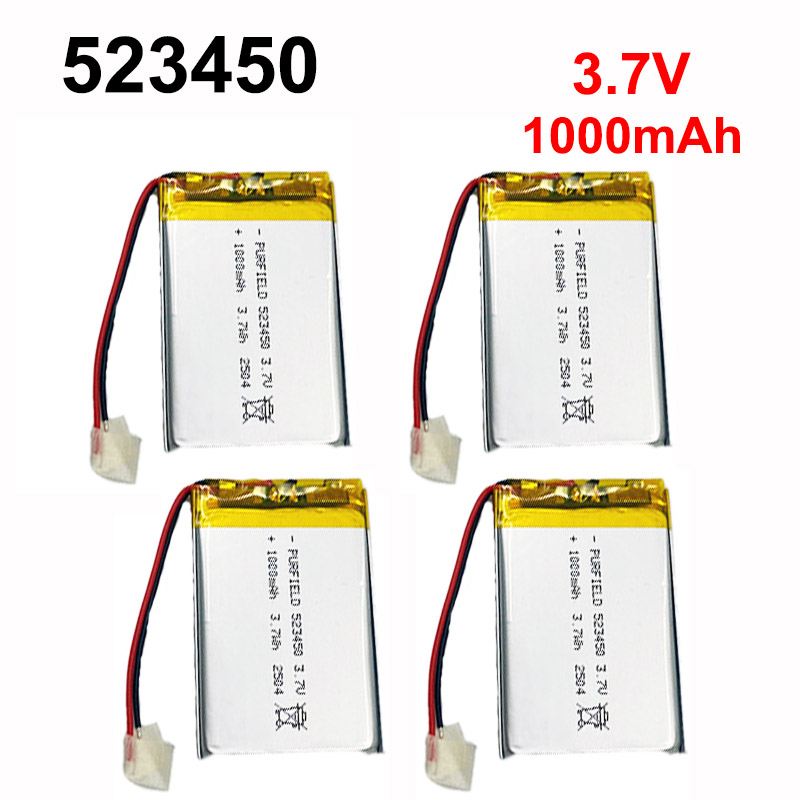

4,Rating: DC3.7V 1000mAh
5,Plug:jst PH 2.0mm connector
5,Plug:jst PH 2.0mm connector
6,Charging current: standard charging, fast charging: 1.0C: 0.5C
7,Standard charging method: 0.5C CC (constant current) charge to 4.25V,then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
8,Maximum discharge current: 1C
9,The maximum charge current: 1C
9,The maximum charge current: 1C
10,Discharge cut-off voltage: 2.75V
11,Charging time: 3-7hrs (standard); 3hrs (fast)
12,The discharge temperature: -20 degrees C~+60 degrees C
12,The discharge temperature: -20 degrees C~+60 degrees C
13,Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
14,Cycle charge:>1000 times
15,Built-in protection circuit PCM for prevent over charging or over discharging.
