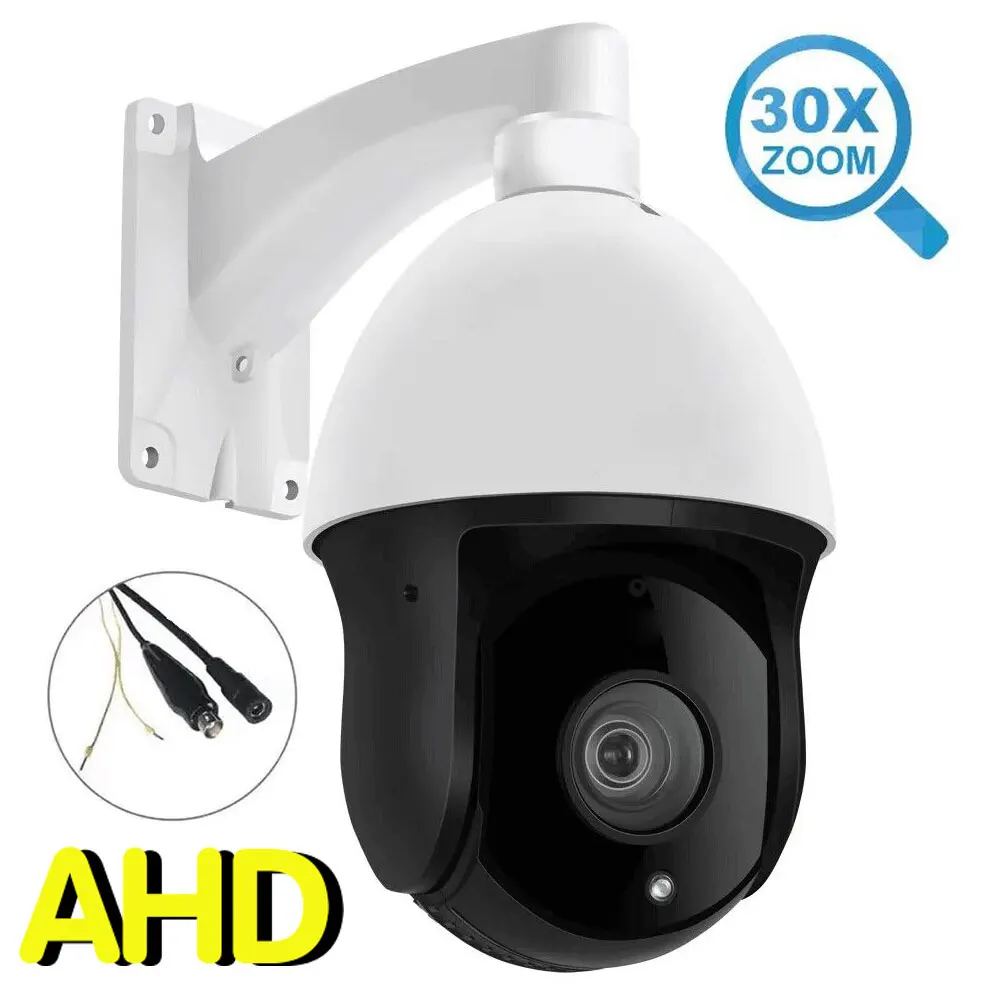

4.0'' 30X ZOOM AHD TVI Sony 335 HD 5MP CVI PTZ Speed Dome IR Night Outdoor Camera Ptz AUTO
Description
Report Item
The purchased 5MP AHD 20fps PTZ Camera cannot be used on cheap 5MP-N (8fps) AHD DVRs, please note. Suggest using 4CH/8ch 4K AHD DVR
The purchased 5MP AHD 20fps PTZ Camera cannot be used on cheap 5MP-N (8fps) AHD DVRs, please note. Suggest using 4CH/8ch 4K AHD DVR
Pls kindly verify which video format as your DVR support before you bid,thank you very much!
Compatible DVR:2MP PTZ Camera AHD format need to connect 1080p/5mp-n HD-AHD DVR. 5MP AHD 30X PTZ Camera For 5MP AHD 20fps DVR
4.0-Inch Waterproof AHD 30X Zoom PTZ Camera 5MP CCTV IR Security Camera
Feature
1. Keep original analog system
2. Real time transmission, lossless video

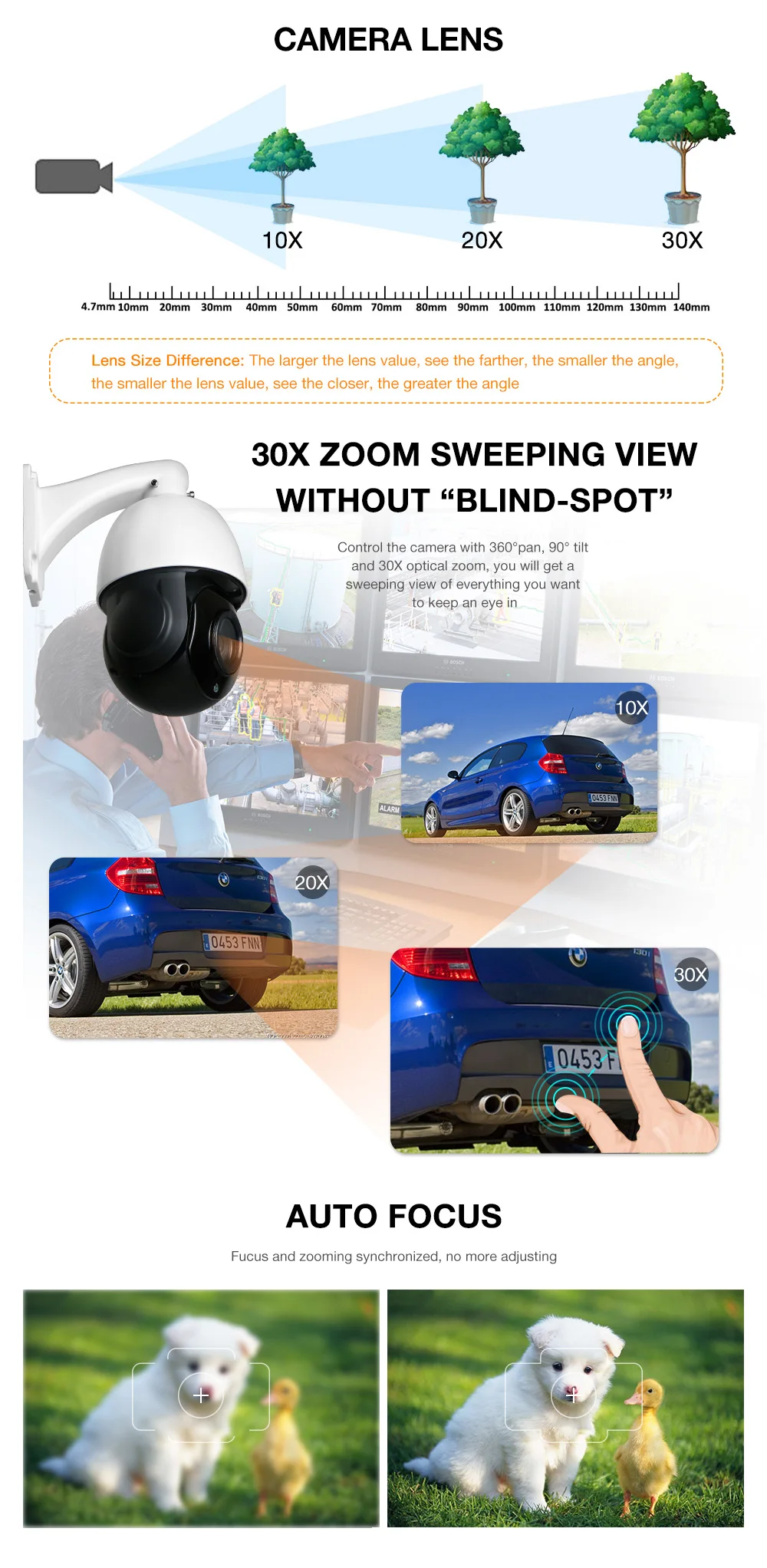

3. High definition 1080P, 30X zoom
4. Long distance transmission up to 500 meters

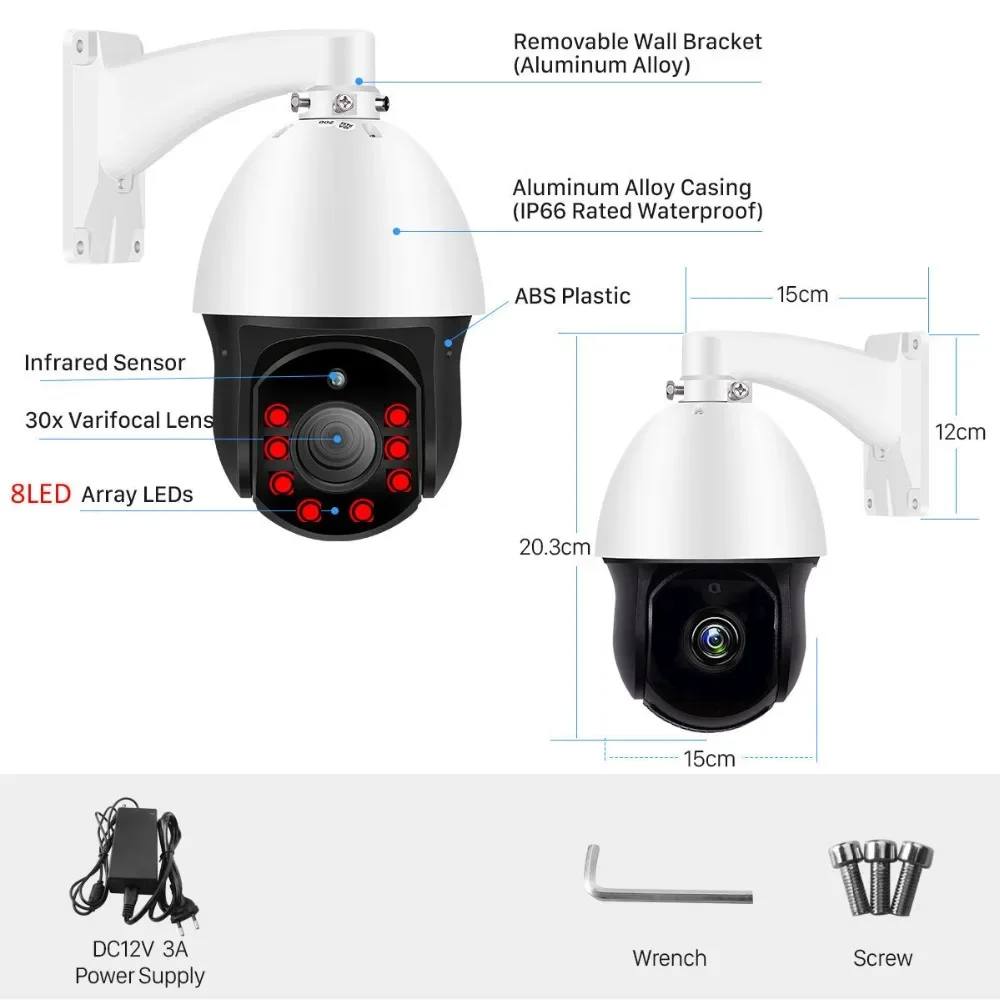

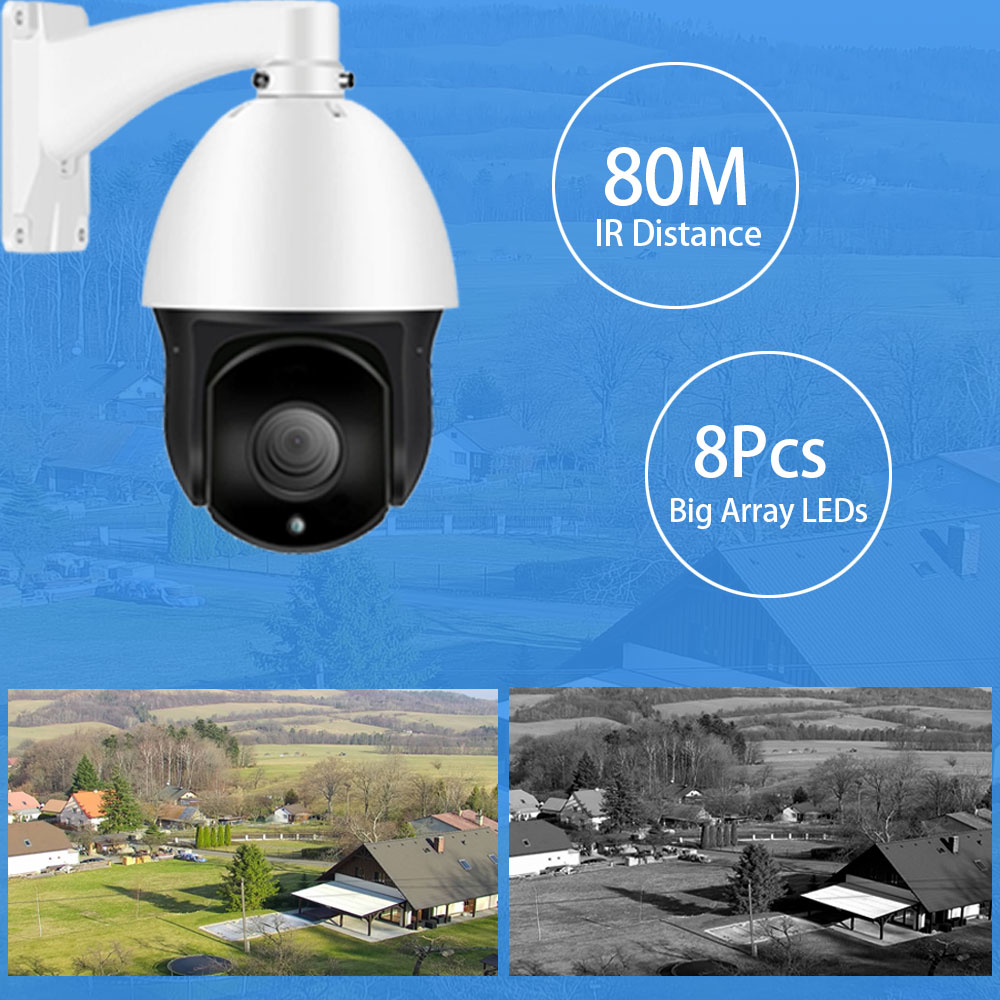

5. OSD menu available/rith 8pcs IR-Led.IR range: 80M

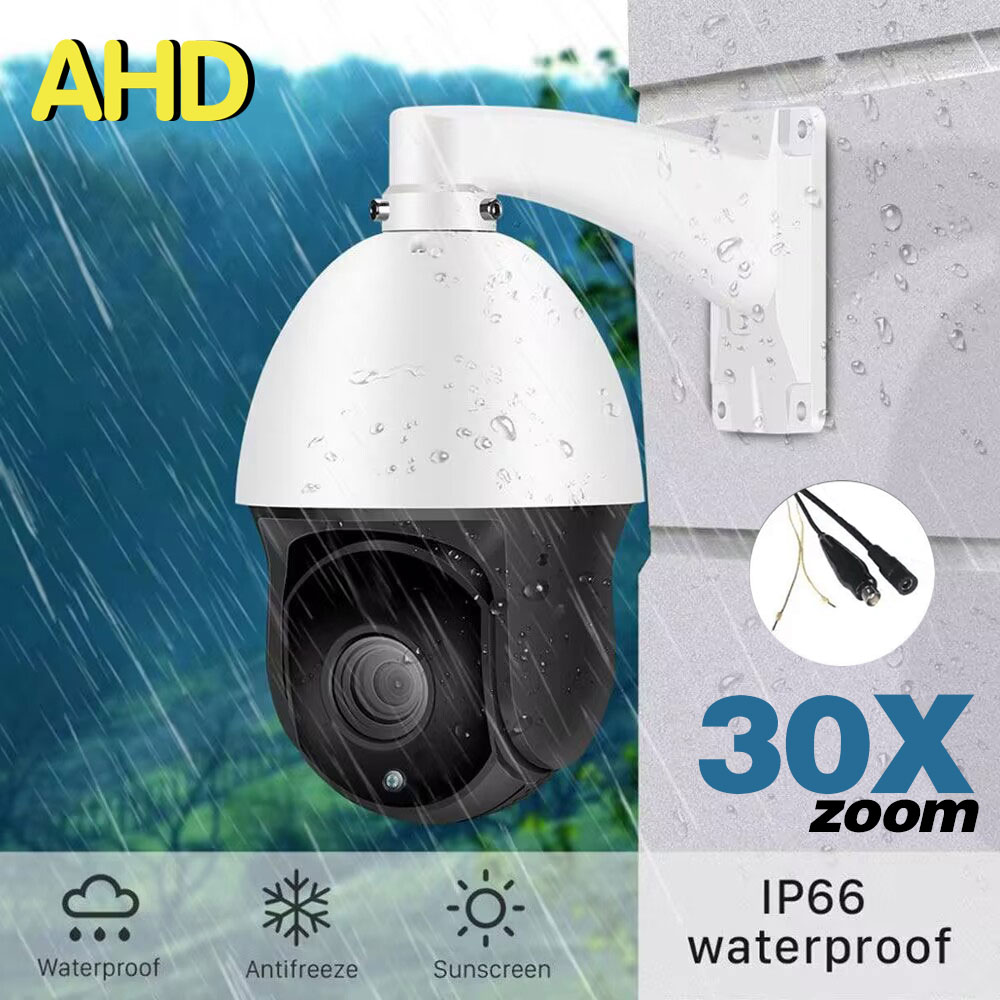

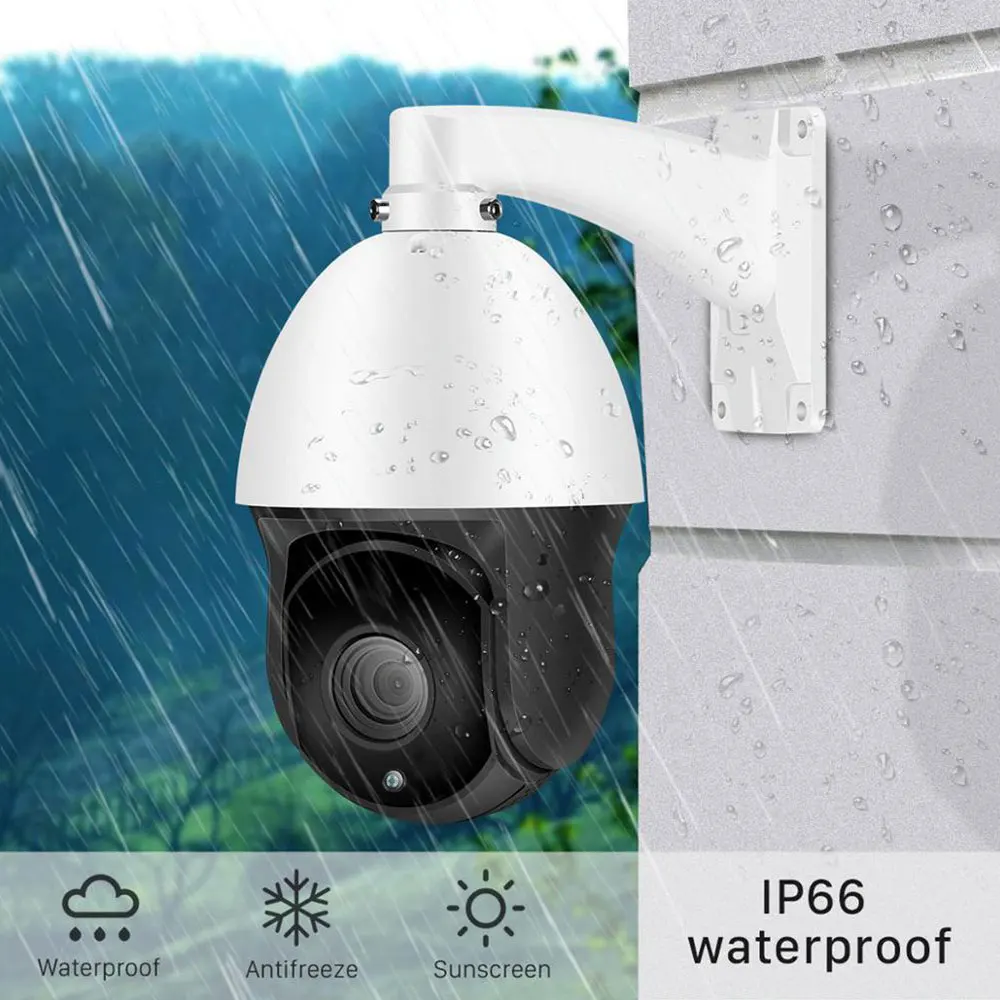

6. 4.0'' total metal body construction, IP66 rate protection
7. IR illumination&power consumption is variable dependant on zoom factor
Package Included
1 x 4.0″ Speed Dome Camera
1 x English Manual
1 x The power adapter
Outdoor CCTV Security AHD 1080P 2.0MP Mini Waterproof Dome PTZ Camera 30X ZOOM Auto Focus PanTilt Rotate Camera
What is HD-AHD ?
※ AHD (Analog High Definition) is a new video format for enhanced CVBS (COMET*) & HD video transmission. HD-AHD
camera is an over-coaxial-cable analog HD video transmission standard, allowing long distance HD transmission at a
lower cost to meet requirements for a complex and large installation. Usually used with Coaxial-Cable,SYV-75-4 cable
to transfer video up to 200 meters.
.5'' 30X ZOOM AHD 1080P 2.0 MP PTZ Speed Dome IR Camera Night Outdoor CMOS AUTO
Features:
※ High image quality at the resolution of 1920x1080P Full HD.
※ The technology uses a progressive scan while forming a signal and division of brightness and color components of
an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.
※ 2MP 1920x1080P High Resolution Sensor.
Important Note:
Compatible DVR:AHD format need to connect 1080N/1080P HD-AHD DVR.
Pls kindly verify which video format as your DVR support before you bid,thank you very much!
Description & Features:
※ This 4″ Inch MINI 30X Zoom 2MP 1080P high speed Camera is designed for installation in an video surveillance system. the camera
incorporates the digital signal processor, pan/tilt mechanism and RS485 communication interface in a compact outdoor enclosure, The
camera is with 1/3″ coms sensor that makes it suitable for use under extremely low illumination condition as well as in daytime,
The setup menus allow the camera to perform surveillance tasks by such as digital flip, preset position.
※ 4.5″ INCH 30X Zoom HD Color Medium Speed PTZ Dome Camera.
※ 0~355° Rotate in horizontal drive by direct engine pecise position-setting.
※ 0~90° vertical continuous monitoring after auto reversing 90°.
※ Adjustable rotation speed according to zoom rate of camera lens,auto-focus,auto-white balance.
Features:
1. Built-in Decoder
※ 255 programmable presets
※ 8 cruising tracks, each cruising track has 32 preset positions .
※ 4 pattern tours, each one with 600s memory .
※ 8 groups of auto scan, the left and right boundary and scan speed can be set .
※ Pelco-P and Pelco-D HS compatible .
※ Guard location, the dome can operate preset, auto scan, cruising and pattern
tours functions after a short pause .
※ Alarm triggering, the alarm can trigger preset, auto scan,cruising and
pattern tours functions.
2. Integrated Universal Speed Change Rotator
※Delicate stepping motor, stable, sensitive and accurate .
※ 360 degrees continuous pan without blind area .
※ Stepless speed change, auto zoom/speed matching .
※ Auto overturn function.
※ Manual speed: Pan: 0.01degree to 180 degrees/S .
※ Presets calling speed: 350 degrees/S.
3. Built-in High Definition Day/Night Camera
※ Auto iris, auto back light compensation.
※ Auto/manual white balance Auto/manual focus.
※ Auto/manual brightness control.
※ Multiple kinds of camera for options.
4. Professional Design
※ Built-in heater.
※ Built-in fan, can operate in 60 degree C.
※ High Die-cast Aluminum Construction .
5. Function Instructions
※ Focus/ Pan/ Tilt Speed Auto Match
The pan/tilt rotation speed could be auto adjusted according to the focus in/out,
which makes it great performance for manual target tracking.
※ Auto Flip
The lens can auto flip when it rotates 180 degree .
※ Preset Position Setting and Calling
Preset function means the camera can memory current pan/tilt angle, focus, zoom, etc.
When need, it can be called upon directly, this dome support up to 220 preset positions.
※ Auto Scan
Users can set the left and right boundaries by control keyboard, Then speed dome can scan between it.
※ Pattern Tour
Speed Dome can memory 180s running path or 500 orders. When start pattern tour,
speed dome can track as recording path. It supports 4 groups pattern tour.
※ Guard Location
The dome will rotate back to preset position after a period of vacant time.
※ Privacy Protection Function
Set black areas to mask the privacy or security parts. The black areas location can be set,and support up to 8 mask zones.
※ Timing Running Function
Users can set speed dome operation task at different time during one week.
4.0'' 30X ZOOM AHD 5MP 1080P 2.0 MP PTZ Speed Dome IR Camera Night Outdoor CMOS AUTO

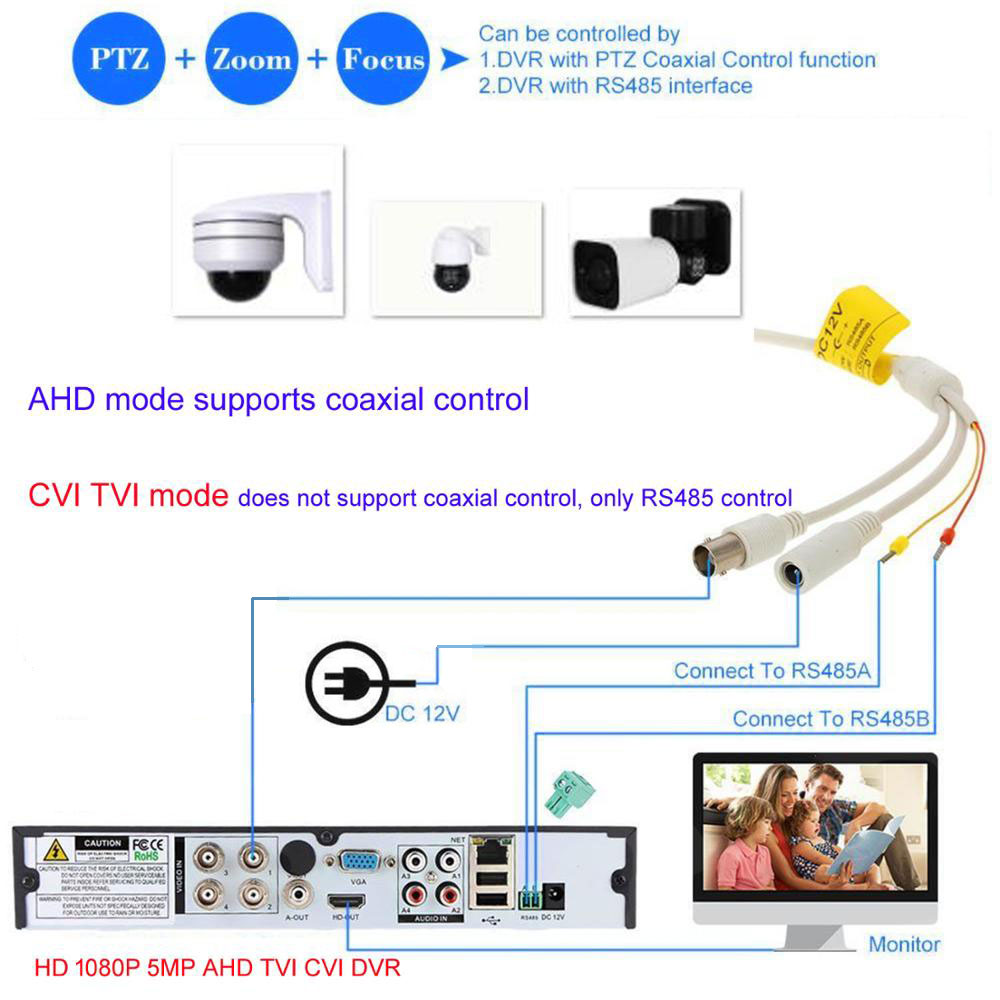

NOTICE: Default Video Signal is 1080P AHD Signal, Compatible with all 1080P or above Analog DVRs; but you can direct shortcut command through RS485 control to switch the video output signal that you need; Command twice preset #137 Switch to AHD Signal Command twice preset #138 Switch to TVI Signal Command twice preset #139 Switch to CVI Signal Command twice preset #140 Switch to CVBS Signal Command twice preset #115 Switch to NTSC System Command twice preset #116 Switch to PAL System
