Please note:
► This page offers systems with 4 sensors, 6 sensors, or 8 sensors. Product features and sensor operating logic vary depending on the selected configuration.
• Product with 4, 6, or 8 Sensors – Operating Modes & Accessories Differ by Model. so please select carefully.

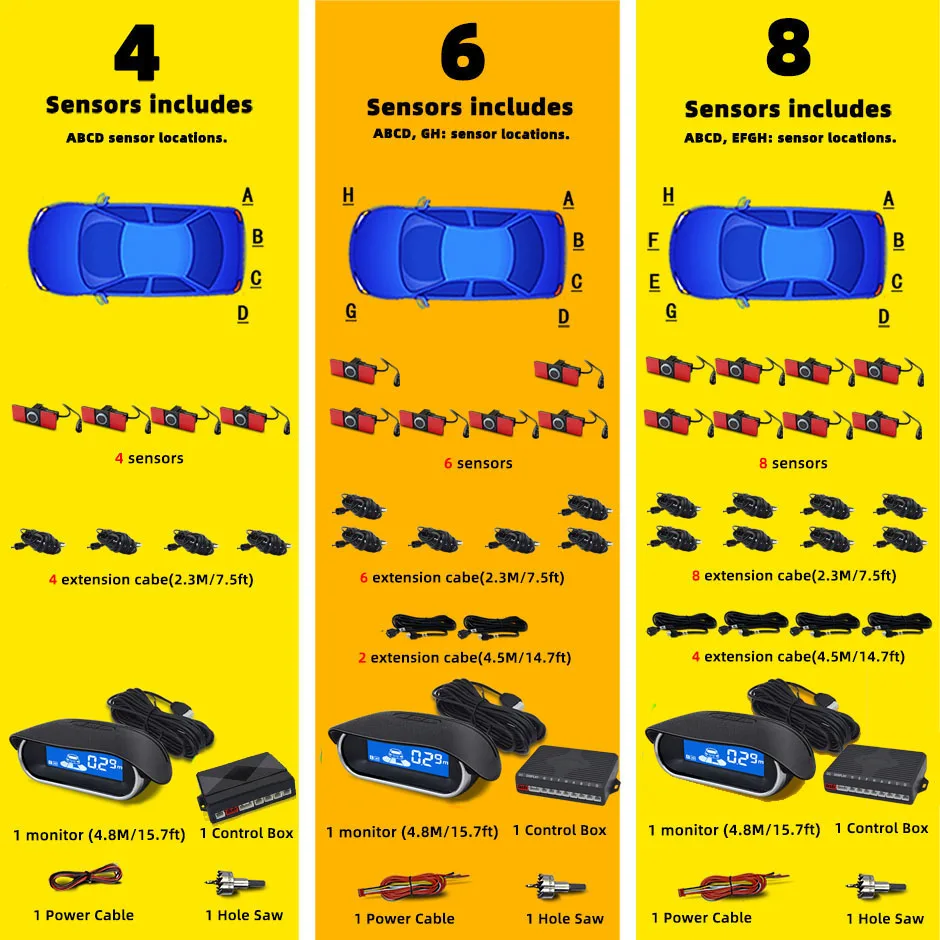

•The product list with different quantities of sensors is shown in the figure below.

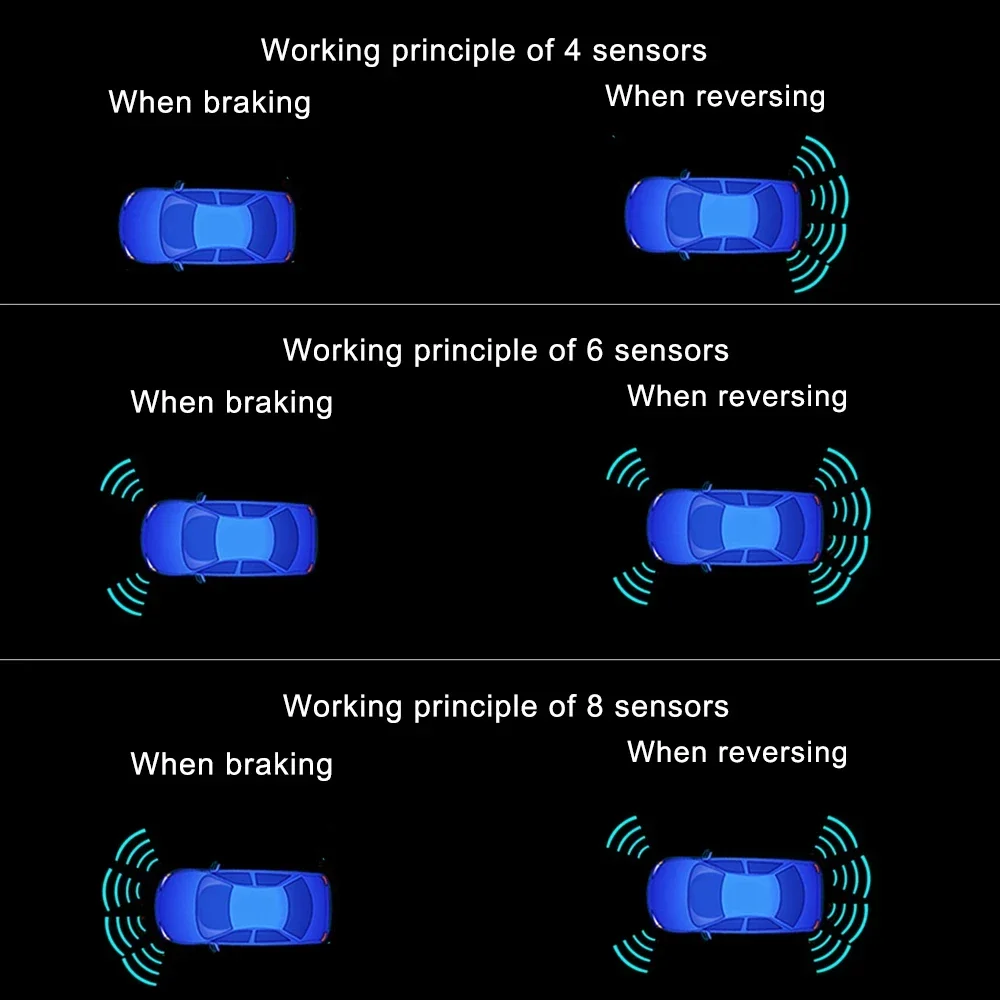

Working Principle of 4/6/8 Sensor Systems
This system is available with 4, 6, or 8 sensors. The operating logic of the sensors differs depending on the configuration.
►4-Sensor System
Equipped with only four rear sensors (labeled A, B, C, D). There are no sensors at the front of the vehicle.
Working scenario: When the vehicle shifts into reverse gear, all four rear sensors (A, B, C, D) are activated.
► 6-Sensor System
Equipped with a total of six sensors: rear A, B, C, D; and front side sensors G, H.
When reversing: Activates rear A, B, C, D and front side G, H (all six sensors).
When driving or braking: Activates front sensors G and H.
►8-Sensor System
Equipped with a total of eight sensors: rear A, B, C, D; front center E, F; front side G, H.
When reversing: Activates rear A, B, C, D and front side G, H (six sensors), while front center E/F go into intelligent standby. When driving or braking: Activates all front sensors (E, F, G, H).

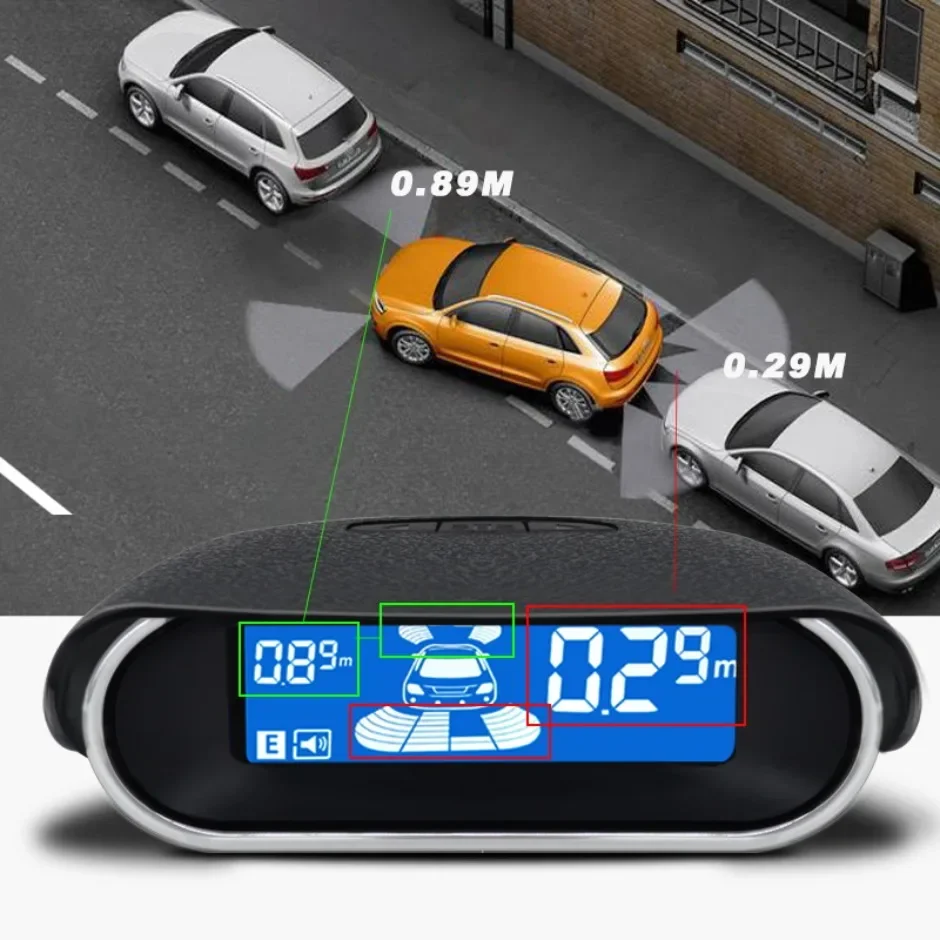

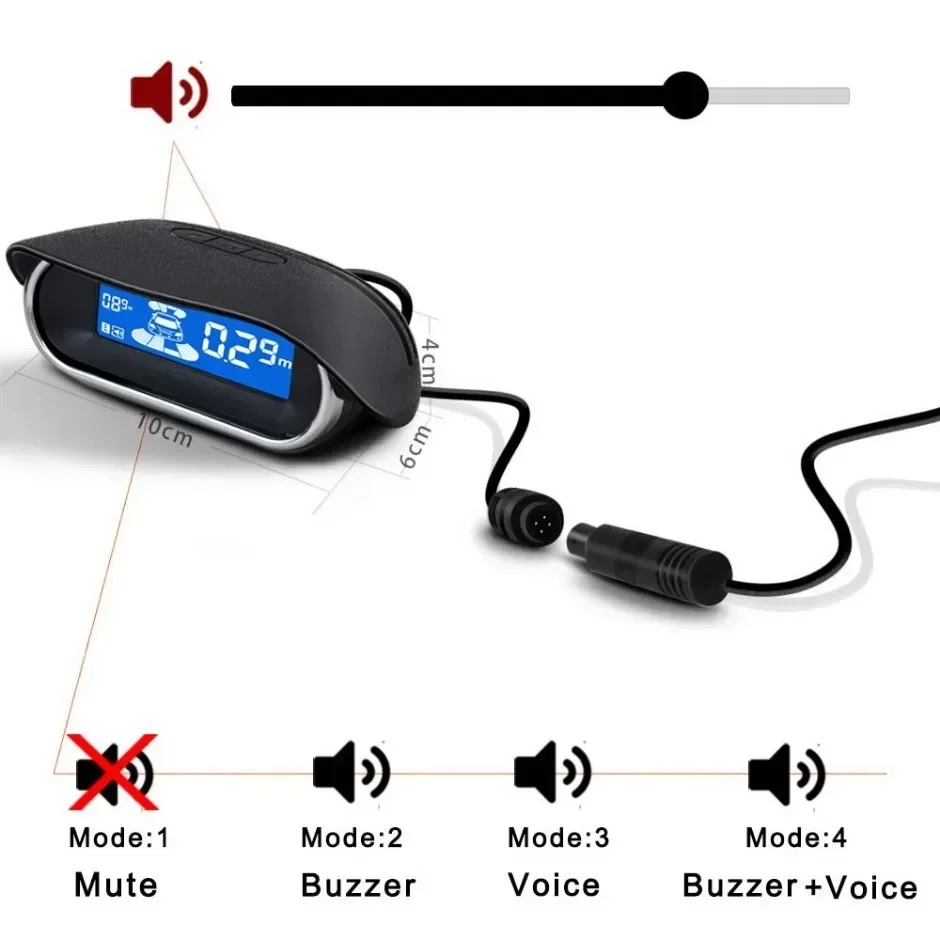

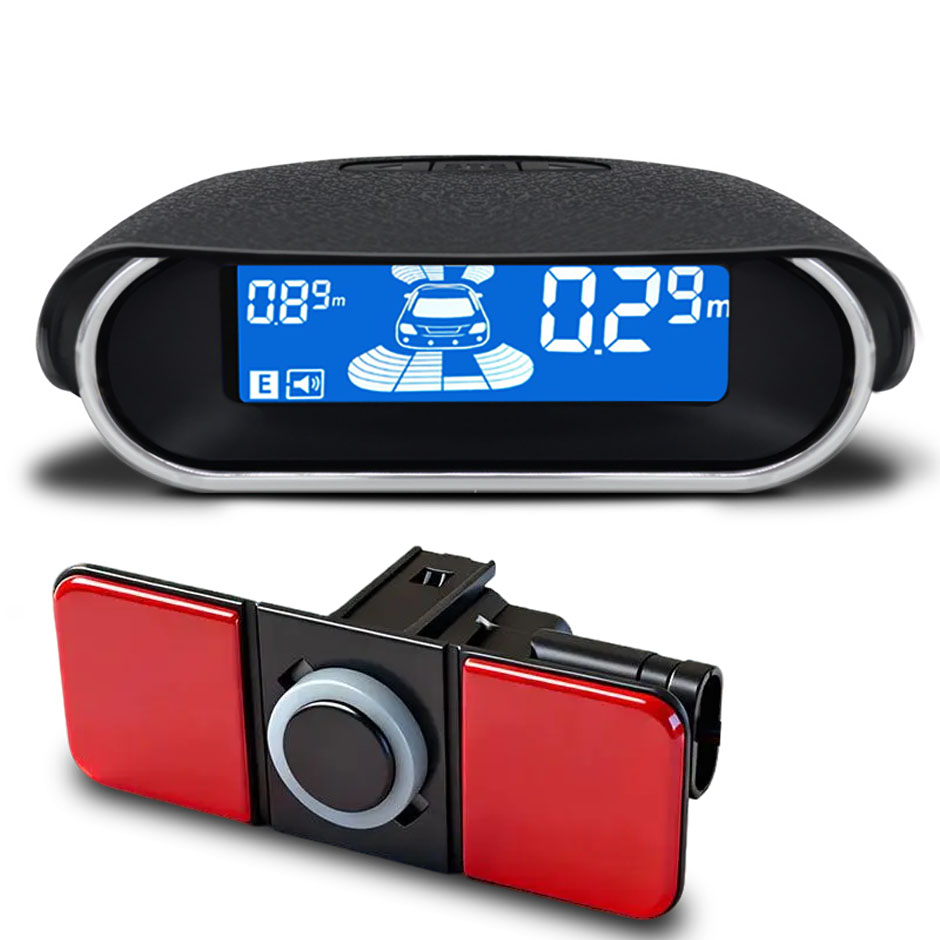

The display has 2 values, representing the danger distance in front of the car and behind it! If you choose a product with 4 sensors, you will only get the value behind the car.

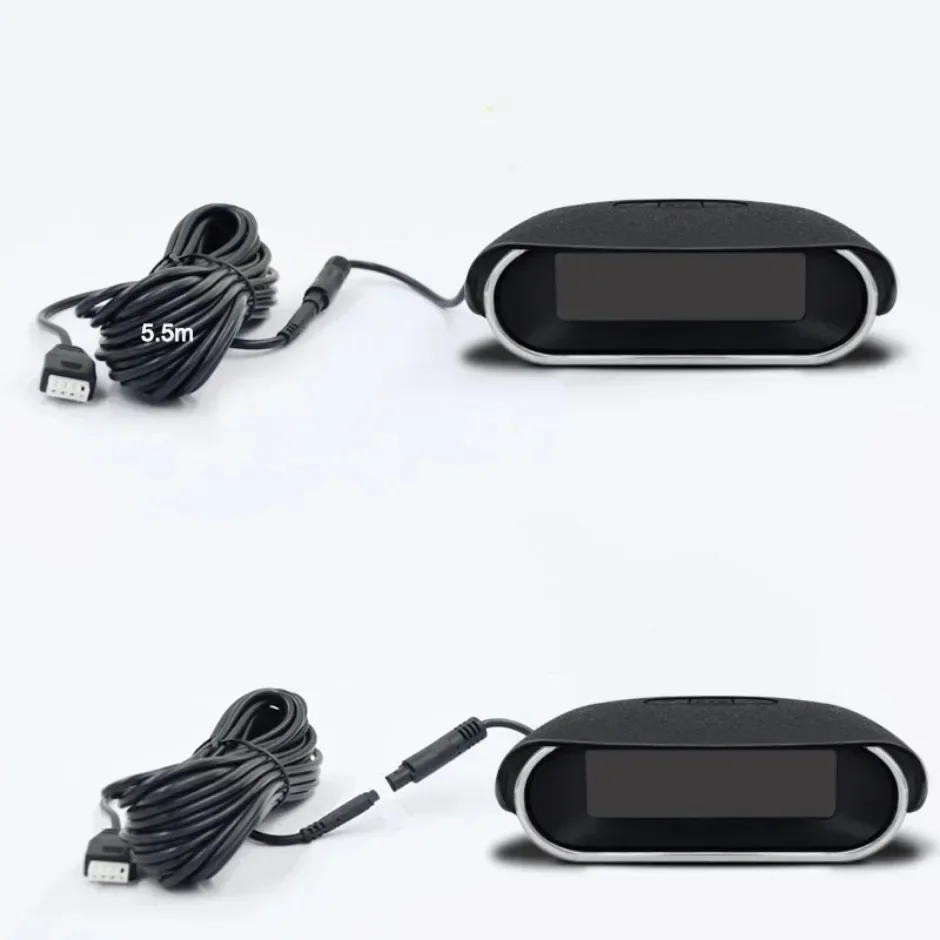

The display cable is separated, which is easy to install
►Features:
1: High accuracy: Using ultrasonic detection technology, the distance between obstacles and cars can be measured quickly and accurately, and the distance information is transmitted to the display. The driver is warned of possible dangers in advance through images and sounds on the display.
2: Intelligent control: Automatically identify obstacles around the vehicle during the reversing process. Help the driver better understand the location and distance of obstacles.
3: Easy to use: The reversing radar is easy to install and very convenient to use.
4: High reliability: The sensor is usually installed on the rear bumper of the car, and the detection range covers the area around the vehicle, including some blind spot areas that are difficult to observe.
5: Strong adaptability: adaptable to various weather and light conditions, and can work normally even at night or in severe weather conditions.
6: A very practical auxiliary device, which greatly improves the driver's safety and convenience when reversing.
►Specification:
Rated voltage: DC 9V~16V
Detection range: rear 0.3M~2.3M, front 0.3M~1M
Rated current: 100mA-300mA
Ultrasonic frequency: 40KHz
Control module operating temperature: -30-80 degrees Celsius
Display operating temperature: -20-70 degrees Celsius

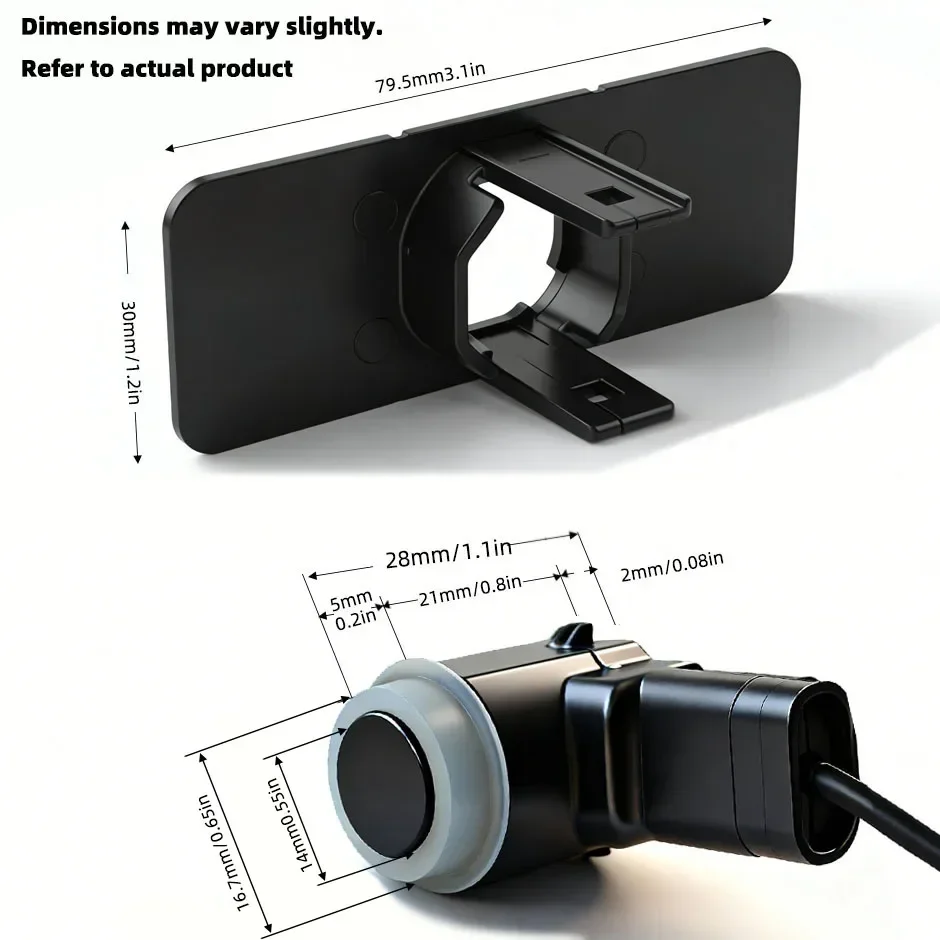

Installation method: 16.5mm drilling
Sound: heartbeat type, the closer the obstacle is, the faster the alarm will be

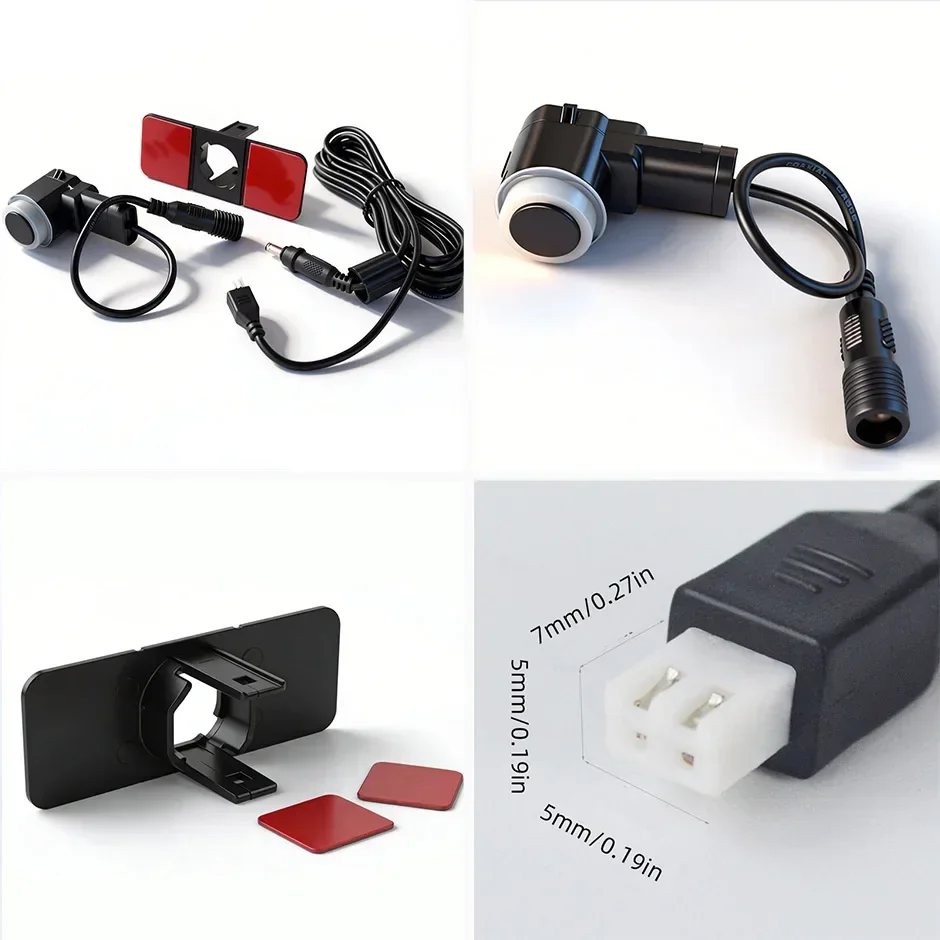

►High-quality sensor
QXNY is a professional manufacturer of automotive parking sensors, and we know better how to produce high-quality sensors that deliver faster and more accurate detection data.

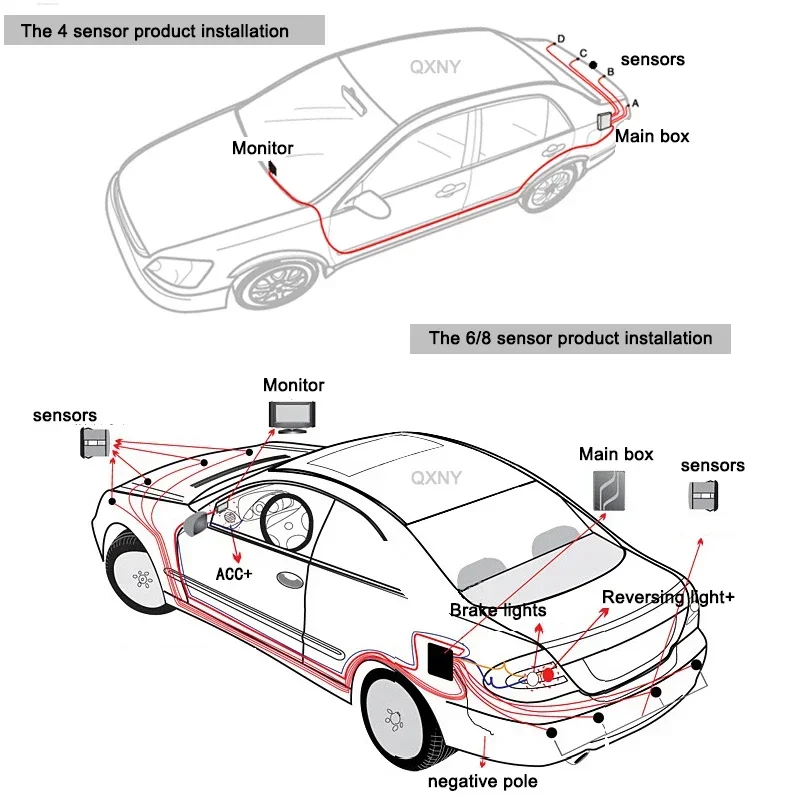

► 4 Sensors Installation
Red cable – reversing light+
Black cable – negative pole
►6/8 Sensors Installation
Red cable – ACC+
Yellow cable – reversing light+
White cable – brake light+
Black cable – negative pole

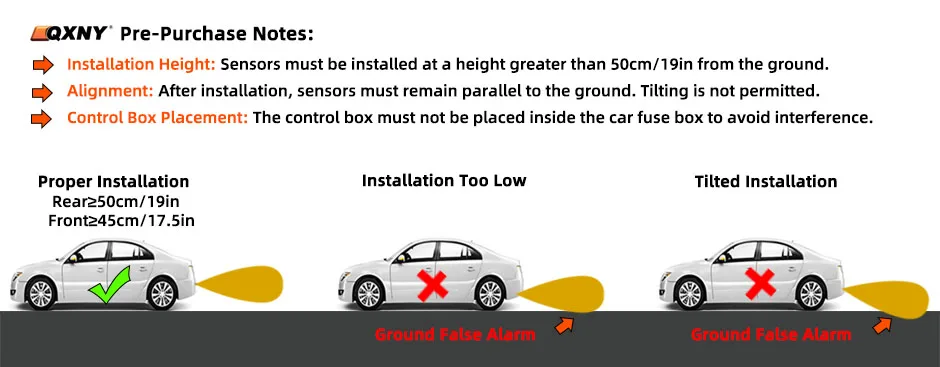

Sensor Installation Requirements
1: Rear installation height must exceed 50 cm from the ground; front installation height must exceed 45 cm.

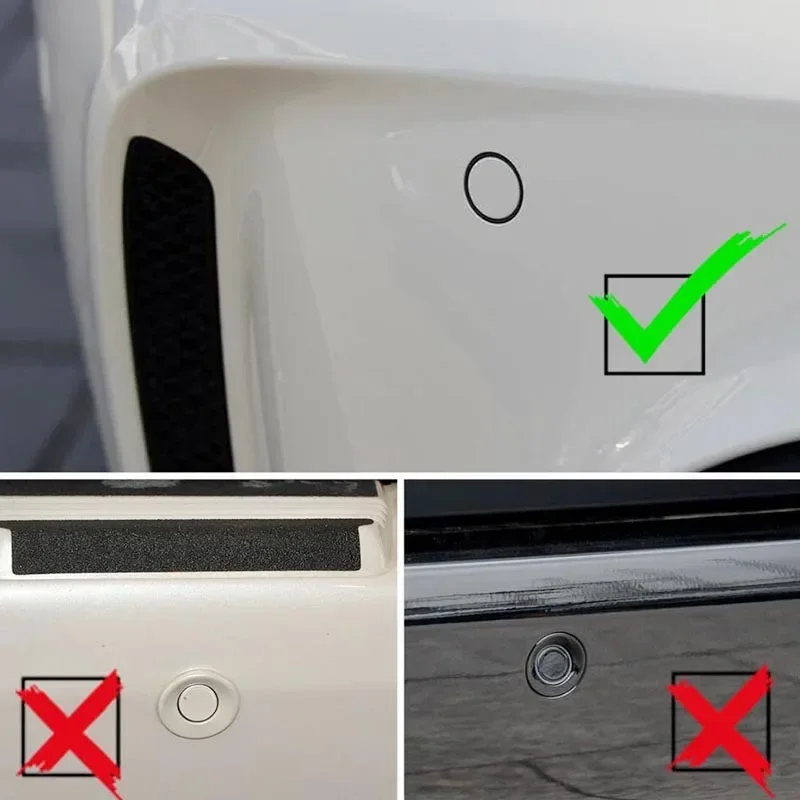

2: Ensure the sensor surface is perpendicular to the ground.
Critical Note: The sensor must not detect the ground.
Error 1: Height less than 45 cm
Error 2: Surface not perpendicular to the ground
Error 3: Surface tilted
Q1: What should I consider during installation?
A ：Sensors Key Installation Points(Purpose: To prevent ultrasound from detecting the ground and generating false alarms)
Rear Sensors: >50 cm | Above ground
Front Sensors: >45 cm | Above ground
Sensor surface must be perpendicular to the ground; no tilting allowed.
generating false alarms)
Q2: Will rain, snow, or mud affect the radar’s performance?

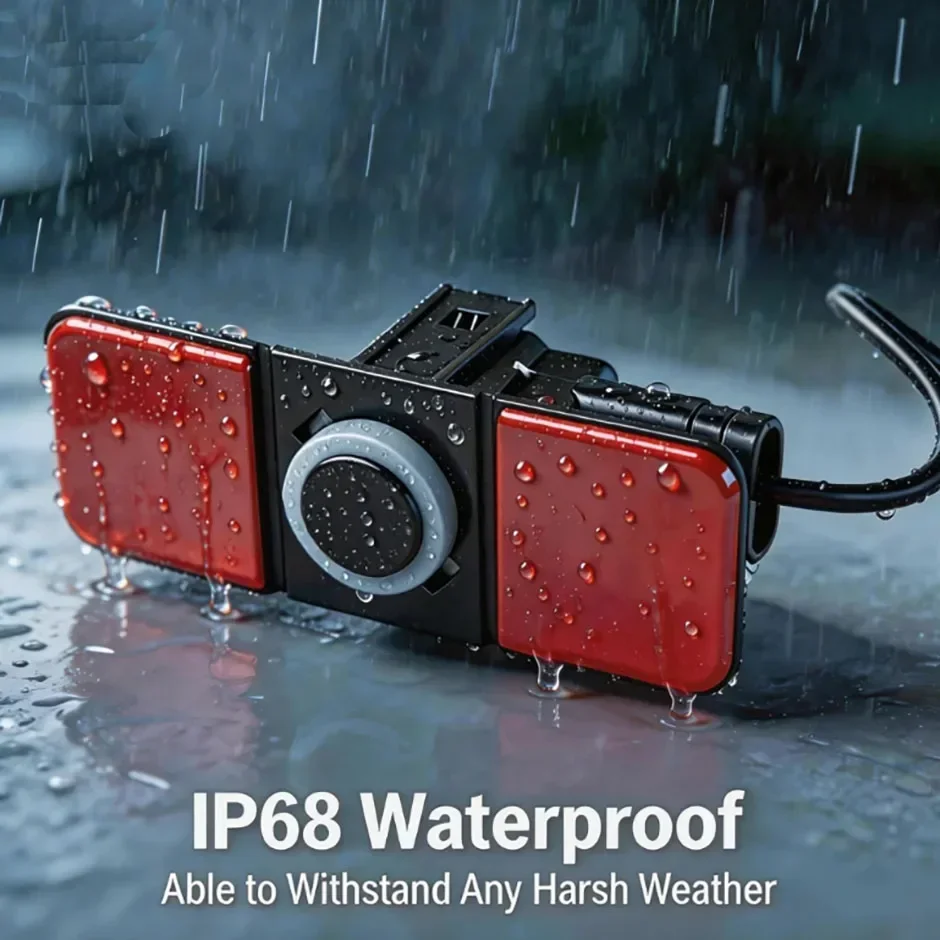

A: NO,Sensors are rated IP67 waterproof/dustproof and feature false-alarm filtering algorithms. Wipe sensors clean routinely.

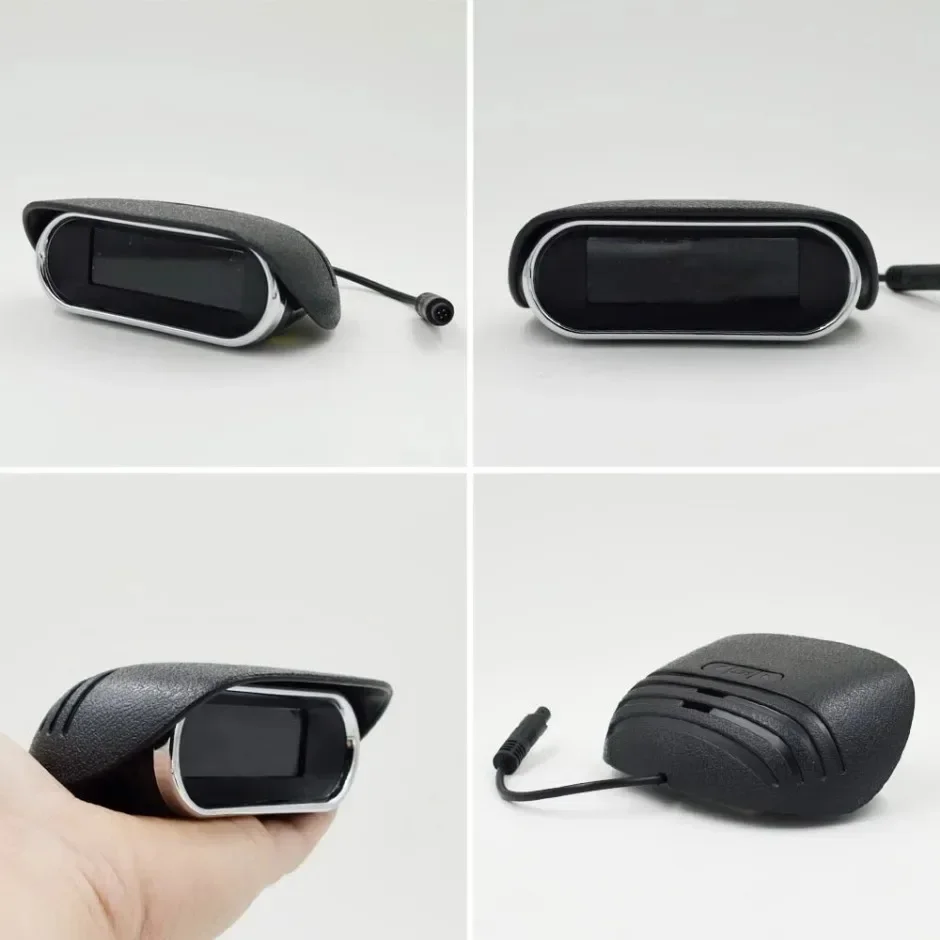

Q3: How is the display mounted? Does it glare at night?
A:The display is mounted on the dashboard. When braking, if no obstacles are detected, the display remains inactive to avoid visual distraction and ensure driving safety.
Q4: How sensitive is the radar detection?
A: Many customers misunderstand this: higher sensitivity ≠ better performance. Our radar’s sensitivity is calibrated to a stable, optimized balance through rigorous real-world testing.
Q5: How accurate is the object detection?
A: Detection accuracy depends on multiple factors, especially the type and shape of obstacles. For example:Moving pedestrians，Fast-approaching vehicles，Thin poles/columns，These objects reflect ultrasonic waves differently due to their size, material, and motion, causing variations in distance calculations. To objectively assess accuracy, we recommend standardized testing using a flat, stationary object (e.g., a wall) under controlled conditions. This eliminates variables and provides consistent benchmark results for reference.
Q6: Can it integrate with my car’s backup camera or infotainment screen?
A:NO
Q7: My car already has rear sensors. Can I add only front sensors?
A:Certainly! Feel free to explore our professional front parking radar system – simply search “Front Parking sensors” in our store to view the product.
Legal Disclaimer
This product is designed as an **parking aid** and must be used with caution. Users are solely responsible for:
1. Maintaining full awareness of their surroundings while operating the vehicle.
2. Complying with all applicable traffic laws and safety regulations.
The manufacturer disclaims all liability for any accidents, damages, or losses arising from:
– Improper installation, misuse, or neglect of this device.
– Reliance on this product as a substitute for human judgment during driving.
Note:
Regular inspection of wiring connections (including ACC+, reverse light, brake light, and ground terminals) is required to ensure proper functionality.
