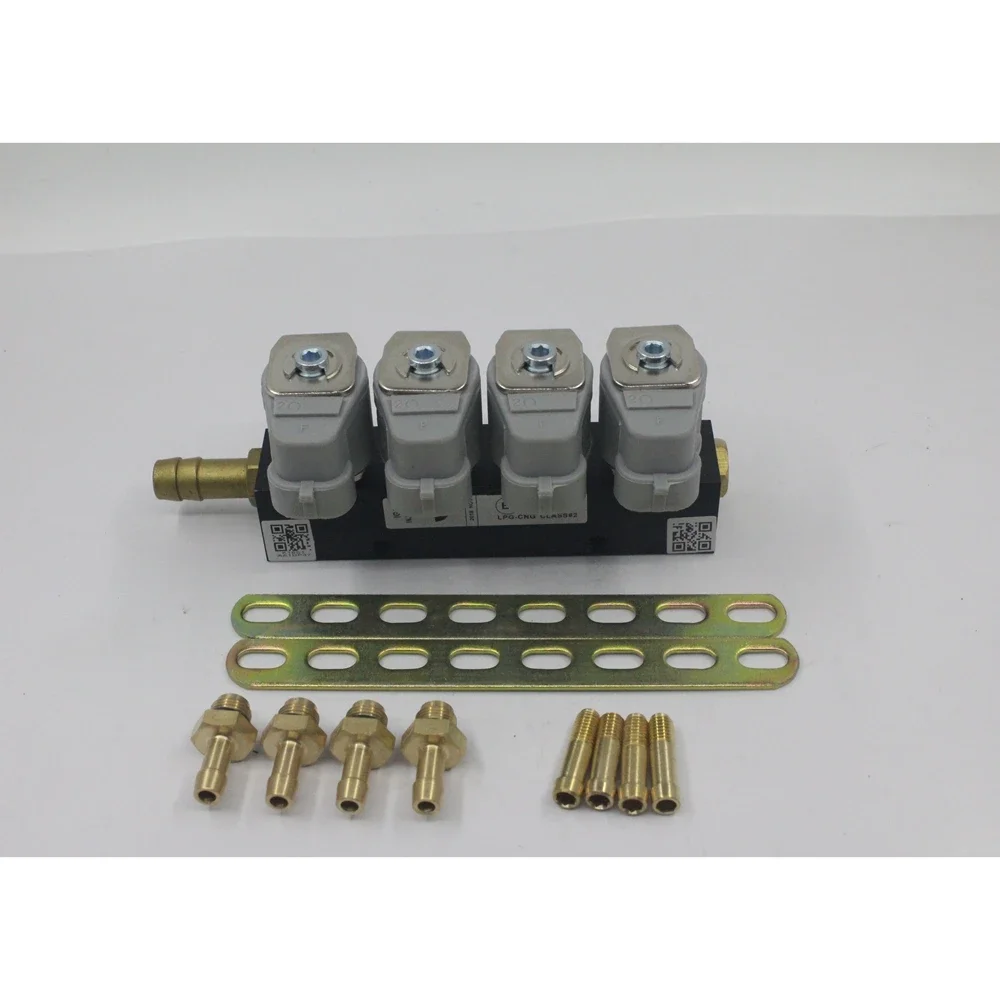

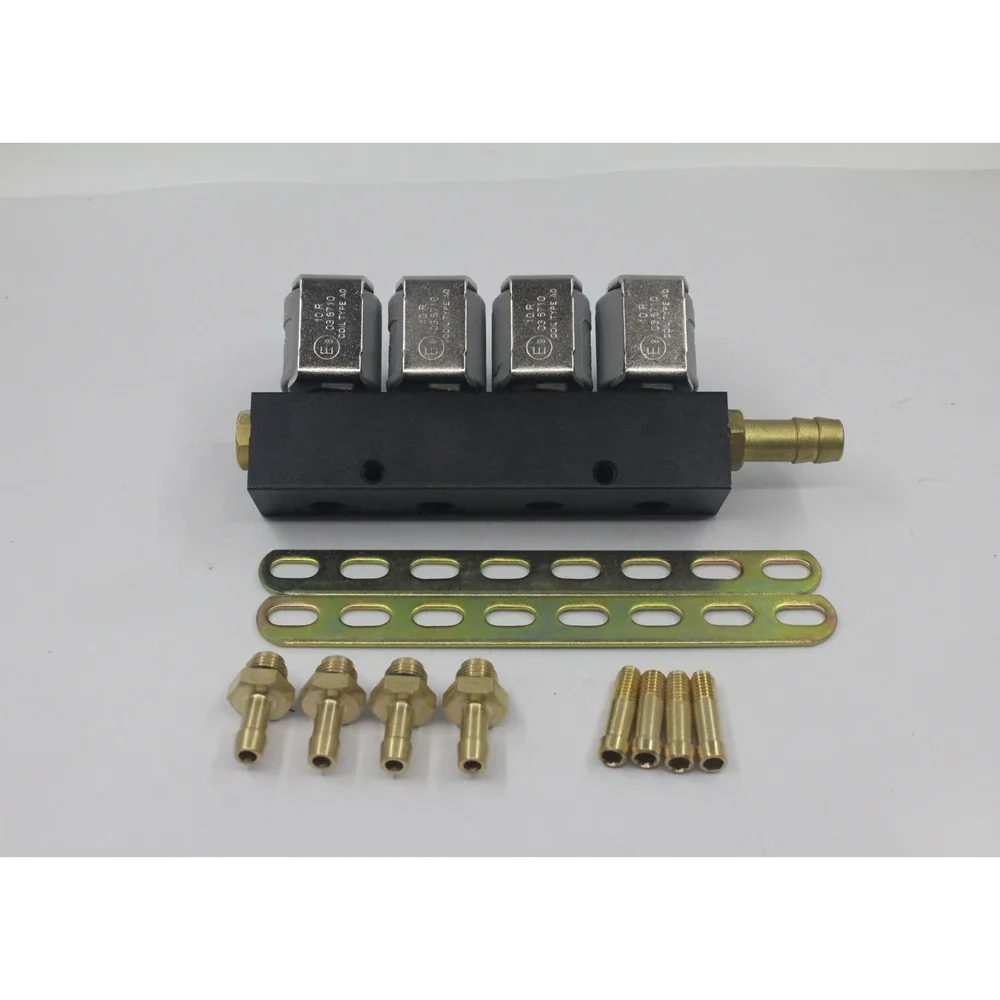

4C 2ohm gas injectors are used in the 4th generation HBO system for distributed fuel injection. Used for injection cars with 4 x or 8 cylinder engine and carries out accurate dosed feed of steam propane or methane per cylinder. We are interchangeable with any other nozzles of this type.
RALL [2 Euro Injection Rail] 1.6 Bore
RALL [2 Euro Injection Rail] 1.8 Bore
Recommended
RALL [2 Euro Injection Rail] 2.0 Bore
RALL [2 Euro Injection Rail] 2.2 Bore
RALL [2 Euro Injection Rail] 2.4 Bore
More styles are in stock. Please contact our support via private message to get the price.
Specifications:
-
Metal case;
-
Input diameter 12mm;
-
Output diameter 6mm;
-
Working pressure 0.05-0.3mpa;
-
Coil resistance: 2ohm;
-
Working voltage dc10-14v;
-
Opening time 2,9 MS;
-
Opening time 2,5 MS;
-
Nozzle hole range 1.5-3.0mm;
-
Operating temperature-40 * C-120 * C;
-
Possibility of adjusting the stroke of the stem;
-
Zhiklera 4 PCs (M10 thread) in the kit;
-
Gas supply fitting 4 PCs in the collector included;
-
Attachment of the nozzle 2 PCs in the kit;
-
Country of Origin: China.
