Overview:
Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning.tracker
Features:tracking device
1.Long Standby Time:It has built-in 3.7V 10000mAh Li-ion battery, can standby up to 120 days.

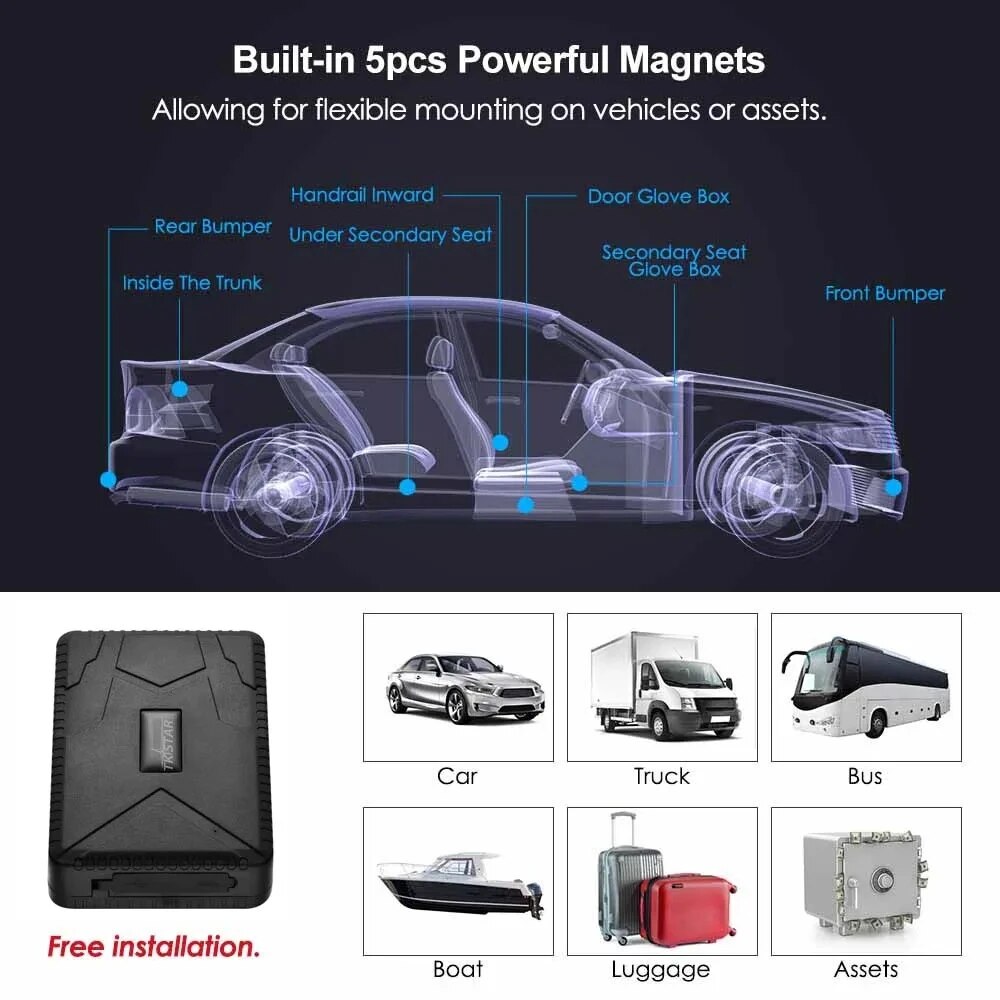

2.Powerful Magnetic:It has 6pcs built-in magnets,with super strong powerful magnetic,can be very easily installed.
4.Overspeed Alarm:This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
5.Shake Alarm:After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
6.Sleep Mode:
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under “sleep by shock” mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
7.History Route Playback:You can track the history route of the device up to 6 months via both the web platform and APP !
8. Loosing Alarm
There is anti-removal induction sensor on the back of device. if this covered induction sensor is not covered again.it will send “Loosing alarms!” to admin number and SOS number by SMS.car tracker
Specification: GPS locator
*Dim:112 * 77mm * 27mm (4.41″*3.03″*1.06″)
*Weight:300g
*Band:2G GSM:850/900/1800/1900Mhz
*GPS sensitivity:-159dBm
* GPS accuracy:5m
*Wall charger:110-220V input5V-1A output
*Battery:Chargeable 3.7V 10000mAh Li-ion battery
*Stand by:120days
*Storage Temp.:-40°C to +85°C
*Operation Temp.:-20°C to +55°C
* Humidit:5% — 95% non-condensing
About Web tracking platform:
Free Web tracking software,no charge fee,login page : www.mytkstar.net
Select “Log in by IMEI” on the bottom of screen
IMEI No. : on the back side of cover
Password: 123456
About Mobile APP Android/IOS Tracking:
Scan the QR Code to install the applications on your cell phone.Register and add account.
Search “TKSTAR GPS” in the Apple App Store/Google Play Store or Scan the QR Code to install
the applications on your cell phone.
Note: GSM SIM CARD INSTALLATION GUIDE: Only GSM SIM card works in this model
