◆ Real-time tracking ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert

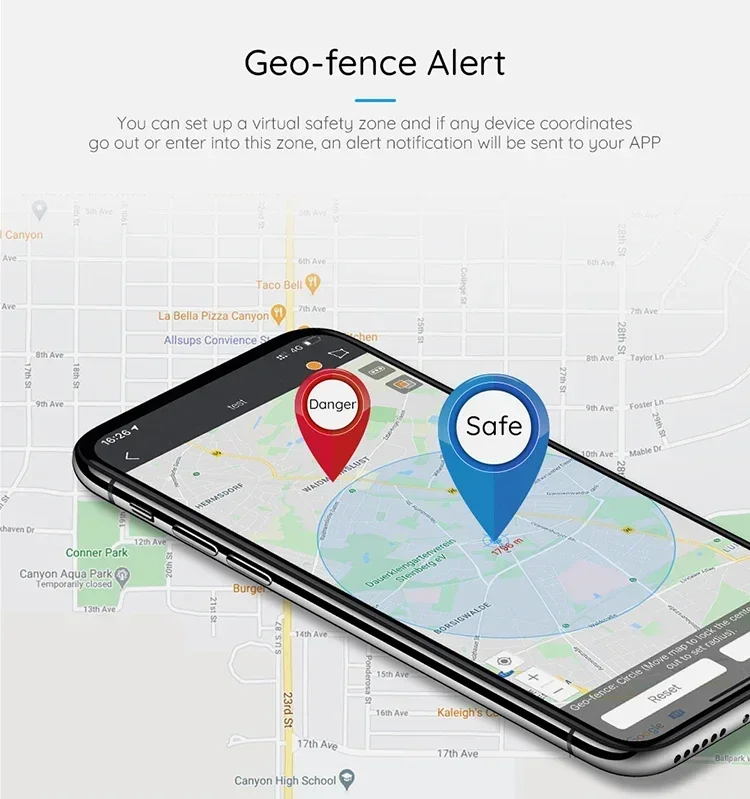

◆ Main power cut off alert ◆ Geo-fence

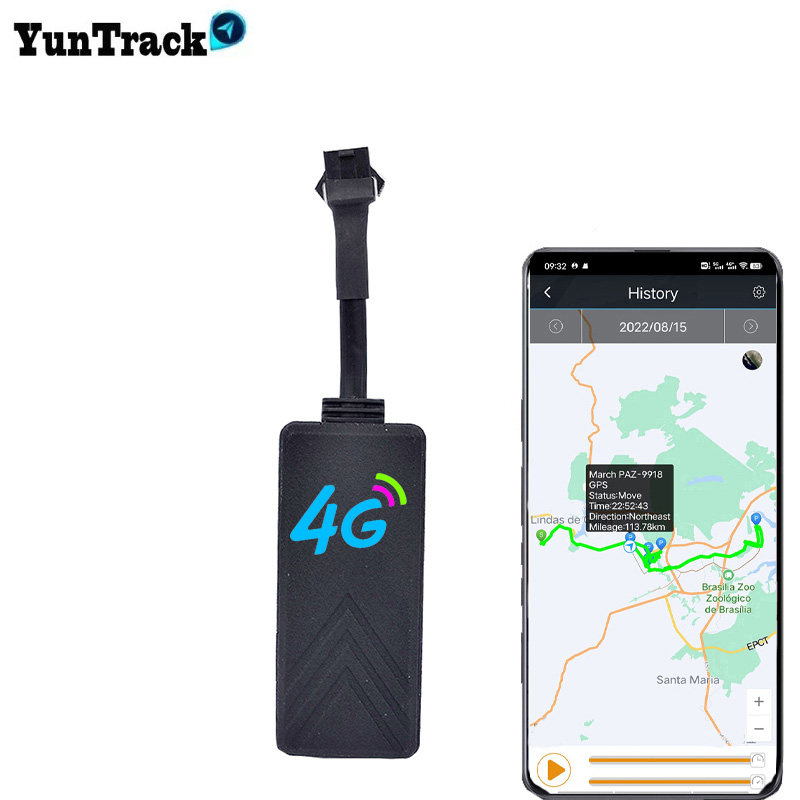

◆ History Route ◆ Cut and resume oil remotely ◆ AGPS locating
|
Frequency |
|
|
GSM 850/900/1800/1900MHz 4G FDD-LTE-:1/2/3/4/5/7/8//28/66 |
|
|
Networks |
GSM/GPRS |
|
Backup Battery |
3.7V 180mAh |
|
Operating voltage |
8-95V |
|
Location time |
Cold start 35s-80s |
|
Hot start 1s |
|
|
Location accuracy |
5 meters |
|
Operating temperature |
-20℃~+55℃ |
|
Dimension |
74*25*13mm |
|
Weight |
40 g |
Note: against pseudo base-station&detect function should under power save work mode! The device would wake
up when move and speed above 20km/h.

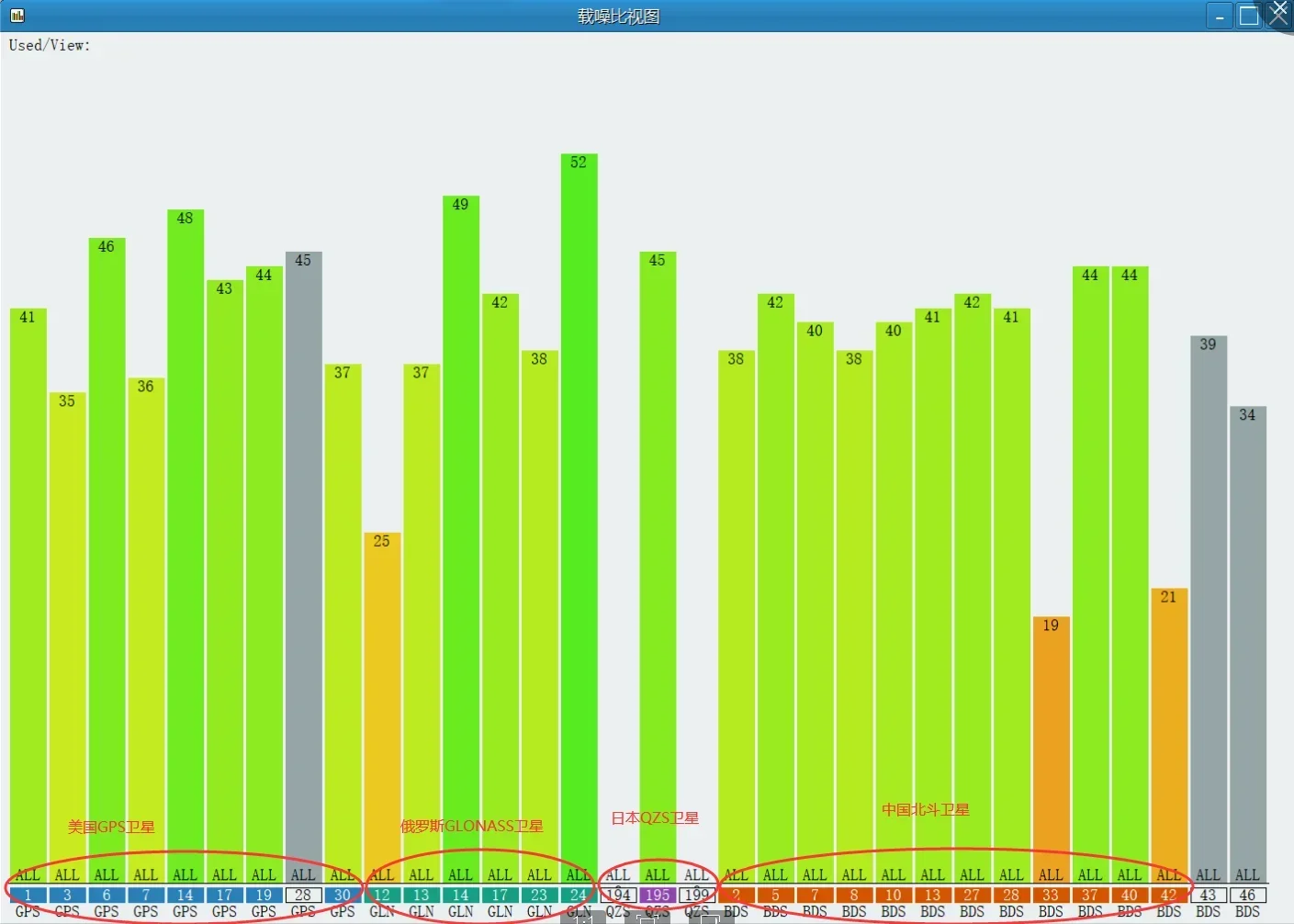

navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan
And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously.
Receive GNSS signals from six satellite navigation systems and realize joint positioning.

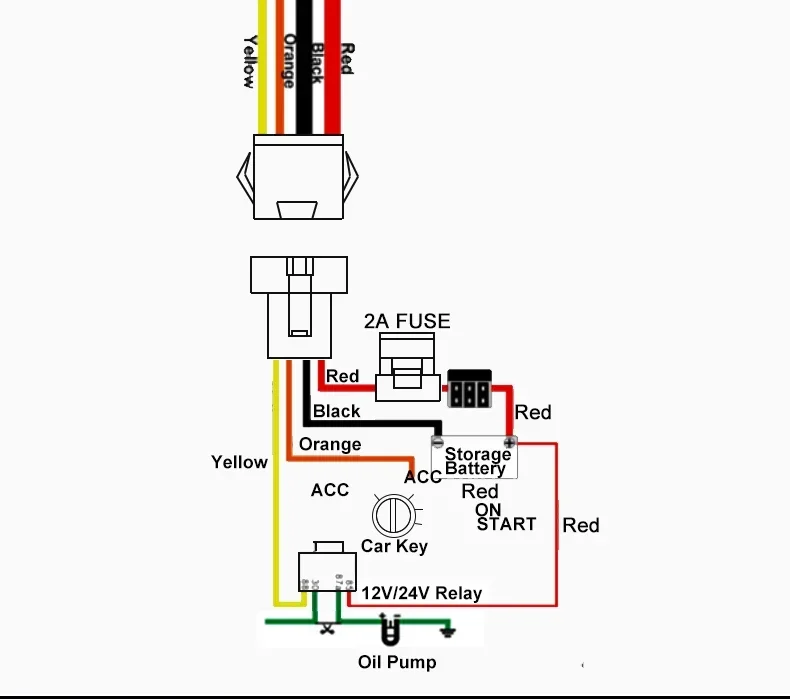

Functions and Product parameters (CJ780 Pro / Off petrol and electricity Need to match relay)
LED Indicator Definition
Green Indicator:GPRS
|
Status of indicator |
Meaning |
|
Flash |
GSM/GPRS conversation start |
|
Continuously in bright status |
No GPRS signal |
|
Green Led off |
Power off or in sleep mode |
Blue Indicator:GPS
|
Status of indicator |
Meaning |
|
Flash |
GPS location successful |
|
Continuously in bright status |
GPS signal searching |
|
Blue led off |
Power off or in sleep mode |
Red Indicator:Power charge
|
Status of indicator |
Meaning |
|
Continuously in bright status |
charging |
|
Red led off |
Power off or charged full |
More Commands
|
Function |
Command Format |
Reply |
Delete |
for example |
|
APN |
apn+123456+space+content |
apn ok |
apn123456 cmnet |
|
|
apnuser+123456+space+content |
apnuser ok |
|||
|
apnpasswd+123456+space+content |
apnpasswd ok |
|||
|
admin number |
admin123456+space+admin phone number |
admin ok |
noadmin123456 |
admin123456 186******** |
|
time zone |
timezone+123456+space+GMT No. |
timezone ok |
timezone123456 +1 |
|
|
Power save(default) |
sleep123456 time |
sleep time ok |
||
|
shock sleep |
sleep123456 shock |
sleep shock ok |
||
|
no sleep |
sleep123456 off |
sleep off ok |
||
|
upload frequency |
upload123456+space+time |
upload ok |
upload123456 10 |
|
|

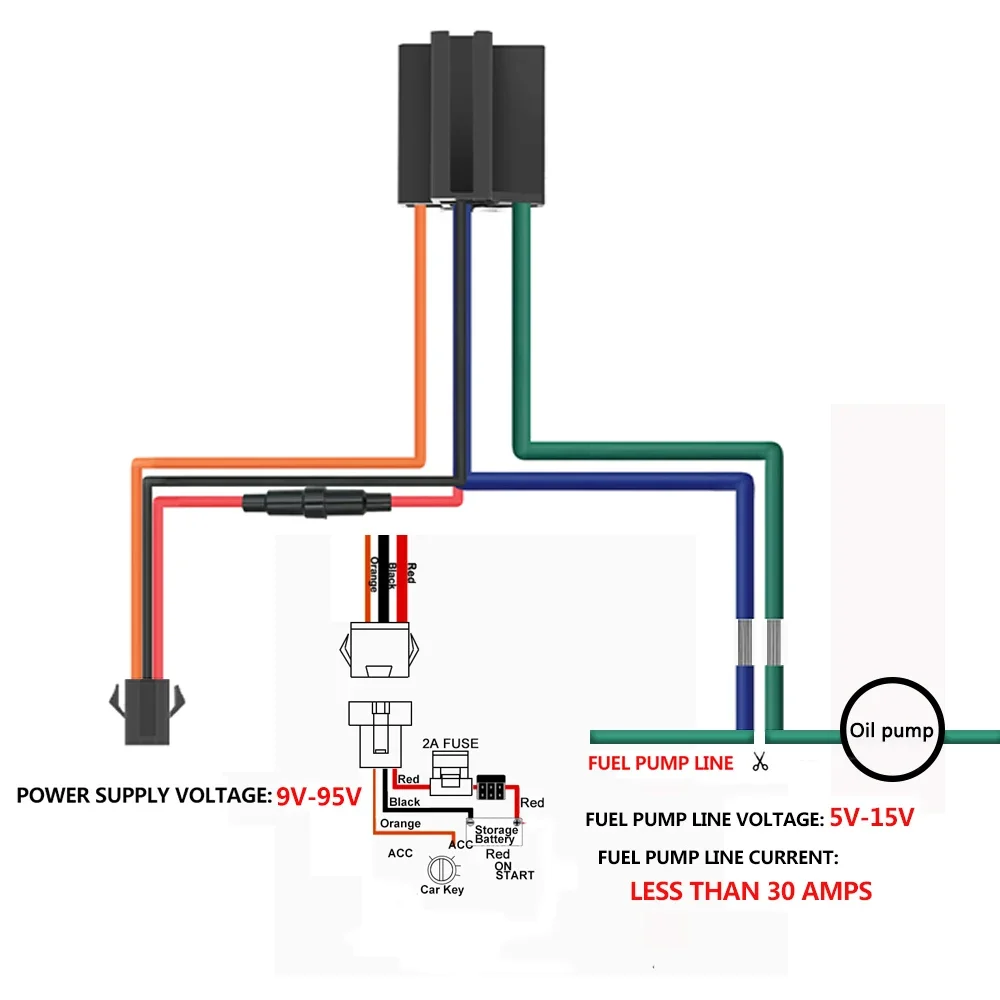

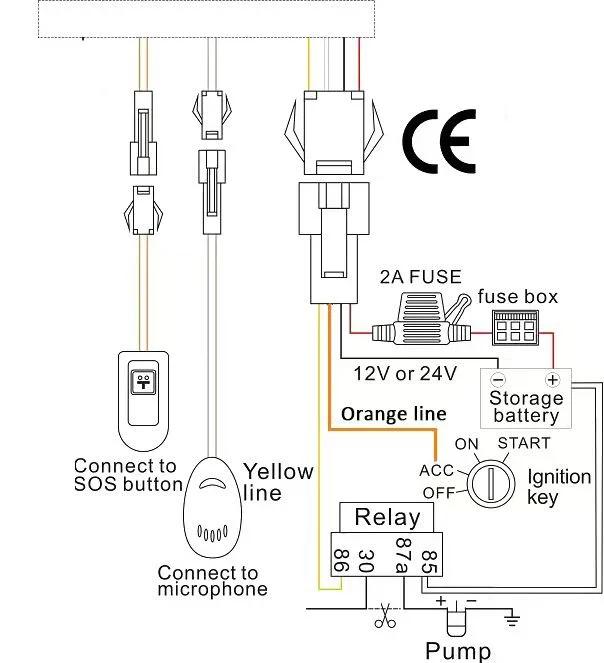

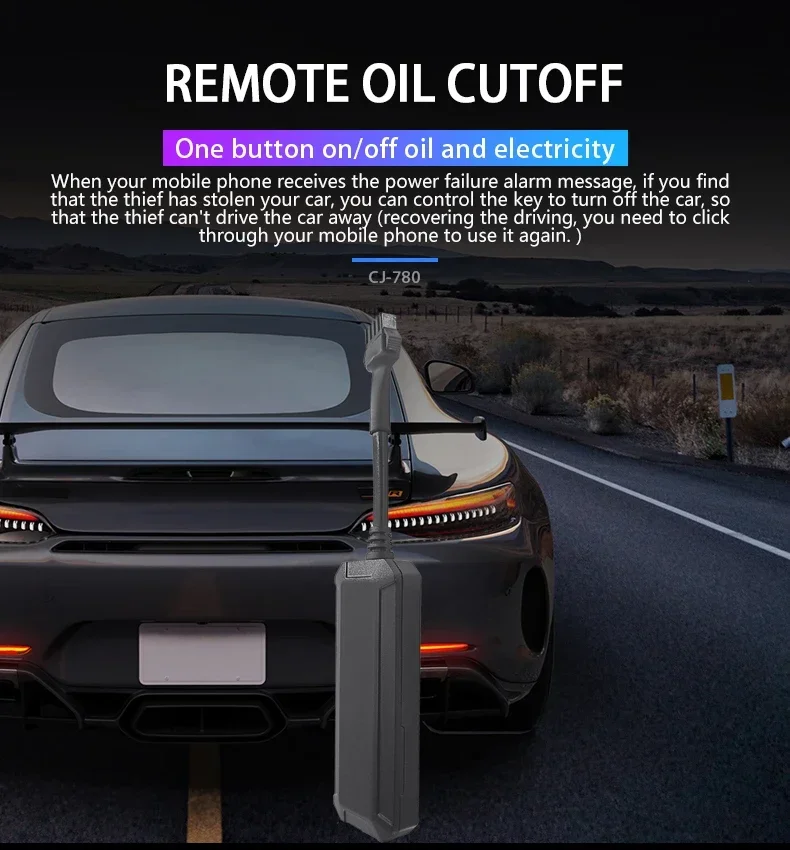

Cut and resume oil |
555 |
Cut oil OK |
666 |
|
|
Arm&Disarm |
111 or SF |
Arm delay in 0s |
000 or CF |
|
|
Position |
G123456# or where |
Google map |
||
|
Restart |
rst |
restart ok |
||
|
Back to factory |
format |
No reply |
|
|
Faults & The solutions
