Latest 4G LTE Network
Europe/Middle East/Africa/Korea/Southeast Asia/India Version band :
LTE-FDD: B1/B3/B7/B8/B20/B28;
LTE-TDD: B38/B40/B41;
Australia/New Zealand/Taiwan/Latin America Version band: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD:B40
WCDMA:B1/B2/B5/B8
GSM:B2/B3/B5/B8
Dim:90mm x 72mm x 32mm
Weight:235g
Color:Black
GPS sensitivity:-159dBm
GPS accuracy:5m
Time To First Fix:
Cold status 35-80s
Hot status 1s
Wall charger:110-220V input 5V outputGSM Alarm System
/ 10000mAh (TK905B-4G) Li-ion battery
Standby: 30days
Storage Temp.:-40°C to +85°C
Humidity:5%–95% non-condensing
Global 4GBandFrequency: 4G Band quand varies with different countries, please choose correct version:traceur gps
4G LTE-FDD: B1/B3/B7/B8/B20
4G LTE-TDD: B38/40/B41
2G GSM: B3/B8
Overview:

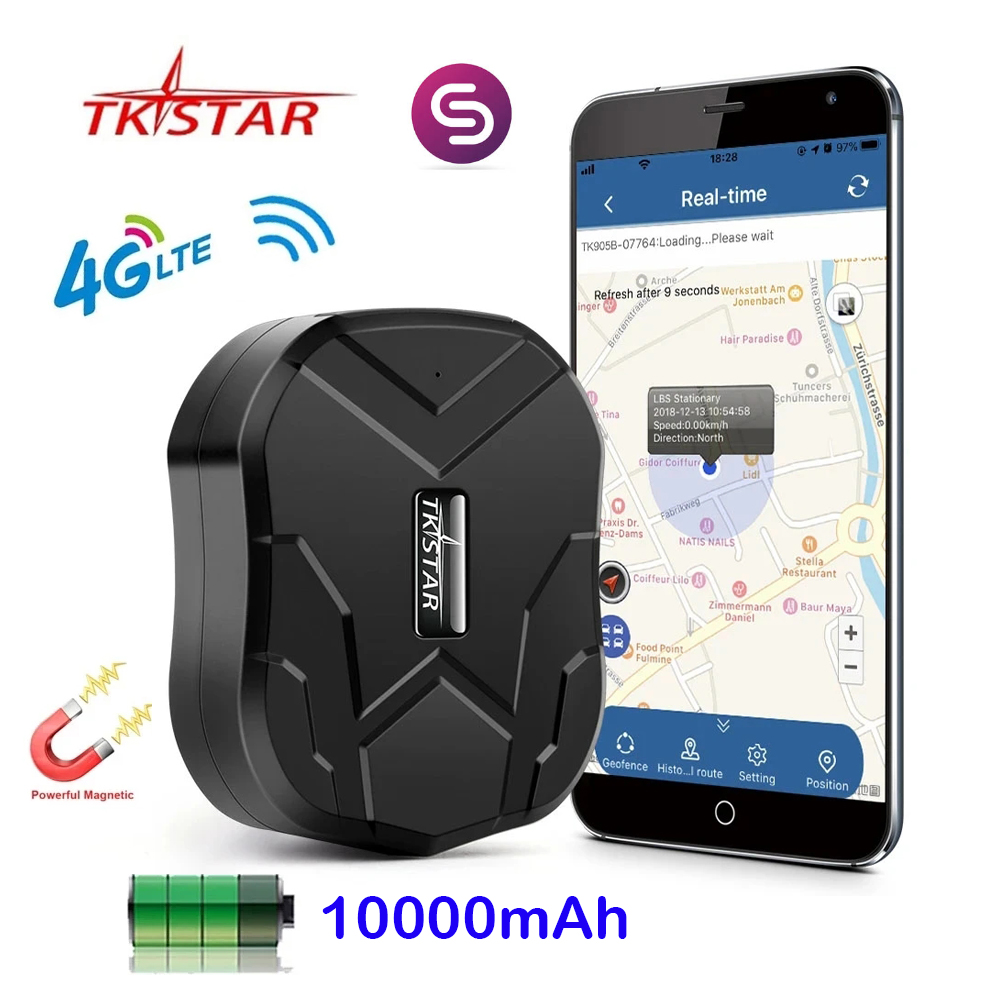

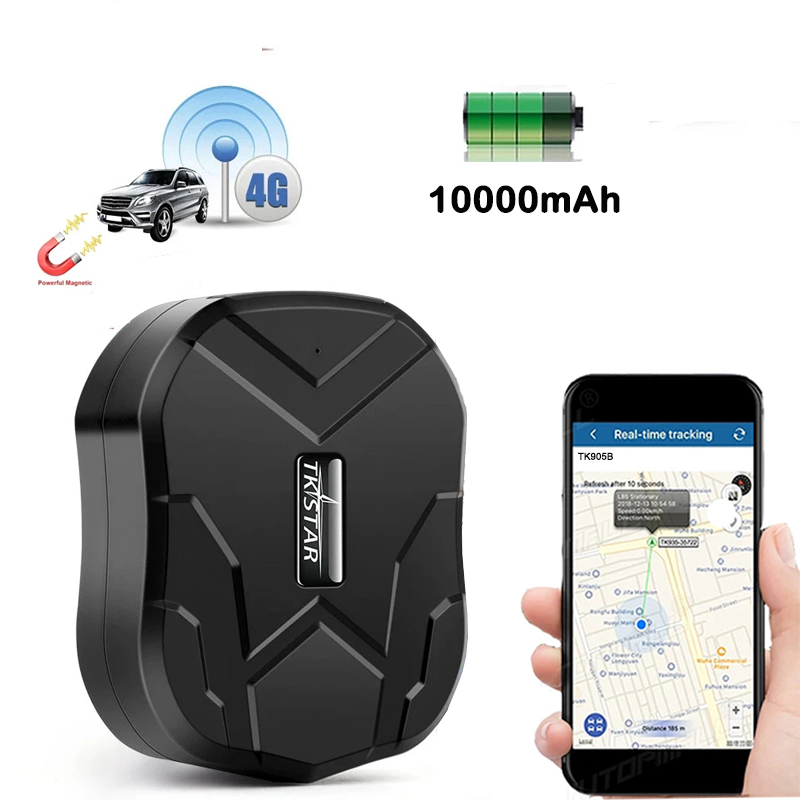

This Car GPS Tracker TK905b is a 4G GPS Tracker which is working based on the existing 4G LTE network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software!
It adopts the most advanced technology of GPS , LBS and Wifi three positioning ways. Besides, with built-in powerful magnet, it can be installed very easily and tightly on car, truck and any target with metal interface.
Tracking software:
About web tracking platform:
Web tracking platform: www.mytkstar.net
About iOS/ANDROID APP Tracking:
Android version,please scan below QR code, if iOS version,please search “WINNES GPS” in app store to download.
Main Features
1. GPS+LBS Double Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters.
2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
4. Long Standby Time: It has built-in 3.7V 5000mAh Li-ion battery, the standby time is up to 90 days and the working time is up to 5-7 days;
5. Powerful Magnetic: It has built-in powerful magnets, can be very easily installed.
6. Waterproof IP65: The waterproof level of this device is IP65, it can resist splash water but can't be put under water!
7. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
8. Shock Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
9. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command “move+passord”, then in case the device moved 500m it will send alarm SMS “Move Alarm+Latitude and longitude” to the authorized number.
10. Geo-fence: set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
11. Sleep Mode for Saving Battery:
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under “sleep by shock” mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
12. Web Tracking Platform and Mobile APP: LIFETIME FREE ! Web server and both iOS and Android version APP are available!
