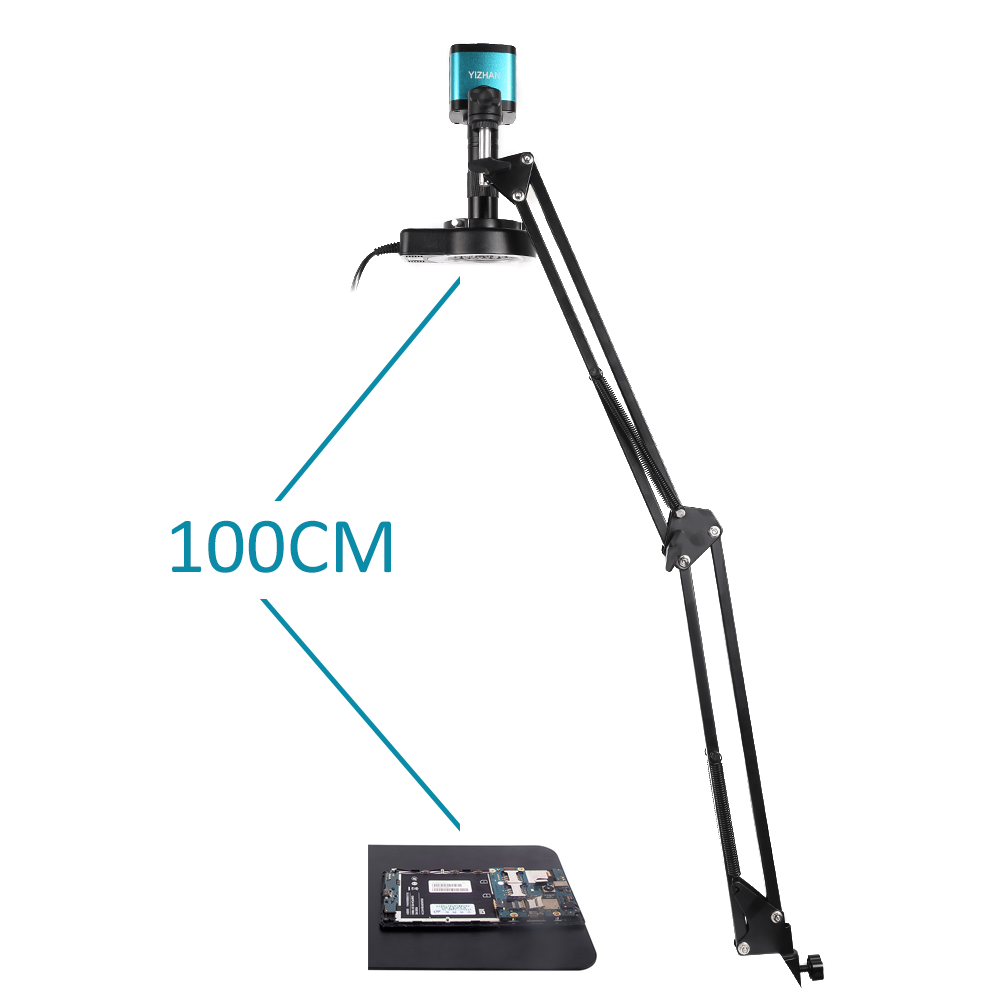

Maximum working distance of lens 100CM!
Be sure to use the microscope in a bright environment, otherwise the image will not be clear.

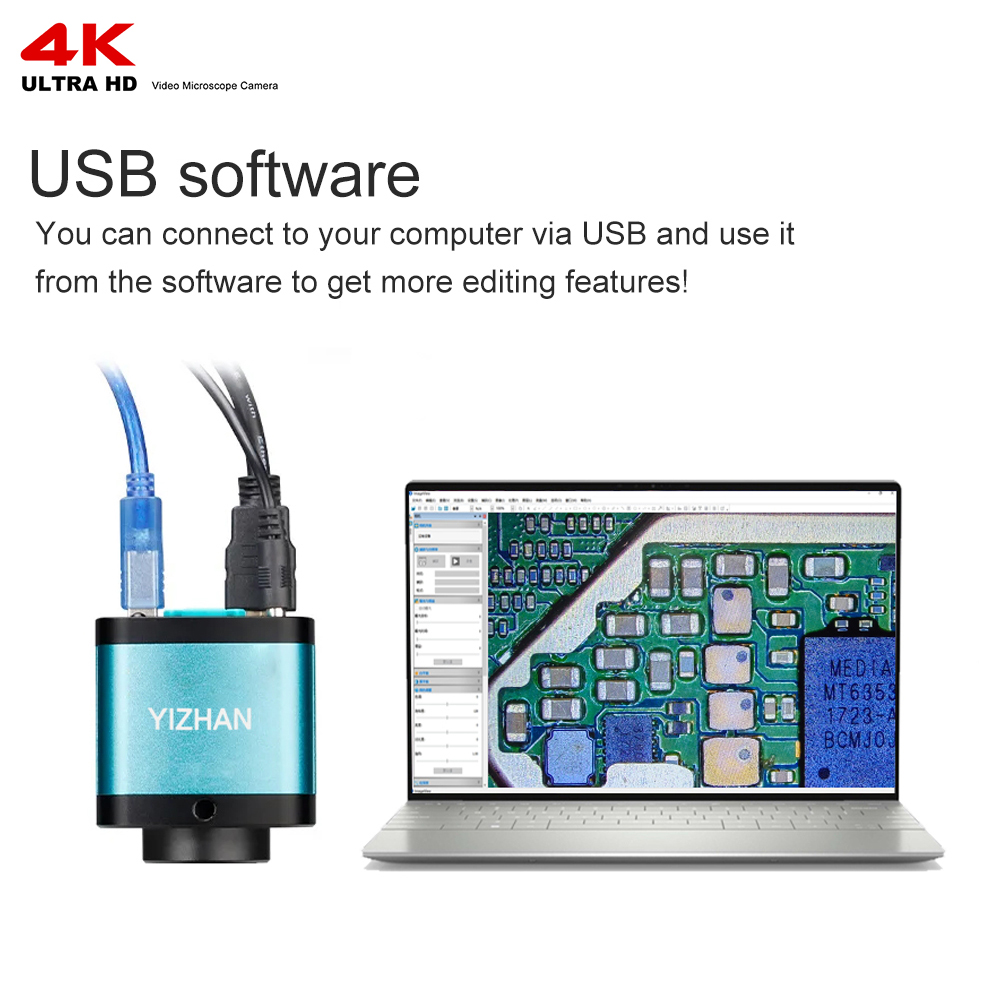

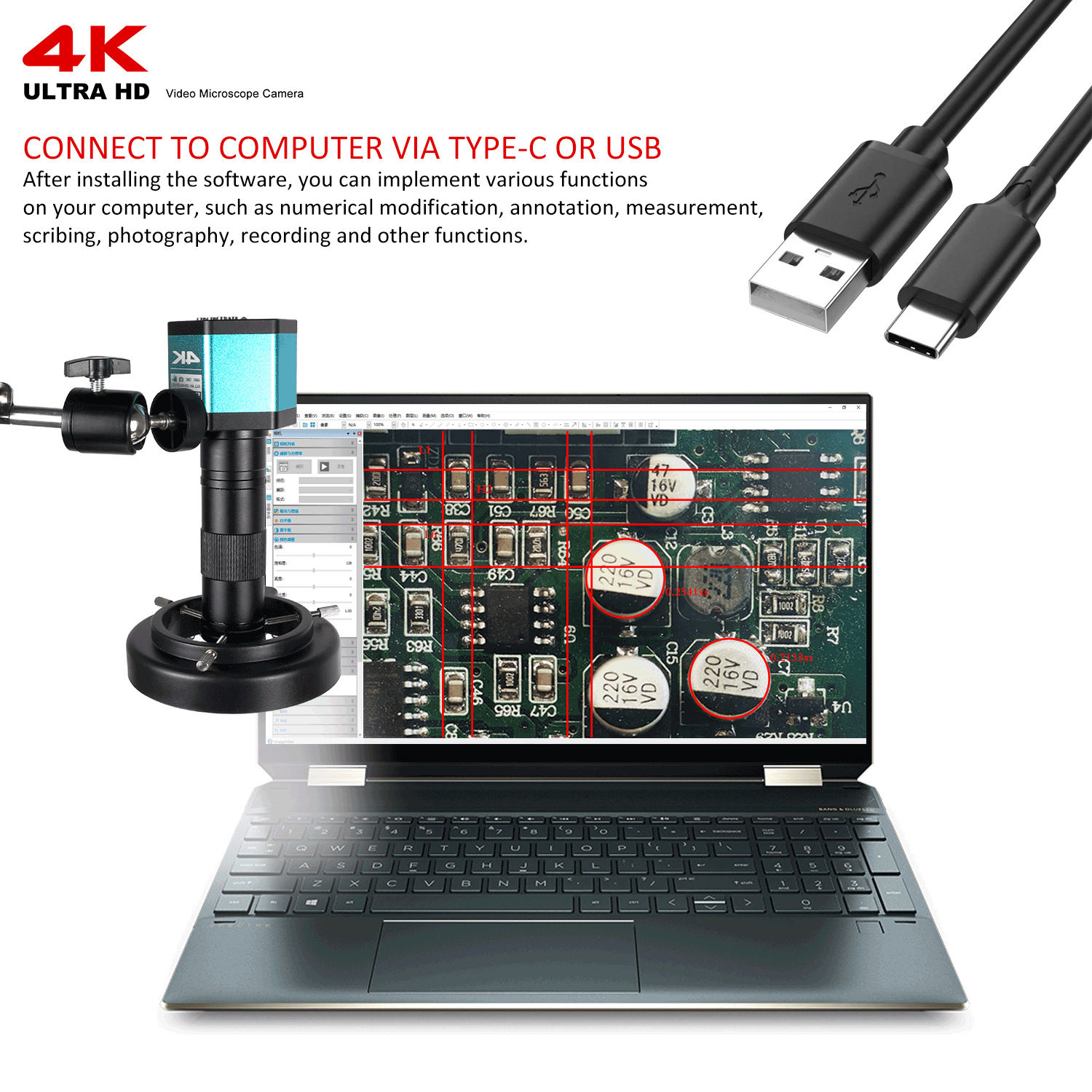

Software download address//drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing
Product description:

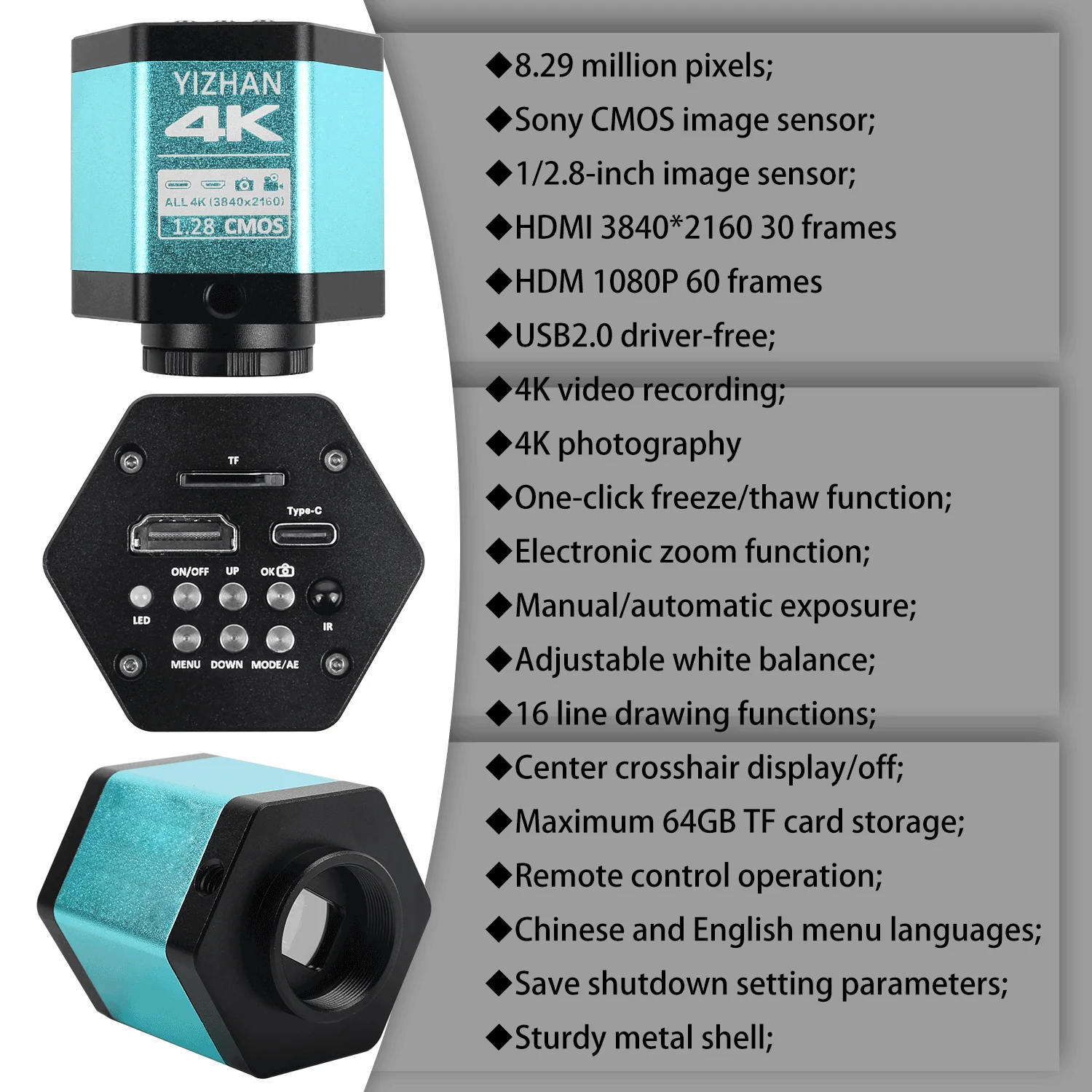

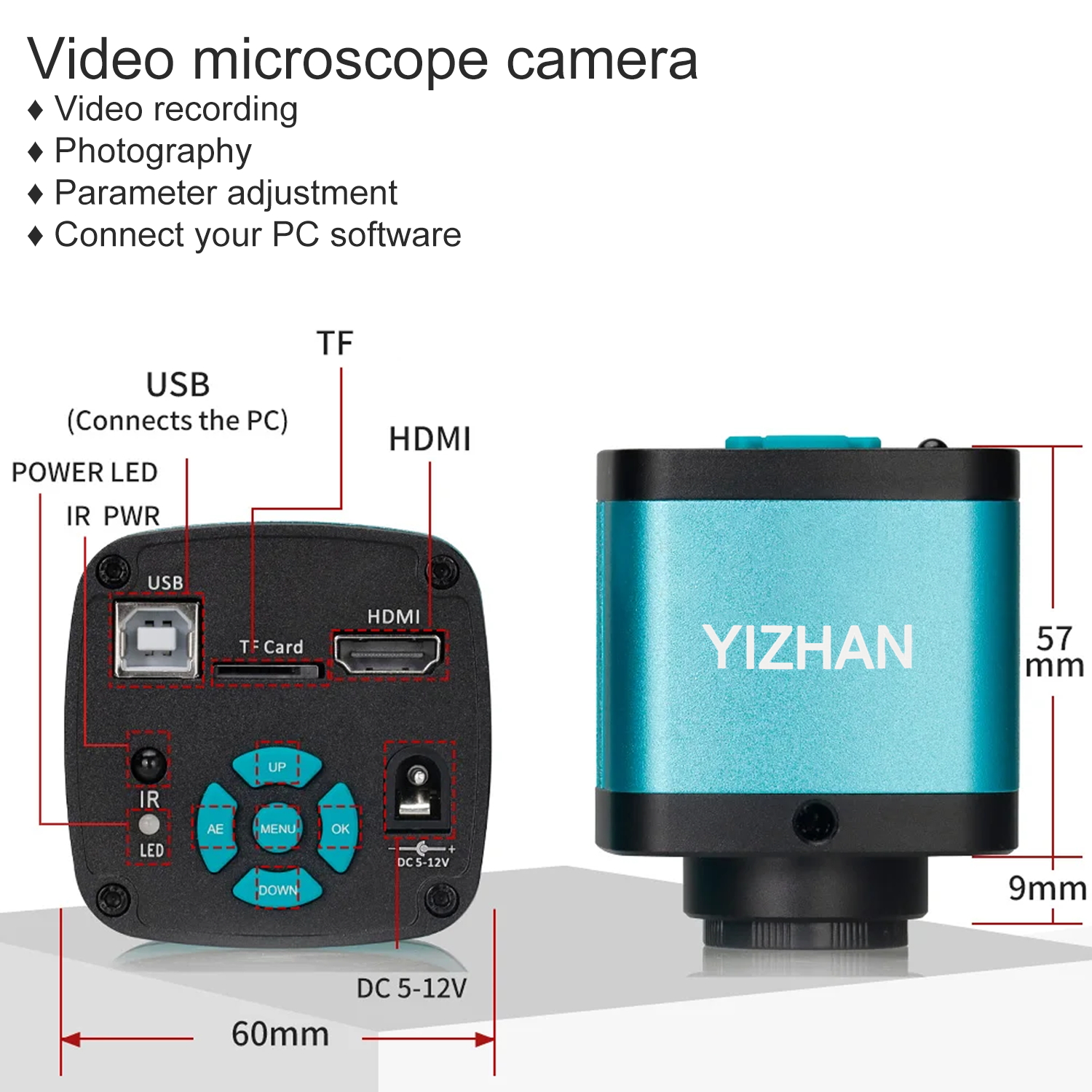

48MP HDMI USB 4K Camera:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Sony sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 – 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm
Adjustable bracket ：
size: 340mm+320mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

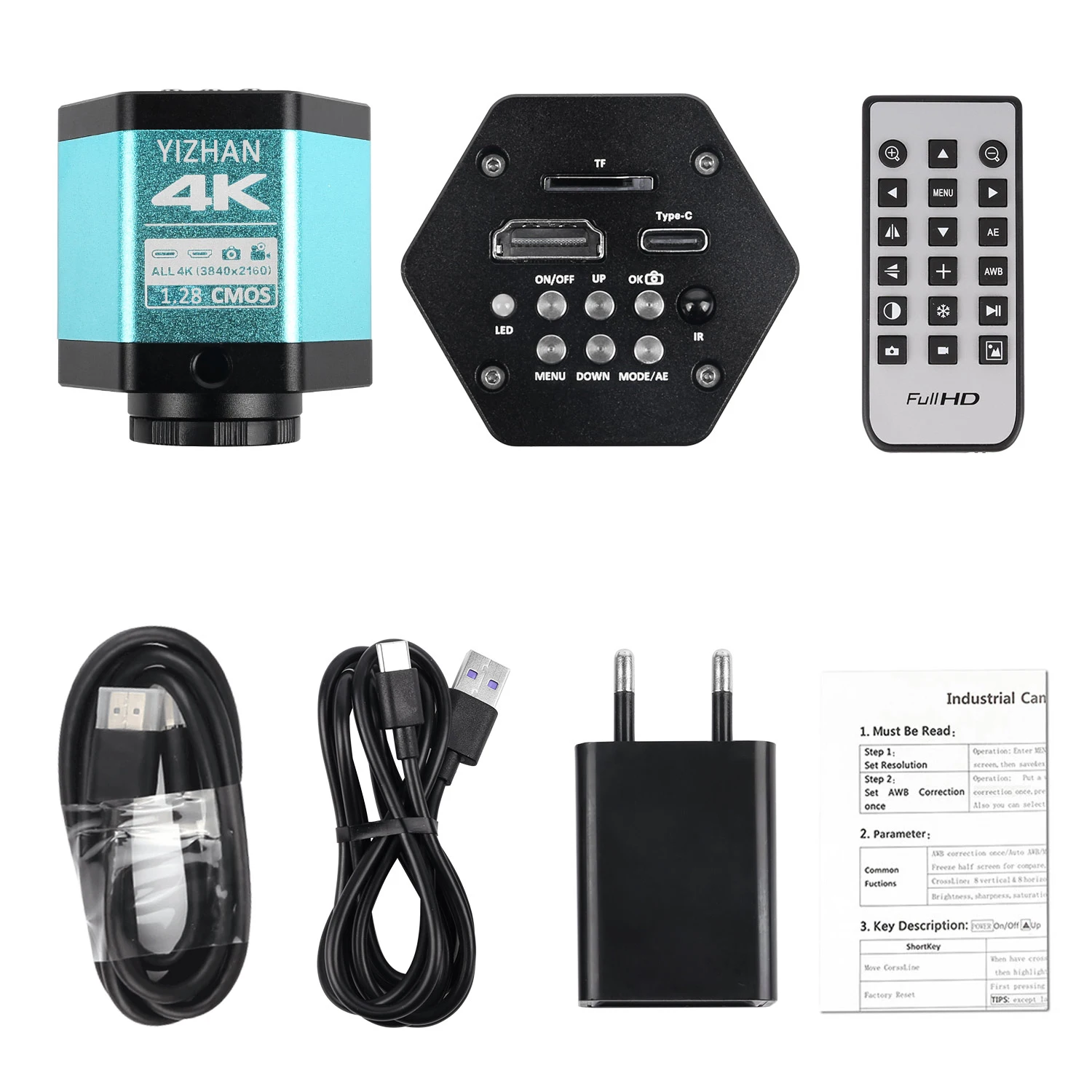

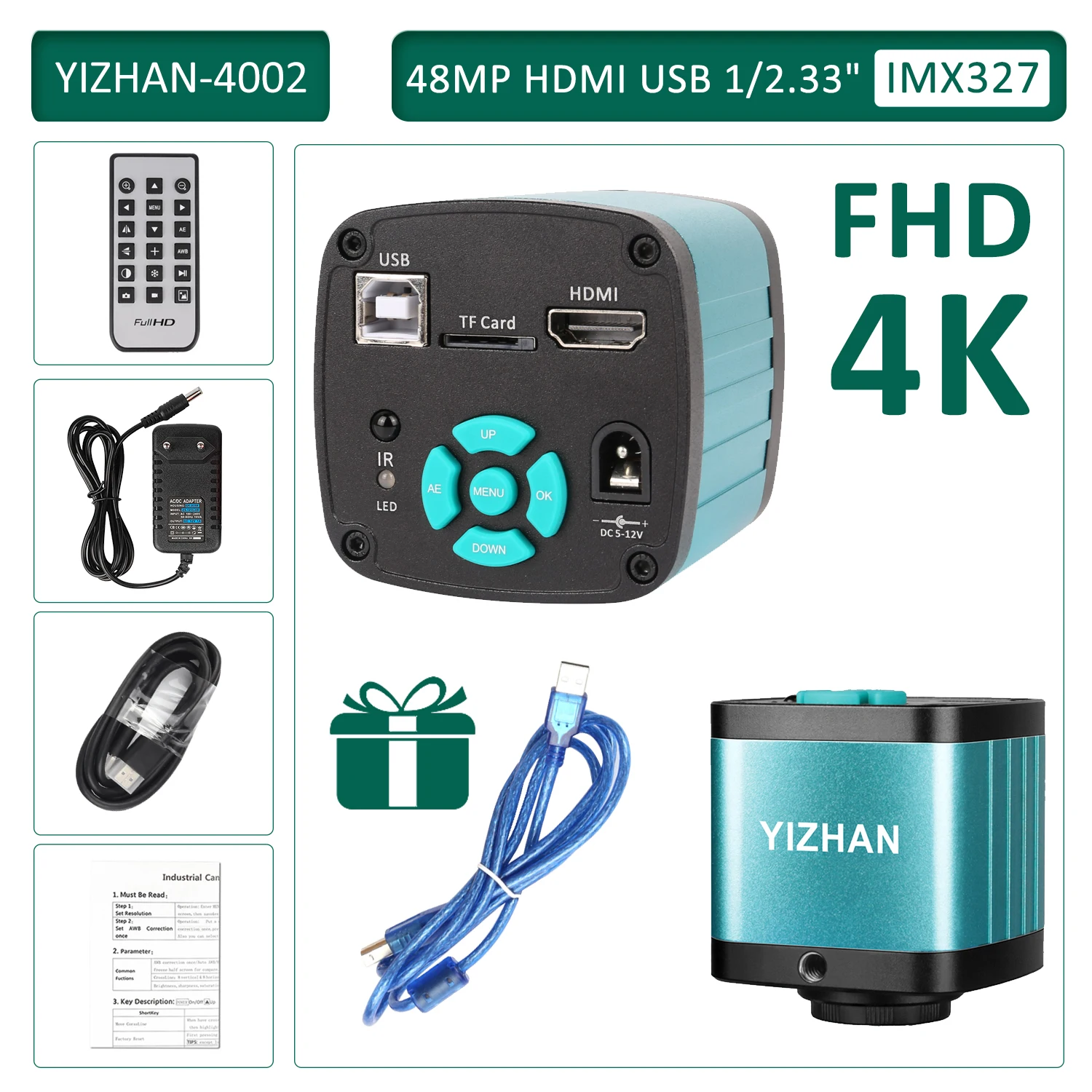

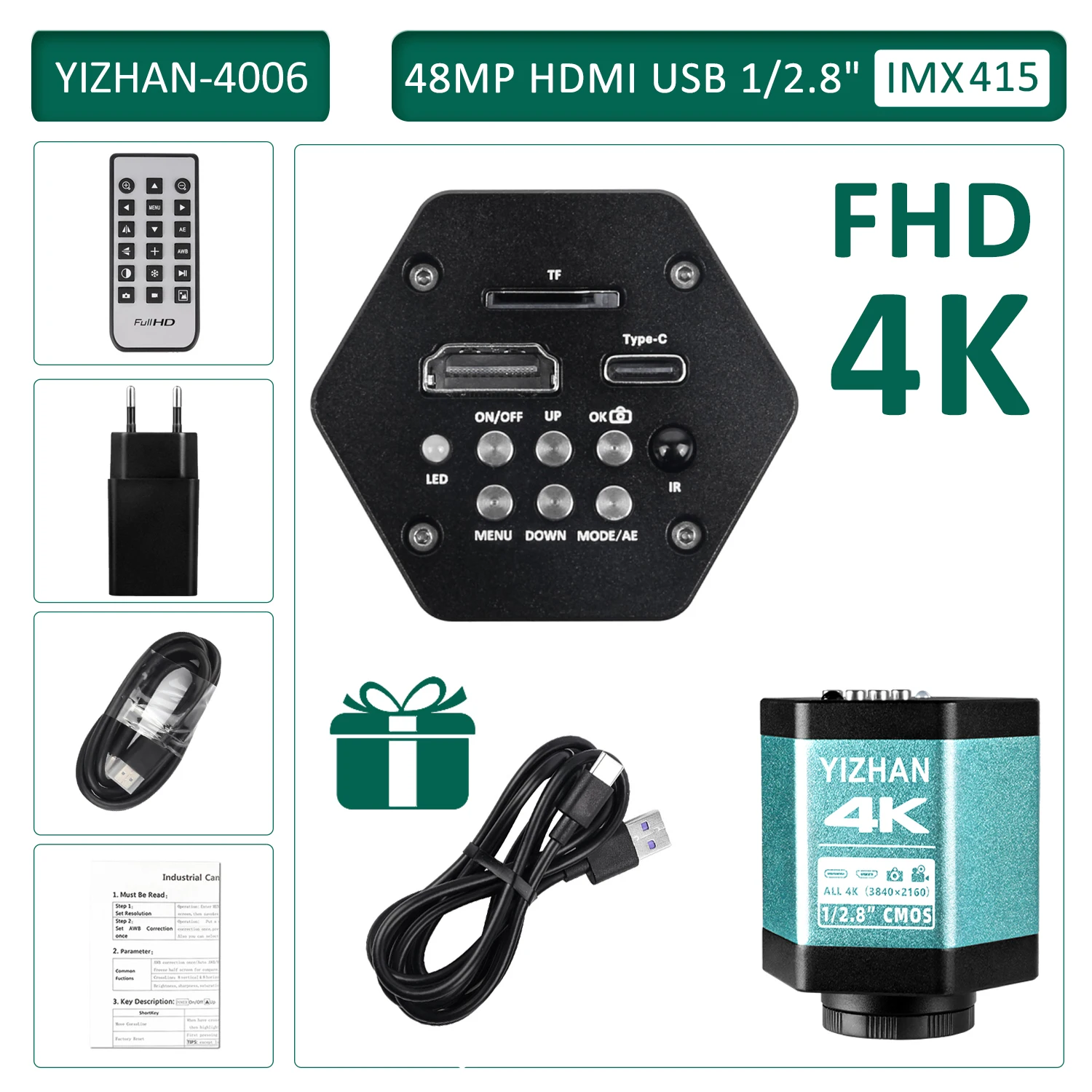

List of packing：

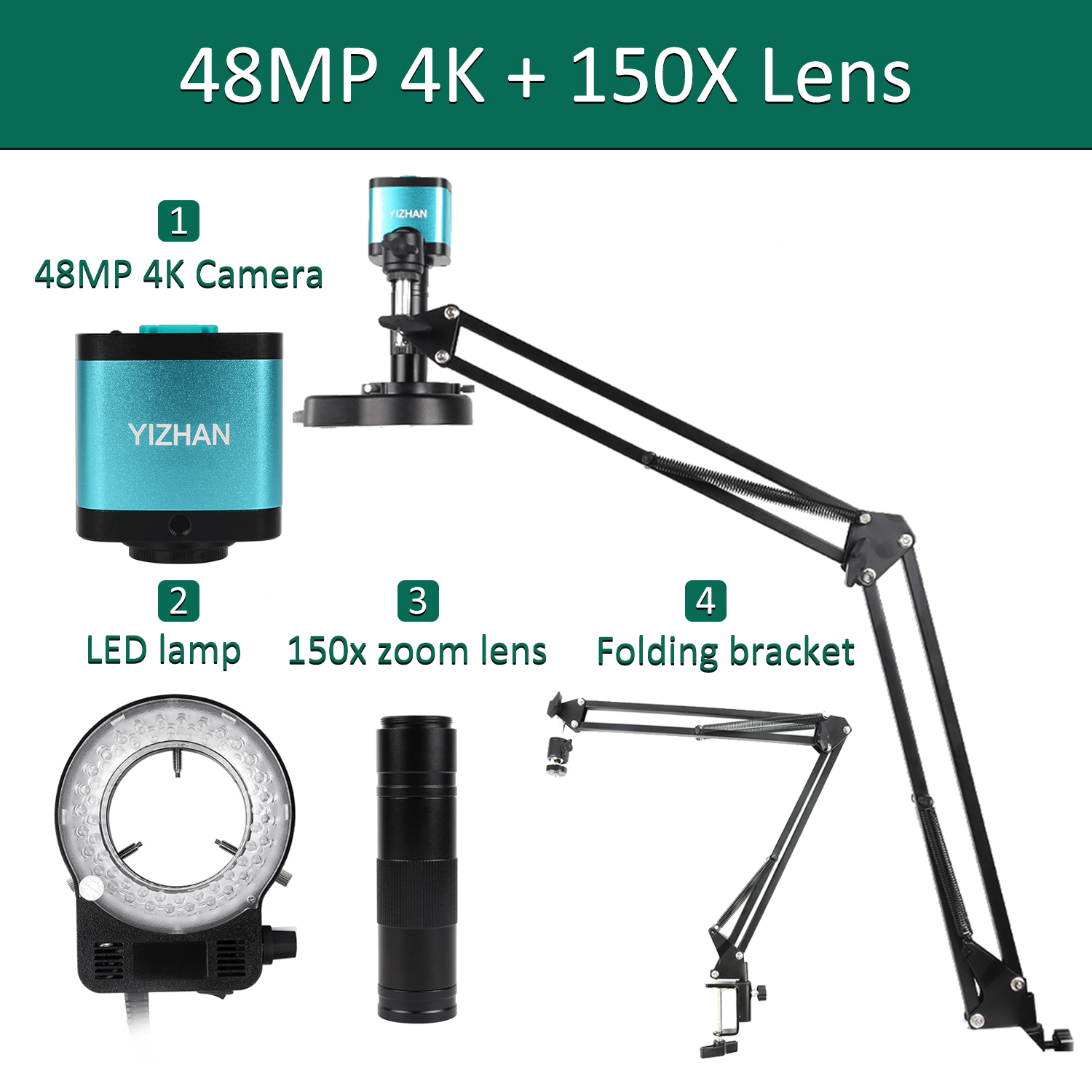

FUll Set：
1 x Microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x USB Lines
1 x 150X lens
1 x 56 led ring light
1 x Stand

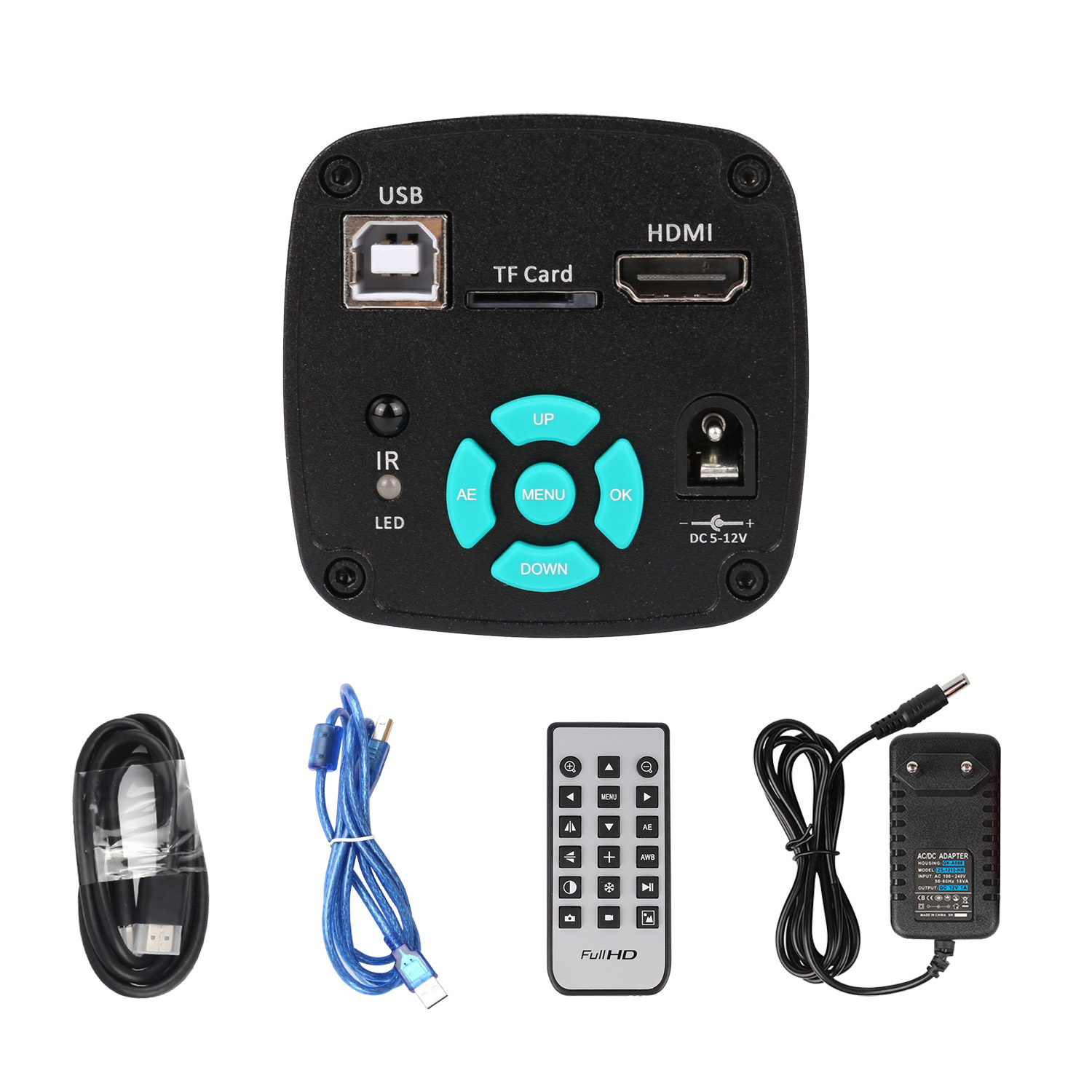

Only camera：
1 x Microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x USB Lines
