【Important Tips!】
1. The controller and led strips works at DC voltage, can't connect the controller to AC power (110V-240V) directly! Or the controller and led strip will be burnt immediately!
Connect controller to the transformer (power supply), then transformer connect to AC power!

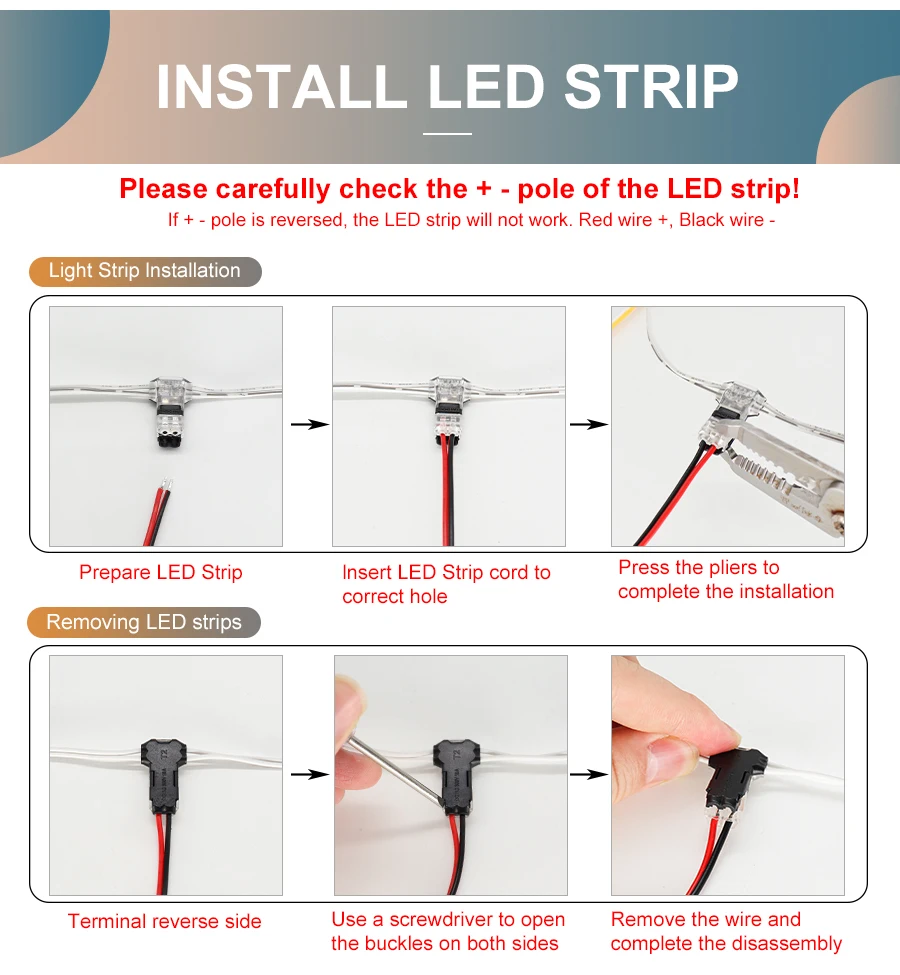

2. Please carefully check the +/- pole of Main Line and LED strips before installing.
3. The controller can't make “step by step” lighting. All led strips will be turned on/off together.
Product description

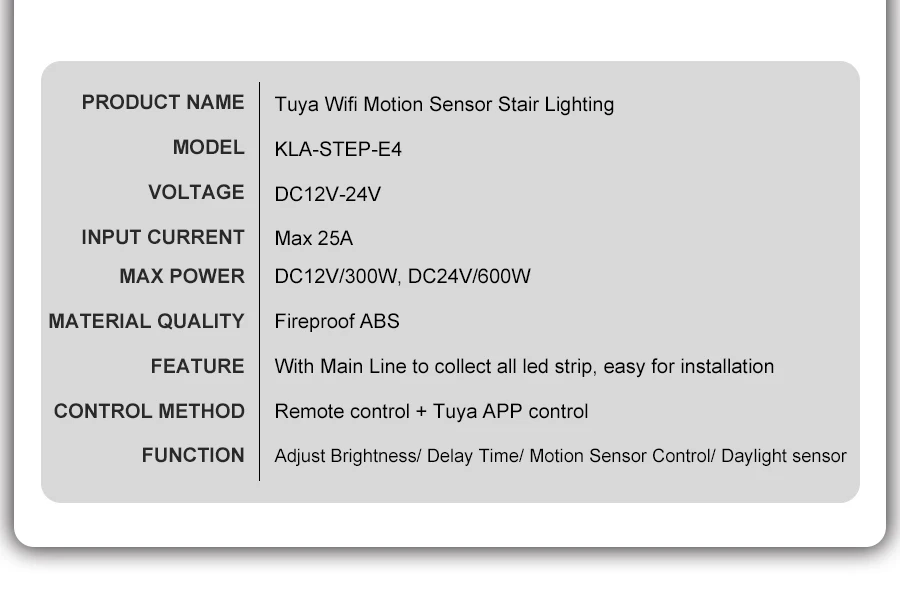

Product Name: Tuya Wifi Motion Sensor Stair Light Kit
Steps number: 5~30 steps chosable
LED strip type: COB LED Strip
Sensors: 2pcs PIR Sensor + 1pcs daylight sensor
Sensor : fixed mounted or recessed mounted ( Dia 15mm only )
Features: there's a main line cable to connect all strips, no need complicate wiring
App Name: Tuya or Smar Life
COB Strip width: 8mm
LED chip quantity: 480 LEDs/m
Voltage: DC 24V

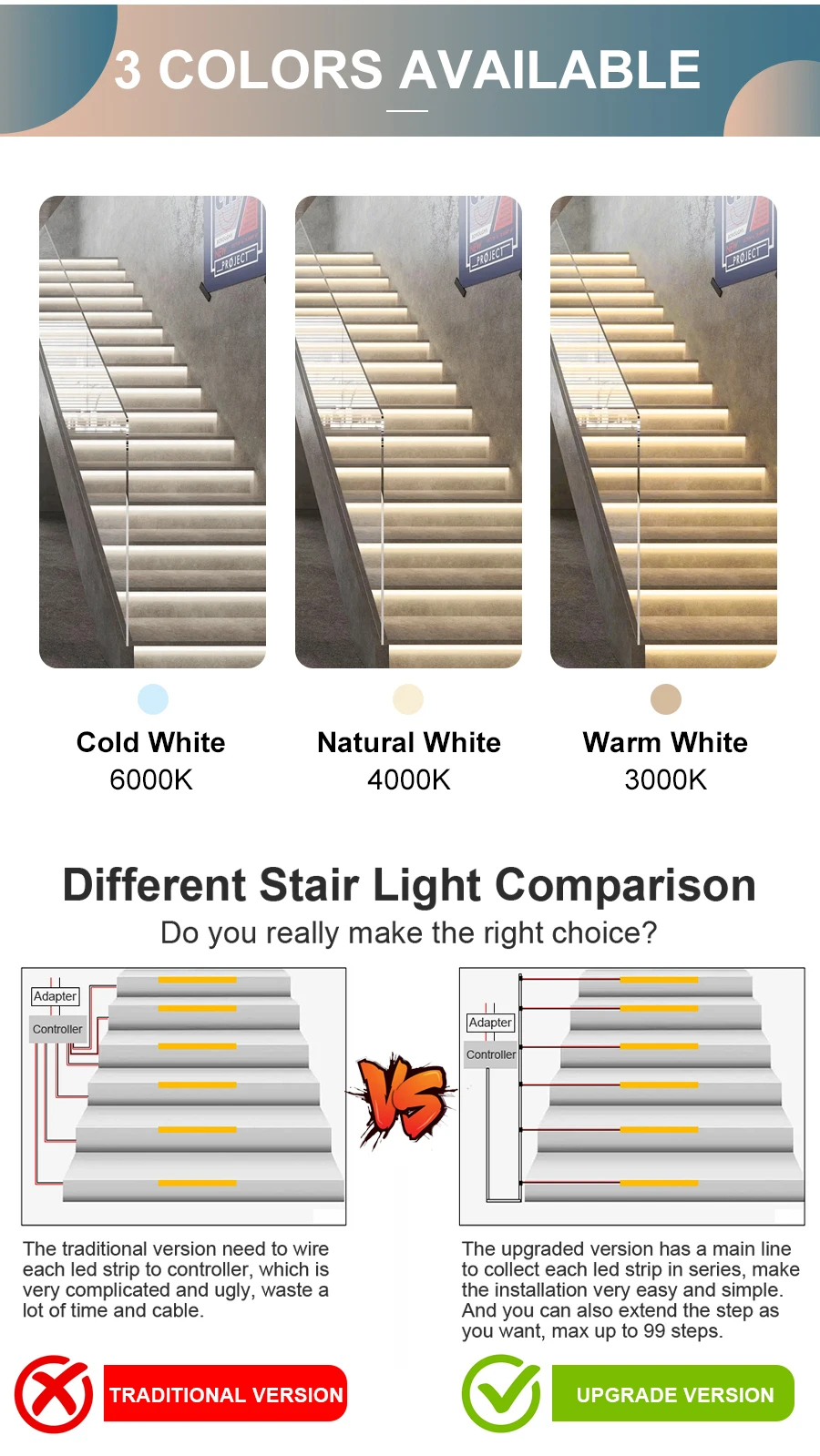

Color: 9 colors available to choose
Watt: 10W/m
Length: 1 meter per piece
Thickness: 2.2~2.5mm
Sticker: strong adhesive tape
Wire length on the led strip: 15cm
Waterproof grade: IP30
Cuttable: yes (50mm/cut)
Brightness: 1000~1100LM/m
If you want mixed colors COB strips, you can tell us!

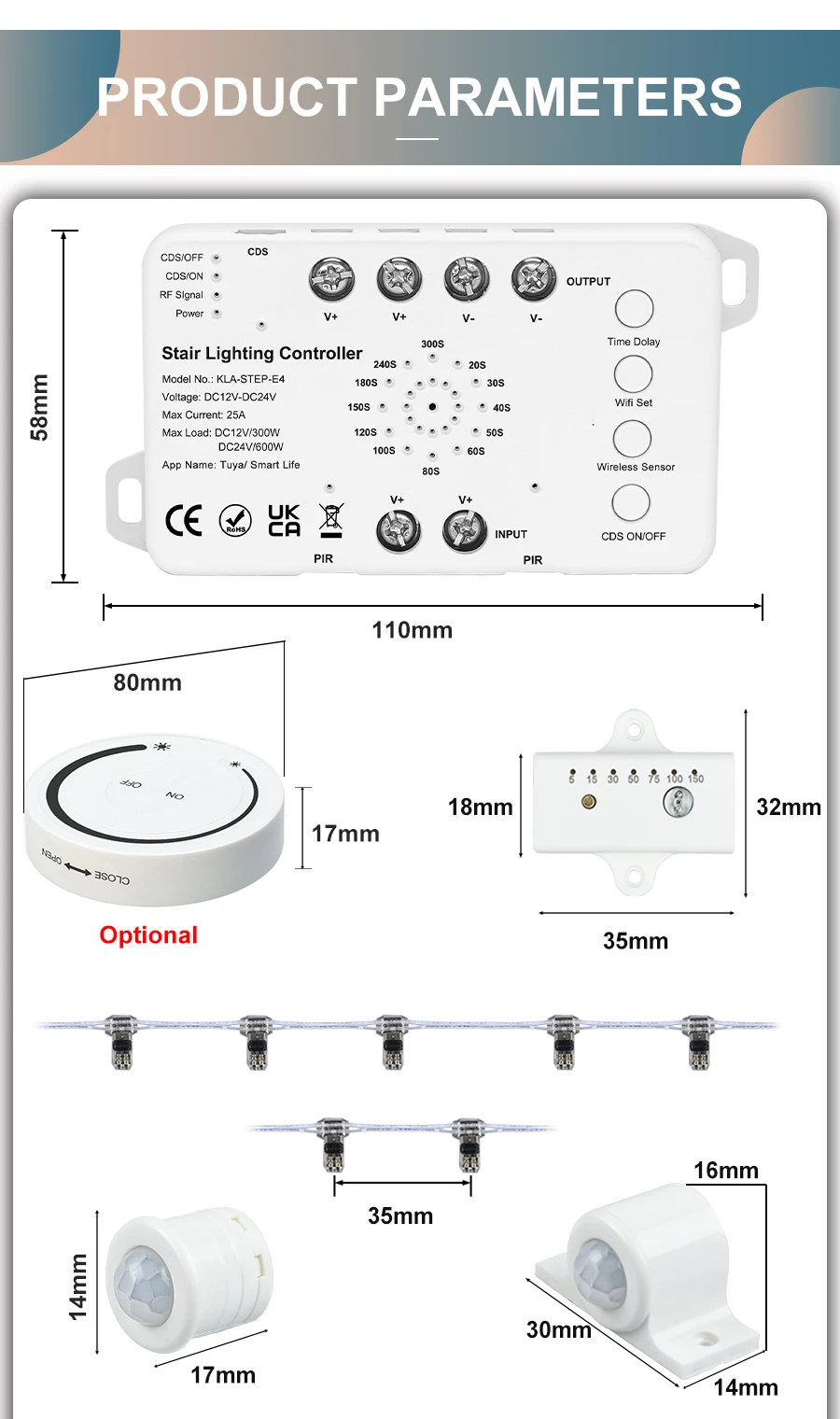

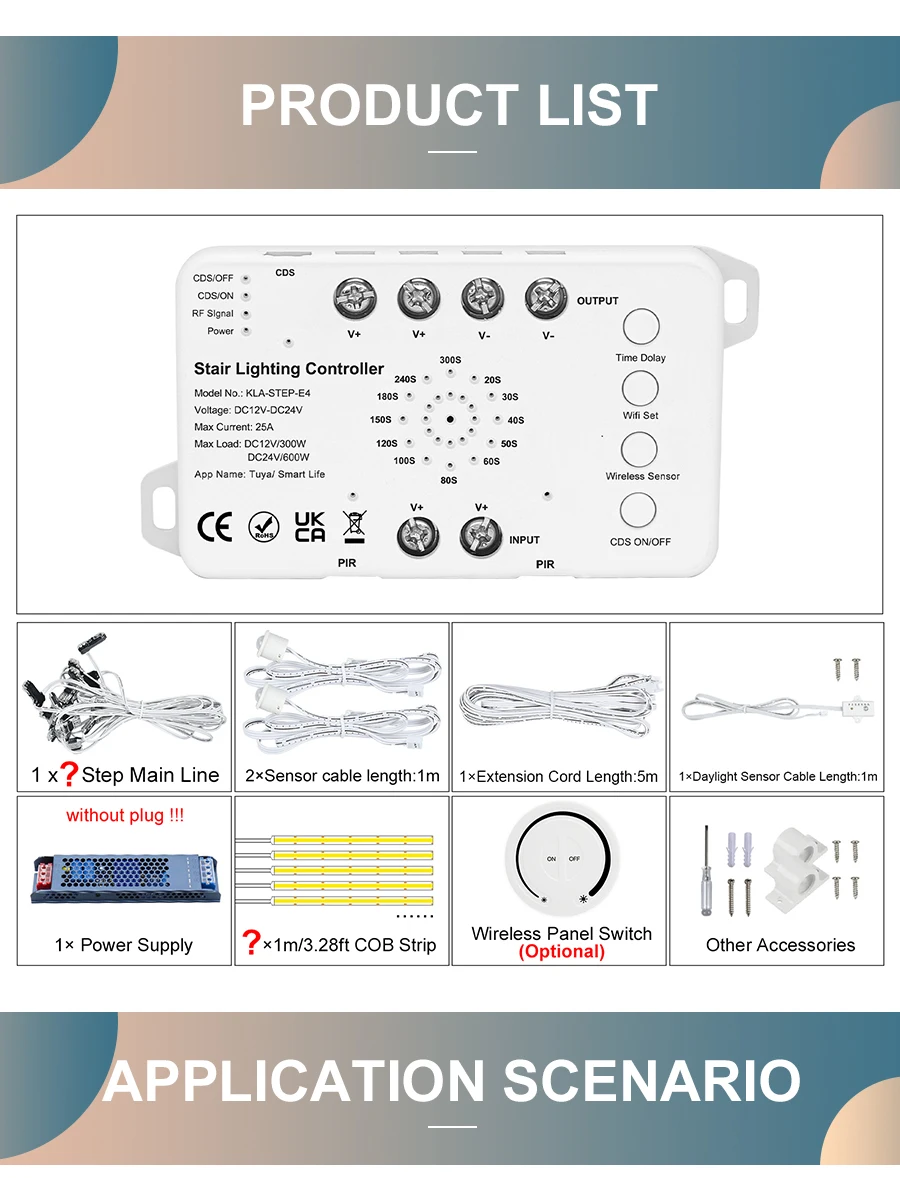

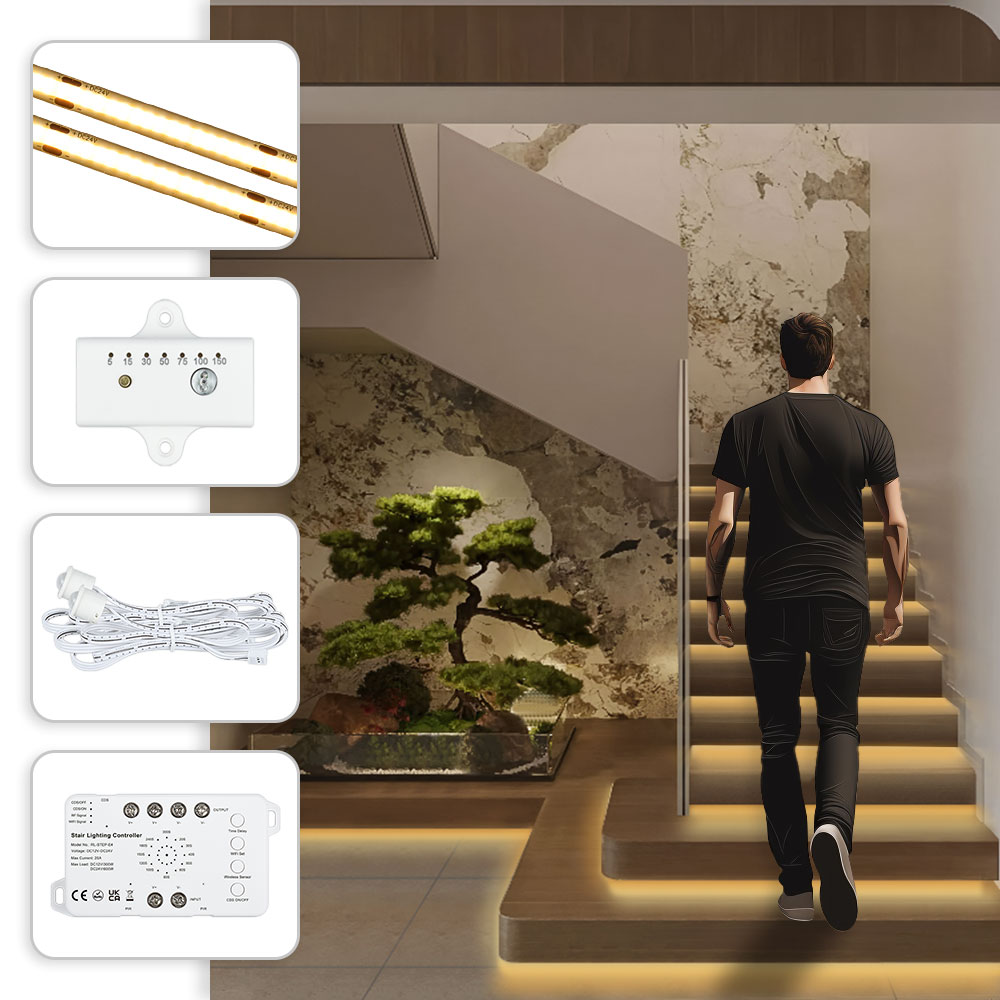

Package Included:

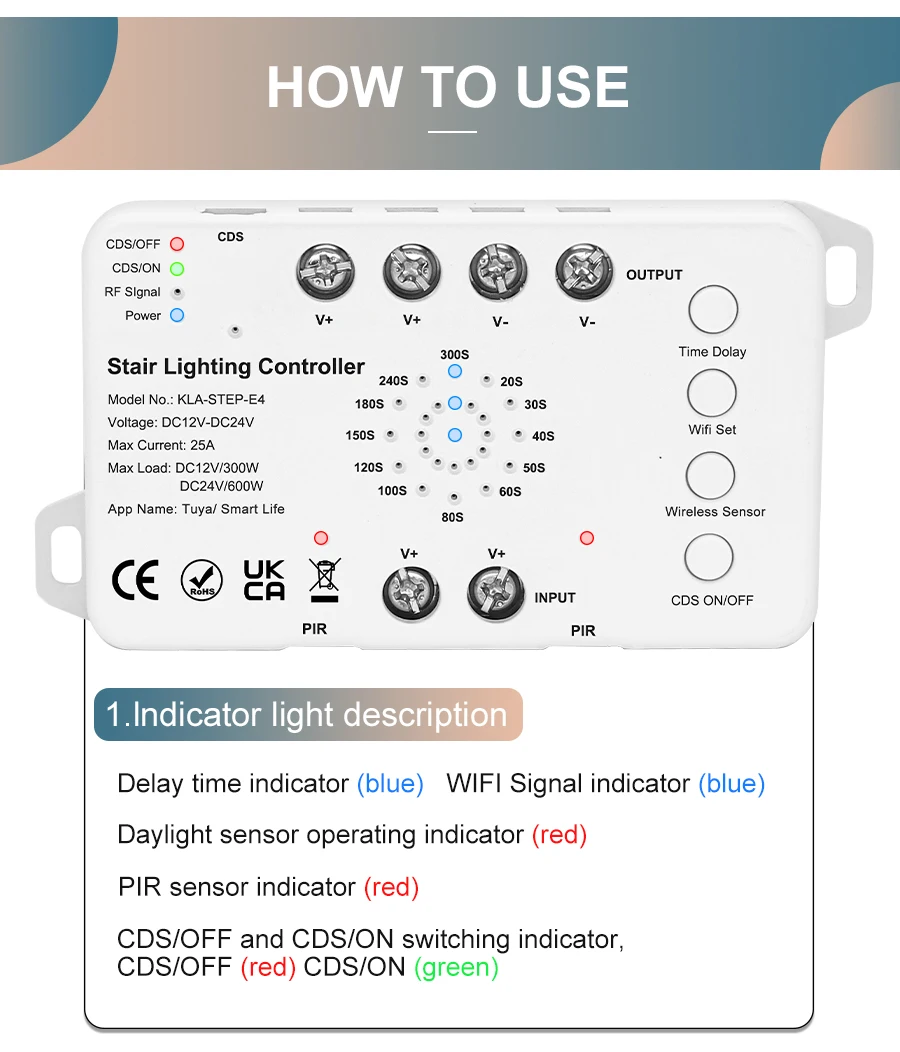

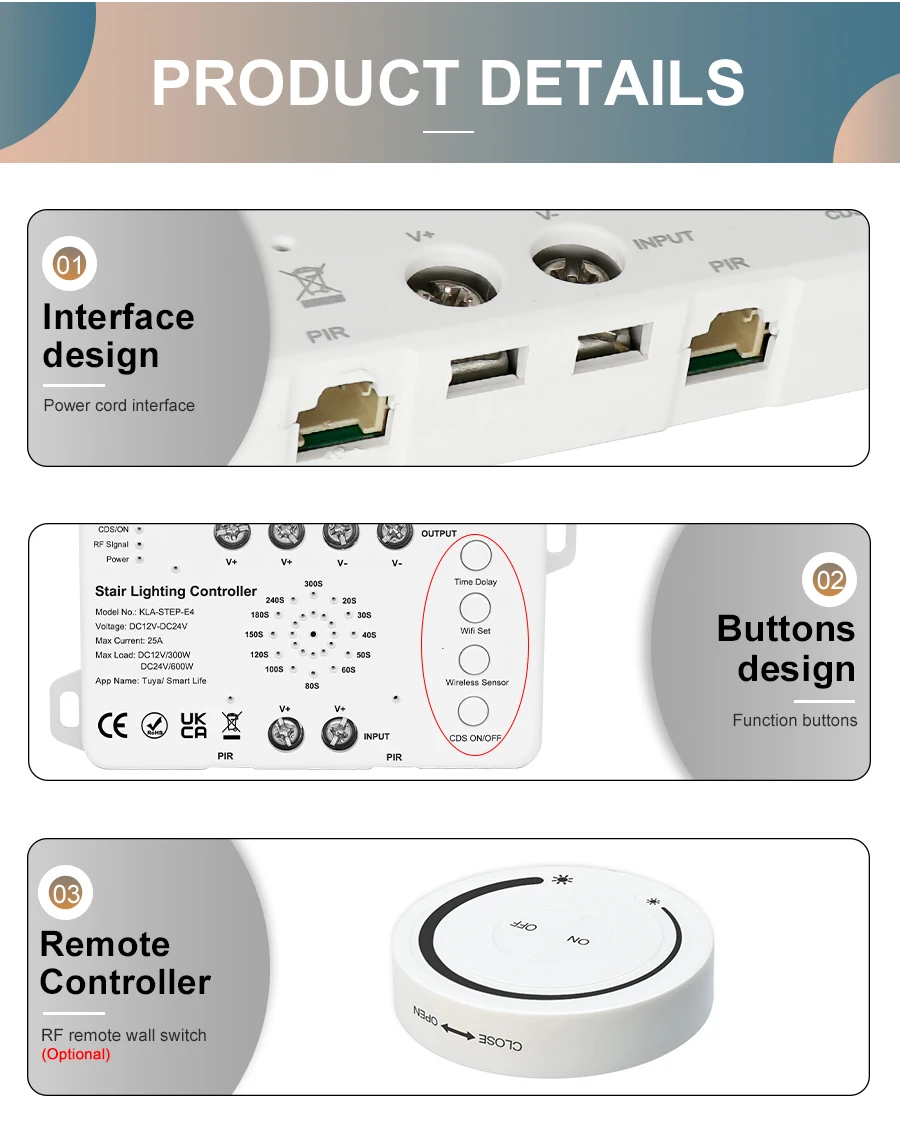

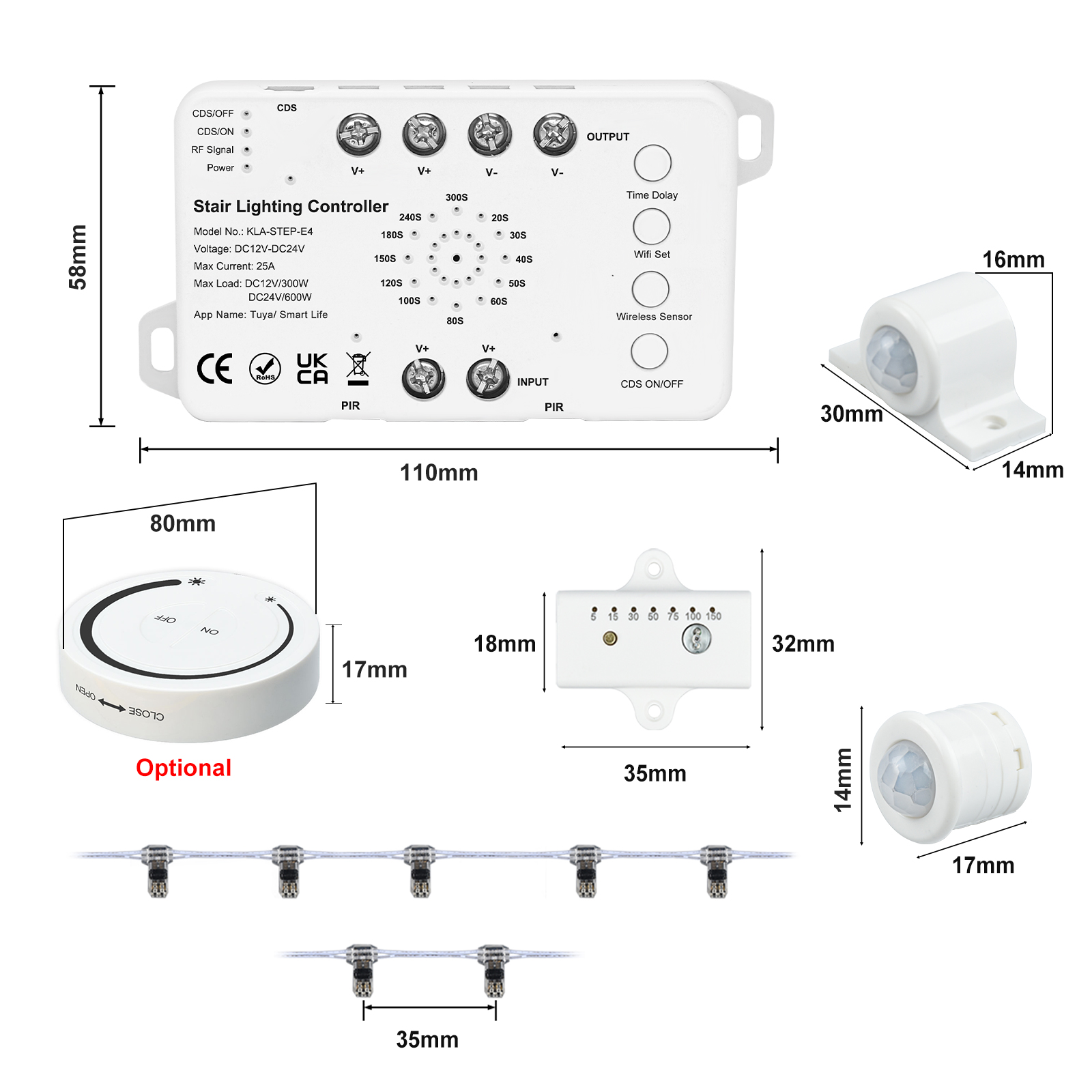

1x Tuya Wifi Stair Controller
1x Main Line cable ( ? steps)
? x COB LED strip (1m length)

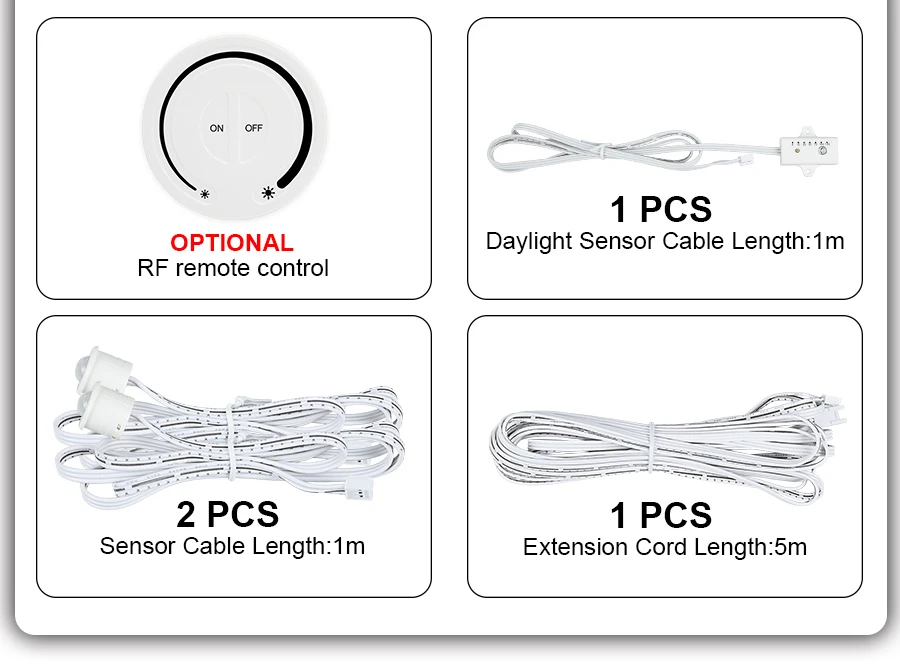

2x PIR sensor (1m cable length)
1x Light sensor (1m cable length)
1x Extension Cable for Sensor (5m length)
1x Transformer (power supply)
1x Plug for transformer (plug type depends on country)
1 batch of tools and accessories

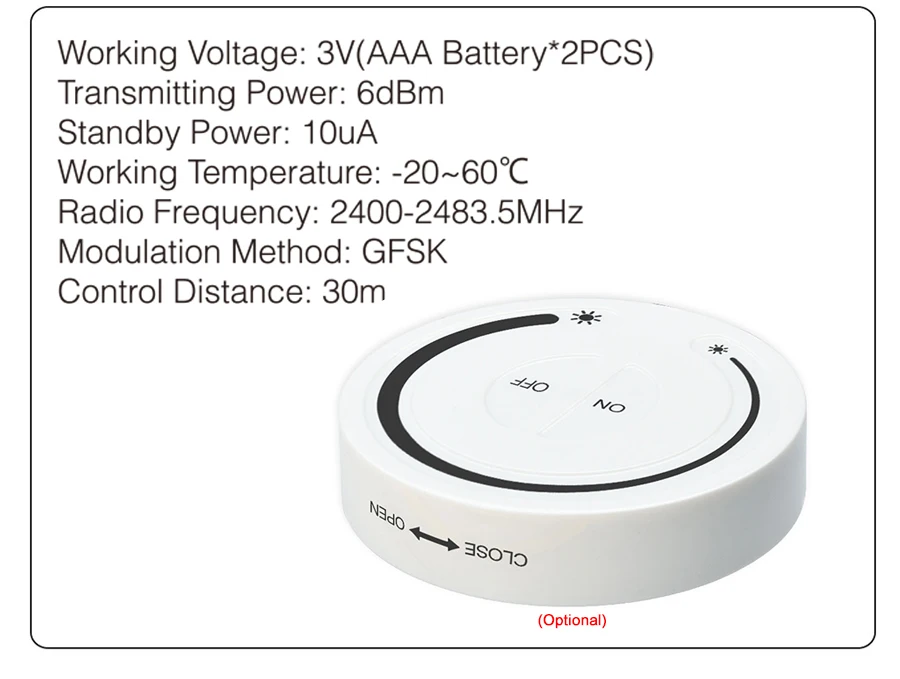

Remote controller is optional (battery are NOT included)
Features:

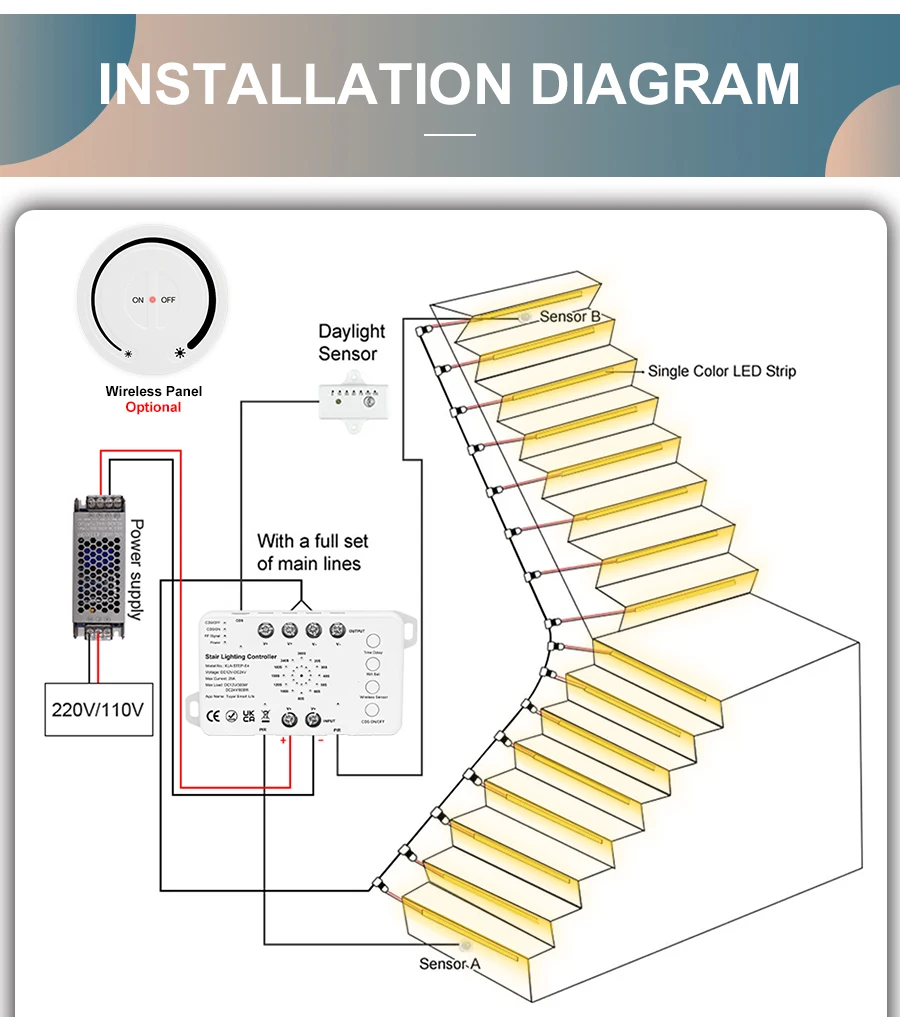

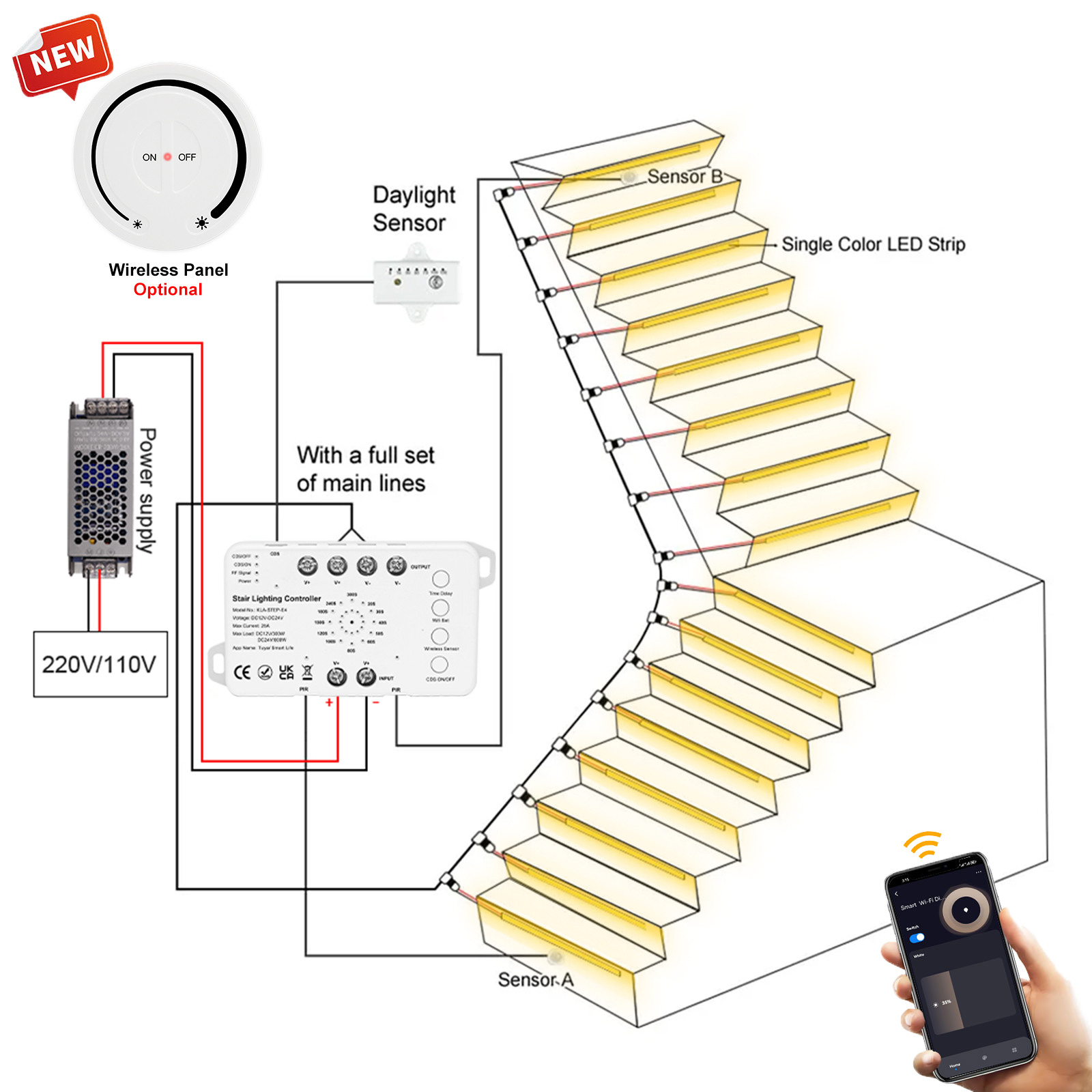

1. With Main Line to collect led strips, no need complicated wiring, easy to install.

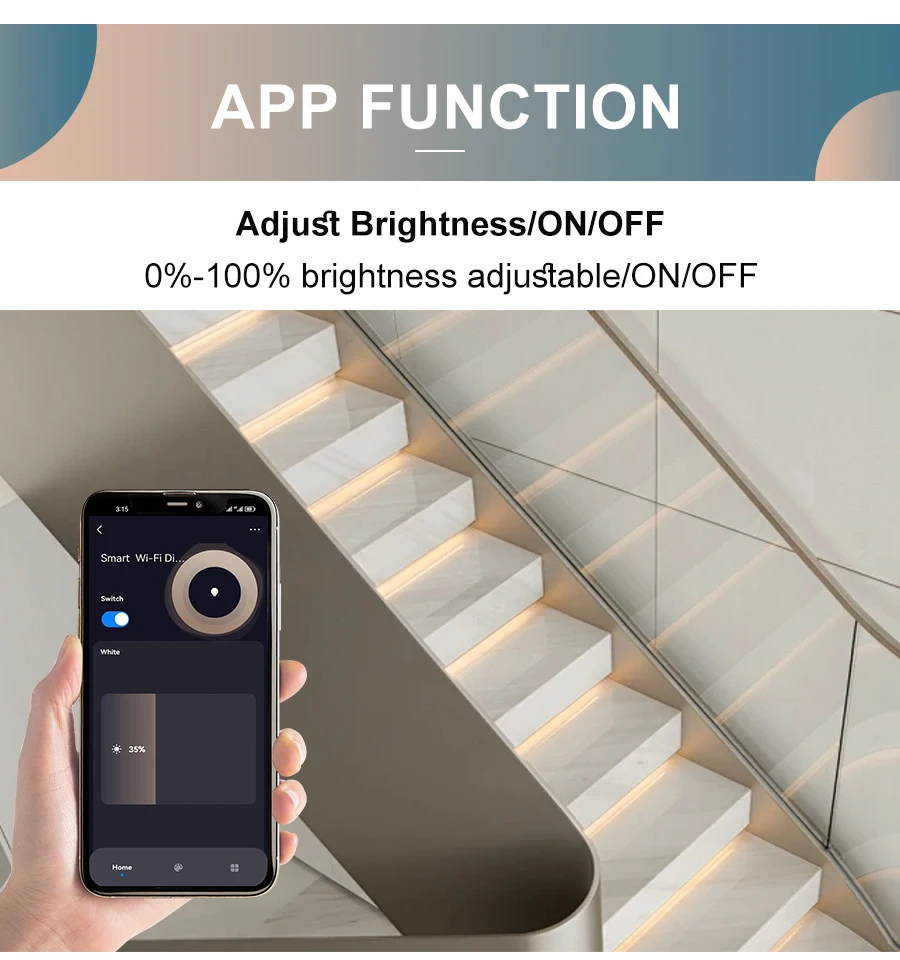

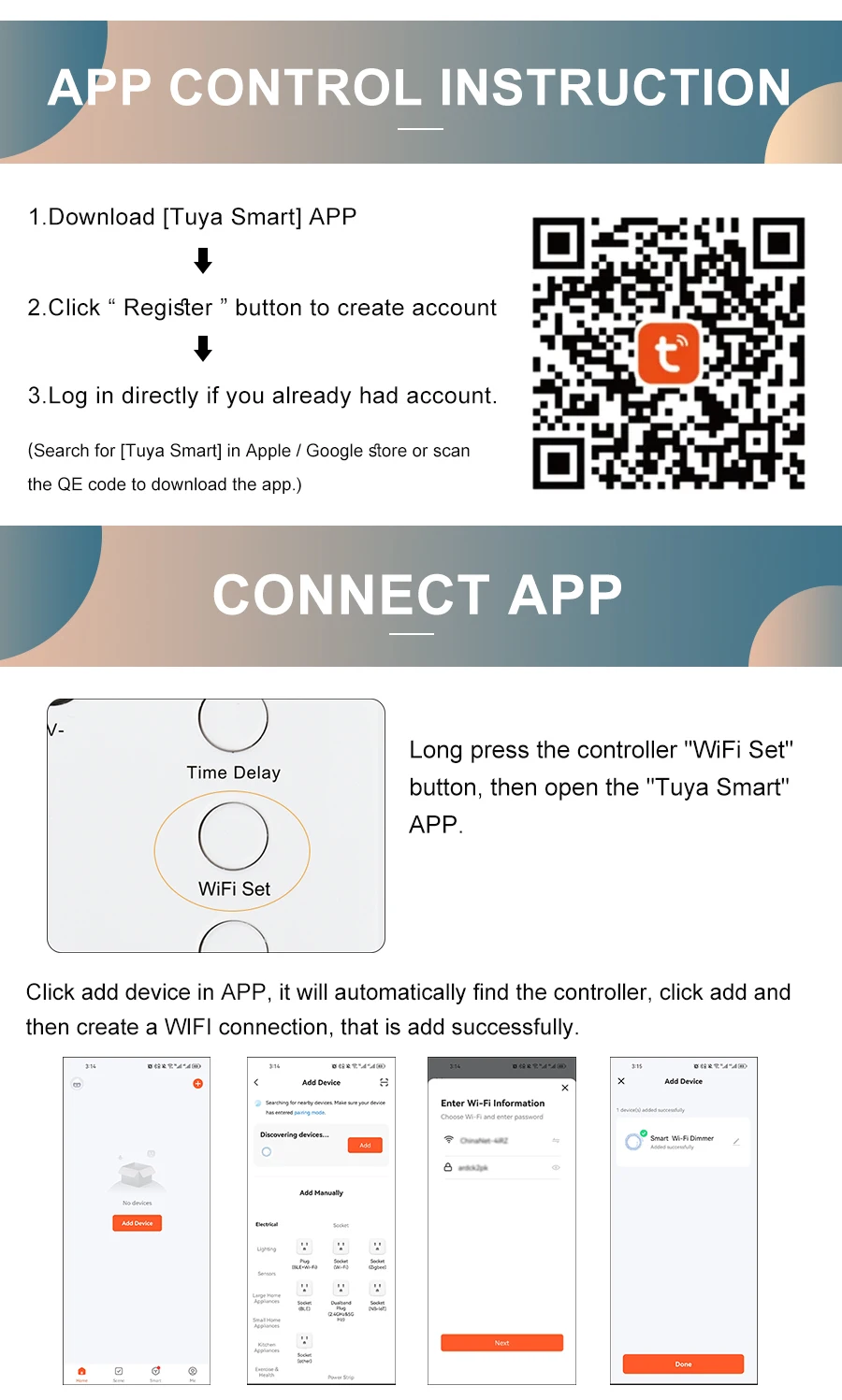

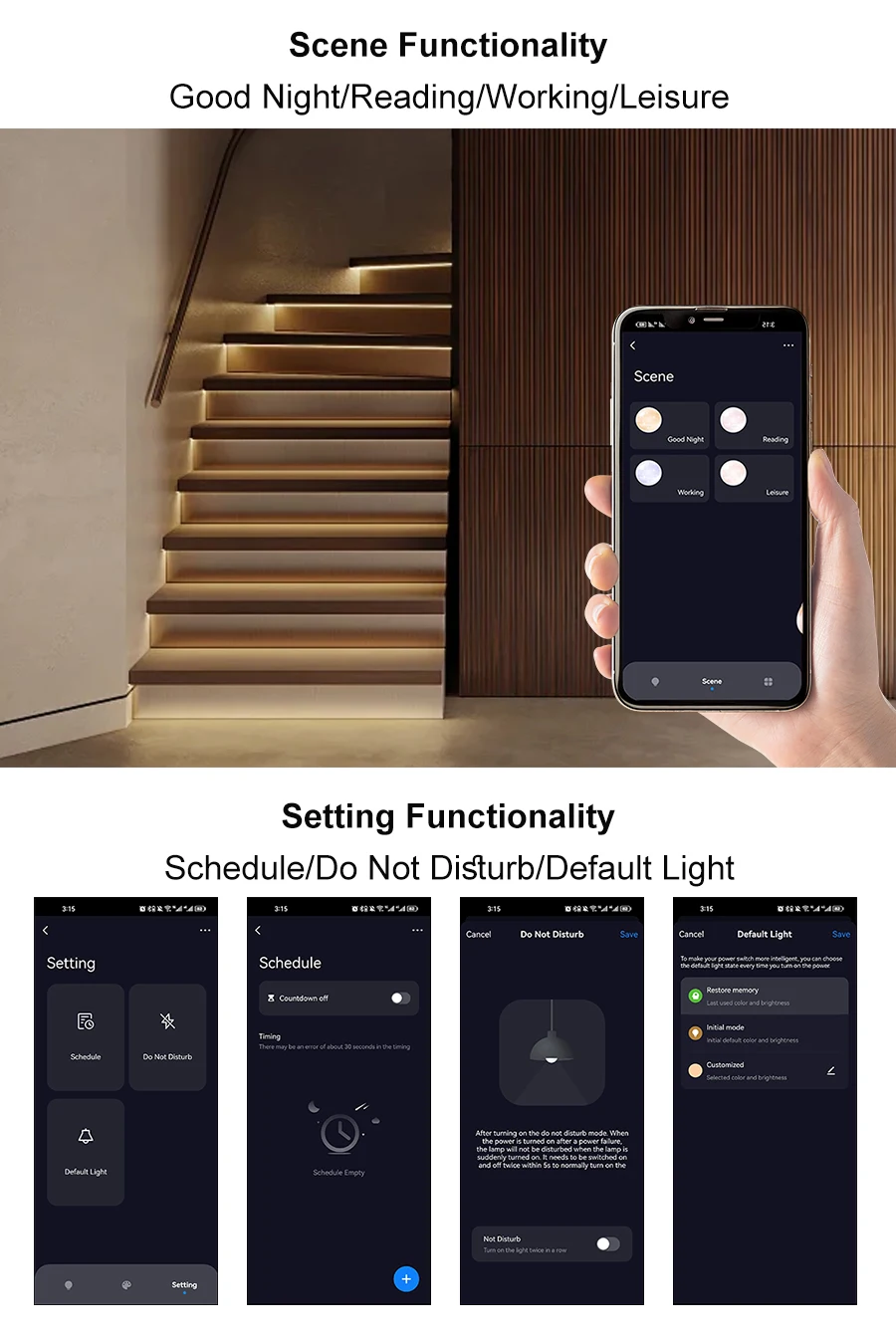

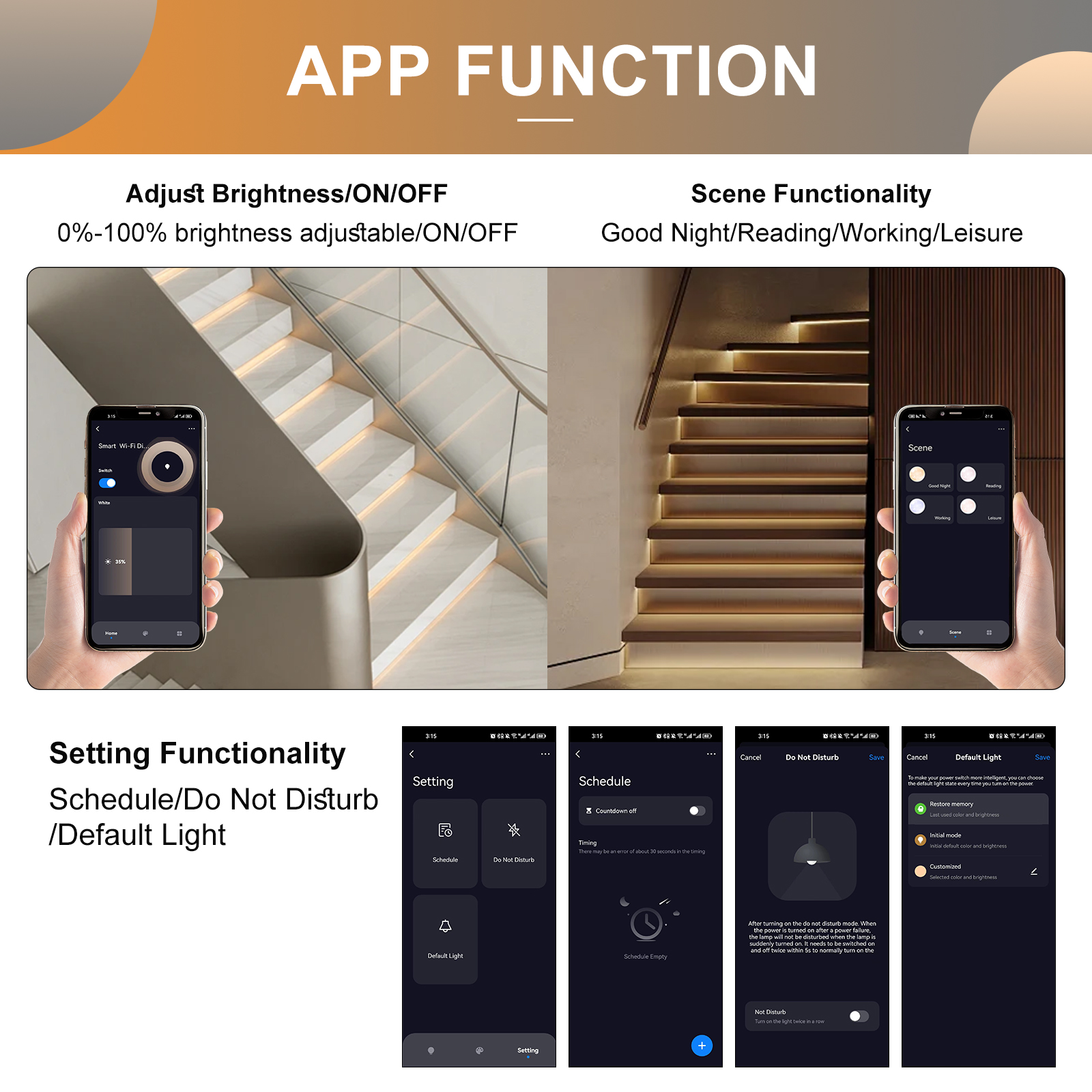

2. Connected with APP by Wifi, Tuya or Smart Life app control. Support Alexa and Google Assistant voice control.
3. PIR sensor control, auto on and off when people come and go.
4. With 2 Pir sensors on both ends of the stair, the light can be triggered both going down and going up stairs.

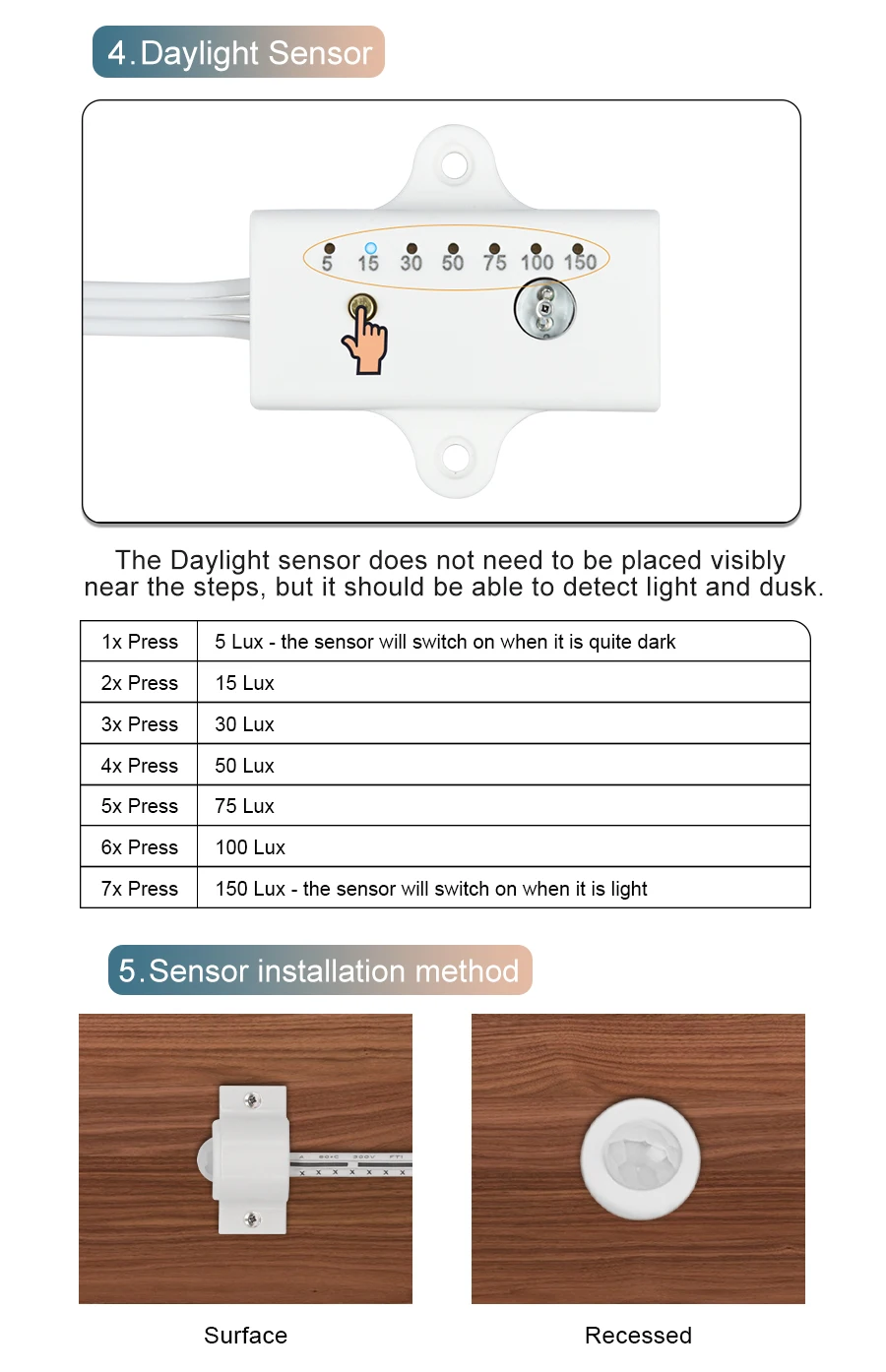

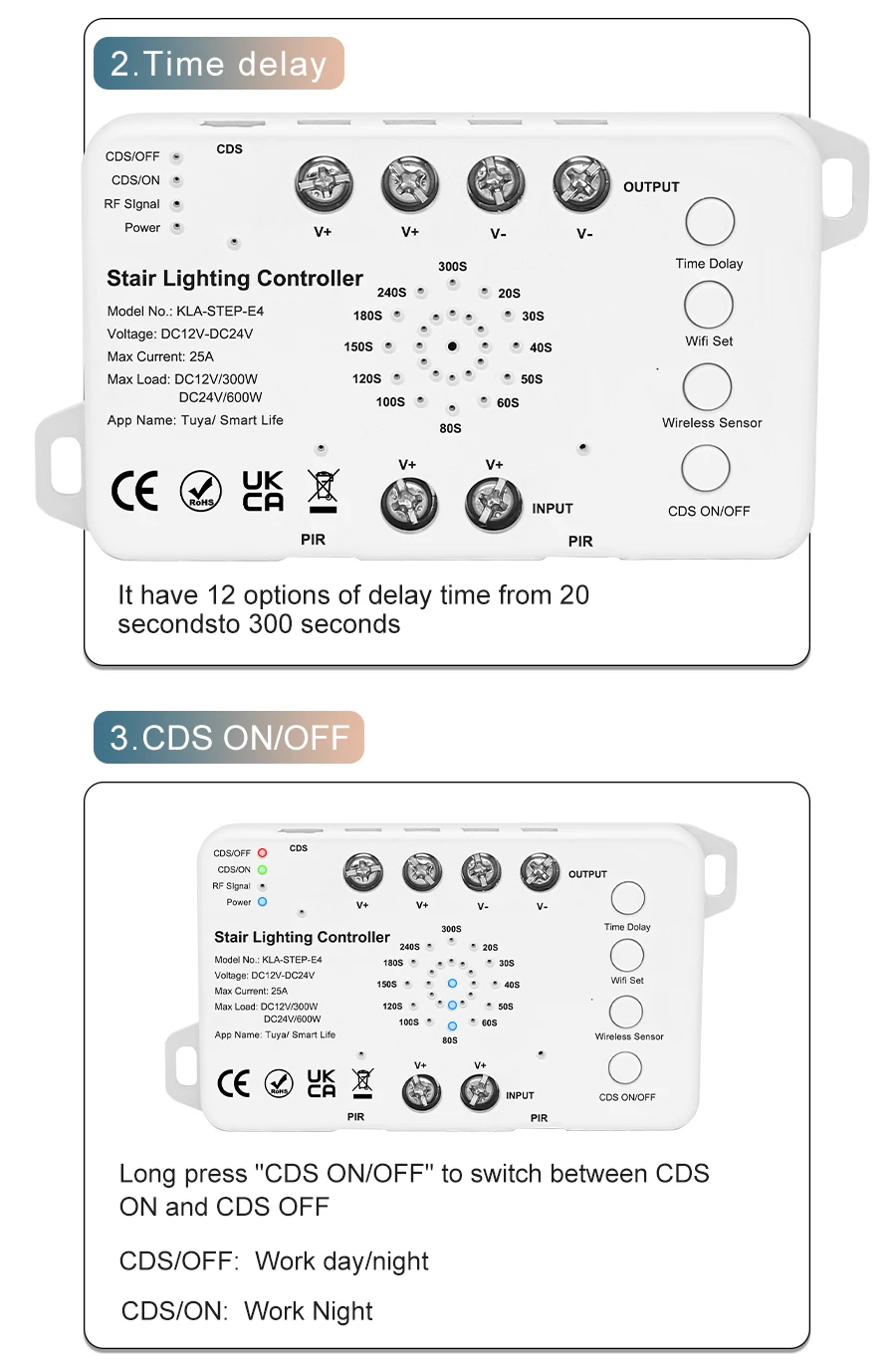

5. With daylight sensor, can control the system not working on day time, save power!

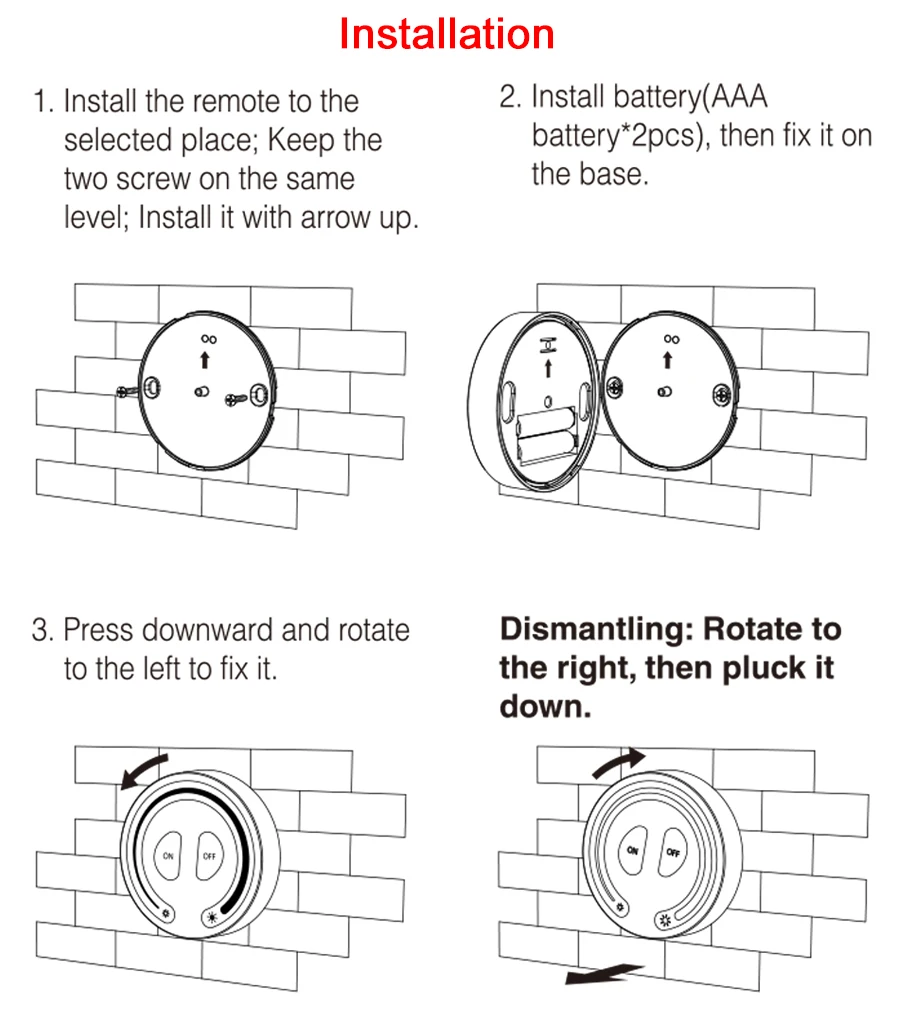

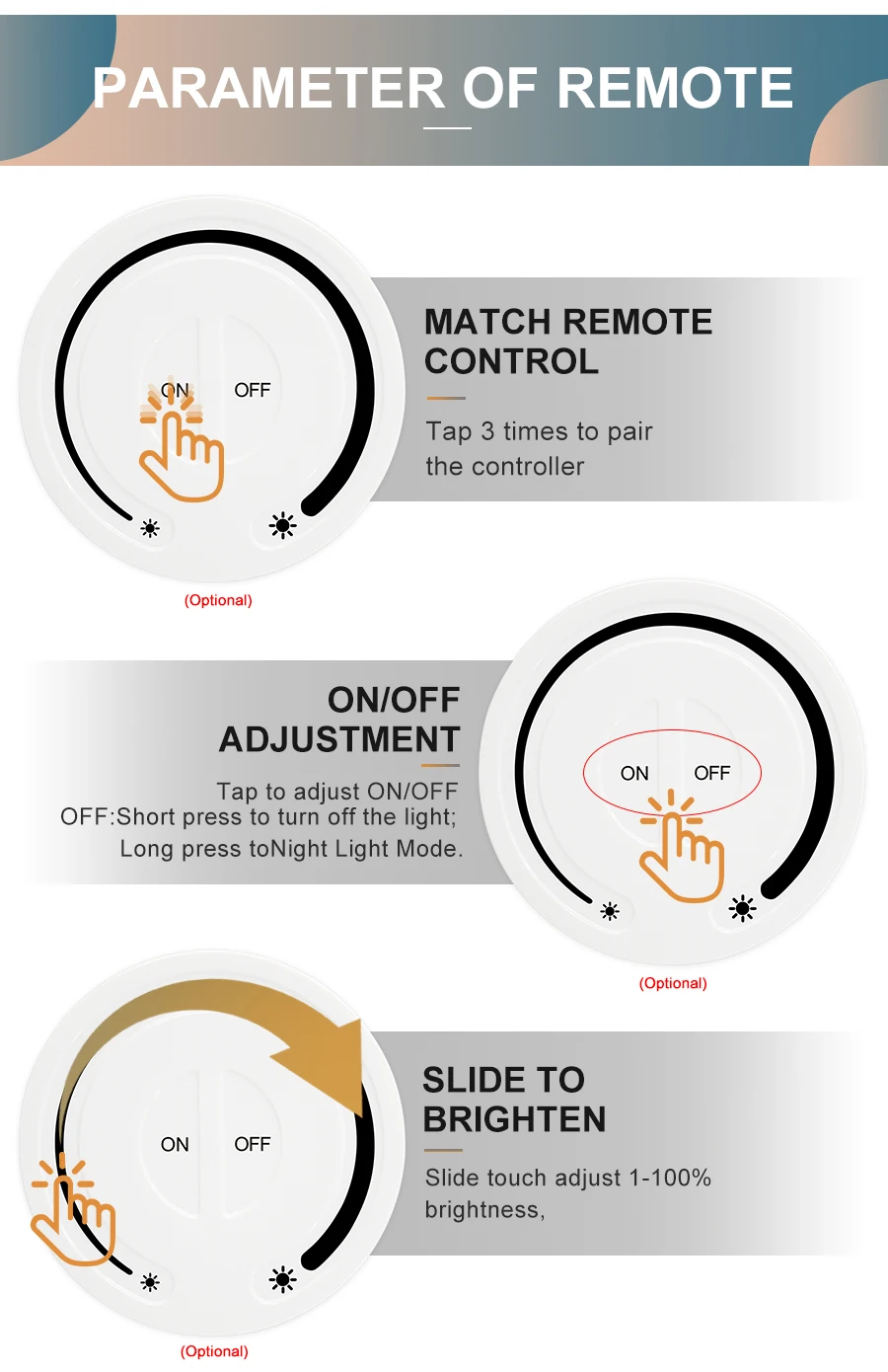

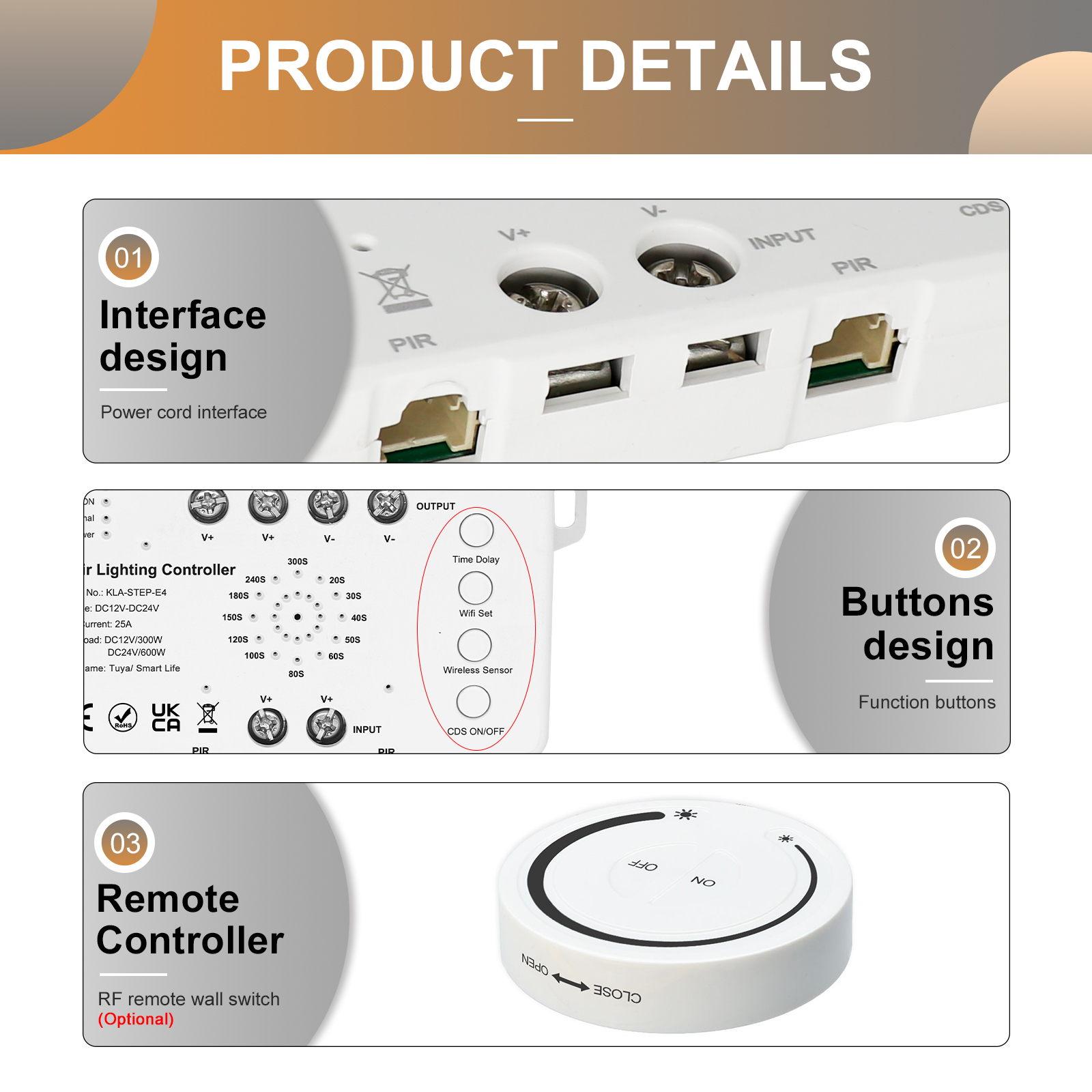

6. Compatible with RF remote controller.
7. Equipped with high quality and super bright COB LED strips, the brightness is enough even at 20% brightness!
8. Can DIY the step numbers easily, no matter for extending or reducing steps.
