50kg Load TR500 RC Tank Rubber Tracked Chassis DC Motor Carbon Steel Suspension STM32 System Robot Car for RC Tank to FS Handle

Youfang Smart is smarter, tech, and healthier

We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This programmable robotic car is a new, very intelligent teaching programmable robotic car designed by our institute, but also the enlightenment of children and engineers to learn education, we will release more technology, education, health new products from time to time, can be used as children's toy gifts, adult learning programmable board.I believe you will like our robot car.

50kg Load TR500 RC Tank Rubber Tracked Chassis DC Motor Carbon Steel Suspension STM32 System Robot Car for RC Tank to FS Handle

By the way, if you like our store, Please add our store to your Favorite Stores, You can getour New arrival and Discount information in time

Note:
–  Shipping not include battery.  A 24V/10A battery is recommended.

If you need batteries, please contact us, battery shipping will be very expensive

– The following is the default motor model of this product. You can alsoconfigure corresponding motor according to your specific requirements. We have DC brushless motor, motor with mechanical holding brake,incremental encoder DC deceleration motor, Hall sensor planetary motor, etc. on sales, which are suitable for different requirements and application scenarios.

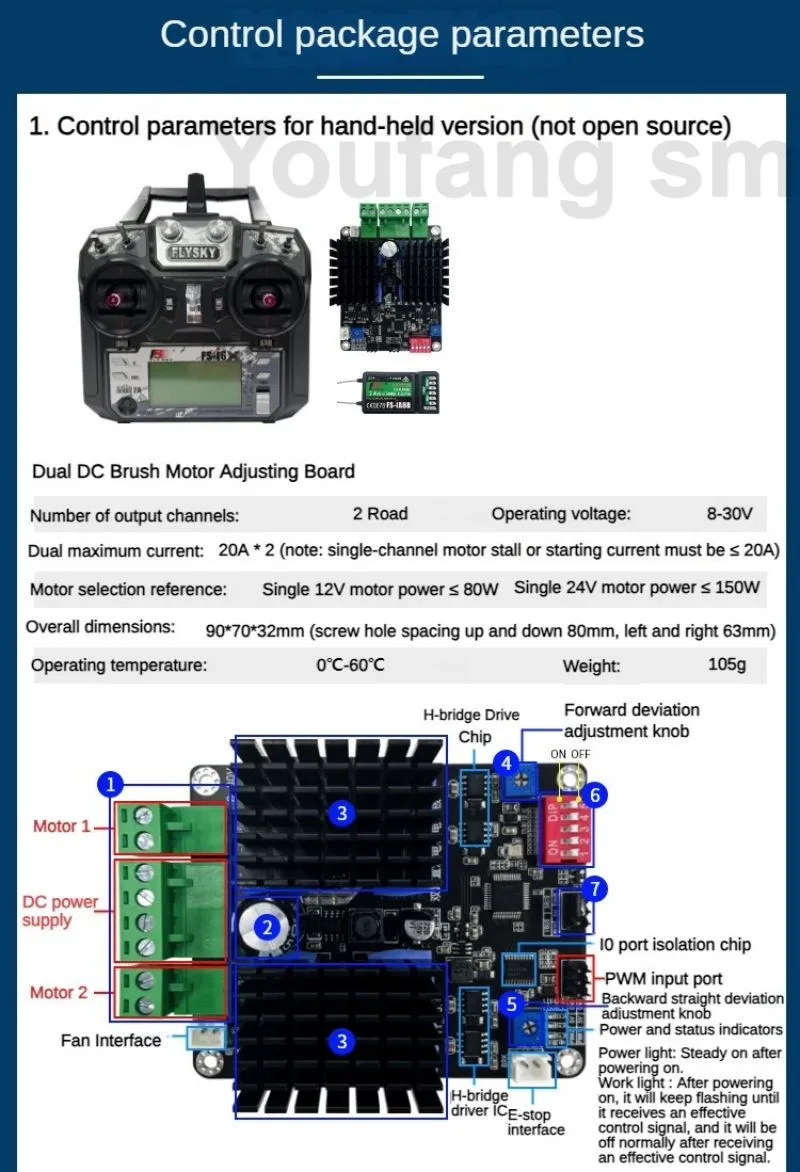

– Version with Control System: The default control system is 2.4GHz wireless remote control system, which is equipped with six channel aviation model remote control by default, and the control distance is 400m + measured in the open area;

– Accordind to your needs, you can configure an 8 channel (or more channels such a 10 channels) remote control, and a controller with a

longer control distance; accept functional customization development, specific function
 requirements, please contact customer service.

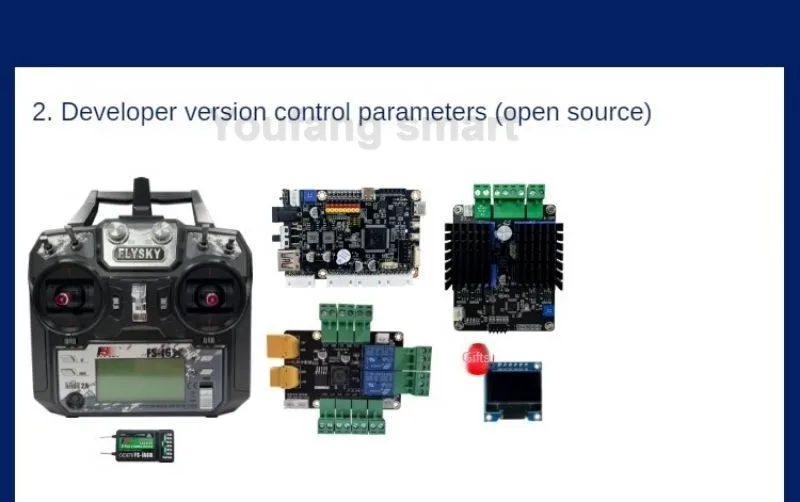

– Other control
systems include ROS lidar self built map navigation form system,
raspberry pie, industrial computer vision recognition system, NVIDIA
Jetson nano control system, etc. at the same time, customized
development can be carried out according to your project requirements.
For project negotiation, please contact our customer service.
– Control system is reserved with I/O for secondary development.

Features:

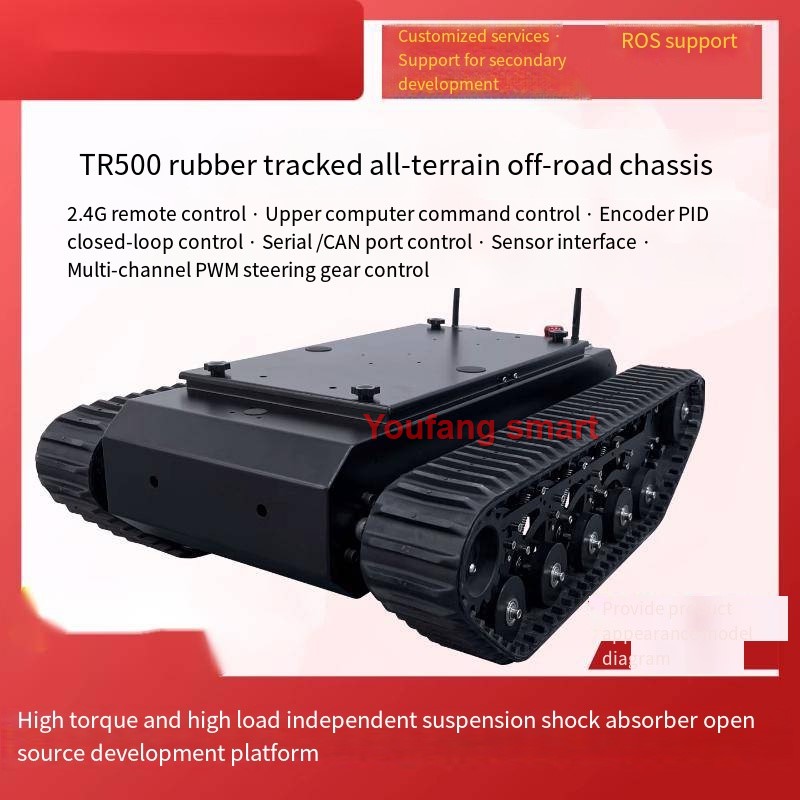

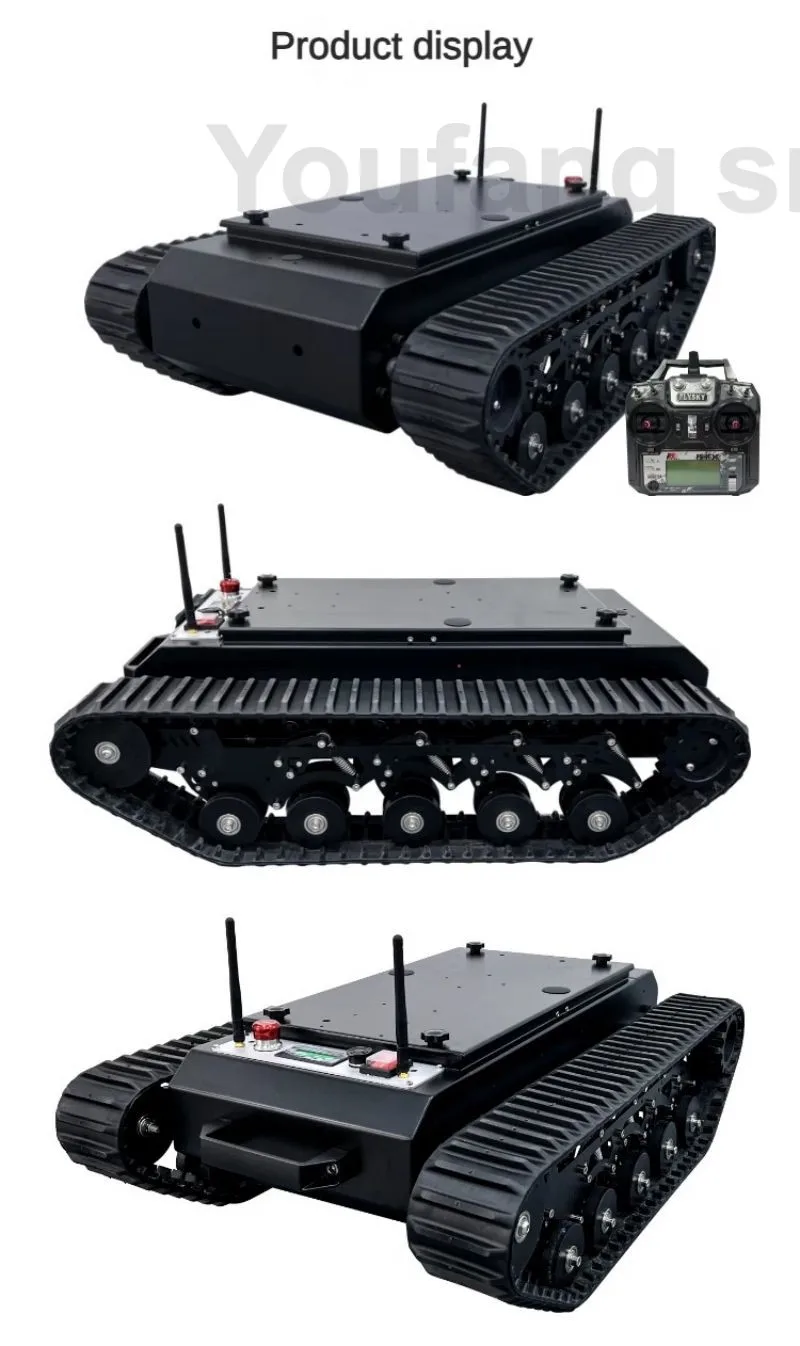

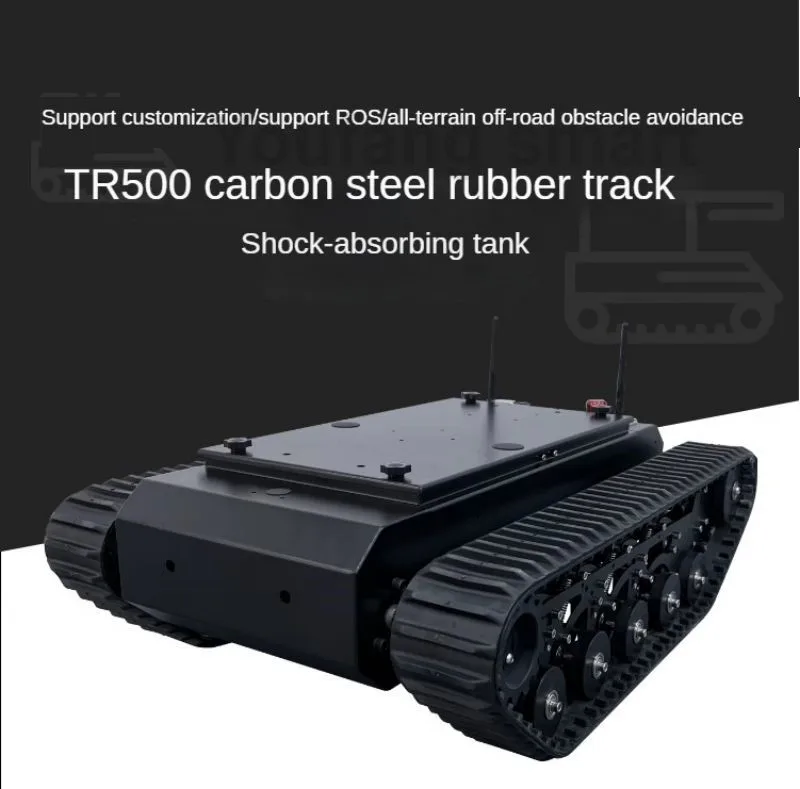

– TR500 carbon steel material, rubber track shock absorption tank
– Chassis load capacity 50kg, off-road obstacle avoidance, mobile shooting
– Assembled and tested before delivery
– Ready to use

【 Read carefully before buying 】

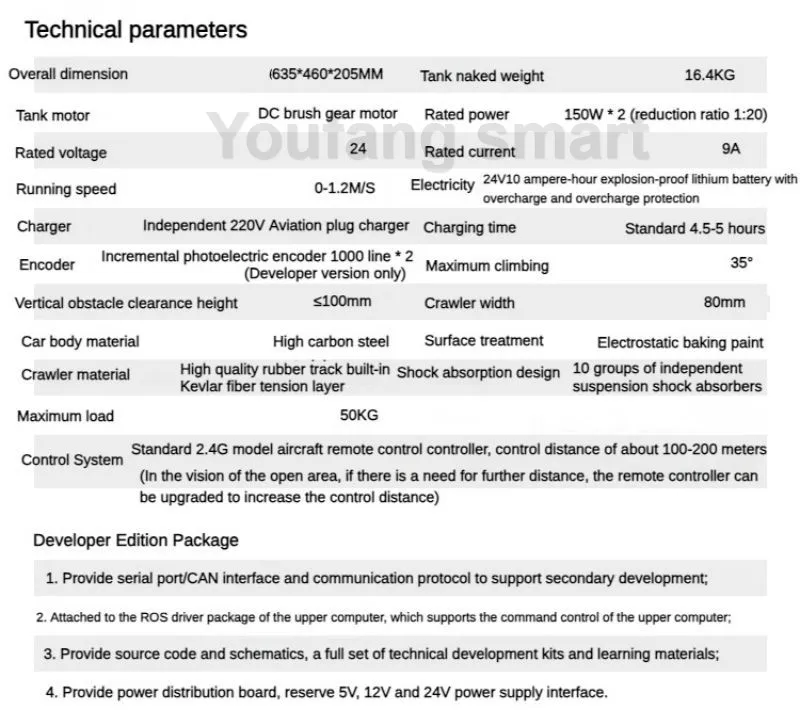

RC TANK Product Description:

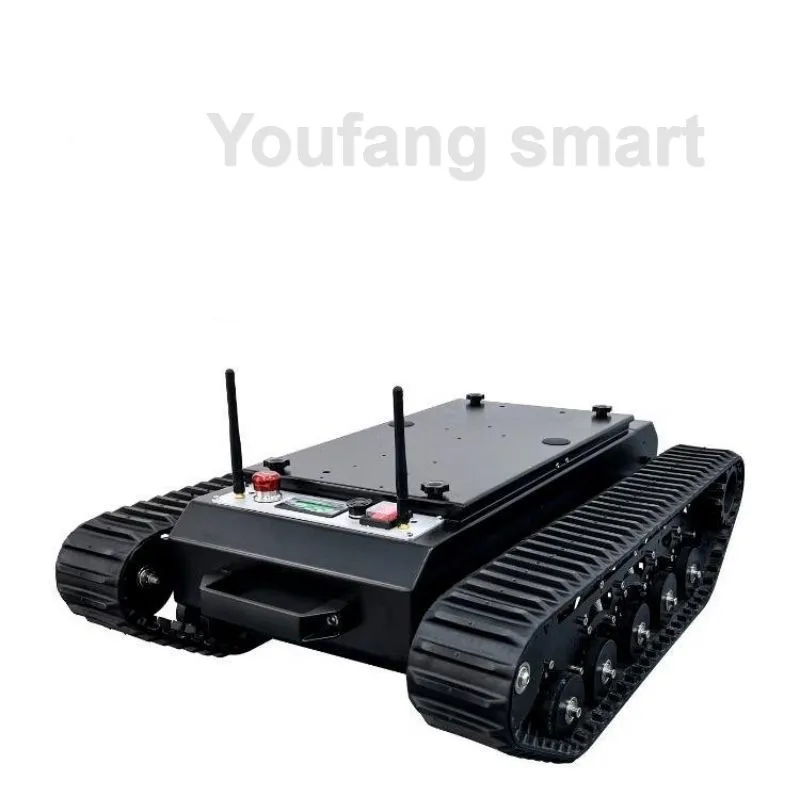

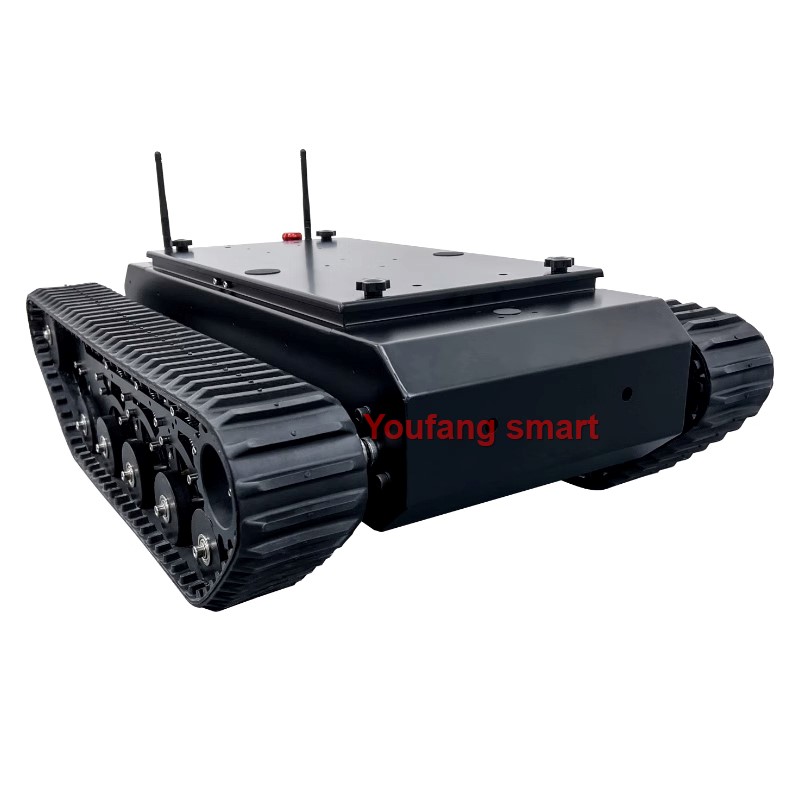

– Product Name: TR500 heavy-duty tracked tank chassis

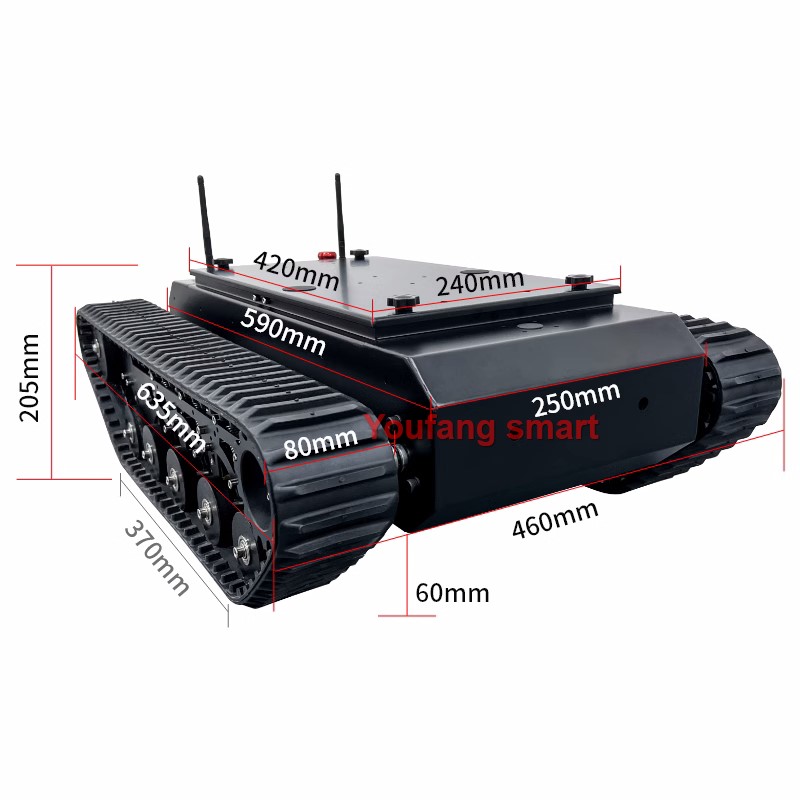

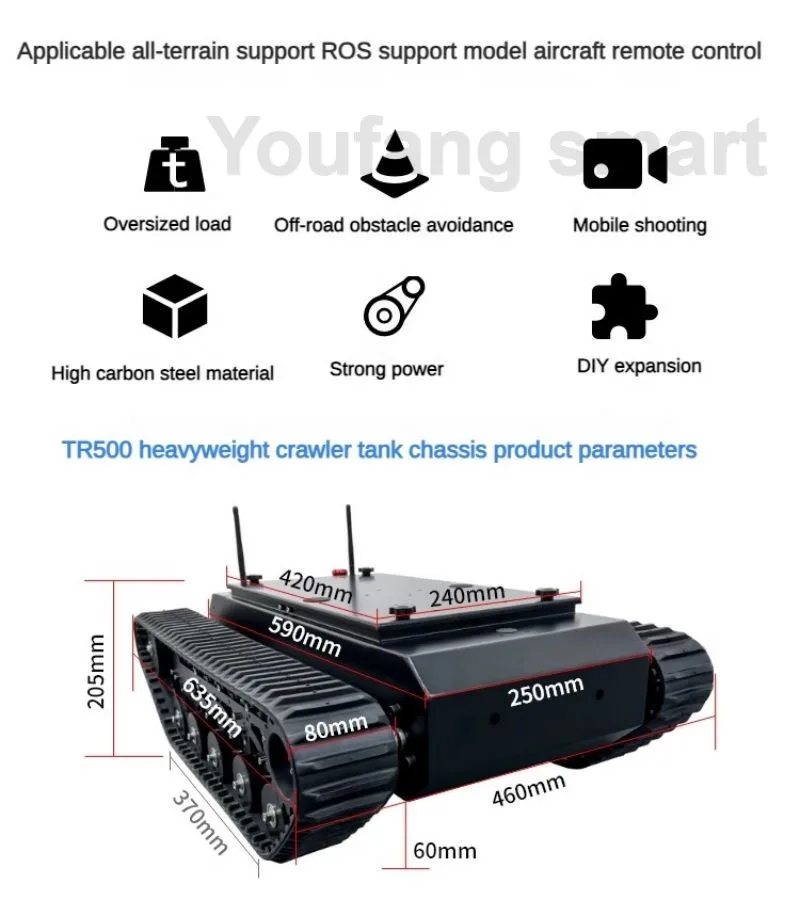

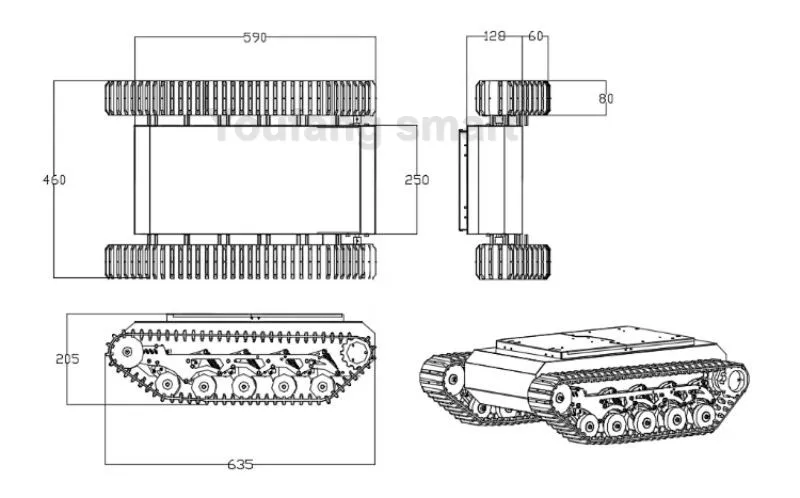

– Dimensions: 680*445*205mm
– Inner Space Size: 380*250*125mm
– Tank Net Weight: about 15.8KG
– Running Speed: 0-1M/S (The running speed is determined by motor speed and voltage)

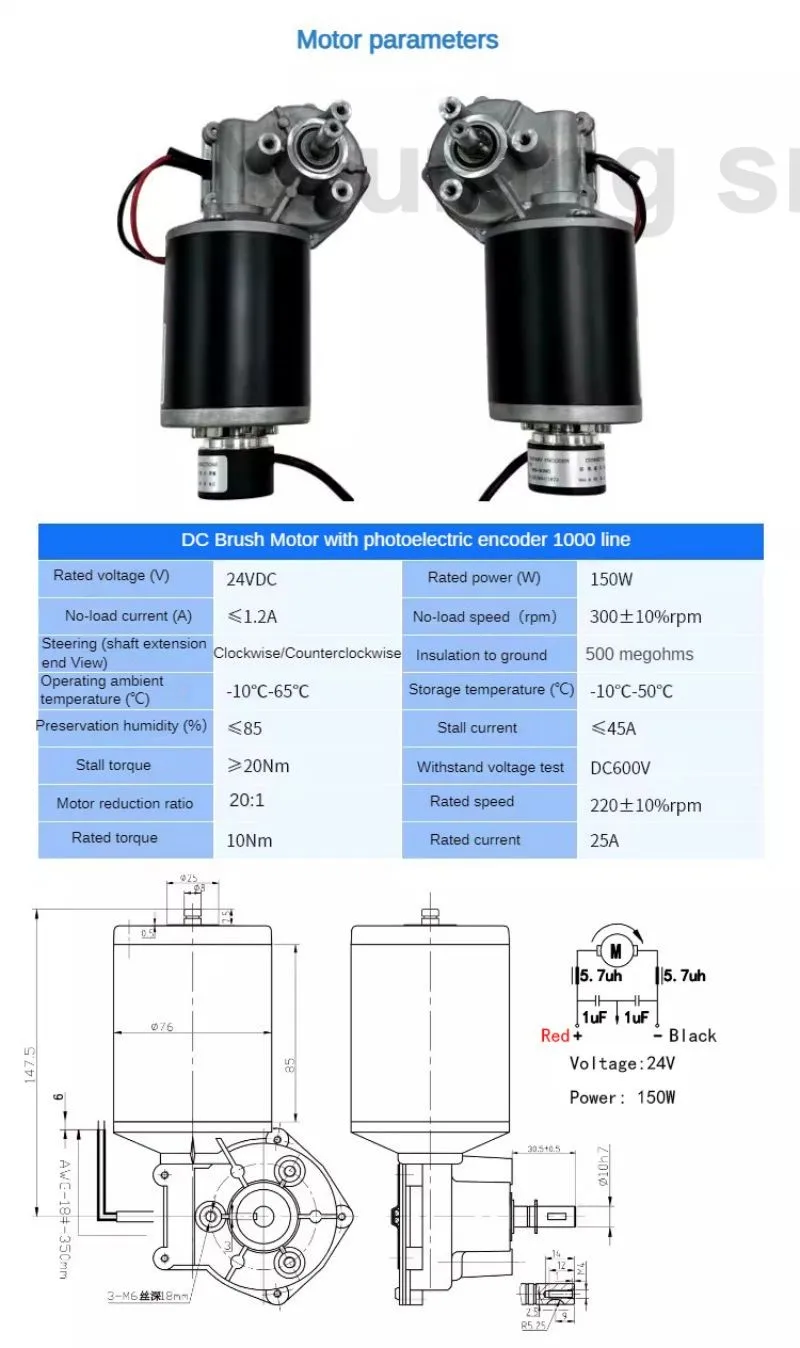

– Tank Motor: DC brush motor
– Rated Power: optional (default configuration 120W*2)
– Rated Voltage: 24V default voltage (12V/24V voltage optional)
– Rated Current: starting current is 10A, running current is about 5A)
– Track Width: 80MM
– Track Material: rubber track, built-in tension layer
– Body Material Thickness: 1.5mm
– Surface Treatment: static paint
– Maximum Climbing: 40°
– Maximum Load: 50KG default configuration (depending on motor voltage, speed, torque)
– Durance Time: 60 minutes default setting
– Maximum Obstacle Crossing: 130MM
– Damping Design: 10 sets of independent suspension damping parts

Note:

• Not includes any  Battery(You need to prepare battery by yourself for tank chassis power supply, what we recommend is 24V Li battery with 10Ah working current, and we will prepare you XT60 male plug, which you can power on it directly when your battery is XT60 female plug)

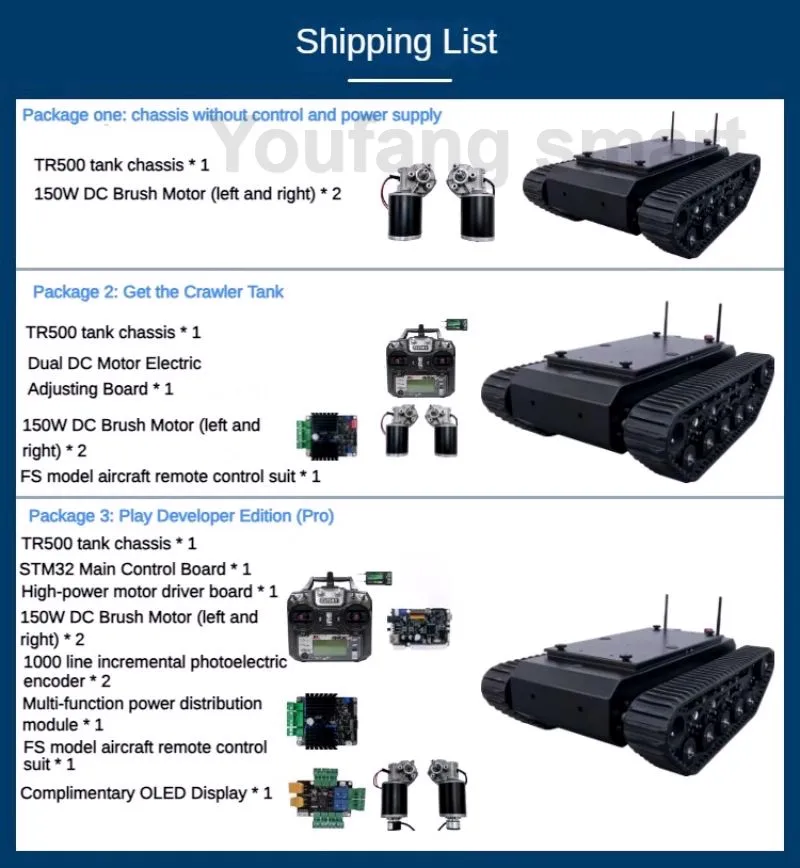

Package Included(Only TR500 car chassis/Without controller ):

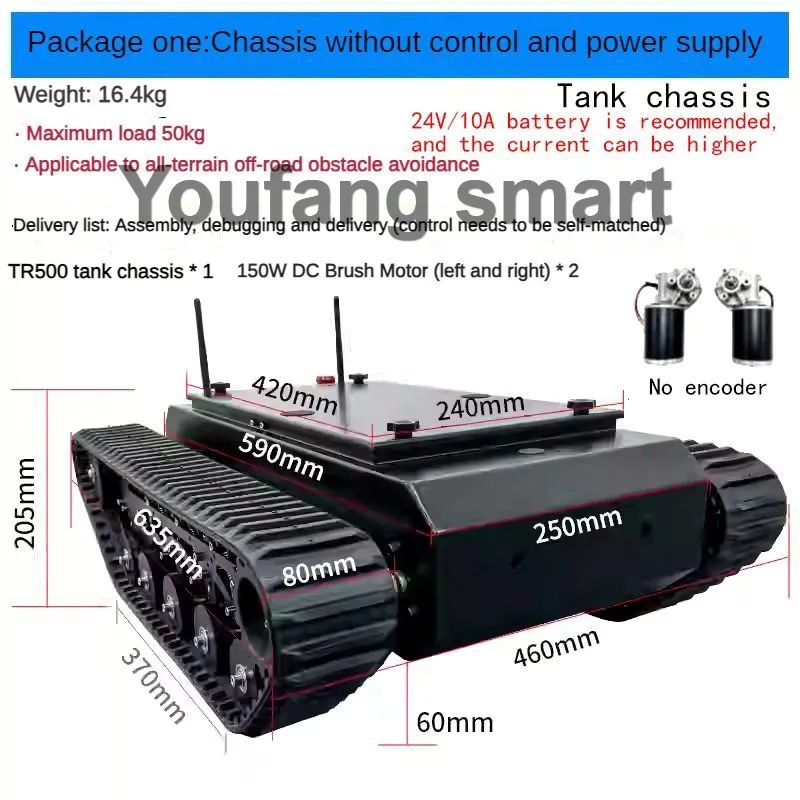

Chassis no encoder:

– 1 x TR500 Samrt Robot Car (tank chassis with 2pcs of DC motors)

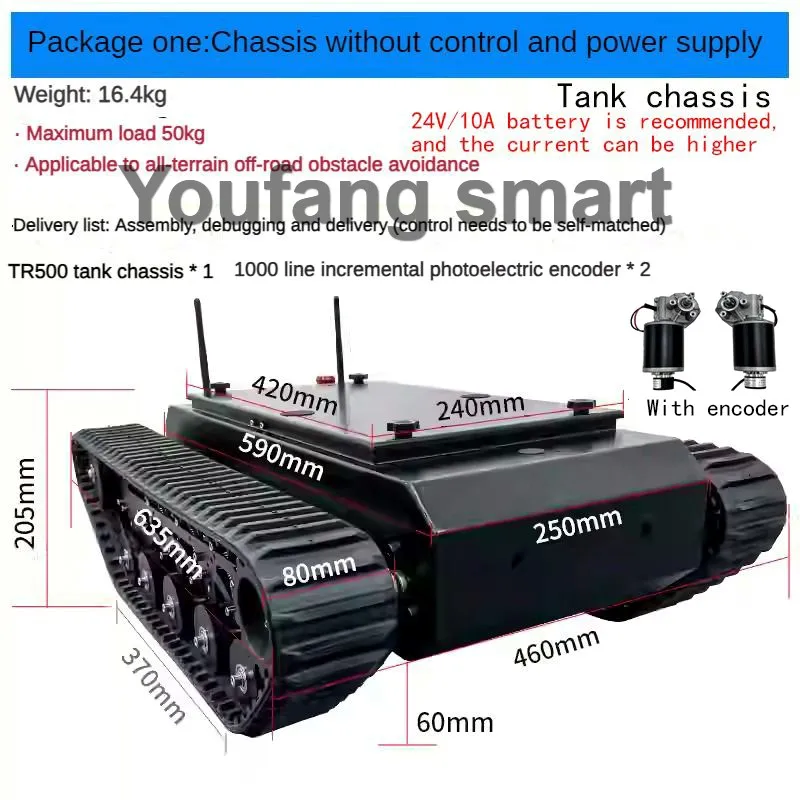

Chassis with encoder:

– 1 x TR500 Samrt Robot Car (tank chassis with 2pcs of encoder motors)

Note: There is not including control system and battery.

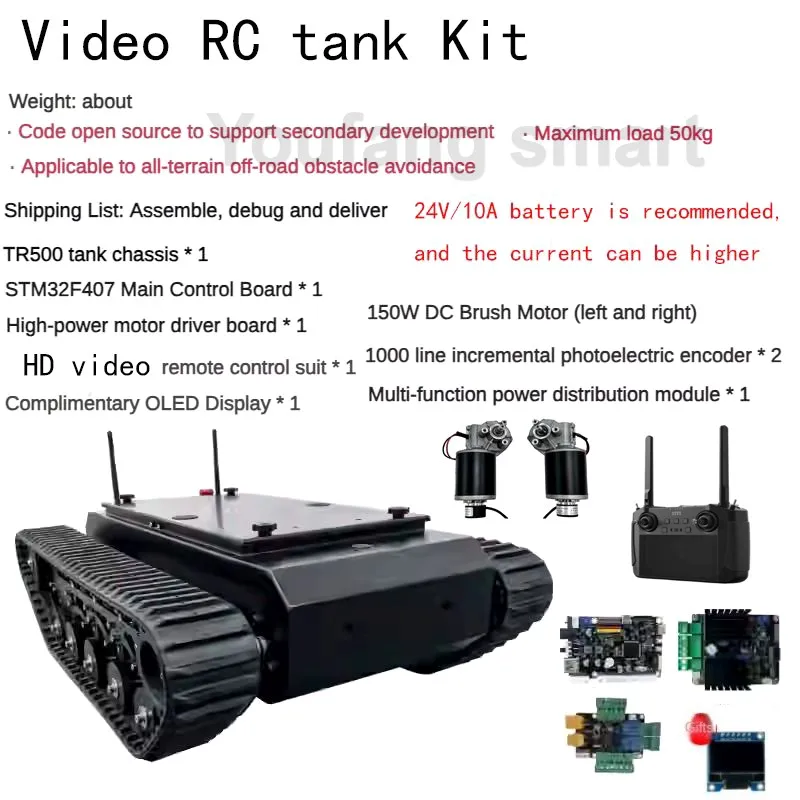

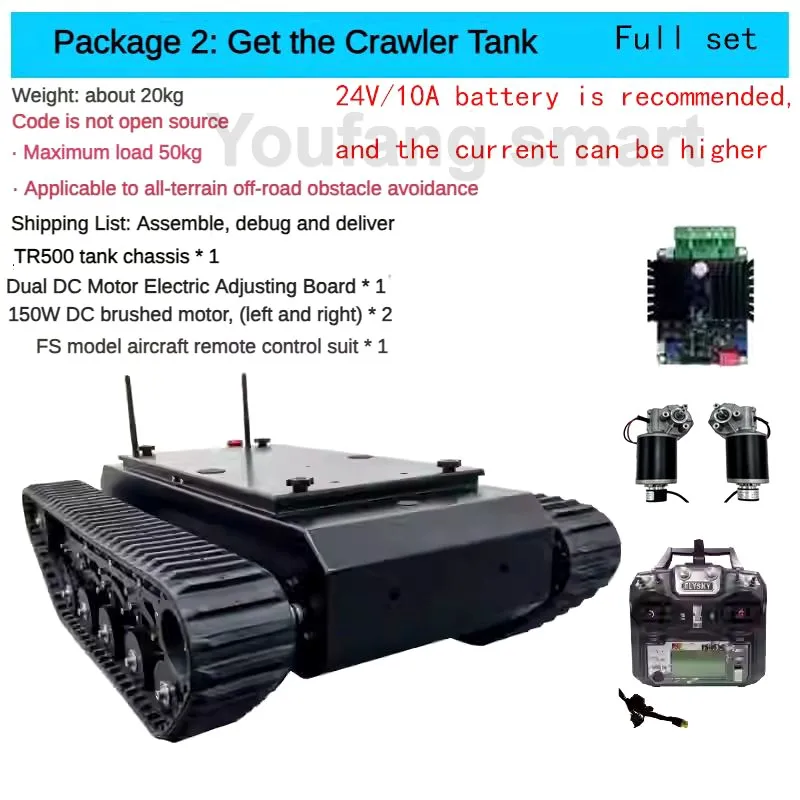

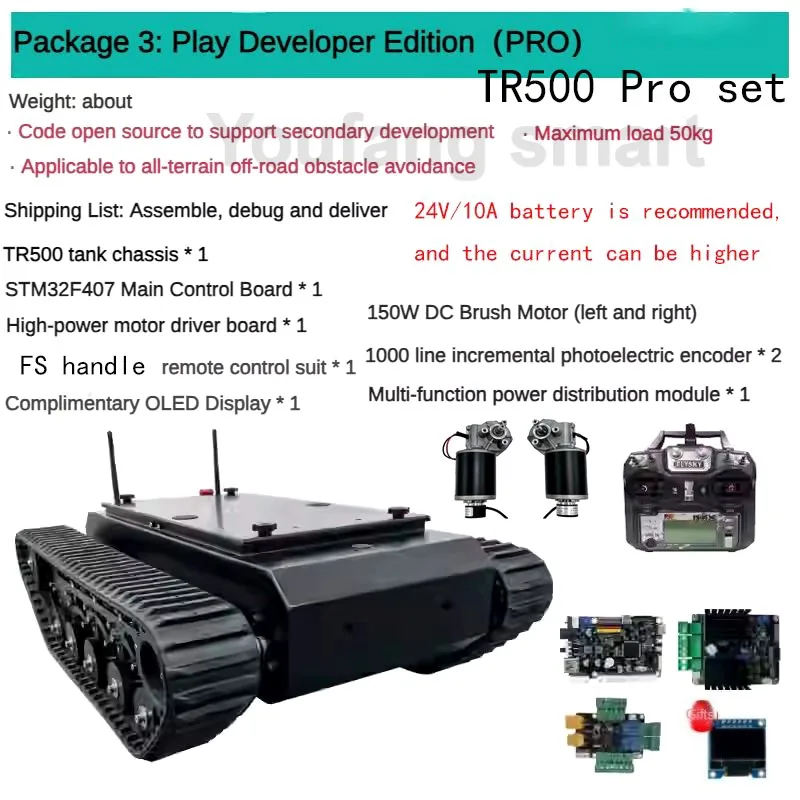

Package Included (Full set /Pro set/Video RC Tank set):

• Tank chassis with 2pcs of DC motors and control set wired up, it is ready to use once you prepared compatible power to connect on it

•


• Note: There is not including battery.

•

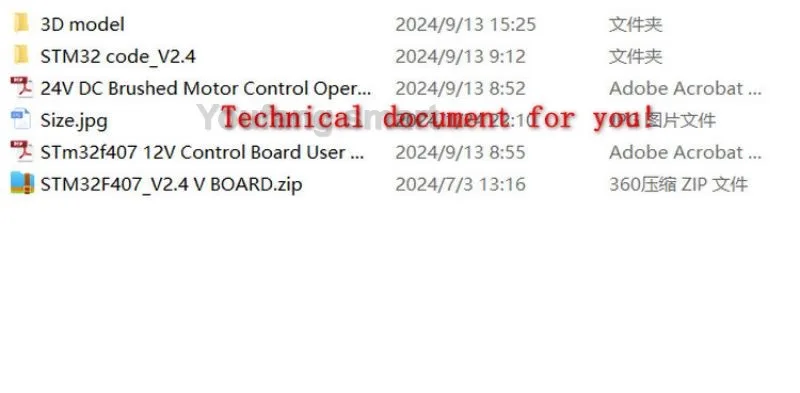

We can provide technical documents to our customers, please leave your email address.
