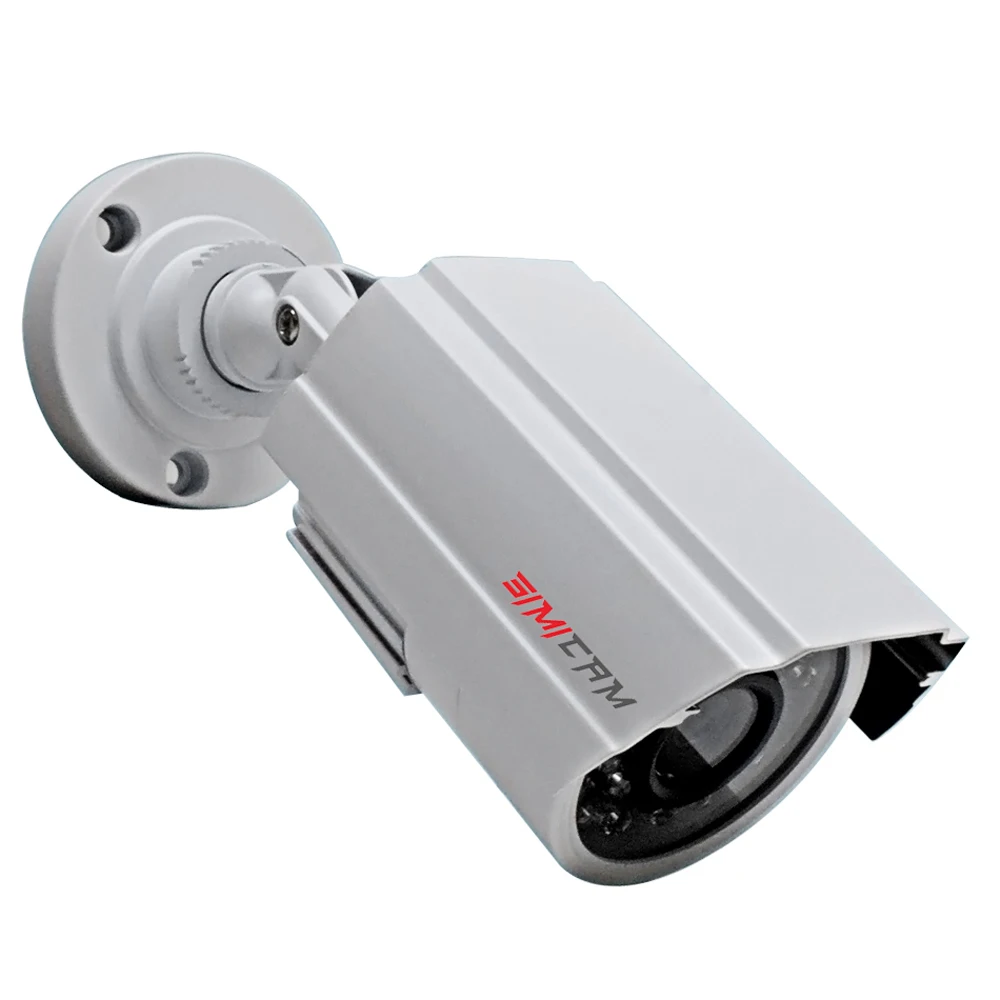

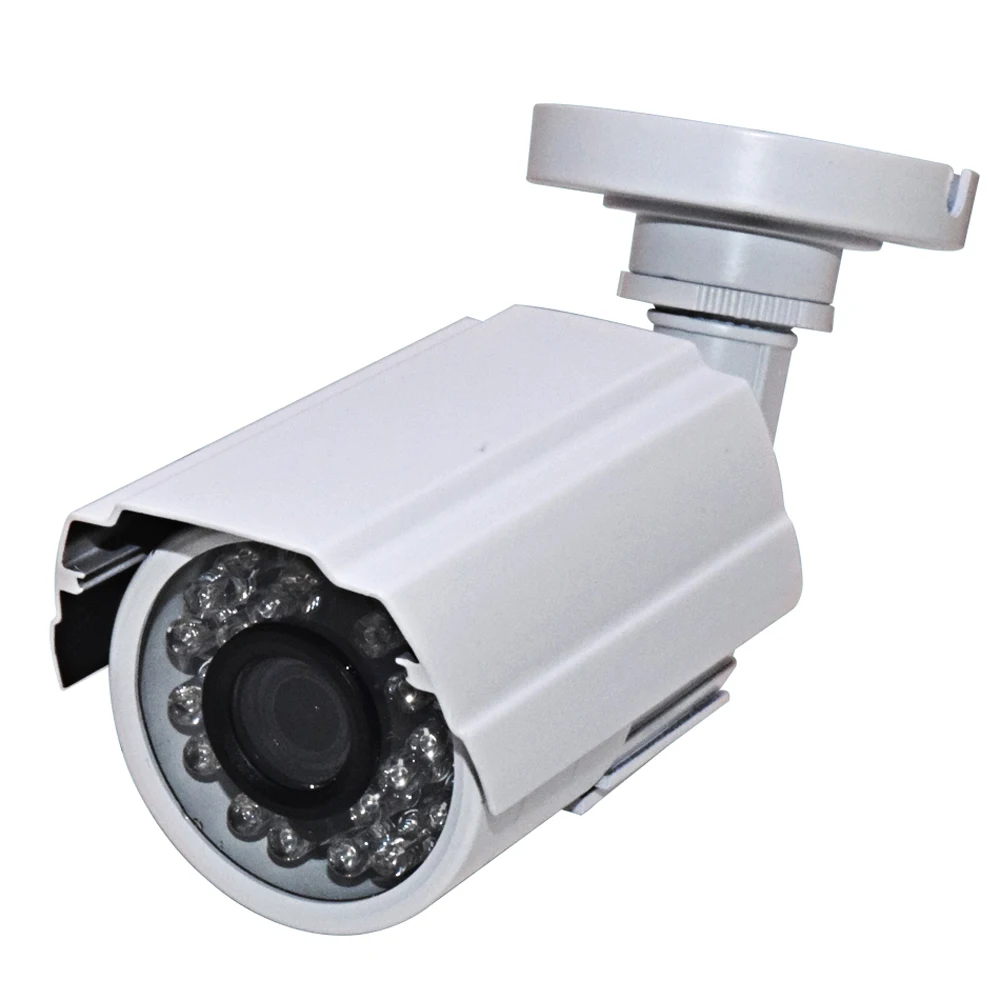

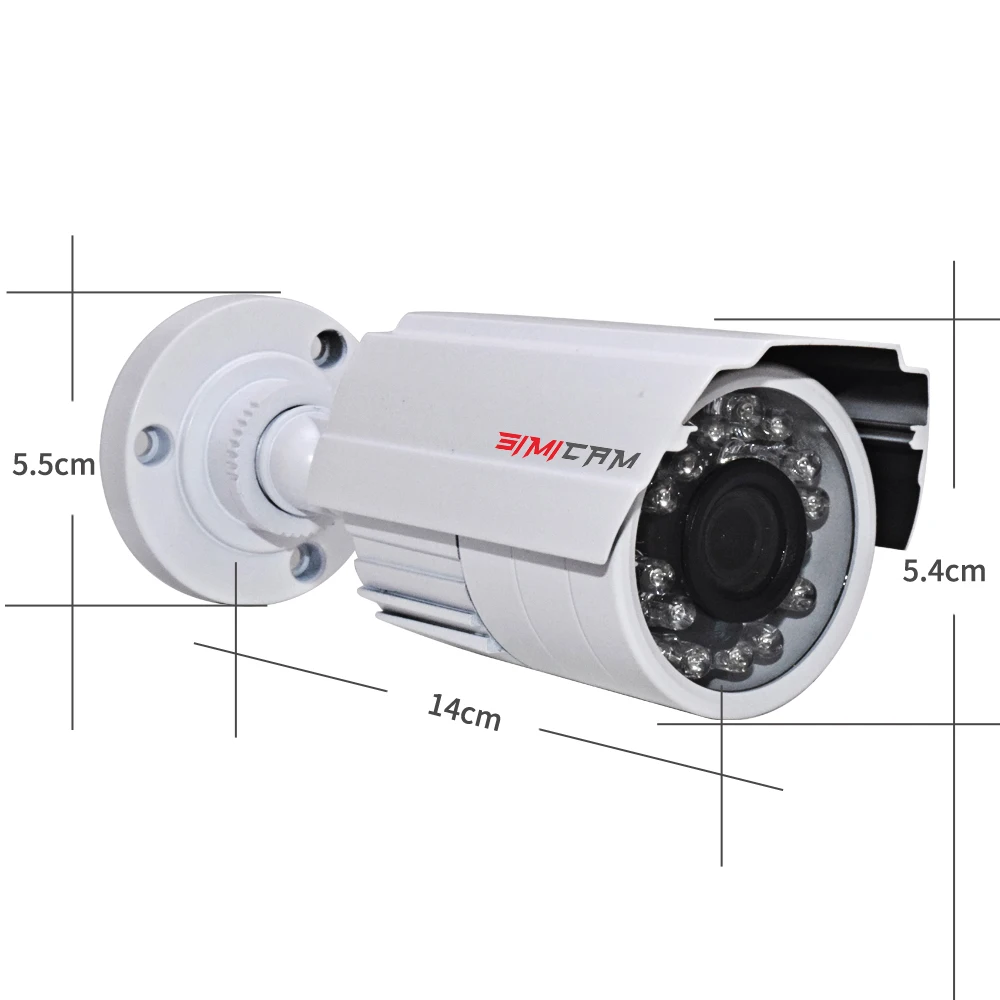

5MP 2MP Analog AHD Video Surveillance Camera NTSC/PAL Metal Waterproof CCTV DVR Camera Night Vision Security Surveillance
Important TIP:
1. This package do not include the power adapter or BNC cable.
2. Make sure you have a AHD DVR for the AHD cameras .you will can't view or record without it . It is very very very important !!! Pls don't buy it if you don't have AHD DVR Or you can buy our DVR.!!!
3. package:1pcs Camera+1pcs Screw bag
MUST work with AHD DVR.
Best choice for project reconstruction.
You can upgrade an old analog security system to 1.0MP/2.0MP HD cameras without changing cable routes.
AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance
|
Specifications |
|||
|
Image Sensor |
AHD-C5M |
AHD- 08P |
|
|
1/3″ 2.0MP CMOS Sensor |
1/2″ 5.0MP CMOS Sensor |
||
|
TV System |
PAL/NTSC |
||
|
IR CUT |
Yes |
||
|
Active Pixel |
1920×1080 |
2560×1920 |
|
|
SYNC. |
Internal |
||
|
Resolution |
1080P |
1920P |
|
|
VIDEO OUT |
1Vp-p,75ohm, BNC |
||
|
Minimum Illumination |
0 Lux ( When IR is on) |
||
|
Auto compensation |
Auto |
||
|
IR LEDs |
24 PCS IR LEDs |
12 PCS nanometer IR LEDs |
|
|
IR Distance |
about 15M |
||
|
Lens |
3.6 mm/6mm default |
||
|
Electric Shutter |
1/50s-1/50000s |
||
|
S/N Ratio |
>50dB |
||
|
Day/Night |
Auto(ICR) / Color / B/W |
||
|
Power Supply |
DC12V±10% |
||
|
Waterproof |
Indoor |
||
|
Working temperature |
-15°~50° |
||
|
Transmission distance |
Over 500m via 75-3 coaxial cable |
||

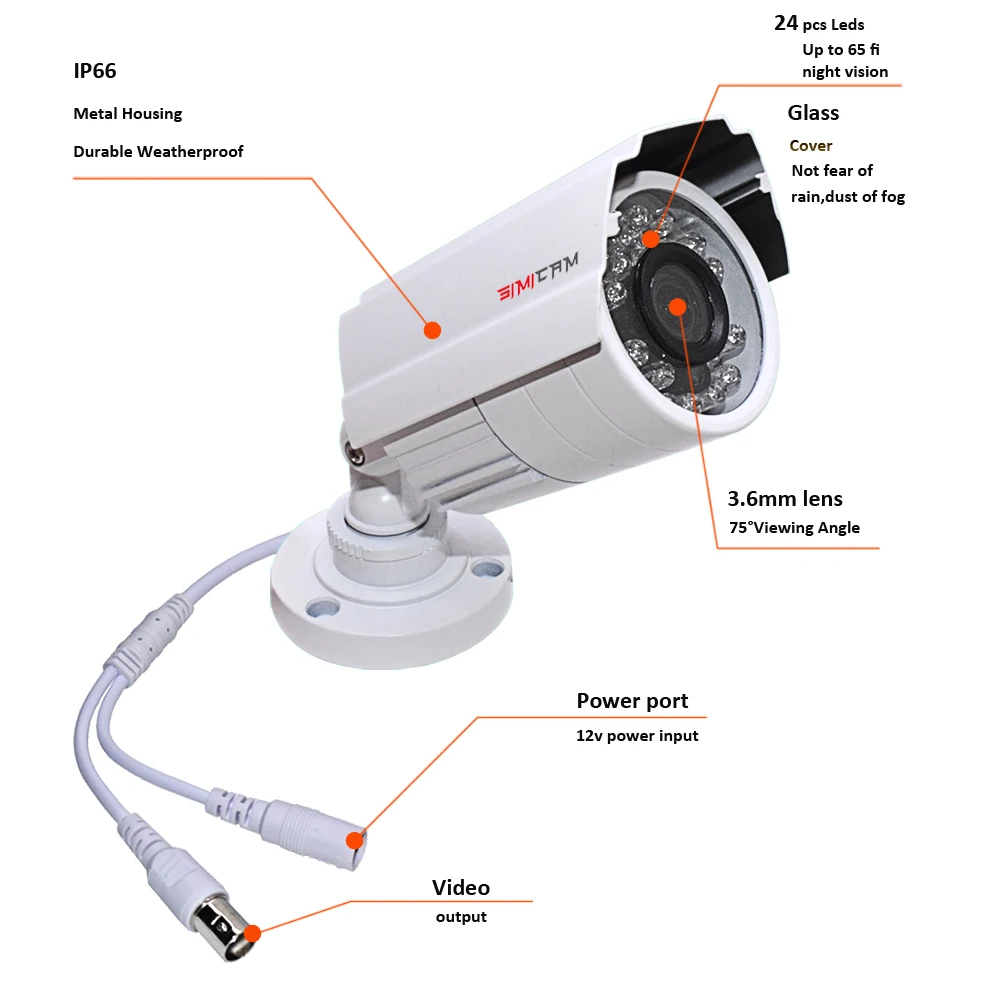

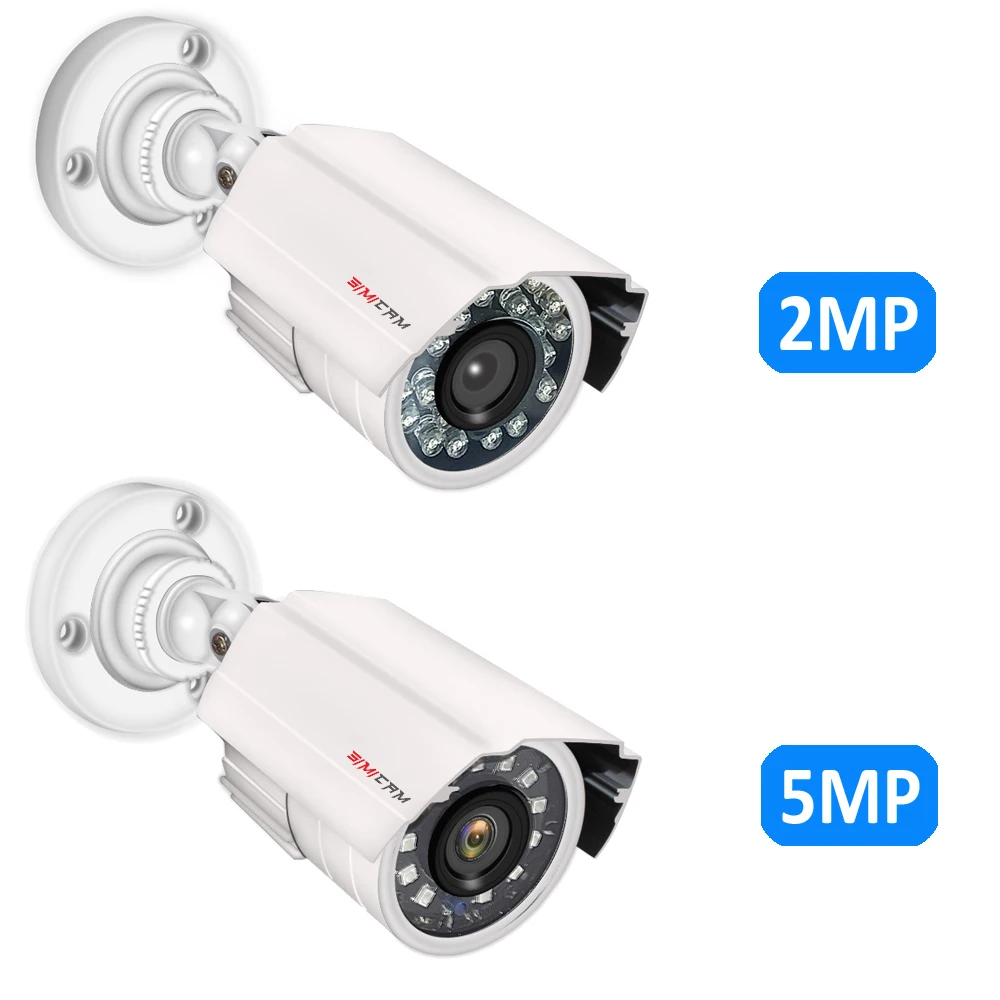

2MP for 24 LED Night Vision lights, 5MP for 12 nano level night vision lights (night vision enhancement)

Waterproof case,suitable for indoor and outdoor
IR Cut Filter Built in
Automatically switch to get better video images

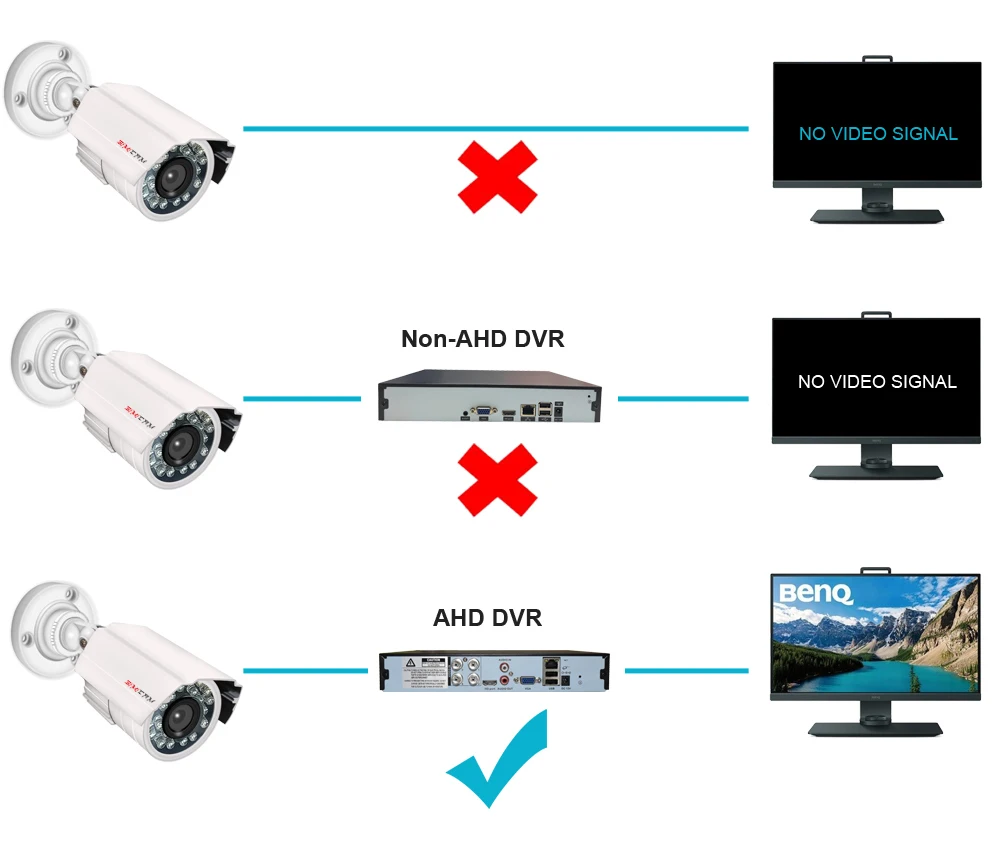

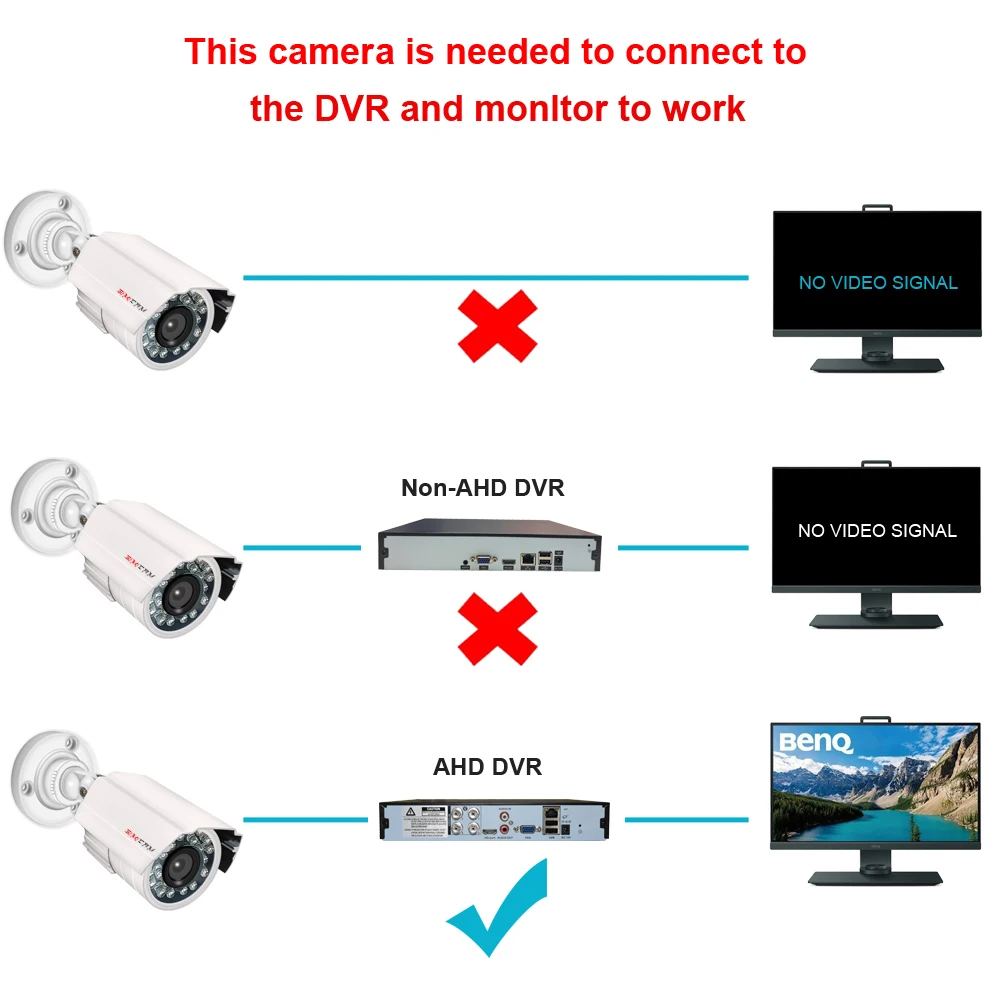

Camera suitable for connecting DVR, no direct connection monitor is supported
AHD camera needs to use AHD DVR





If you need a power adapter, we'll send it for you.
