·Single bus interface requires only one port pin for communication
·Each chip has a globally unique 64-bit serial number
·With multi-point distributed temperature measurement function
·No peripheral components required
·Can be powered by data line; power supply voltage range is 2.5V~5.5V
·Measurement range of -55°C to +125°C (-67°F to +25°F)
·Accuracy ±0.4°C over the -10°C to 70°C range
·Temperature resolution from 9 to 12 bits selectable
·Temperature conversion speed of less than 400ms at up to 12-bit accuracy
·User-defined, non-volatile temperature alarm settings
·Alarm search command identifies and identifies devices that exceed programmed temperature Super static protection: HBM 8000V MM 800V
【Descriptions】
Part Number : DS18B20
Part Type : Temperature Sensor
Supply Voltage : 3 – 5.5v
Supply Current : 1 – 1.5mA
Accuracy : +/-0.5
Resolution : 12 bit
Temperature Range : -55 to 125 degC

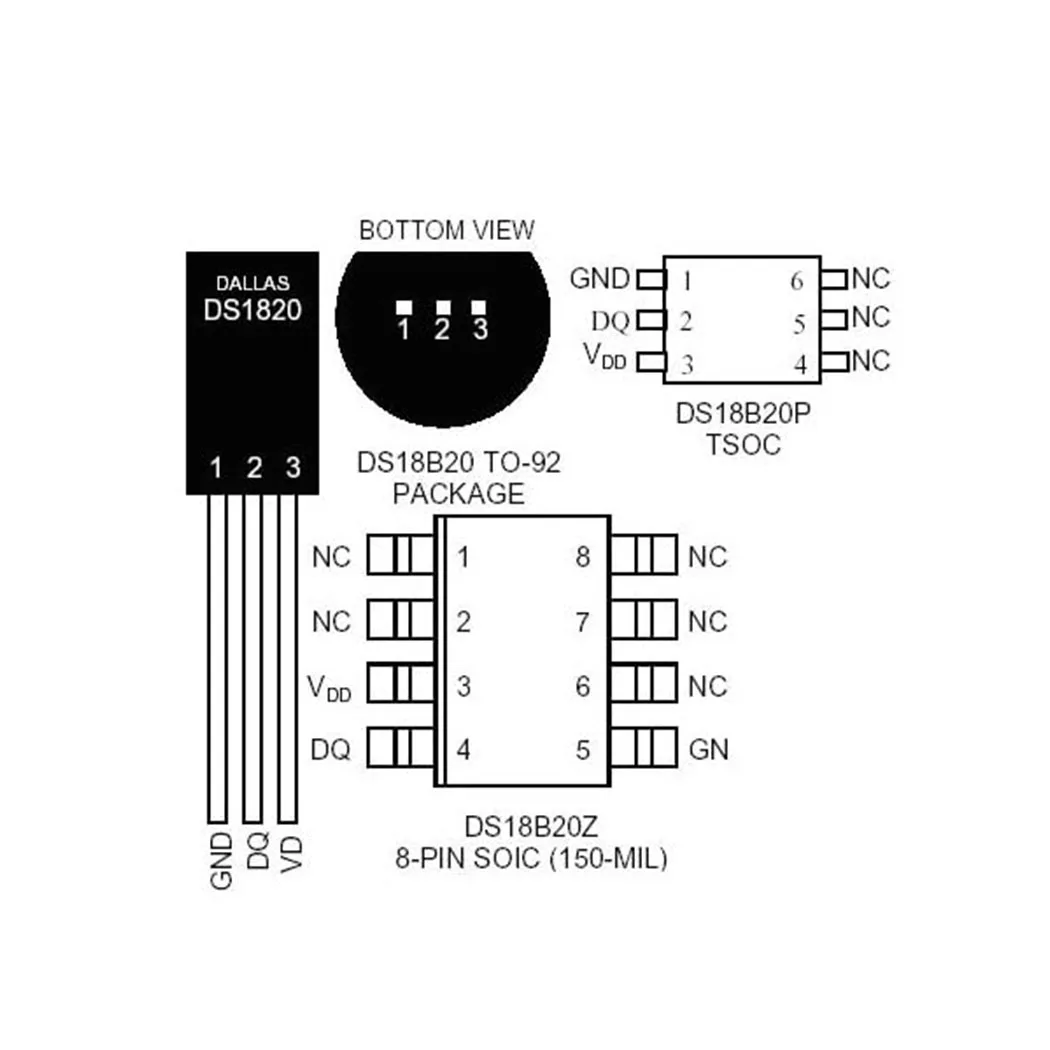

Case Style : TO-92

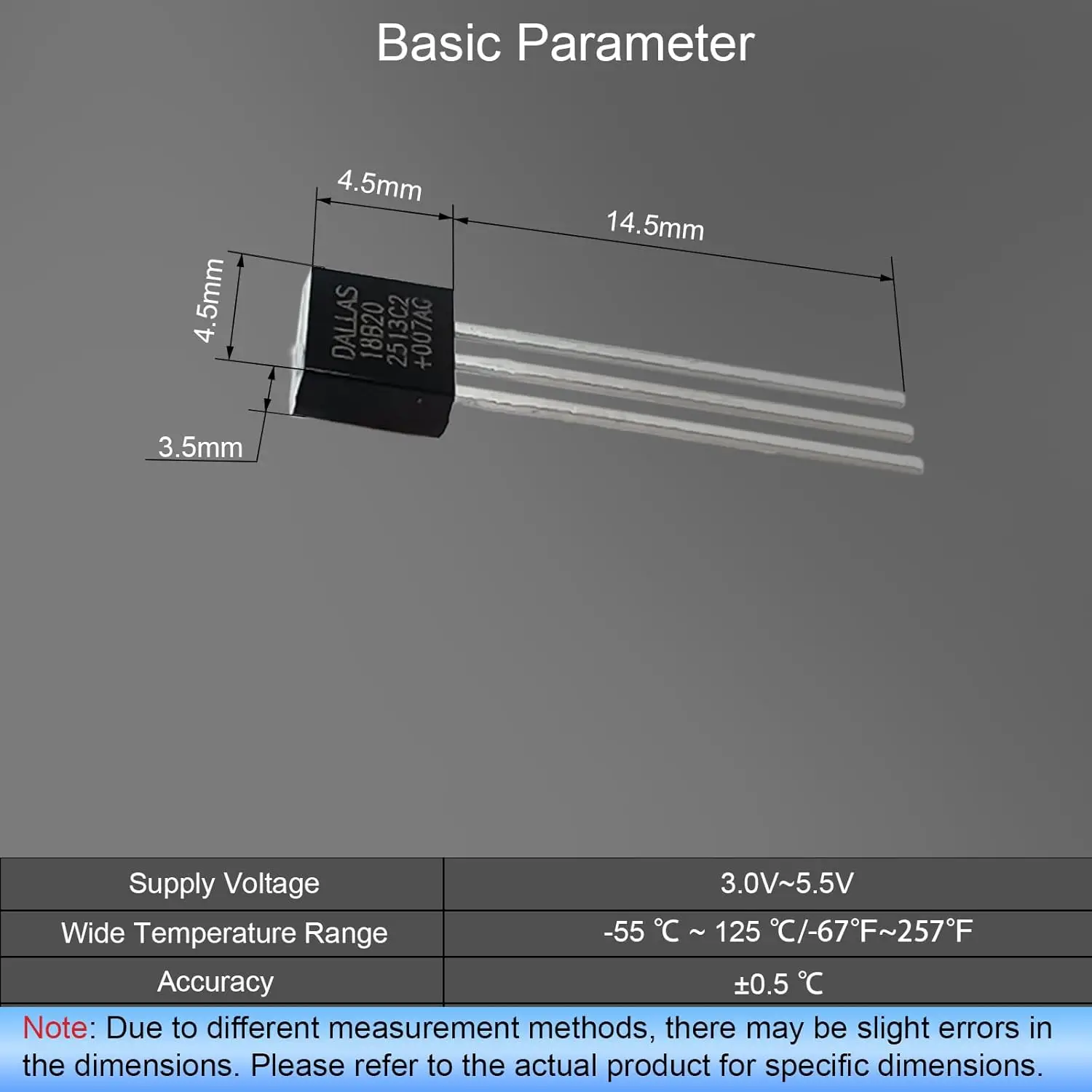

Length size: 15mm
Package Included:
6/12pcs Temperature Sensor
(please choose the model and quantity you need,we will send the goods according to your choice.)
