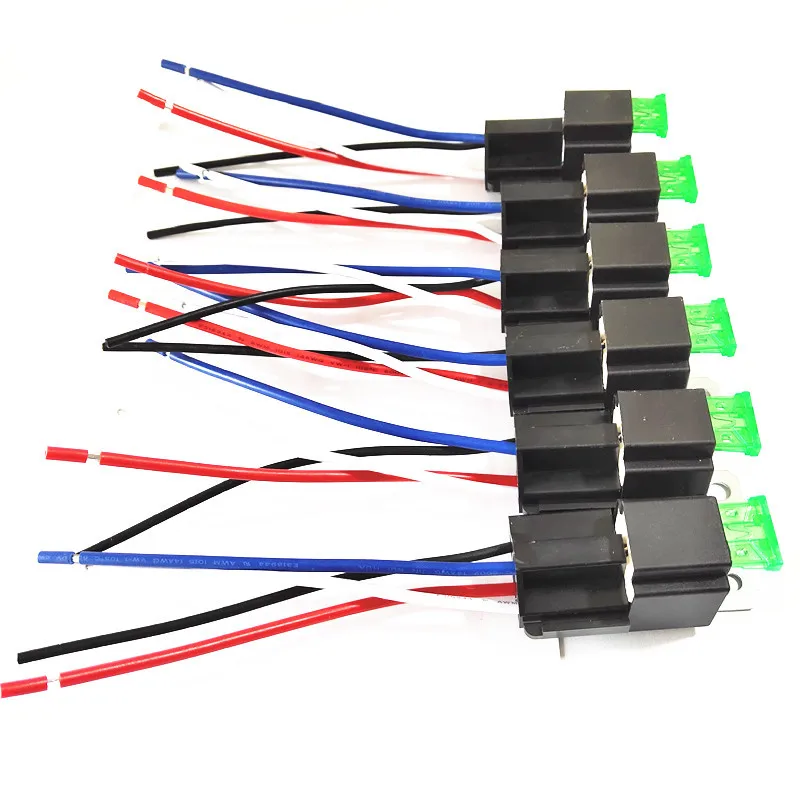

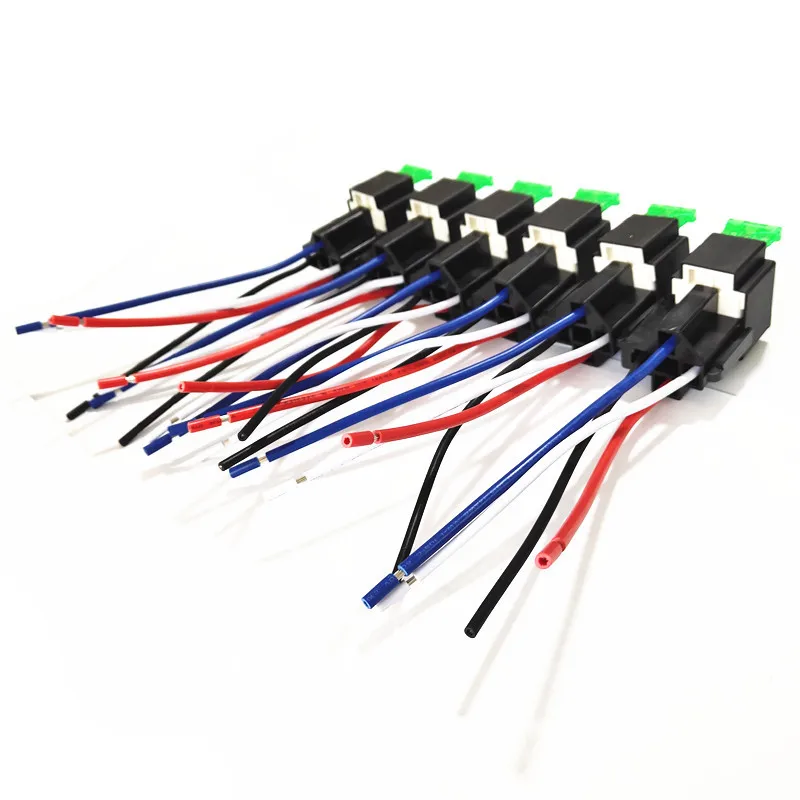

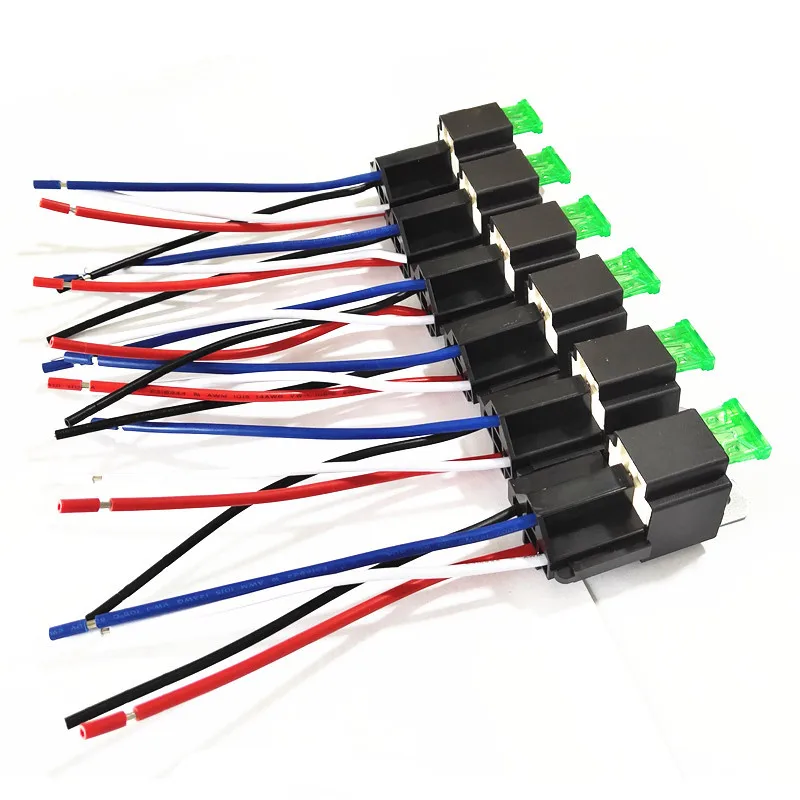

Name: Automotive Relay
Brand: YQTANEN
Color: Black
Product features: Large capacity, capable of switching 40 amperes of current; Contact form: One set of normally open contacts
Working temperature: -40 to+125 ℃
Product use: Automotive control device
External dimensions (length * width * height) (mm): 28.0 * 28.0 * 25.0
Contact form: 1c
● Contact capacity: 1c: 40A/30A 14VDC
● Coil voltage: 12VDC (24V can be ordered)
● Coil power (W): 1.80
Contact resistance: ≤ 50m Ω
Insulation resistance: ≥ 1,00M Ω
● Service life (times): Electrical 1 * 100000
Mechanical 1 * 10000000
● Dielectric withstand voltage: 500VAC between open circuit contacts
500VAC between coil contacts
Environmental temperature: -40 ℃~+125 ℃
Installation form: quick connect type, socket type
