For convenience The key leaves the car 3-4 meters automatically locked
Comfortable entry: The car key will automatically unlock when it is close to the car 1-2 meters
Remote start:
After locking the car, press and hold the lock button for 2-3 seconds to start the car
Cooling/preheating:
Do not turn off the car air conditioning or heating, remote start the car will open itself
Automatic window closing:
Turn off the car to lock the four doors and windows will automatically close(This function is available for some cars)

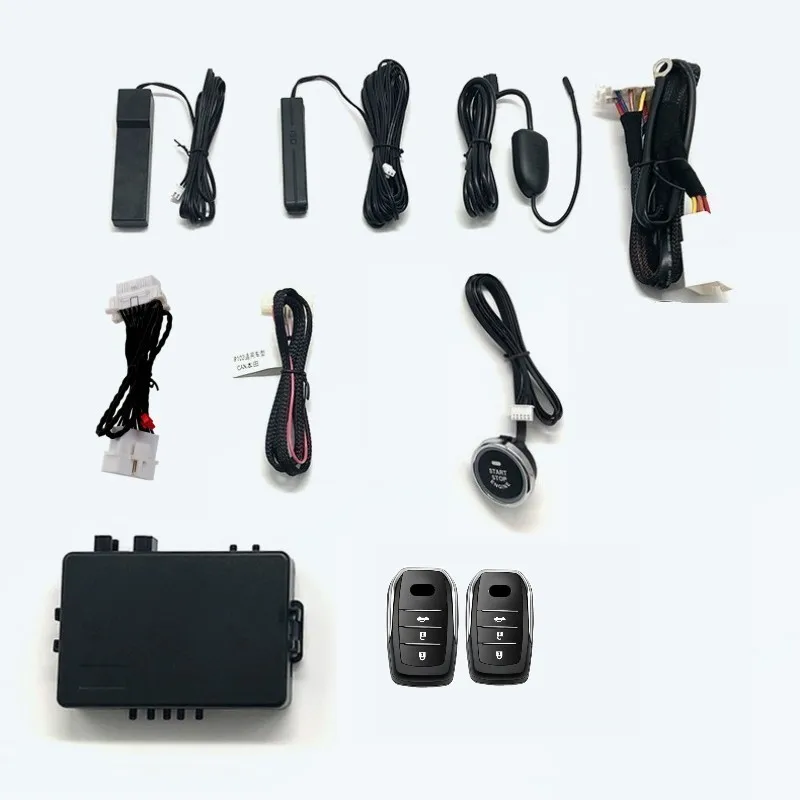

Product List:①Low Frequency Antenna ②Low Frequency Antenna ③High Frequency Antenna ④Starter plug ⑤OBDplug ⑥16Pplug ⑦Start button ⑧Mainframe ⑨Smart Key

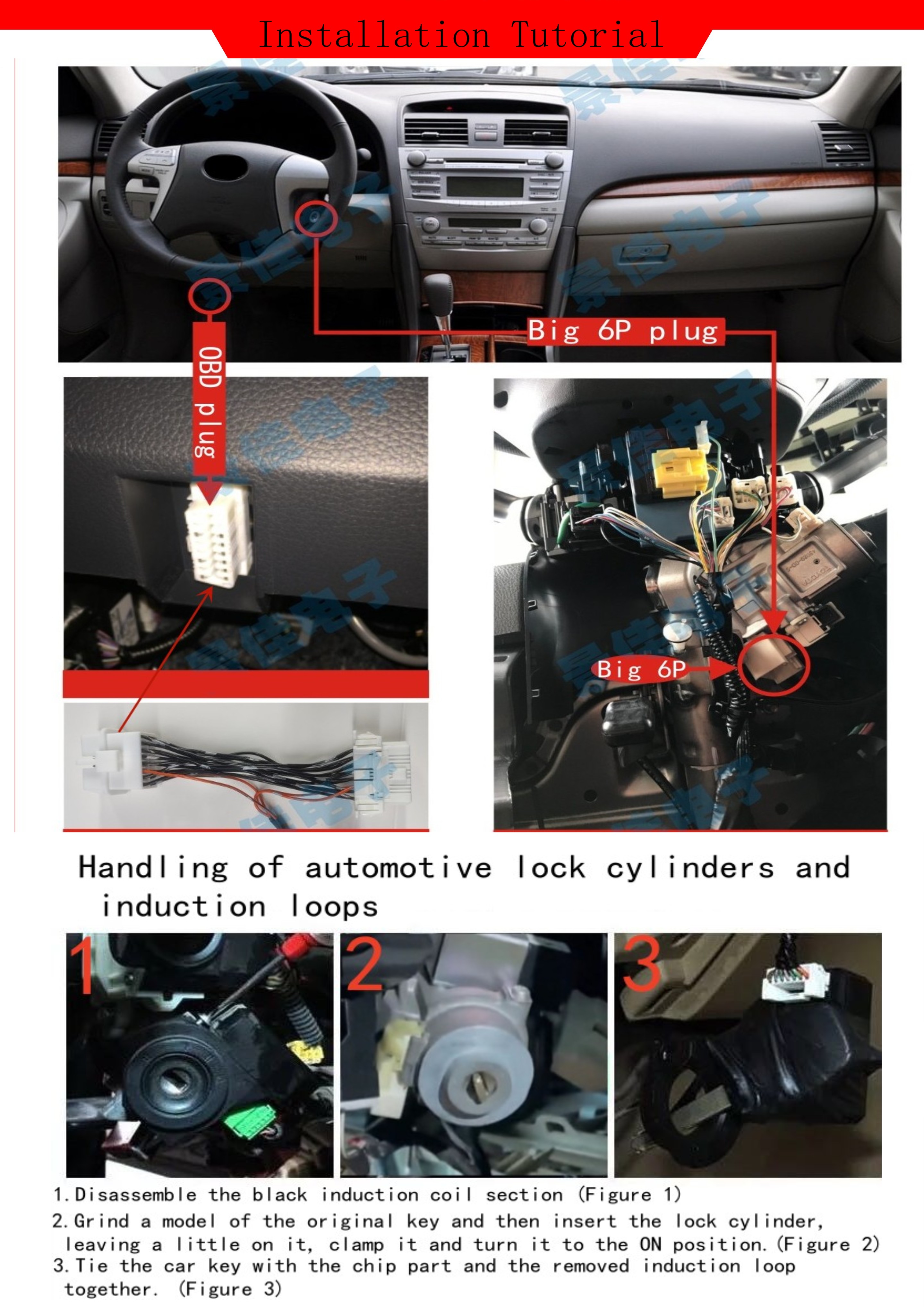

Installation Tutorial
Note: All antennas and electronics are installed inside the car body.
Low frequency and high frequency antenna can not be pasted on top of the iron

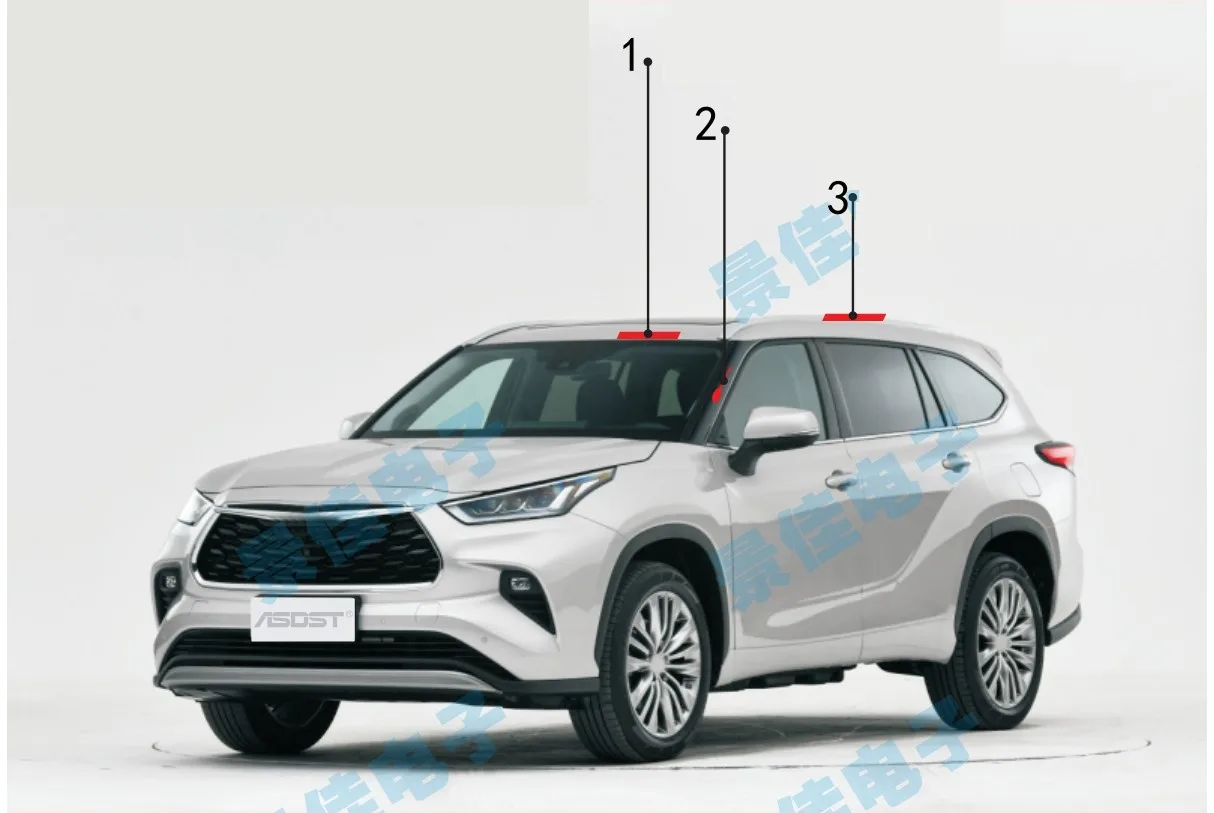

Low frequency antenna installation position: Inside the car, position 1 3 of the picture
Hight frequency antenna installation position: Inside the car, position 2 of the picture

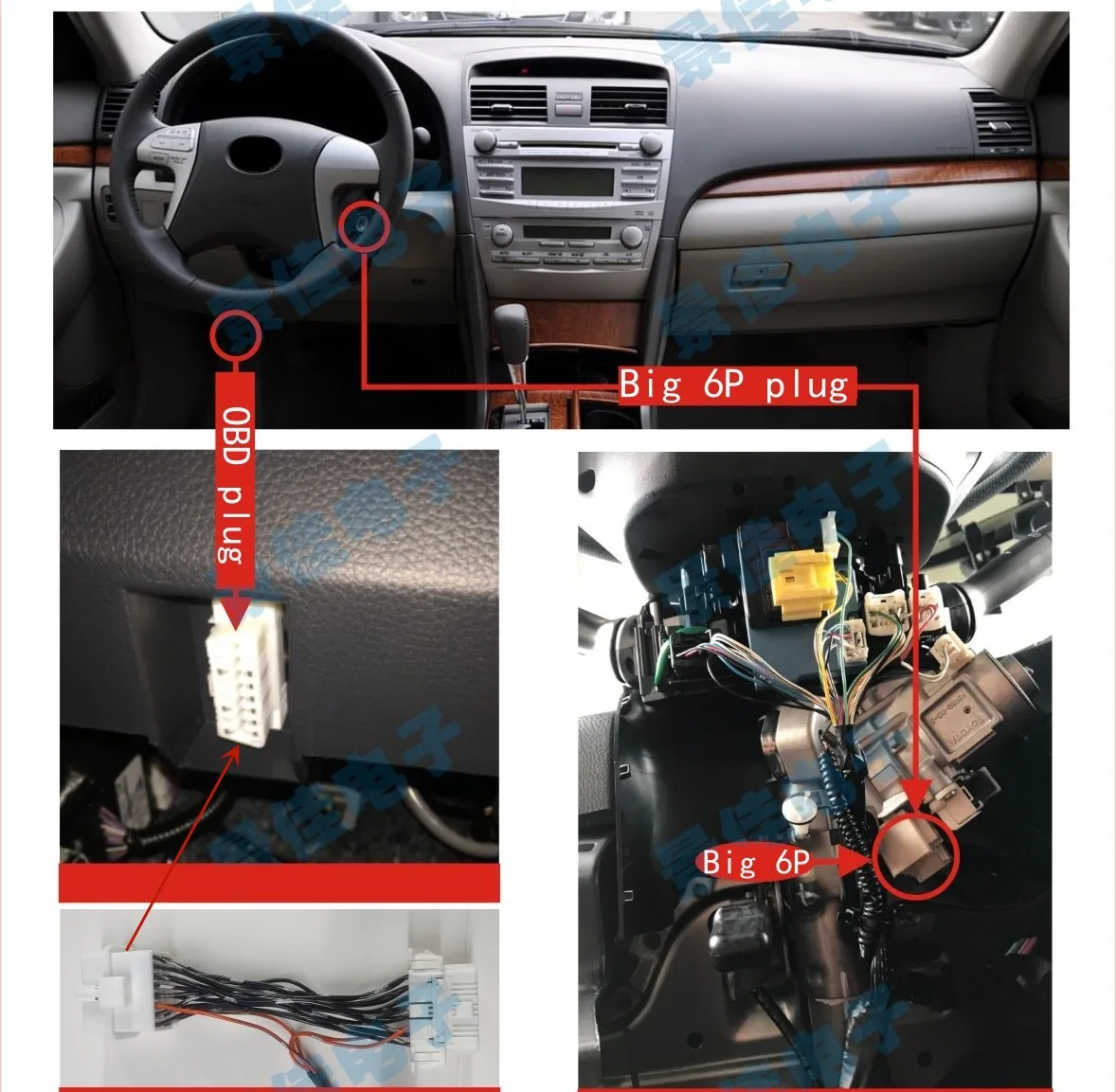

①Starter plug ②OBDplug

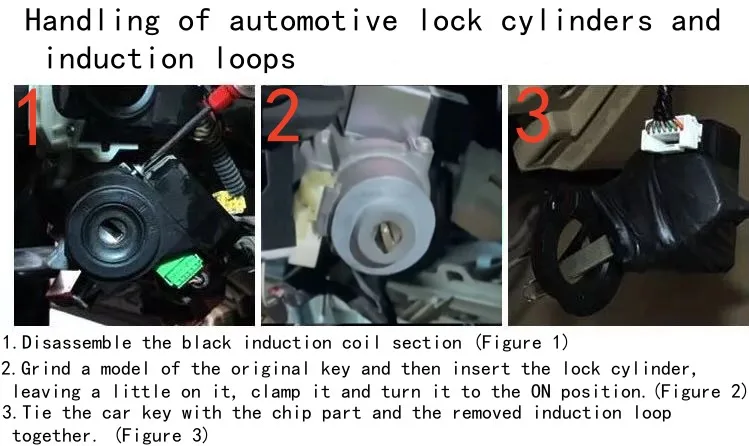

Handling of automotive lock cylinders andinduction loops
1.Disassemble the black induction coil section (Figure 1)
2.Grind a model of the original key and then insert the lock cylinder,
leaving a little on it, clamp it and turn it to the ON position.(Figure 2)
3.Tie the car key with the chip part and the removed induction loop
together. (Figure 3)
