Product detail
Image Sensor: 1/4″ CMOS with ICR
Effective Pixel: 1280(H)x720(V) or 1920(H)x1080(V)
Lens: Megapixel 3.6mm
Number of IR LEDs: 24 pcs, 5mm LEDs

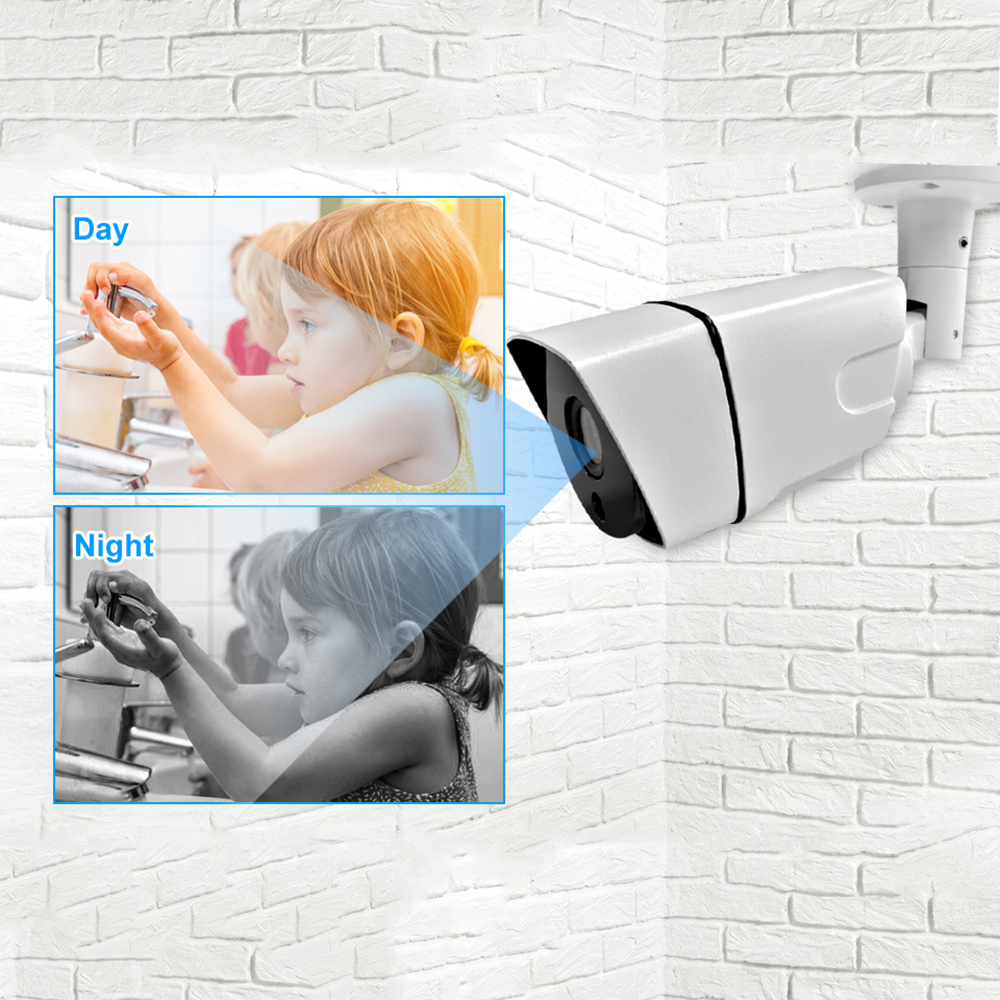

Night Vision: 65ft(20m)
Minimum Illumination: 0 Lux(IR on)/0.1 Lux (IR off)
Working Environment: -20~+50, 10%~90%
Waterproof Level: IP66
Sensor de imagem: 1/4 “cmos com icr
Pixel eficaz: 1280 (h) x720 (v) ou 1920 (h) x1080 (v)
Lente: megapixel 3.6mm
Número de leds ir: 24 pces, 5mm leds
Visão noturna: 65ft(20m)
Iluminação mínima: 0 lux (ir on)/0.1 lux (ir fora)
Ambiente de trabalho: -20 + + 50, 10% ~ 90%
Nível impermeável: IP66
|
Camera |
Image sensor |
Newest CMOS sensors |
|
1080P Optional |
||
|
Lens |
2.0Megapixel 1080P 3.6mm Default / 6mm optional |
|
|
Interface |
BNC & DC Power |
|
|
Power consumption |
DC12V1A, 2W(daytime),6W(night) |
|
|
Working temperature |
-10degree~ + 60degree |
|
|
Working Humidity |
10% ~ 95% |
|
|
Video |
Frame Rate |
15fps @1080P |
|
HD Resolution |
1280*720/1920*1080 Optional |
|
|
Video Standard |
HD AHD Standard ( AHD-M)
AHDH Standard for 1080P |
|
|
Video Output |
BNC High Definition Analog |
|
|
Color/B/W Switch |
IR-CUT Single, Double Filter Changer |
|
|
Min. Lux |
0.01LUX/F1.2(Color), 0LUX (IR LED on) |
|
|
Transmission |
Max. Transfer Distance |
500 meters via 75+5 Coaxial Cable |
|
Transfer Frequency |
1.485Gbps |

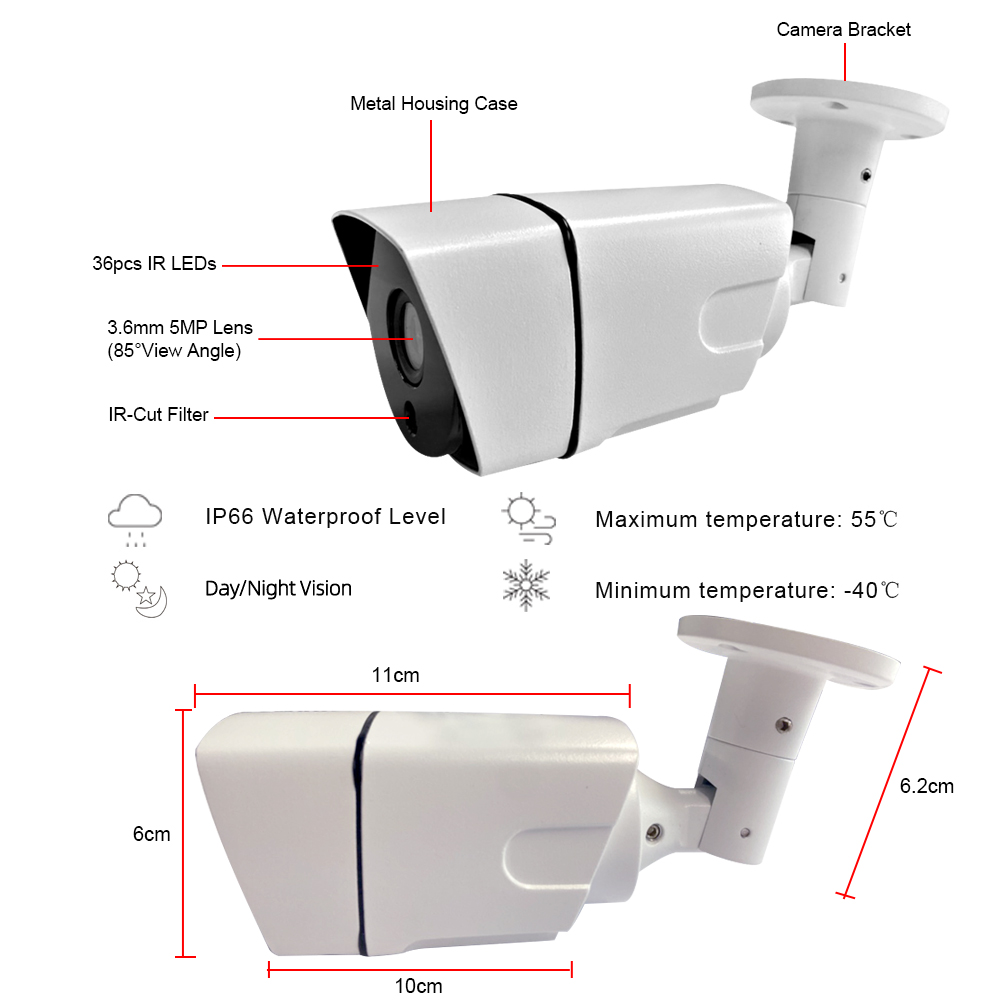

Product Size:

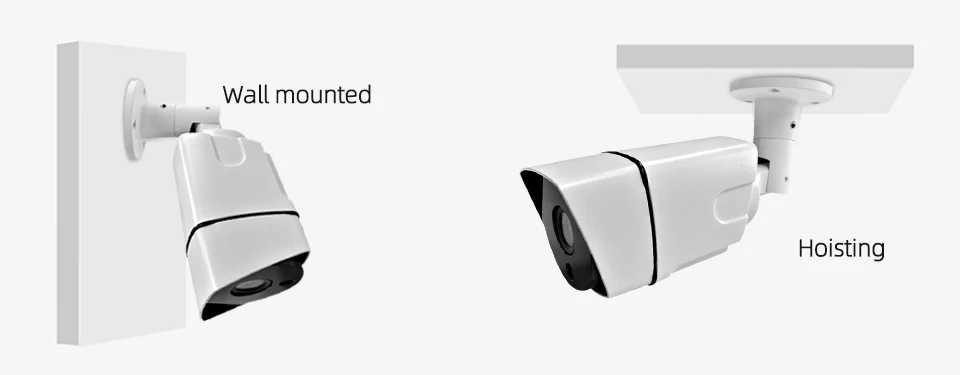

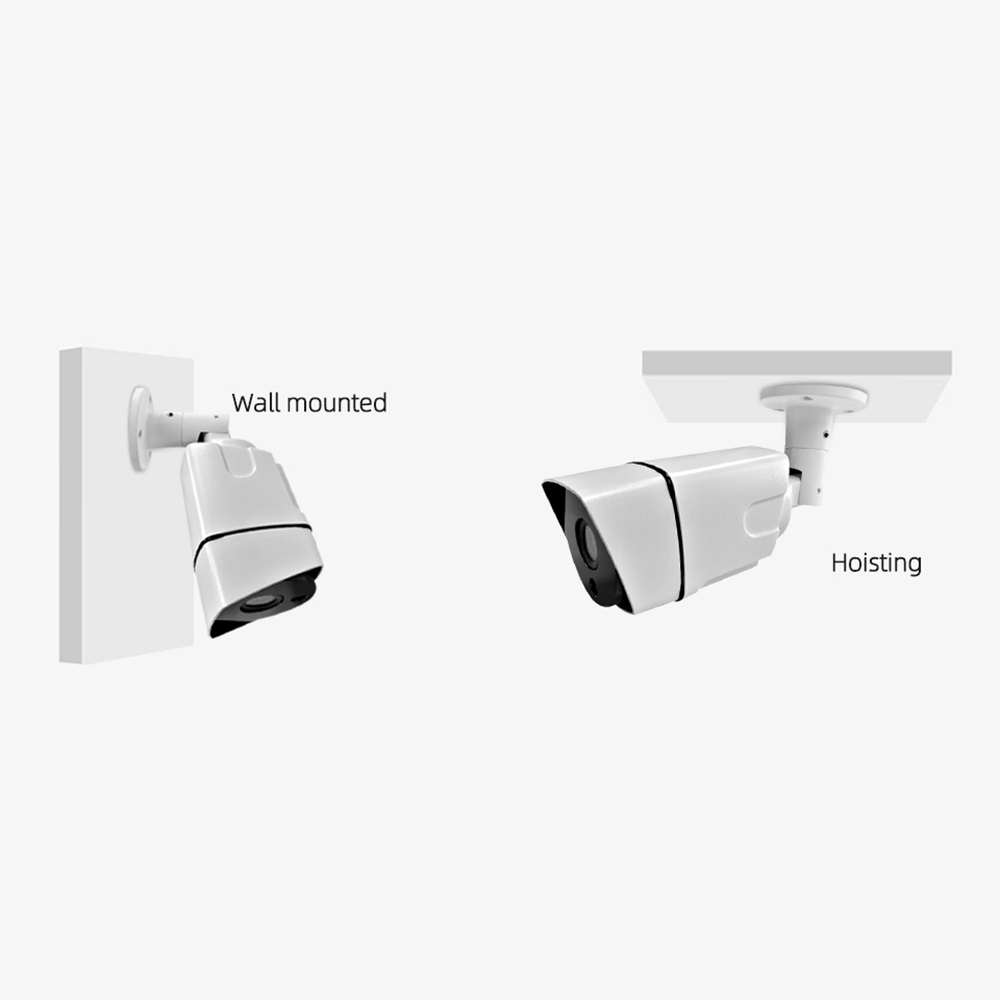

Two Installation Method:

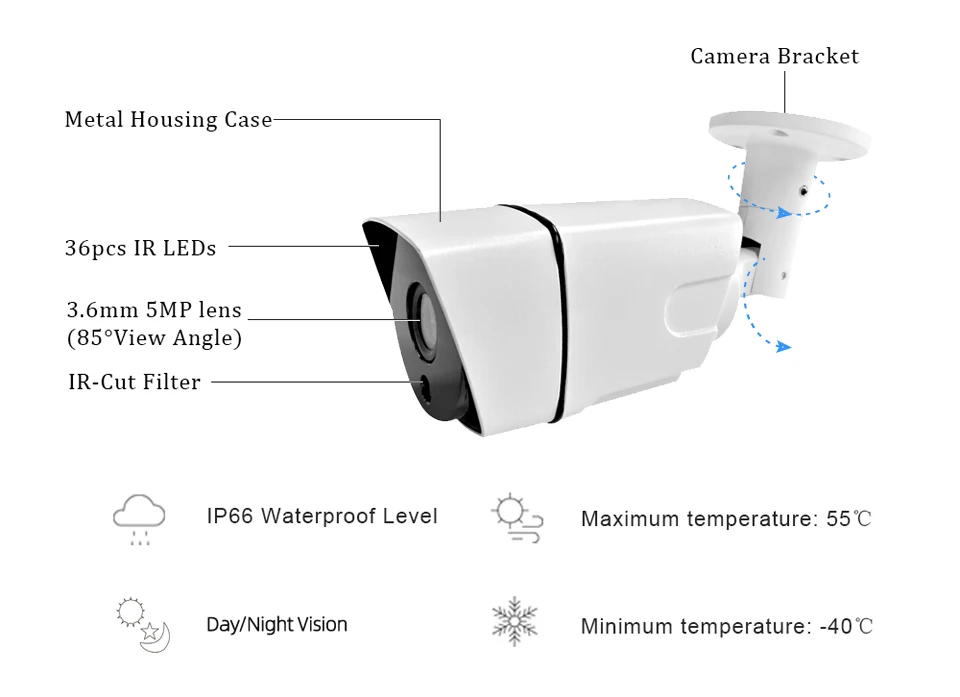

IR sensor— IR CUT built in camera has 2 crystal filters
1 x Outdoor IR Color CMOS Camera
1 x Mounting Screw bag
1x Instruction Manual
