AHD output cameras need to be connected to the AHD DVR to work, not directly connected to the display!
CVBS output camera can be directly connected to the display!
CVBS output camera can be directly connected to the display!
AHD Camera Specification :
|
Resolution |
2MP CMOS |
|
Camera type |
High performance HD -AHD Camera |
|
Image Sensor |
1080P AHD CMOS CHIP |
|
Effective Pixel |
1920*(1080P)@25fps |
|
Signal System |
PAL/NTSC |
|
Video Standard |
AHD |
|
Video Output |
1CH AHD HD |
|
Max Transmission Distance |
Common 75-3 lines can be up to 500m |
|

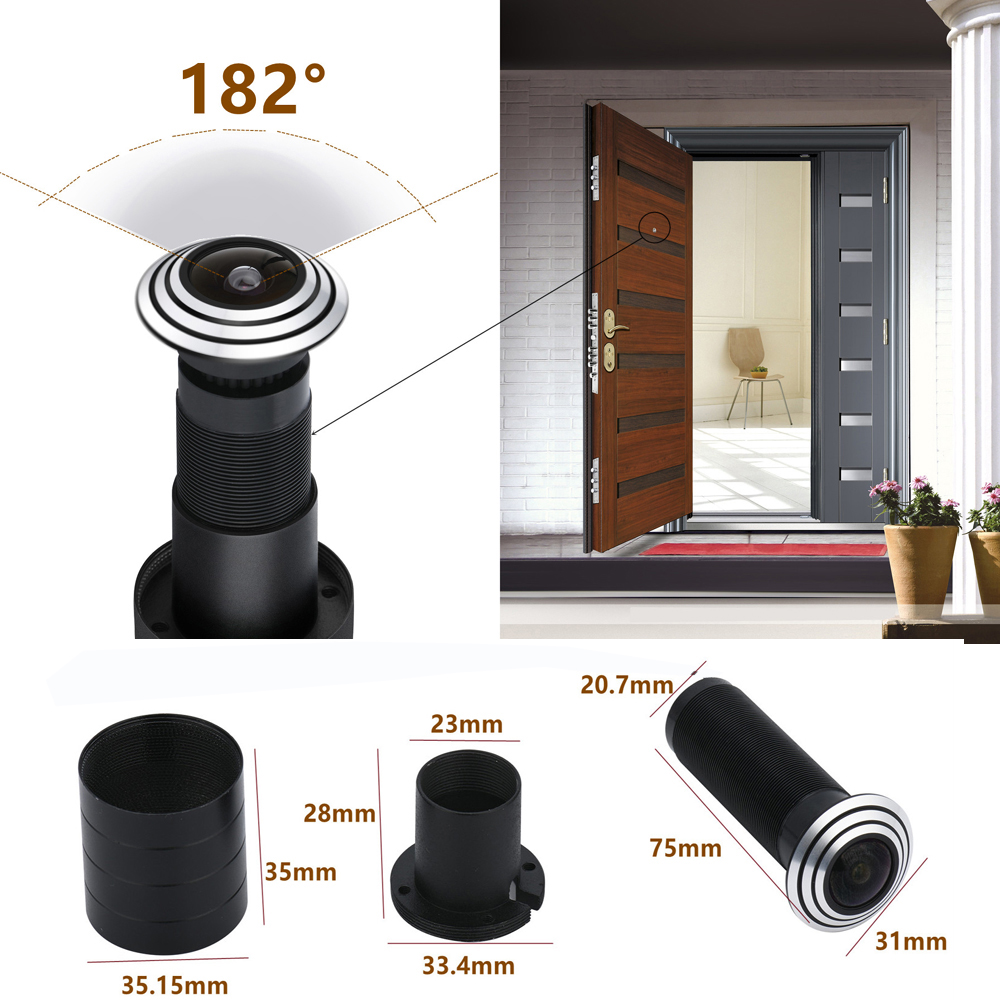

Lens size |
Board Lens HD 1.66mm |
|
Minimum Illumination |
0.1LUX |
|
Shutter Speed |
1/53~1/100000s |
|
BLC |
Auto |
|
White Balance |
Auto White Balance |
|
HLC |
Support |
|
Operation Temperature |
-10°C~55°C |
|
Power Supply |
DC12V |
|
weight |
0.15kg |
