Powerful & Versatile 2-Wire Video Intercom System: Secure Access for Complex Properties
Seamless Smart Home Integration (TUYA): Fully supports TUYA Smart, enabling effortless integration with your existing smart home ecosystem. Control access, view live feeds, and manage settings remotely via the intuitive TUYA app.

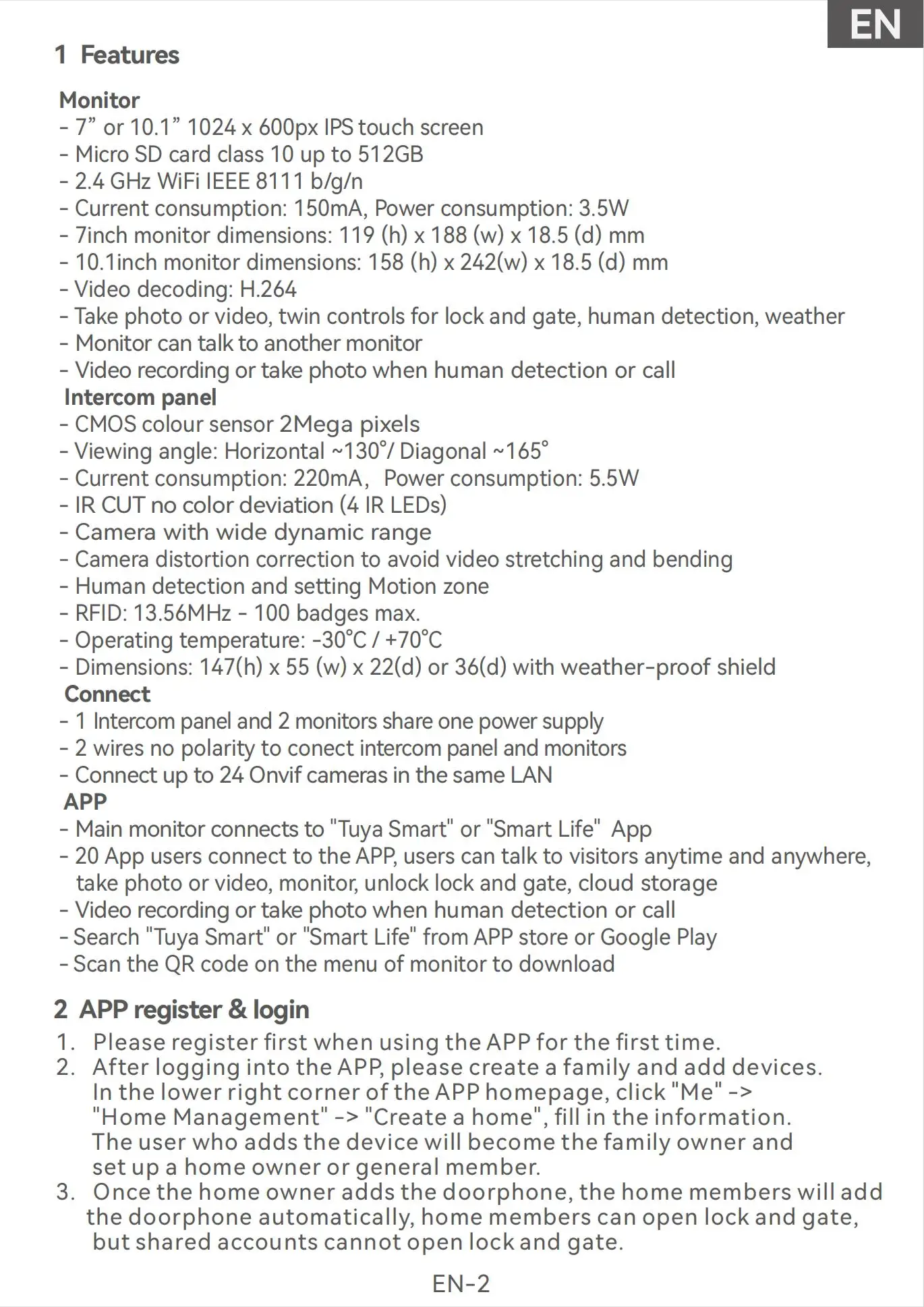

Monitor
– 7” or 10.1” 1024 x 600px IPS touch screen
– Micro SD card class 10 up to 512GB
– 2.4 GHz WiFi IEEE 8111 b/g/n
– Current consumption: 150mA, Power consumption: 3.5W

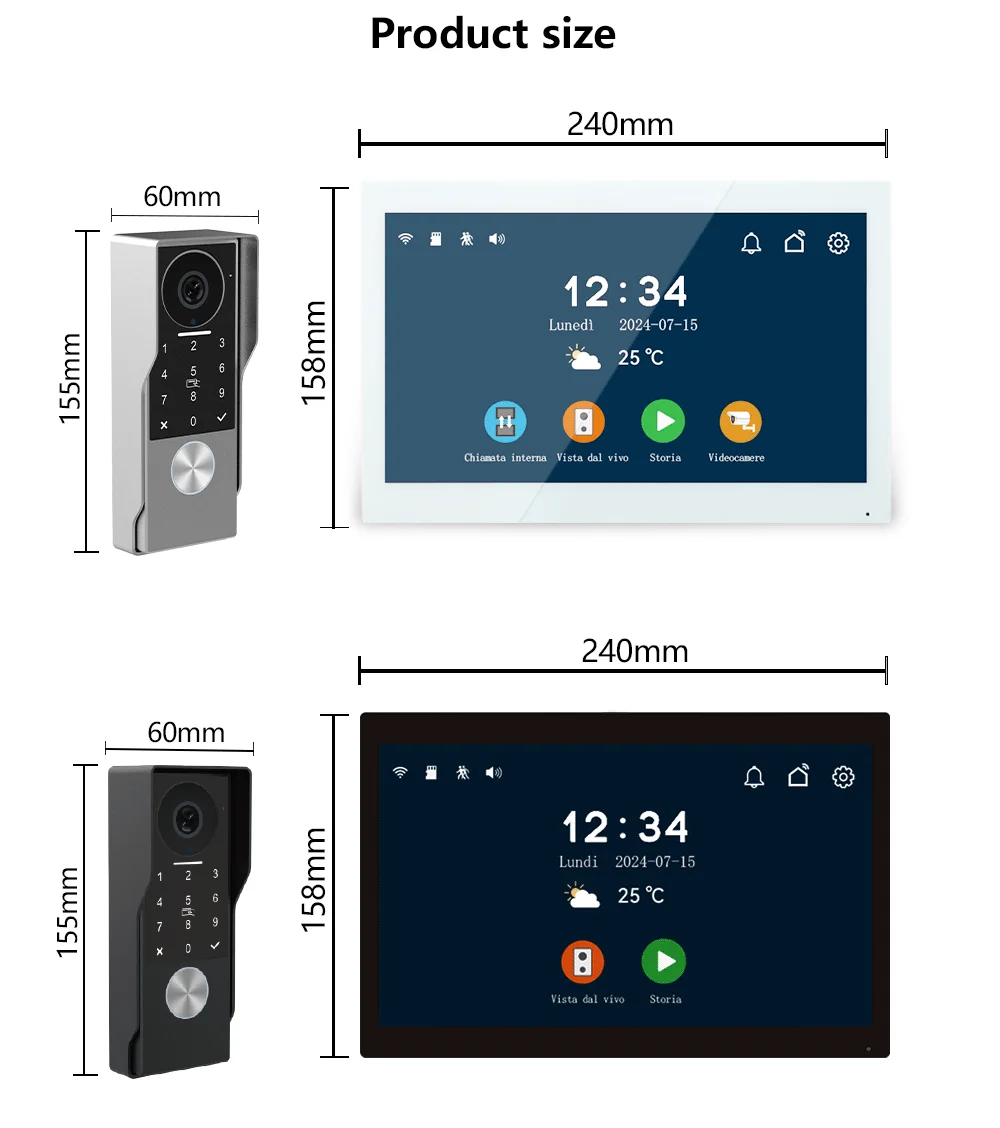

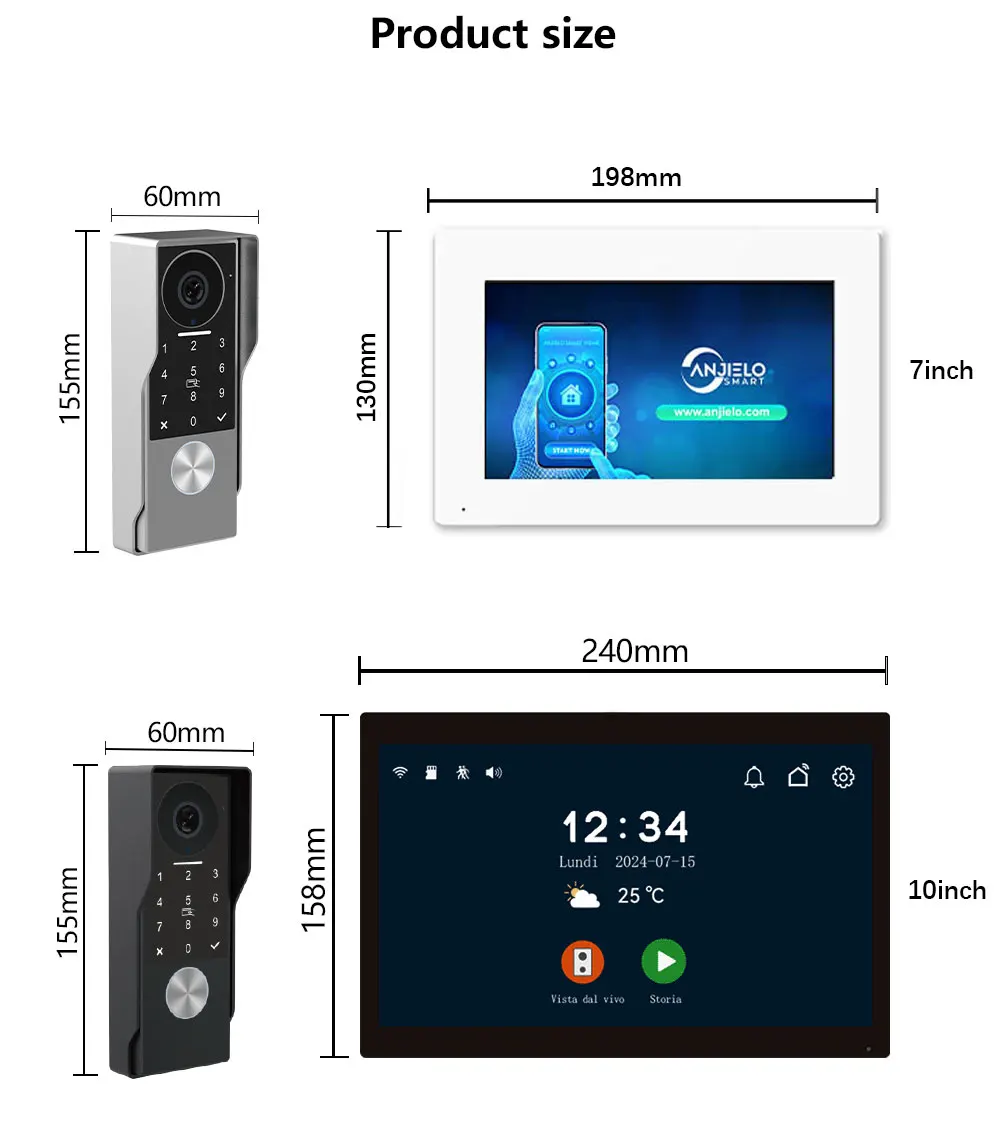

– 7inch monitor dimensions: 119 (h) x 188 (w) x 18.5 (d) mm
– 10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm
– Video decoding: H.264
– Take photo or video, twin controls for lock and gate, human detection, weather
– Monitor can talk to another monitor
– Video recording or take photo when human detection or call

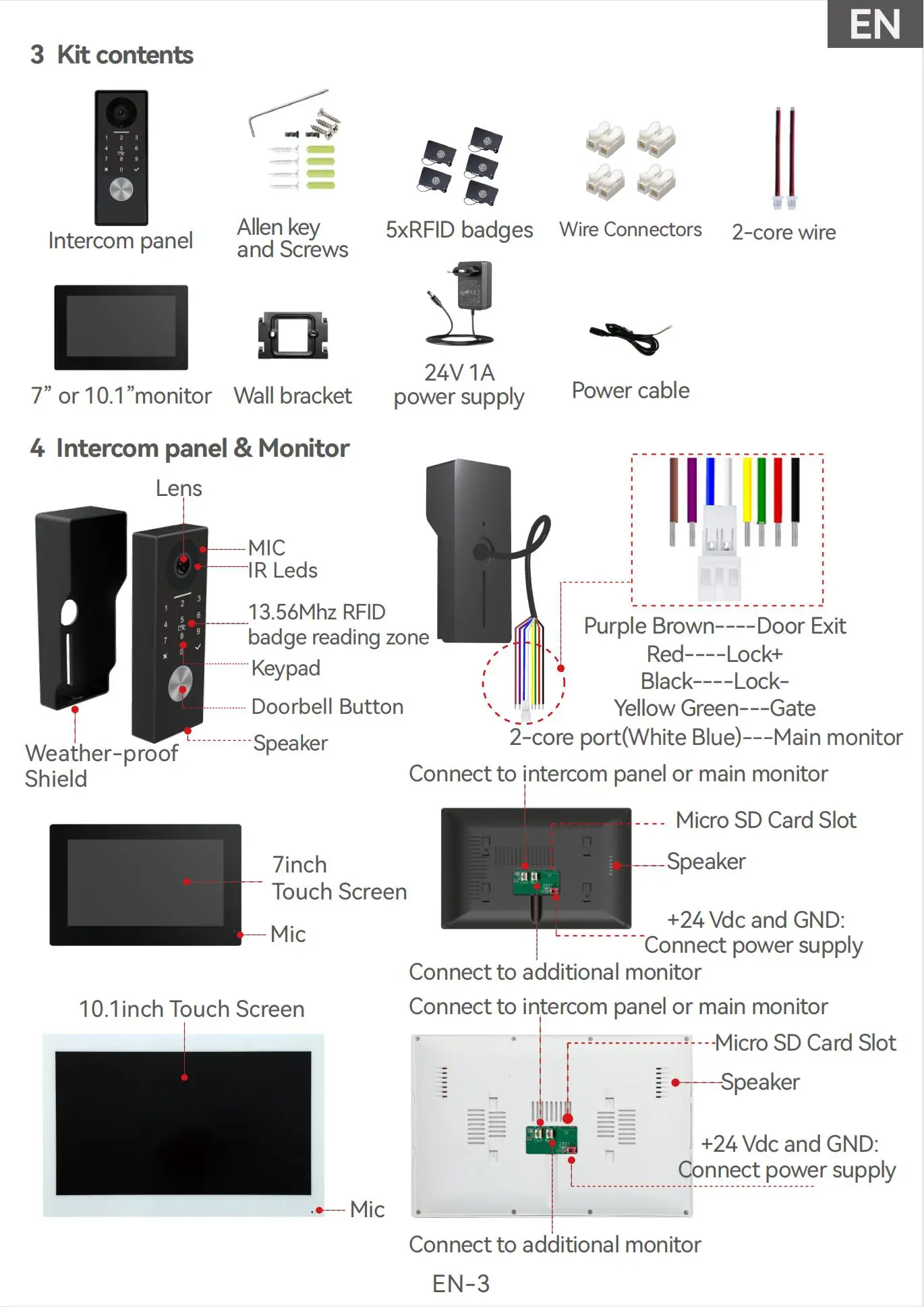

Intercom panel
– CMOS colour sensor 2Mega pixels
– Viewing angle: Horizontal ~130°/ Diagonal ~165°
– Current consumption: 220mA，Power consumption: 5.5W
– IR CUT no color deviation (4 IR LEDs)
– Camera with wide dynamic range
– Camera distortion correction to avoid video stretching and bending
– Human detection and setting Motion zone
– RFID: 13.56MHz – 100 badges max.

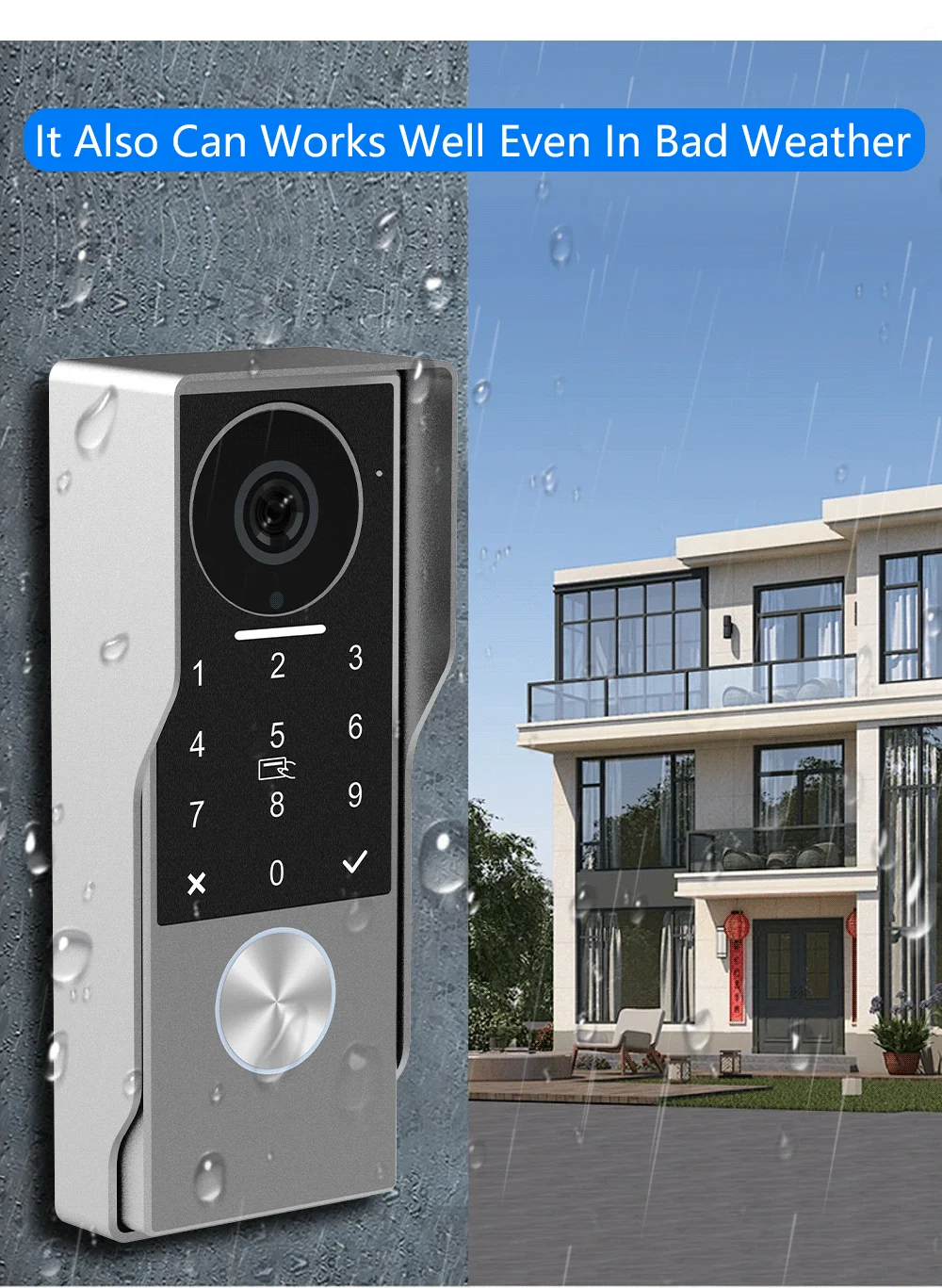

– Operating temperature: -30°C / +70°C

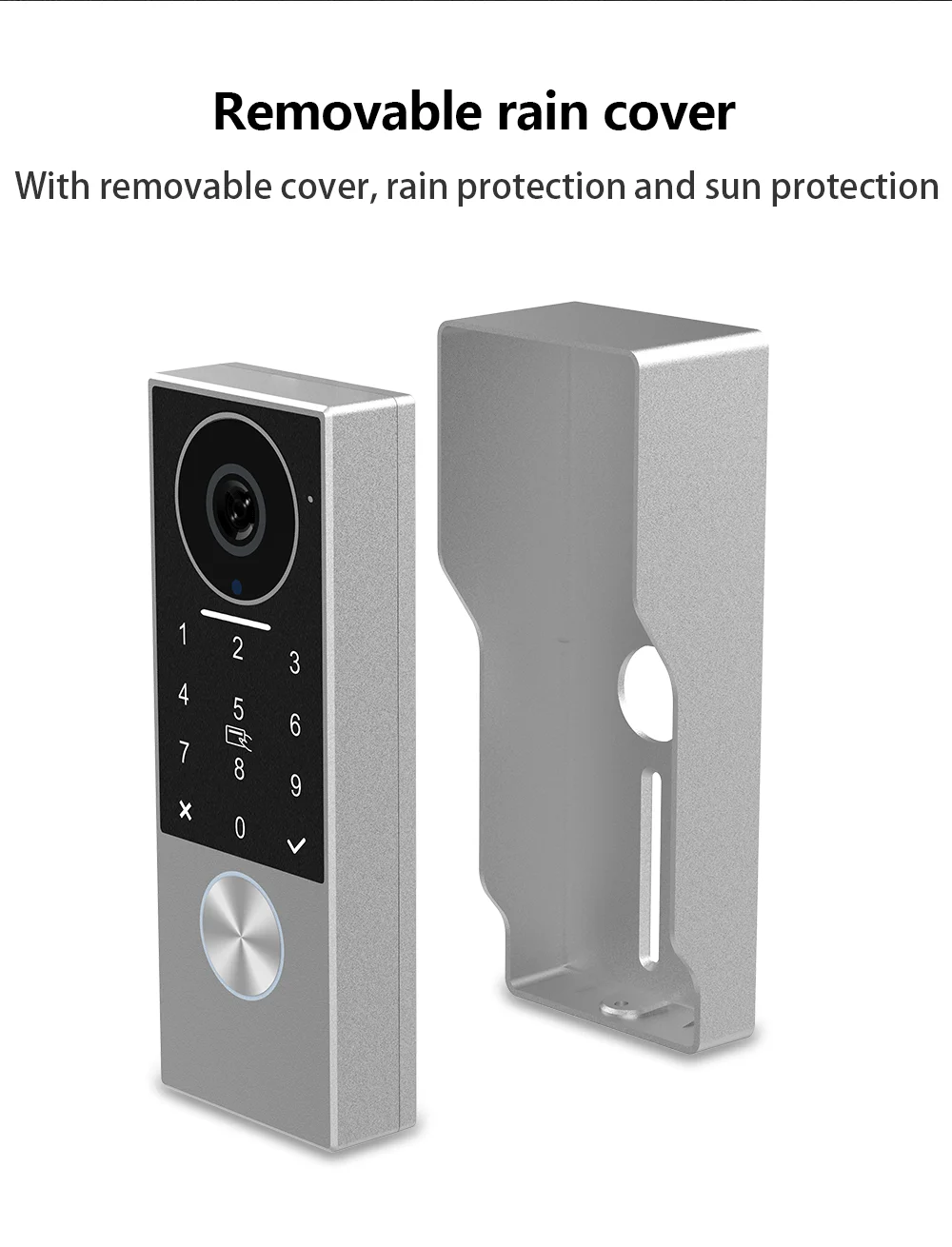

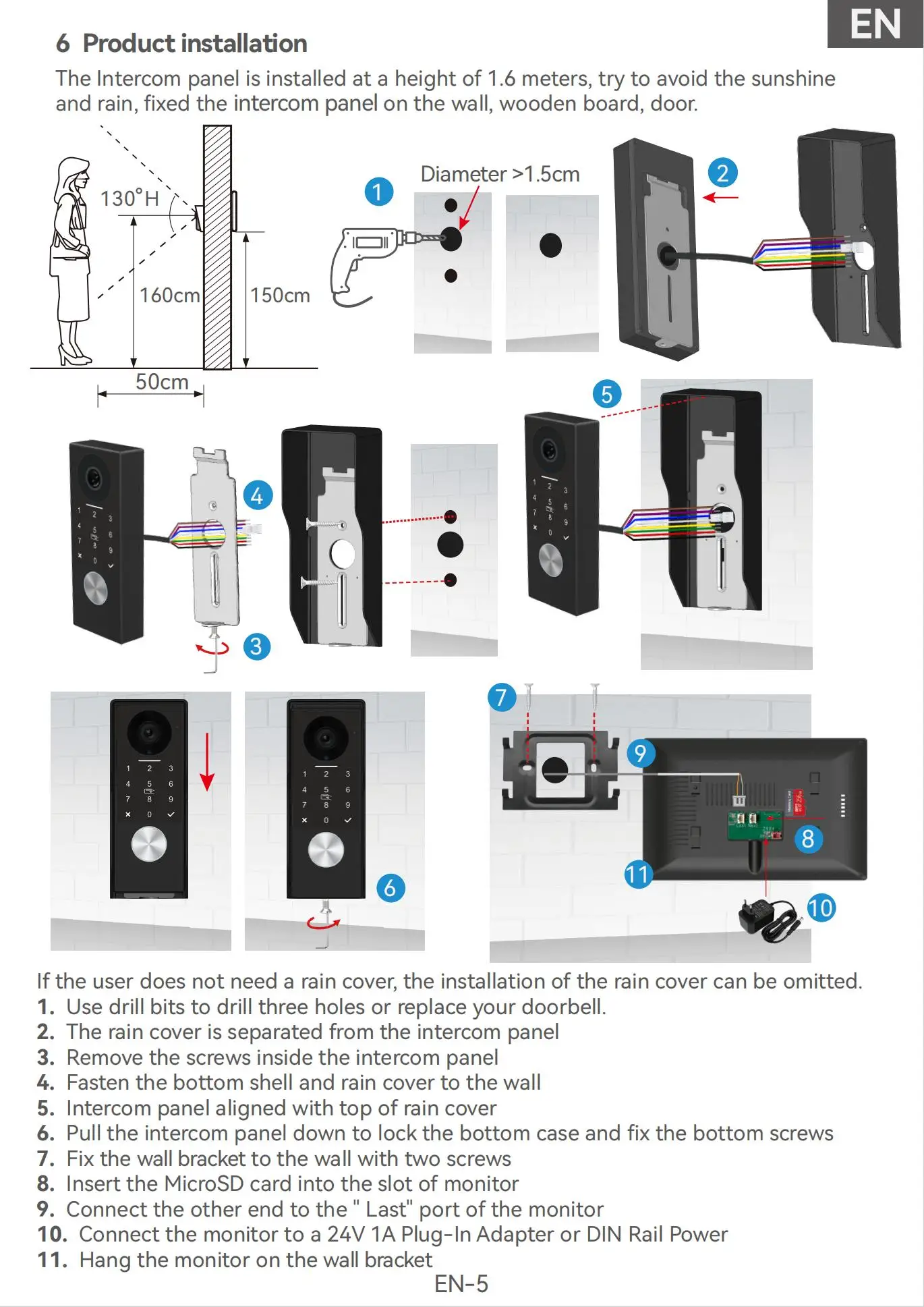

– Dimensions: 147(h) x 55 (w) x 22(d) or 36(d) with weather-proof shield

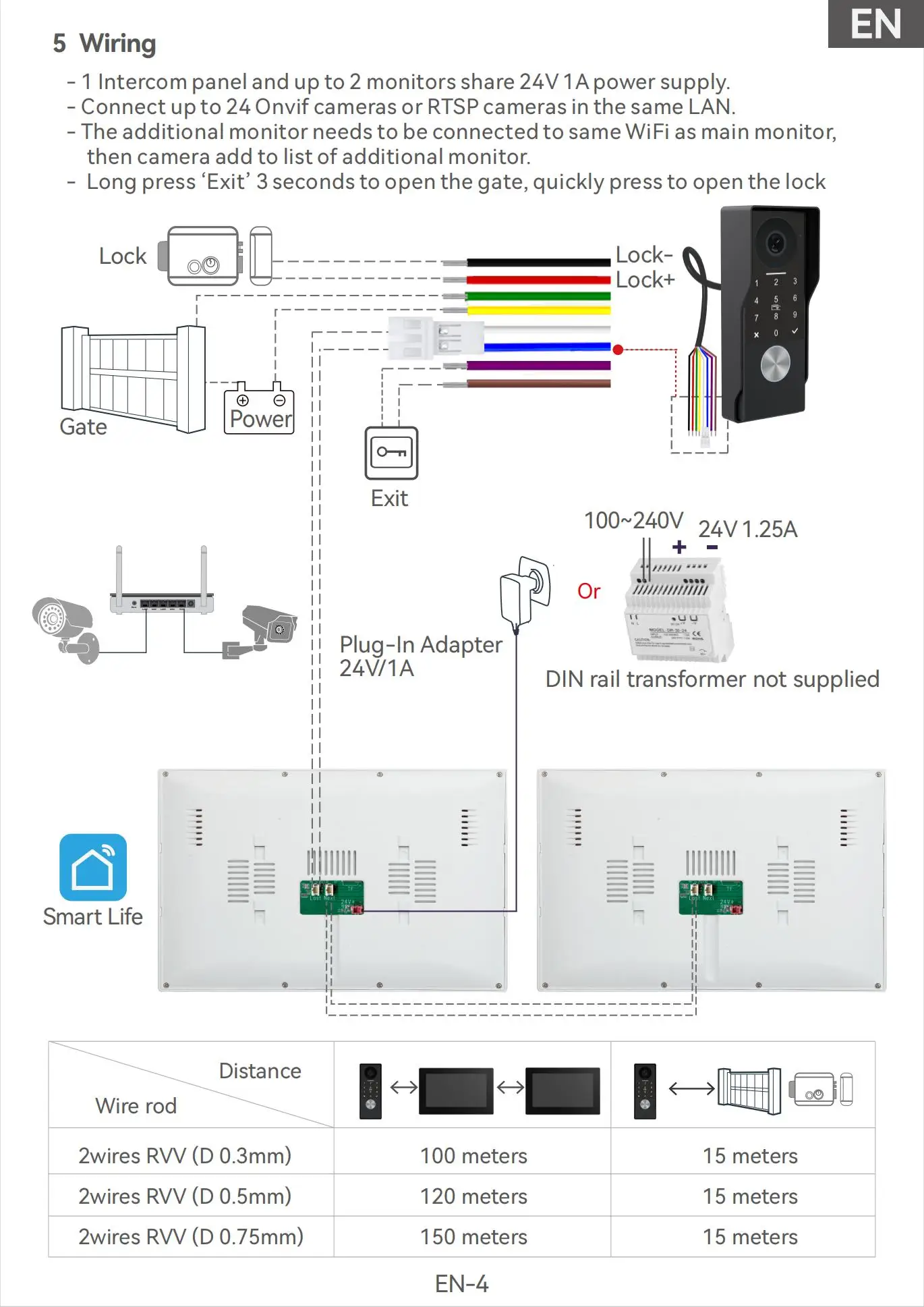

Connect

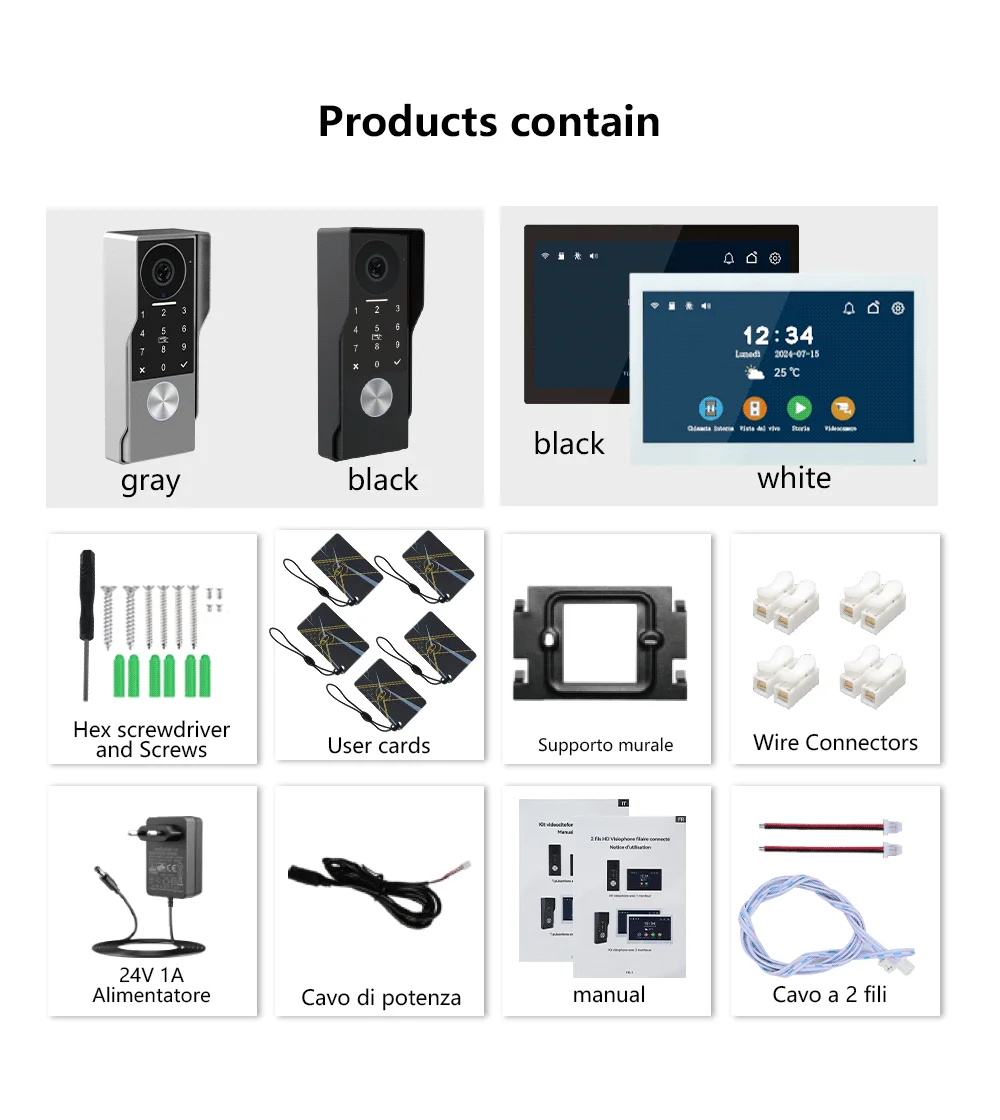

– 1 Intercom panel and 2 monitors share one power supply
– 2 wires no polarity to conect intercom panel and monitors
– Connect up to 24 Onvif cameras in the same LAN(Supports integration with up to 24 IP cameras, creating a comprehensive surveillance network viewable directly through the intercom monitors or the TUYA app.)

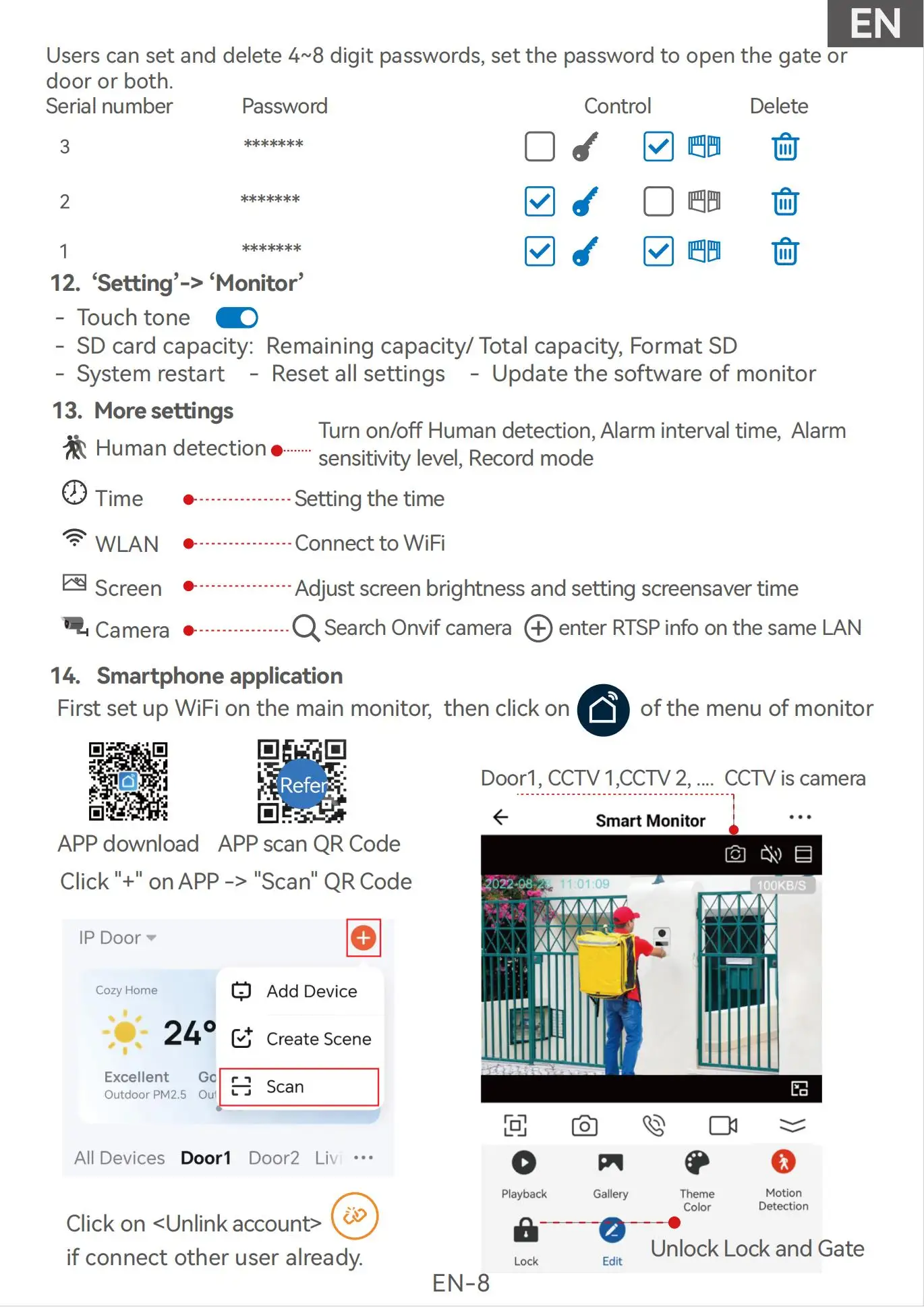

APP
– Main monitor connects to “Tuya Smart” or “Smart Life” App
– 20 App users connect to the APP, users can talk to visitors anytime and anywhere,
take photo or video, monitor, unlock lock and gate, cloud storage
– Video recording or take photo when human detection or call
– Search “Tuya Smart” or “Smart Life” from APP store or Google Play
– Scan the QR code on the menu of monitor to download
Multi-Method Access Convenience: Offers flexible unlocking options
– IC Card Access: Grant secure entry using authorized contactless IC cards.
– PIN Code Entry: Utilize secure keypad codes for easy access without keys or cards.
Ideal For: Gated communities, apartment buildings with separate vehicle/pedestrian access, large homes with driveways, and commercial properties requiring robust access control and surveillance.
