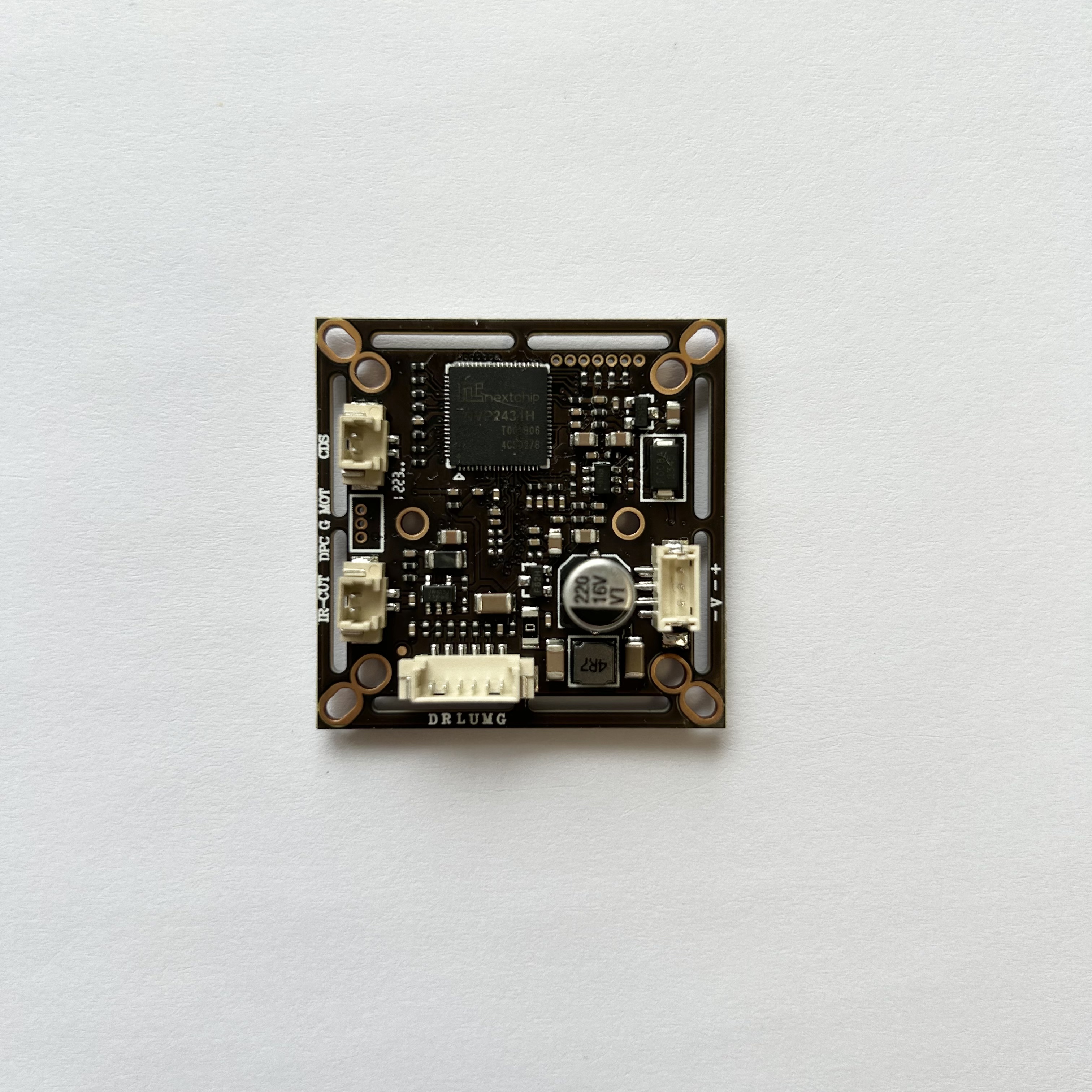

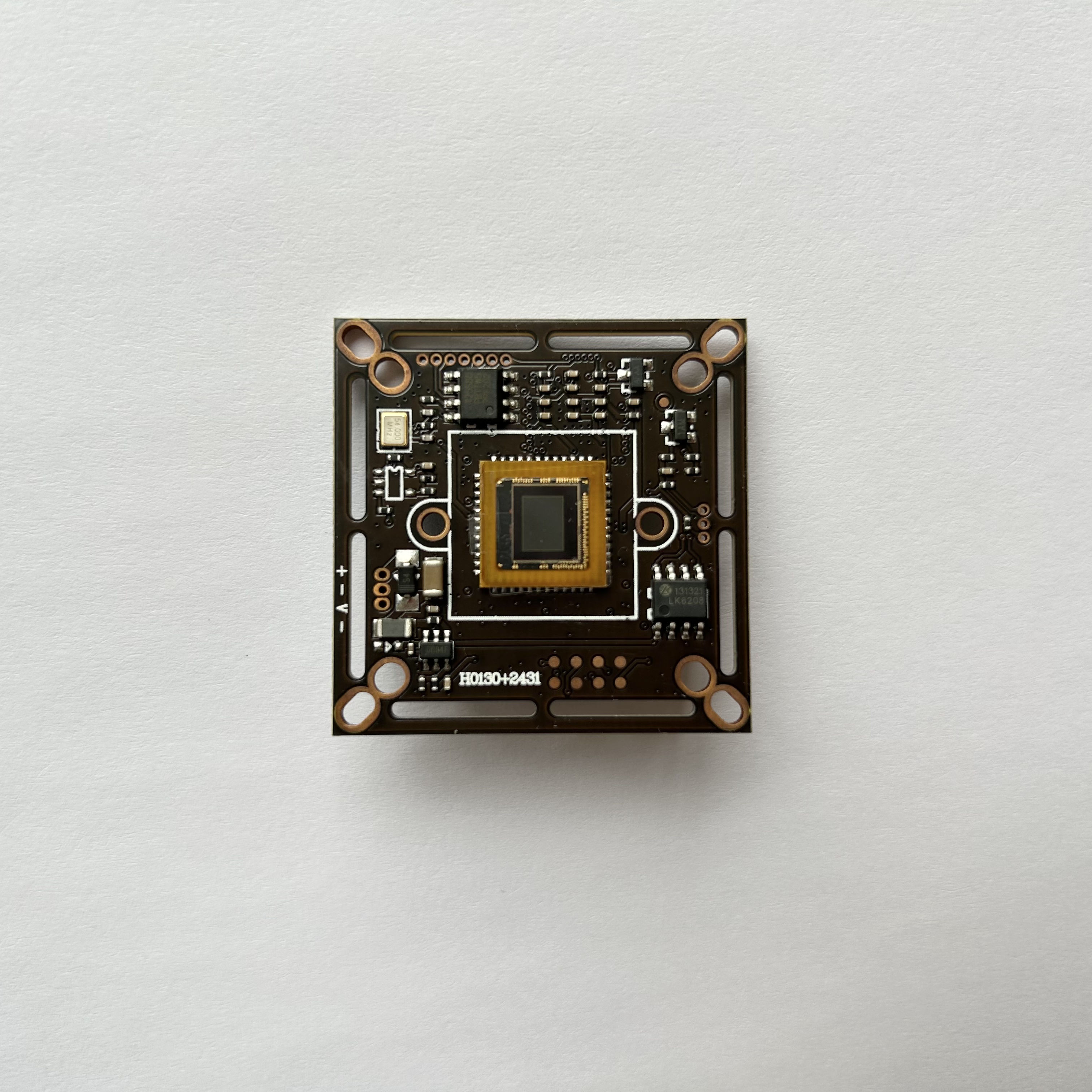

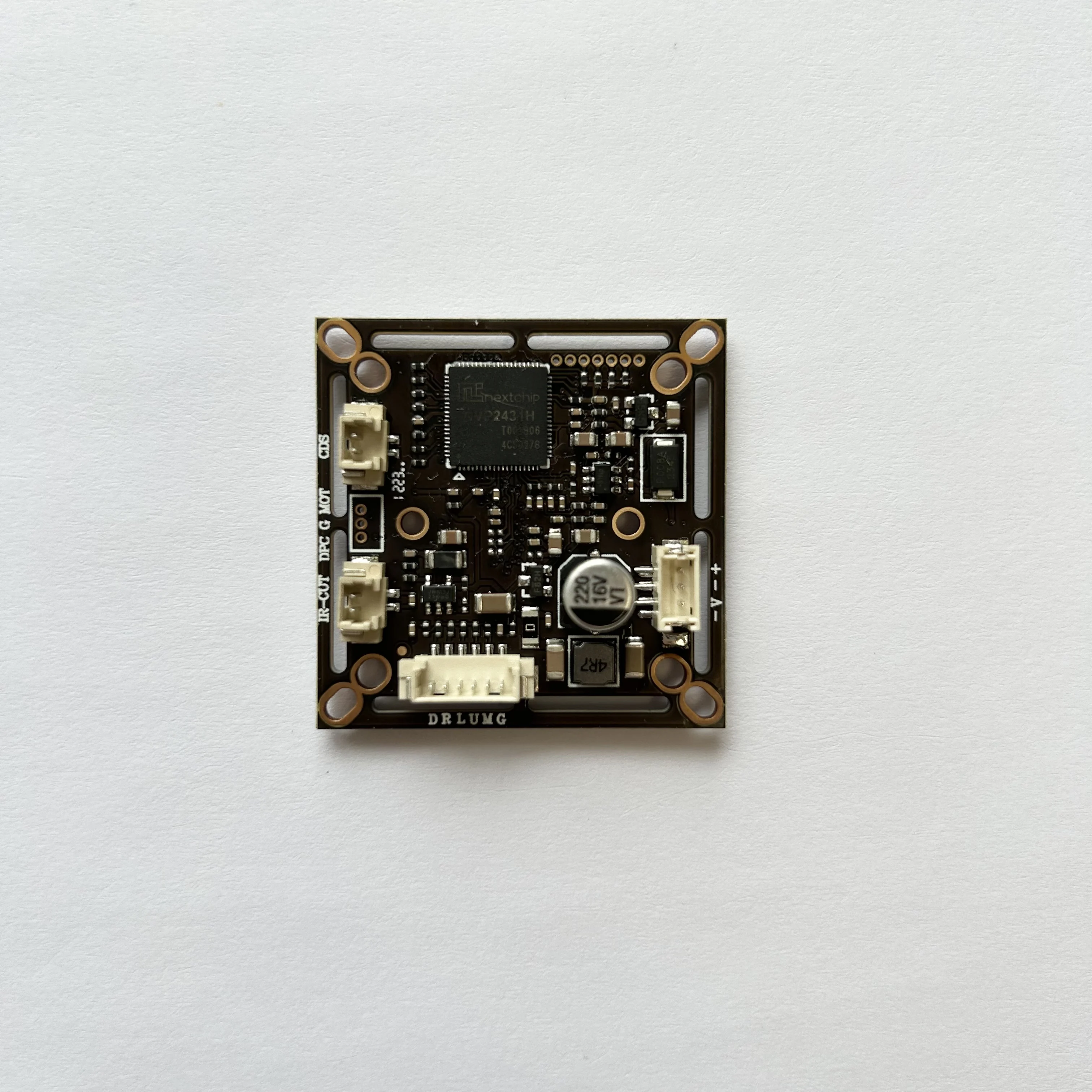

38x32mm AR0130+NVP2431H 960P 1.3MP AHD CCTV Camera Module
Notice:
1. AHD analog HD solution is different from traditional analog solution. AHD supported DVR/NVR or CCTV tester is required to obtain camera video.
2. 2.1($4.5)/2.8($3.5)/3.6/6/8/12mm fixed board lens is optional and sold separately. If lens is needed, please place order and leave message for us to revise the total cost, or contact us directly to get quotation for camera module assembly including lens/lens holder/screws.
3. If you need to change M12 IR CUT module to CS ones, please leave message in order remarks.
4. UTC control feature is optional with USD0.5/PCS, based on minimum order quantity 5PCS.
5. For changing to CVBS output, please operate by OSD cable. Push the button right and hold on to switch from AHD to CVBS.
6. The former 960P 225+2431 N3125 camera module was end-of-life and the stock was already cleared. We will send the 960P 0130+2431 model instead without confirmation again.
Specifications:
|
Image Sensor |
1/3″ AR0130 CMOS, Nextchip NVP2431H DSP |
|
Horizontal Resolution |
960P (1280*960) |
|
Signal System |
PAL/NSTC |
|
Effective Pixels |
1280H*960V |
|
Day/Night Mode |
Color to Black/White |
|
Min. Illumination |
Starlight 0.0001Lux/F 1.2 |
|
Video Output |
1.0Vp-p 75Ω |
|
Sync System |
lnternal |
|
Shutter Speed |
1/50(1/60) ~1/100,000 Sec. |
|
Gain Control |
AUTO |
|
Backlight Compensation |
AUTO |
|
Digital Noise Reduction |
2/3DNR |
|
Digital Wide Dynamic |
0-60 |
|
SNR Ratio |
≥48dB (AGC OFF) |
|
Power Supply |
DC12V ±5% |
|
Operating Current |
80mA ±5% |
|
Net Weight |
20g |
|
Size |
38x38mm & 32x32mm |
|
AHD 960P Camera module (Support OSD menu) |
Package Content: Please refer to below order tips
1* Camera Module (From April 2024, the former 960P 225+2431 N3125 camera module was end-of-life and the stock was already cleared. We will send the 960P 0130+2431 model instead.)
1* Jumper Wire
Order Tips:
Bundle 1 (Camera Module): Camera module only (including a jumper wire).

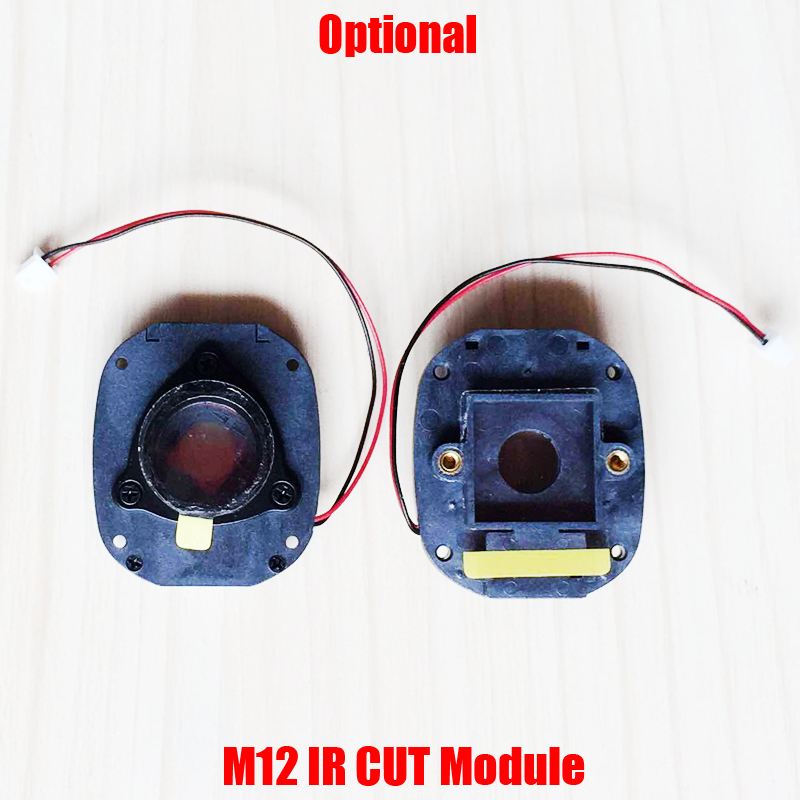

Bundle 2 (M12 IR CUT): Camera module + M12 IR CUT

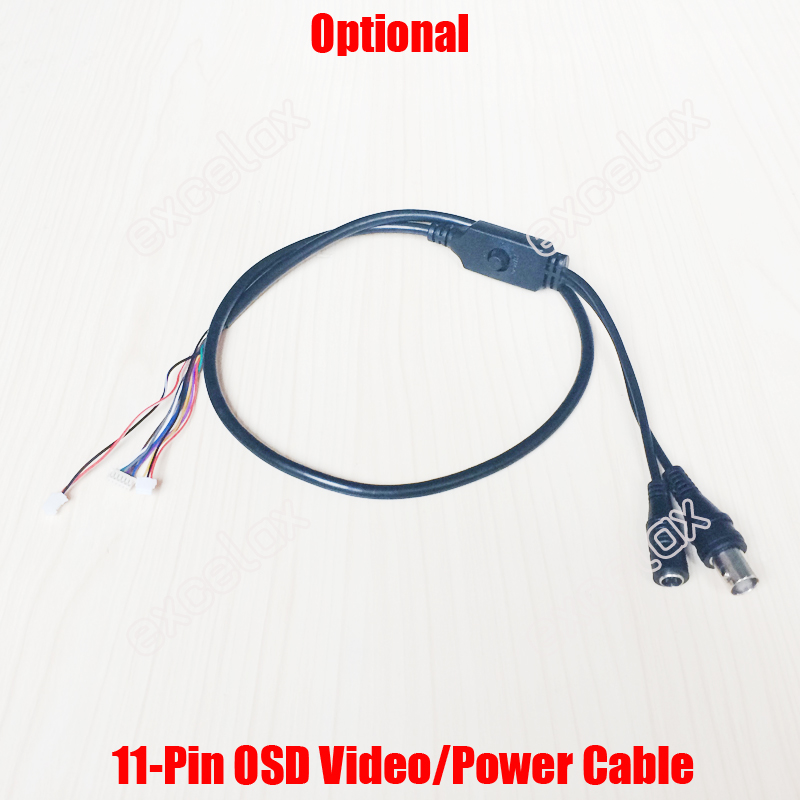

Bundle 3 (11pin OSD Cable): Camera module + 11-pin OSD cable
Bundle 4 (3.6mm M12 Lens): Camera Module + 3MP 3.6mm M12 lens (2.8mm/6mm/8mm optional)
Bundle 5 (ICR and Cable): Camera module + M12 IR CUT + 11-pin OSD cable
Bundle 6 (ICR Cable Lens): Camera module + M12 IR CUT + 11-pin OSD cable + 3MP 3.6mm M12 lens (2.8mm/6mm/8mm optional)
