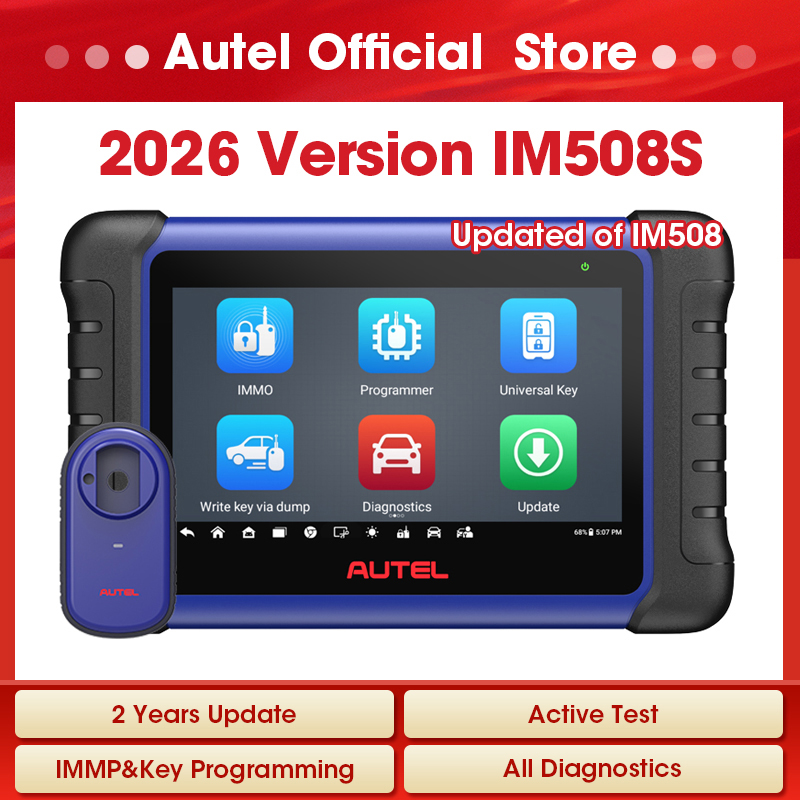

Autel MaxiIM IM508S
Professional All-in-One Key Programming Tool

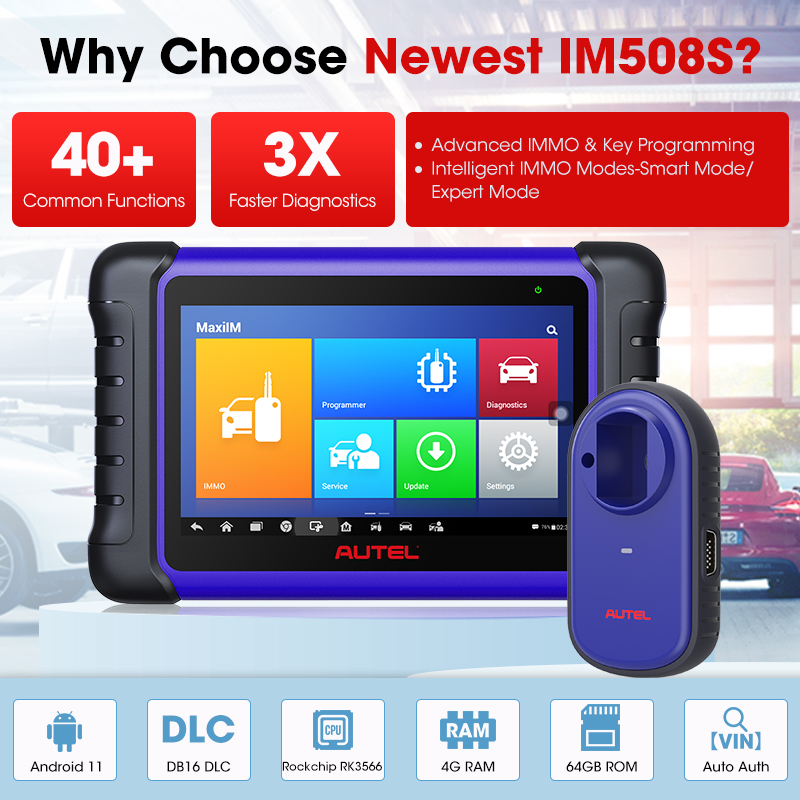

■ The differences of IM508S and IM508
IM508S Hardware:
Processor: Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
RAM: 4G
ROM: 64GB
Android Version: Android 11
DB16 DLC: Support
IM508 Hardware:
Processor: Rockchip RK3188 Quad core, 4x 1.6GHz(A9)
RAM: 1G
ROM: 64GB
Android Version: Android 4.4.4
DB16 DLC: Not Support
Shipping to North America : One year free update, you can get extra G-box-2 + watch free gift.
Shipping to other countries: 2 years free update + watch gift.
■ Important Selling Points
[2023 Professional Key Fob Programming Tool]: Autel MaxiIM IM508S is a fast and convenient key programmer, also known as an alternative to IM608, IM608Pro. Pairing with the XP200 device, IM508S automotive scanner maximizes its powerful capacity in IMMO functions, key programming, all-system diagnostics, and 40+ service. Providing all-around protection for immobilizers and one-stop solutions for technicians and DIYers.
[Autel IM508S Advanced IMMO & Key Programming]: Featuring a simple process and easy-to-use design, Autel IM508S key fob programmer combines programming for key & chips (MCU/EEPROM) and IMMO related functions including IMMO ECU Reset/Adaptation, IMMO ECU Refresh/Coding, PIN/CS Reading, Key Generation, Key Learning, Remote Learning, etc., which stops you worrying too much about accidental key loss and illegal car start.
[Intelligent IMMO Modes]: Autel IM508S 2 pioneering modes for facilitating different users make the IM508S key programmer immobilizer easy to use. ✔1) Smart Mode for guided and automated key learning (for DIYers & beginners); ✔2) Expert Mode for advanced key learning (for skilled technicians). Based on Cortex-A9 Processor & Android 11.0 OS and 64GB Memory, the Autel car key programmer improves 2x faster process in multi-tasks.
[40+ Common Functions]: Perfect combination of key programming and vehicle diagnostics, the key fob programmer also holds 40+ repair functions covering reset/ matching/ adaption/ of vehicle ECUs. Oil/EPB/TPMS/DPF/SAS/BMS Reset, ABS Bleeding, Injector Coding, TEC Learning, Trans Adaption included. All-in-1 key programmer immobilizer even saves much time and brings more business.
[All System Diagnostics for Worldwide Vehicles]: Autel IM508S can perform OE-level diagnostics for all available systems of 80+ models (1996-2022) from American, Asian, and European regions. It quickly reads vehicle information and troubleshoots all the DTCs efficiently. No-IP limitation and multi-language settings allow you to take this diagnostic scanner for a business trip.
■ Detailed Information of IM508S
1.Key programming scan tool has advanced IMMO functions
Read PINCS(all key l-ost), Key generation, Auto detect make/mode/year/system, Key learning
Remote learning, I-M-M-O ECU
Reset/adaptation, I-MM-O ECU Refresh/coding, Backup/restore I-MM-O data
Benz 3rd generation I-MMO Add key,all key lo-st,key learning, Benz FEM/BDC Key Learning and ECU adaptation
BMW CAS4/3/2 Key learning, VW/Audi MQB(VDD&JCI) Add key, IM-MO V A4/A5/Q5 2015+Key learning
For V-W/A-udi /Sko-da/S-eat IMMO IIIV/NV Add key, all key lo-st Programming, Key read / write
EEPROM Read/ Write, MCU Read/ Write, Smart mode, Expert mode etc.
2.ADVANCED CAR KEY CHIP PROGRAMMING
Autel MaxiIM IM508S professional car key programming scanner comes with most useful key programming capabilities including Key Chip Read & Write, EEPROM Read & Write, Transponder Read & Write and basic MCU Read & Write.
3.COMPREHENSIVE IMMO & KEY CHIP PROGRAMMING
IM508S Diagnostic Scan Tool can perform:
Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write. Being compatible with XP400 Key Programmer, you may choose to upgrade its programming capabilities further with XP400.
4.Upgraded Bi-Directional Control (Active Test)
What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool IM508 can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.
Note: Functions NOT universal, please send VIN(17 digits),car makes, model, year to check compatibility before purchase.
5.FCA “Auto Auth” Access
Supports FCA “Auto Auth” gateway for 2018 and newer FCA cars(Chrysler/Dodge/Jeep,etc) for US/Canada & Mexico.
NOTE: All these new functions are released on Autel system V2.62 and above, which are available to download for all IM508 since 1st, June, 2022.
NOTE: For a few Renault and FCA cars, when doing IMMO key programming, “autoauth” is not enough, sill need 12+8 adapter.
6.CLOULD REPORT MANAGEMENT
This is a long-awaited feature for old customers!! With it, you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/email/text message easily, and they can view the reports anytime. Like other cloud space, it is a back garden for your diagnostic reports to help you enhance data centralization, share simply and quickly, reduce memory burden and improve work efficiency.
7.CONNECTING TO XP400 TO FURTHER EXTEND PROGRAMMING CAPABILITIES
When it’s connected to Autel XP400, IM508 Key Programming Scan Tool can further extend its programming capability to the top level Autel has yet to offer to cover IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared Key Read & Write, Remote Frequency Detect and it will support PC connection.
8.MOST USEFUL SERVICE FUNCTIONS
As a professional diagnostic scanner, IM508 comes with most useful service functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active tests to test the integrity or functionality of individual system or component.
9.OE-LEVEL ALL MODULES DIAGNOSIS
Autel MaxiIM IM508S automotive scan tool can quickly diagnose all modules of more than 80 US, Asian and European makes and models on the market. With complete capabilities for codes, live data, ECU Info, adaptation, matching, coding and etc, IM508 is the perfect automotive diagnostic tool pick for technicians and mechanics.
10.40+ MOST USEFUL SERVICE FUNCTIONS
As a comprehensive diagnostic scan tool, Autel IM508S comes with various useful service functions to help workshops mechanics solve 85% vehicle maintenance tasks easily:
Oil Reset: Turn off the oil light, and reset the service mileage.
EPB : For the maintenance of electronic braking system’s safety and efficiency.
SAS : Reset the position of the steering for safe driving.
BMS: Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.
ABS Bleed: Cycling the ABS system to bleed the air out of the ABS system before traditional bleeding.
Injector Coding: Coding the new injector after replacement.
IMMO Keys: Add new keys, key learning.
Throttle Adaptation: Adjusts the throttle position for controlling the volume of intake air.
Still growing……
Note: The above mentioned is just a small portion of all supported services and more are not listed. Please also know that Not All service & Special functions are universally compatible. Please send VIN number and the functions you need to us to check compatibility.
11.Smart Mode & Expert Mode
IM508S comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.
Smart Mode: Guided and automated key learning for home mechanics.
Expert Mode: Advanced key learning for professionals
NOTE: The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II
12.Auto Scan Technology
The Autel IM508S professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems
faults and retrieve DTCs for efficient diagnosis.
13.Live Data & Review Freeze Frame Data
The IM508S car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the
recorded data frames of live data streams.
14.Autel IM508S EEPROM Read/Write Supported Types
For AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024,AT24C128_1.8
AT24C256_1.8,AT24C512_1.8,AT24C01A,AT25010,AT25020,AT25040,AT25080,AT25160,AT25320,AT25640,AT25128,AT25256
AT25512,AT25010_1.8,AT25020_1.8,AT25080_1.8,AT25320_1.8,AT25640_1.8,AT25128_1.8,AT25256_1.8,AT59C11,AT59C22
AT93C46A,AT59C13,AT93C46,AT93C46R,AT93C56,AT93C57,AT93C66,AT93C76,AT93C86
For CATALYST
CAT25C01,CAT25C02,CAT25C04,CAT25C08,CAT25C16,CAT25C32,CAT25C64,CAT25C128,CAT25C256
For FAIRCHILD
NM24C16U,NM24C16UT,NM24C17U,NM24C17UT,FM93CS46T
For MICROCHIP
85C72,85C82,85C92,25xx080,25xx160,25xx320,25xx640,25xx040_TSSOP,25xx320_TSSOP,25xx640_TSSOP,93C06,25xx040
93C46X,93C46A,93C46,93C46AX,93C46BX_93C46CX,93C56A,93C56,93C66A,93C66,93C76A,93C76,93C86A,93C86
For NXP
PCF8582C,PCF8594C,PCF8598C
For NATIONAL
NM93C13,NM93C14,NM93CS06,NM93C14TM8,NM93CS46,NM93CS56,NM93CS66
For OKI
MSM16911
For SONY
CXK1011,CXK1012,CXK1013
For Seiko
S_24S45,S_24H30,S_24H30_SOP8,S_24H45,S_24H45_SOP8,S_24S30
For ST
M24C01,M24C02,M24C04,M24C08,M24C16,M24C32,M24C64,ST24x01/ST25x01,ST24x02/ST25x02,ST24x04/ST25x04
ST24x08/ST25x08,ST24x16,ST25x16,AT25040_1.8,AT25160_1.8,M95010,M95020,M95160,M95040,M95080,M35080,M95320
M95640,M95256,M95128,M95512,M93C46,M93C56,M93C66,M93C76,M93C86,M93S46,M93S56,M93S66
TOSHIBA
TC89101,TC89102,TC89121,TC89122
For TMC
TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86
For XICOR
X5043,X5045,X25043,X25045,X24C44
For 9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128
15.IM508S Don't support the local vehicle
Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil
Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun
If you need to add the following car software,please contact with us.
16.Supports Muti-Language
English / Portuguese / Germany / Japanese / French / Spanish / Italian/ Dutch/ Polish/ Swedish/ Turkish/ Vietnamese/ Russian/ Korean/ Arabic/ Thai
17.Specifications
Power and Battery 5000mAh 3.7V lithium-polymer battery
Input Voltage 12V (9-24V)
Power Consumption 500mA
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
18.Autel MaxiIM IM508S Package List
1 X MaxiIM IM508S Tablet
1 X AAC001 – MED17 Cable
1 X KIA-20 Adaptor
1 X Mazda-17 Adaptor
1 X MaxiIM IM508 Tablet
1 X Carrying Case
1 X Quick guide
1 X Honda-3 Adaptor
1 X KIA-10 Adaptor
1 X XP200 Key Programmer
1 X USB External Power Adapter
1 X Main cable
1 X Mini USB Cable
