Note: The output signal of this camera is CVBS and the interface is BNC
Endoscope Camera
Features:
Features:
1.CVBS signal output, SONY CCD sensor, 700TVL

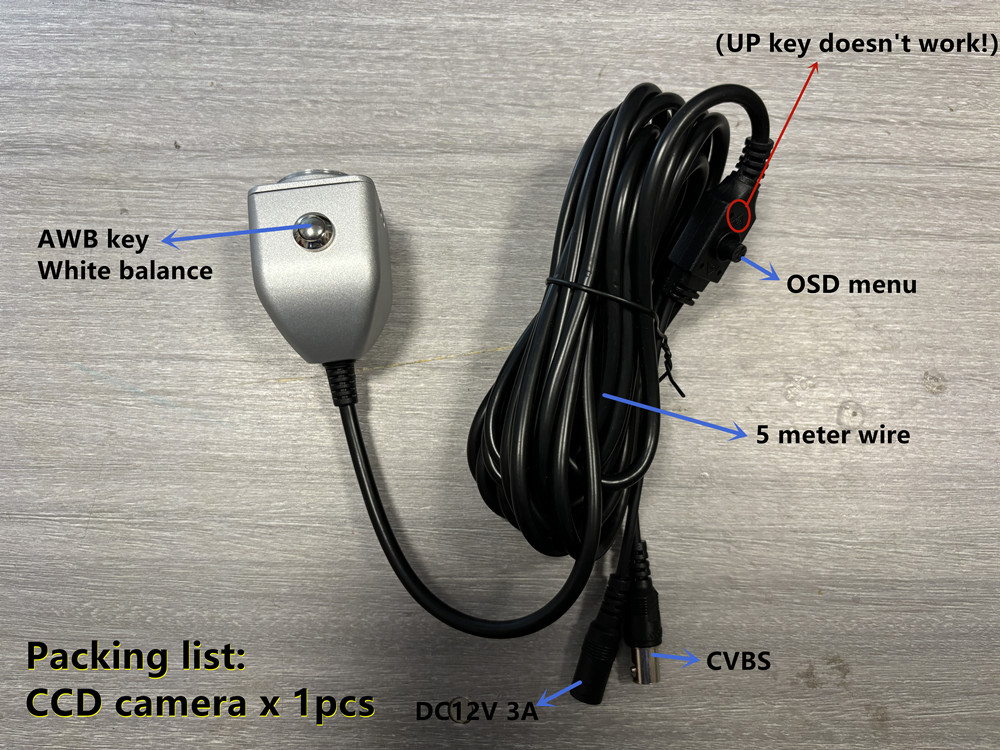

2. The OSD key is connected to the cable
Using:Animal Medical Examination & Diagnosis
Application:Dog, Cat, Pig, Cow, Sheet, Goat, Horse, etc
Attention! OSD key The UP key cannot be used!
PAL:960(H)x582(v)
signal system :PAL
resolving power(Horizontal center):700TVL
Digital noise reduction:2DDigital noise reduction(2DNR)support0~15of16Grade adjustable
OSDmenu:support
Minimum illumination:0.005LUX/F1.2
Signal to noise ratio:≥48dB
Video output amplitude:1.0Vp-p/75Ω White balance mode:open/Off selectable
Backlight Compensation :High brightness backlight compensation(HLC)/backlight compensation
Exposure mode:Electronic exposure
Electronic shutter:1/50(1/60) – 1/100000second
Gamma correction :0.45/1.0
Synchronization mode:Internal synchronization
working voltage :DC12V±5%
working temperature :-20℃–60℃
humidity:0%～96%
