BSIDE HX1 Thermal Imager NEW Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

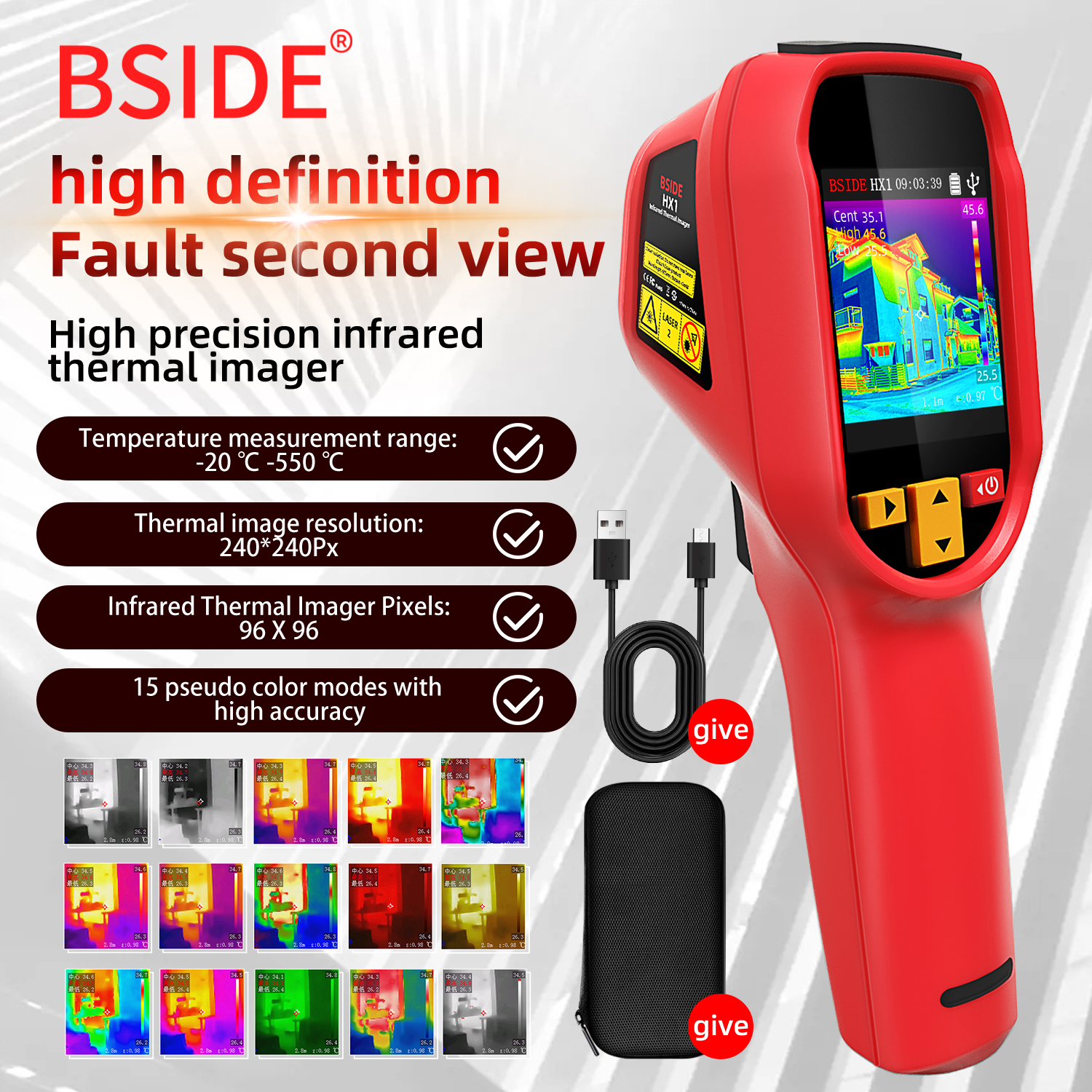

BSIDE HX1 is a new handheld thermal imaging camera that combines temperature measurement and imaging.
With IR resolution 9696，2.4-inch screen，15 pseudo color modes , High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.
The body adopts double injection molding process Durable.
Also comes with a high-quality EVA handbag.

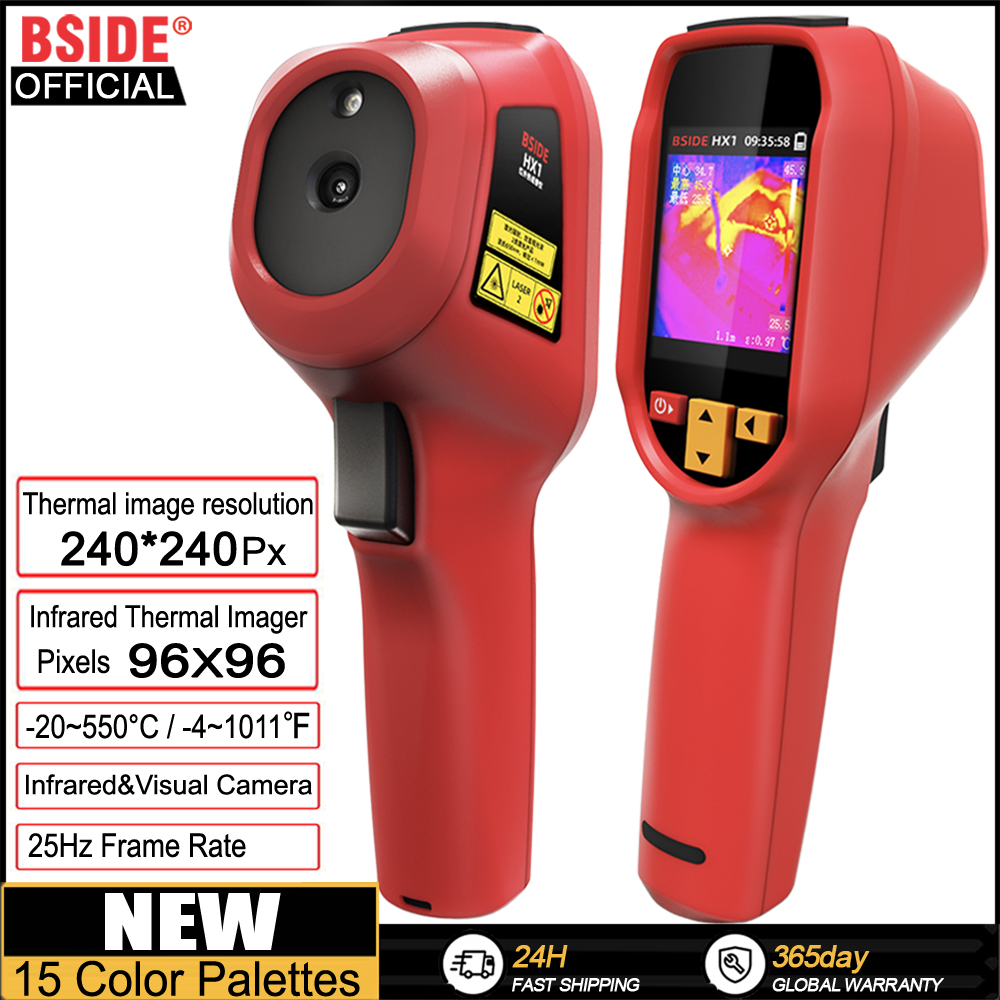

Main features of HX1
Thermal image resolution: 240 * 240Px.
Infrared Thermal Imager Pixels: 96 x 96.
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes
Temperature measurement range: -20 °C~550 °C

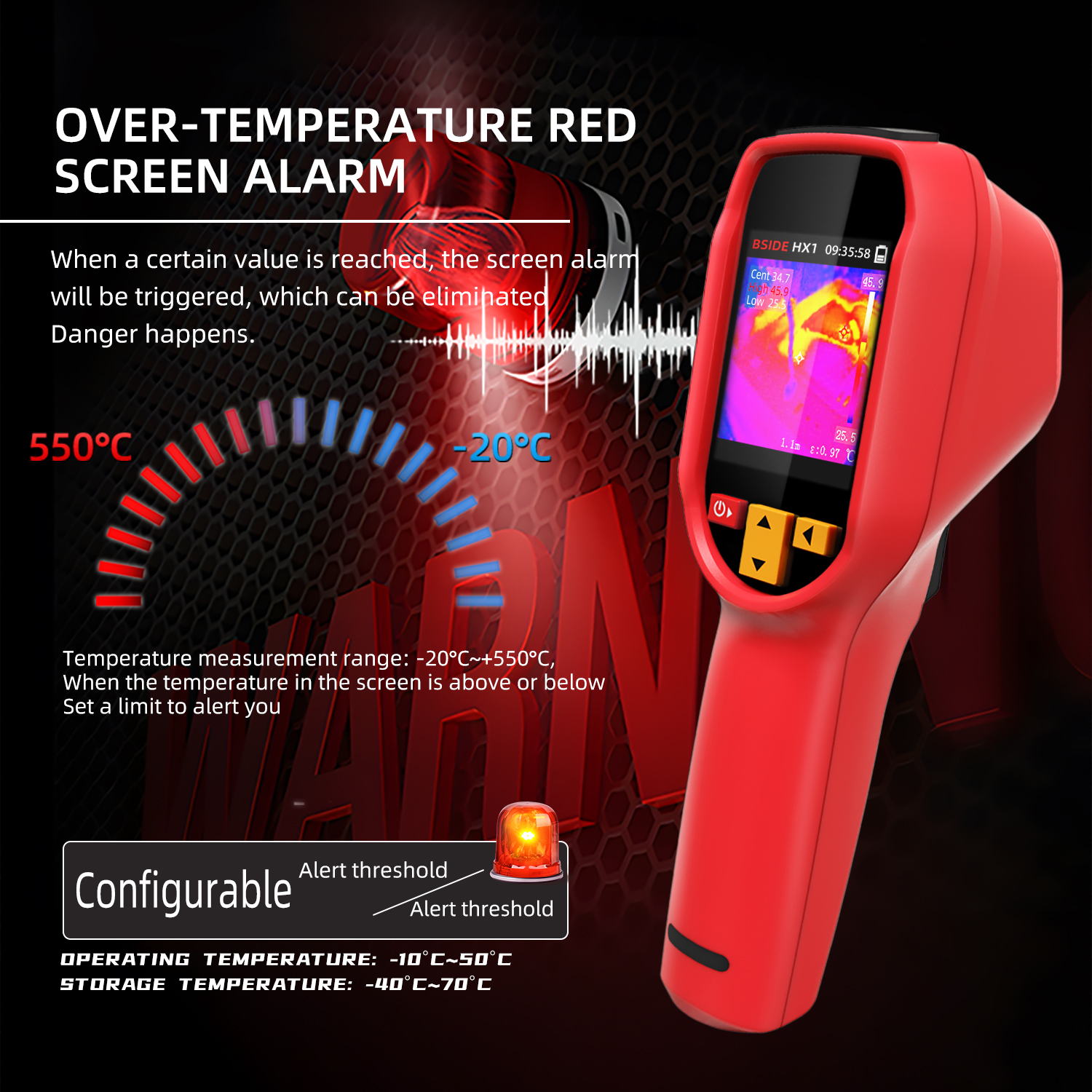

High and low temperature alarms: image, buzz, LED flashing

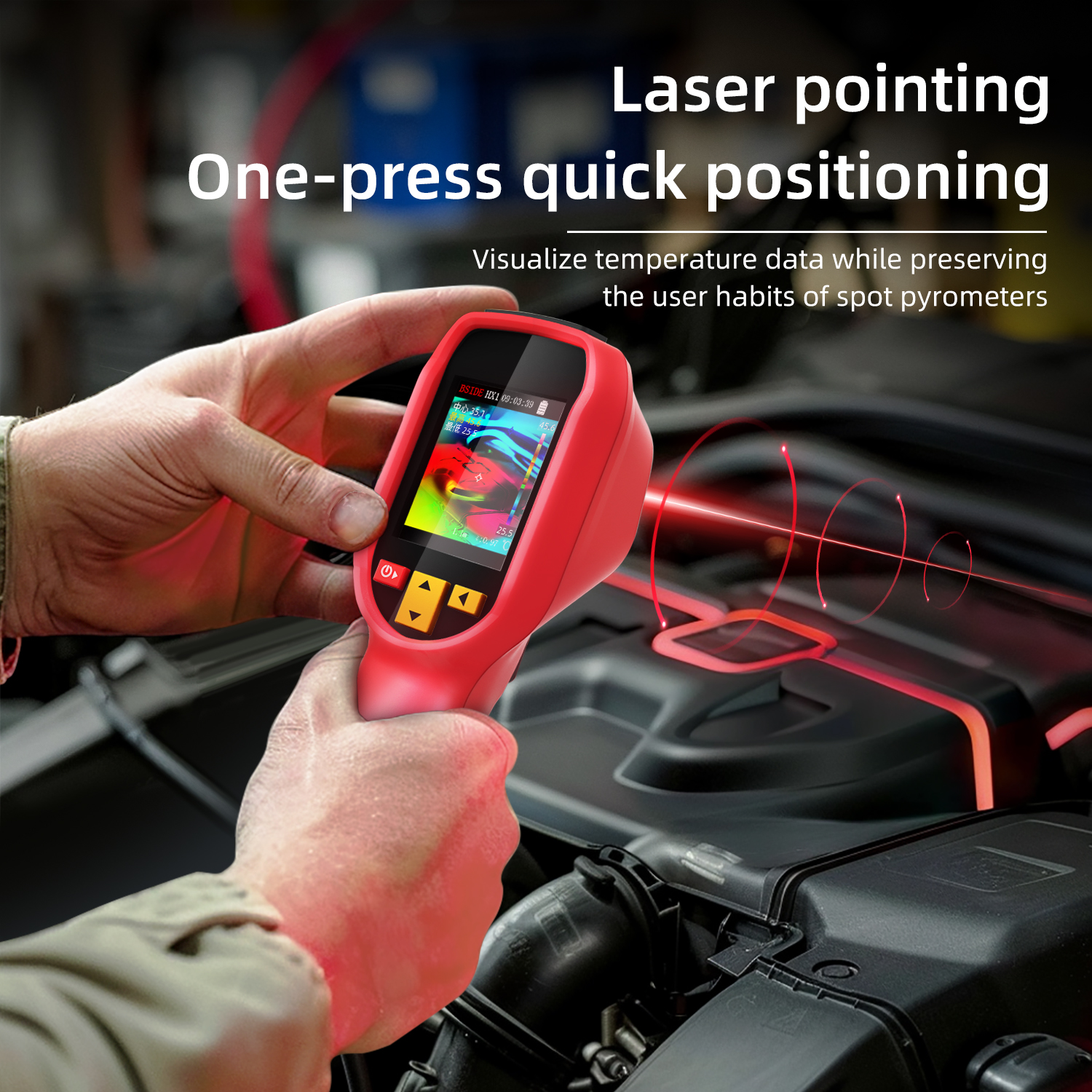

Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1

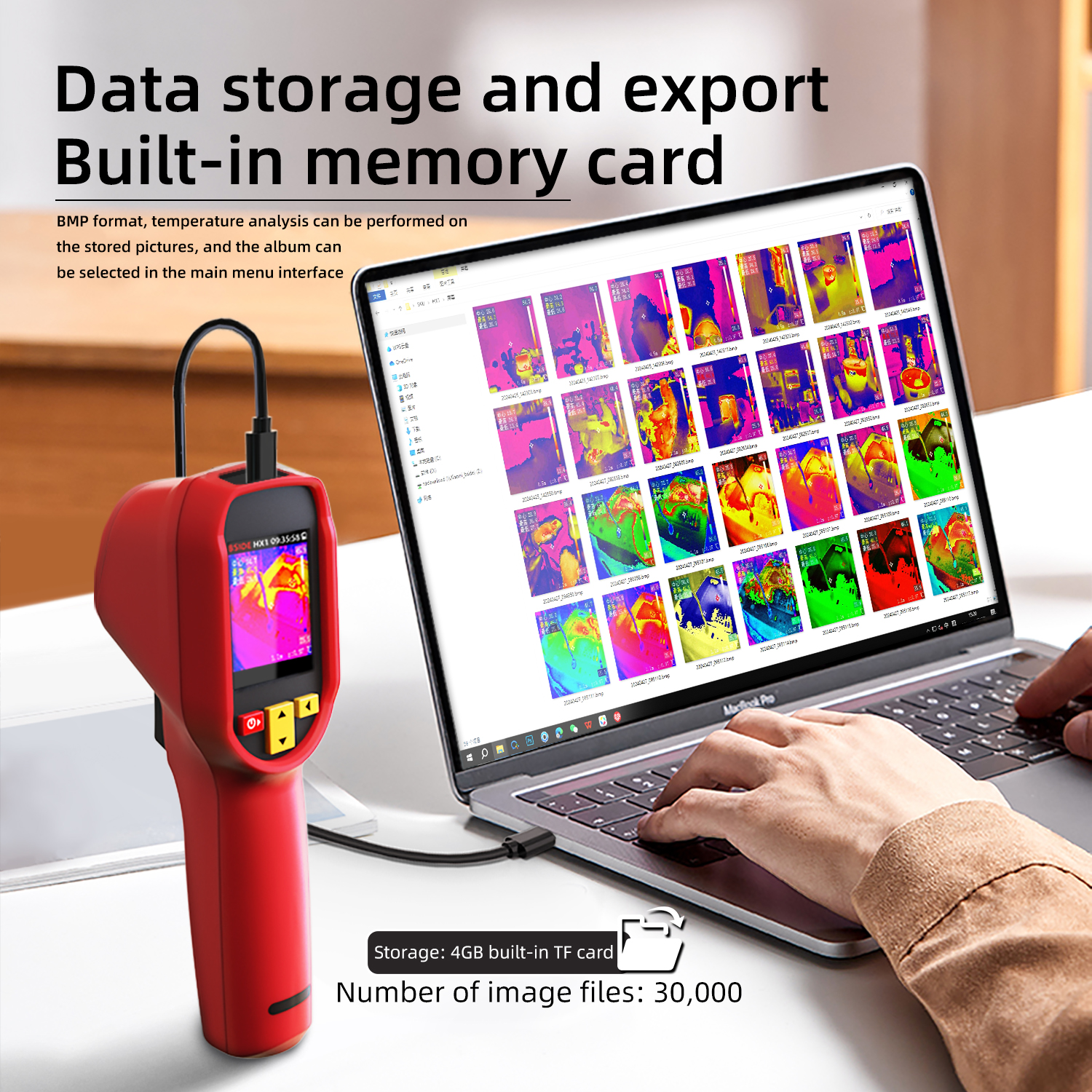

Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: IP54/1.5m anti-drop
The bottom design has screw holes for use with a tripod
Specification:
Screen size: 2.4 inches
Sensor type: Vanadium oxide (VOx)microcalorimeter
Response bands: 8~14pm
Thermal image resolution: 240×240 Pixels
Noise equivalent temperature difference：≤60 mK(@25 °C,F#1.0)
Field of View (FOV)：50.0°(H)x50°(V) /72.1°(D)
Spatial resolution: 8.89 mrad
Frame rate：2.5Hz
Focal length of the imaging lens: 1.3mm
Focal length oftemperature measurement：0.3m~3m Adjustable
Temperaturemeasurement range：-20°C~550°C
Size：193.4*59.4*77.4mm
Weight: 277
Packing List:
1 x HX1 thermal imaging camera
1 x USB cable
1 x Instructions
1 x BoX
1 x Lanyard
