1.Note:
Power Supply & Wiring
-

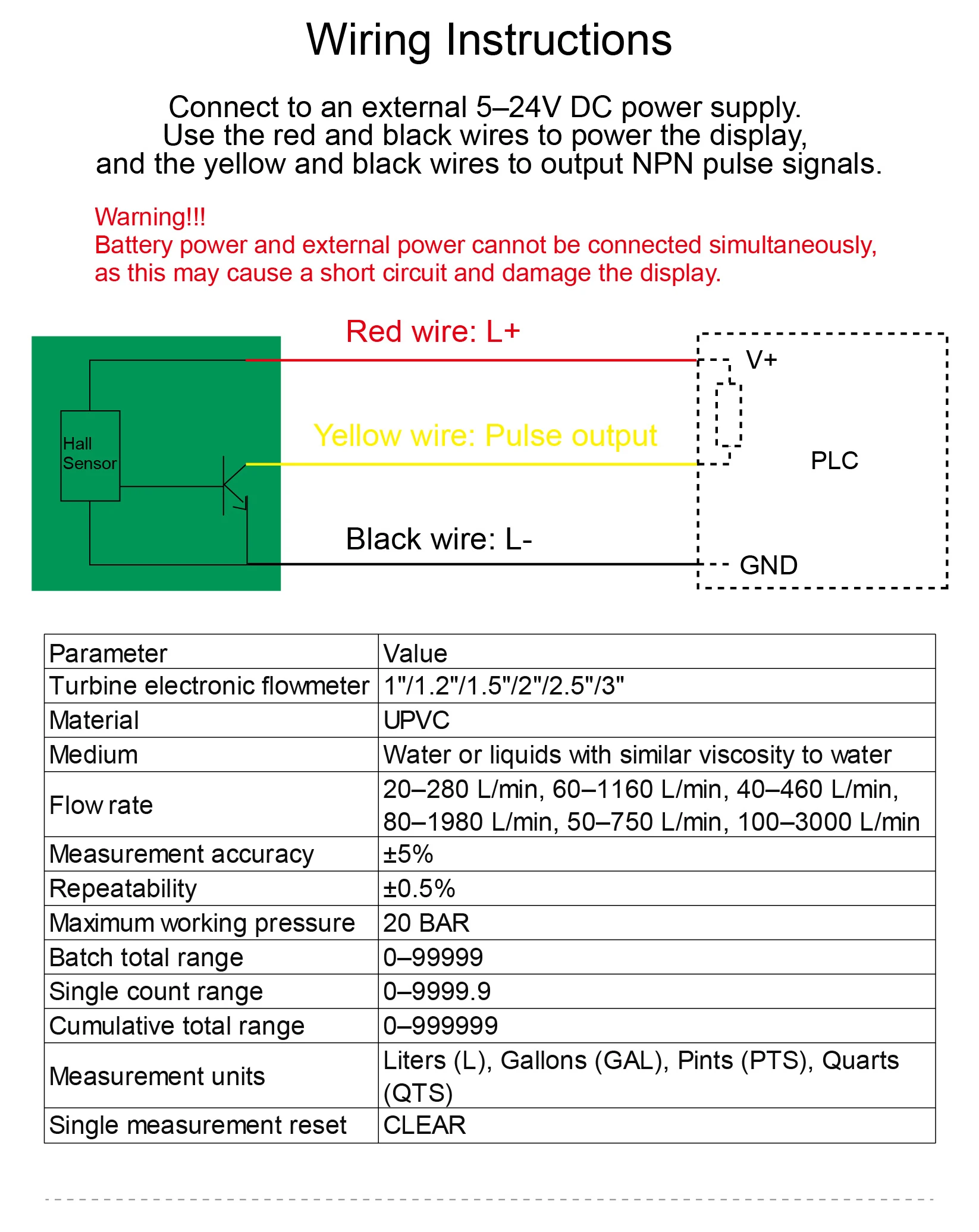

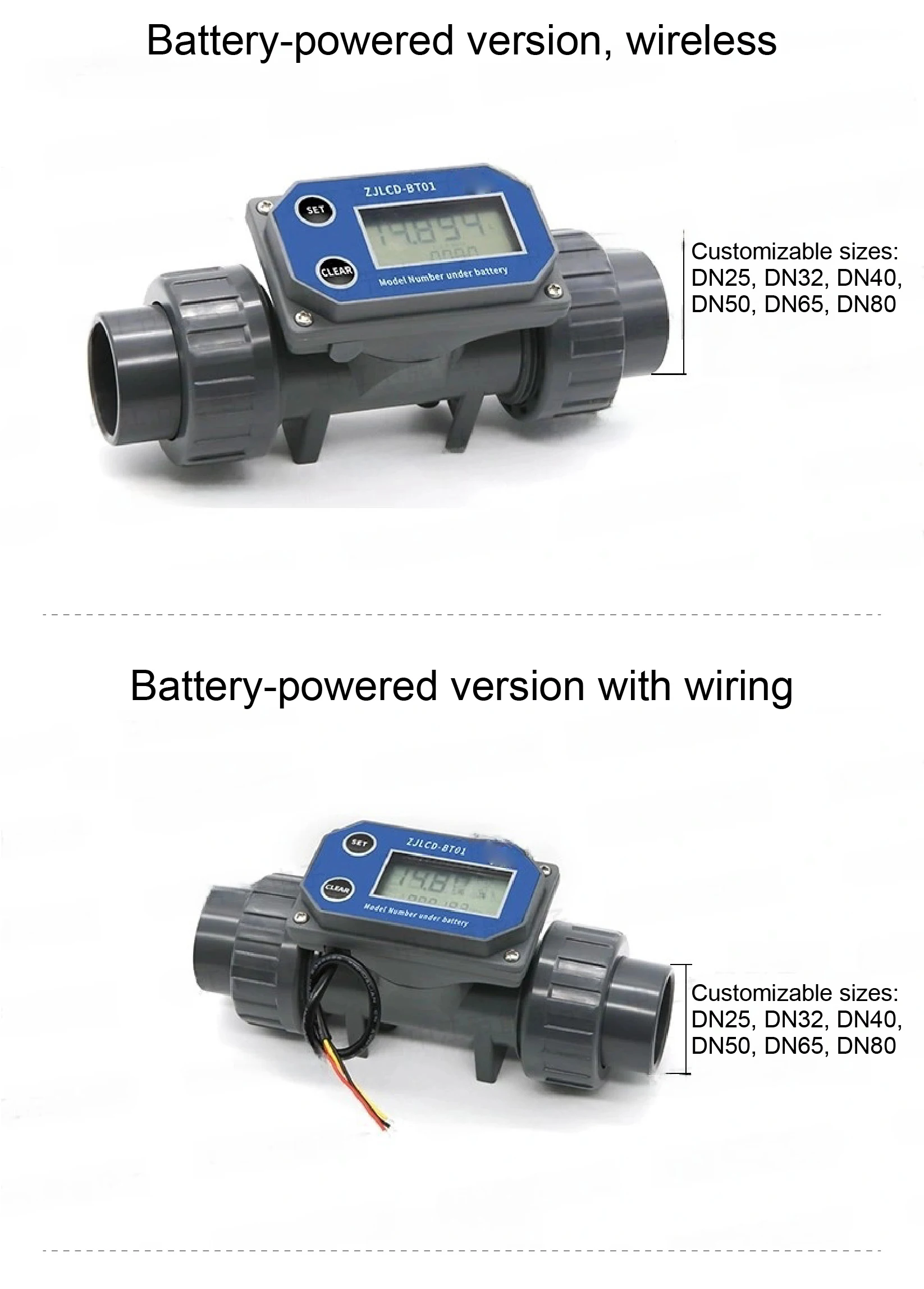

Battery-powered with wiring: Compatible with external power supplies ranging from 5V to 24V DC.
-
Battery-powered without wiring: Operates independently without the need for an external power source.
-
Warning: Do not connect both a battery and an external power source at the same time, as this may cause a short circuit and permanently damage the display.
Material & Specifications
-
Material: UPVC
-

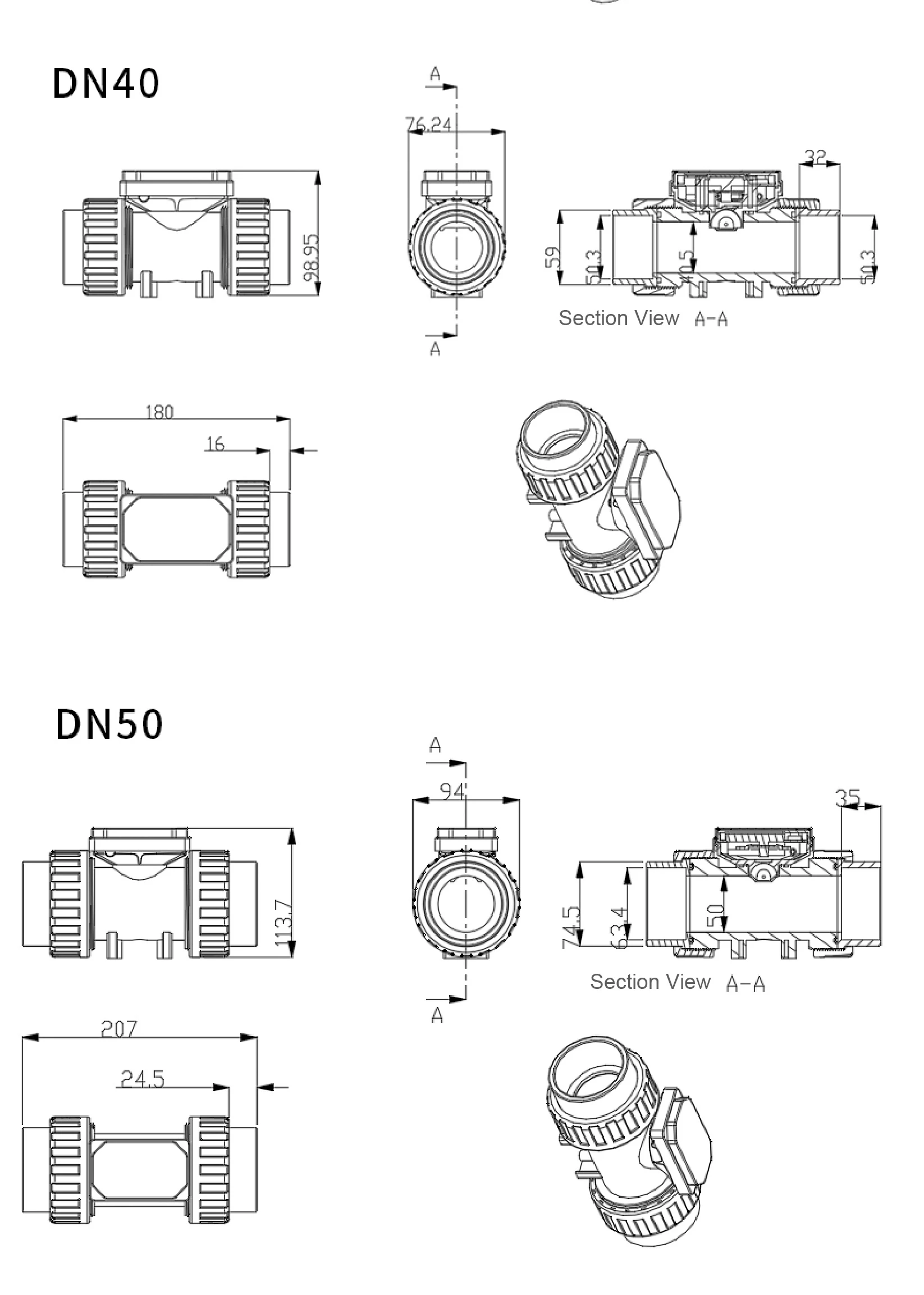

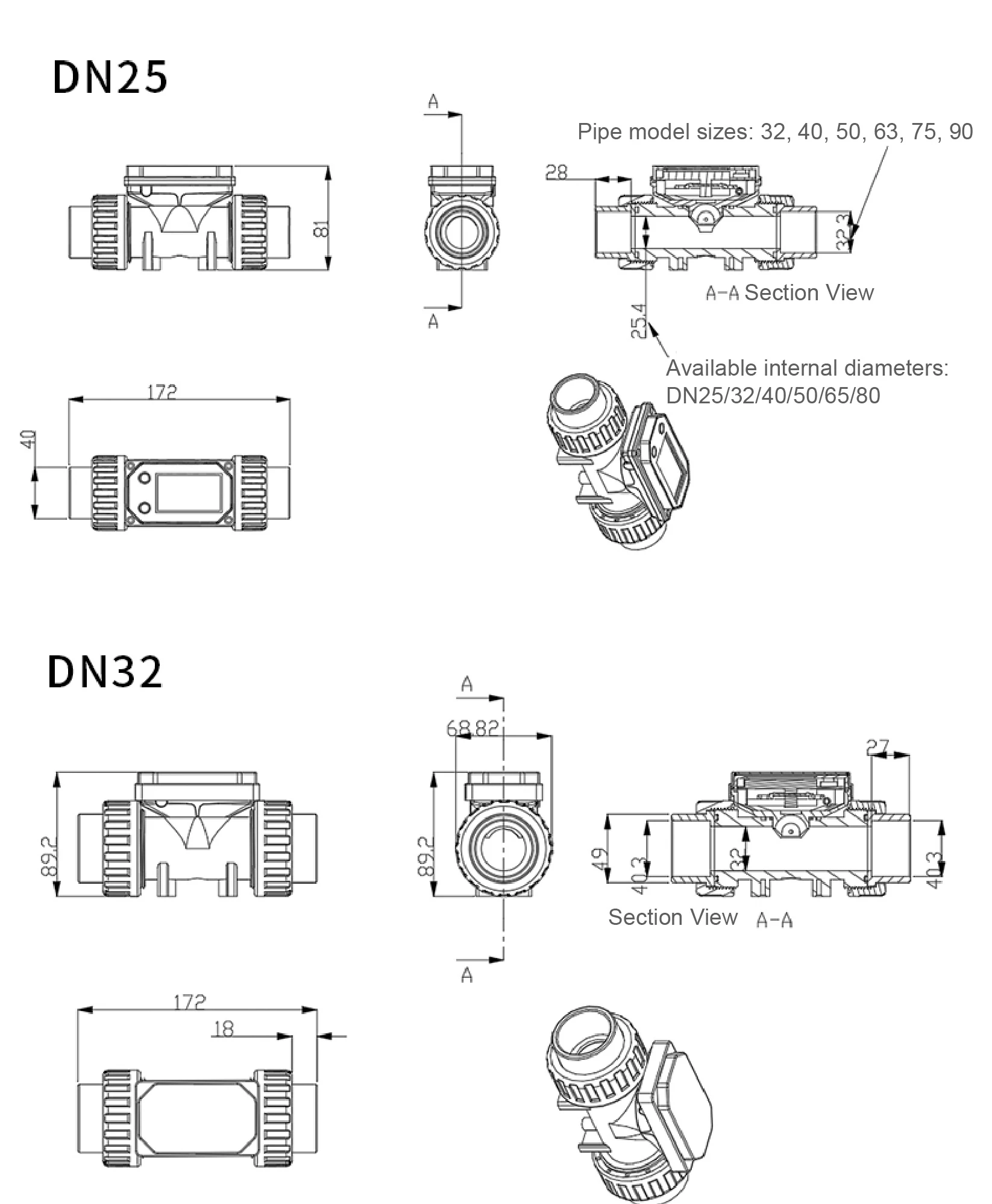

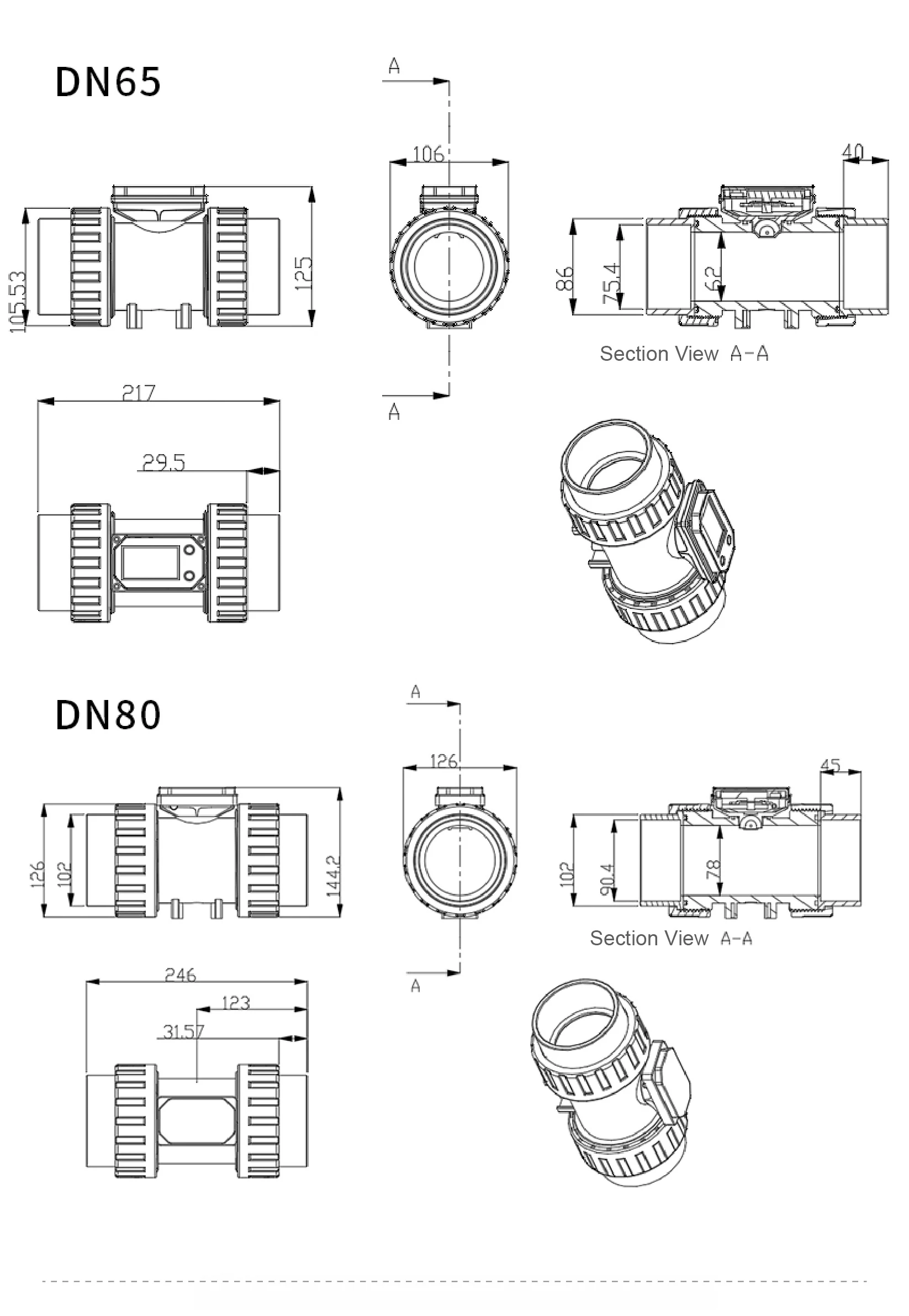

Available Sizes: DN25, DN32, DN40, DN50, DN65, DN80
Functions & Display
-
Accurately measures both flow rate and total flow volume.
-

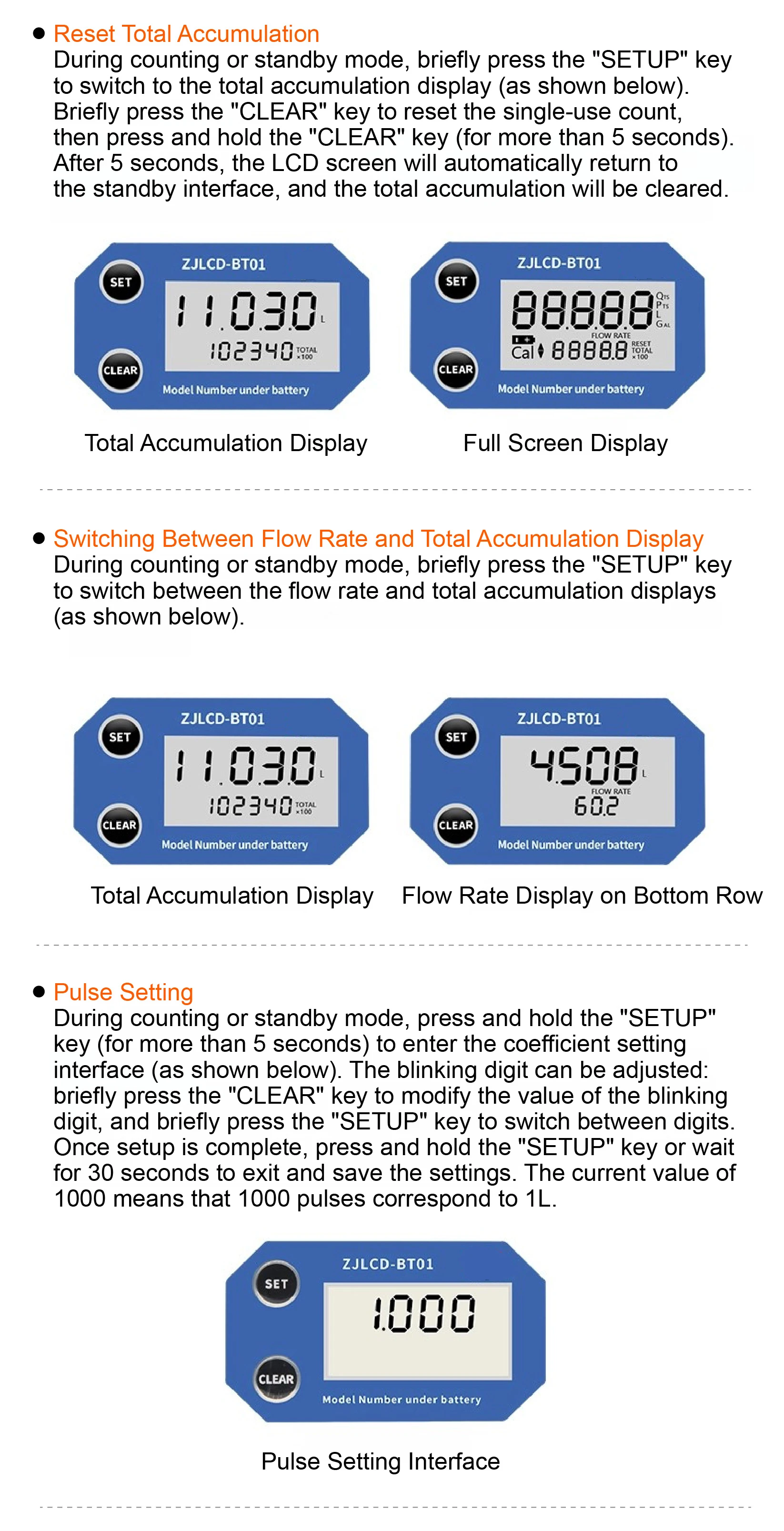

Supports multiple display units: Liters (L), Gallons (GAL), Pints (PTS), and Quarts (QTS).
-
Offers pulse signal output capability.

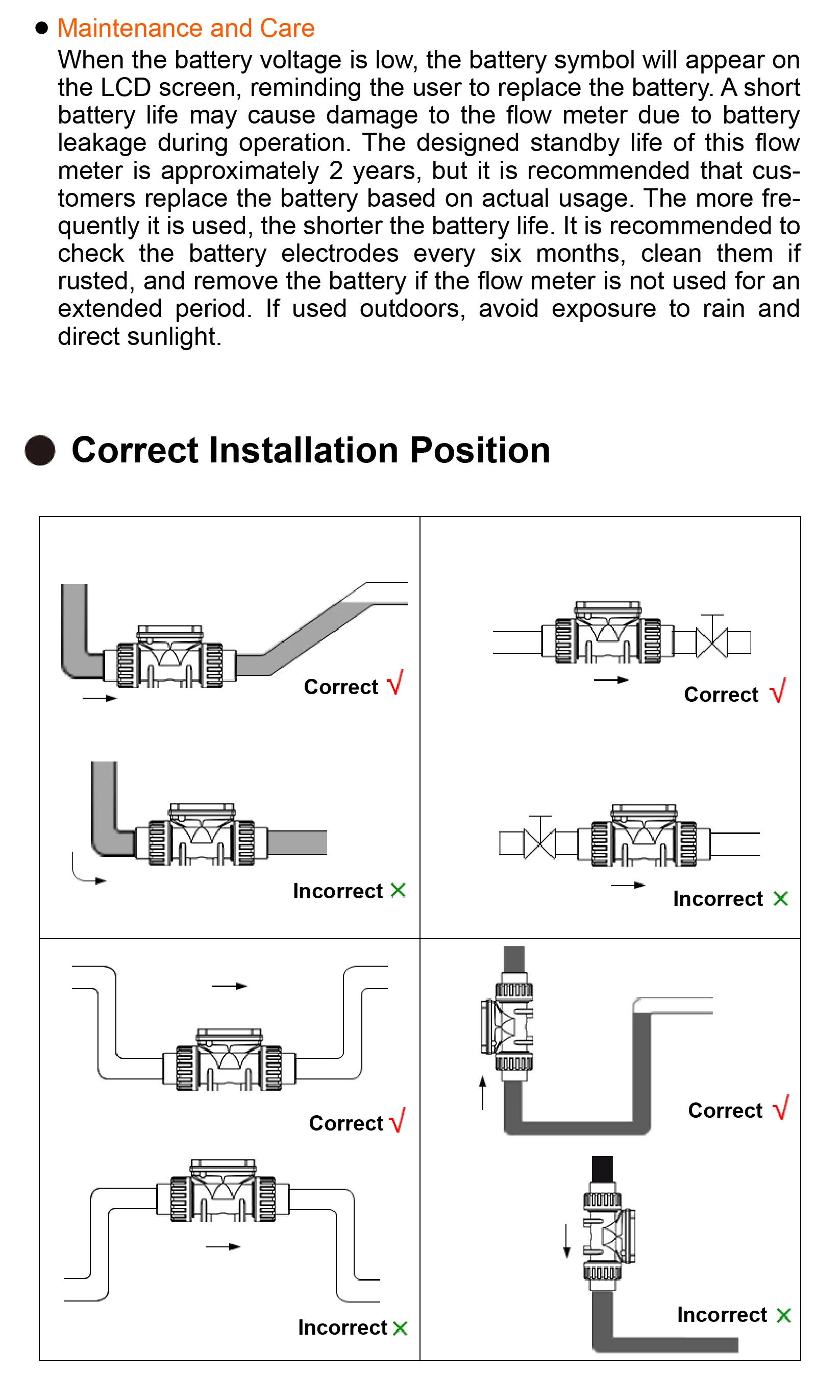

Installation & Protection
-
The display unit is not waterproof. Proper dust and moisture protection is essential.
-
Not recommended for outdoor use. If outdoor installation is unavoidable, ensure adequate protection from rain and direct sunlight.
Shipping Notice
If the online shipping cost seems high and you are planning to purchase in bulk or order large-sized items, we can provide more cost-effective shipping methods and routes. Please contact us directly to discuss the best options for your order.

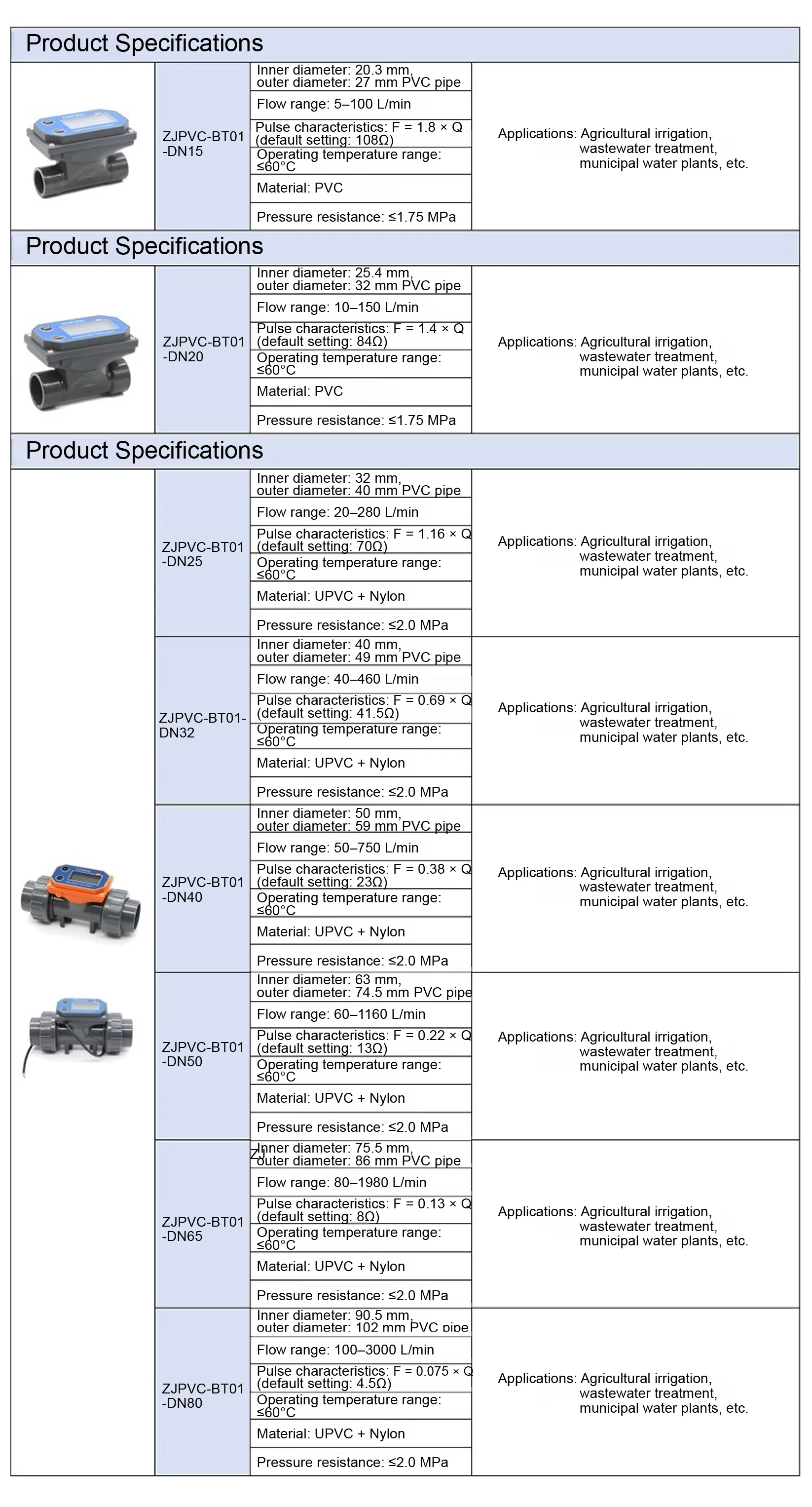

2.Parameters
|
Parameter |
Specification |
|
Model |
PVCBT01 |
|
Pipe Size |
1 inch 1.2 inch 1.5 inch 2 inch 2.5 inch 3 inch |
|
Material |
UPVC |
|
Medium |
Water or similar liquid |
|
Flow Rate |
20-280 L per min, 40-460 L per min, 50-750 L per min, 60-1160 L per min, 80-1980 L per min, 100-3000 L per min |
|
Accuracy |
±5 |
|
Repeatability |
±0.5 |
|
Max Pressure |
20 BAR |
|
Total Count Range |
0-999999 |
|
Single Count Range |
0-9999.9 |
|
Measurement Units |
Liter L, Gallon GAL, Pint PTS, Quart QTS |
|
Power Supply |
Battery or external 5-24VDC |
|
Output Signal |
NPN pulse signal |
3. Features
High Measurement Accuracy

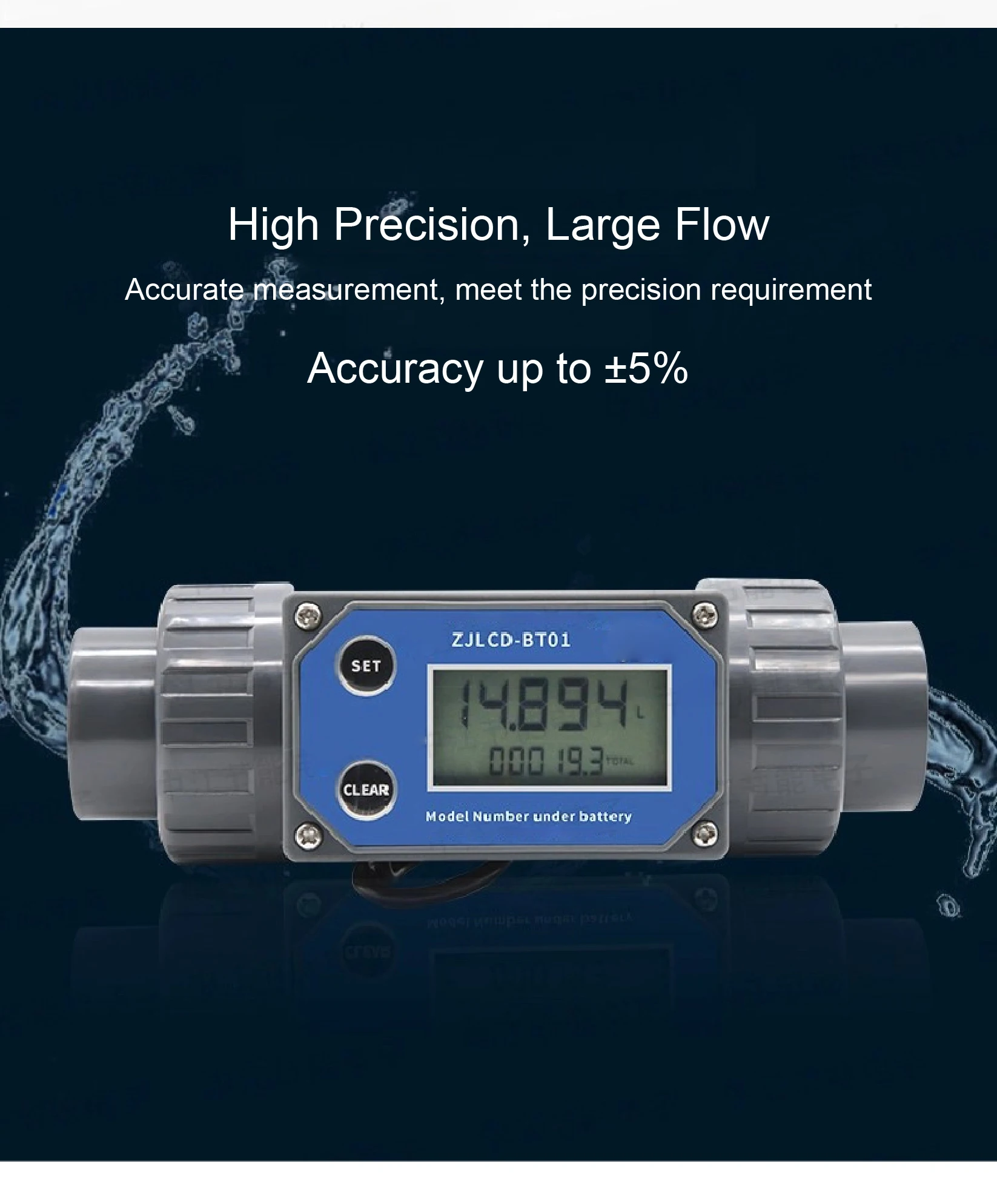

Delivers consistent and reliable results with a measurement accuracy of ±5%.
Compact and Durable Design
Features a small footprint with a robust structure, ensuring long-lasting performance.
Flexible Power Options
Supports operation via batteries or external DC power supply (5–24V), offering adaptable power solutions.
Multiple Unit Display

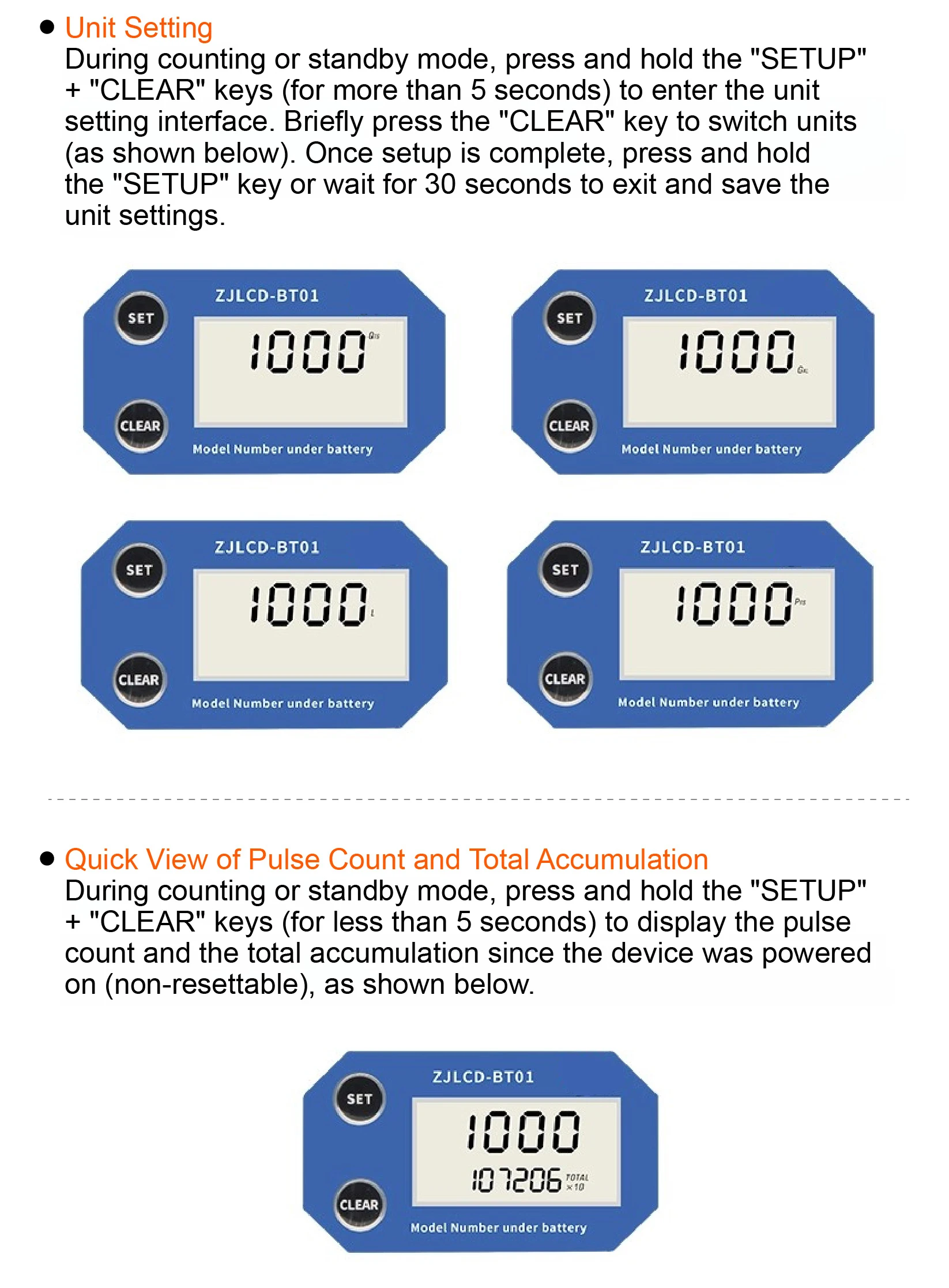

Easily switch between Liters, Gallons, Pints, and Quarts to suit different measurement needs.
User-Friendly Operation

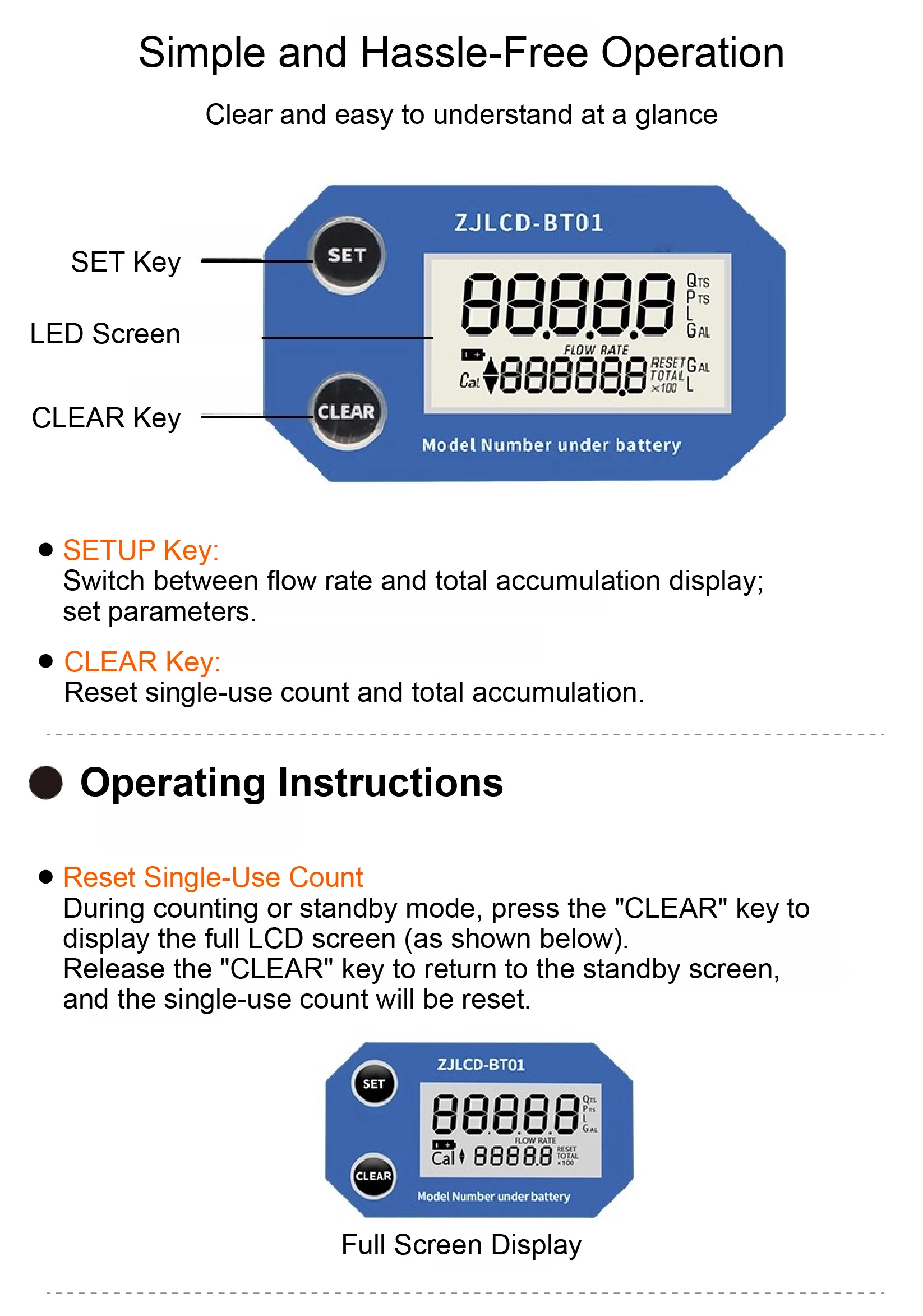

Equipped with a clear display interface and intuitive control buttons for easy setup and use.
Versatile Applications
Ideal for a wide range of uses including irrigation systems, water treatment facilities, swimming pools, and industrial environments.
4.Application
Agricultural Irrigation
Enables efficient water management for farms, gardens, and other agricultural settings.
Water Treatment Systems
Provides reliable flow monitoring to support effective operation in water treatment facilities.
Swimming Pools and Fish Ponds
Helps maintain proper water circulation and ensures accurate volume measurement.
Industrial Applications
Versatile solution for various liquid flow measurement needs across industrial environments.
5.FAQs
Q1: Can this meter be used outdoors?
A1: No, the display is not waterproof. It must be protected from water and dust. Outdoor use is not recommended unless the device is properly shielded from rain and direct sunlight.
Q2: What power options are available?
A2: The meter can operate either on battery power or through an external 5–24V DC power supply. Do not connect both power sources at the same time, as this may cause damage to the device.
