1.NOTE

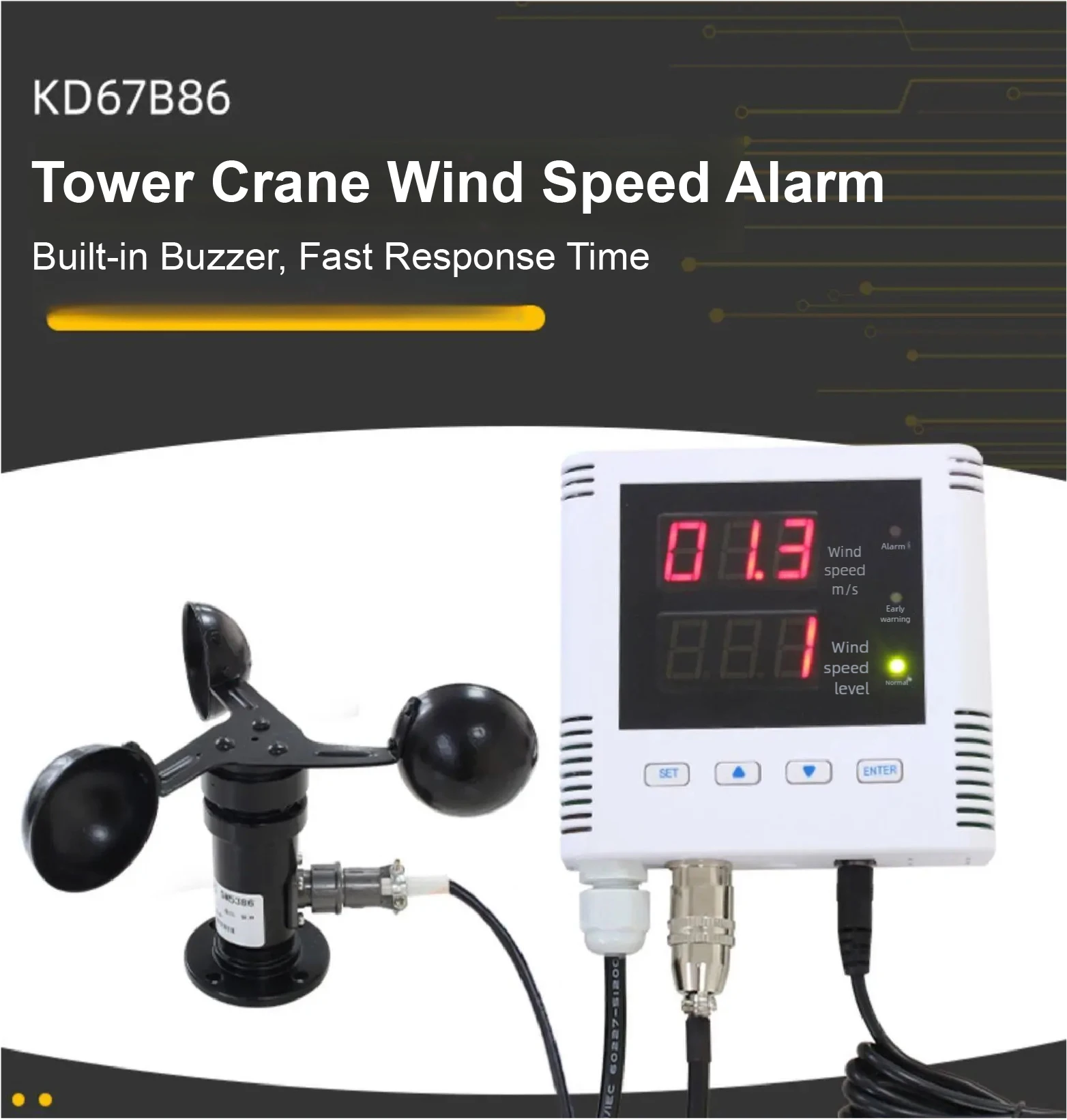

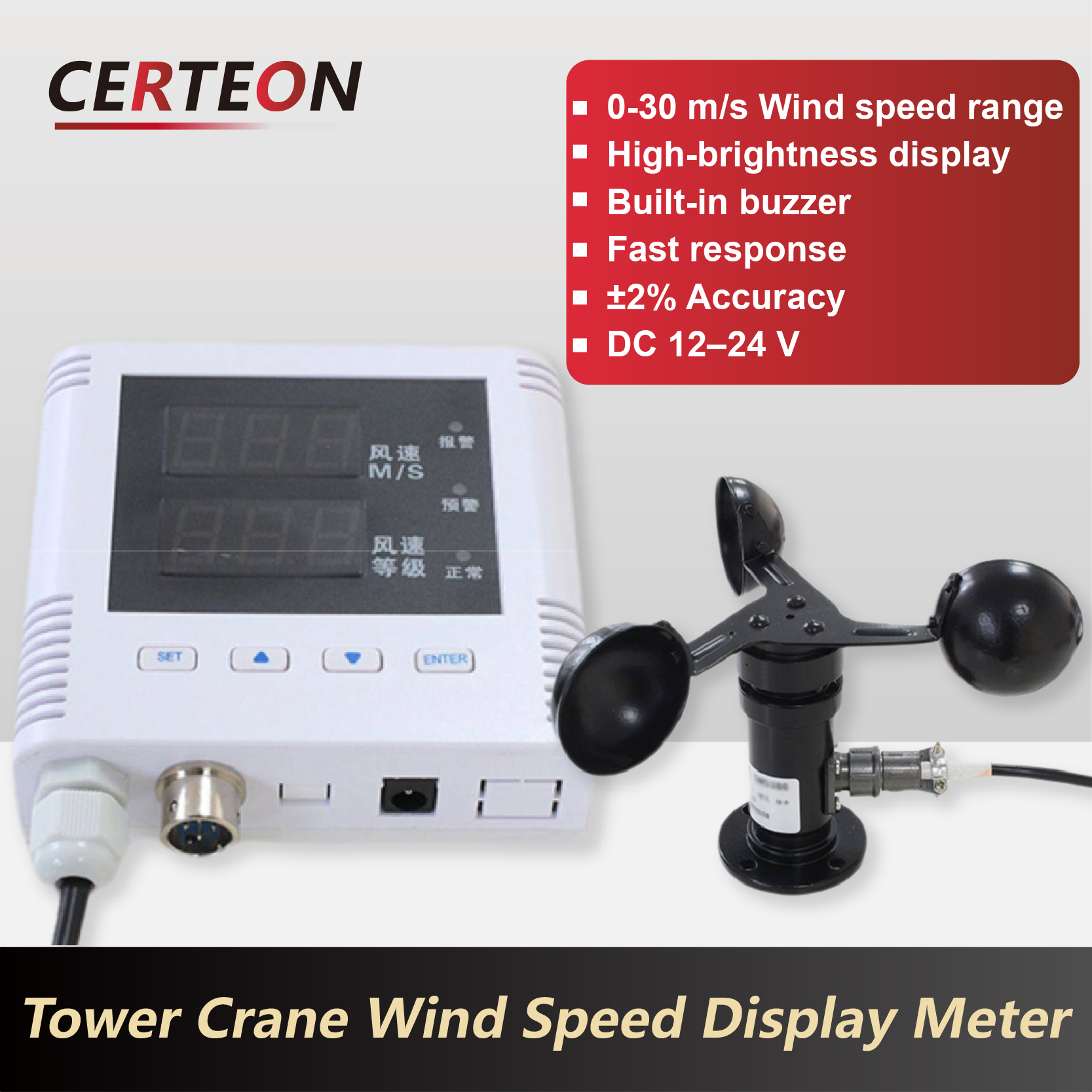

High-precision wind speed alarm system with real-time LED display and a 110dB buzzer alert. Built for industrial-grade applications, this device delivers accurate and reliable wind monitoring with a durable aluminum alloy housing, an IP65-rated sensor, and a 360° cup-style measuring structure.
Default Configuration
Supply voltage: DC 12-24V
Wind speed range: 0-30m/s
Wind speed level: 0-12
Output mode: RS485
Baud rate: 9600 bps
Lead length: 5m / 10m
Customizable Parameters
Optional external adjustable audible and visual alarm
Lead length: 20m
1m extension cable
Due to page space limitations, some specifications may not be displayed. For specific customization requirements, please contact us for more details.

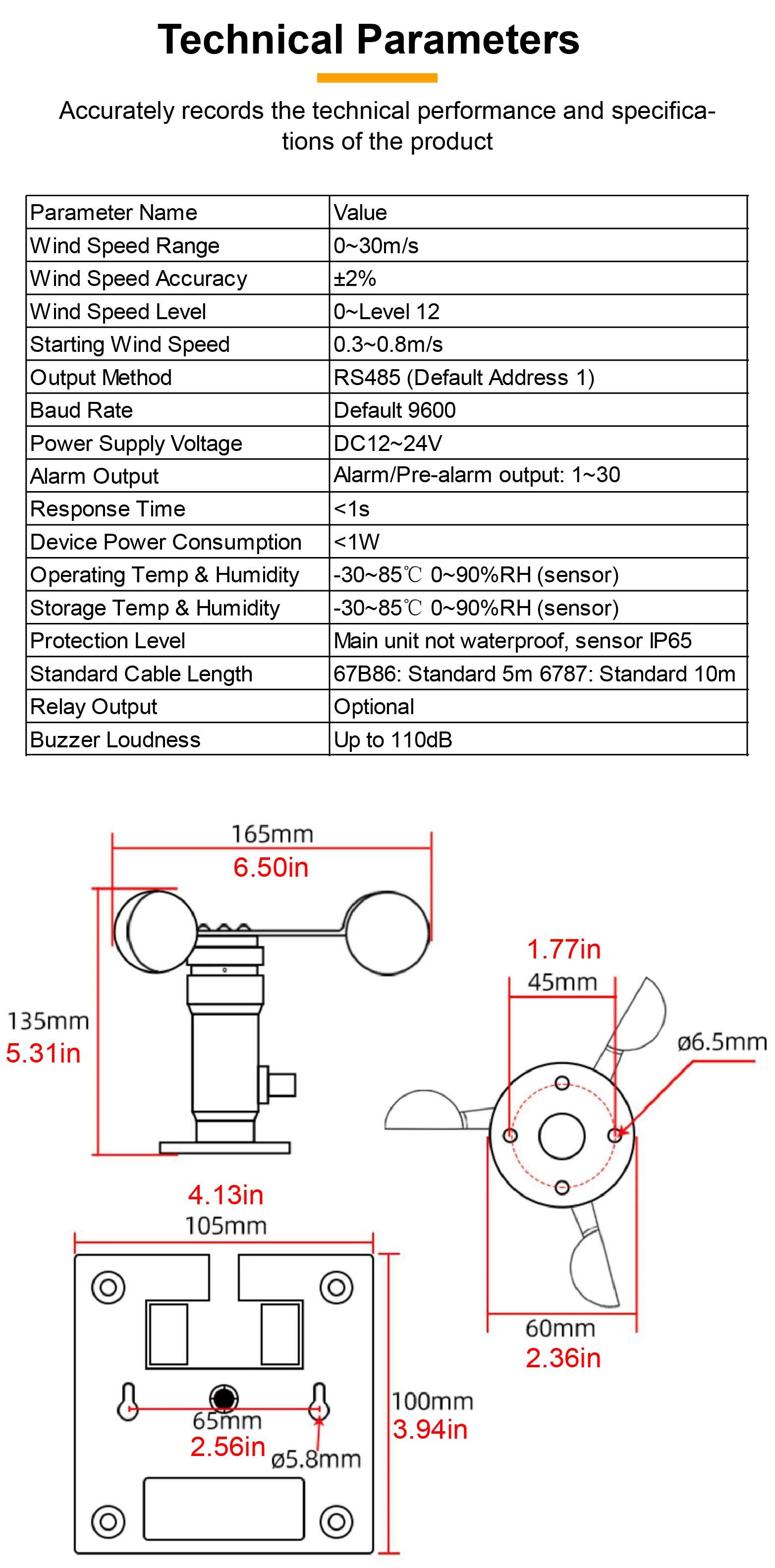

2. Parameters
|
Model |
KD67B86/KD67B87 |
|
Wind Speed Range |
0-30m/s |
|
Wind Speed Accuracy |
±2% |
|
Wind Speed Level |
0-12 |
|
Start-Up Wind Speed |
0.3-0.8m/s |
|
Output Mode |
RS485 (Default Address) |
|
Baud Rate |
Default9600 bps |
|
Supply Voltage |
DC12-24V |
|
Alarm Threshold |
Alarm/Pre-alarm Output: 1–30 times/s |
|
Response Time |
<1s |
|
Power Consumption |
<1W |
|
Operating Temp & Humidity |
-30- 85°C, 0–90%RH (Sensor) |
|
Storage Temp & Humidity |
-30- 85°C, 0–90%RH (Sensor) |
|
Protection Rating |
Main Unit: Not Waterproof; Sensor: IP65 |
|
Standard Cable Length |
67B86: 5 m Standard Cable; 6787: 10 m Standard Cable |
|
Relay Output |
Optional |
|
Buzzer (dB) |
Up to 110 dB |
3. Features

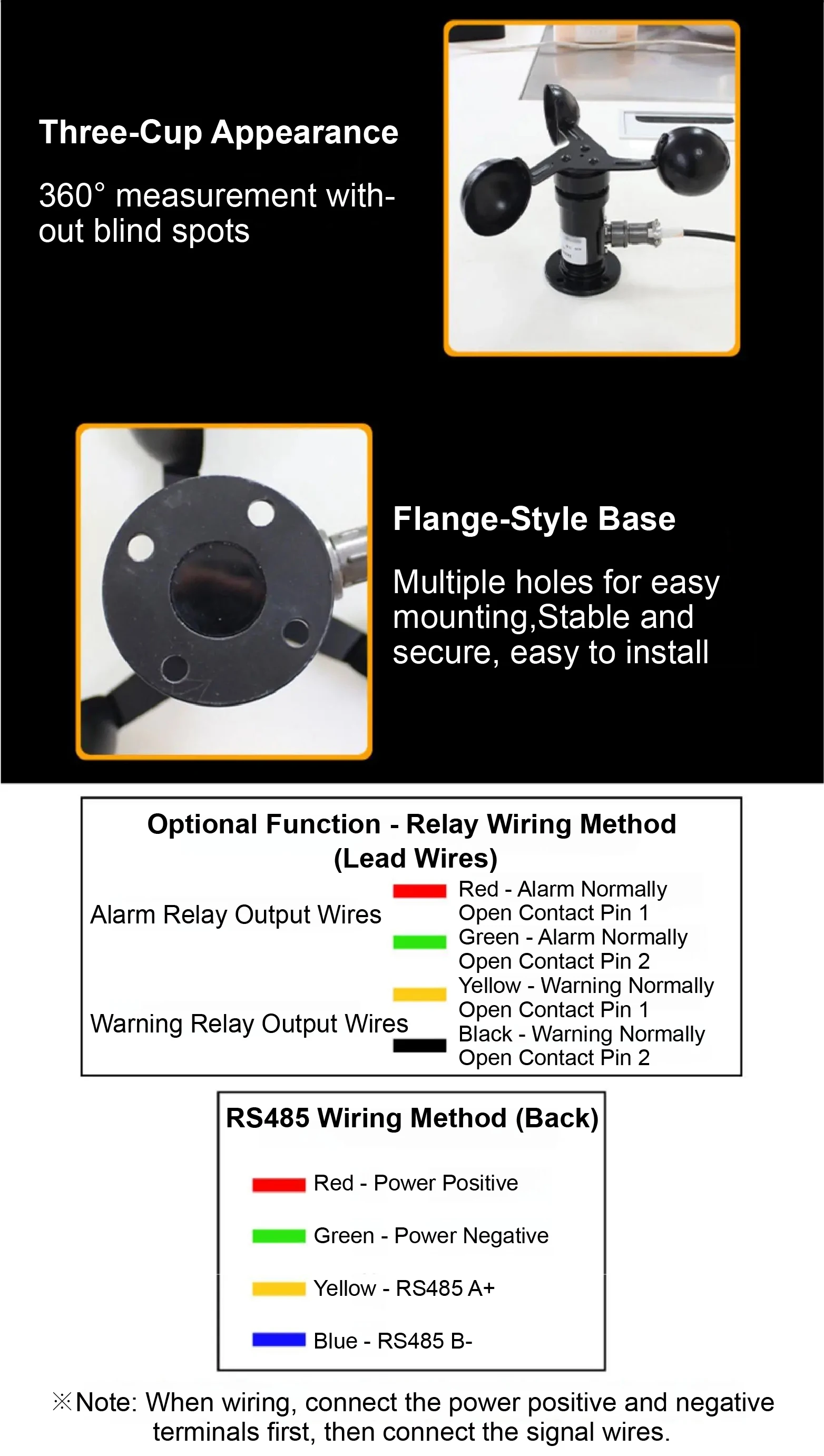

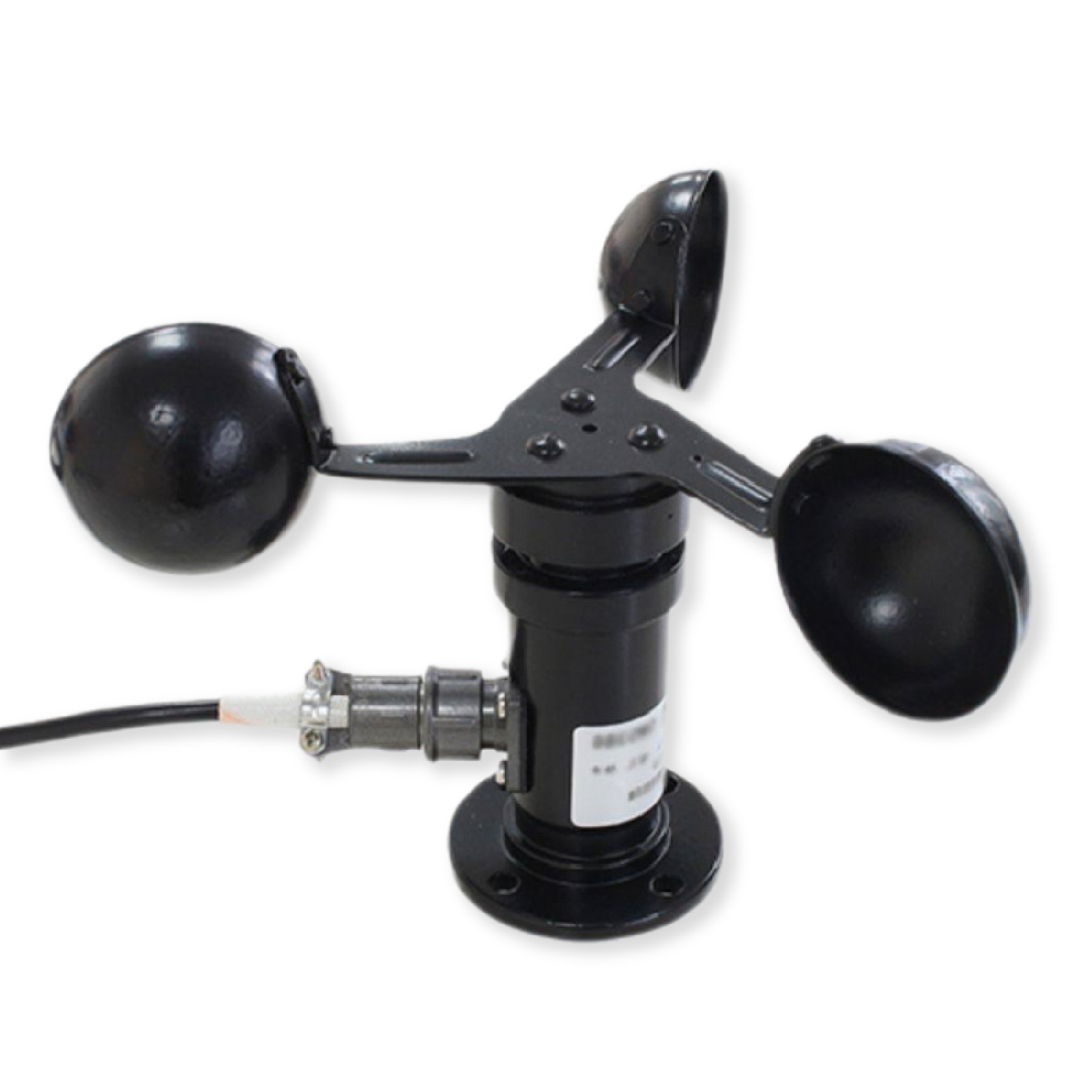

360° Cup Anemometer Design
Ensures full-range wind speed detection without blind spots, delivering accurate and consistent monitoring.

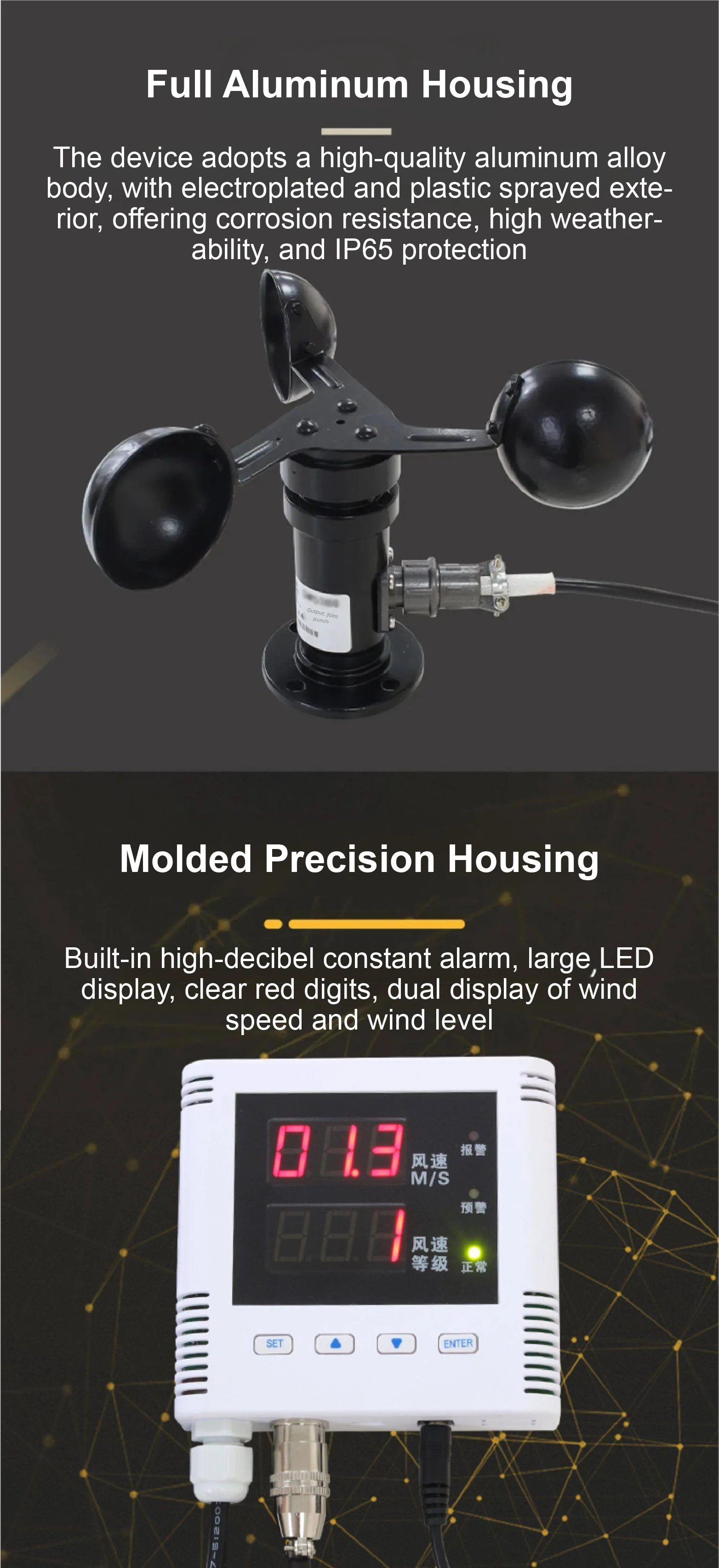

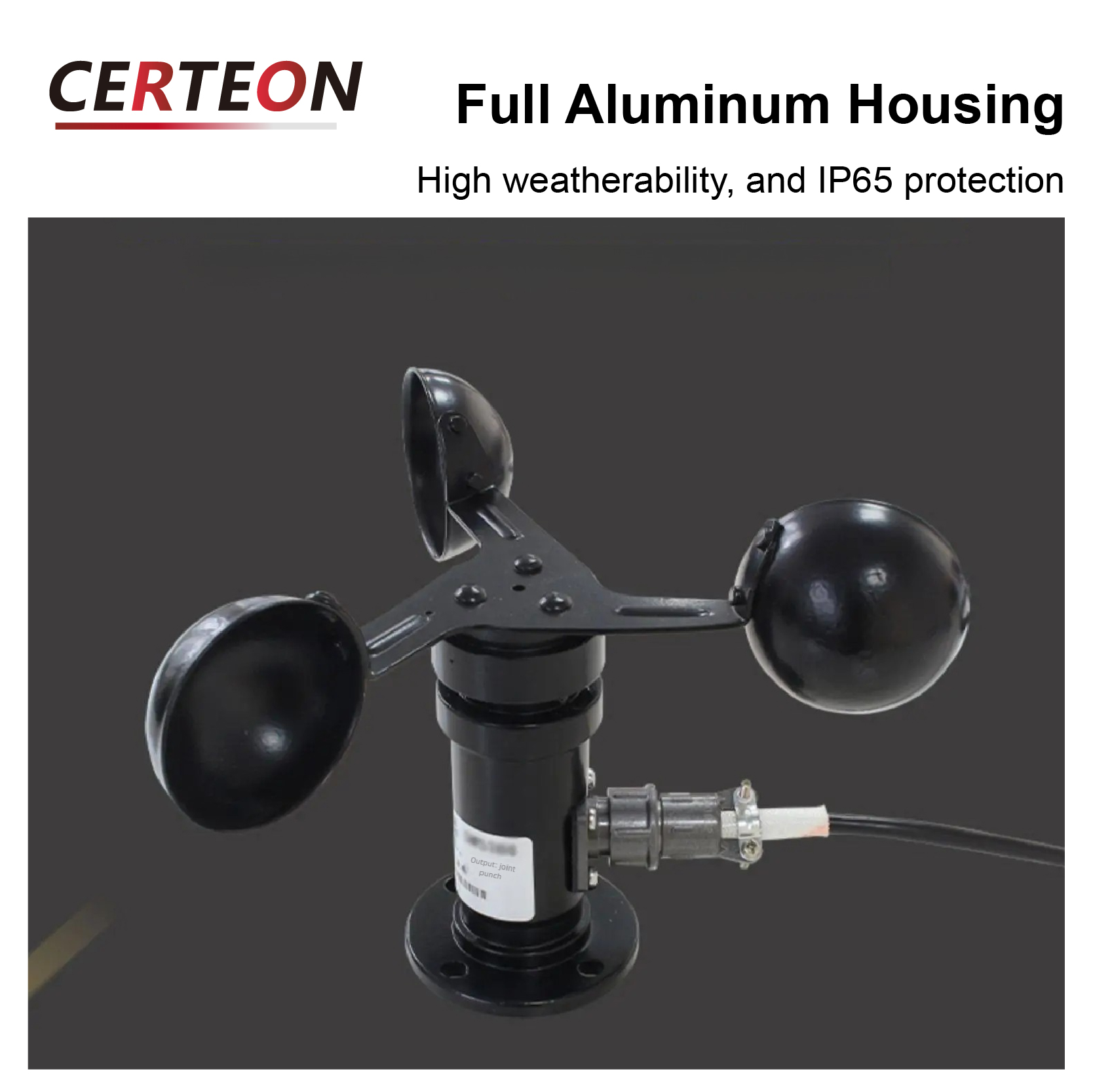

Durable Aluminum Alloy Housing
Corrosion-resistant and weatherproof construction for reliable long-term outdoor use.

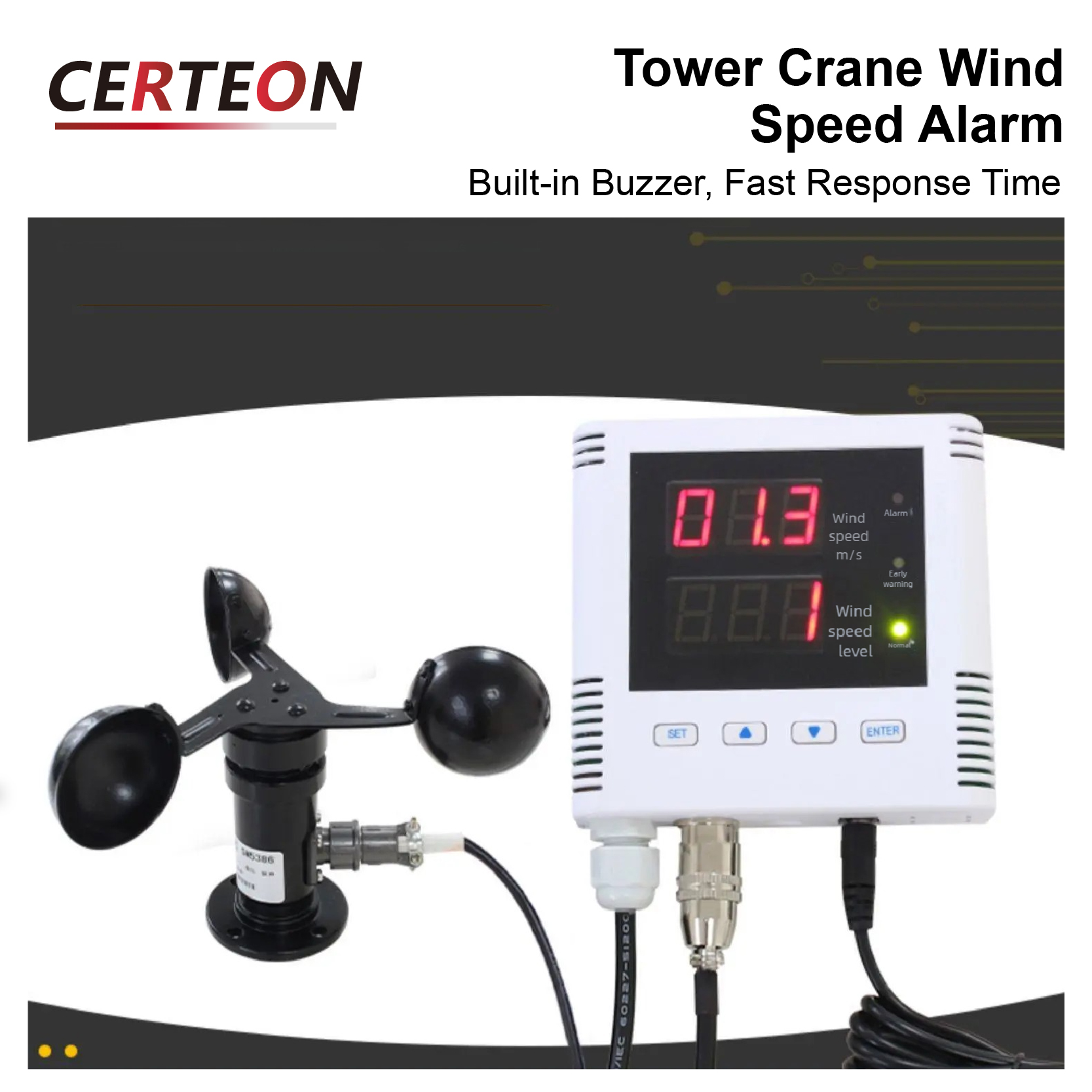

High-Decibel Buzzer and LED Display
Equipped with a built-in 110dB alarm and large red LED digits for clear visibility in any environment.

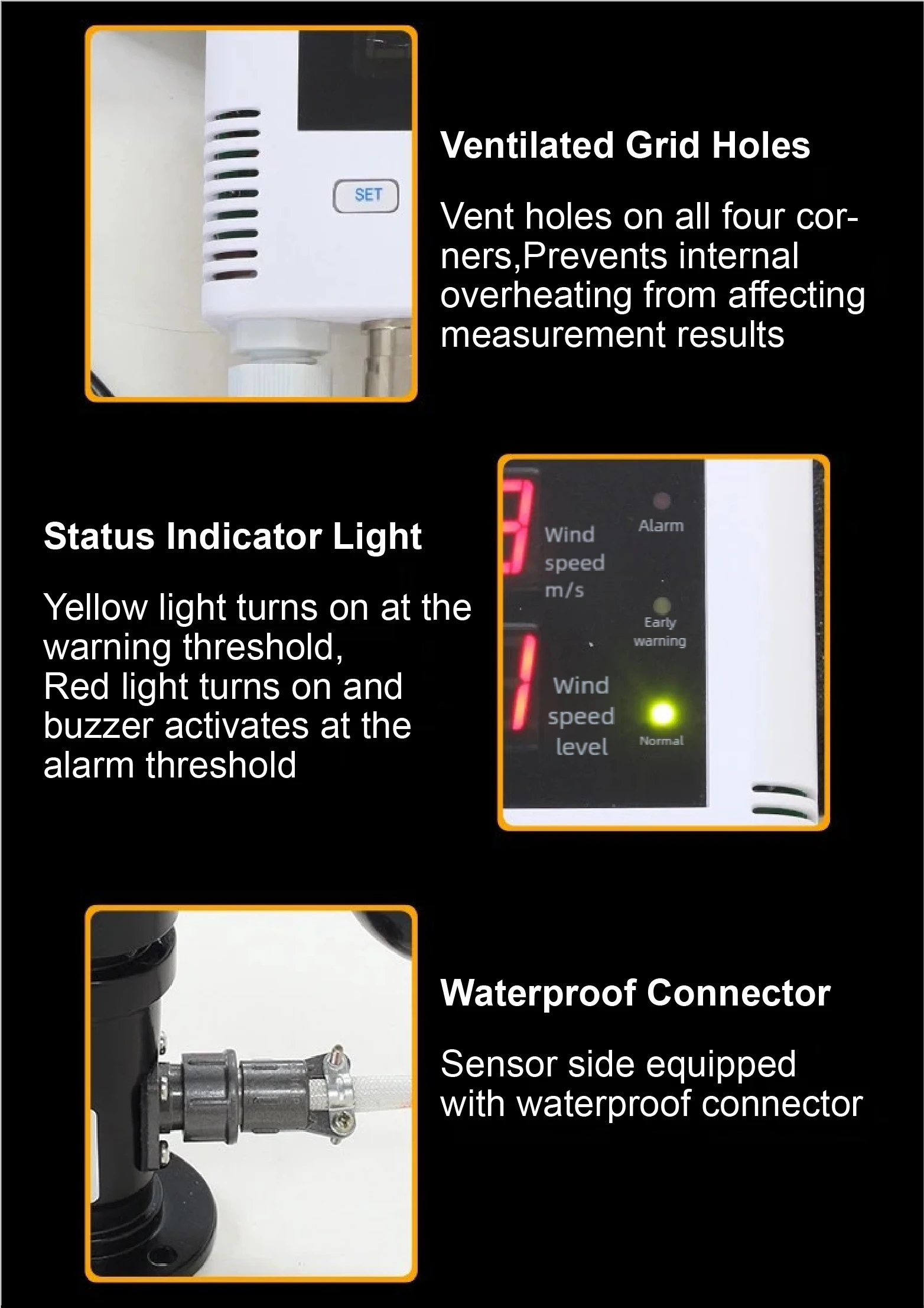

Smart Warning Indicator Lights
Yellow light indicates pre-alarm status, while red light and buzzer activate during full alarm conditions.
Industrial-Grade Sensor with RS485 Output
Provides fast response and stable performance, supporting seamless system integration.
Waterproof Sensor Connector (IP65)
Effectively prevents water ingress, ensuring durability and dependable operation.

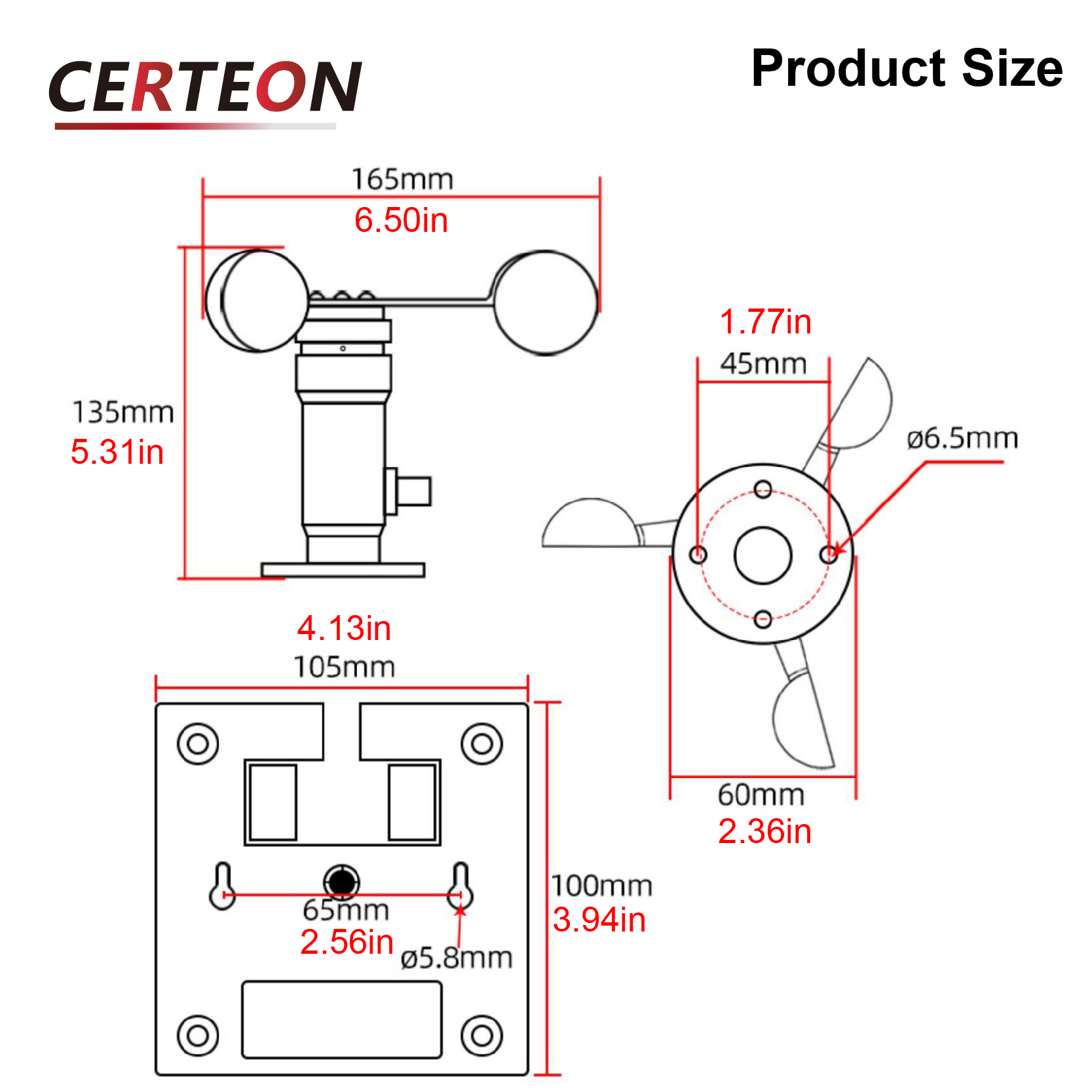

Easy Installation with Flange Base
Multi-hole mounting design allows for quick, secure, and hassle-free installation.

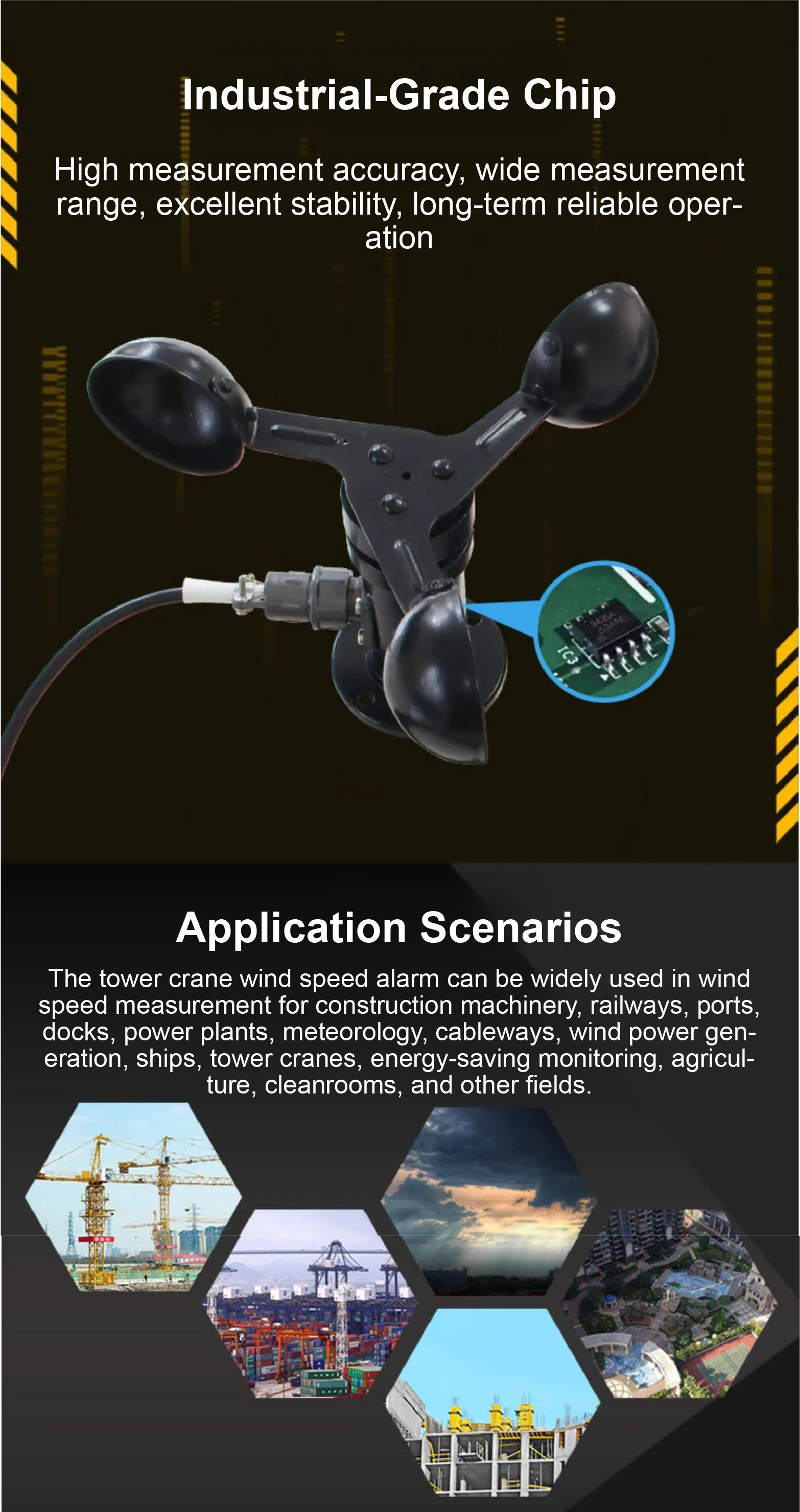

4. Applications
Widely used across multiple industries, this system is ideal for tower cranes, construction machinery, ports, railways, wind power systems, weather stations, ships, cableways, power plants, agriculture, cleanrooms, and energy monitoring systems. Designed to meet diverse operational needs, it provides reliable wind speed monitoring in both industrial and environmental applications.
5. FAQs
Q1: Is the device waterproof?
A1: The sensor is rated IP65 for water resistance, but the main control unit is not waterproof. For safe and reliable operation, install the main unit indoors or place it inside a protective enclosure.

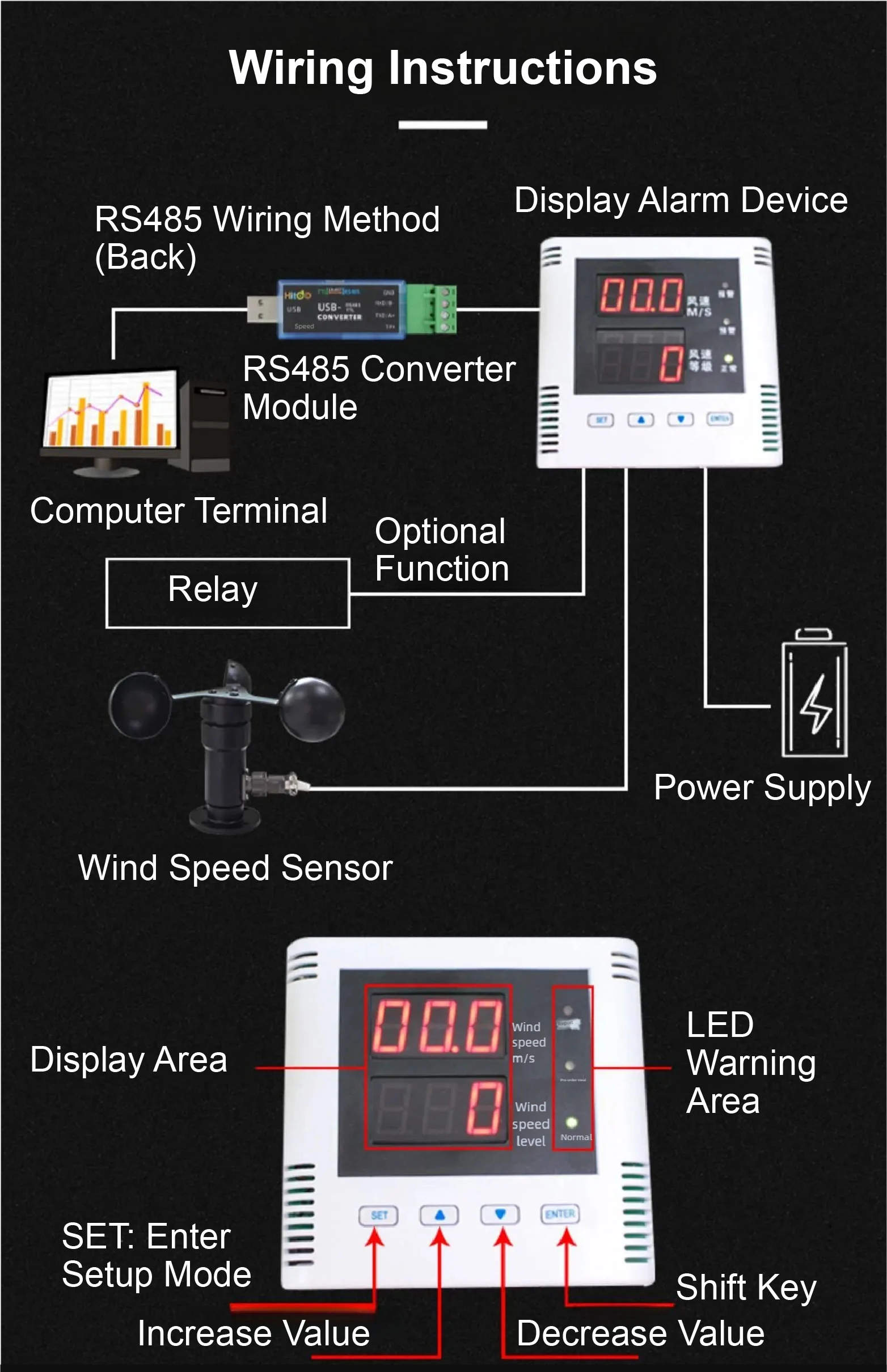

Q2: Can this be integrated into an existing monitoring system?
A2: Yes. With RS485 output, the device can be easily integrated with most industrial control and monitoring systems, making it a practical choice for existing setups.
Q3: What happens if the wind speed exceeds the set threshold?
A3: When the wind speed goes beyond the preset threshold, the red LED indicator turns on, the buzzer sounds, and the system sends an alarm signal based on your configured settings.
