CS Mount Security Mini analog HD 1080P AHD CVI TVI CVBs 4in1 CCTV Camera Security Box UTC OSD For instrument testing
CS lens does not include
Product Features
1080P FHD resolution, the image is more clear and delicate;
Zero-latency data transmission, full real-time, high fidelity;
coaxial video cable transmission up to 200 meters;
Support XVI, enable OSD by the back-end;
Support XVI/AHD/TVI/CVI DVR;
NTSC&PAL 2 in 1, easy to switch through back-end;

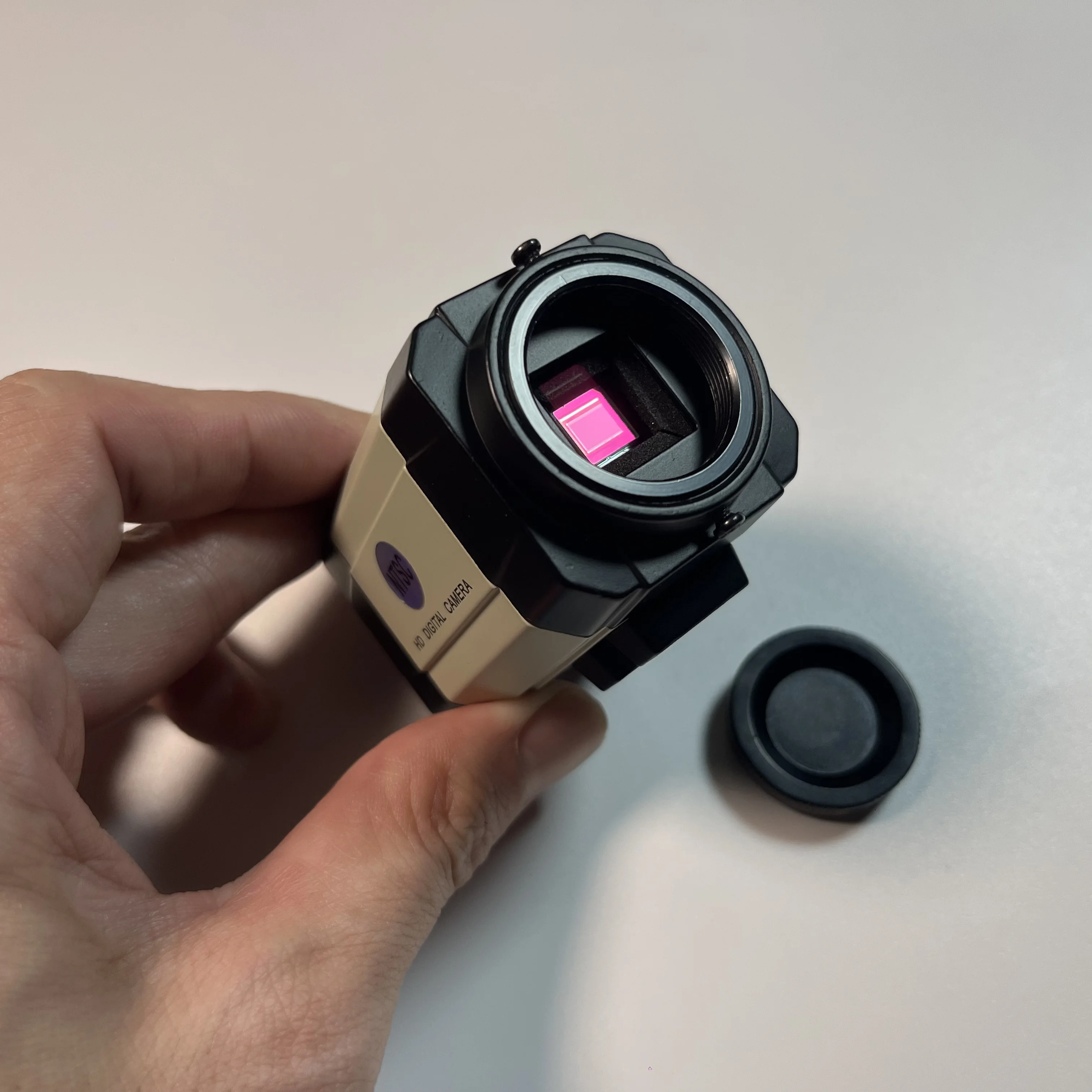

Sensor 1/3″ inch SONY307 sensor
Signal format XVI/AHD/TVI/CVI/CVBS，
Default output AHD signal，
Adjusting the output signal Requires the use of AHD XVI function
Video Resolution PAL/NTSC : 1920*1080
Minimum Illumination
color：0.1Lux
Shutter 1/50(1/60) seconds to 1/10,000 seconds
Video output 1080P@25fps
Power DC12V
Temperature and Humidity – 10 ℃ ~ 60 ℃,
humidity is less than 90% (no condensation)
Consumption <5W
Tip: If you need to output TVI / CVI signal by default
Please note the required signal for the order,
No remarks default AHD signal.
Tips:The default signal is CVBS must ,AHD 1080P be connected to AHD 2MP DVR to work.
