Customizable Good Linear Actuator Motor 12V 24V DC 60mm/s Speed 12000N 1200KG 2640LBS Force Poentiometer feedback

Why US

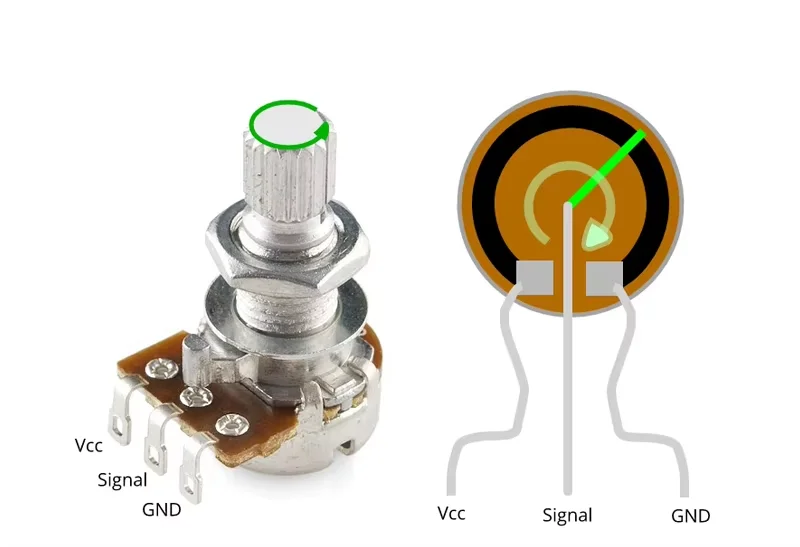

Why potentiometer position feedback

When electric linear actuator is equipped with feedback sensors,it will print serial monitor for review.The operator is easy to keep tracking the stroke movement state,adjust the shaft for a certain length. It can realize the shaft is retracting or extending to limit switch,too.

With integrated control system,there are several pcs linear actuators. Each linear actuator needs to work synchronously with others,feedback sensor is necessary for monitoring and ensuring linear actuators remain in sync, regardless of differences in load. Additionally,feedback sensors are crucial for memory positioning.

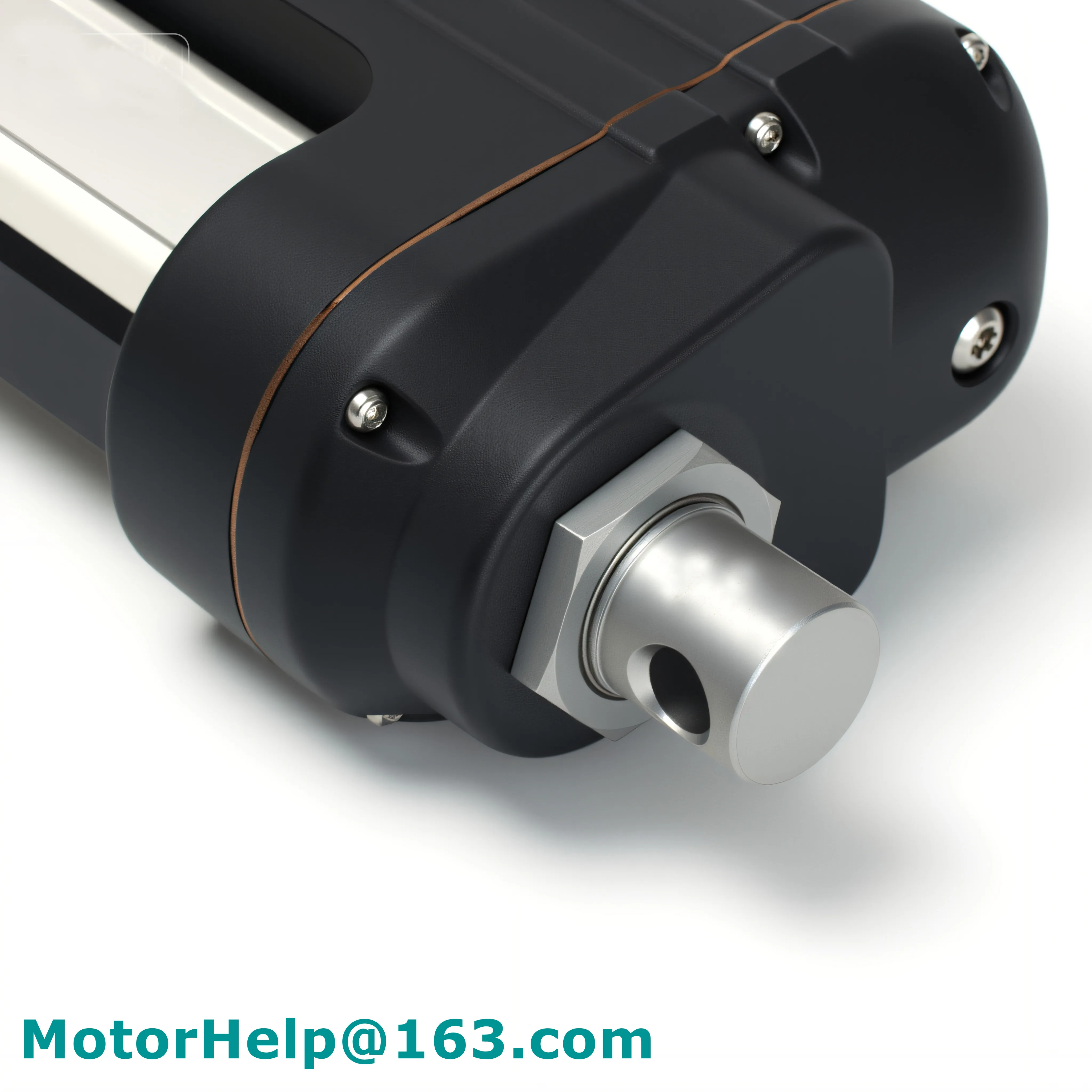

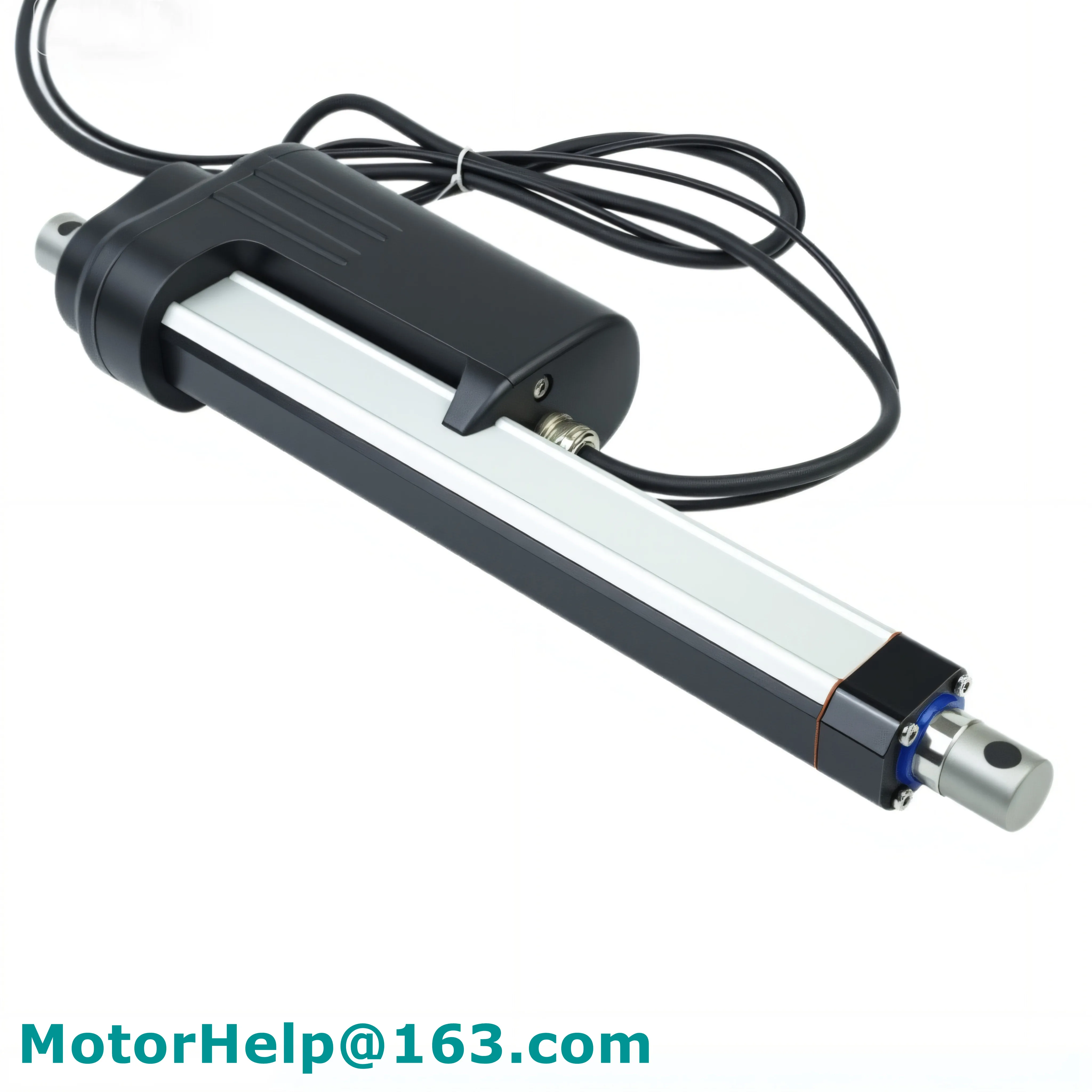

The M03 Heavy Duty Linear Actuator series are very powerful actuators designed for serious applications such as agricultural machinery, construction machinery, and industrial machinery. Difficult applications require equally demanding actuators. M03 series of actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. Dynamic Motion assures you of long-life maintenance-free products.

IP Rating of 66

Manufactured to comply with ISO9001-2008.

Linear actuator spec:

1 Type                                       M03 linear actuator

2 Input                                      12/24VDC

3 Max Load                                12000N=1200KG=2640LBS

4 Max Speed                              60mm per sec=2.4inch per sec

5 Limited switch                         With

6 Duty cycle                               25%

7 Position feedback                     Potentiometer

8 Stroke length                           Max 1000mm

9 Lmin and Lmax                         Normal and customized options

10 Color                                     Black

11 Operation temperature            -26 ~ +65 degree

Normal size=Lmin=stroke+200mm

1 30mm stroke,Lmin=290mm

1 We supply customized head and tail connector size,Lmin and Lmax size,cable and control system.

2 We supply OEM and ODM service

3 We supply discount for bulk order.

4 For bulk order,we supply ocean and air cargo shipping service,it is much cheaper.

5 If you have partner in China,we can send product to them.

Thanks for your interest.
