Sensor and Module for DIY CCTV Camera
NOT finished product , not have lens included .
|

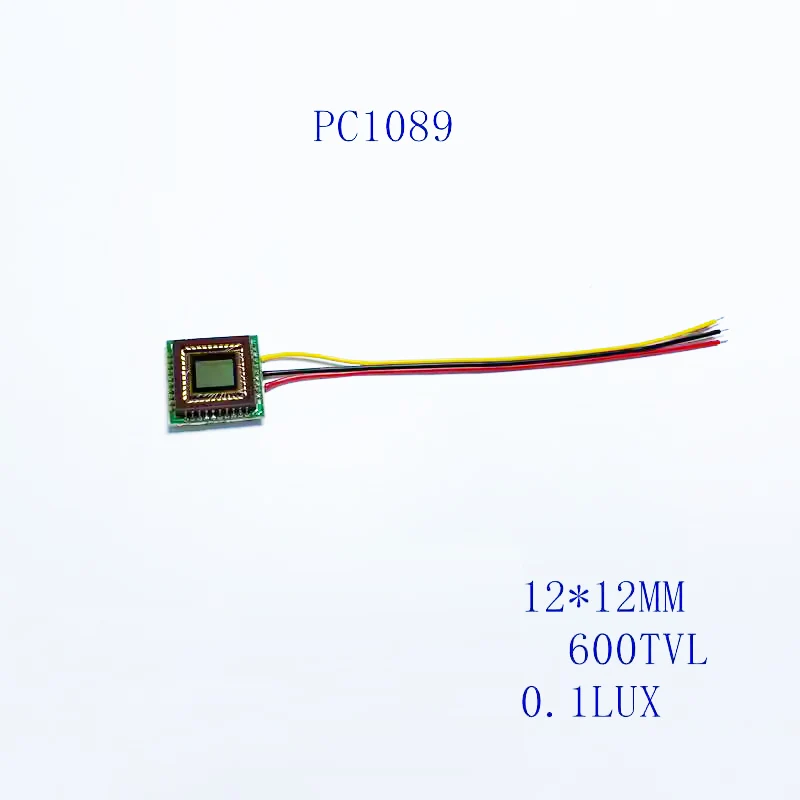

1. Sensor chip: 1/3 inch PC1089 HD B/W CMOS |
|
2. Video format: PAL 3. Effective pixels: 728 (H) x 488 (V) |
|
4. Photosensitive area: 4.622 x 3.611mm |
|
5. 600TVL |
|
6. Low illumination 0.1 Lux |
|

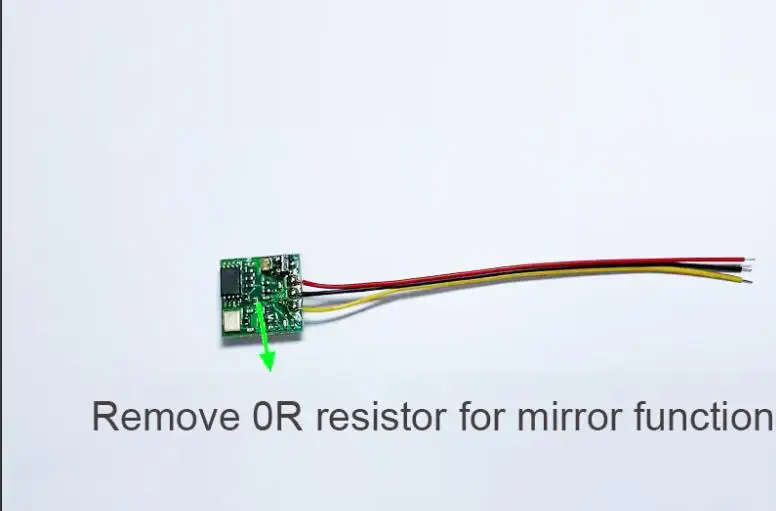

7. Additional function: The left and right mirror function can be selected |
|
8. Video output: 1.0Vp-p 75 Ω |
|
9. Pixel size: 6.35 x 7.4 μ M |
|
10. Dynamic range: 63.7dB |
|
11. Signal to noise ratio: 46.4dB |
|
12. Electronic shutter (N) 1/60-1/100000 (P) 1/50-1/100000 |
|
13. Working voltage: DC3.3-5.0V; Power consumption 105MA |
|
14. PCB size: 12 * 12mm ± 0.5mm; Overall thickness 3.8mm |
|
15. Working temperature: 0 ℃~45 ℃ RH95% Max |
|
16. Storage temperature: -40 ℃~85 ℃ RH95% Max |
|
17. Weight: approximately 2g |
Shipping content :
Sensor board x 1

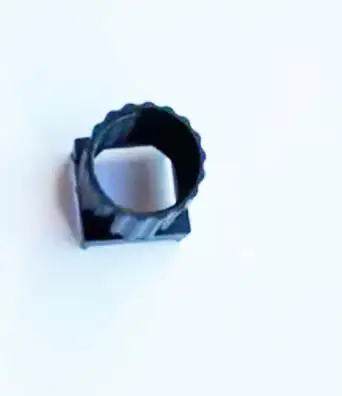

M12 mount x 1
