100% Original Dahua Product
This model don't support firmware updating ,so Please DO NOT Update this firmware.
We promise to firmly adopt the shipping option chosen by customers, and never adopt inconsistent shipping option due to promotions or other reasons.

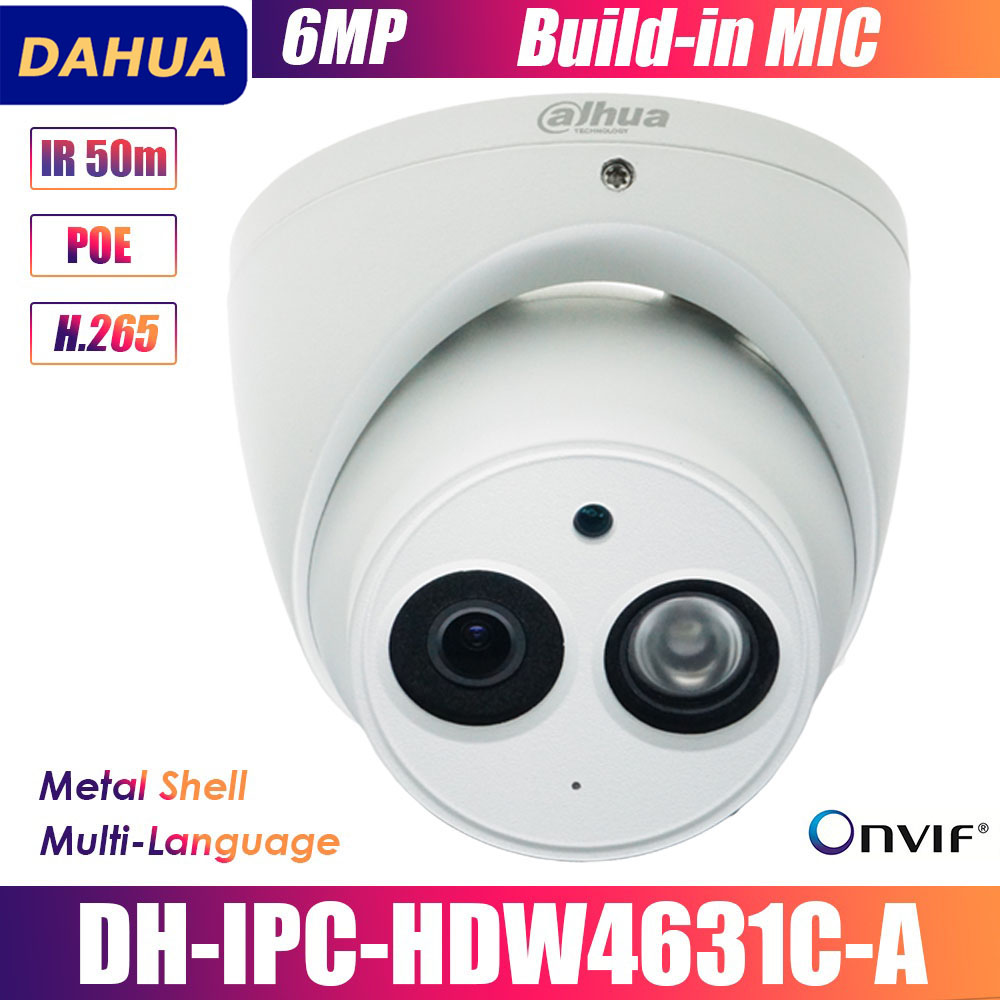

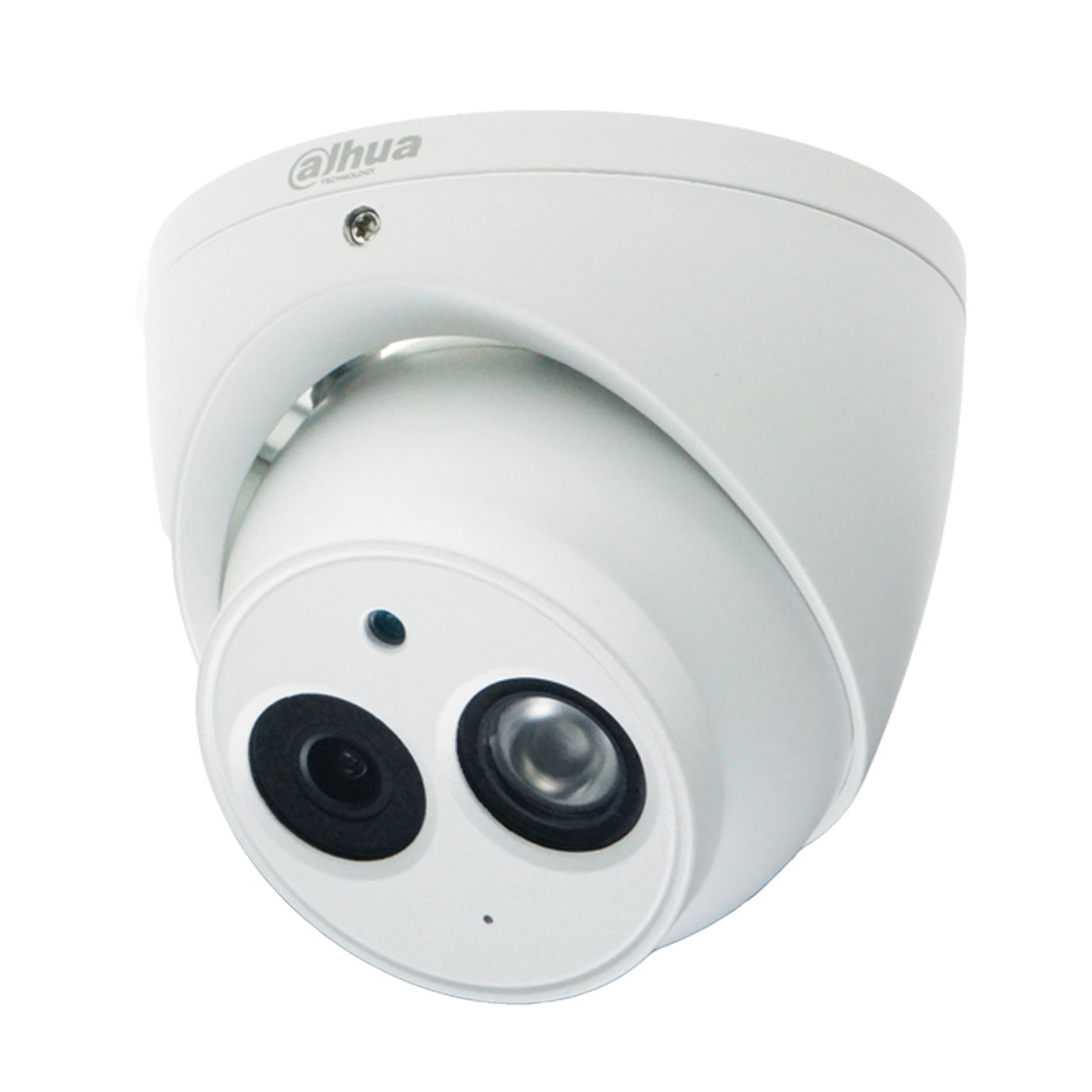

IPC-HDW4631C-A
-
4/6Megapixel progressive scan STARVISTM CMOS
-
H.265&H.264 triple-stream encoding
-
Smart detection supported
-
WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
-
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
-
Built-in Mic
-
Max. IR LEDs Length 30/50m
-
IP67, PoE
Firmware Language
|
Camera |
|
|
Image Sensor |
1/2.7” 4Megapixel progressive scan CMOS |
|
IPC-HDW4631C-A |
1/2.9” 6Megapixel progressive scan CMOS |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
|
Minimum Illumination |
0.002Lux(Color) |
|
0Lux(IR on) |
|
|
S/N Ratio |
More than 56dB |
|
IR Distance |
Distance up to 50m |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
1 |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
2.8mm(3.6mm,6mm optional) |
|
Max. Aperture |
F1.6 |
|
IPC-HDW4631C-A |
F2.5/F2.2/F2.0 |
|
Angle of View |
2.8mm:H:104.2°,V:58.3° |
|
IPC-HDW4631C-A |
2.8mm : H : 99° V : 69.4° 3.6mm : H : 70° V : 48° 6mm : H : 47.34° V : 33.75° |
|
Optical Zoom |
N/A |
|
Focus Control |
Fixed |
|
Pan/Tilt/Rotation |
|
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ |
|
Intelligence |
|
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Video |
|
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Resolution |
4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ |
|
IPC-HDW4631C-A |
6M(3072×2048)/ 5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ |
|
VGA(640×480)/ CIF(352×288/352×240) |
|
|
Frame Rate |
50Hz:Main Stream(3072×2048@20fps),Sub Stream(704×576@20fps),Third Stream(1280×720@6fps);Main Stream(2592×1944@25fps),Sub Stream(704×576@25fps),Third Stream(1280×720@4fps) |
|
60Hz:Main Stream(3072×2048@20fps),Sub Stream(704×480@20fps),Third Stream(1280×720@7fps);Main Stream2688×1520@30fps),Sub Stream(704×480@30fps),Third Stream(1280×720@10fps) |
|
|
Bit Rate |
H.264: 24K ~ 10240Kbps H.265: 8K ~ 8192Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
Support |
|
Defog |
Support |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max User Access |
10 Users /20 Users |
|
Edge Storage |
NAS |
|
Local PC for instant recording |
|
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
1/1 channel In/Out RCA Build in Mic |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V, PoE(802.3af)(Class 0) |
|
Power Consumption |
2.4W,<5.8W |
|
IPC-HDW4631C-A |
3.08W,<4.8W |
|
Environmental |
|
|
Operating Conditions |
-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
Construction |
|
|
Casing |
Metal+Plastic |
|
IPC-HDW4631C-A |
Metal |
|
Dimensions |
Φ110mm×95mm |
|
IPC-HDW4631C-A |
Φ106mm×94mm |
|
Net Weight |
0.32kg |
|
IPC-HDW4631C-A |
0.47kg |
|
Gross Weight |
0.46kg |
|
IPC-HDW4631C-A |
0.65kg |
