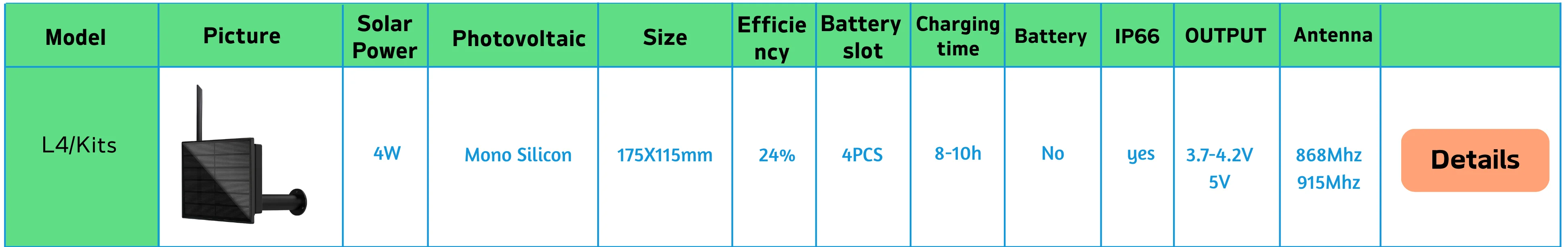

Solar LoRa Kits—you can choose different kits based on your needs.
DIY

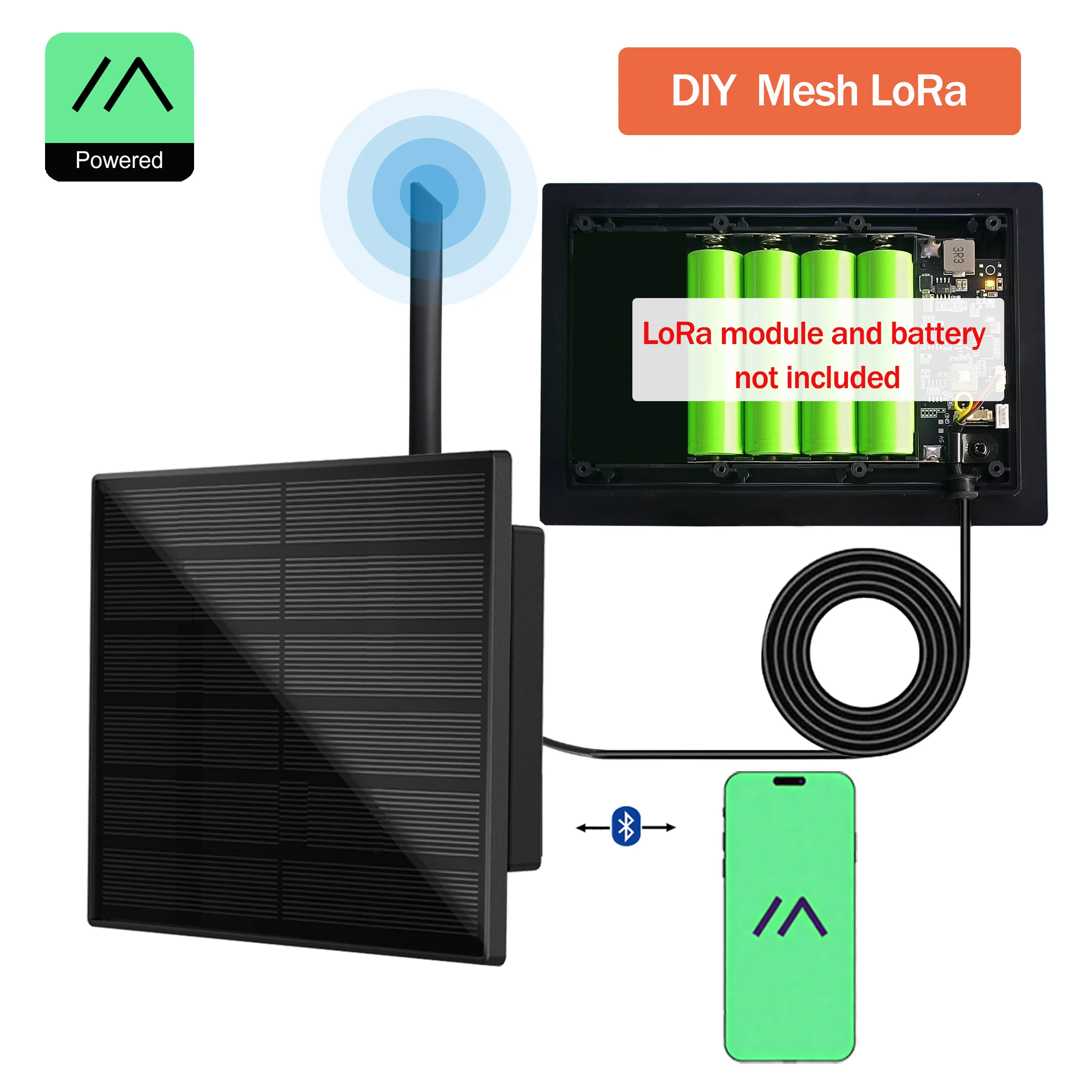

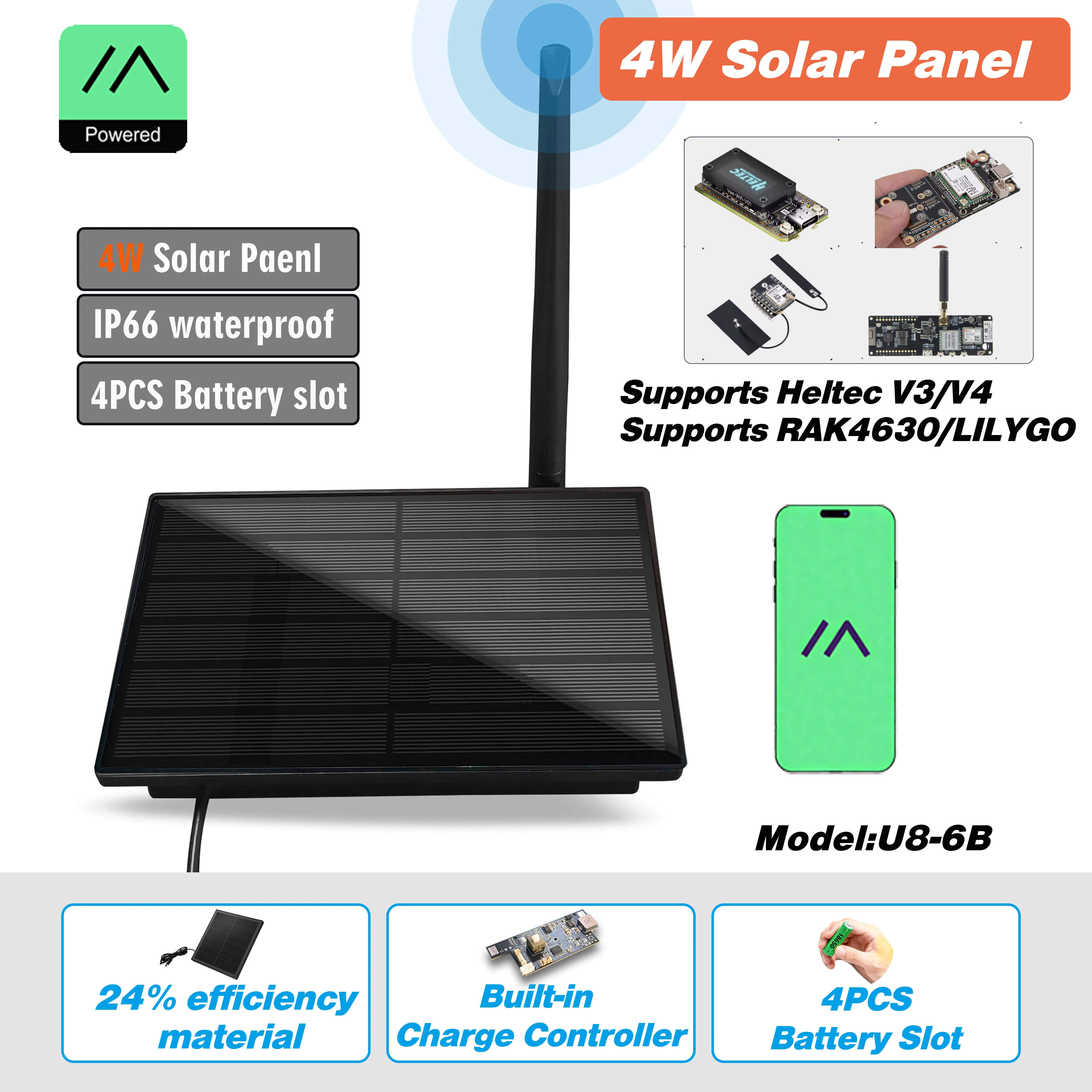

4W Solar Panel, DIY Kit. Build your own Mesh network. This product does not include the Mesh module or battery; you must purchase these separately.
NOTE:This link does not include batteries.
NOTE:This link does not include Mesh Module
NOTE

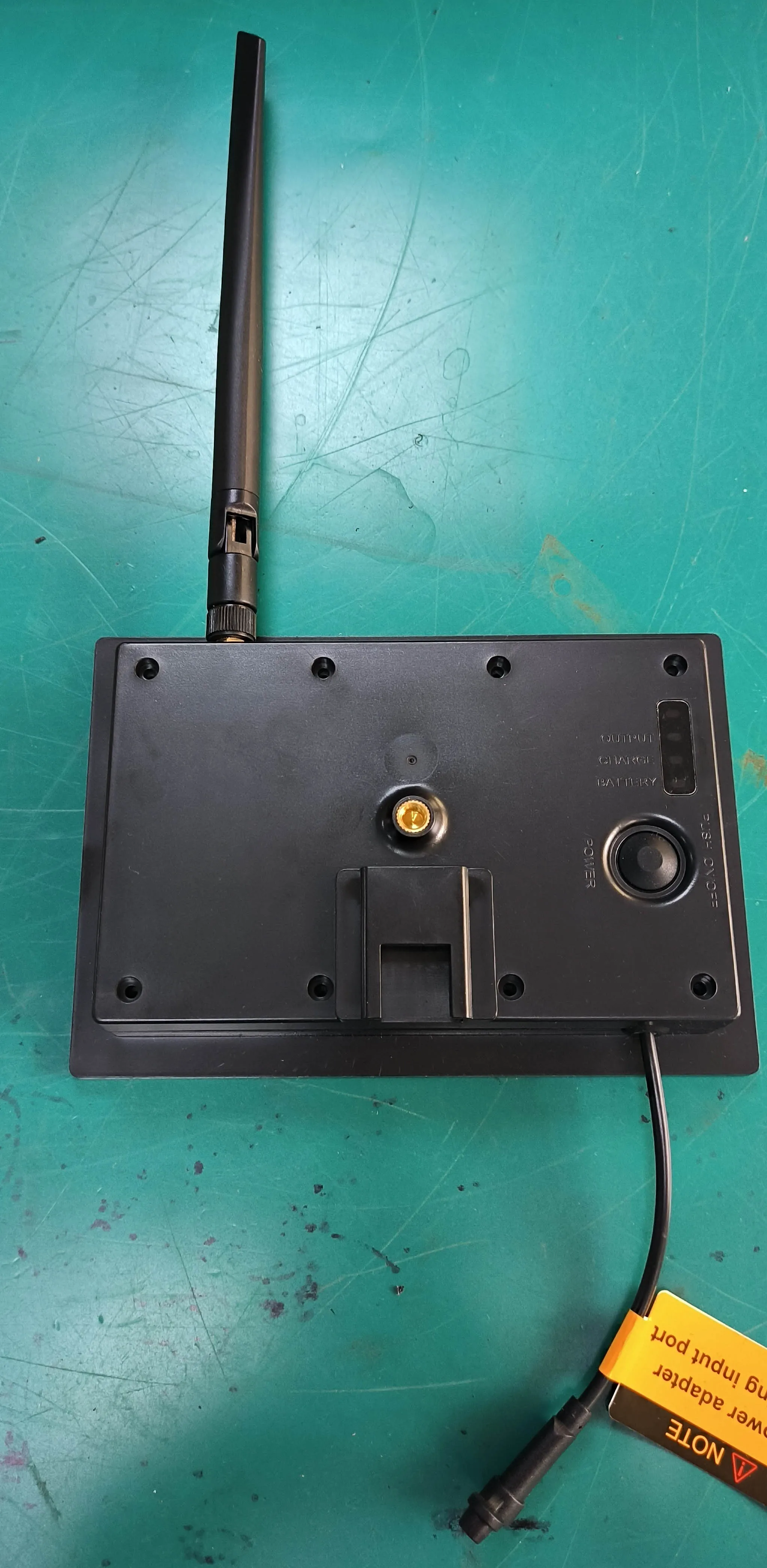

We have adjusted the position of the product's charging port, with everything else unchanged. You may receive different versions.
MOTE：This link is for DIY developers. The LoRa module is not included. You may purchase the corresponding LoRa module as needed. This product is intended for developers with DIY experience. Users without circuitry knowledge are advised against purchasing. Thank you.

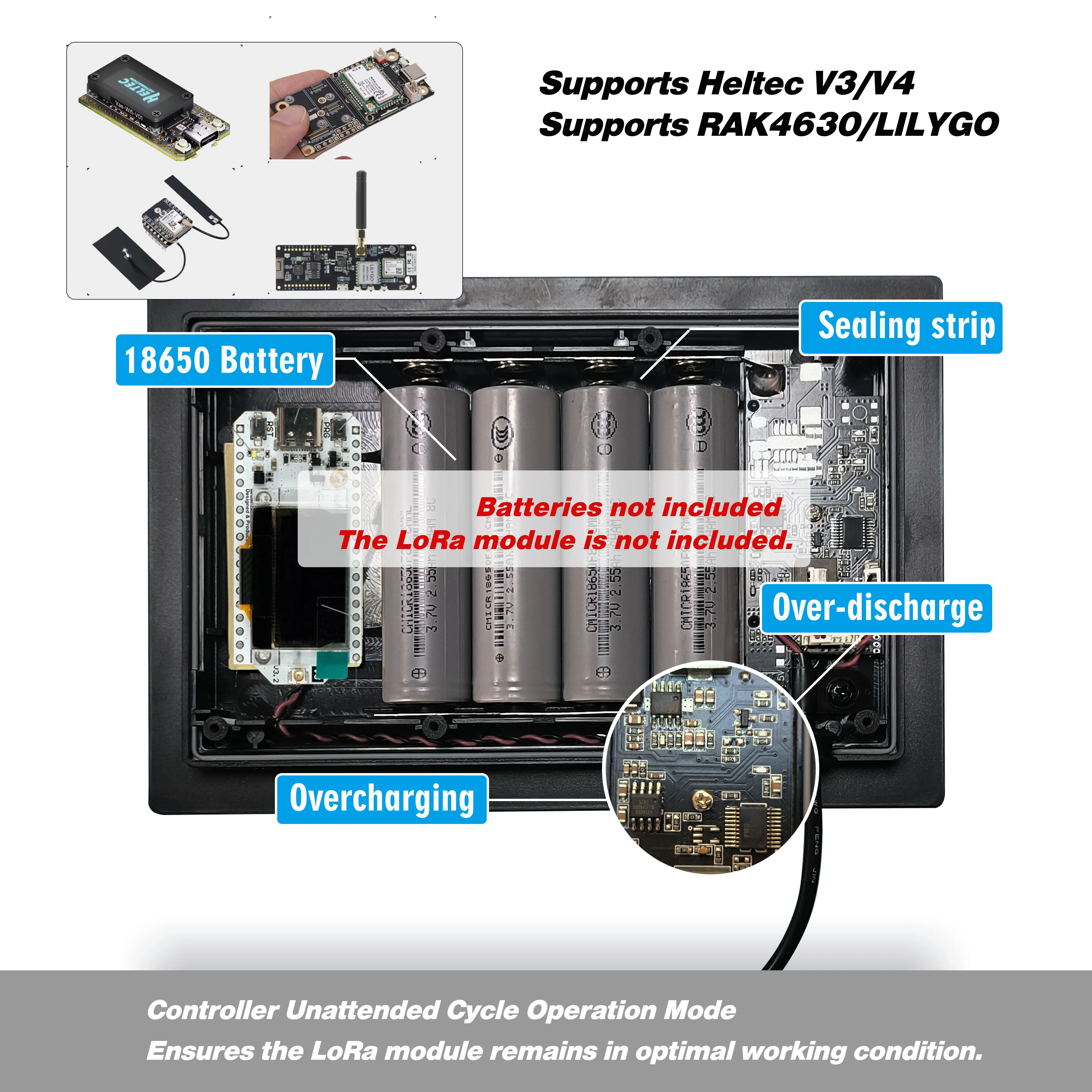

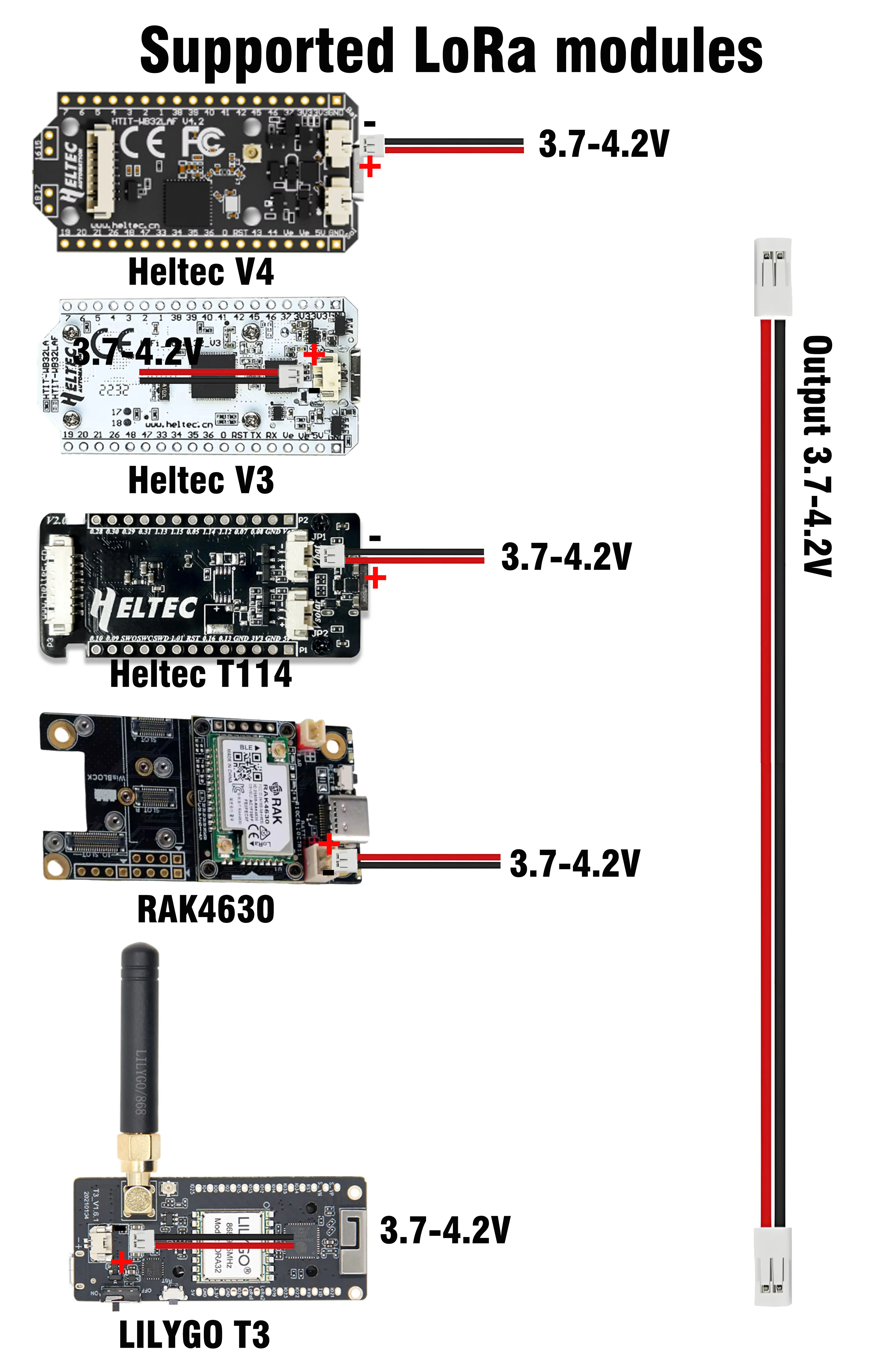

Connect the LoRa module.
When the panel output voltage is 3.7-4.2V, refer to the connection method for LoRa modules. Please note other LoRa modules, ensure the positive and negative poles of the power supply are correct, and adjust the positive and negative wires accordingly.
Option
Option 1: Output 3.7–4.2V voltage，868-923Mhz Antenna
Option 2: Output 5V voltage，868-923Mhz Antenna
IP66

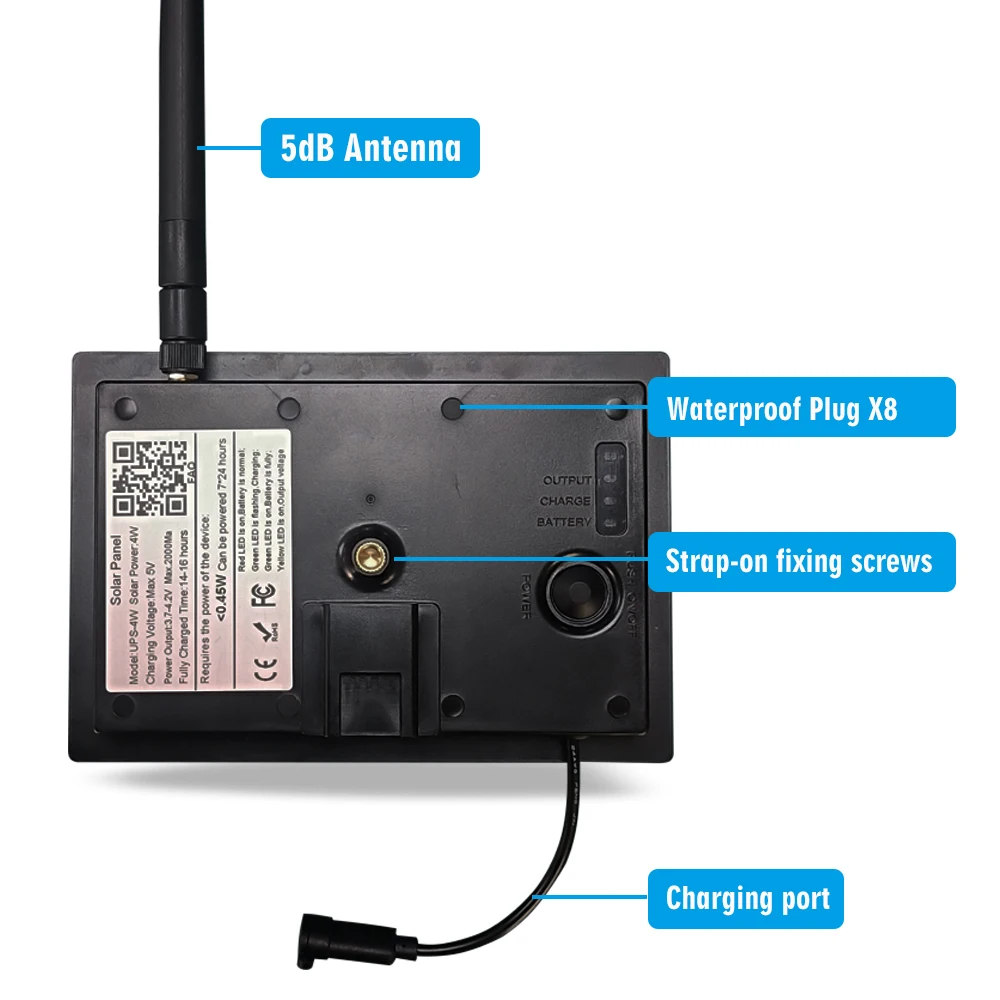

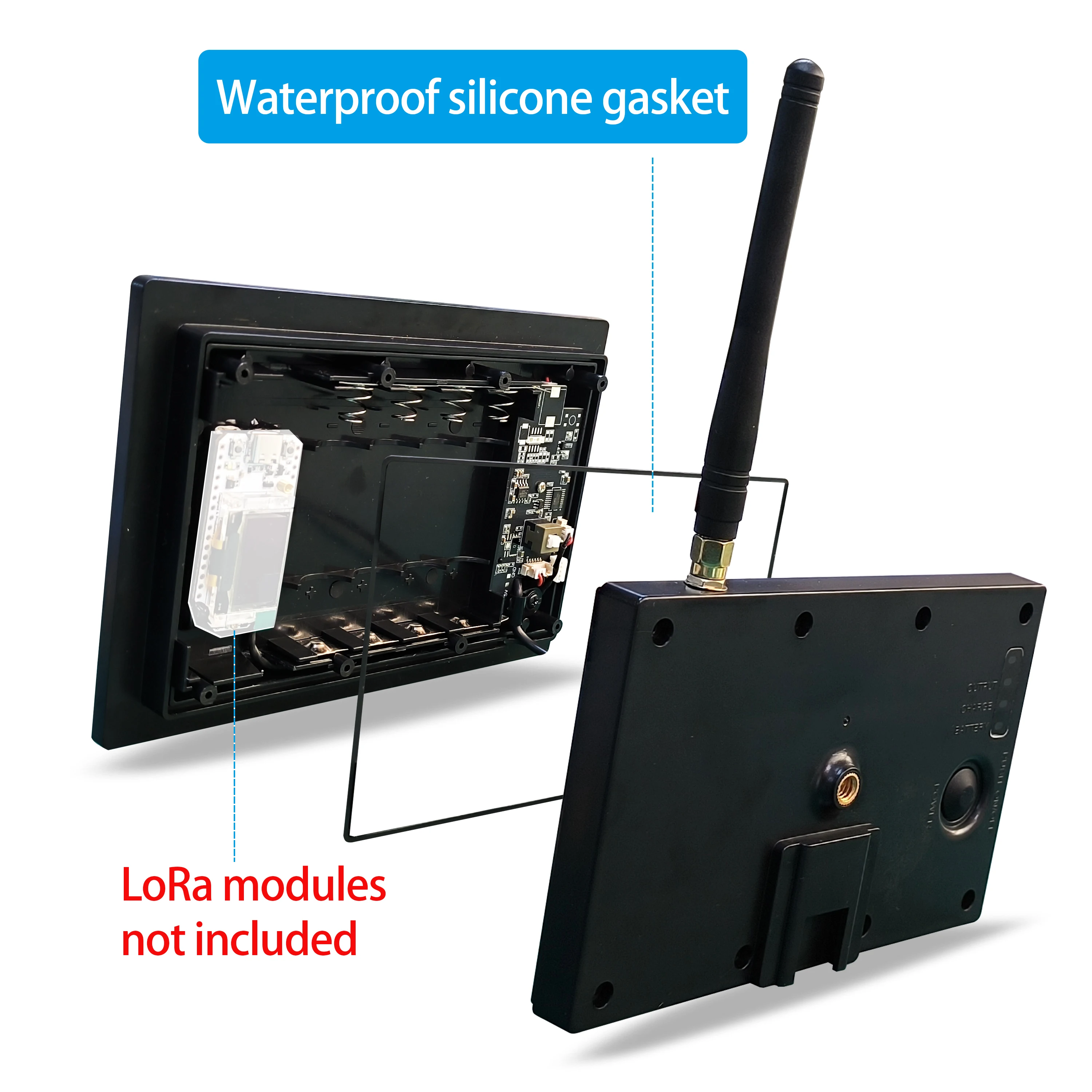

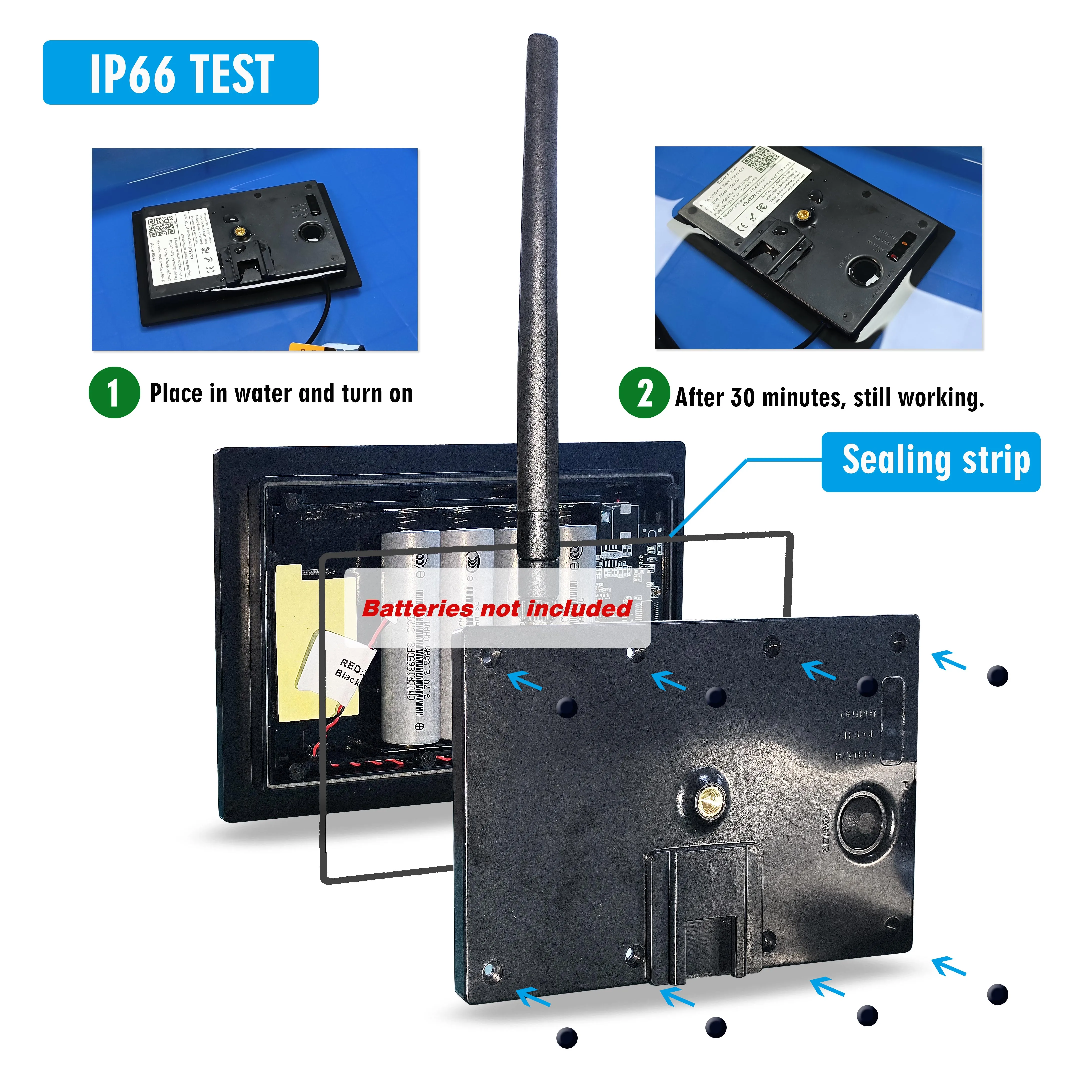

Note: After installing the battery, ensure the waterproof silicone gasket is properly seated—it is critical for sealing. Tighten the screws to apply a certain amount of pressure to the silicone gasket, ensuring its waterproof function. Meanwhile, use the screw waterproof silicone plugs from the accessory bag to seal all 8 screw holes.

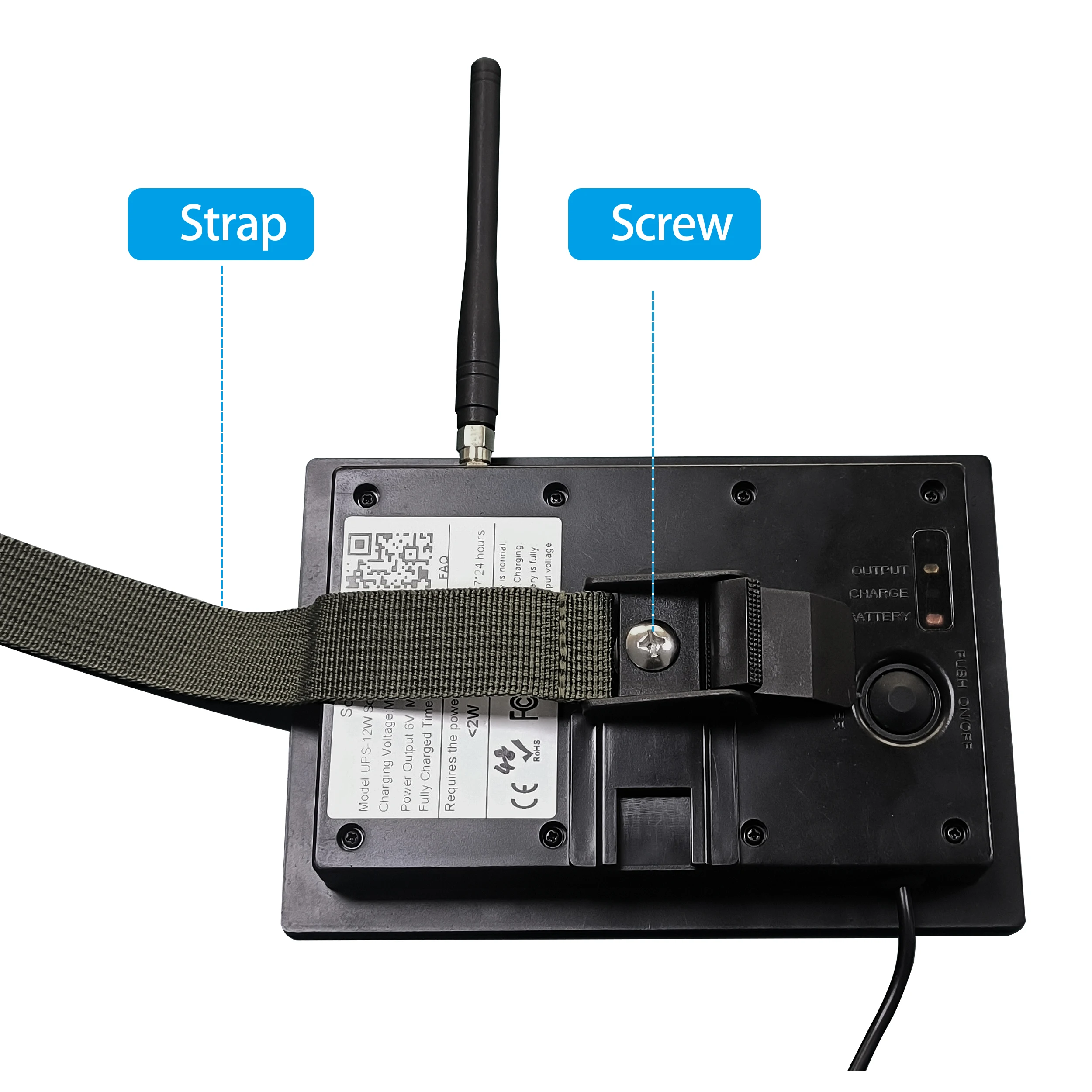

Strap attachment
Comes standard with a strap, which you can use to secure it to the solar panel with screws and attach the solar LoRa node to a tree.

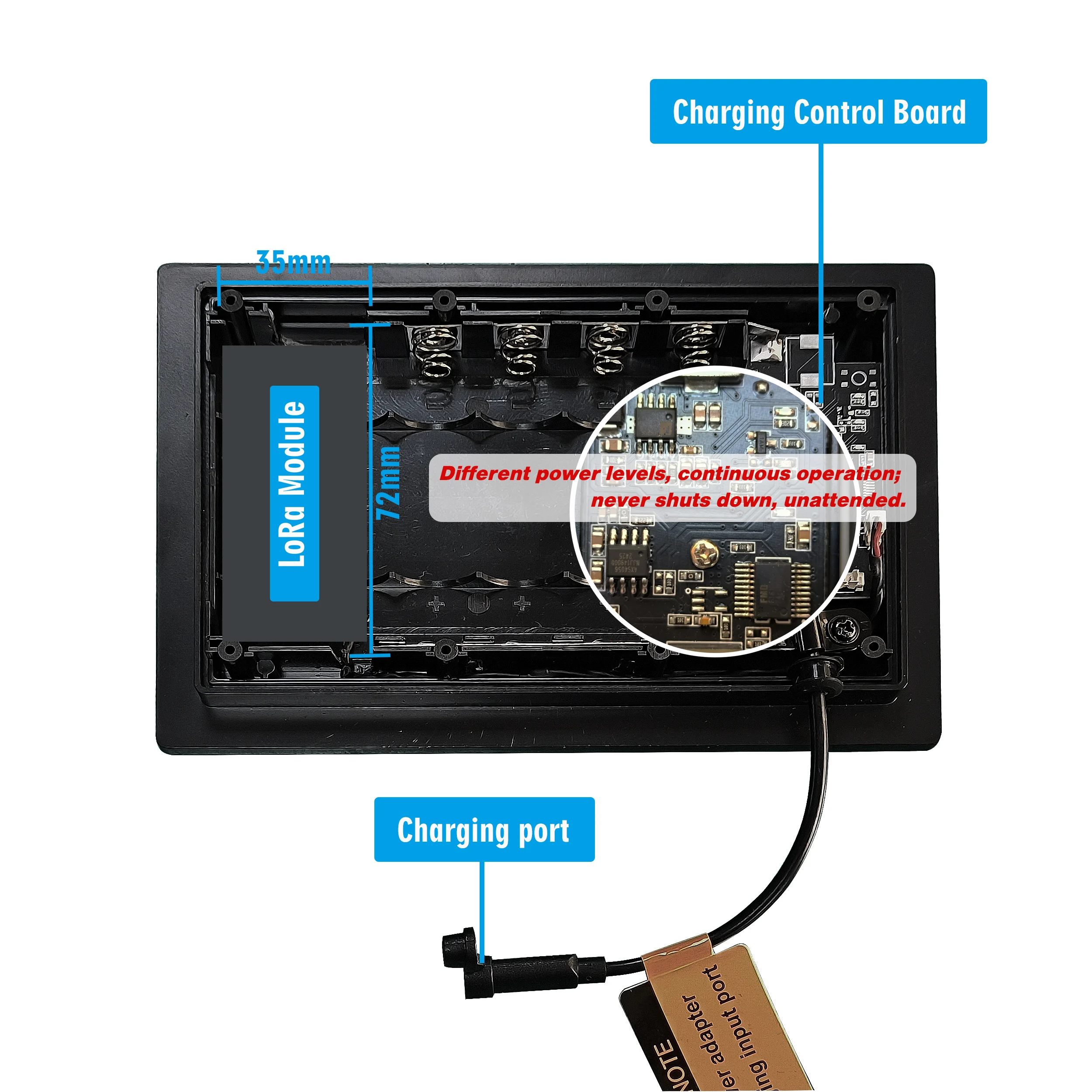

Size

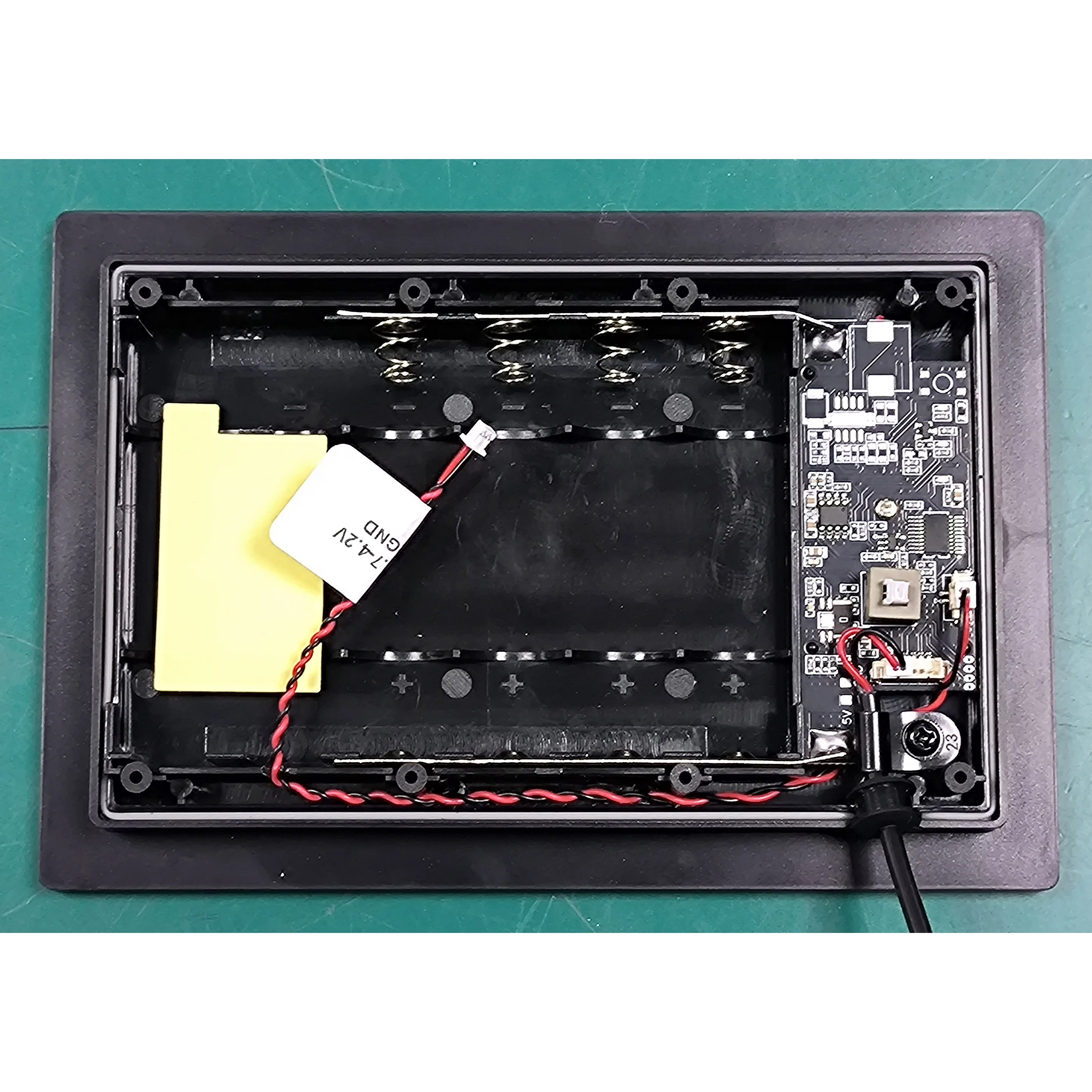

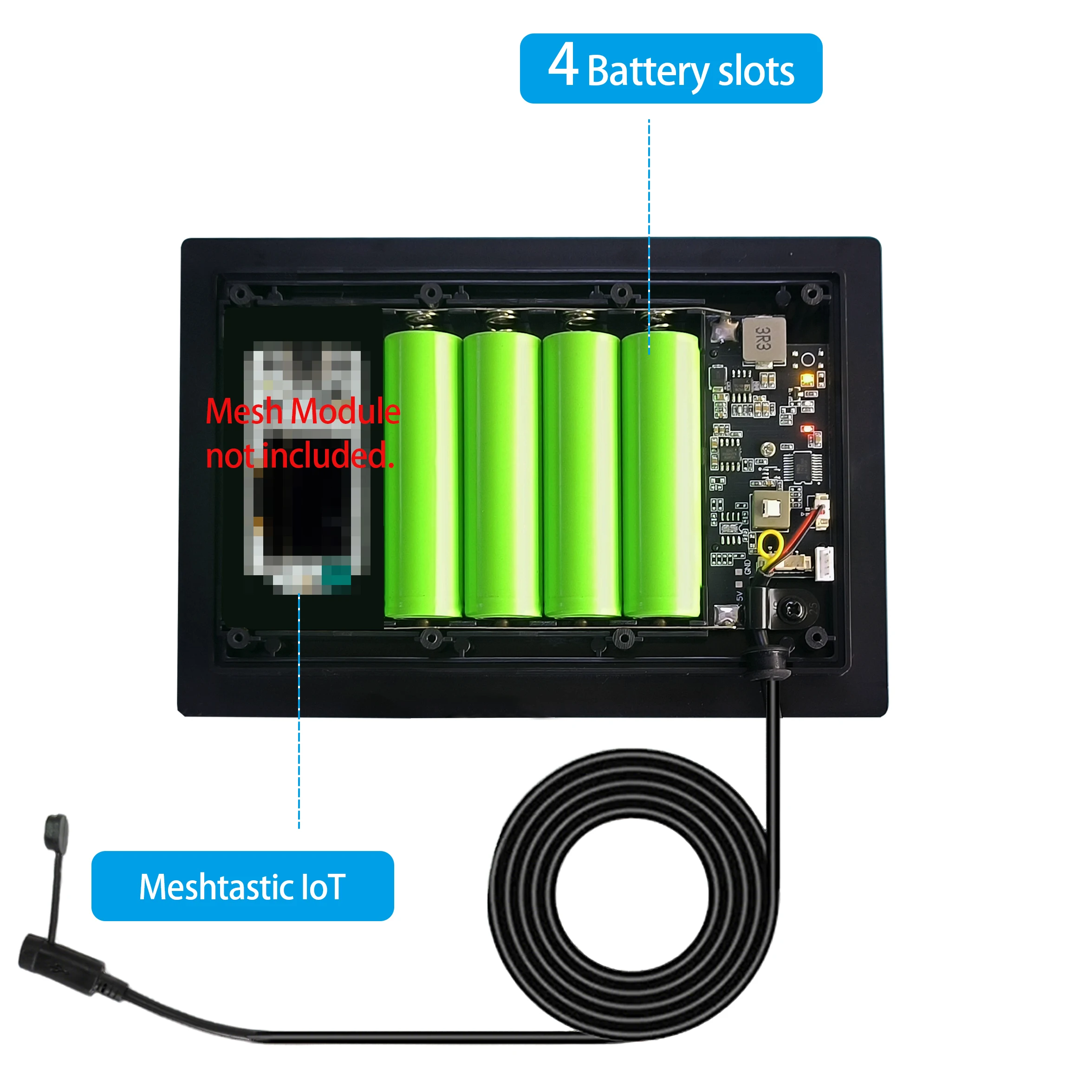

The solar-powered LoRa node can be installed with 4 18650 batteries, which need to be purchased by the user themselves.

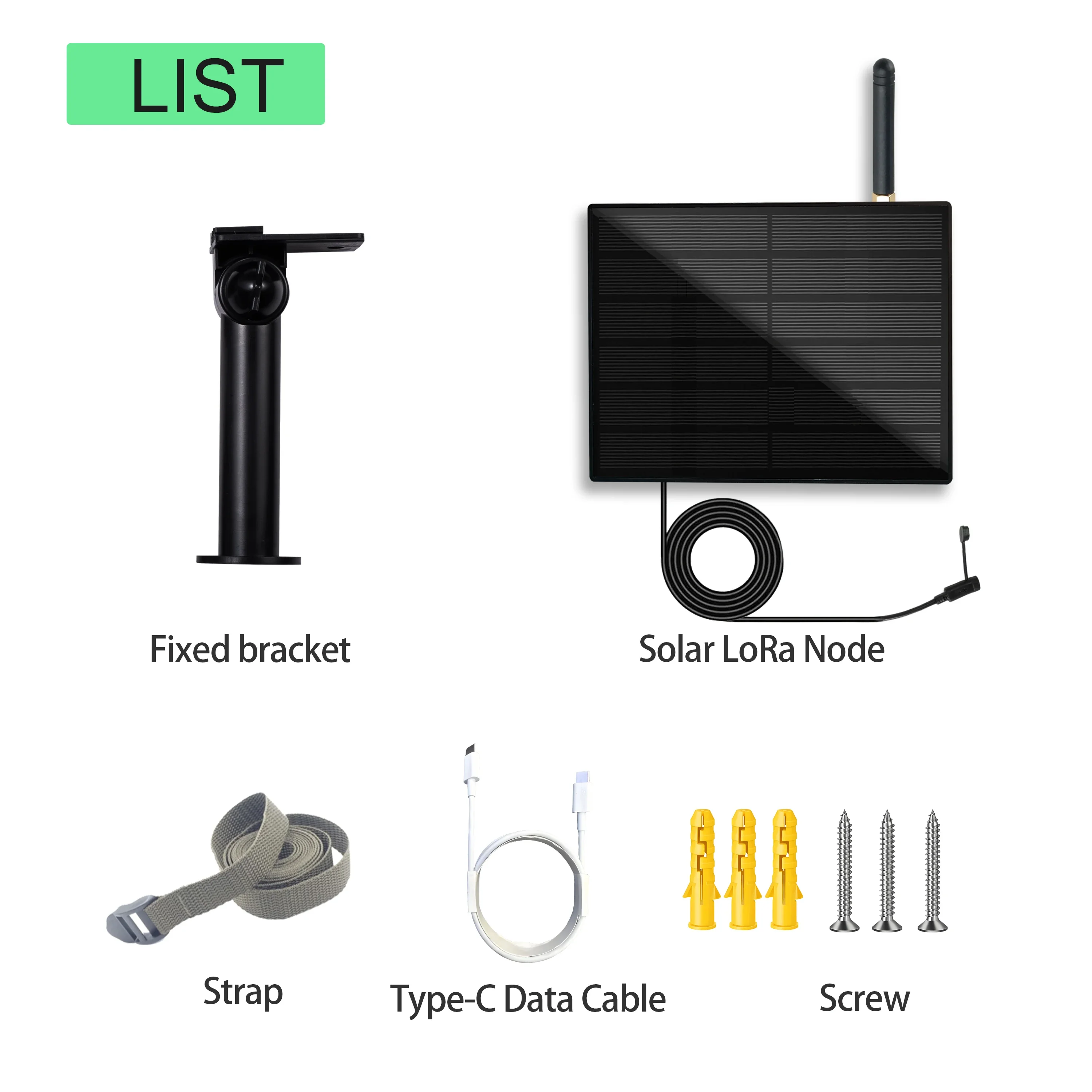

List:
Solar Panel 1PCS
5DB antenna 1PCS
Fixed bracket 1PCS
Fixed strap 1PCS
Fixed screws 1 pack
