1.NOTE:
Due to page limitations, some configurations may not be listed. If you have special requirements, please feel free to contact us.

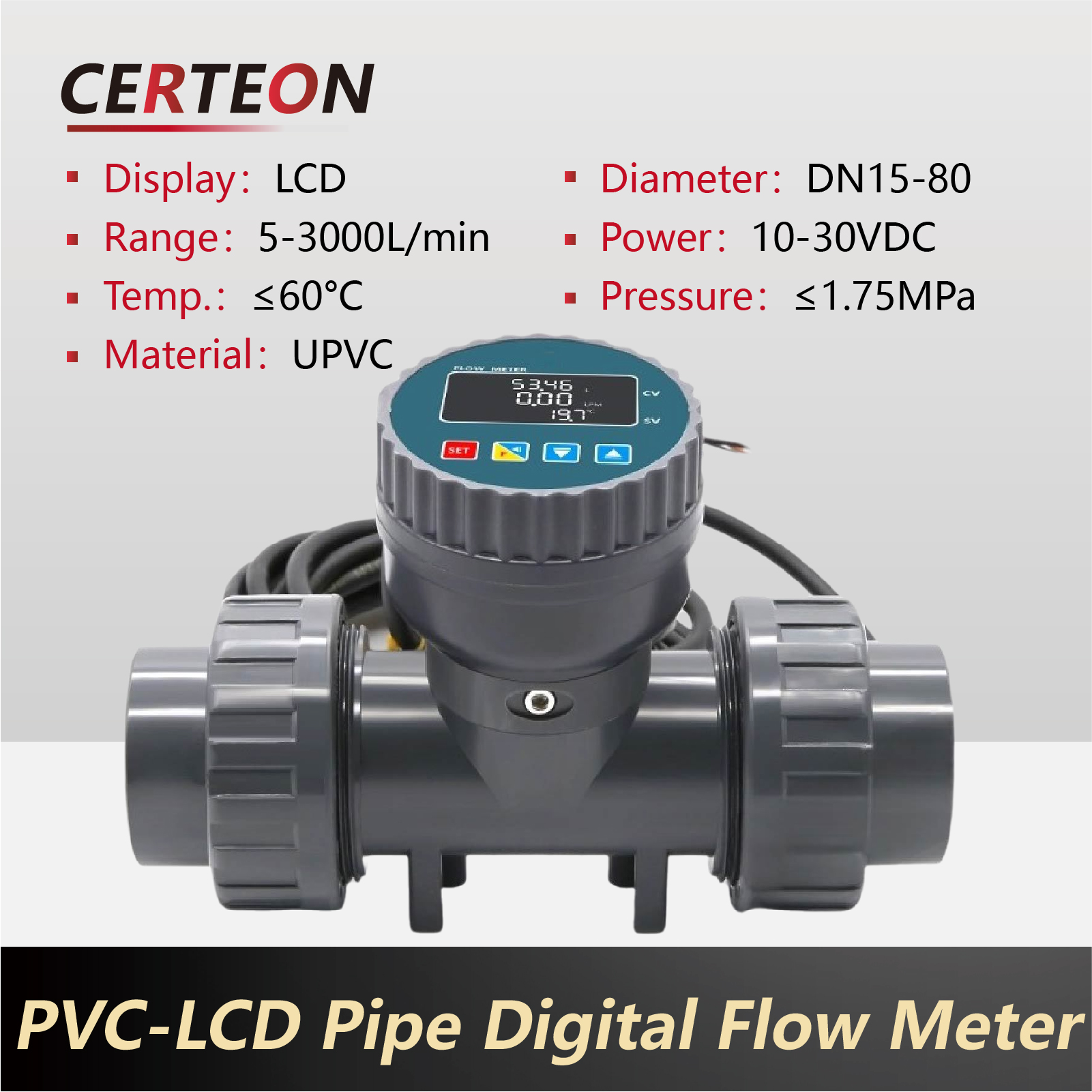

This product is a PVC-LCD digital flow meter suitable for pipe sizes DN15–80. The display screen is not waterproof; please take appropriate dustproof and waterproof measures. Outdoor use is not recommended.
Default configurations include:
Display / Non-display options available (OPT)
Power Supply: 10~30VDC
Temperature Resistance: -10°C to 70°C
Pressure Resistance: 5kg/cm²
Output Mode:
– Non-display type: NPN output
– Display type: RS-485 output
Measurement Accuracy: ±5%
Applicable Liquids: Water and other chemical solutions
Durability: Acid and alkali resistant, corrosion resistant, long lifespan, clog-free design
To ensure optimal performance, please maintain the flow rate within the product's specified range. If the flow rate is too low, it may result in no signal output. Full-pipe liquid flow is recommended.
If you have customization needs or any special requirements, please don’t hesitate to contact us.
If the online shipping cost appears high, especially for bulk purchases or large-sized items, we can provide more cost-effective shipping options and routes. Please contact us for detailed arrangements.
2.Parameters
|
Parameter |
Description |
|
Working Voltage |
10~30VDC |
|
Working Current |
60mA Max (30VDC) |
|
Measurable Liquids |
Water or chemical liquids |
|
Working Pressure |
5kg/cm² |
|
Response Time |
Real-time |
|
Protection Level |
IP65 |
|
Operating Temperature |
-10°C~70°C |
|
Instantaneous Flow Range (LPM) |
0~999.99 |
|
Total Flow Range (FTM) |
0~999999 |
|
Instant Flow Output Mode |
NPN (150mA Max) |
|
Total Flow Output Mode |
NPN (150mA Max) |
3.Features
High Accuracy (±5%) – Ensures precise flow measurement.
Customizable K-Value – Adjustable flow coefficient for different applications.
Multiple Units Selection – Choose from liters, gallons, or kiloliters for total and pulse output.
Alarm Settings – Configurable open/close status and delay for instant flow alarms.
RS-485 Communication – Enables remote monitoring and control.
Durable Material – Made from UPVC, resistant to acid, alkali, and corrosion.
4.Applications
Water Purification – Ensures accurate flow control in filtration systems.
Electroplating Cleaning – Suitable for chemical flow monitoring in cleaning processes.
Single Crystal Silicon Cleaning – Reliable for sensitive semiconductor cleaning applications.
Ultrafiltration and Reverse Osmosis – Ideal for use in advanced filtration systems.
5.FAQs
Q1:Is the display waterproof?
A1:No, the display is not waterproof. Ensure adequate dust and moisture protection.
Q2:Can it be used outdoors?
A2:It is not recommended for outdoor use due to the lack of waterproof protection.
Q3:What pipe sizes are compatible?
A3:Compatible with DN15 to DN80 PVC pipes. Ensure correct inner and outer diameters.
