The materials include: video tutorials, technical support documents, user manuals, test tools, hardware information, precautions, etc.
If you need Bluetooth beacon SDK, please contact our after-sales team.
Download address:
DX-Beacon: //drive.google.com/drive/folders/1Qoe_rvZoEFSeUGjo5tLhFK8WD_Ok01GY?usp=drive_link
Search for the model you need, you can check the model purchased in your order or consult after-sales staff to check the model you purchased.
If you are unable to download, please contact our after-sales team: Manager@szdx-smart.com, we will respond to your question within 24 hours.
DX-CP28 Proximity Navigation Beacon is one of your best choices for indoor navigation, push notification, and location tracking solutions.
The DX-SMART CP28 is a new generation beacon that loaded Bluetooth 5.1. CP28 has a smart rotatable mechanical design for the housing that makes the coin battery replaceable grade combination perfectly. Moreover, E9 can be 3M adhesive.
CP28 has a broadcast distance reaching up to 120 meters.
You can easily achieve a complete planning view from start to finish in exhibitions, museums, libraries, commercial complexes, and more with accurate and real-time directions.
CP28 advertises standard iBeacon and Eddystone (UID,URL,TLM) data packet simultaneously. The user can configure the DX-SMART IBeacon via configuration app DX-SMART+ as well.
Tech. support:
Demo APP and SDK are provided for developers.

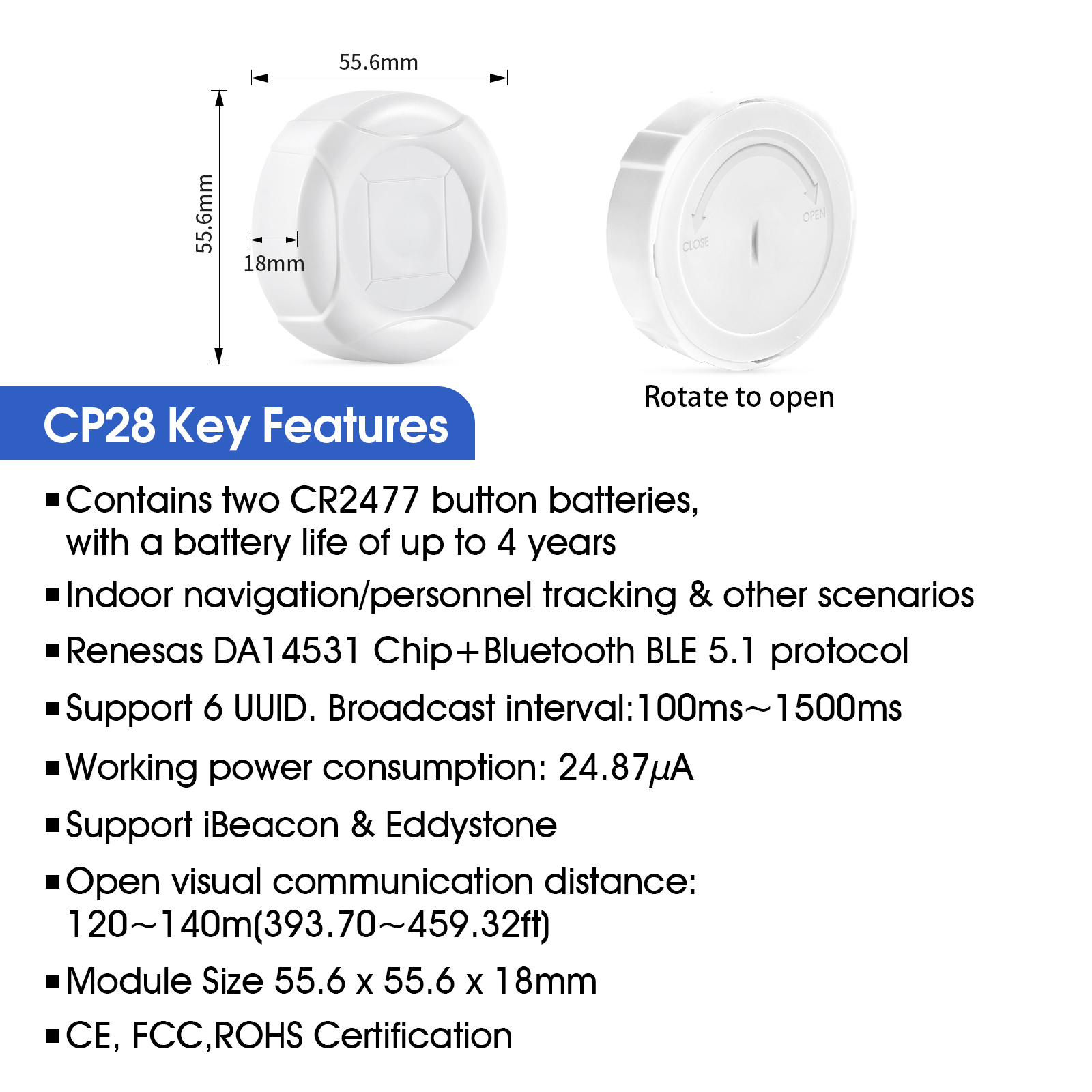

Features
* FCC/IC/CE/TELEC/KC certifications
* Locator-Shape Bluetooth Beacon with design patent
* Diolog 14531 Bluetooth BLE 5.1
* Pre-programmed with DX-SMART standard beacon firmware
* Customize 6 message push notifications

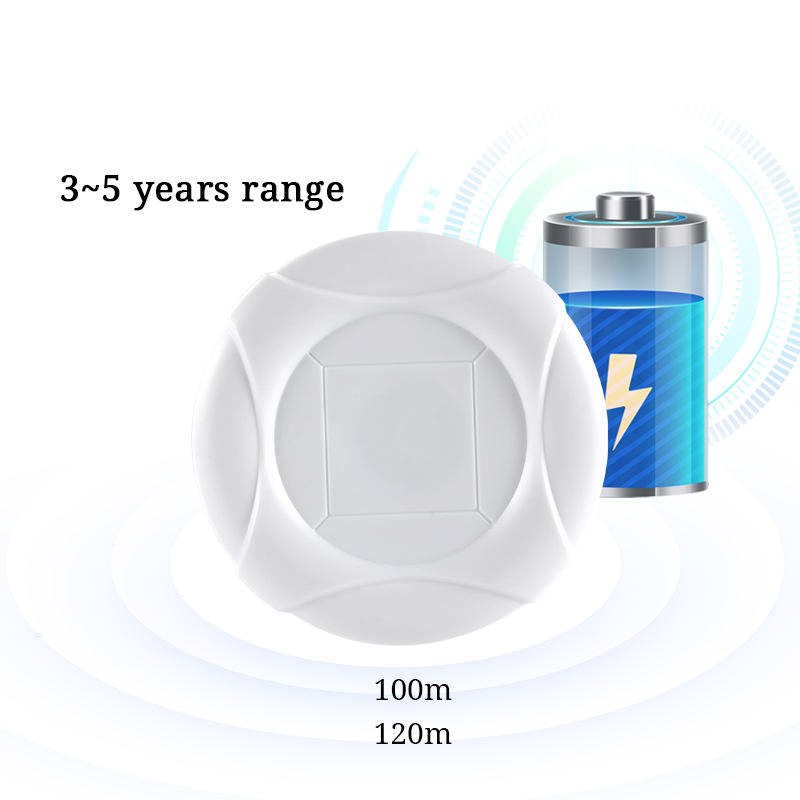

* Low power BLE, with a range of up to 5 years
* Battery can be Replaced when it is Exhausted
* Configurable by free DX-SMART mobile App and SDK
* Customizable color, logo, hardware and software
What is Beacon?
The DX-CP28 Bluetooth beacon is a low-power Bluetooth product developed by Shenzhen Daxia Longque Technology Co., Ltd. It is dedicated to asset management, indoor positioning, and advertising push.
It follows the Bluetooth BLE 5.1 specification and supports both iBeacon and Eddystone protocols. With a circular design and a PC material shell, it is small and exquisite, assembled by a rotating buckle for easy battery replacement, thus extending battery life. SDK and technical services are available, and it can be OEM or ODM according to customer requirements.
Application Scenarios
:
|
Functional Specifications |
||
|
Item |
Description |
|
|
Advertising Format |
GATT,iBeacon, Eddystone |
|
|
Configuring Method |
DX-SMART Beacon SDK compiled app (e.g.DX-SMARTBeacon app) |
|
|
Advertising Interval |
Range from 100 ms to 1000 ms |
|
|
Max Number of Broadcast |
6 Slots configurable advertising frames |
|
|
Default Broadcast Interval |
iOS 7.0+, Android 4.3+ |
|
|
Advertising Distance |
Up to 112.2m |
|
|
Firmware Upgrading |
OTA (upgrade firmware over the air) |
|
|
Product Specifications |
||
|
Item |
Description |
|
|
Chipset |
DA14531 |
|
|
Bluetooth Version |
Bluetooth 5.1(BLE) |
|
|
TX Power |
-19.5 dBm to +2.5 dBm |
|
|
Antenna |
PCB Onboard antenna |
|
|
Power Supply |
CR2477 button battery (replaceable) |
|
|
Battery Lifre |
4 Years(Battery capacity=880mAh*2) |
|
|
Material |
ABS plastic |
|
|
Color |
White |
|
|
Size |
61(L)mm * 61(W)mm * (H)18mm |
|
|
Operating temperature |
-40℃ to +85℃ |
|
|
Power-off state |
1.6ua |
|
|
Operating state |
24.87ua |
|
