EASYGUARD CAN BUS PKE Car Alarm System Fit for 10-15 Benz Viano/10-15 Vito/09-16 Sprinter with Standard Key Start Remote Start

Dear customer:

Please read carefully before you place the order to ensure that you buy the correct model for your car.

This product only work with the car models as below:

Important notes before buying:

1. Please kindly let us know the following info before buying, then we can prepare and ship it asap

1) For what car model and year?

2) Does your car is with turn key to start or not?

2. Need to remove the ignition cylinder and solder ignition lock & original car key, and for some selected car models you need to change your car ignition cylinder, please contact us to confirm.

3. Require 1pc factory original key fobs to put in the ignition cylinder to deal with the factory chip immobilizer.

4. This item requires to install by a professional or trained car alarm installer only!

5. Our price doesn’t include VAT & tax, you need to pay yourself if there is

6.  Product images are for reference only. The main wiring harness and program may differ between different car models and years. Therefore, please select the correct car model and year when purchasing and contact us for further confirmation. Otherwise, purchasing the wrong product will result in a loss of time and money. Please be aware of this.

How to choose you version?

Option 1: 4G LTE GPS002 only

GPS module can't work alone, need to work with EC002PP car alarm together

Option 2: EC002PP-B-BE2-only

Option 3: EC002PP-B-BE2+GPS002 only

if you choose options with 4g lte GPS module with smartphone app control

please kindly let us know the country you live & the sim card operator and its APN, then we can preset APN of GPS module for you

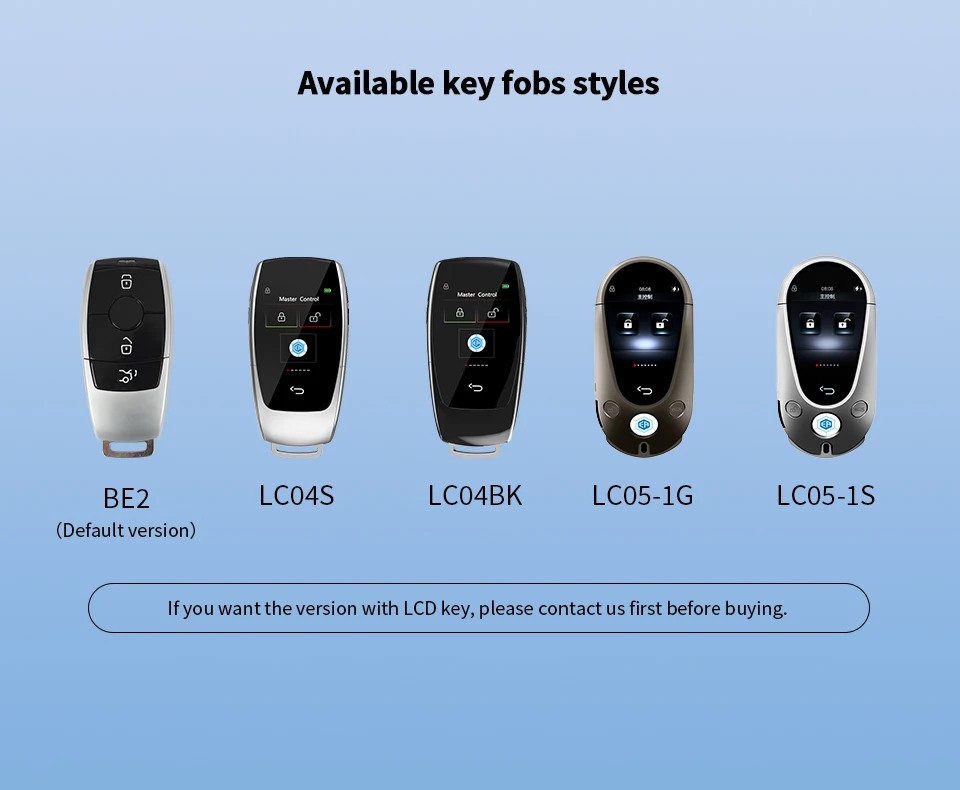

Option 4: EC002PP-B-BE2 with 1 lcd key

you may contact our seller and select the key fob style you prefer

Main features:

1. Push button start/stop

2. PKE-passive keyless entry

3. Manual arm/lock

4. Manual disarm/unlock

5. Mute alarm/audible alarm

6. Remote trunk release

7. Panic mode/car finding

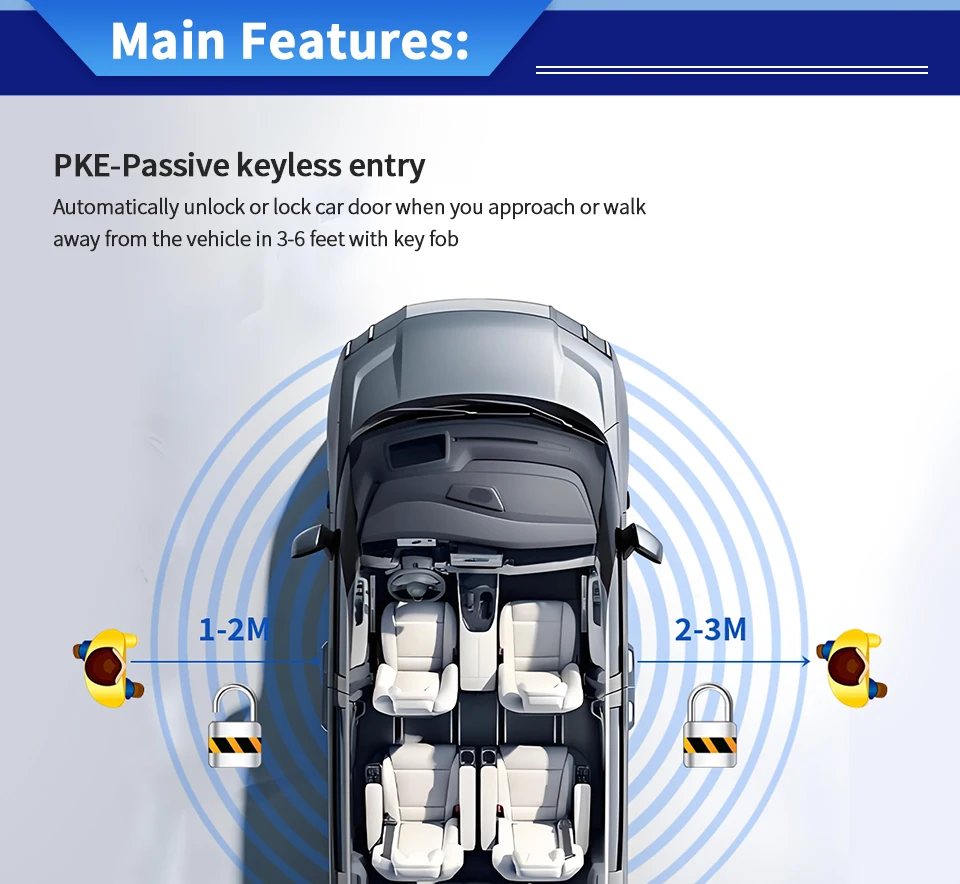

8. PKE on/off setting

9. Remote engine start/stop

12.Alarm trigger by illegal door opening

13.Central door locking automation

14.Intelligent power off in arm status

15. Door not well closed reminder

16.Alarm reminder

17.Door opening while driving warning

18.Power saving & car battery low power protection

19.Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)

20.Remote open the window (optional, only some car models are supporting this feature)

21.Programming method

Common use function

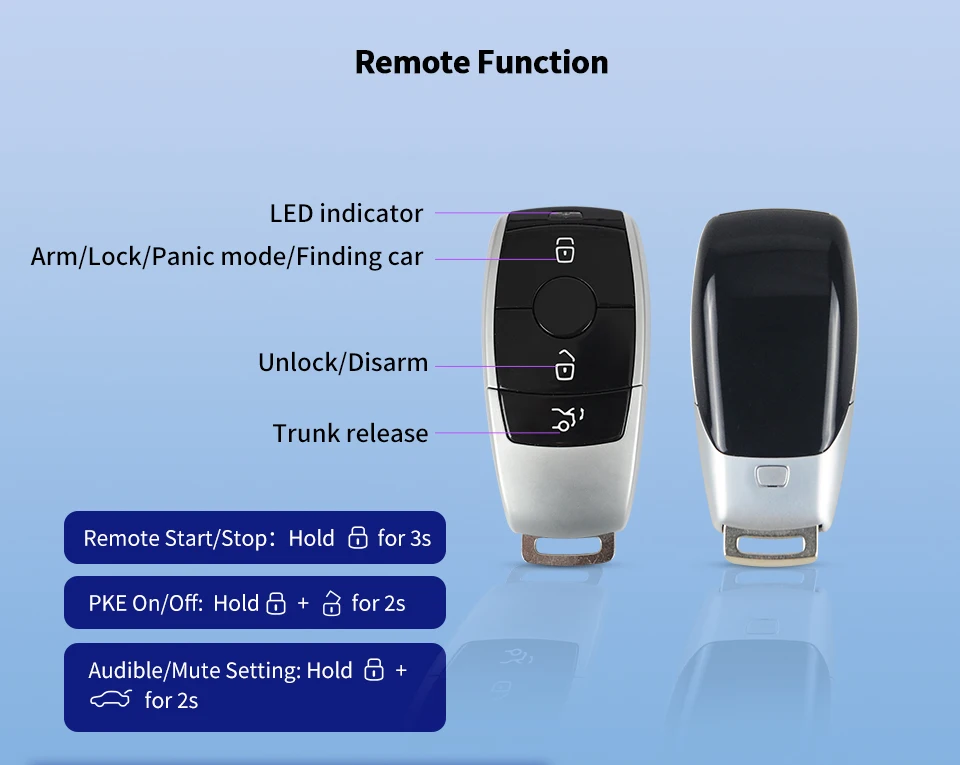

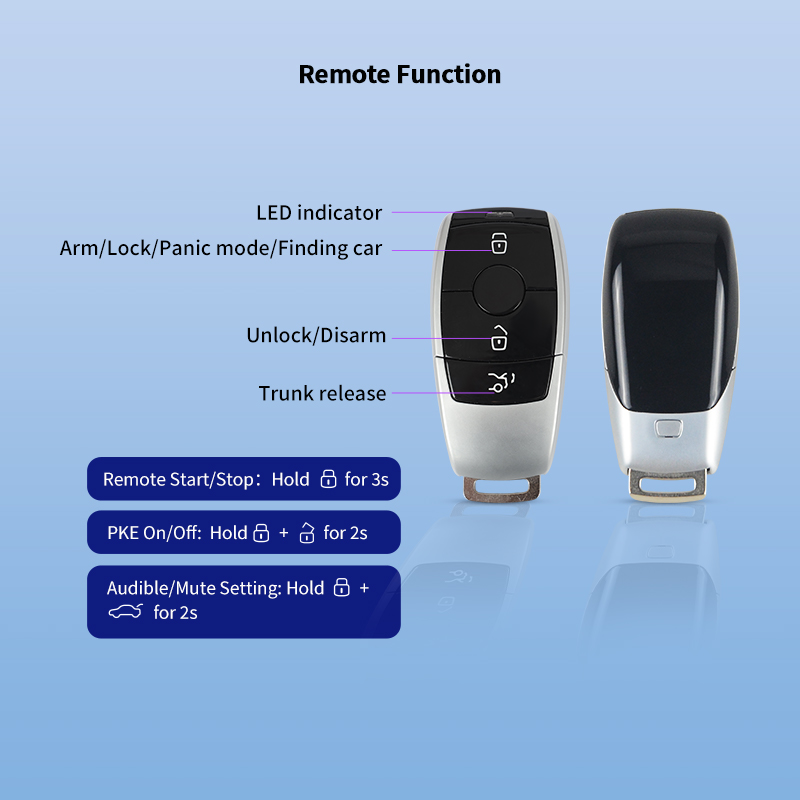

1. Lock: press the lock button once

2. Unlock: press the unlock button once

3. Trunk: keep pressing the trunk button to release the trunk

4. Finding car/Panic mode: press the finding car button (lock button) once

5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)

6. To enable or disable PKE feature(PKE ON/OFF setting)

In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.

7. Mute alarm & audible alarm

In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode

8. Remote engine start:

In lock status, ensure all the doors are closed well, keep pressing the lock button for about 2s will remote start the car

9. Remote engine stop:

After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car

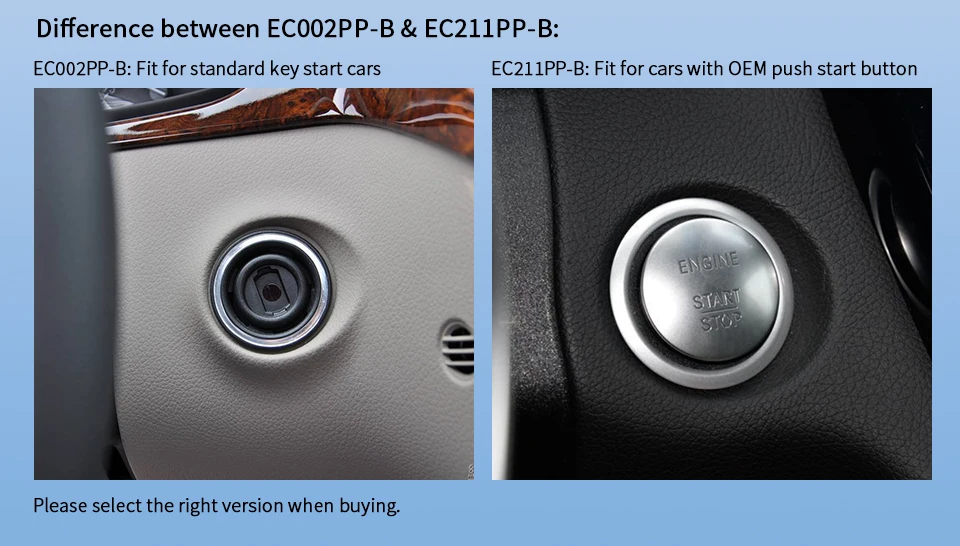

What is the difference between EC002PP & EC211PP

EC002PP: upgrade key start cars to push start button

EC211PP: will compatible with the car with oem push start buttonThis is for reference only, please install it by actual received instructions.This is for reference only, please install it by
actual received instructions.

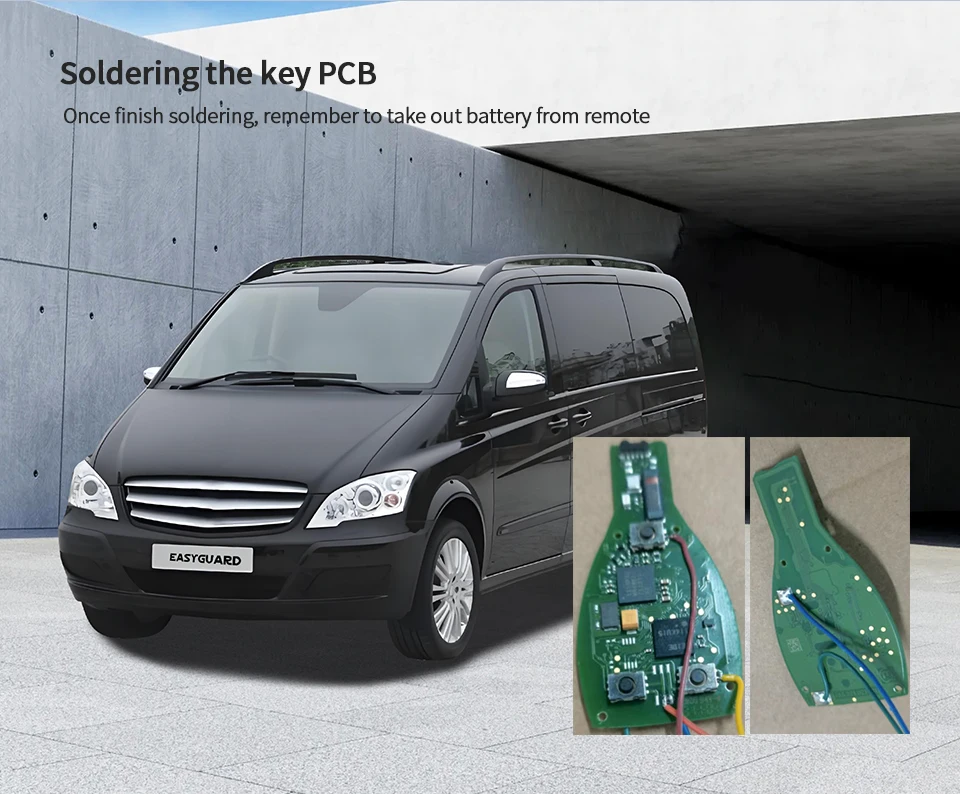

Soldering the ignition cylinder PCB

Method:

Step1: take out the car ignition cylinder

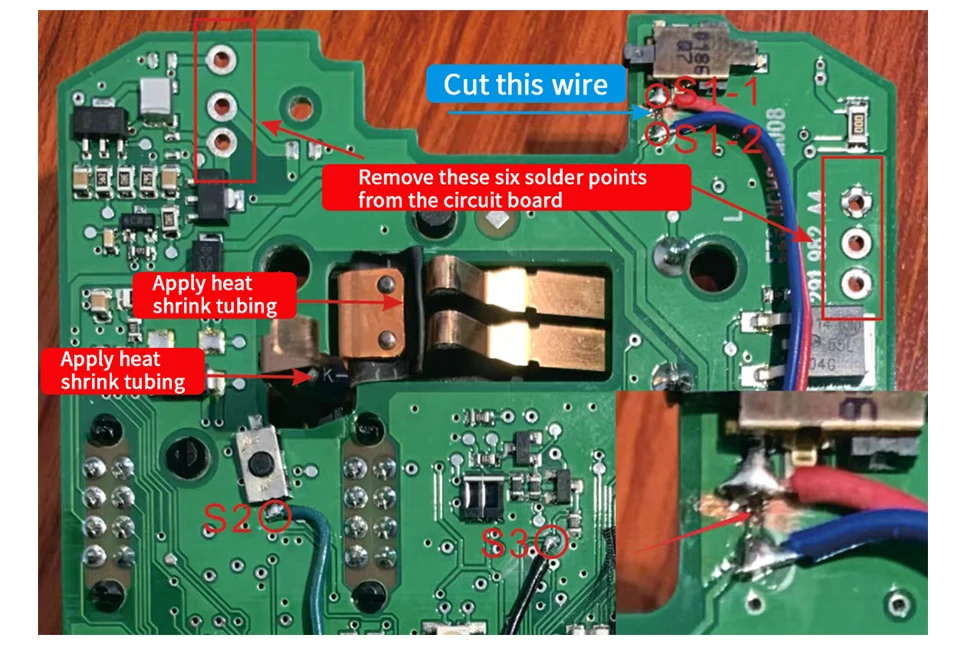

Step 2: Soldering the 4 slim wires of 4pin white plug
(blue S1-1 & S1-2, purple S2, green S3) as below photo shows:

Remember
to apply heat shrink tubing on shown positionDisassembled the car factory key and put the PCB, then solder the PCB with the bypass wires.

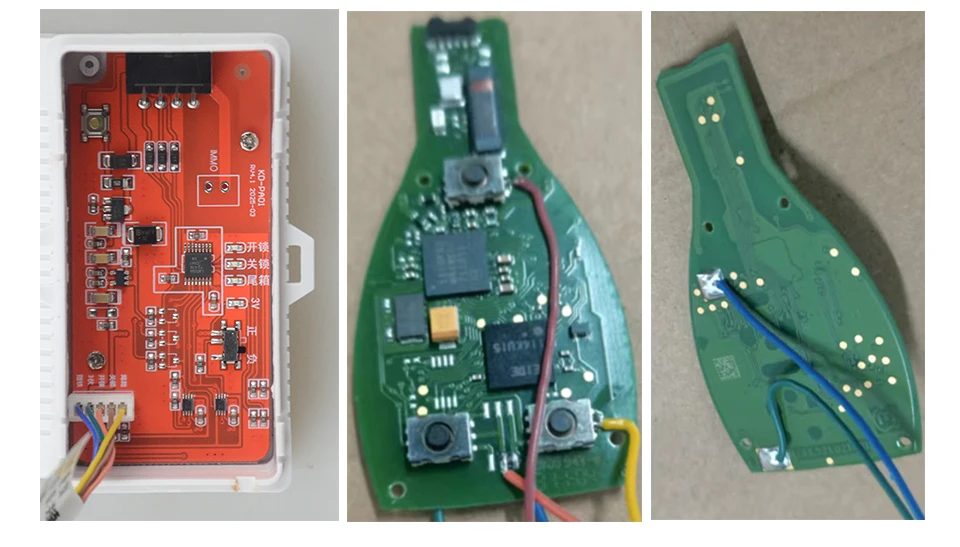

       Wires on the bypass module:

•       Blue: Chassis ground (GND)

•       Green: 3V

•       Brown: lock

•       Orange: Unlock

•       Yellow: Truck

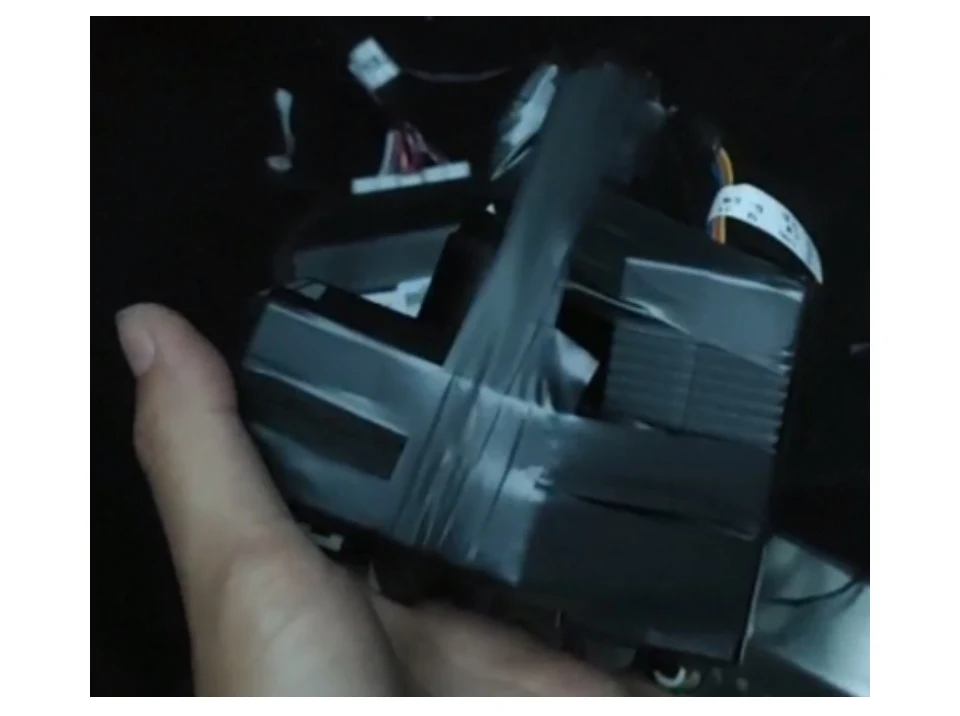

     When soldering the PCB, please solder the blue and green wire first, then test if all function works well or not. If working, there was no need       to solder other wires. If not working, solder the rest of the wires on the bypass module.After installation remember to take out the car factory battery from car factory key’s PCB. And after soldering the PCB, assemble it back into its original key shell. Then insert the entire key into the car ignition lock cylinder without turning it; finally, secure the key, lock cylinder, and bypass module together with tape, as below:
