Dear customer:
Please read carefully before you place the order to ensure that you buy the correct model for your car.
This product only work with the car models as below:
|

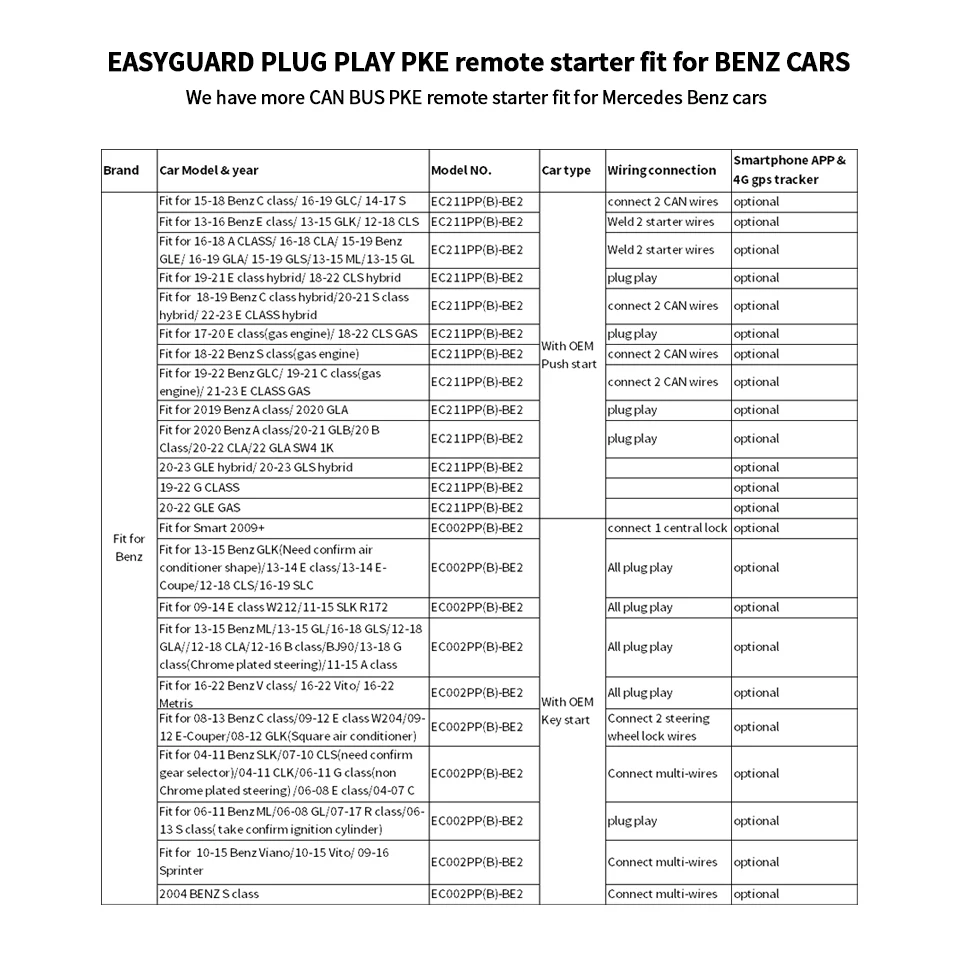

06-11 Benz ML W164 |
EC002PP-B |
|
06-08 GL X164 |
|
|
07-17 R class W251 |
|
|
06-13 S class W221 |
Important notes before buying:
1. Please kindly let us know the following info before buying, then we can prepare and ship it asap
1) For what car model and year?
2) Does your car is with turn key to start?

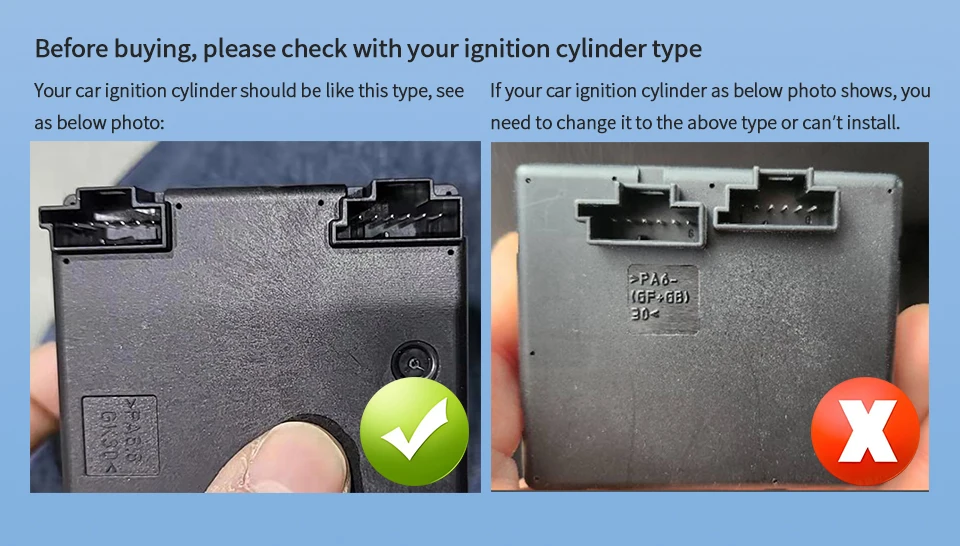

3) Please send us a photo of your car’s ignition lock type to check
2. Need to remove the ignition cylinder and solder ignition lock & original car key, and for some selected car models you need to change your car ignition cylinder, please contact us to confirm.
3. Require 1pc factory original key fobs to put in the ignition cylinder to deal with the factory chip immobilizer.
4. This item requires to install by a professional or trained car alarm installer only!
5. Our price doesn’t include VAT & tax, you need to pay yourself if there is
6. Product images are for reference only. The main wiring harness and program may differ between different car models and years. Therefore, please select the correct car model and year when purchasing and contact us for further confirmation. Otherwise, purchasing the wrong product will result in a loss of time and money. Please be aware of this.
How to choose you version?

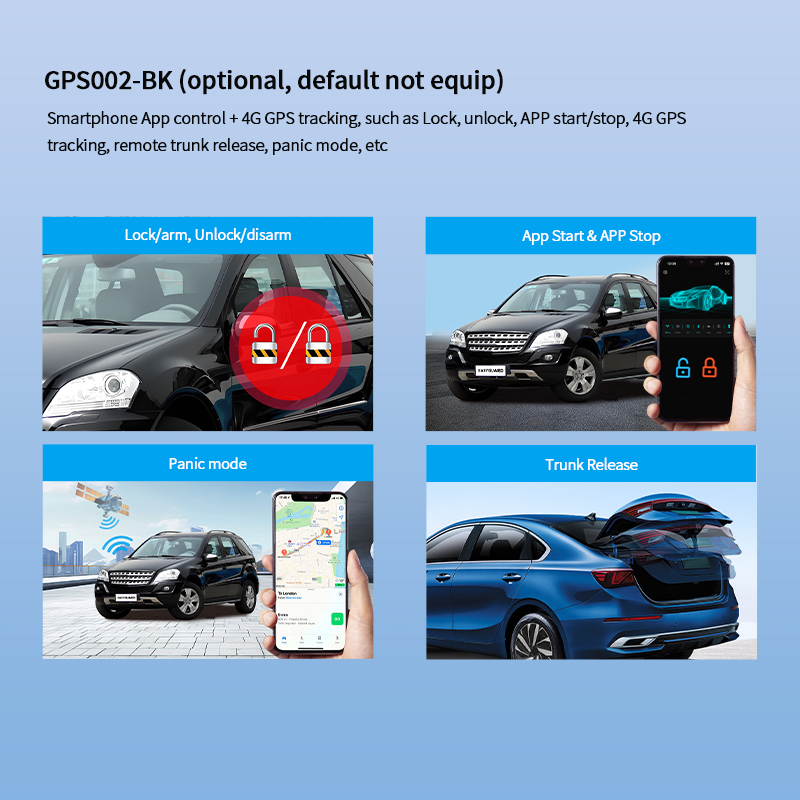

Option 1: 4G LTE GPS002 only
GPS module can't work alone, need to work with EC002PP car alarm together
Option 2: EC002PP-B-BE2-only
Option 3: EC002PP-B-BE2+GPS002 only
if you choose options with 4g lte GPS module with smartphone app control
please kindly let us know the country you live & the sim card operator and its APN, then we can preset APN of GPS module for you
Option 4: EC002PP-B-BE2 with 1 lcd key

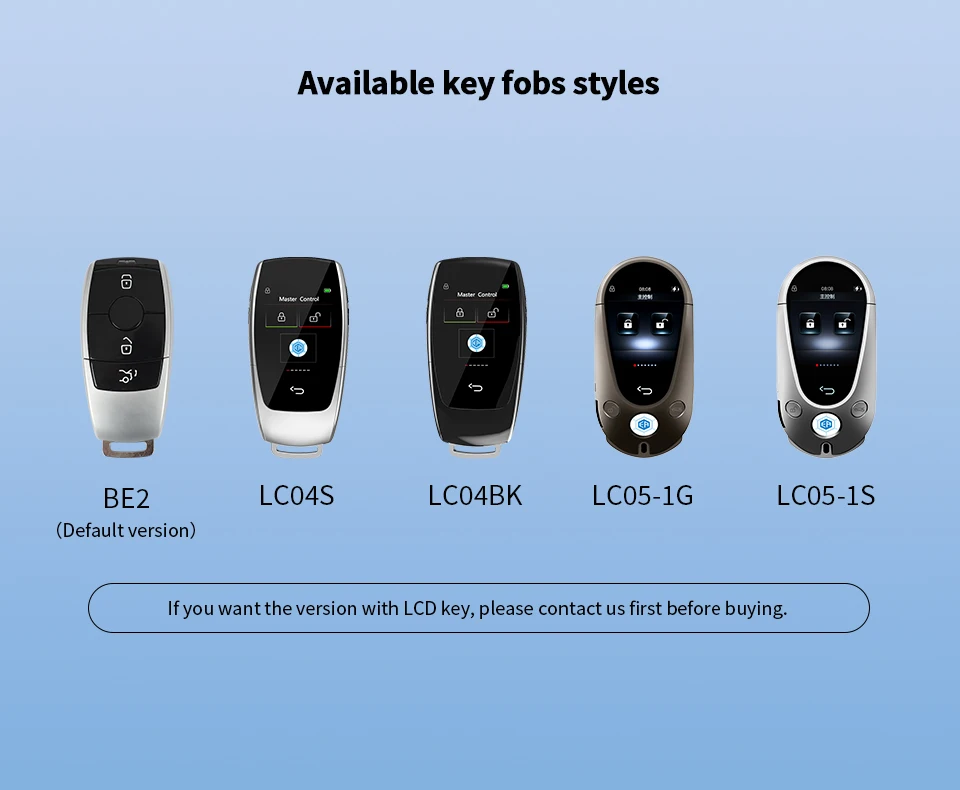

you may contact our seller and select the key fob style you prefer

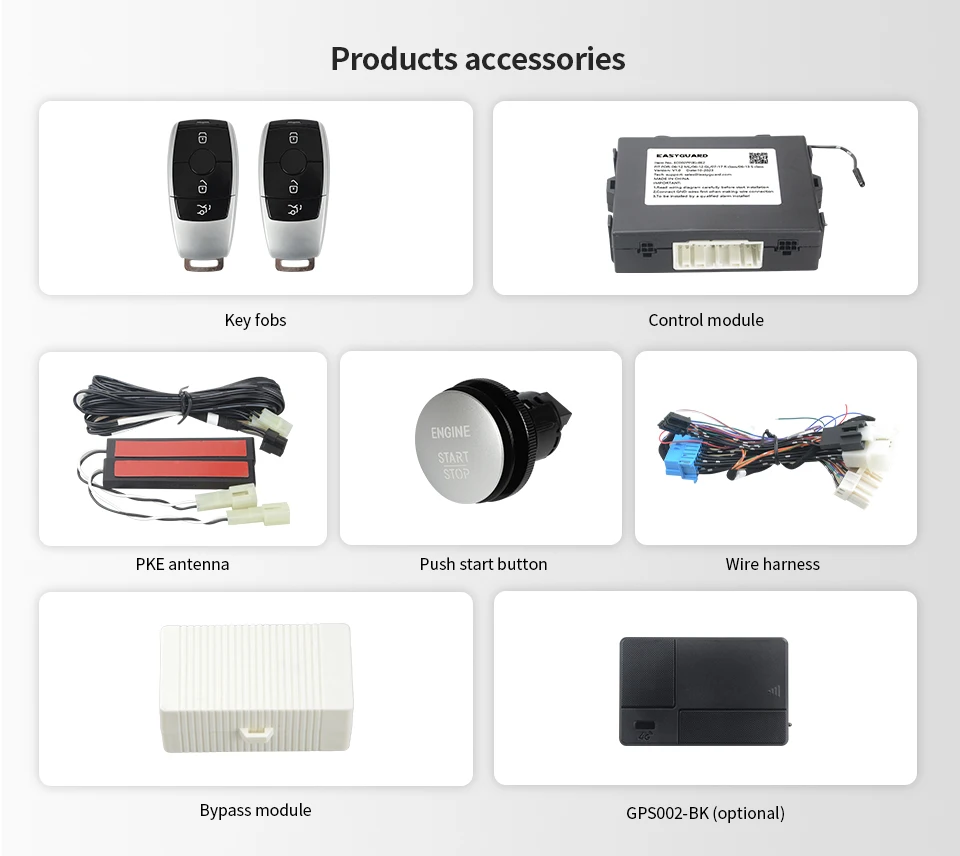

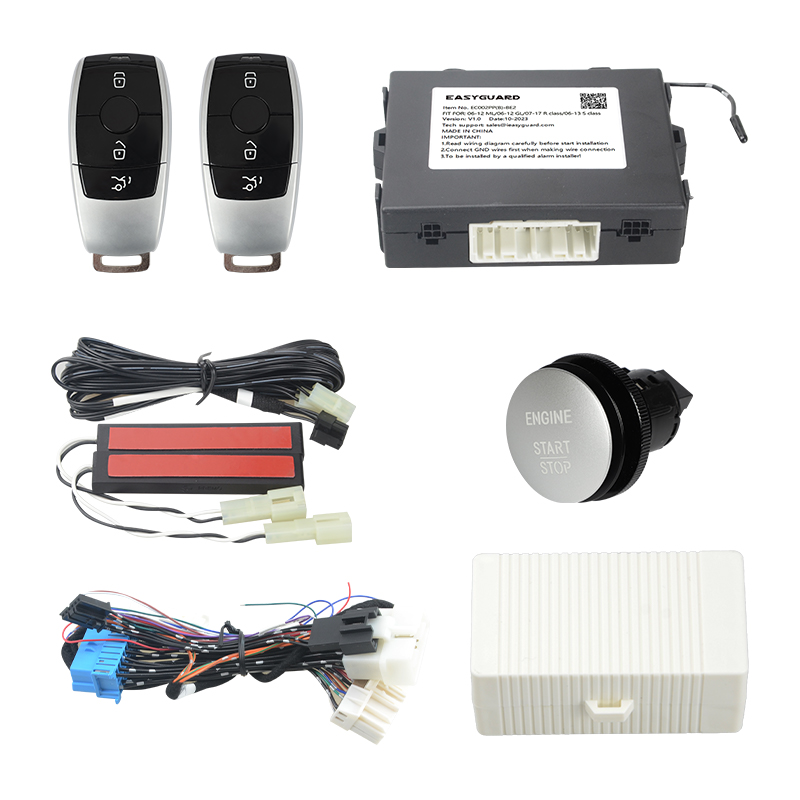

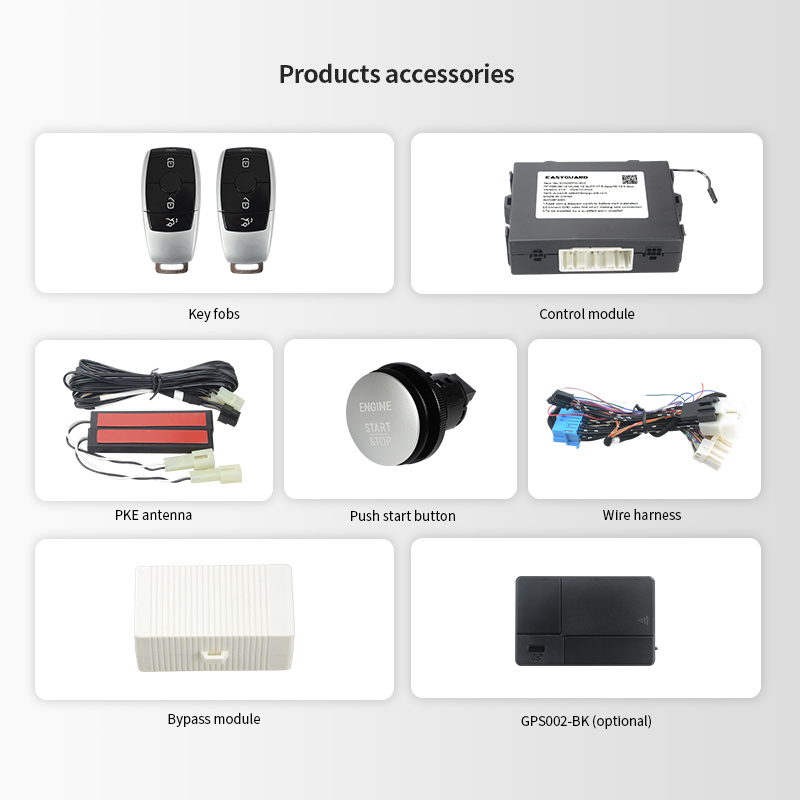

Main features:
1. Push button start/stop

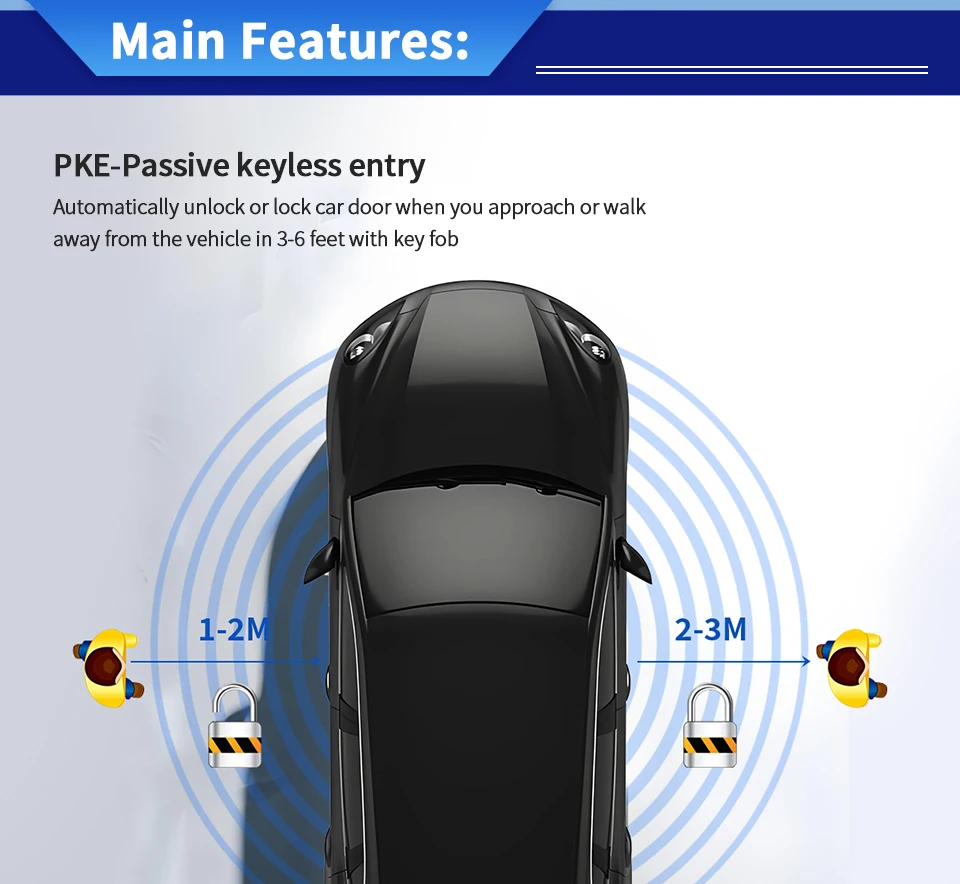

2. PKE-passive keyless entry
3. Manual arm/lock
4. Manual disarm/unlock
5. Mute alarm/audible alarm
6. Remote trunk release
7. Panic mode/car finding
8. PKE on/off setting
9. Remote engine start/stop
12.Alarm trigger by illegal door opening
13.Central door locking automation
14.Intelligent power off in arm status
15. Door not well closed reminder
16.Alarm reminder
17.Door opening while driving warning
18.Power saving & car battery low power protection
19.Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
20.Remote open the window (optional, only some car models are supporting this feature)
21.Programming method
Common use function

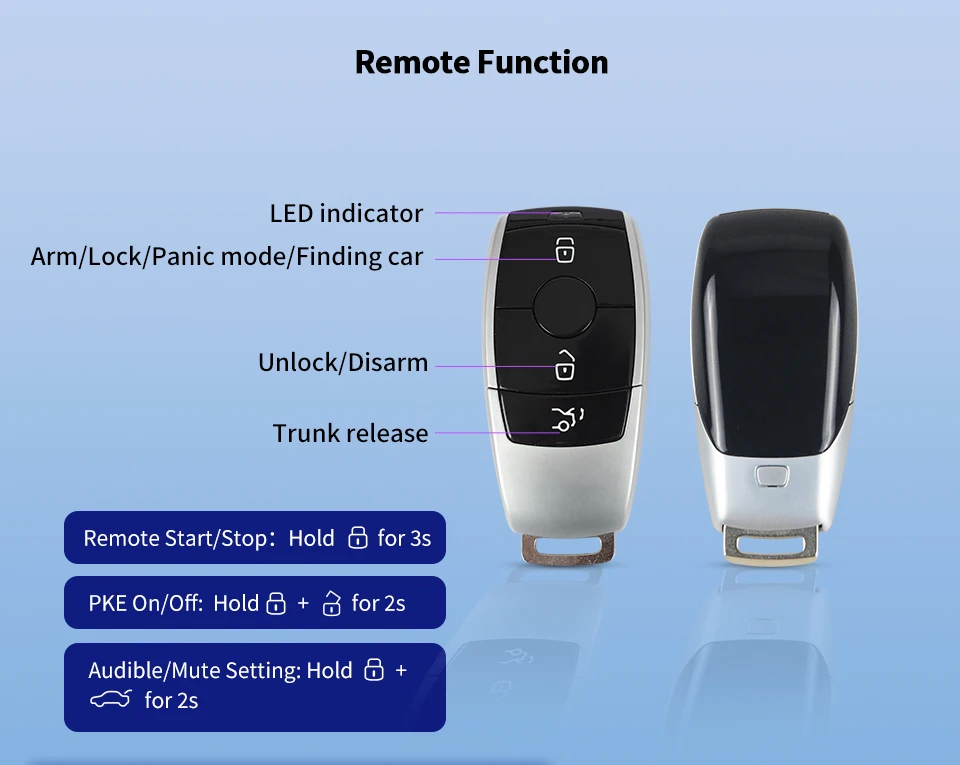

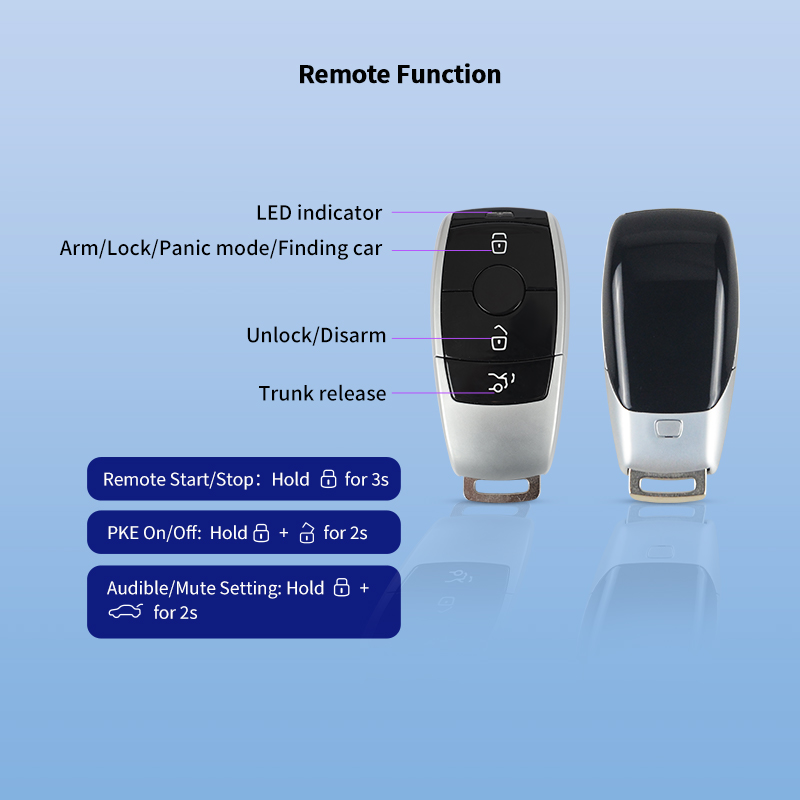

1. Lock: press the lock button once
2. Unlock: press the unlock button once
3. Trunk: keep pressing the trunk button to release the trunk
4. Finding car/Panic mode: press the finding car button (lock button) once
5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)

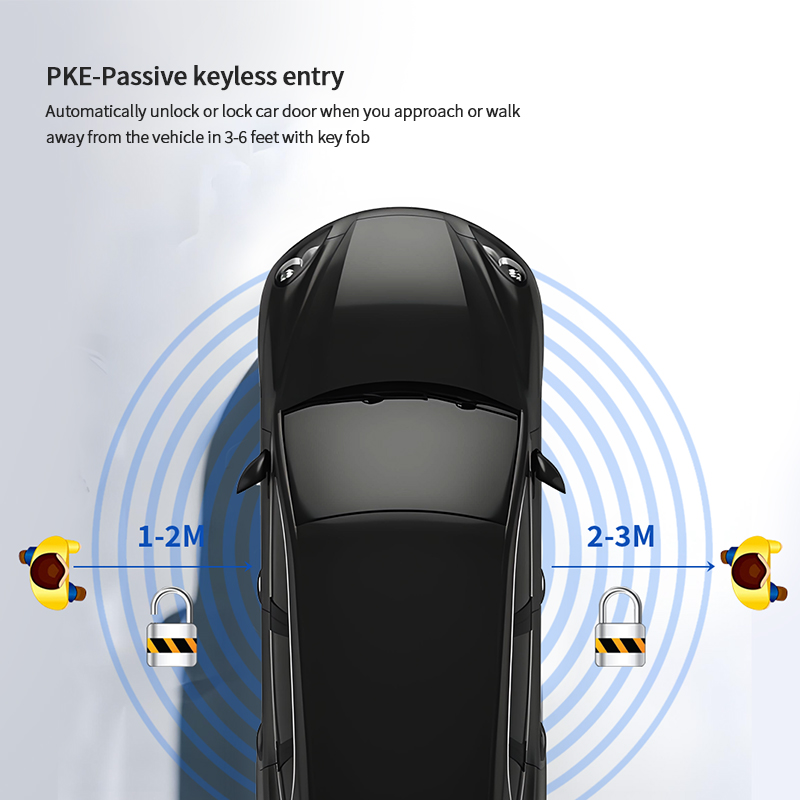

6. To enable or disable PKE feature(PKE ON/OFF setting)
In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.
7. Mute alarm & audible alarm
In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode
8. Remote engine start:
In lock status, ensure all the doors are closed well, keep pressing the lock button for about 2s will remote start the car
9. Remote engine stop:
After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car

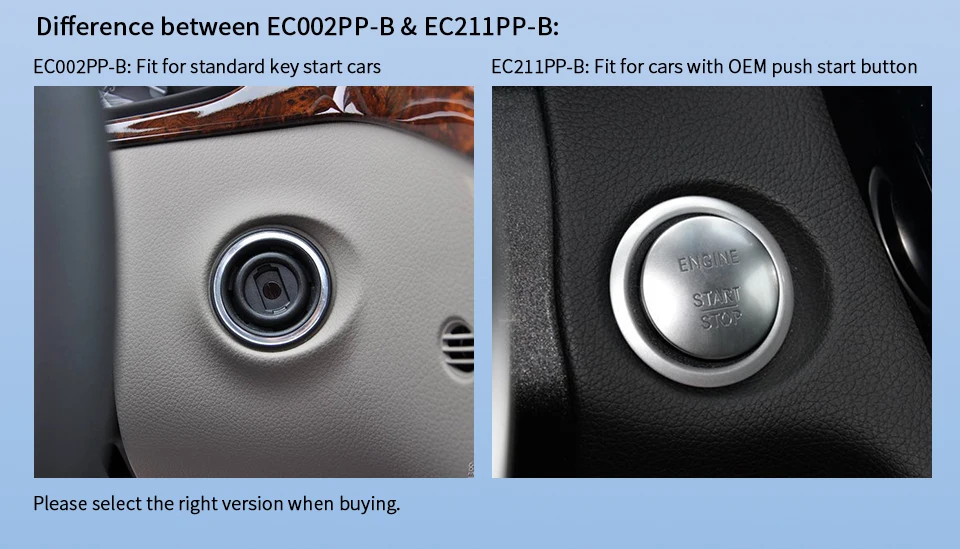

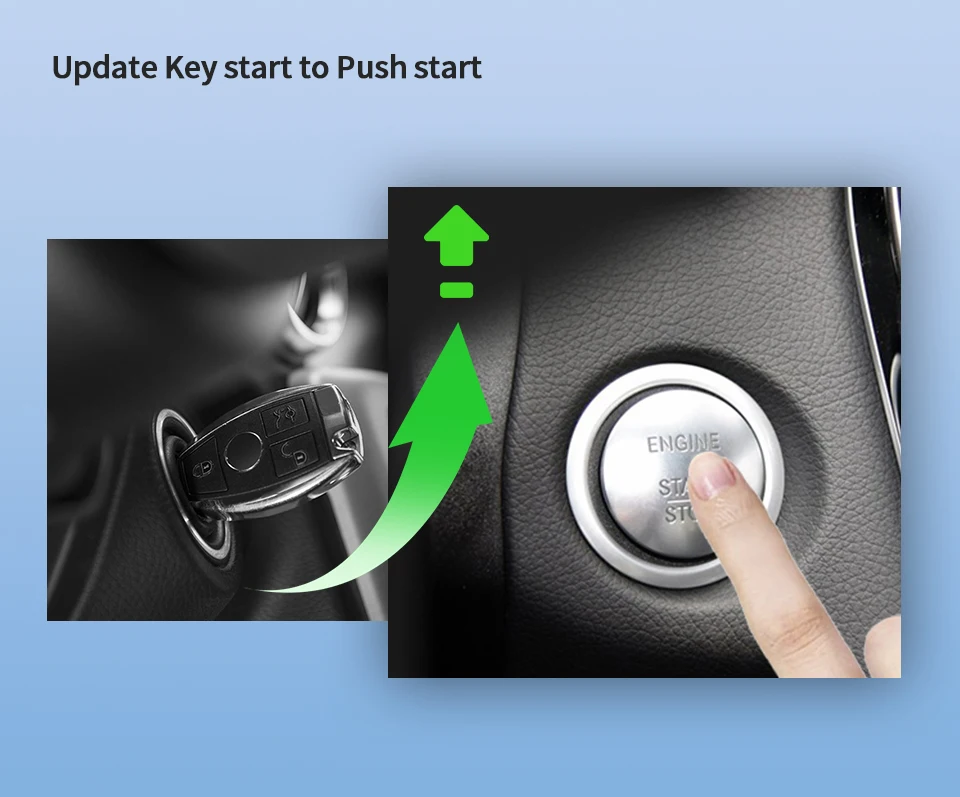

What is the difference between EC002PP & EC211PP

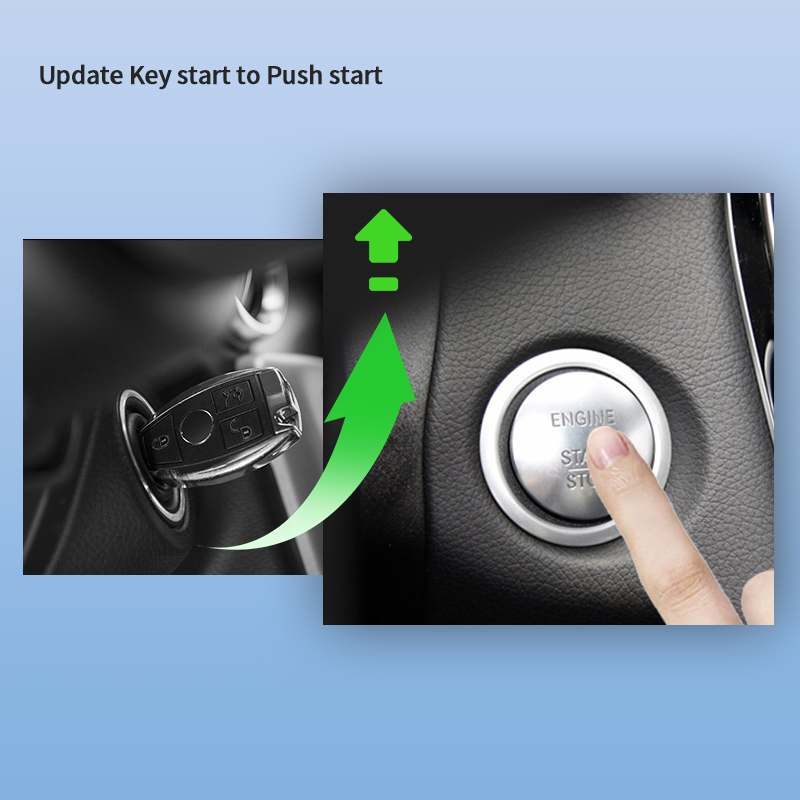

EC002PP: upgrade key start cars to push start button
EC211PP: will compatible with the car with oem push start button

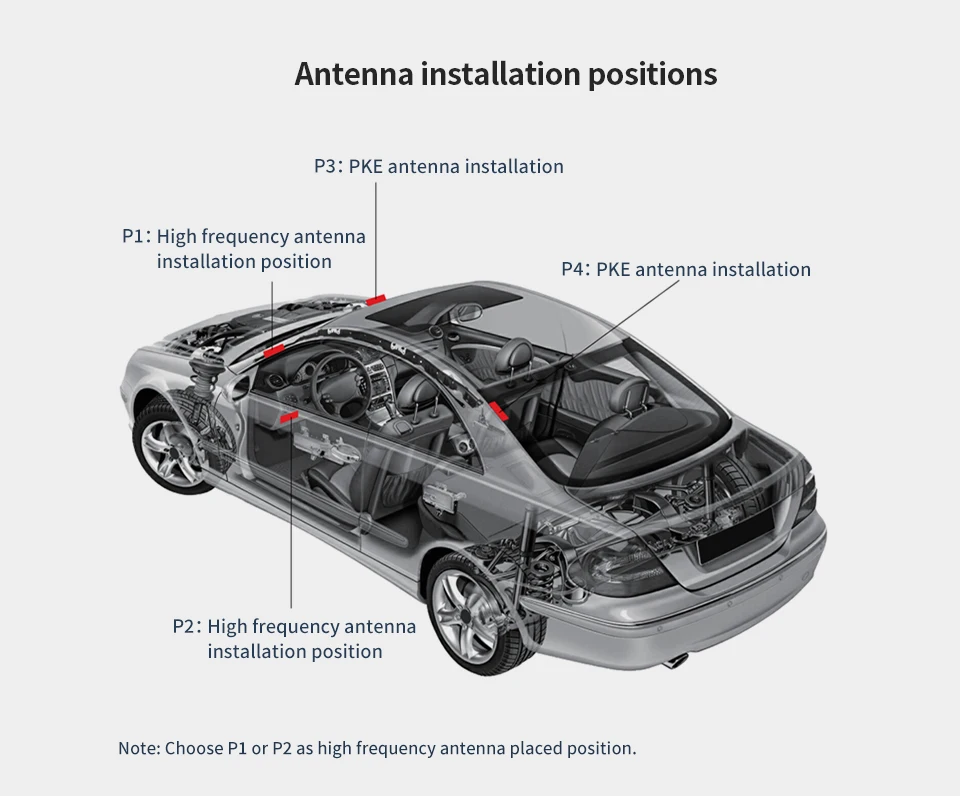

This is for reference only, please install it by actual received instructions.

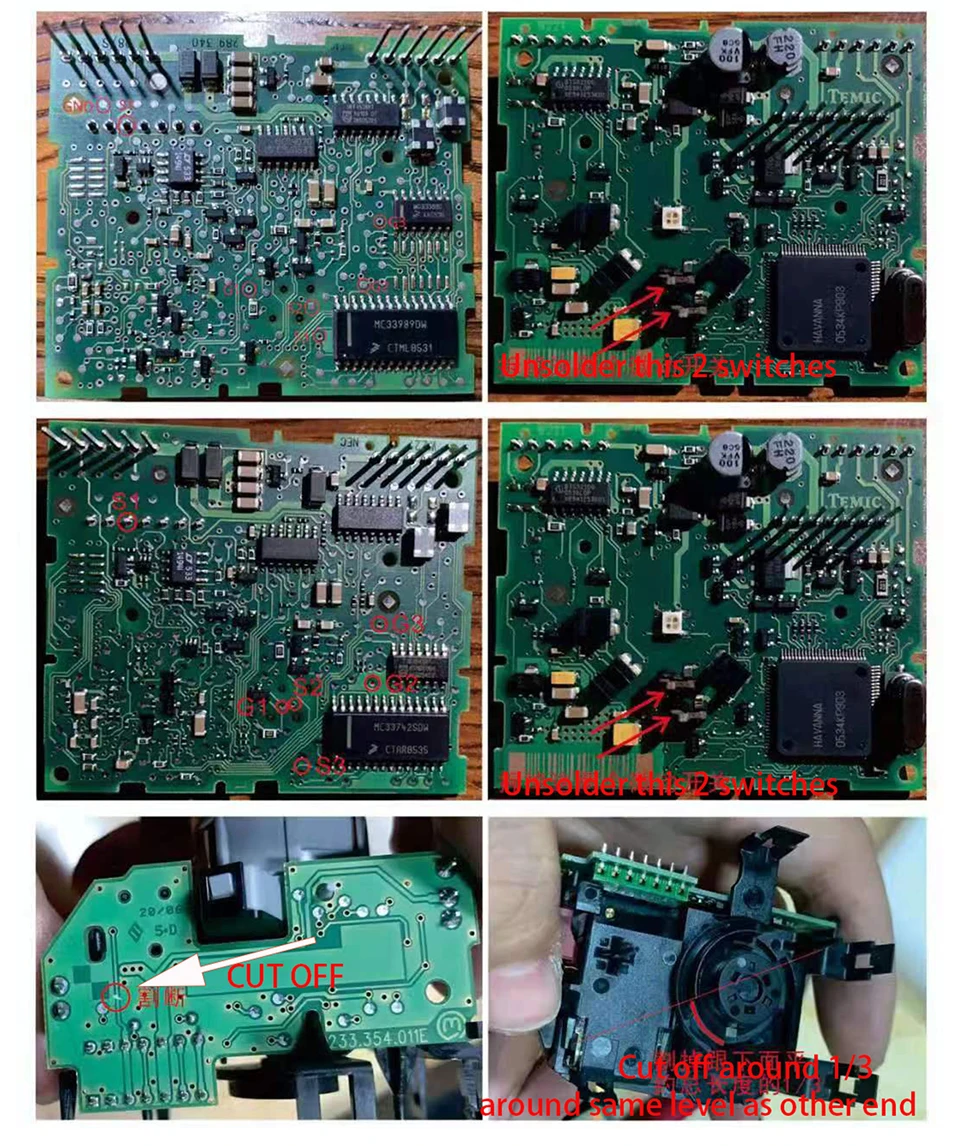

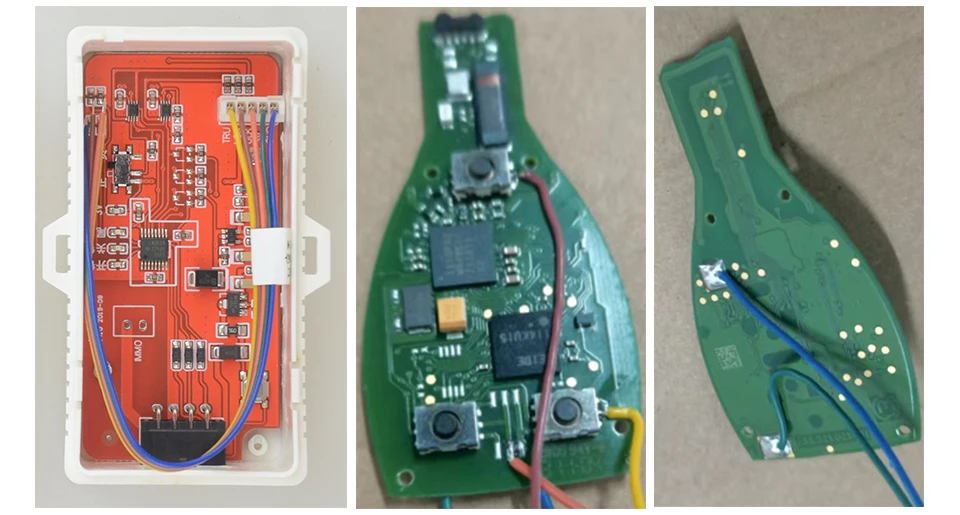

Soldering the ignition cylinder PCB
The red 12V wire solder with G1 port on ignition cylinder
The brown wire solder with G2
The white wire solder with G3
The blue wire solder with S1
The green wire solder with S2
The purple wire solder with S3

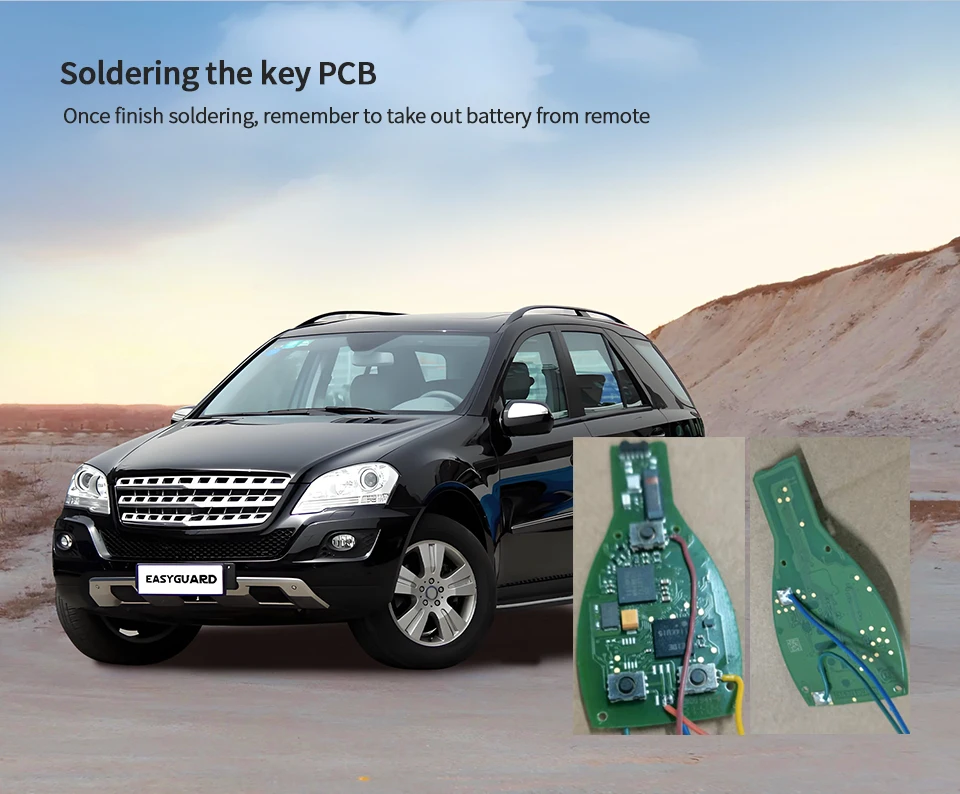

Soldering the key fob PCB with the bypass wires
Wires on the bypass module:
Blue: Chassis ground (GND)
Green: 3V
Brown: lock
Orange: Unlock
Yellow: Truck
When soldering the PCB, please solder the blue and green wire first, then test if all function works well or not. If it works, there is no need to solder other wires. If it not works, solder the rest wires on the bypass module.
After you finish wiring connection, remember to take out the car factory battery from car factory key’s PCB, and please solder them well or use crimp connector to connect them well and use the electrical tapes or stripes to tighten & secure all the wires connection to avoid any poor connection between the control module & wire harness
