Dear customer:
Please read carefully before you place the order to ensure that you buy the correct model for your car.

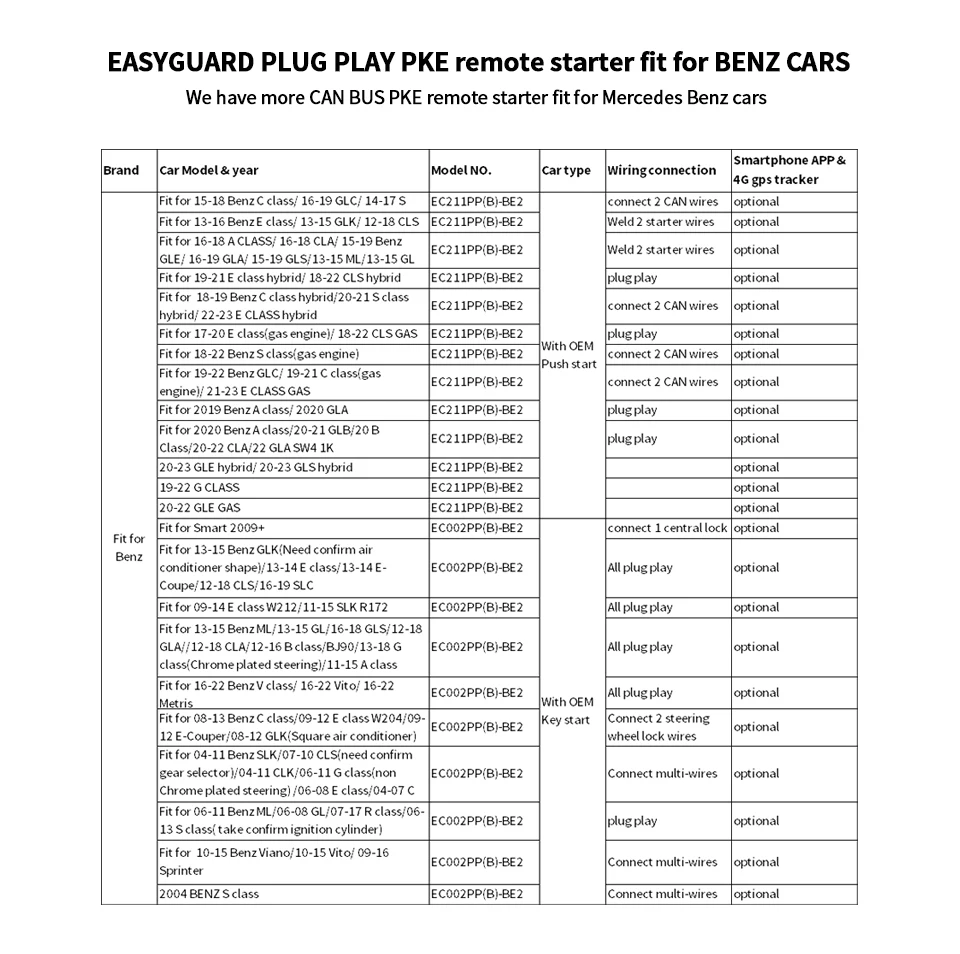

This product only work with the car models as below:
|
car model & year |
version |
|
19-22 Benz GLC X253 |
EC211PP |
|
19-21 C class (gas engine) W205 |
|
|
21-23 E class (gas engine) |
Important notes before buying:
1. Please kindly let us know the following info before buying, then we can prepare and ship it asap
1) For what car model and year?
2) Does your car is with oem push start button
2. Need to uninstall the ignition cylinder & solder with it, also need to use heat shrink tube to deal with the ignition cylinder.
3. Require 1pc factory original key fobs to put in the ignition cylinder to deal with the factory chip immobilizer.
4. This item requires to install by a professional or trained car alarm installer only!
5. Our price doesn’t include VAT & tax, you need to pay yourself if there is

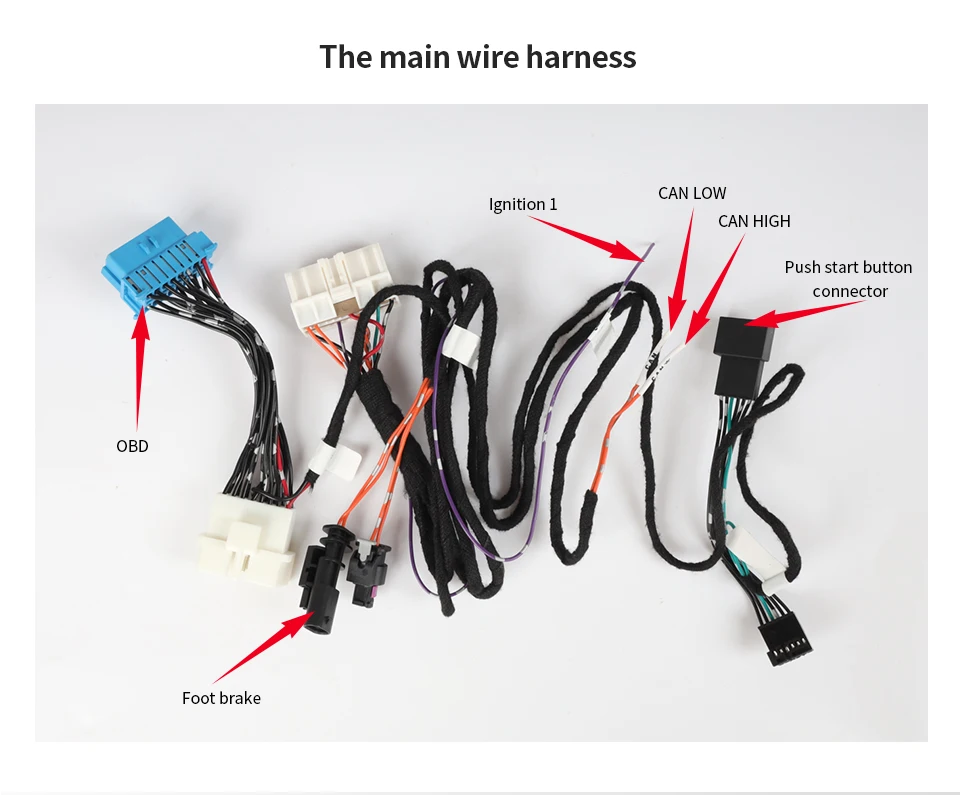

6. Product images are for reference only. The main wiring harness and program may differ between different car models and years. Therefore, please select the correct car model and year when purchasing and contact us for further confirmation. Otherwise, purchasing the wrong product will result in a loss of time and money. Please be aware of this.
How to choose you version?

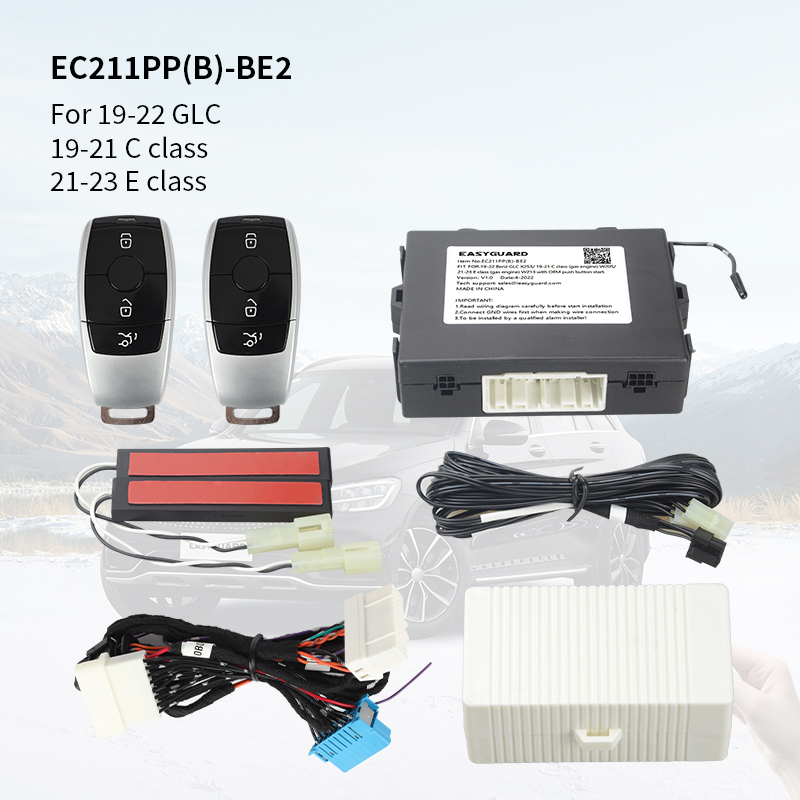

Option 1: EC211PP-B-BE2 only
the pke remote starter only

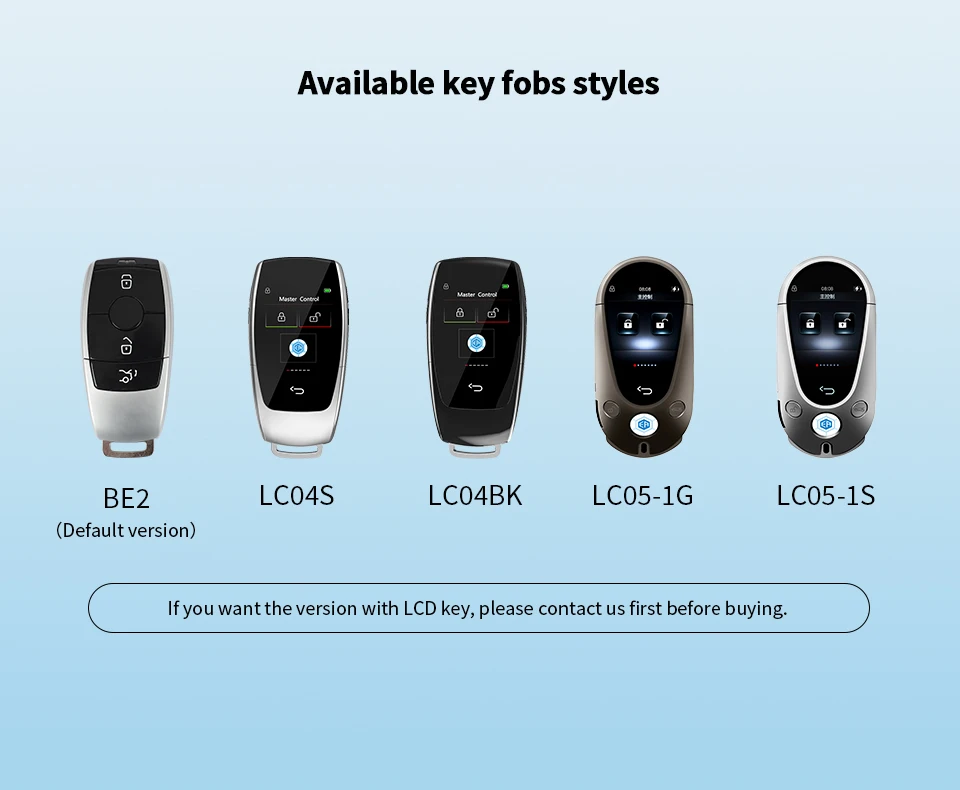

Option 2: EC211PP-B-BE2-LCD only
contact the seller and select the lcd key style you prefer
Option 3: EC211PP-B-BE2 +GPS002 only
if you choose options with 4g lte GPS module with smartphone app control
please kindly let us know the country you live & the sim card operator and its APN, then we can preset APN of GPS module for you
Main features:

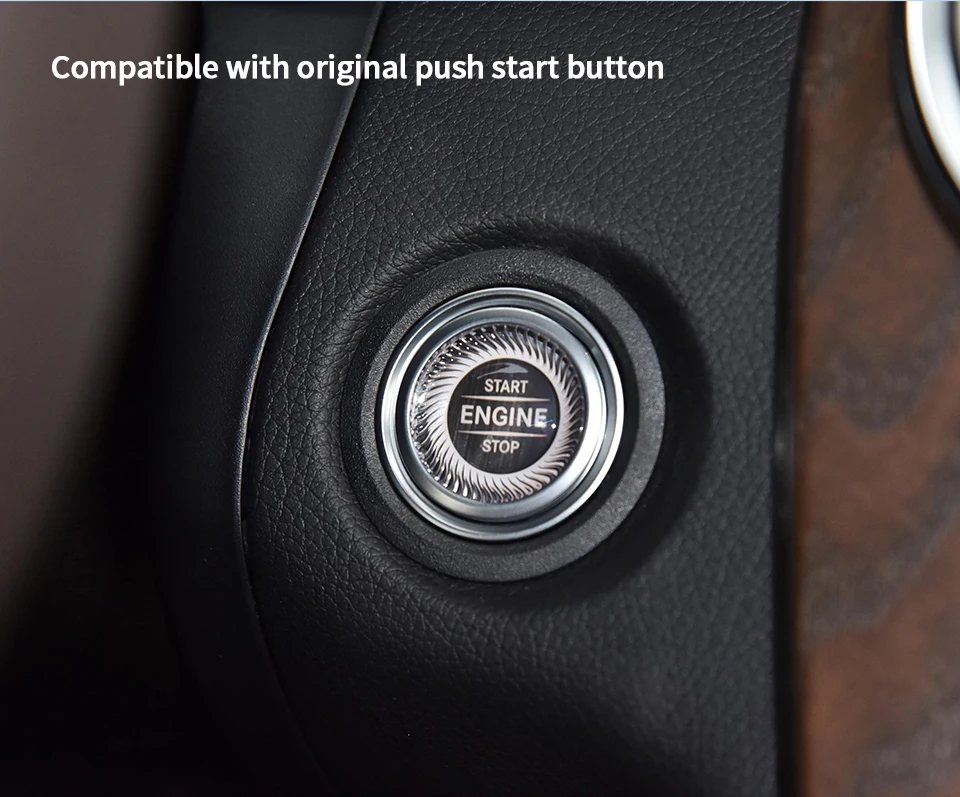

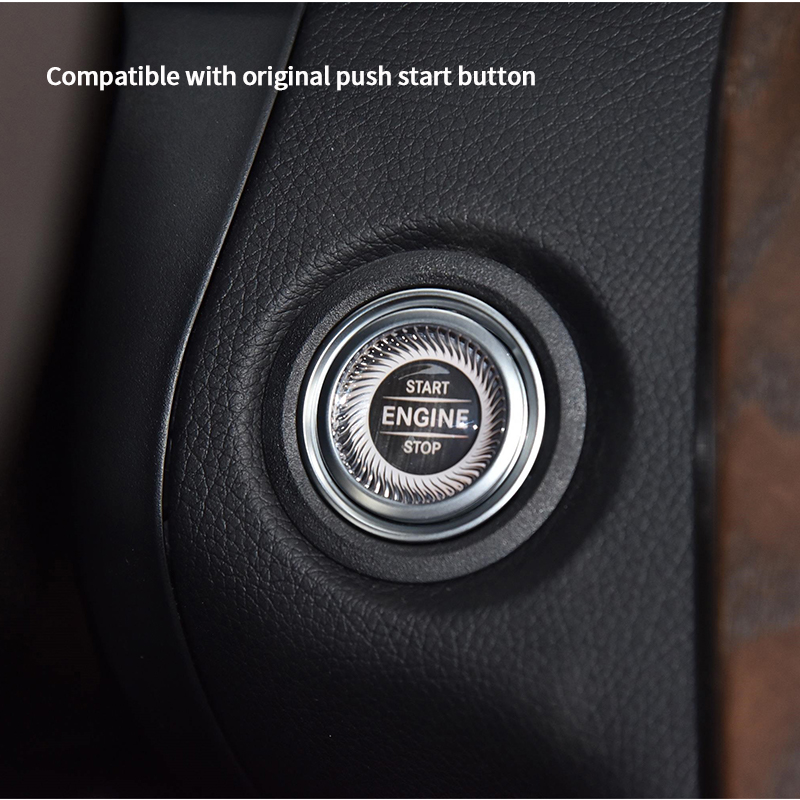

1. Compatible with oem push button start

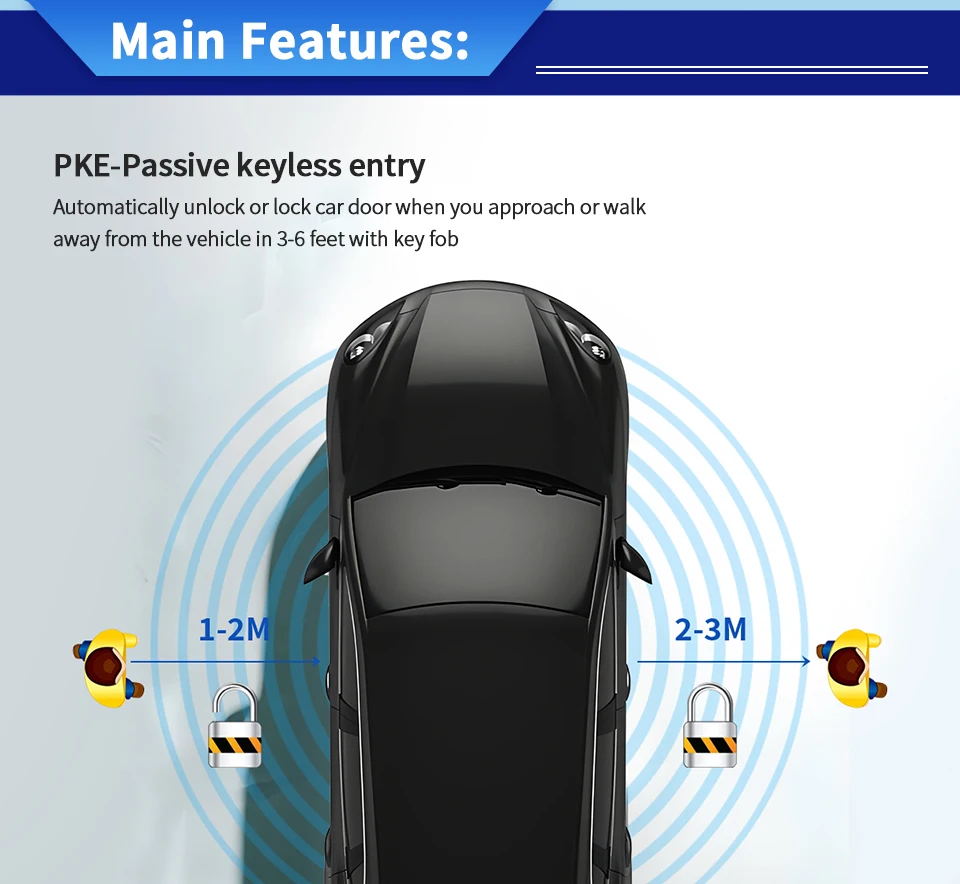

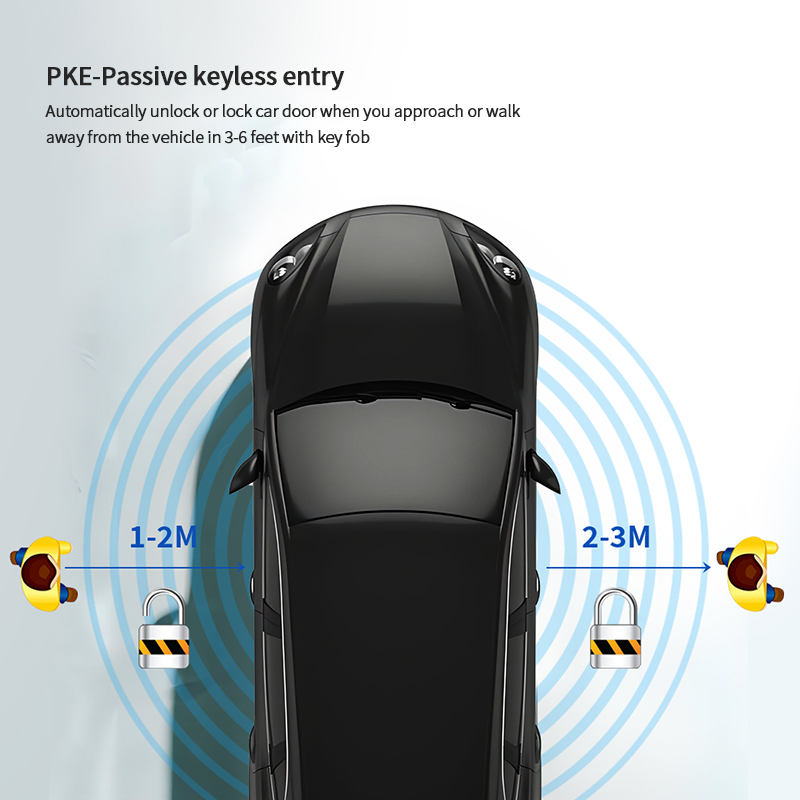

2. PKE-passive keyless entry
3. Manual arm/lock
4. Manual disarm/unlock
5. Mute alarm/audible alarm
6. Remote trunk release
7. Panic mode/car finding
8. PKE on/off setting
9. Remote engine start/stop
12.Alarm trigger by illegal door opening
13.Central door locking automation
14.Intelligent power off in arm status
15. Door not well closed reminder
16.Alarm reminder
17.Door opening while driving warning
18.Power saving & car battery low power protection
19.Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
20.Remote open the window (optional, only some car models are supporting this feature)
21.Programming method

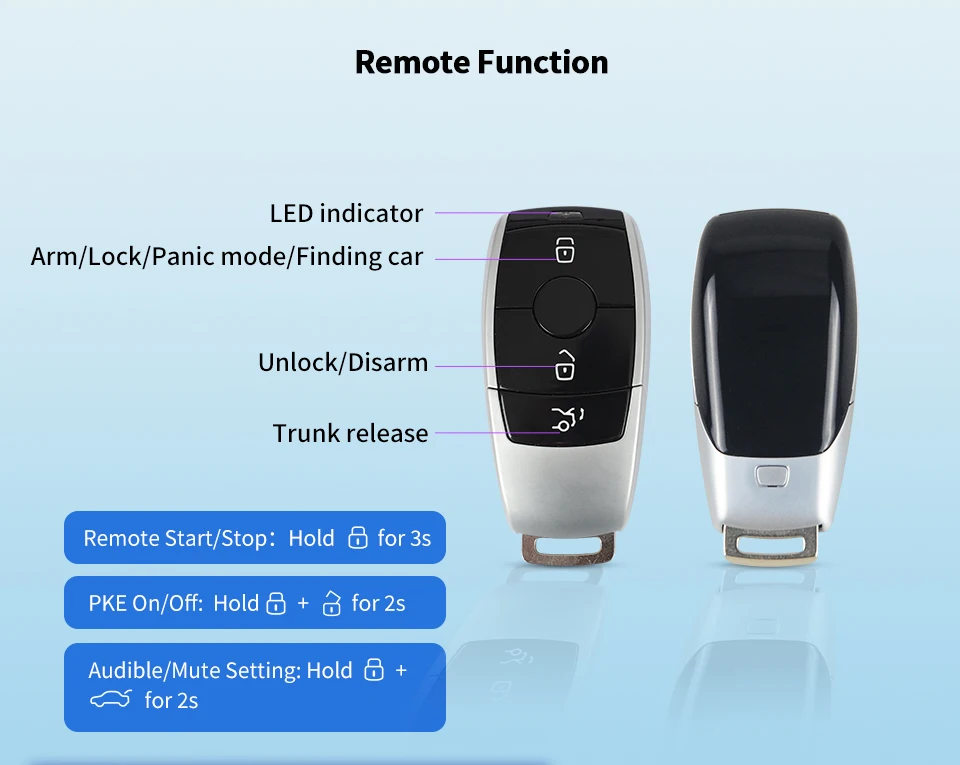

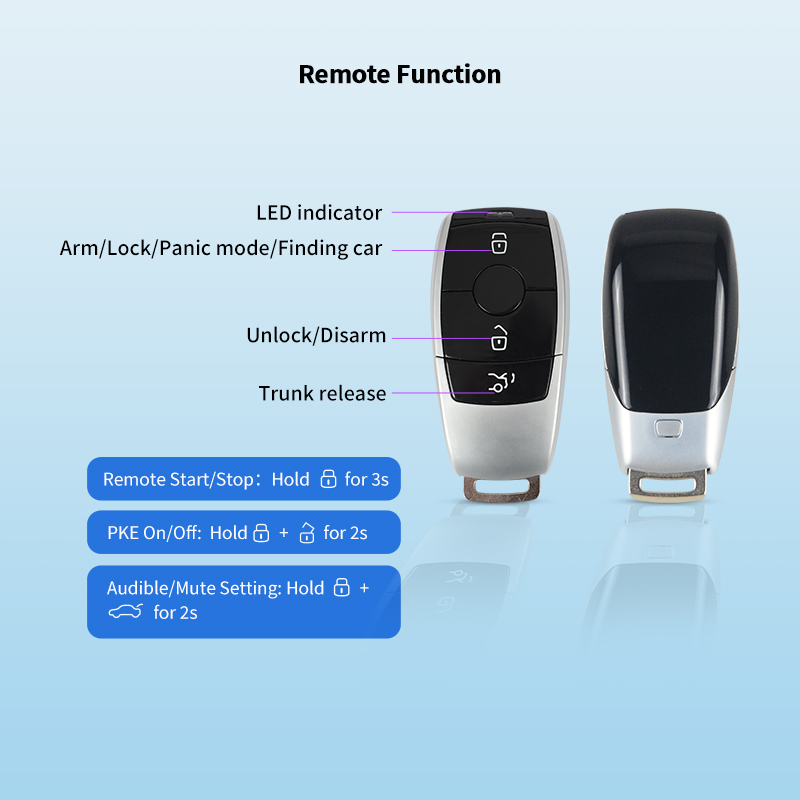

Common use function
1. Lock: press the lock button once
2. Unlock: press the unlock button once
3. Trunk: keep pressing the trunk button to release the trunk
4. Finding car/Panic mode: press the finding car button (lock button) once
5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
6. To enable or disable PKE feature(PKE ON/OFF setting)
In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.
7. Mute alarm & audible alarm
In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode
8. Remote engine start:
In lock status, ensure all the doors are closed well, keep pressing the lock button for about 2s will remote start the car
9. Remote engine stop:
After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car

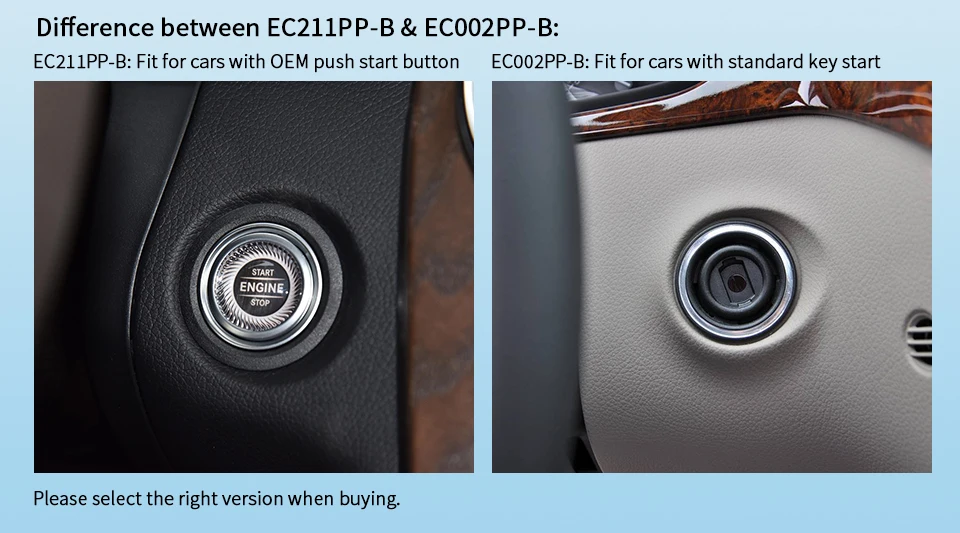

What is the difference between EC002PP & EC211PP
EC002PP: upgrade key start cars to push start button
EC211PP: will compatible with the car with oem push start button
This is for reference only, please install it by actual received instructions.

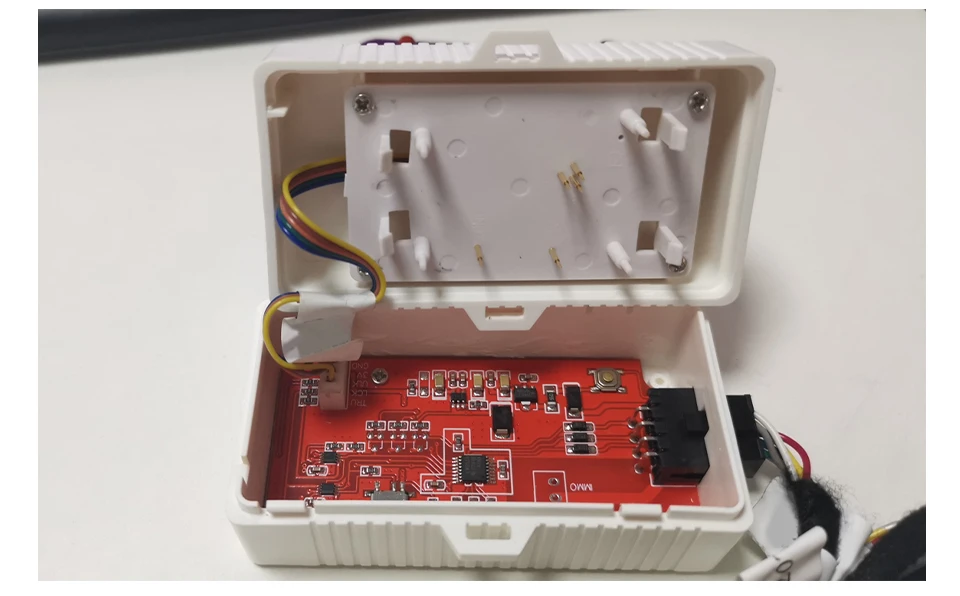

Soldering the PCB with the bypass wires.
Wires on the bypass module:
Blue: Chassis ground (GND)
Green: 3V
Brown: lock
Orange: Unlock
Yellow: Truck
When soldering the PCB, please solder the blue and green wire first, then test if all function works well or not. If it works, there is no need to solder other wires. If it doesn’t work, solder the rest wires on the bypass module.

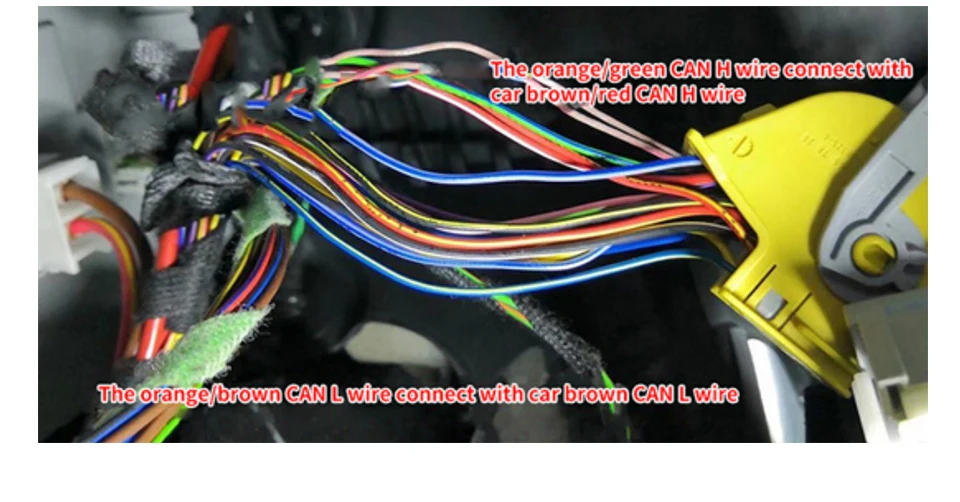

Connect the CAN BUS wires:
The orange/green CAN H wire connects with car CAN H brown/red wire
The orange/brown CAN L wire connects with car CAN L brown wire
The car CAN BUS wire is above the compartment
