Dear Customers,
This is EASYGUARD PLUG AND PLAY CAN BUS PKE kit with push start button remote engine start system fit for following BENZ cars with key start Gas engine only:
|
Car Model & year |
Chassis No. |
|
13-15 Benz GLK/09-14 E |
X204,W212,W218,R172, |

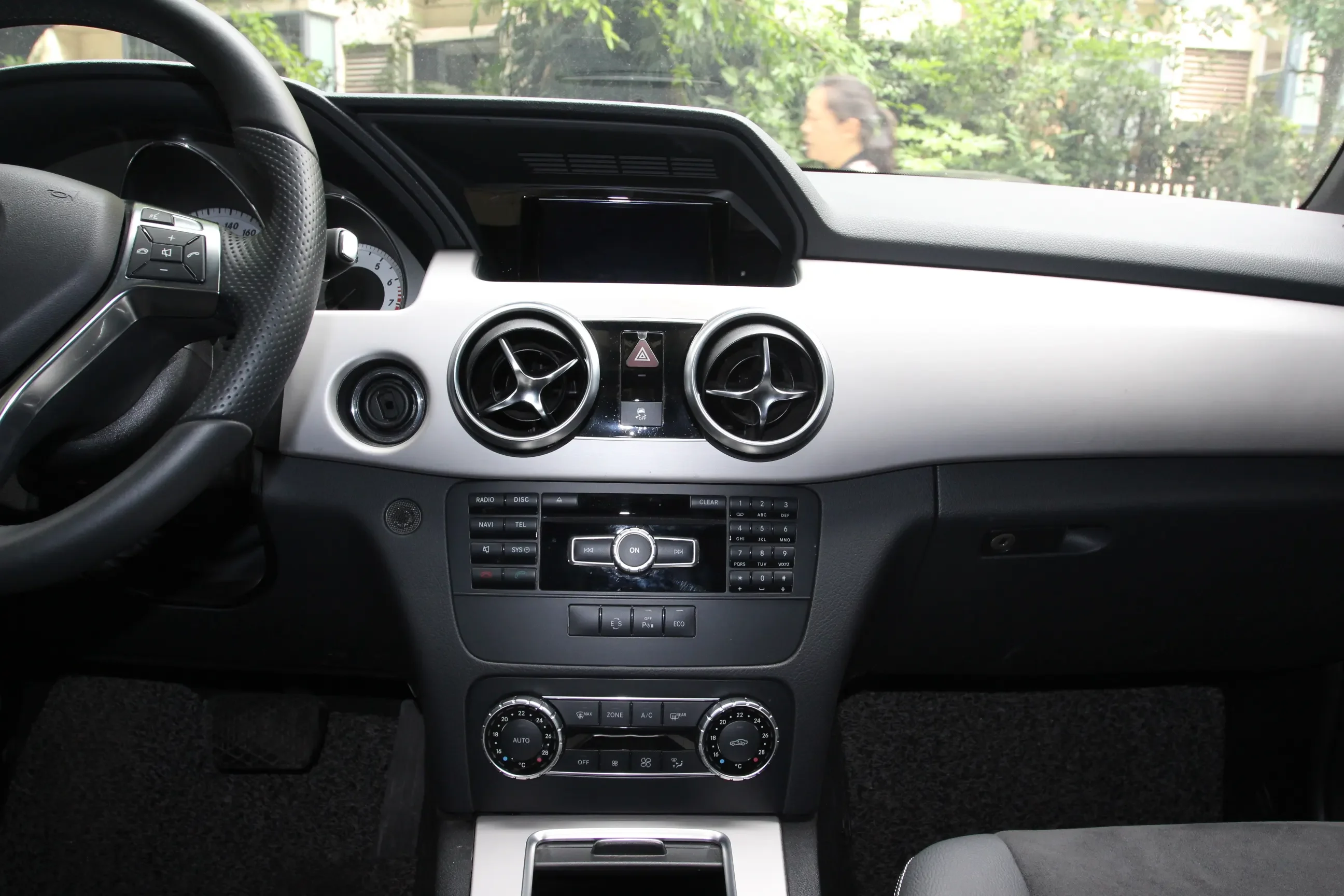

🔺13-15 Benz GLK(Need confirm air conditioner shape) with seller, only fit for the 13-15 Benz GLK with round air conditioner shape, as the picture,

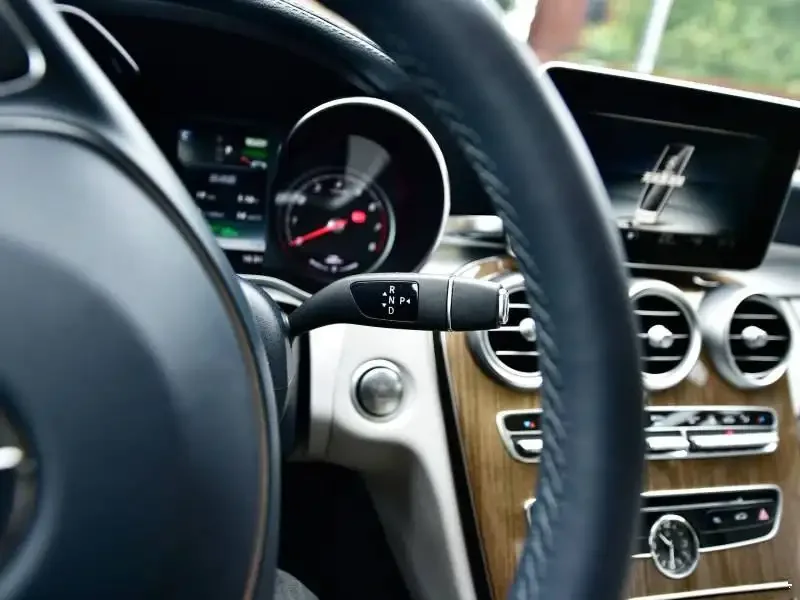

🔺 12-18 Benz CLS (Need confirm the column shift), only fit for 12-18 Benz CLS with column shift, the car without column shift is not compatible with.
Important:
1. Please confirm the car model and year with seller before buying. You may need to send some photos of the car original key, ignition cylinder etc.

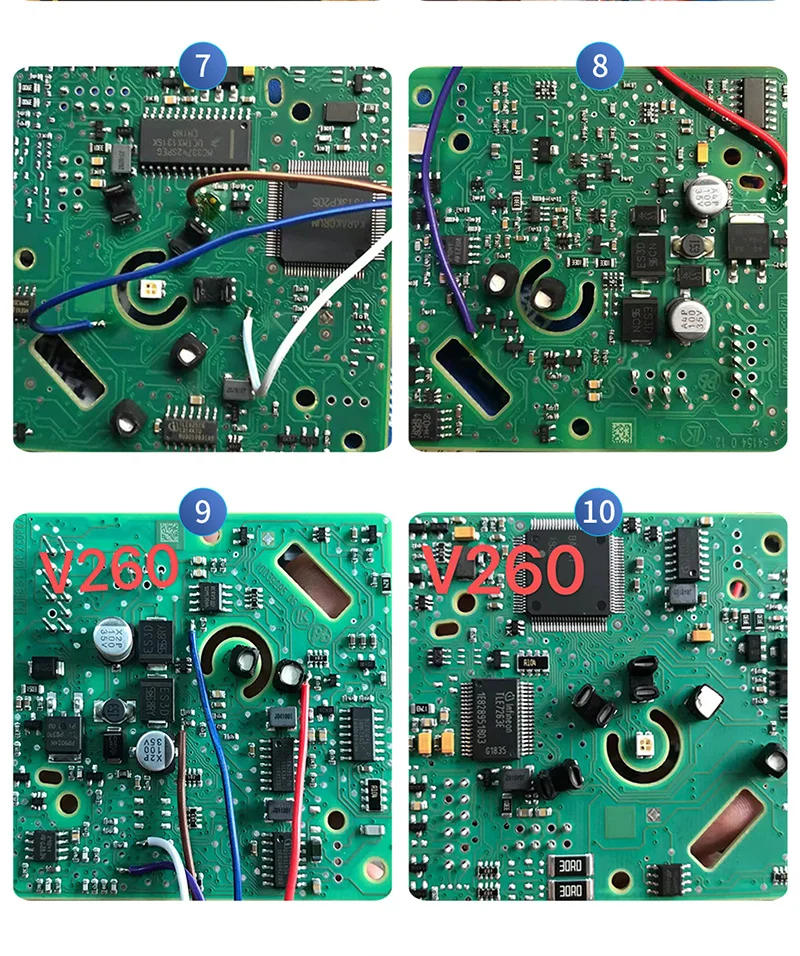

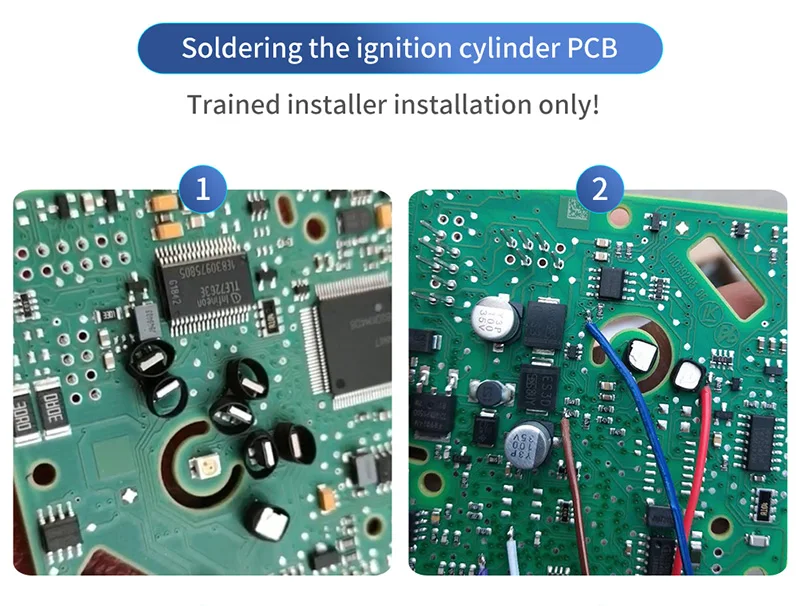

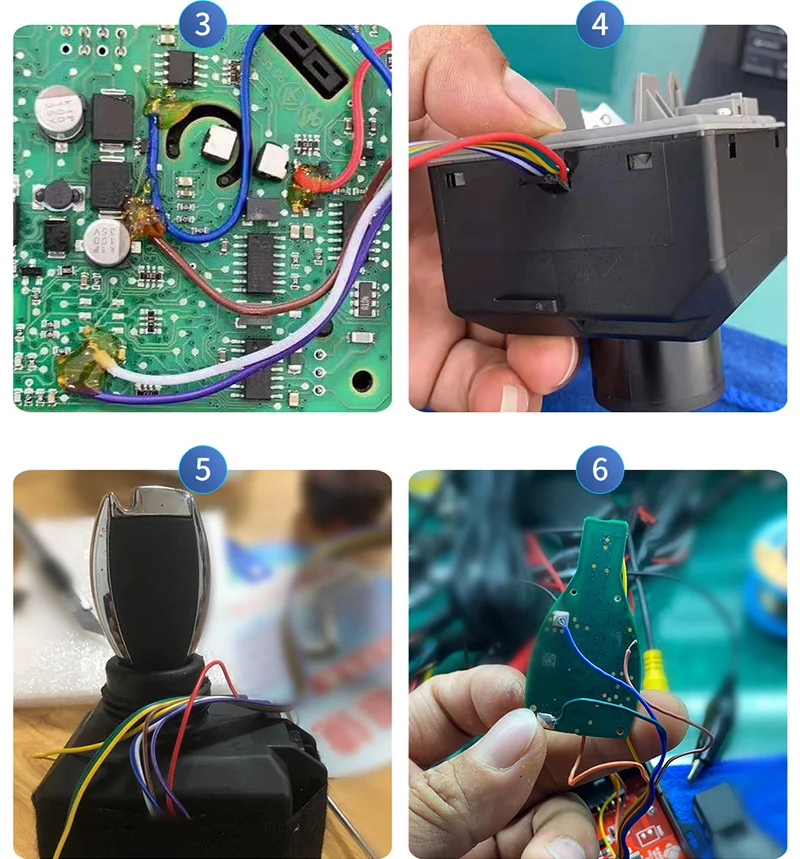

2. Need to remove the ignition cylinder and solder it, professional car alarm technician installation only!!! Please pay attention about this point.

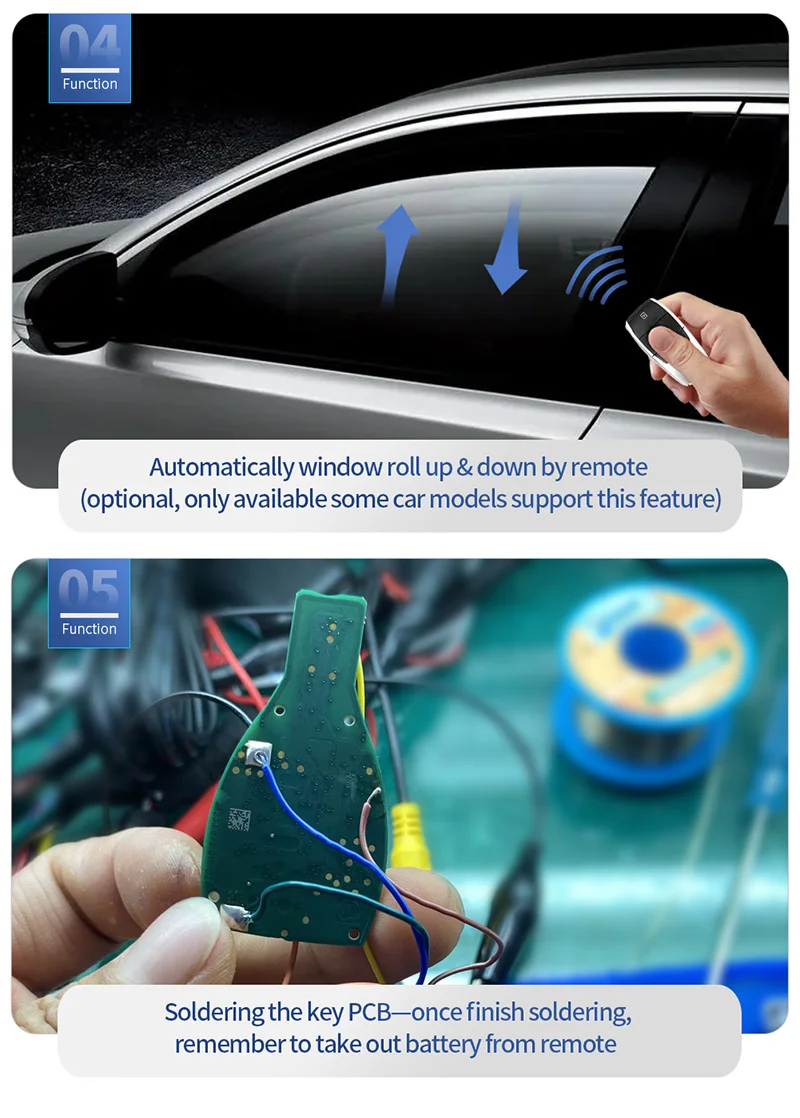

3. Soldering the key PCB — once finish soldering, remember to take out the battery from the remote.
If your car is with factory oem push button, please contact seller for more details,

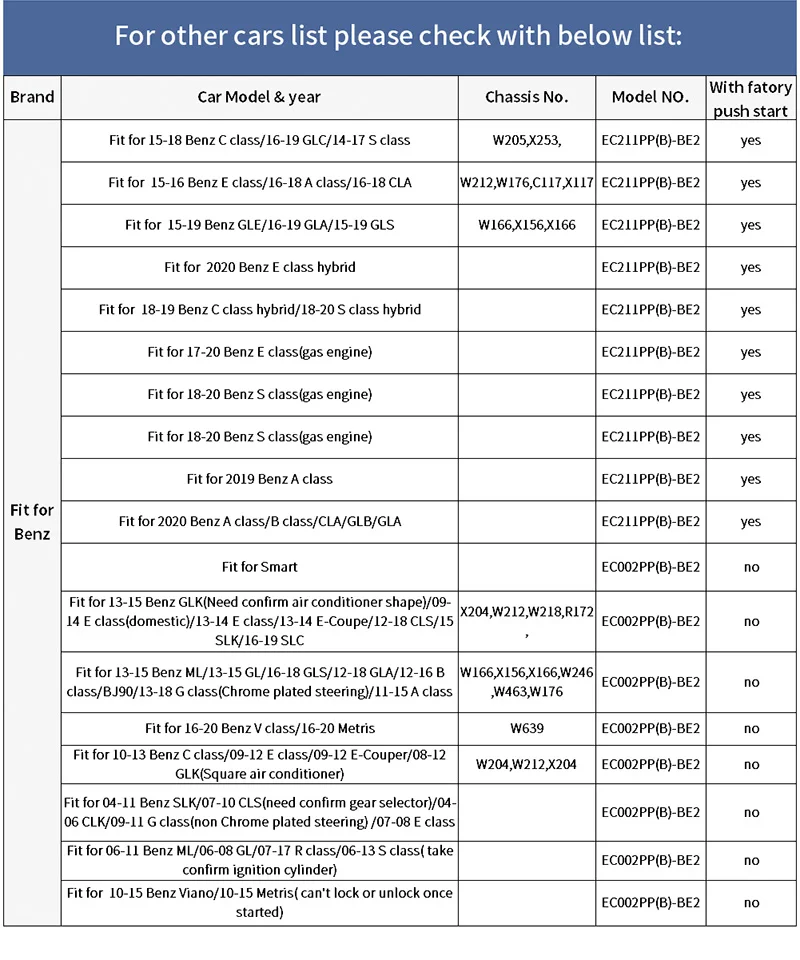

We have some more products fit for other Benz cars, see below chart for the list.
Main features:

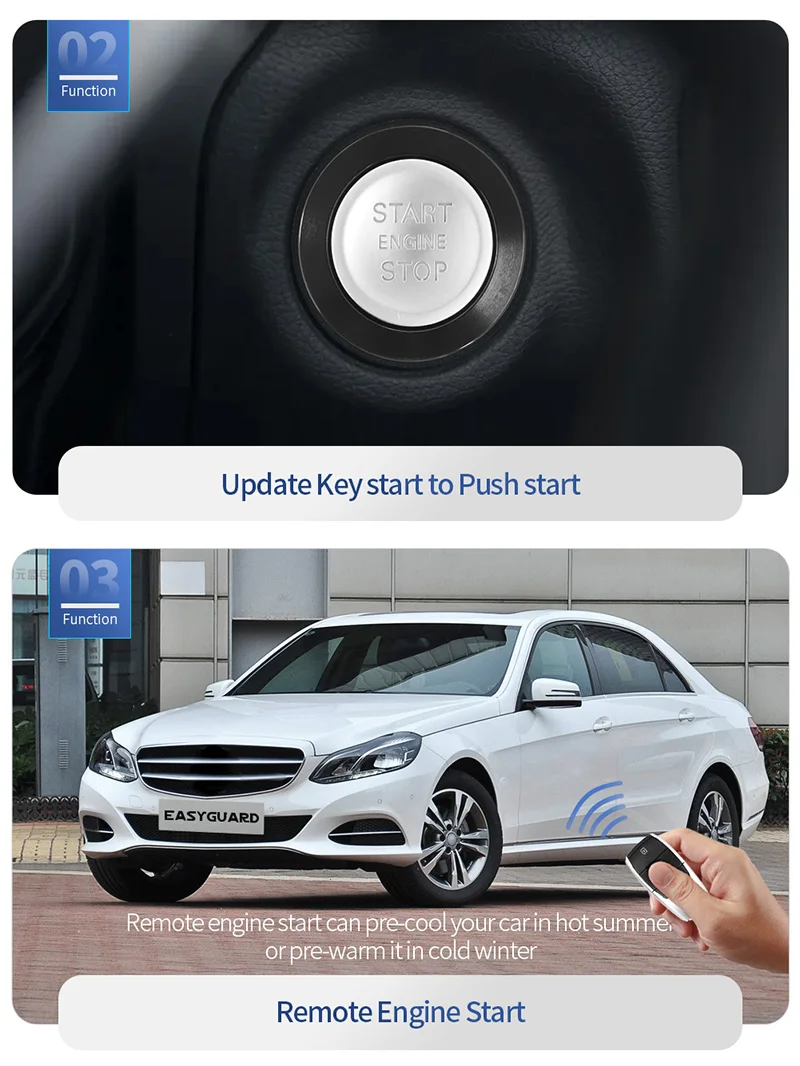

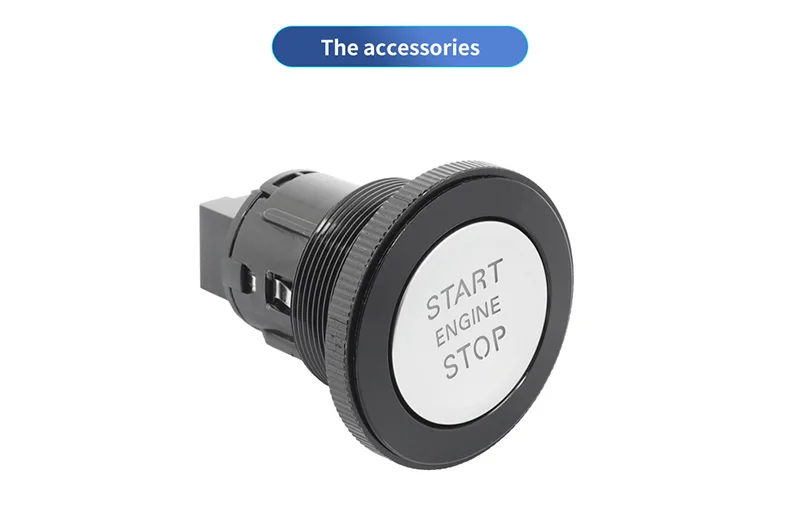

1. Push button start/stop

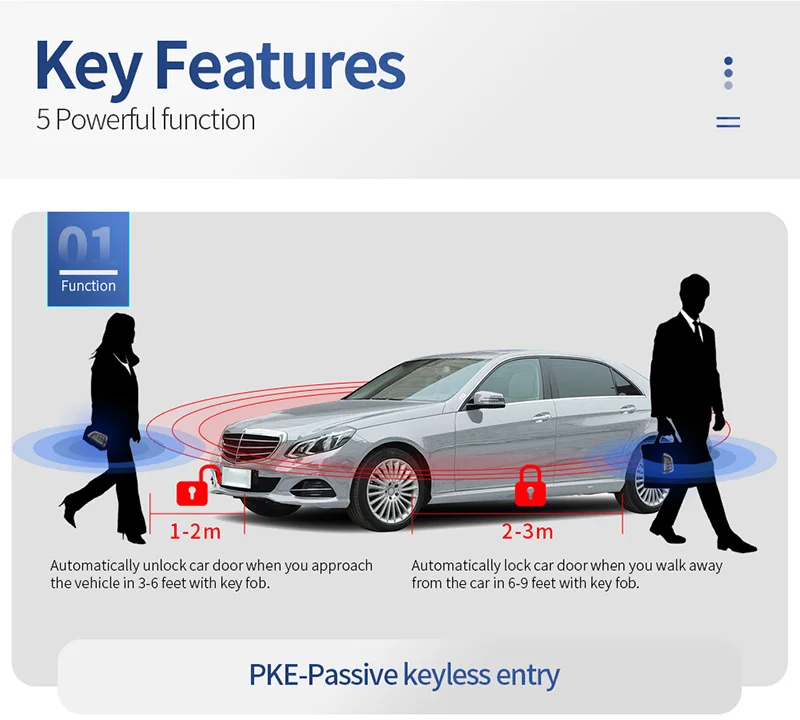

2. PKE-passive keyless entry
3. Manual arm/lock
4. Manual disarm/unlock
5. Mute alarm/audible alarm
6. Remote trunk release
7. Panic mode/car finding
8. PKE on/off setting
9. Remote engine start/stop
12.Alarm trigger by illegal door opening
13.Central door locking automation
14.Intelligent power off in arm status
15. Door not well closed reminder
16.Alarm reminder
17.Door opening while driving warning
18.Power saving & car battery low power protection
19.Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
20.Remote open the window (optional, only some car models are supporting this feature)
21.Programming method
Advantage
1. Plug & play with OBD2 connector & T-harness, no damage to the original car circuit, CAN BUS compatible, only need to connect a few wires and solder the ignition cylinder.
2. Upgrade your key start vehicle to remote start stop with PKE-passive keyless entry, push start button, remote engine start function.
3. Although the device is plug & play, we recommend you install it by a trained alarm installer or professional alarm installer, if you have no alarm installation experience. or if you don't know how to remove the cars trim/dashboard panels or don't know where the wire harness is connected.
Pls note that due to safety shipping consideration, we have to take out the battery from remote control as the courier does not allow to ship products with battery. The battery for this car alarm is button cell CR2032 battery.

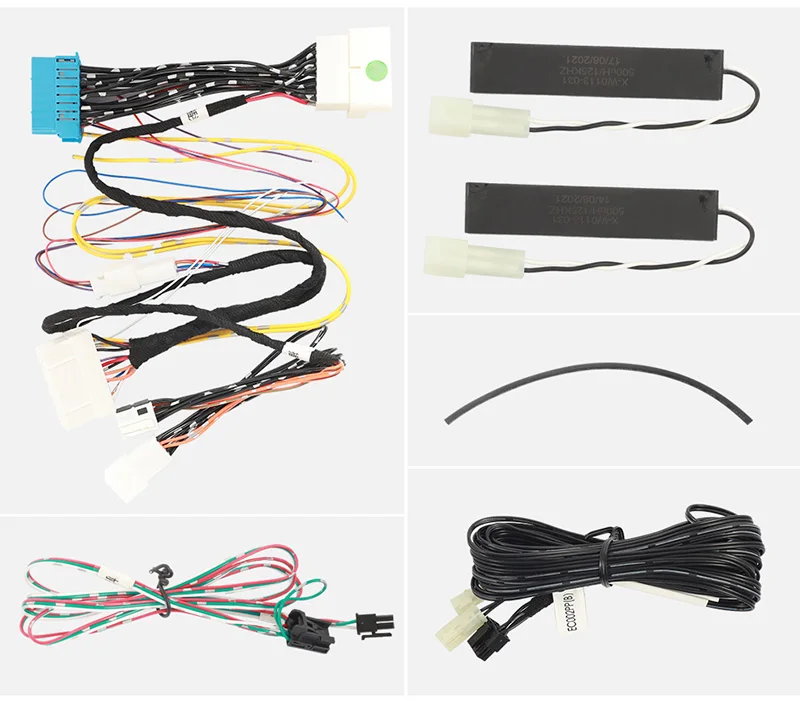

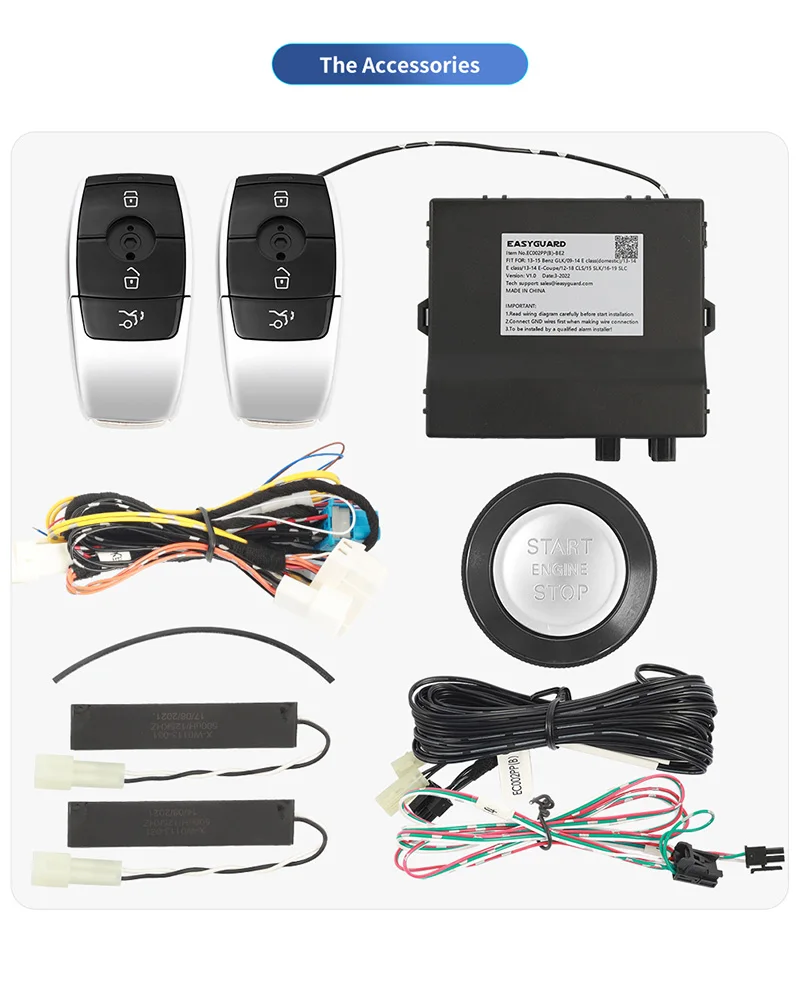

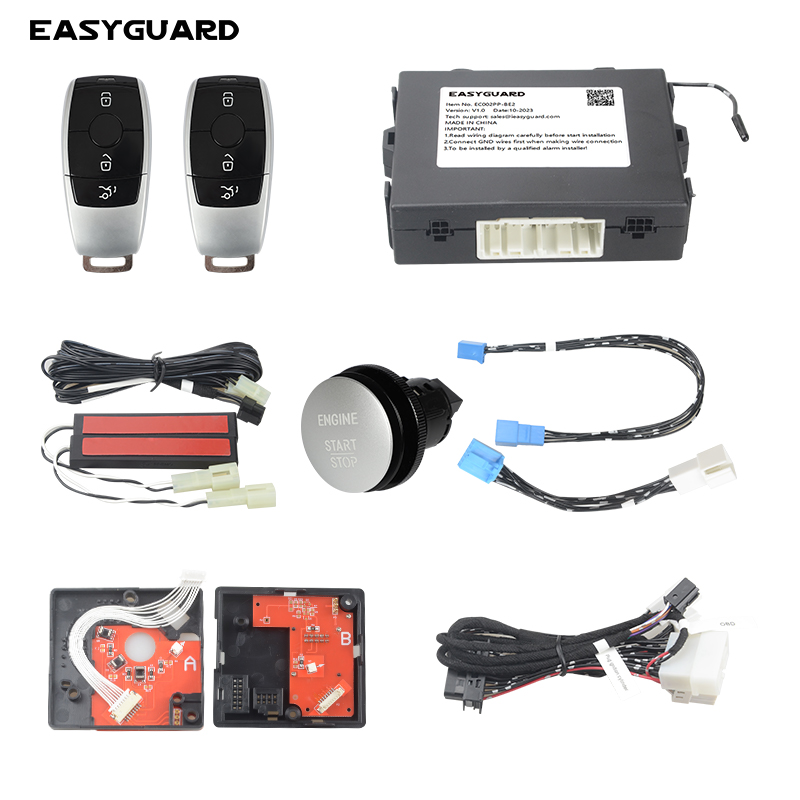

Packing information

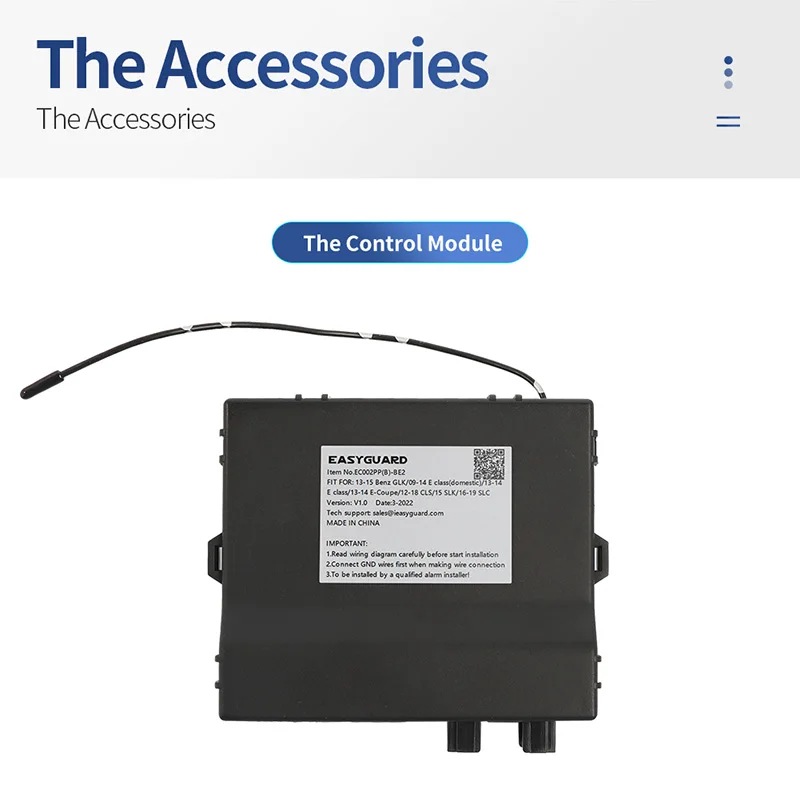

Brain x 1

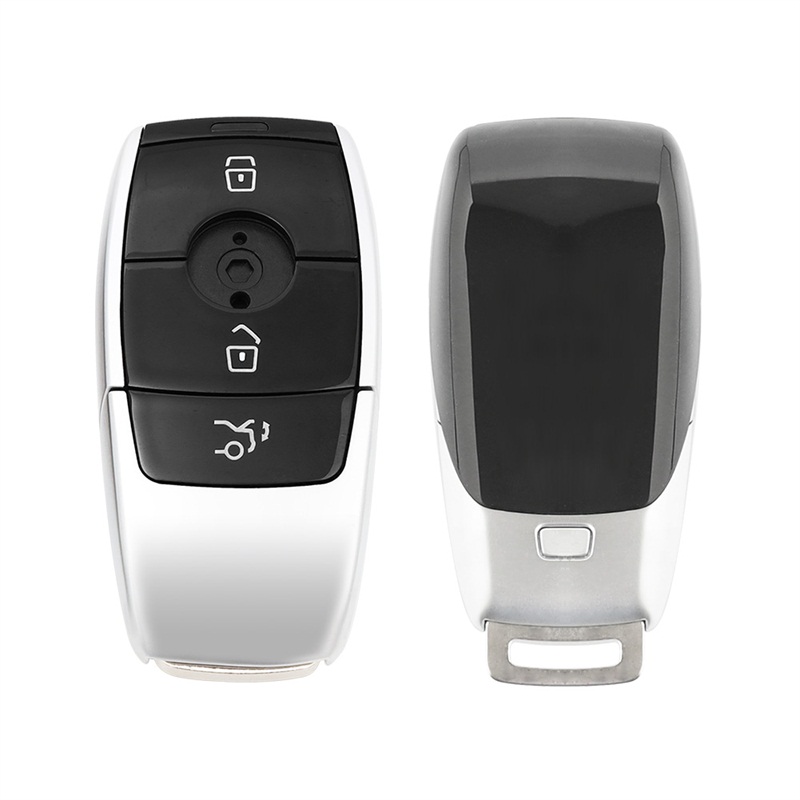

Remote control x 2
PKE antenna x 2

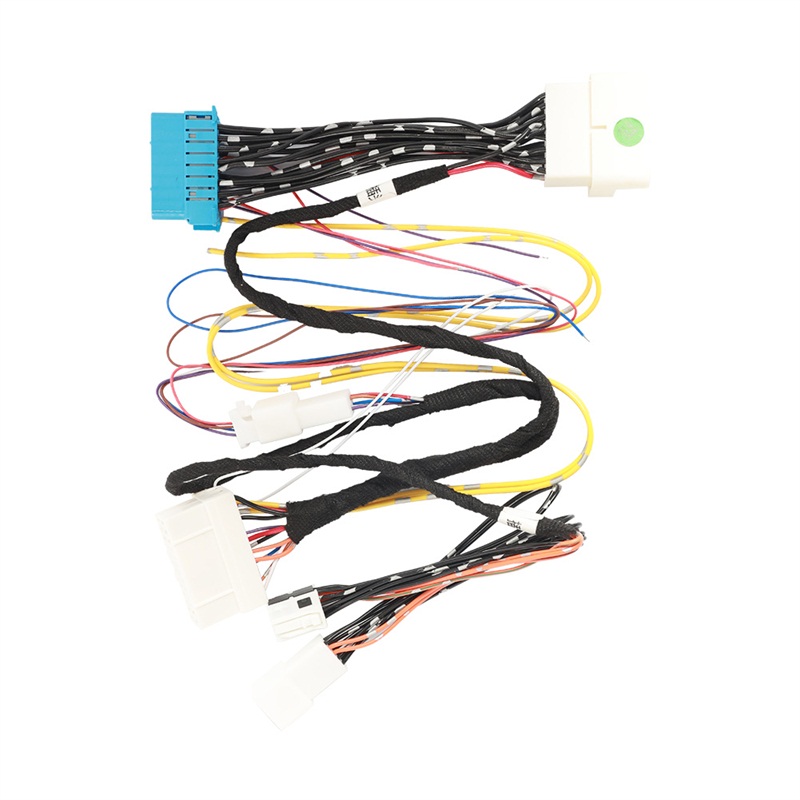

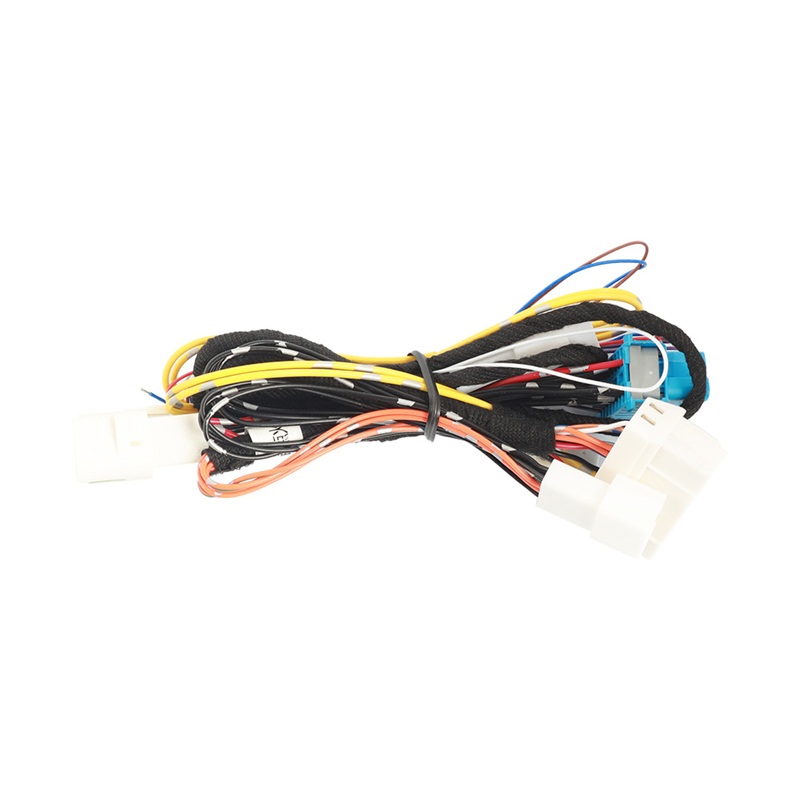

Wire harness x 2
English user manual & installation guide x 1

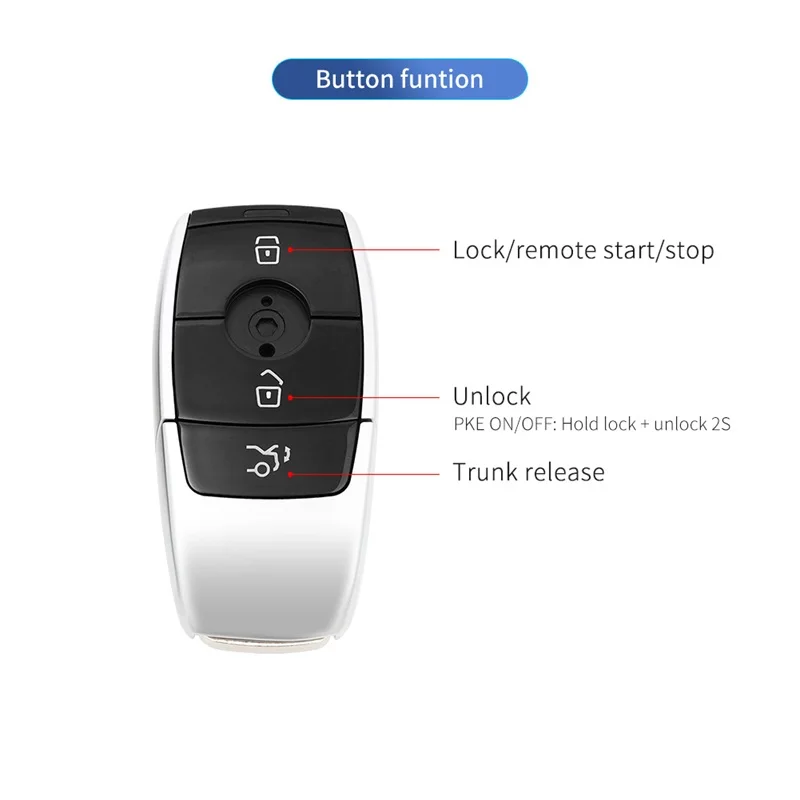

Common use function
1. Lock: press the lock button once
2. Unlock: press the unlock button once
3. Trunk: keep pressing the trunk button to release the trunk
4. Finding car/Panic mode: press the finding car button (lock button) once
5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
6. To enable or disable PKE feature(PKE ON/OFF setting)
In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.
7. Mute alarm & audible alarm
In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode
8. Remote engine start:
In lock status,ensure all the doors are closed well,keep pressing the lock button for about 2s will remote start the car
9. Remote engine stop:
After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car
remove the ignition cylinder and solder—professional car alarm technician installation only!!!
