Dear Customers,

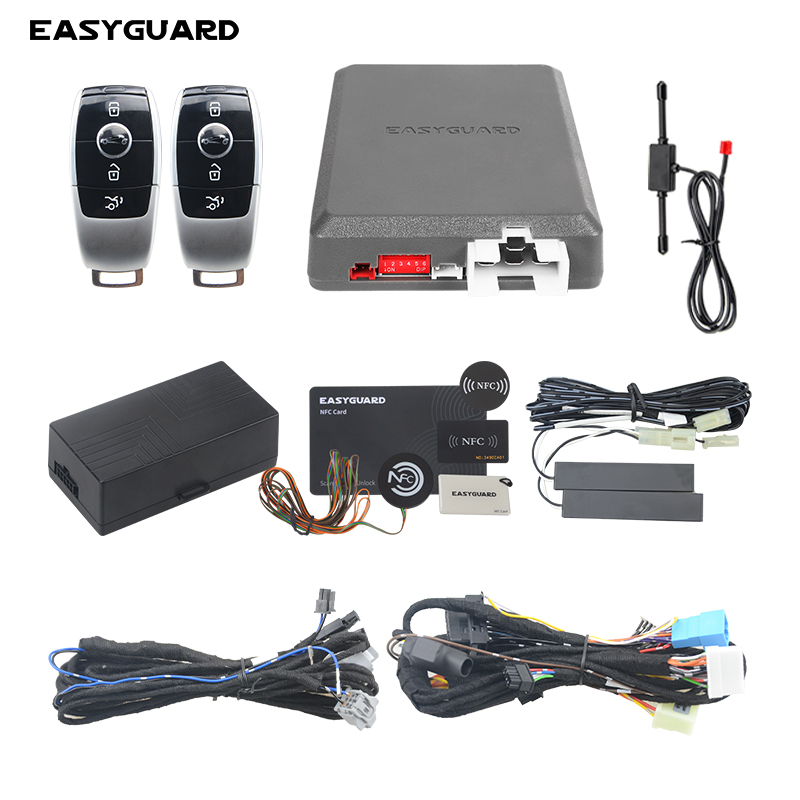

This is EASYGUARD CAN BUS PKE remote starter With Smartphone APP control & 4G GPS tracking fit for Mercedes Benz cars
Fit for Mercedes Benz 14-16 E class W213/ 13-15 GLK/ 12-18 CLS with factory OEM PTS (Push To Start button) only
Important:
1. Please confirm the car model and year with seller before buying. You may need to send some photos of the car original key, ignition cylinder etc.
2. Need to uninstall the ignition cylinder& use heat shrink tube to deal with the ignition cylinder. Requlre 1pc factory original key fobs to put in the ignition cylinder to deal with the factory chip immobilizer.

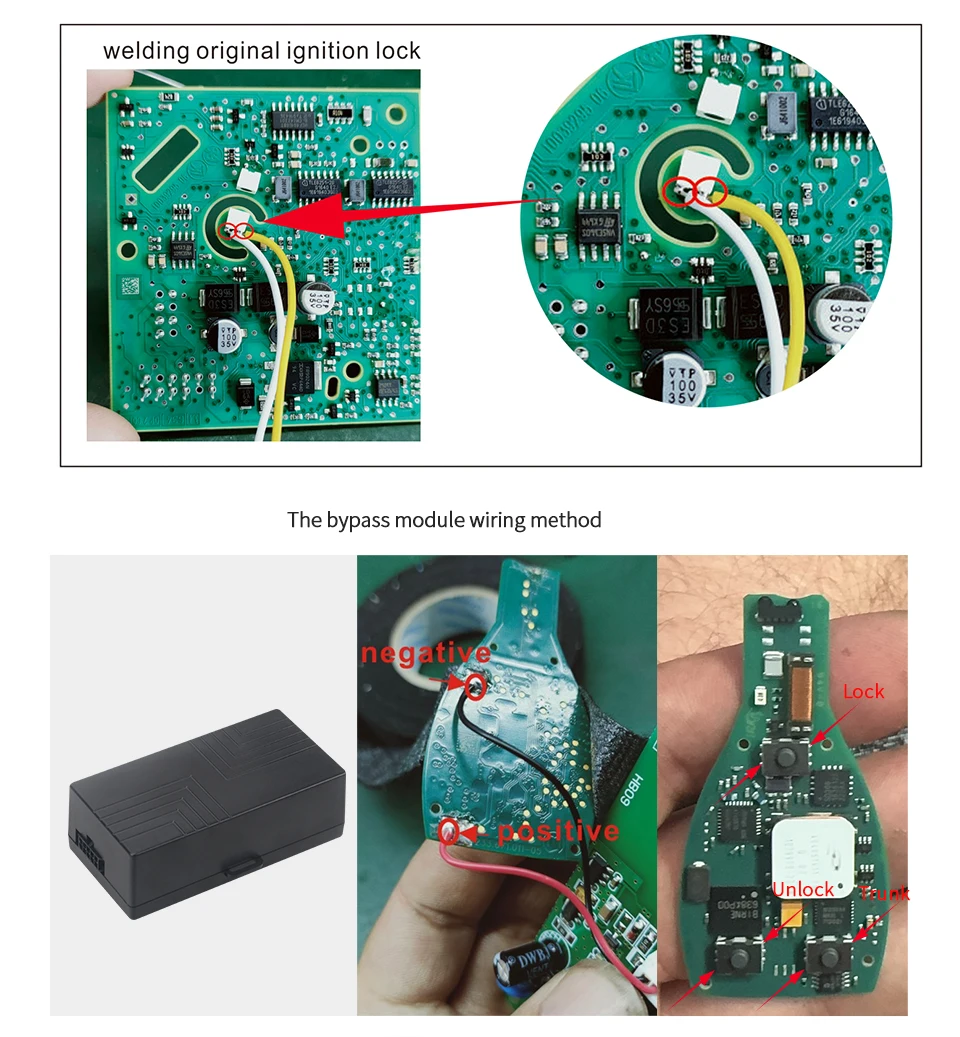

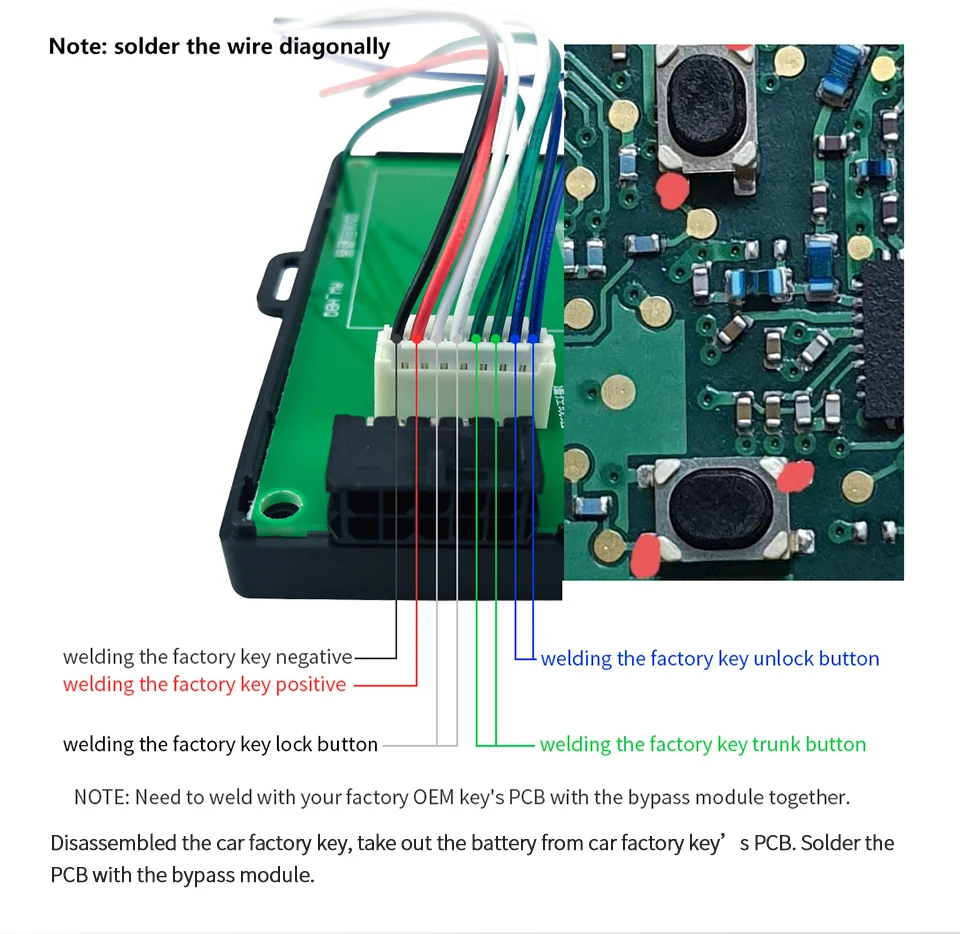

3. Soldering the key PCB — once finish soldering, remember to take out the battery from the remote.
When you purchase the GPS module, please tell us your Carrier and APN! ! !.
GPS module：//www.aliexpress.com/item/2255799994089177.html, need choose GPS002-AA
If your car is with factory oem push button, please contact seller for more details,

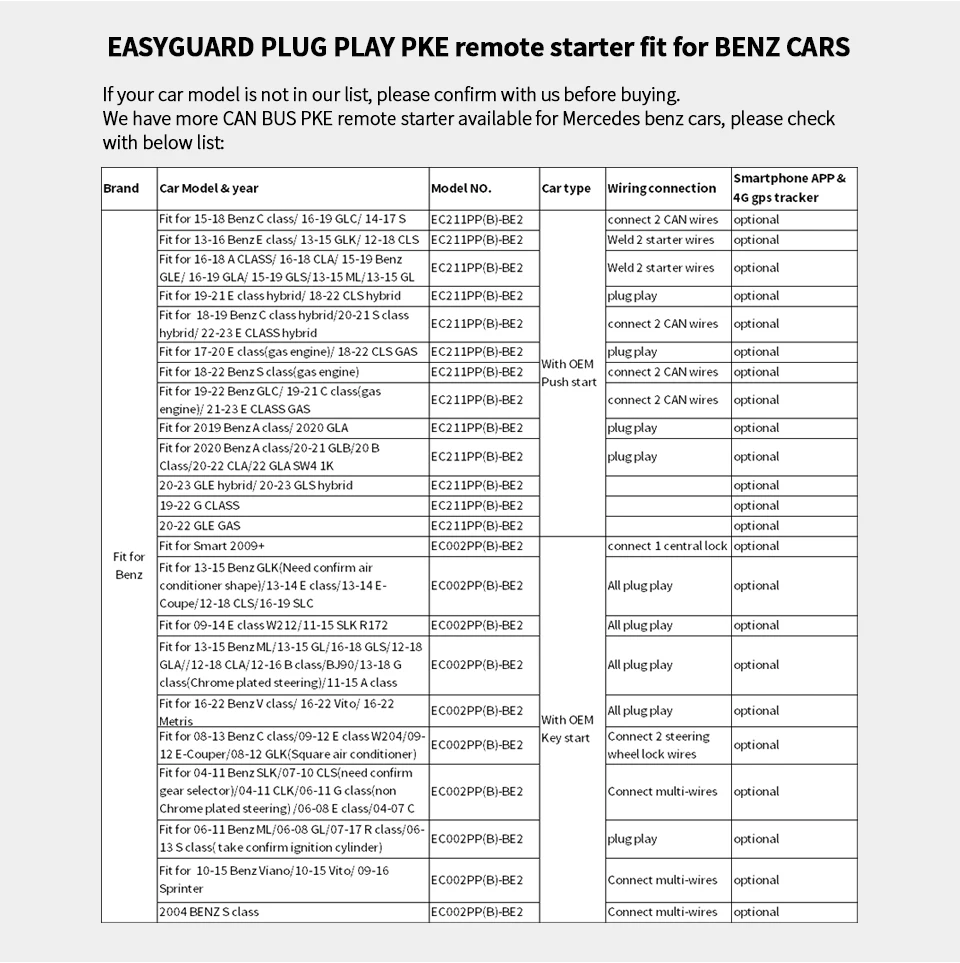

We have some more products fit for other Benz cars, see below chart for the list.

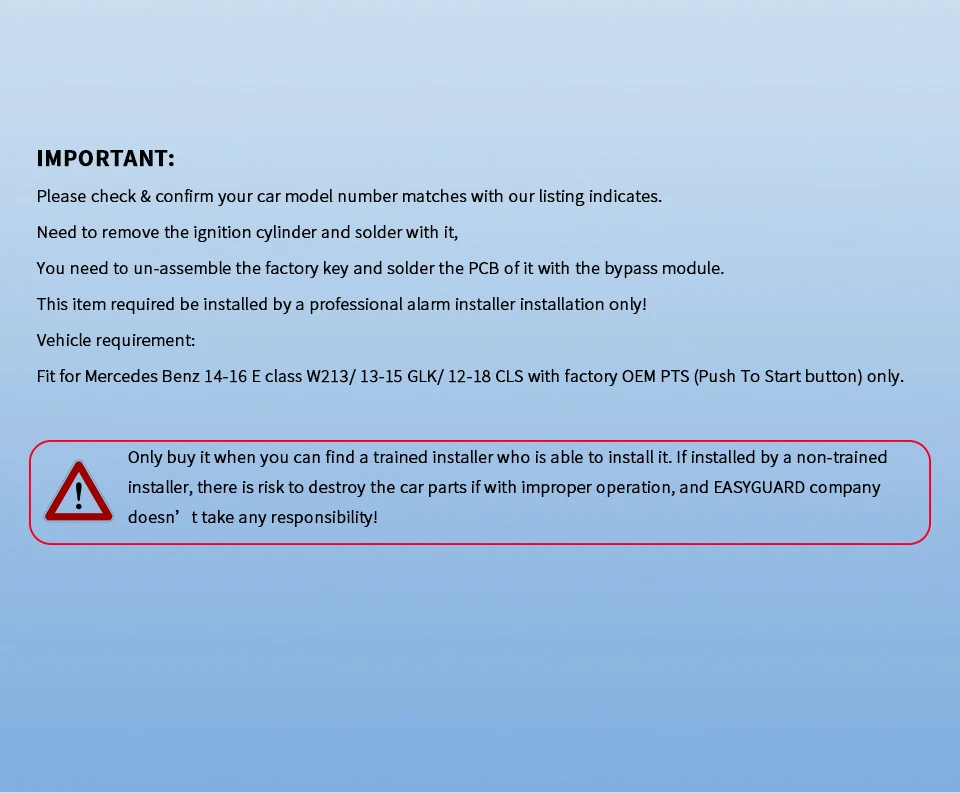

IMPORTANT:
Need to uninstall the ignition cylinder & need to use heat shrink tube to deal with it.
Require 1 pc factory original key fobs to put in the ignition cylinder to deal with the factory chip immobilizer.
This item requires to install by a professional or trained car alarm installer only!
Only buy it when you can find a trained installer who is able to installit. If installed by a non-trained intraller there， is risk to destry the car ignition cylinder if with improper operation，and
EASYGUARD company doesn' ttake any responsibility!
Please check & confirm your car model number matches with our listing indicates.
You may need to send some photos of your car steering to us for confirmation before buying

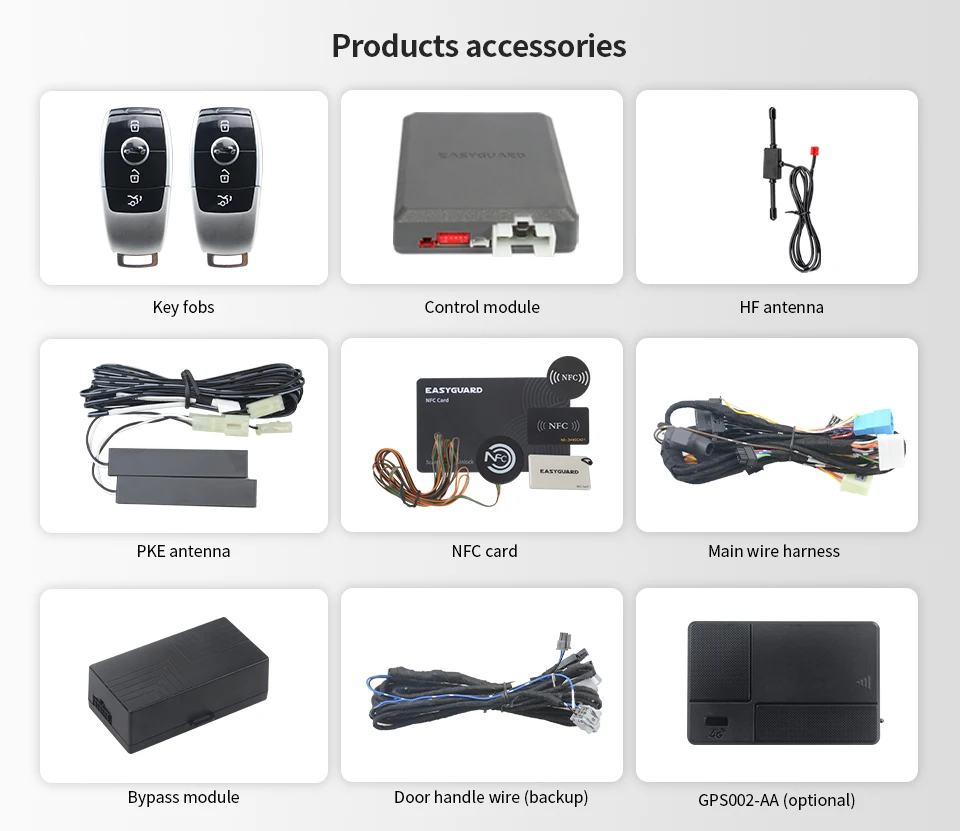

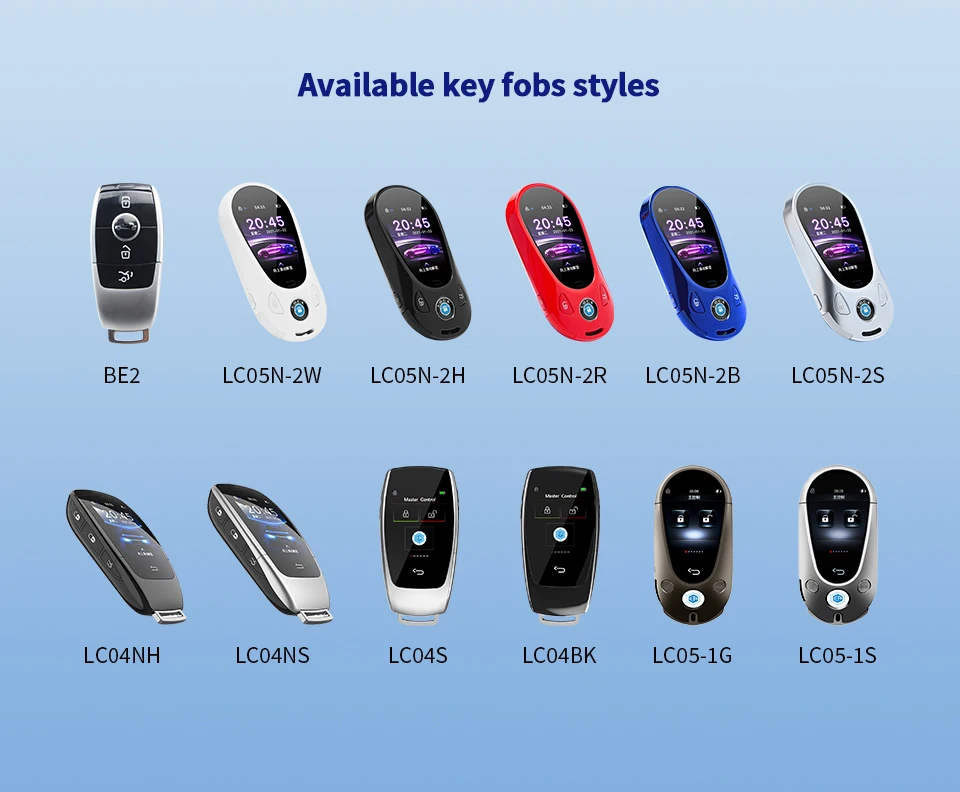

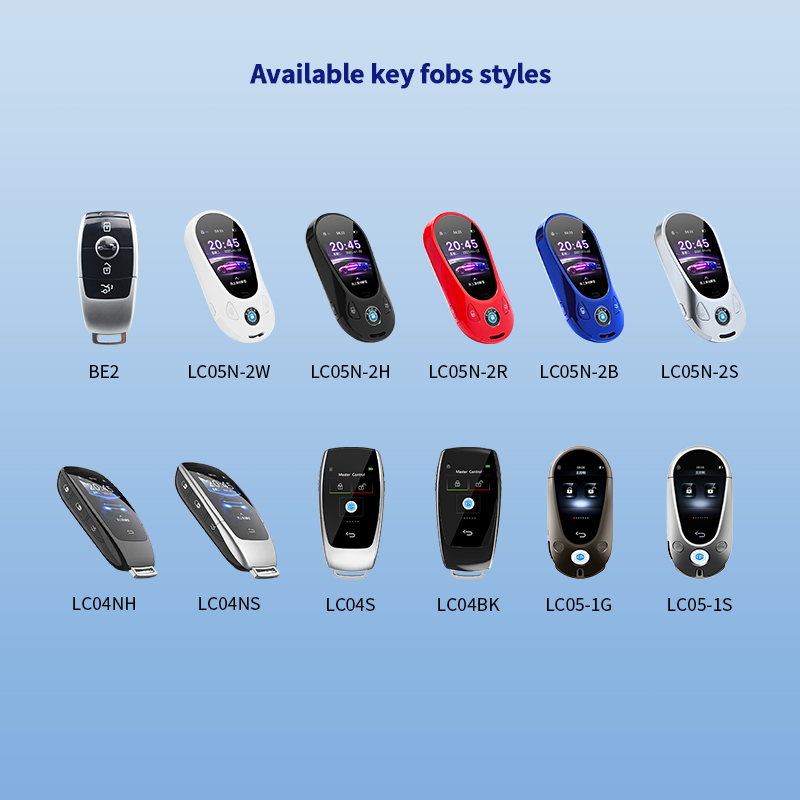

Available key fobs styles

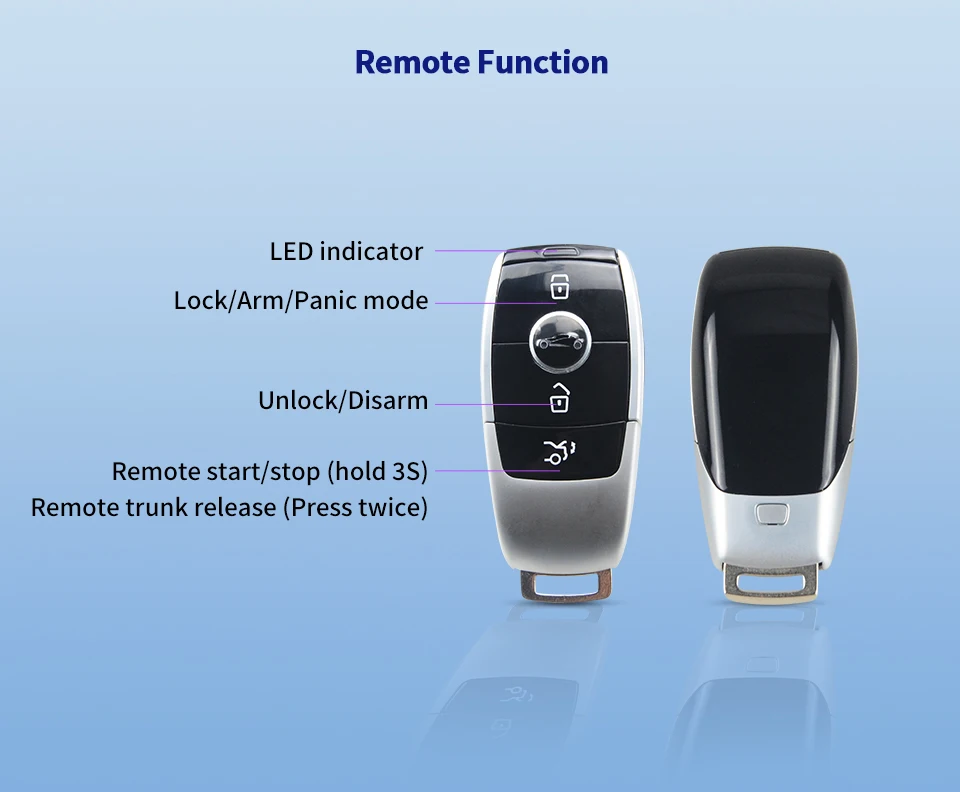

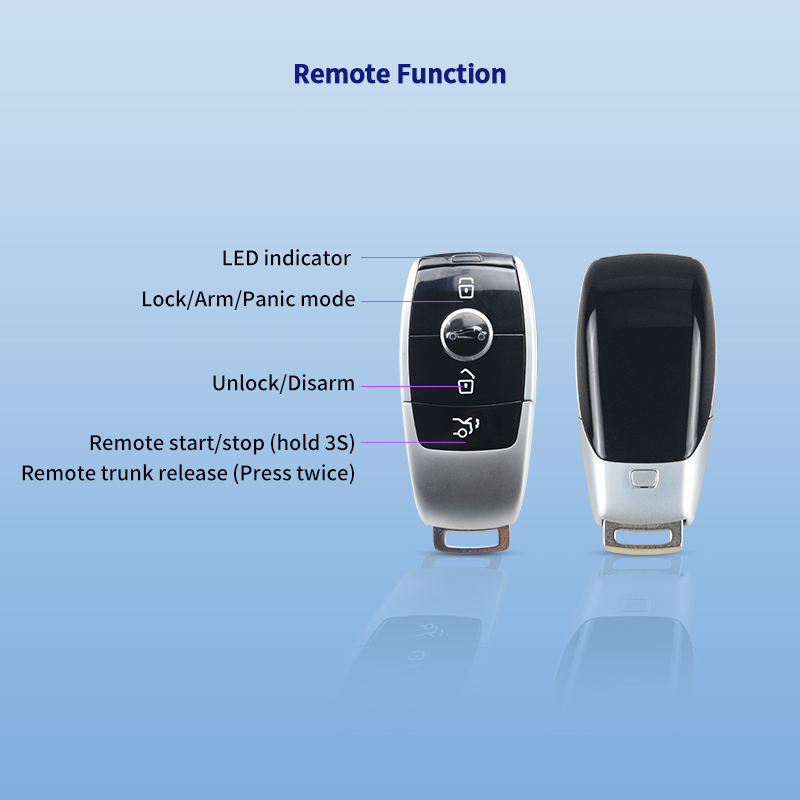

Remote Function
Common use function
1. Lock: press the lock button once
2. Unlock: press the unlock button once
3. Trunk: keep pressing the trunk button to release the trunk
4. Finding car/Panic mode: press the finding car button (lock button) once
5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)
6. To enable or disable PKE feature(PKE ON/OFF setting)
In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.
7. Mute alarm & audible alarm
In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode
8. Remote engine start:
In lock status,ensure all the doors are closed well,keep pressing the lock button for about 2s will remote start the car
9. Remote engine stop:
After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car

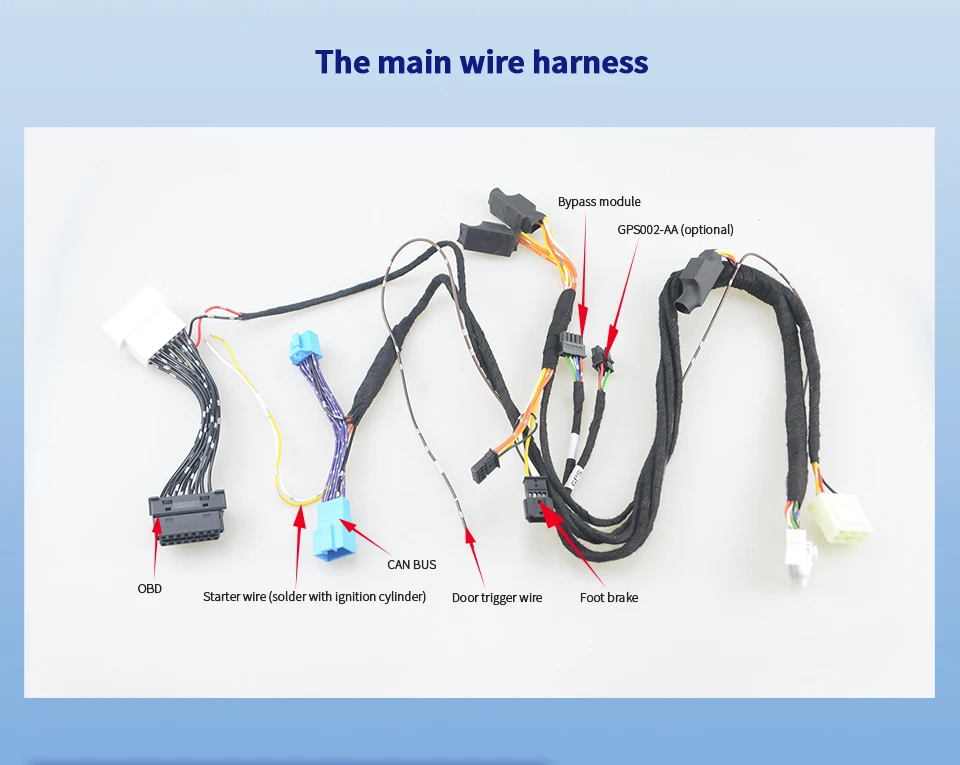

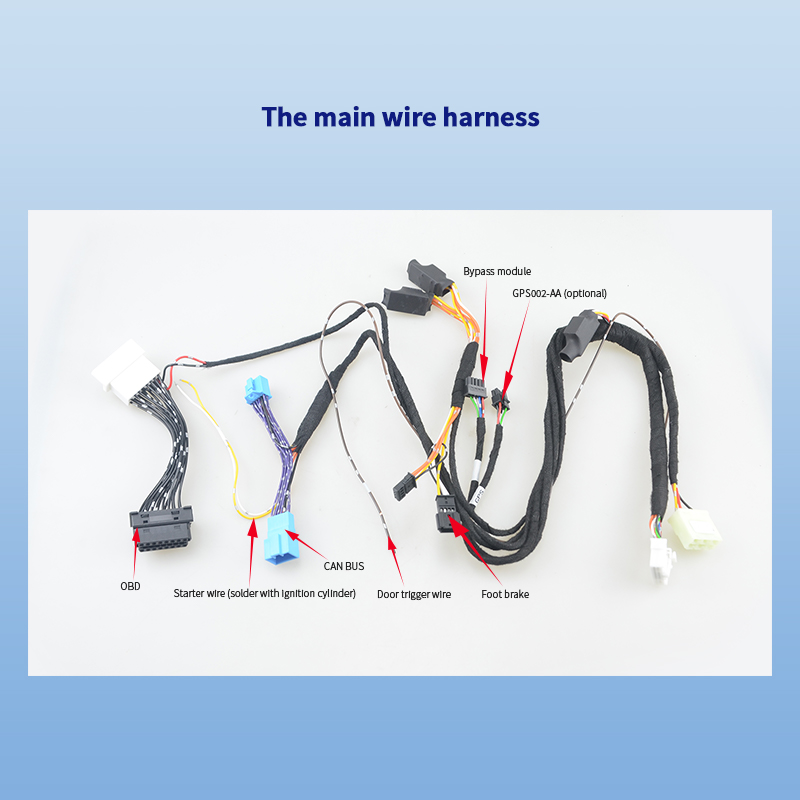

The main wire harness
Remote Engine StartRemote engine start can pre-cool your car in hot summeror pre-warm it in cold winter

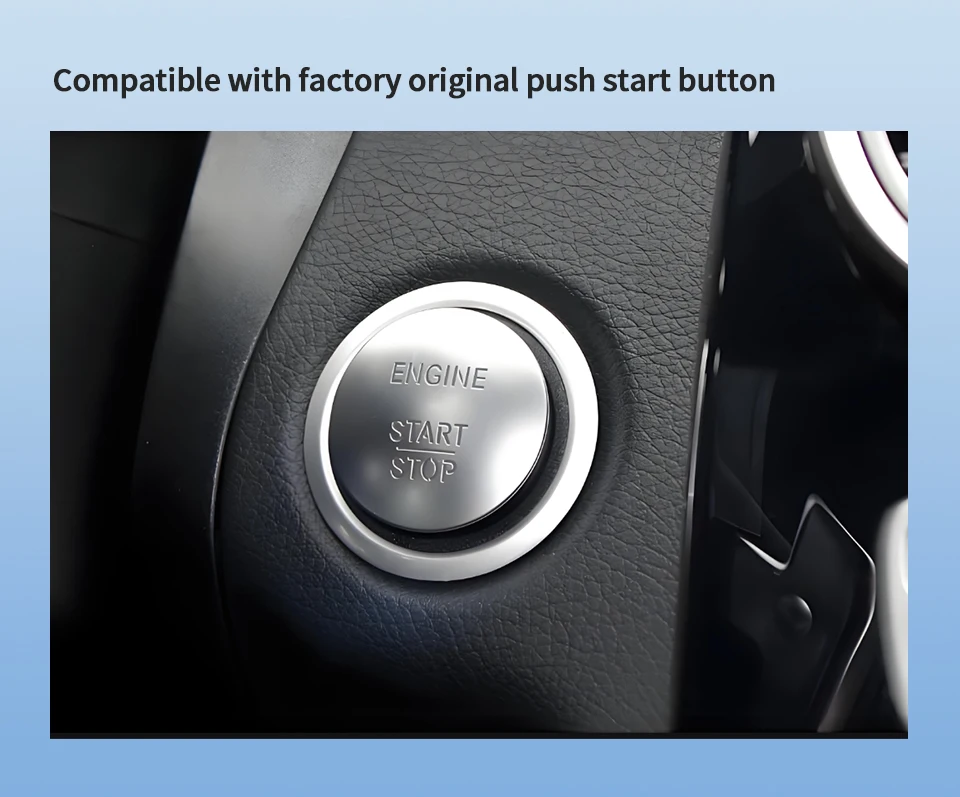

Compatible with factory original push start button
Upgrade your car with NFC card lock or unlockUse NFC card to lock or unlock the car door & drive your car awayYou can add 4pcs NFC card maximum
Smartphone APP control the car (optional)Upgrade your car with smartphone APP control & 4G GPS tracking(Optional, extra 4G LTE like GPS002-AA module is required)
Automatically window roll up & down by remote (optional,only available some car models support this feature)
Panic modePress the finding car button (lock button) once

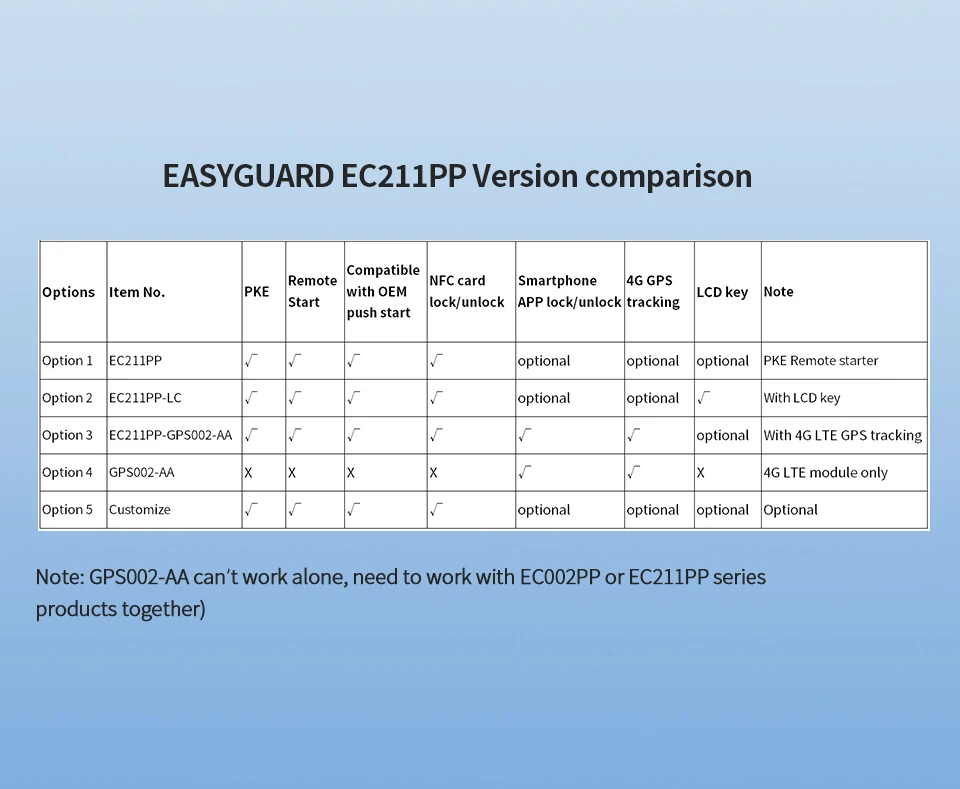

EASYGUARD EC211PP Version comparison

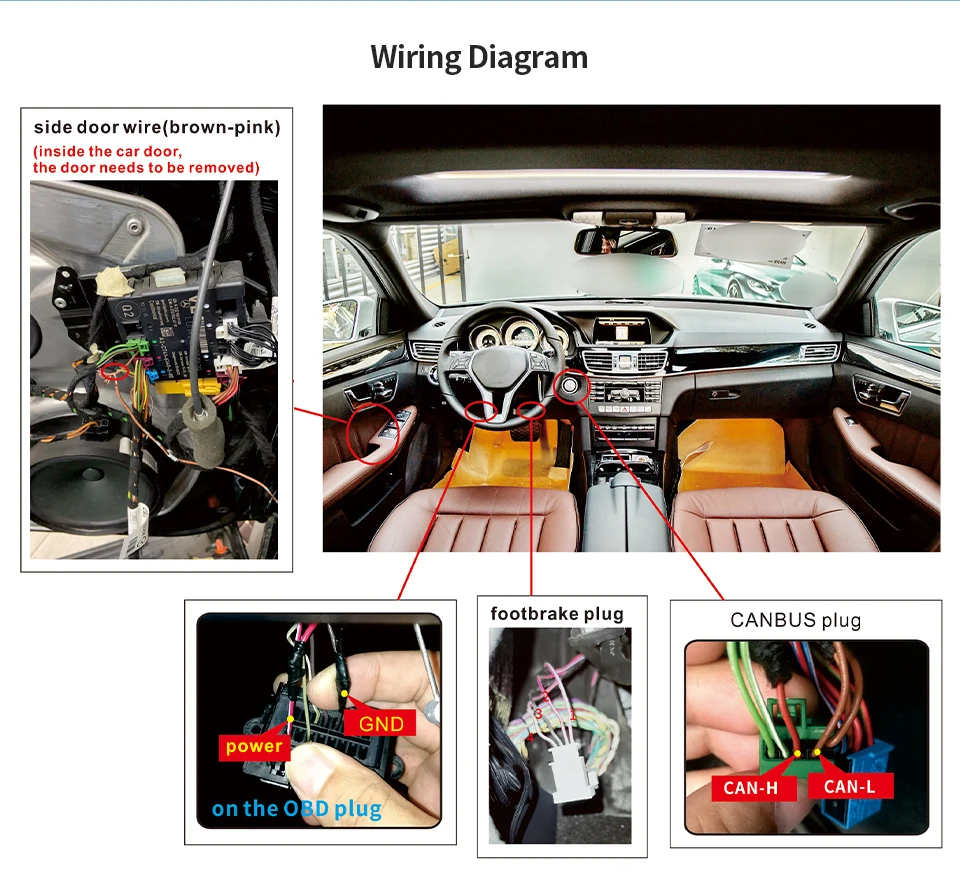

Wiring Diagram
Welcome to wholesale!
1. In Stock & fast shipping, usually ships out in 2-3 working days
2. More competitive price for bulk order.
3. 1 year quality warranty and free lifetime tech support.
4. Support customized orders.
5. Welcome OEM & ODM orders.
