DVR Specification：
|
Model |
8CH AHD 5MP DVR |
|
|
System |
Main processor |
Hi3531A |
|
Interface |
Preview |
1/4/8/9 |
|
Video |
Codec |
H.264+( Quasi H.265AI)/H.264 |
|
Monitor quality |

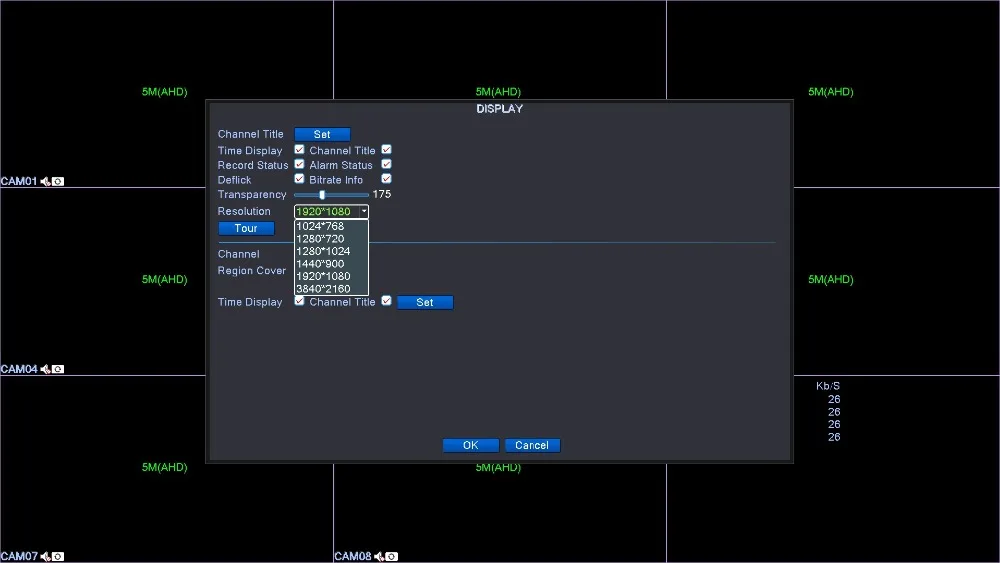

VGA(1080P at most);HDMI(4K at most) |
|
|
Preview ability |
8*5M@20fps/8*5M |
|
|
Encode ability |
8*5M@11fps/8*4M@15fps(AHD)/ 8*3M@18fps(AHD)/ 8*1080P(5 in 1) |
|
|
Decode ability |
8*5M@11fps/8*4M@15fps(AHD) / 8*3M@18fps(AHD)/ 8*1080P(5 in 1) |
|
|

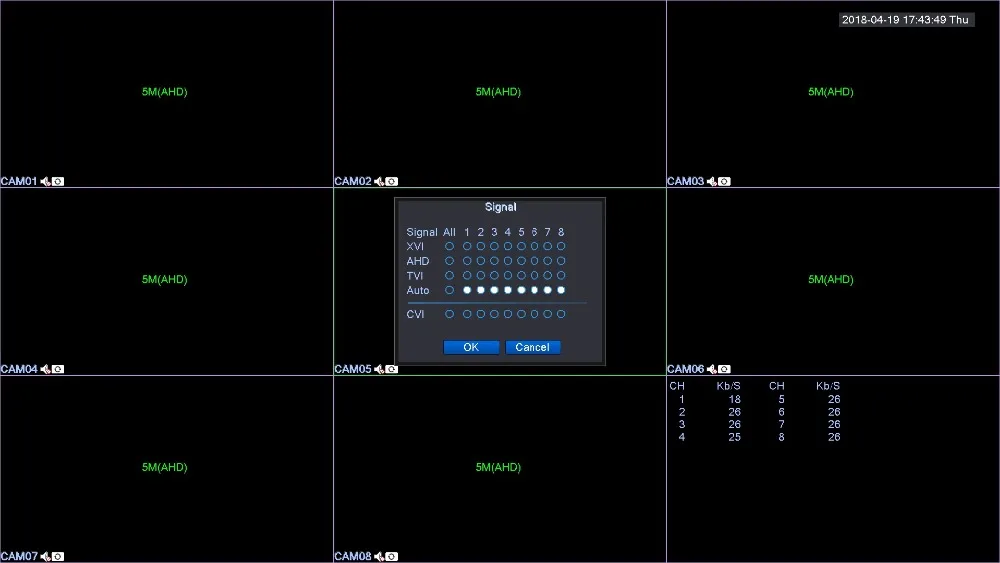

Multi-mode input |
analog： 8*5M; hybrid： 4*5M（analog）+4*5M（network） network：8*3M ;4*5M |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local Playback |
4ch(analog input mode) |
|
|
Search mode |
Search by time, calendar, event, channel |
|
|
Storage & backup |
Video storage |
HDD, network |
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
|
|
External Interface |
Video input |
8ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Loop Vout |
N/A |
|
|
Audio I/O |
4/1 |
|
|
Alarm I/O |
0（Can be extended to 4ch）/0（Can be extended to 1ch） |
|
|

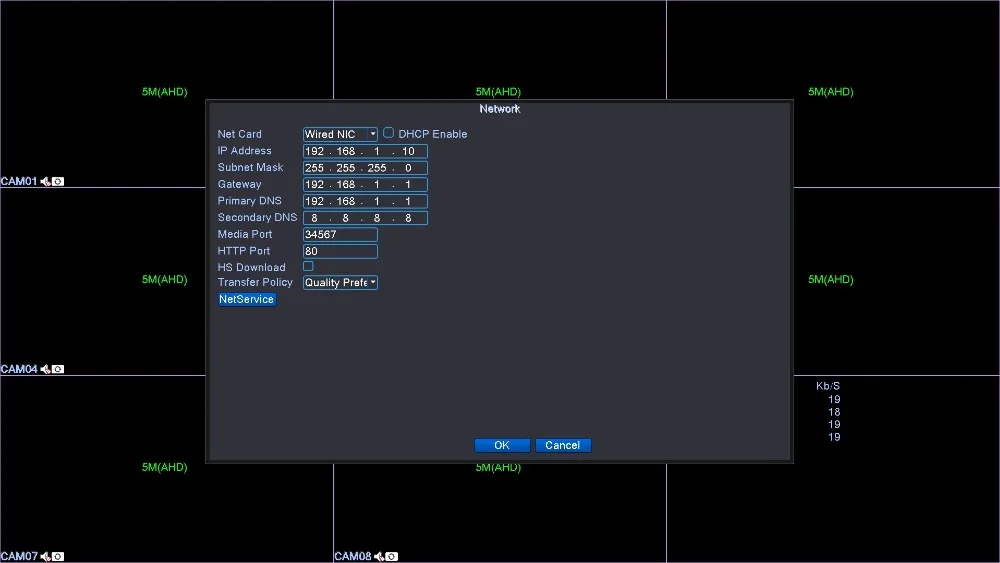

Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
1*RS485, Support kinds of PTZ protocols |
|
|
USB |
2* USB 2.0 ports |
|
|
HDD |
1*SATA ports (Max 8TB/per) |
|
|
Wireless |
3G, WIFI (extend via USB) |
|
|
General |
Power supply |
12V/2A |
|
Power Consumption |
<15W (without HDD) |
|
|
Working environment |
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |

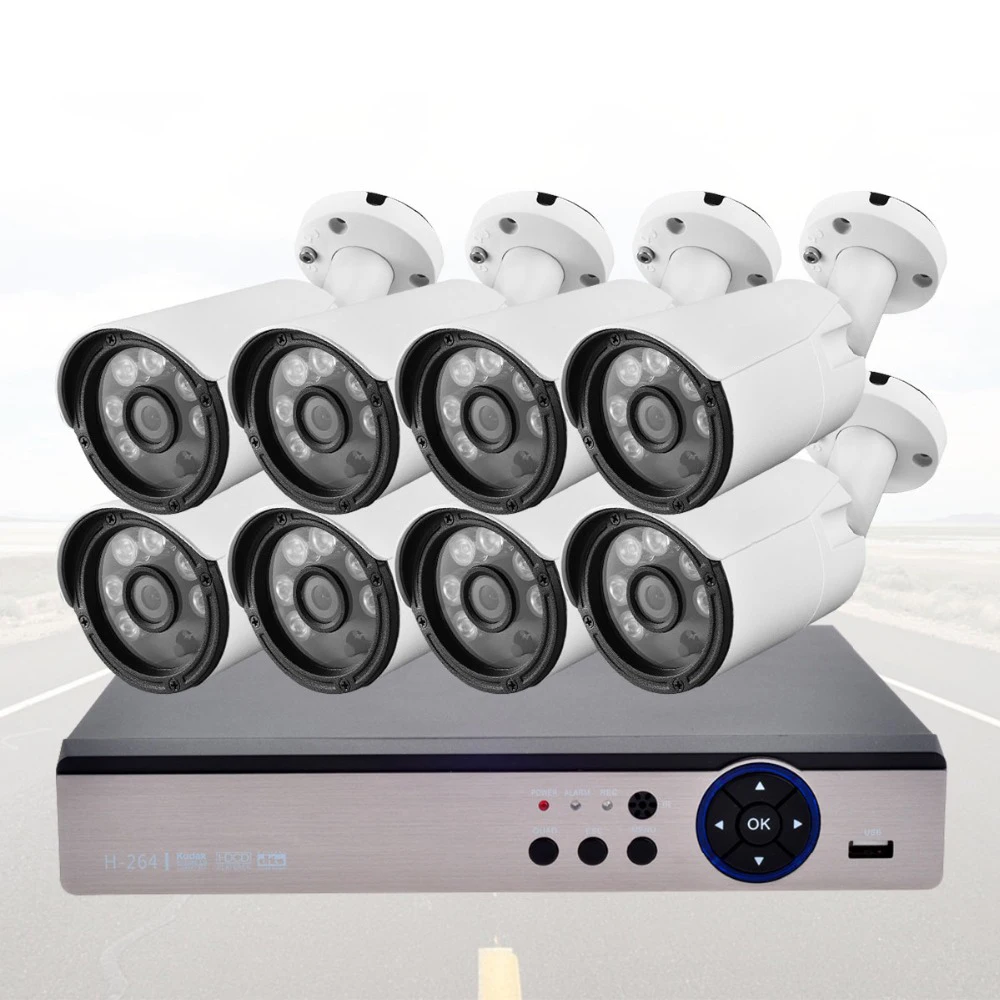

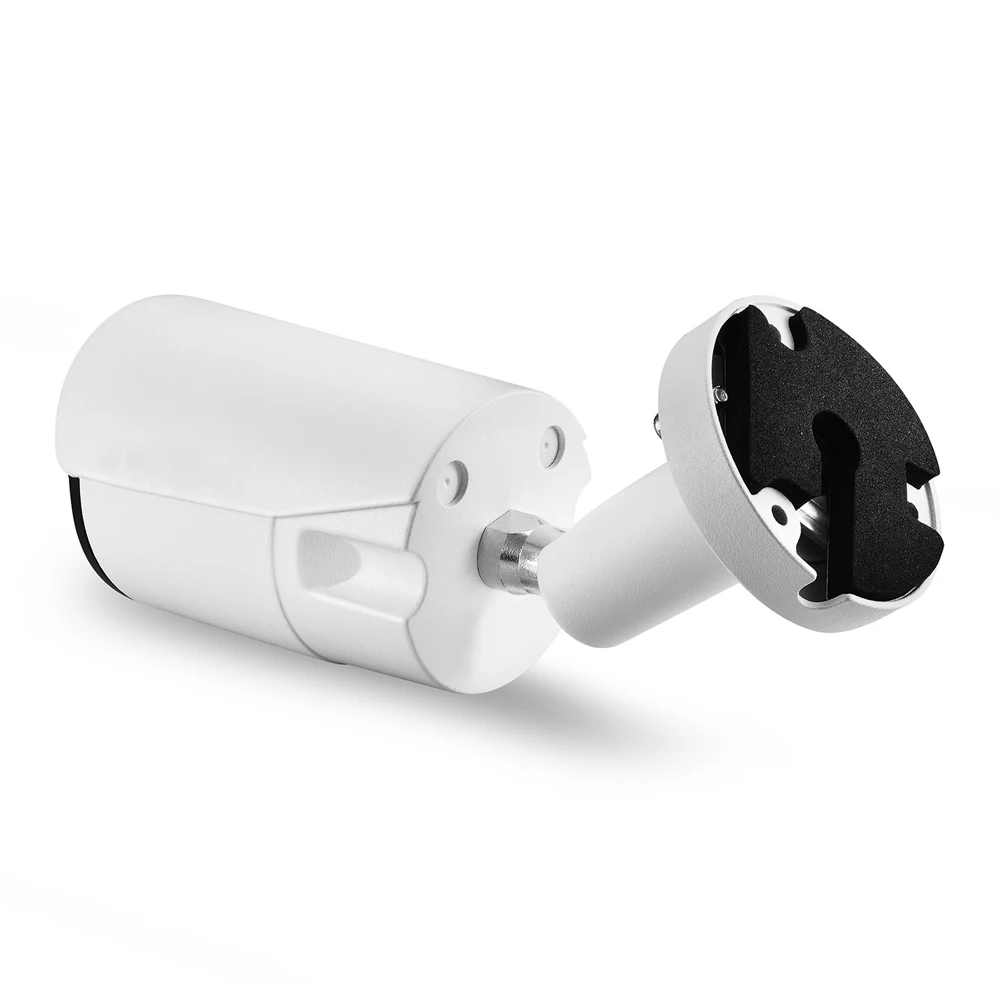

Camera Description
1. 5.0MP High Resolution:PAL/NTSC:2560*1920
2. 3.6mm/6mm HD lens
3. Color 1/2.7″ HD-AHD 5Megapixel CMOS Sensor, ICR
4. 1/2.7 inch SC5239 sensor
5. 6pcs array led light , 5-20M Max IR distance

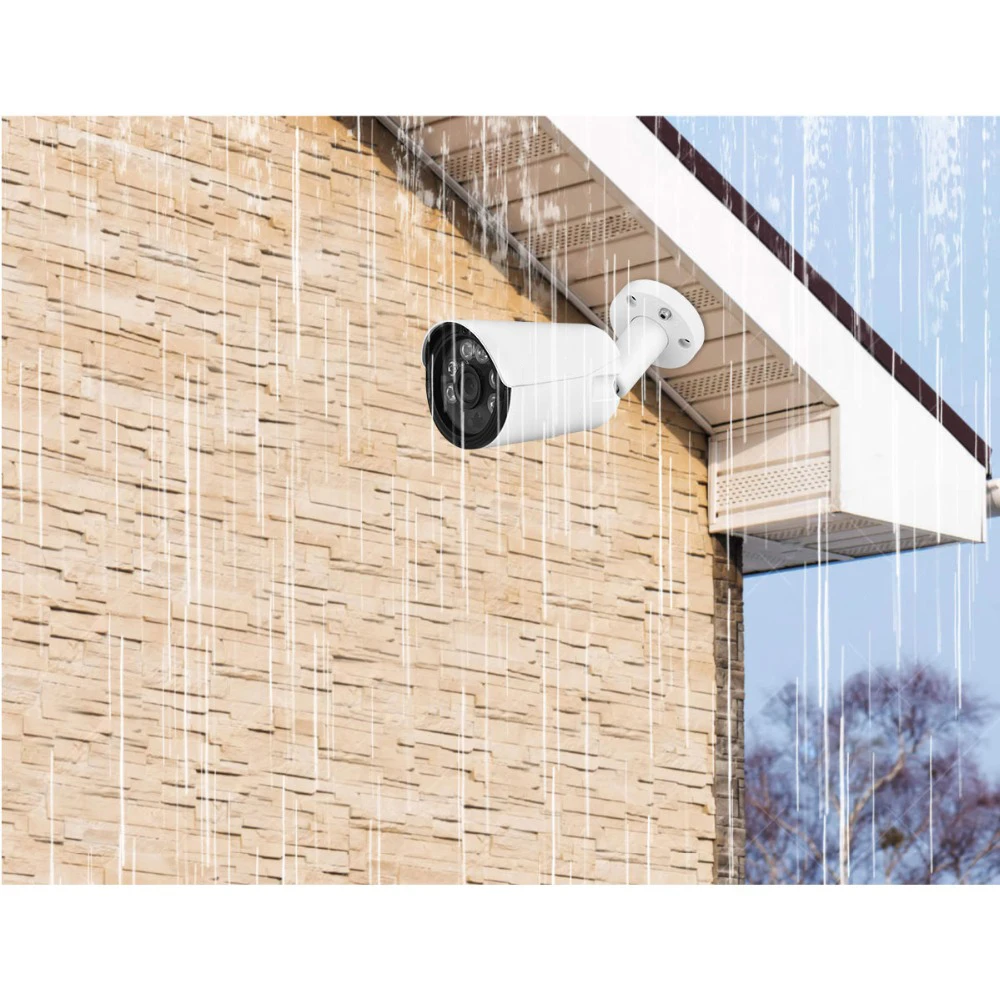

6. IP66 waterproof
7. Metal housing
It must be connected via 5MP AHD DVR.
It can not use conventional analog DVR, it can not be directly connected to the monitor.
|
Model |
AHD 5.0MP |
|
|
Sensor |
1/2.7 inch SC5239 sensor |
|
|
Minimum Illumination |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
||
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
|
Day and Night Function |
Support IR-CUT |
|
|
Infrared light |
6pcs array IR leds |
|
|
Lens |
3.6mm default |
|
|
Synchronous Mode |
inter-sync |
|
|
Noise-signal Ratio |
>58dB |
|
|
Temperature and Humidity |
– 10’C ~ 60’C, humidity is less than 90% (no condensation) |
|
|
Power |
DC12V±10% |
|
|
Consumption |
<5W |
|
|
Dimension |
17.6*6.6cm |
|
|
Housing material |
Metal |
|
|
