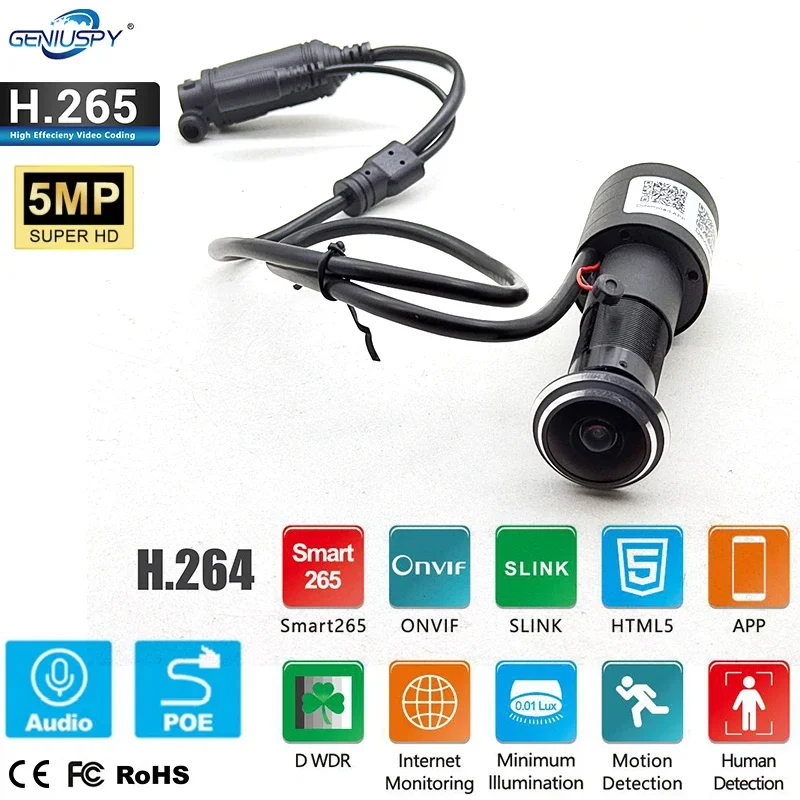

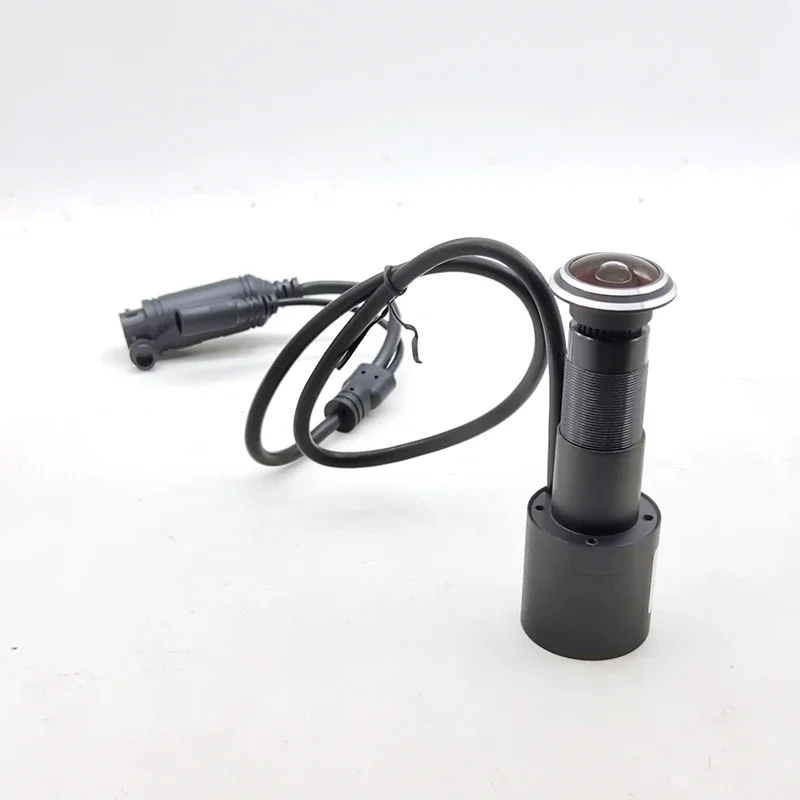

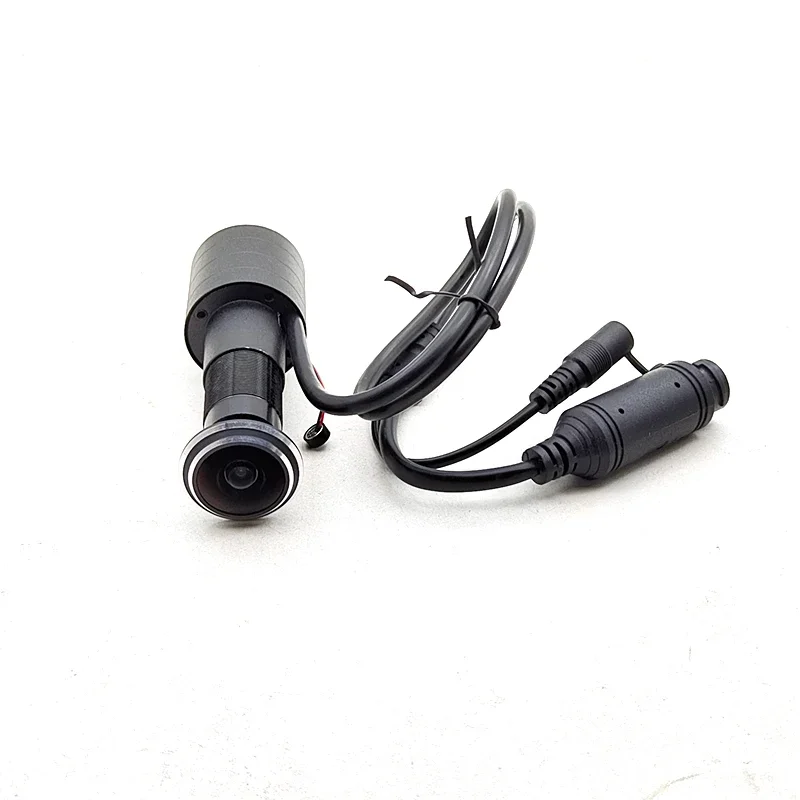

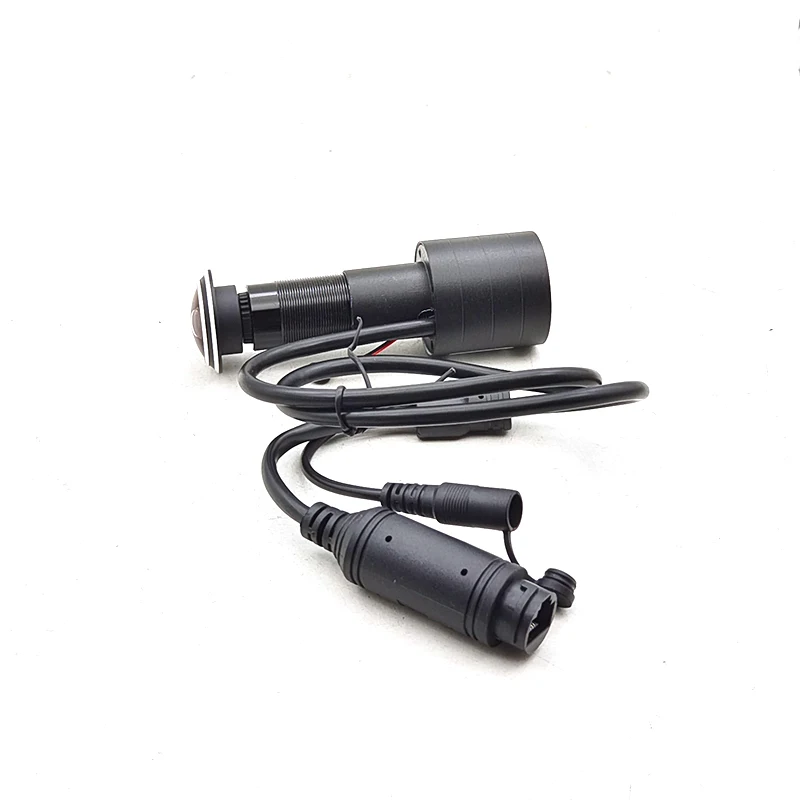

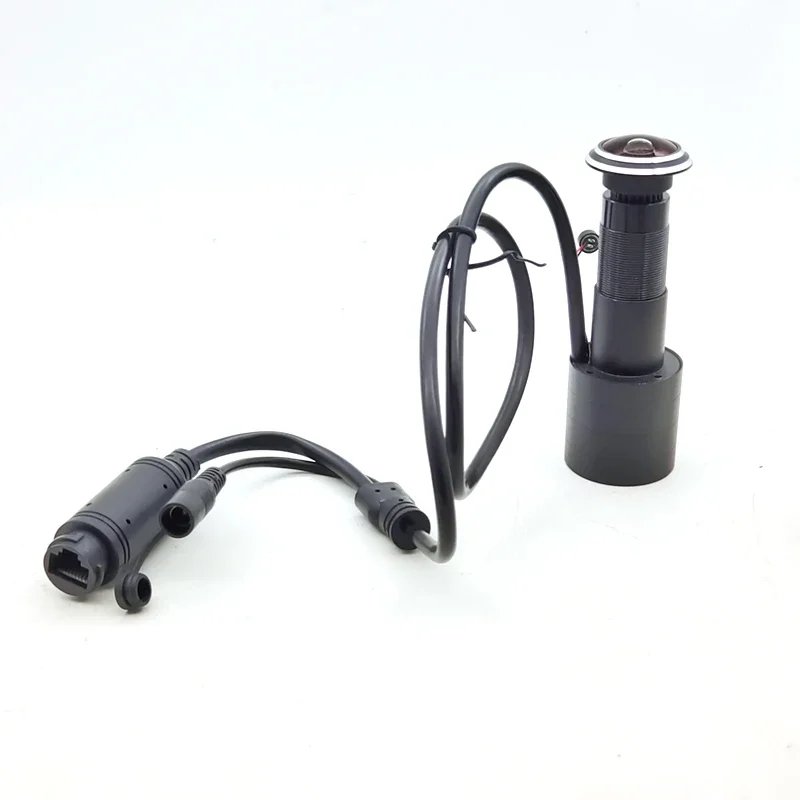

Geniuspy HD 5MP Fisheye Peephole POE IP Camera Audio Mini Door Eye Hole Camera P2P Network Surveillance Camera Security Seeasy
NOTICE:
H.265 Human Detection Motion Smart Door Eye Hole 5MP 4MP HD Wide Angle FishEye Mini Peephole Door IP Camera App Remote View
5MP Main Features:
1. Support 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) resolution
2. Built-in human detection algorithm, detection frame rate 5 fps/second, detect 5 people at the same time
3. S265/H.265 efficient compression, saving bandwidth and storage space
4. Low consumption, low bit rate and low latency
5. Support infrared/full color/dual light source video mode optional
6. Support automatic electronic shutter function to adapt to different monitoring environments
7. Support ONVIF, SLINK protocol
8. Support NTP service
9. Support two-way intercom
10. Support HTTPS encrypted transmission
|
Specification |
||||||||
|
Basic parameter |
||||||||
|
Model |
GS-EZAD178C5M-POE |
|||||||
|
Smart function |
Human detection |
|||||||
|
Main chipset |
T31X |
|||||||
|
Image sensor |
1/2.7″, 5MP progressive scan ultra-low illumination CMOS |
|||||||
|
Lens |

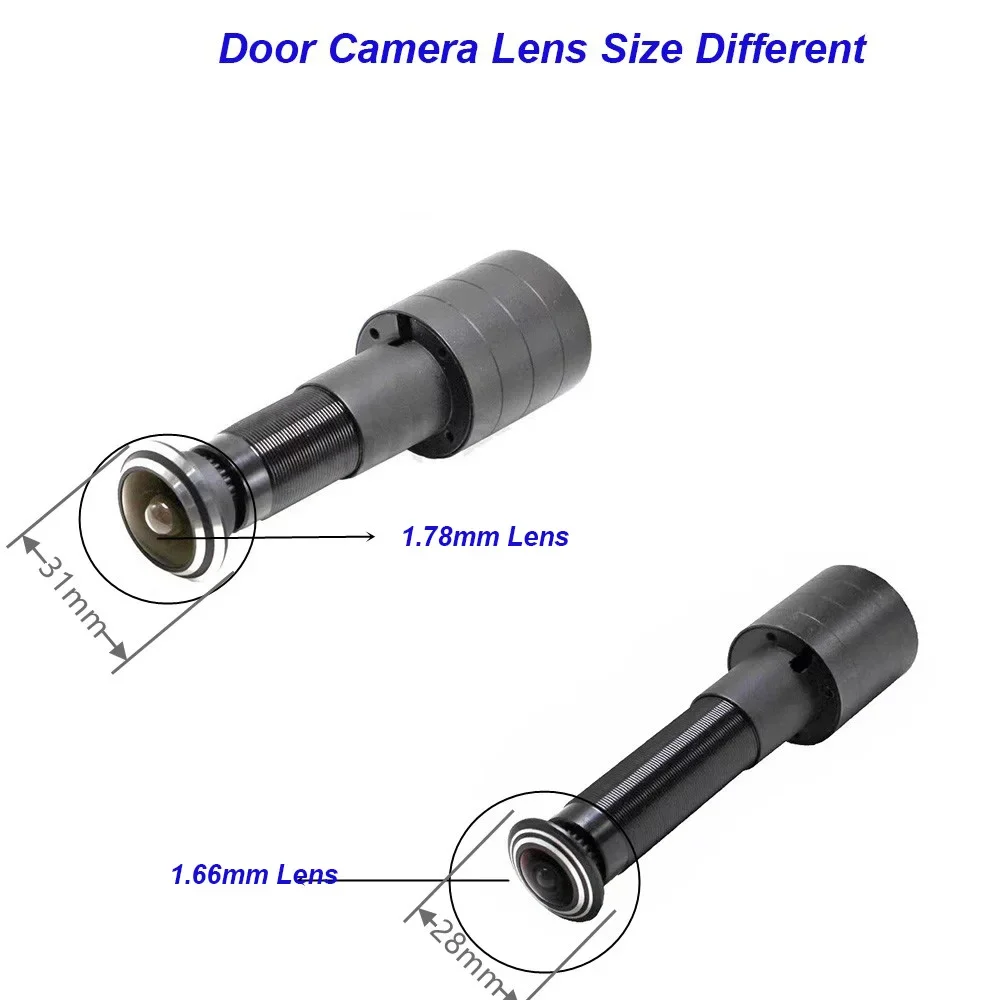

Support fixed lens and manual varifocal lens |
|||||||
|
WDR |
D-WDR (off/low/middle/high) |
|||||||
|
D&N |
ICR switch, auto/color/B&W/external trigger |
|||||||
|
Lamp board control |
Auto/manual/off |
|||||||
|
Noise reduction |
Off/low/middle/high/higher |
|||||||
|
Mirror |
Off/horizontal mirroring/vertical mirroring/180 ° rotation |
|||||||
|
Image setting |
Brightness/contrast/sharpness/saturation/chroma |
|||||||
|
Human detection |
||||||||
|
Detection qty |
≤ 5 person at the same time |
|||||||
|
Detect human pixel |
Human pixel ≥ 40X40 |
|||||||
|
Human detection rate |
≥99% (meet above requirement) |
|||||||
|
Responding speed |
≤1s |
|||||||
|
Maximum detection Frame Rate |
5fps/s |
|||||||
|
False detection rate |
≤2% |
|||||||
|
Detection part |
People in any pose, including half body, head |
|||||||
|
People tracking |
Support |
|||||||
|
Detection mode |
Support static human detection, support dynamic humanoid detection |
|||||||
|
Detection method |
Support visible light image detection, support near-infrared image detection |
|||||||
|
Detection area |
Support specified area, default full screen |
|||||||
|
Upload method |
Private protocol upload |
|||||||
|
Trigger method |
Video trigger |
|||||||
|
Video and audio coding |
||||||||
|
Encoding format |
S265/H.265/H.264 |
|||||||
|
Coding characteristics |
Main stream: 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) |
|||||||
|
Video bit rate |
CBR/VBR |
|||||||
|
Video type |
Composite stream/video stream |
|||||||
|
Audio coding standard |
G.711A/G.711U |
|||||||
|
Network function |
||||||||
|
Network protocol |
TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE |
|||||||
|
Interface protocol |
ONVIF, SLINK |
|||||||
|
Safe mode |
Authorized username and password, HTTPS encryption, AES connection encryption, RTSP authentication |
|||||||
|
Motion detection |
Set detection area, multi-level sensitivity can be set |
|||||||
|
Video tampering |
Support 1 area setting |
|||||||
|
Privacy zones |
Support 4 area privacy mask |
|||||||
|
Port |
||||||||
|
Network port |
RJ45 10M/100M network self-adjustable |
|||||||
|
Audio |
Mic in/out |
|||||||
|
General |
||||||||
|
Operation T/H |
– 10°C ~ 50°C/0﹪-90﹪ |
|||||||
|
Power supply |

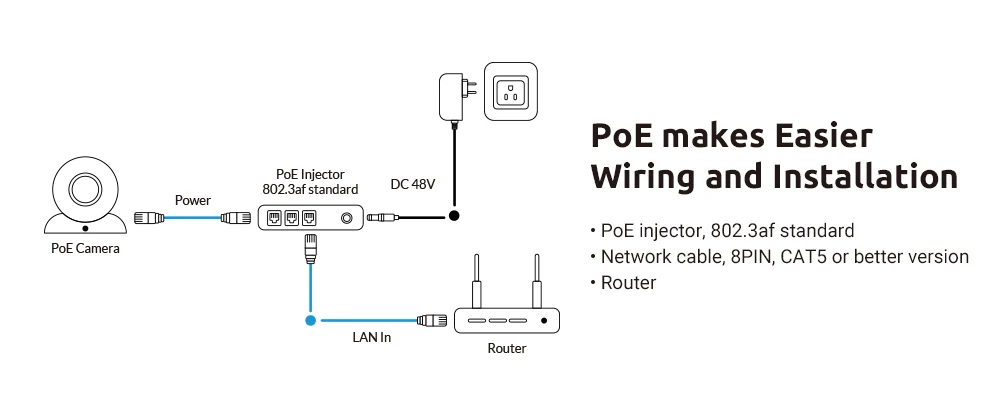

DC12V/PoE optional |
|||||||
|

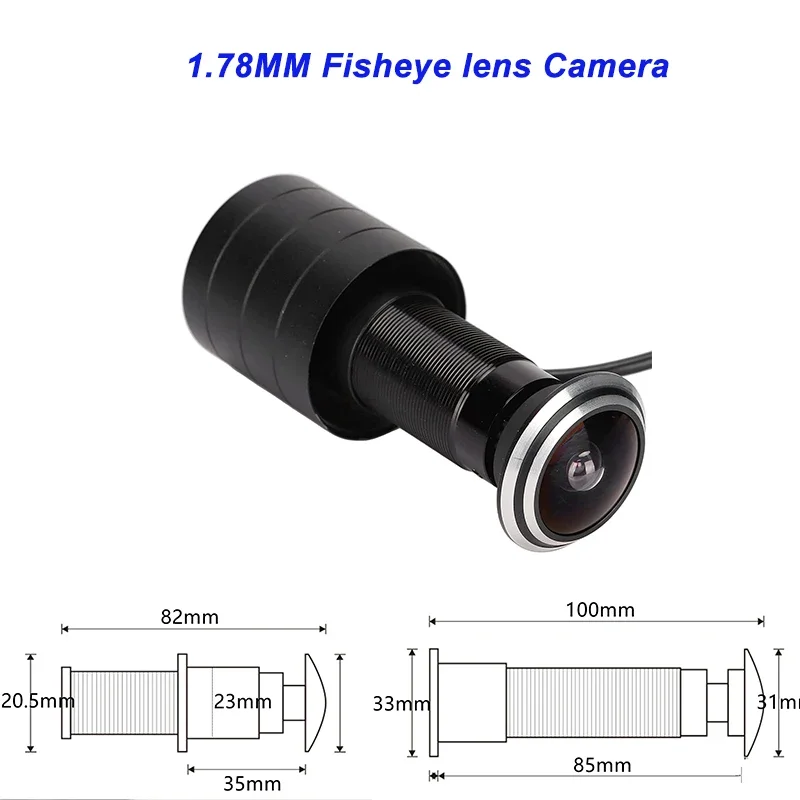

Dimension (mm) |
||||||||

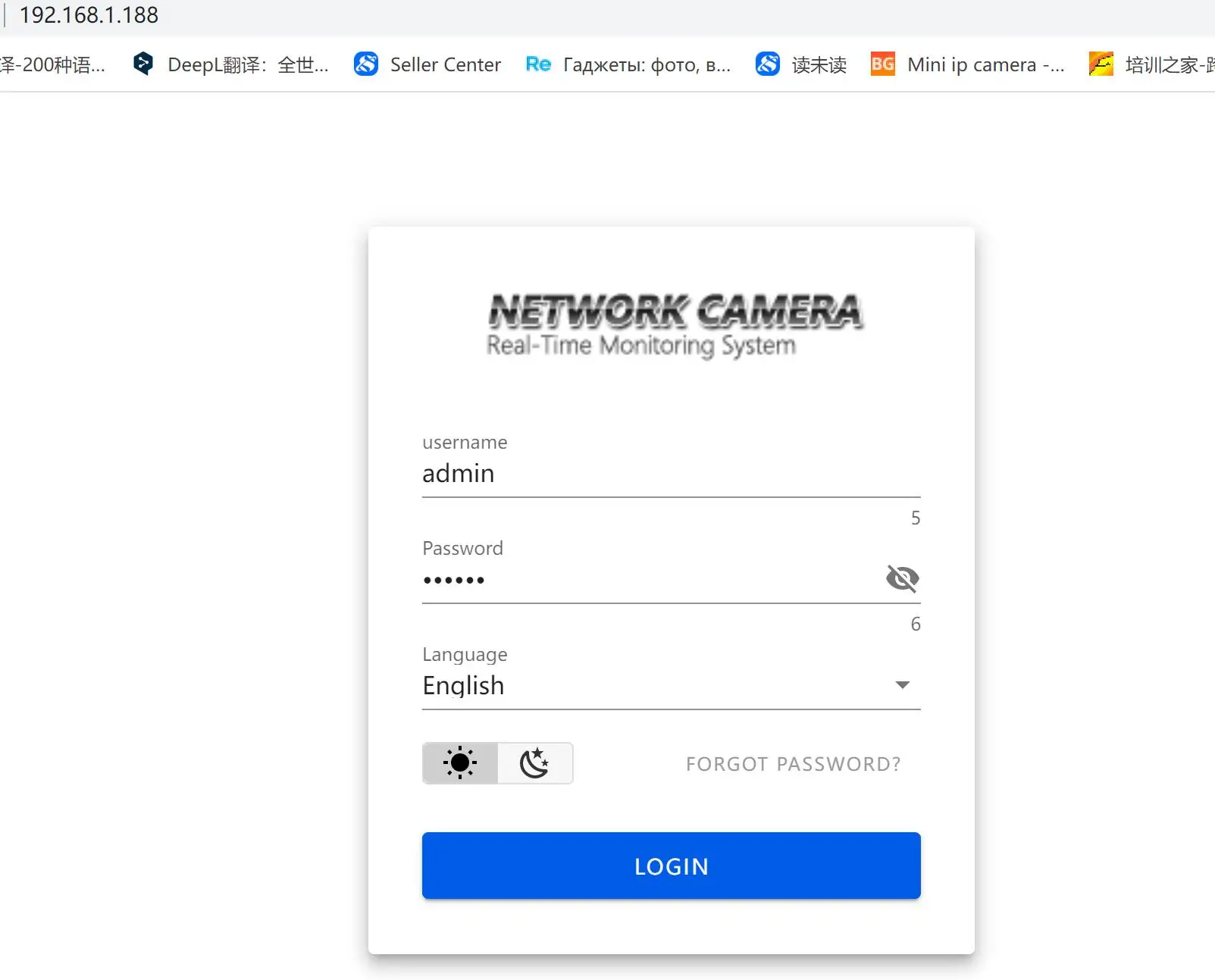

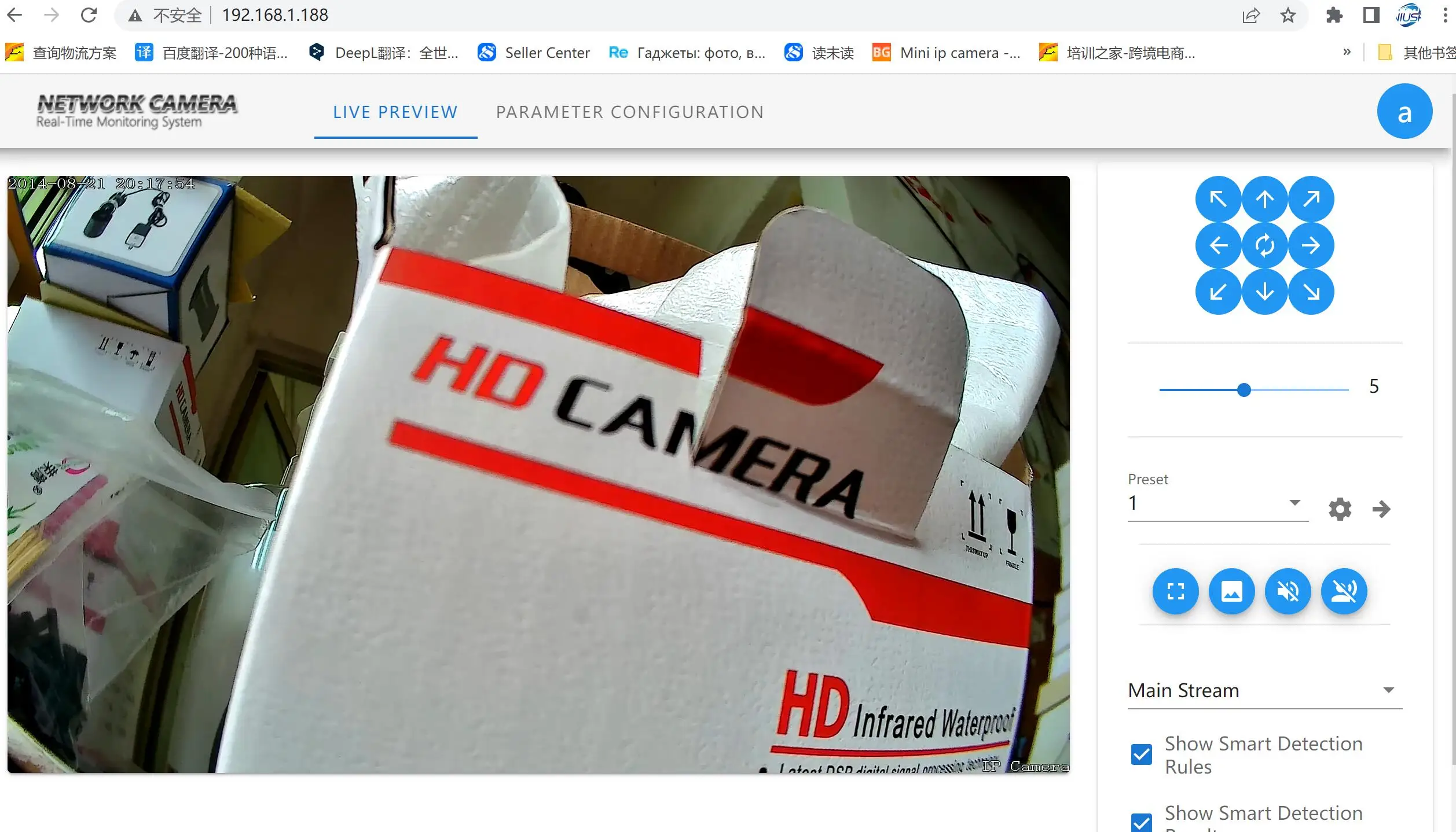

How to install it :

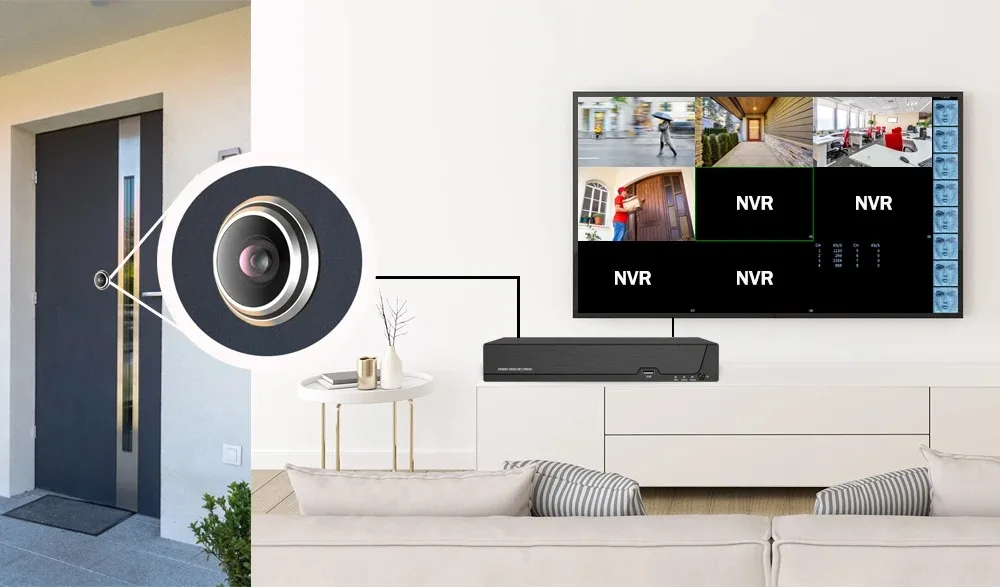

Support ONVIF&RTSP protocol, compatible with DVR/NVR.dahua/hikvision nvr
RTSP URL:rtsp://192.168.1.18:554/ch01.264
rtsp://192.168.1.18:554/ch01_sub.264
Package contents:
1 x Camera , 1 x English User Manual
