Advanced PIR Sensor
The advanced PIR sensor tracks movement accurately, ideal for security surveillance.
Waterproof Design
IP65 waterproof rating means this camera can withstand harsh outdoor conditions.
Full HD Video
Record high-definition videos in 1080P, ensuring detailed footage of every moment.

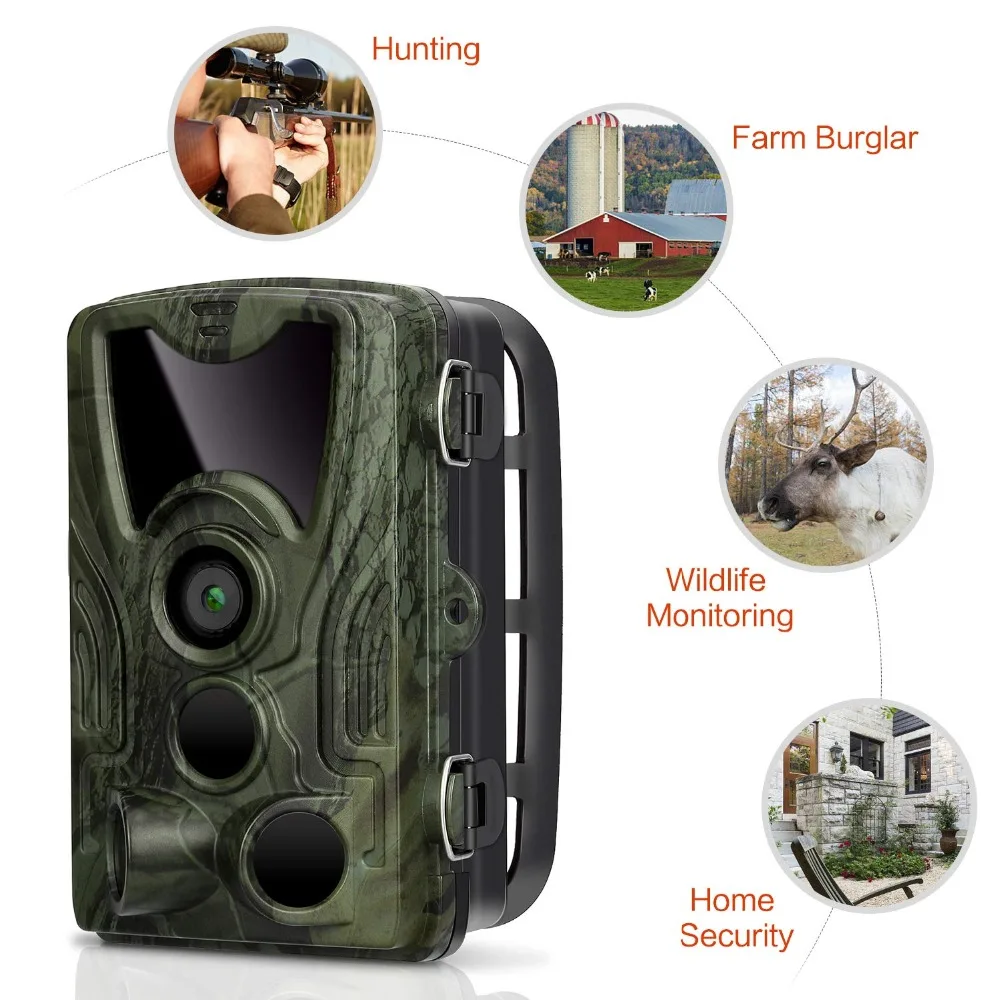

Outdoor Security
Ideal for outdoor security, this camera monitors your property with ease.
High Resolution

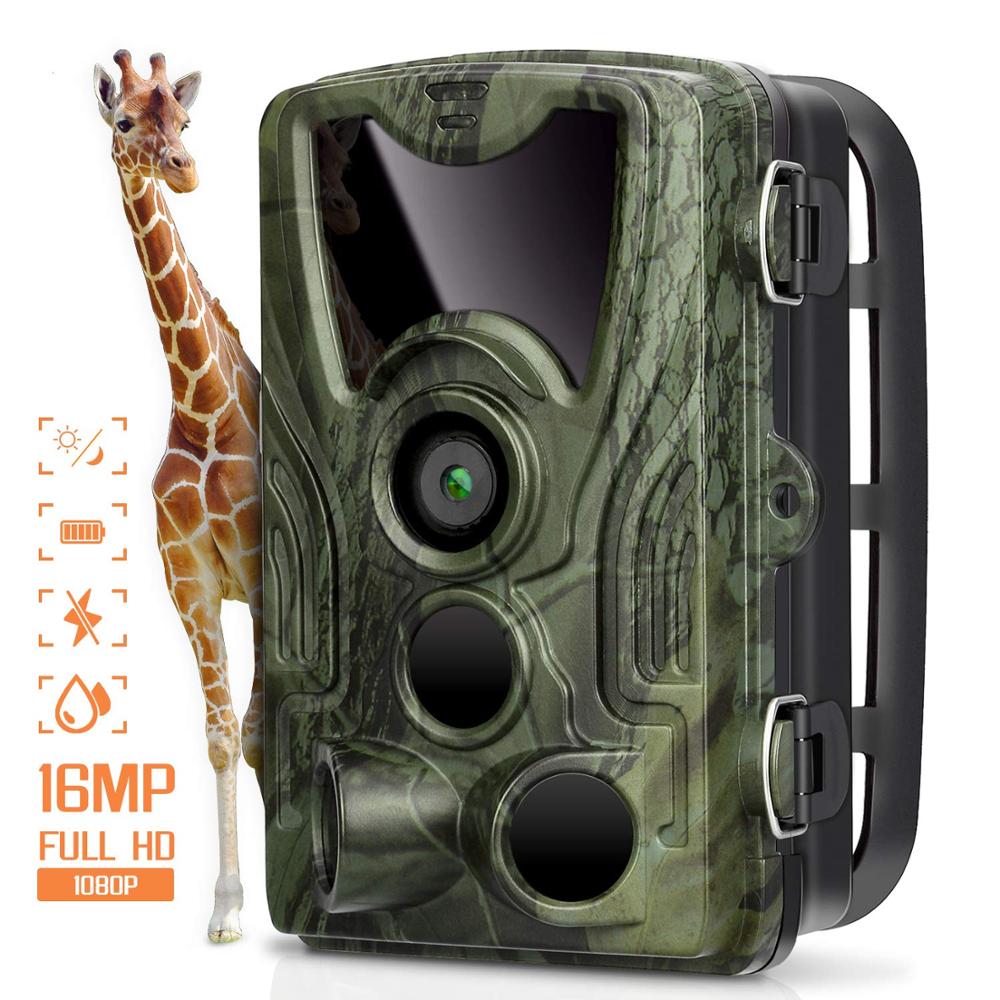

Capture crisp, clear images with the HC801A's 20MP camera, perfect for identifying wildlife.

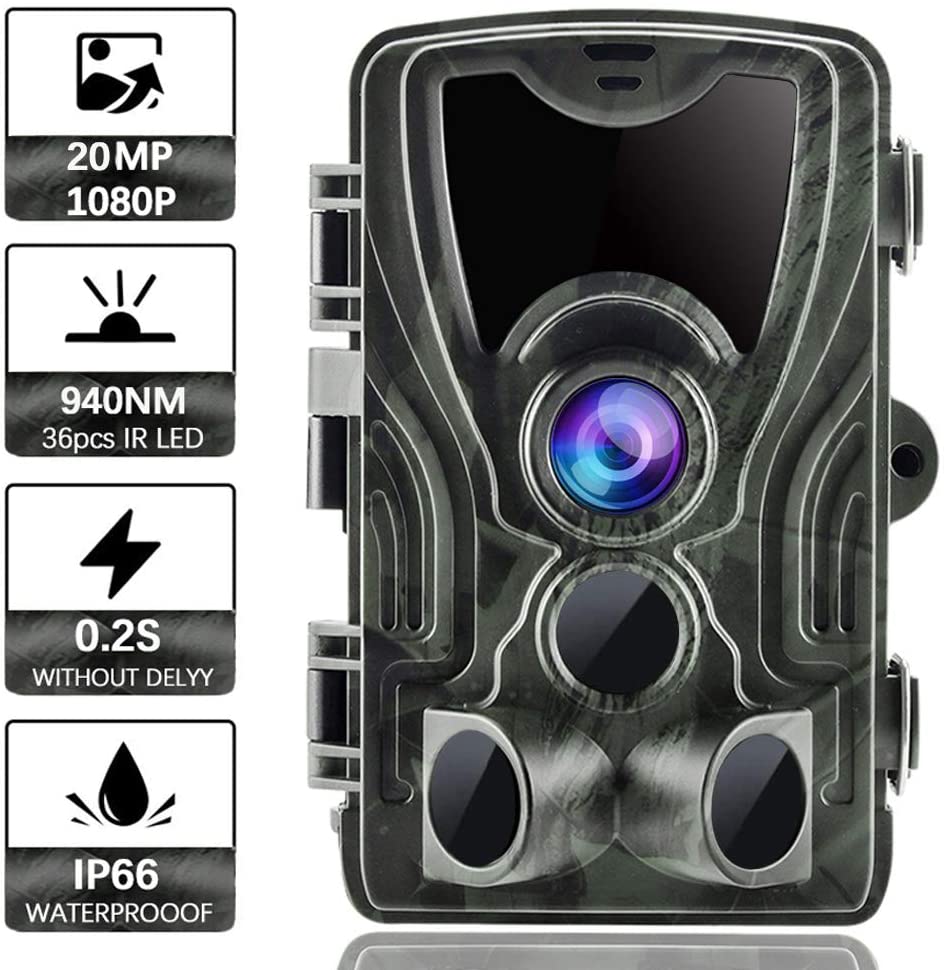

SUNTEK basic camera features
❉1. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 20 pixels) or records HD video.
❉2. Fast Trigger Speed: With an impressive 0.5 second trigger speed (pre boot 0.2 Second), a zero second delay between triggers (stills only) and up to 3 photos Multi-Shot feature, you never miss any of the action.
❉3. Perfect Detection & Flash Range: Using a state of the art multiple zone detection sensor, the Trail Camera is equipped with a 120° detection angle and a 65 feet detection range, which matches the 120° field of view perfectly

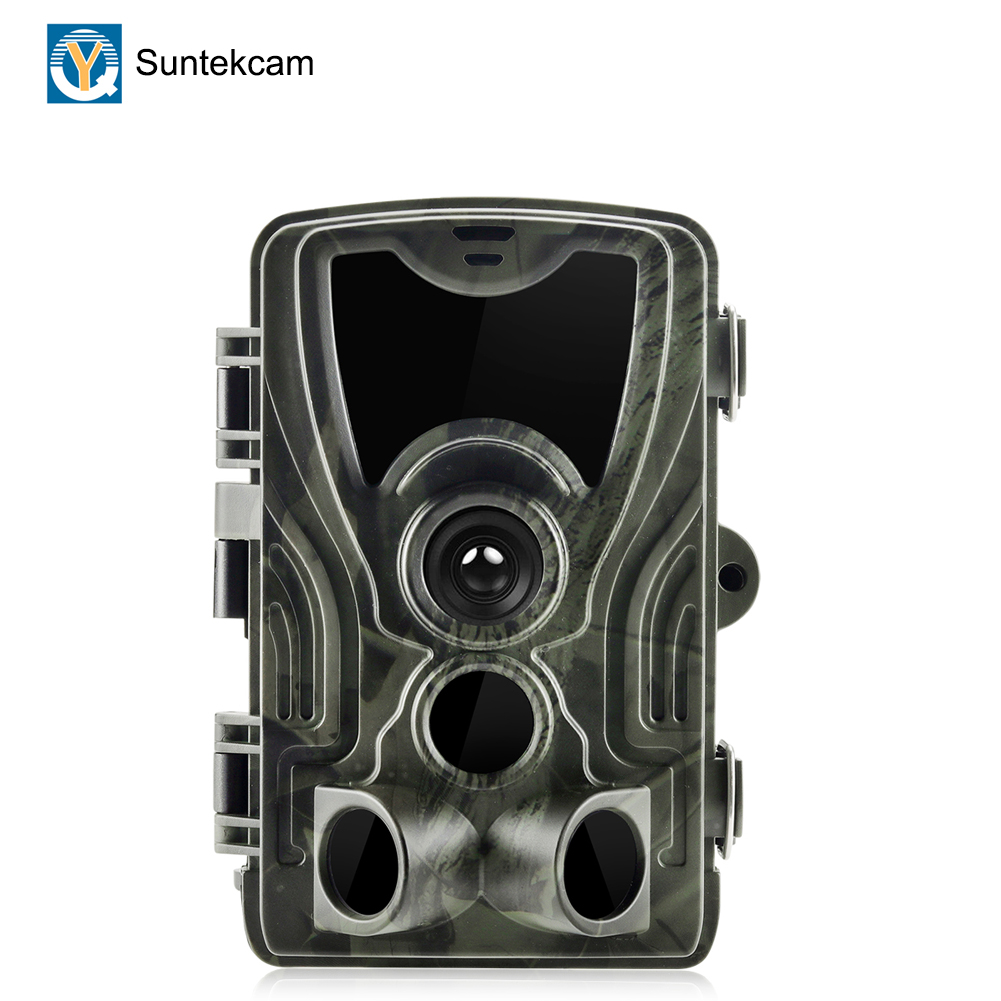

HC-801A Hunting Trail Camera Specification
|
Image Sensor |
8 Mega Pixels Color CMOS |
|
Memory |
Micro SD Card to 32GB(not included) |
|
Lens |
F=3.1; FOV=120 ° |
|
Size |
135mm * 90mm * 76 mm |
|
Display |
2.0 inch TFT |
|
Mode |
Camera/Video/Camera&Video |
|
PIR Detect Range |
120 Degree |
|
Night Vision Distance |
65ft/20meters |
|

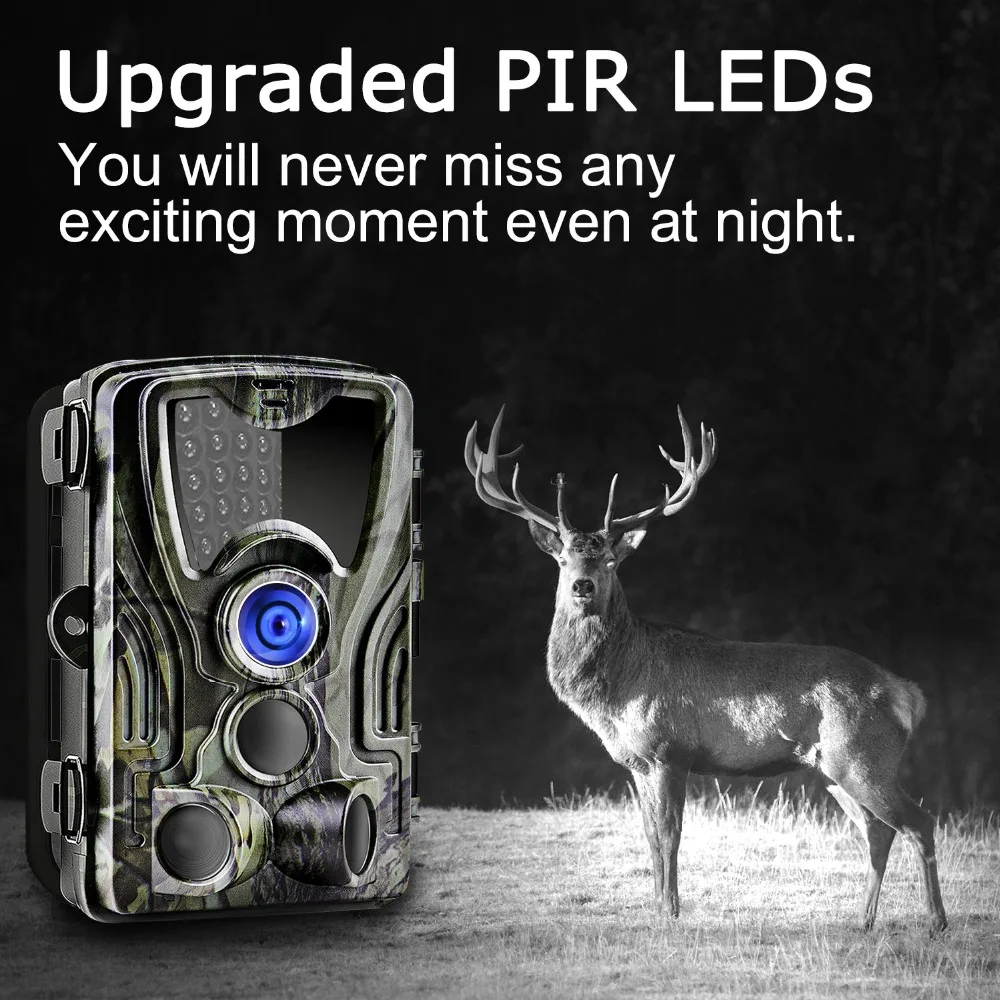

IR LED |
42 Infared LEDs |
|
PIR Distance |
65ft/20 meters |
|
Trigger Speed |
0.3second |
|
PIR Interval |
1/5/10/30sec/min (default 1 sec) |
|
Image Resolution |
20MP/16MP/12MP/8MP |
|
Multiple Photo on one detection |
1/3/6/9 |
|
Video Resolution |
1080P/720P/VGA |
|
File Format |
JPEG/AVI |
|
Date Time Imprint |
Yes |
|
Moon Phase Imprint |
Yes |
|
ISO Exposure: |
Auto/100/200/400 |
|
Password Security |
4 digital PIN code |
|
Stand-by current |
0.1mA |
|
Stand-by time |
6Months |
|
Interface |
TV-out ; USB2.0 ; Micro SD Card ; 9V/1A External |
|
Fix Method |
Belt, Tripod mount |
|
Motion Detection |
Low/Medium/High |
|
Operation Temperature |
-20 ~70℃(-4~158℉) |
|
Power |
8X AA batteries(not included) |
|
Timer |
Yes |
|
Waterproof |
IP65 |
|
Language |
En/FR/DE/ES/RU/DK/NL/PL/PT/SE/IT/FI/JP |
|

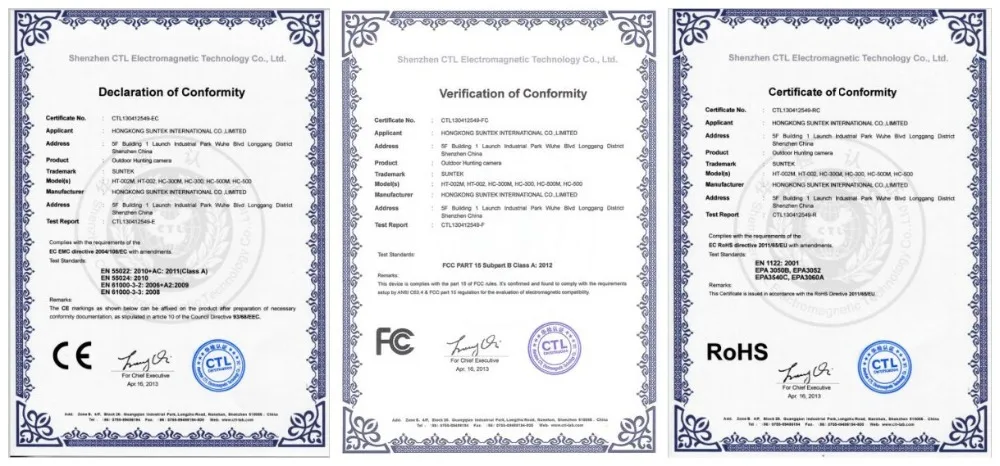

Certificate |
FCC,CE,RoHS |
Packing Accossories:
Hunting Camera*1
USB cable ×1
User manual ×1
Tree bandage ×1
Note:
– Please insert the TF card when the camera is power off.
– Please do not insert or take out the TF card when the camera is power on.
– Recommended formatting the TF card by the camera when used at the first time.
– The camera will be in USB mode when connected to a USB port of a computer. In this case, the TF card function as a removable disk.
– Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly. If any fault occurs after improper upgrading process, the camera may stop function properly.
