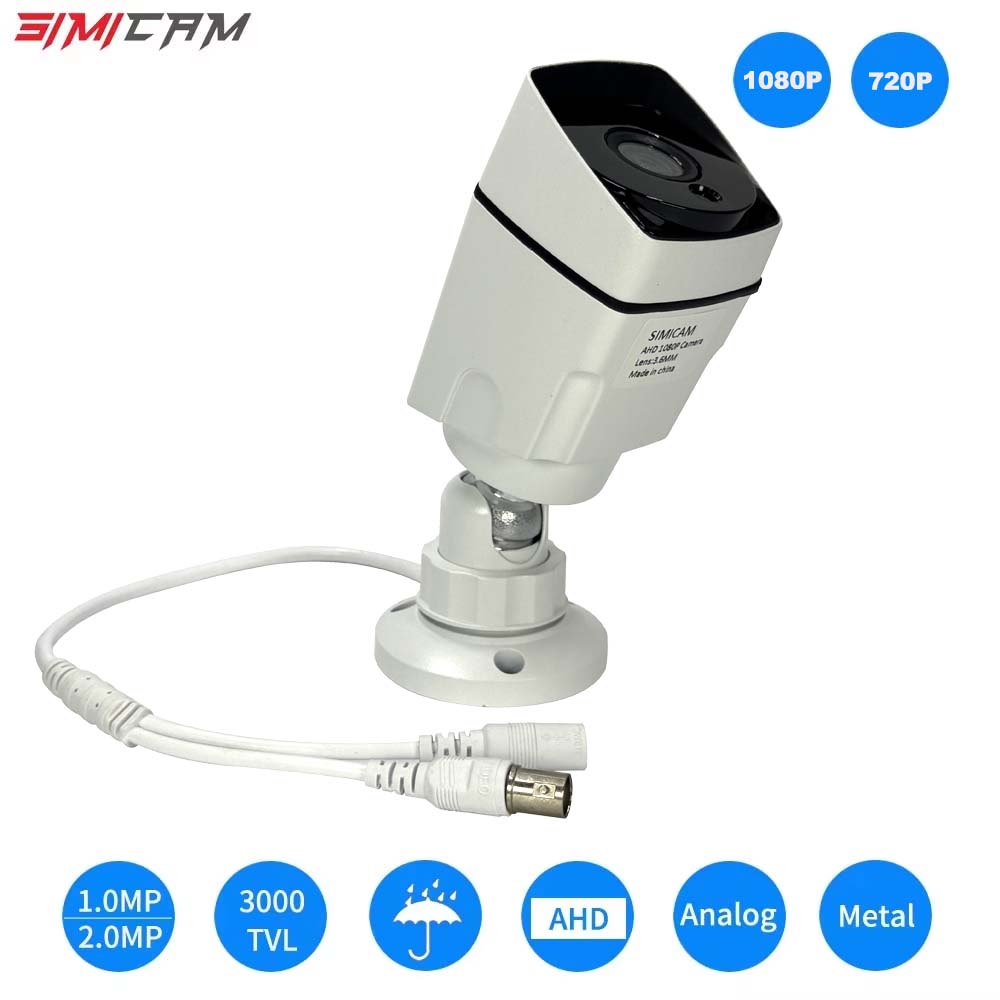

Analog AHD Video surveillance Camera 1080P 2.0MP 3000TVL NTSC/PAL Waterproof CCTV DVR Camera Night Vision Security Surveillance
Important TIP:
1. This package do not include thepower adapteror BNC cable.
2.Make sure you have a AHD DVR for the AHD cameras .you will can't view or record without it.It is veryveryvery important !!! Pls don't buy it if you don't have AHD DVROr you can buy our DVR.!!!
3. package:1pcsCamera+1pcs Screwbag
4.The camera has 1080p / 720p option. Please confirm that your DVR supports that option before ordering. If you don't know, you can contact us.
Why choose us？
The shell of our camera is made of metal, which is more resistant to cold, heat and dust.
HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance
AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
You can upgrade an old analog security system to 1.0MP/2.0MP HD cameras without changing cable routes.
Best choice for project reconstruction.
MUST work with AHD DVR.
|
Specifications |
||
|
Image Sensor |
H50W1 |
H50W2 |
|
1/4″ 1.0MP CMOS Sensor |
1/3″ 2.0MP CMOS Sensor |
|
|
TV System |
PAL/NTSC |
|
|
IR CUT |
Yes |
|
|
Active Pixel |
1280*720 |
1920*1080 |
|
SYNC. |
Internal |
|
|
Resolution |
720P |
1080P |
|
VIDEO OUT |
1Vp-p,75ohm, BNC |
|
|
Minimum Illumination |
0 Lux ( When IR is on) |
|
|
Auto compensation |
Auto |
|
|
IR LEDs |
24 PCS IR LEDs |
|
|
IR Distance |
about 15M |
|
|
Lens |
3.6 mm default |
|
|
Electric Shutter |
1/50s-1/50000s |
|
|
S/N Ratio |
>50dB |
|
|
Day/Night |
Auto(ICR) / Color / B/W |
|
|
Power Supply |
DC12V±10% |
|
|
Waterproof |
Indoor |
|
|
Working temperature |
-15°~50° |
|
|
Transmission distance |
Over 500m via 75-3 coaxial cable |
|
Waterproof case,suitable for indoor and outdoor
IR Cut Filter Built in
Automatically switch to get better video images

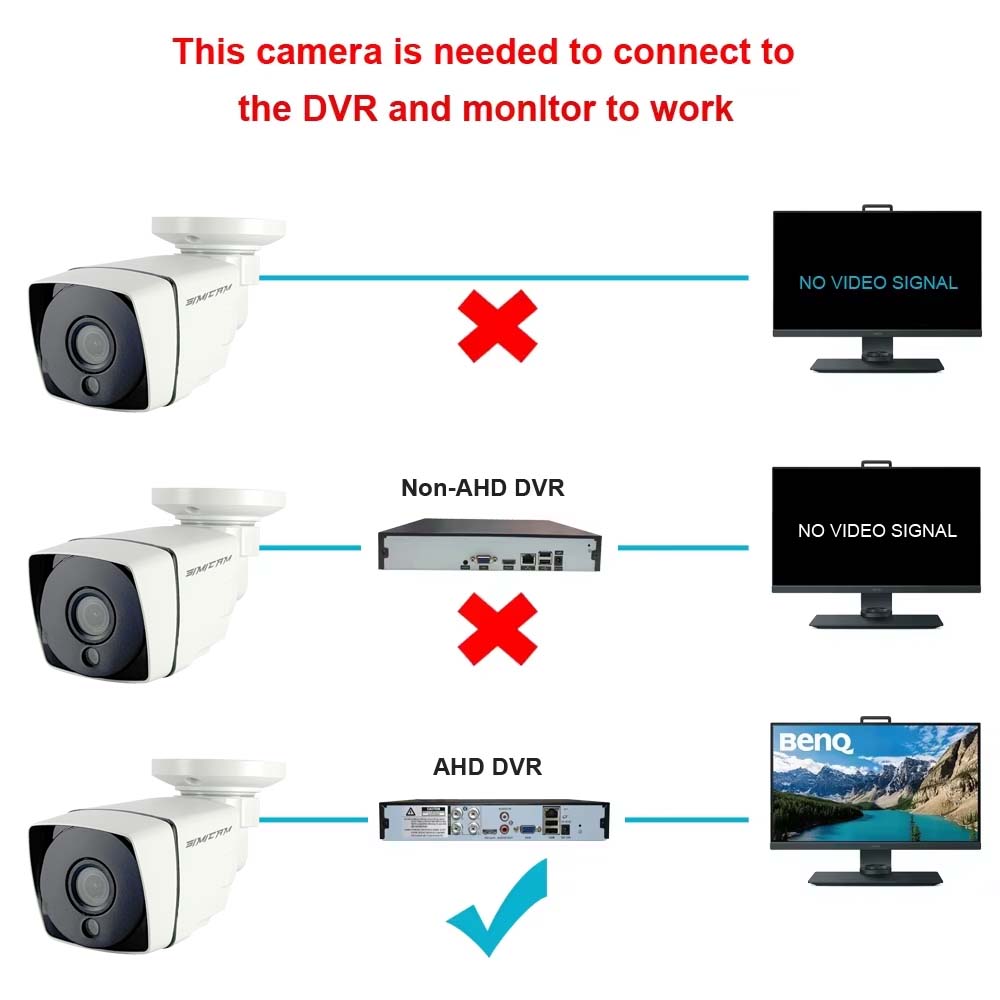

Camera suitable for connecting DVR, no direct connection monitor is supported
AHD camera needs to use AHD DVR

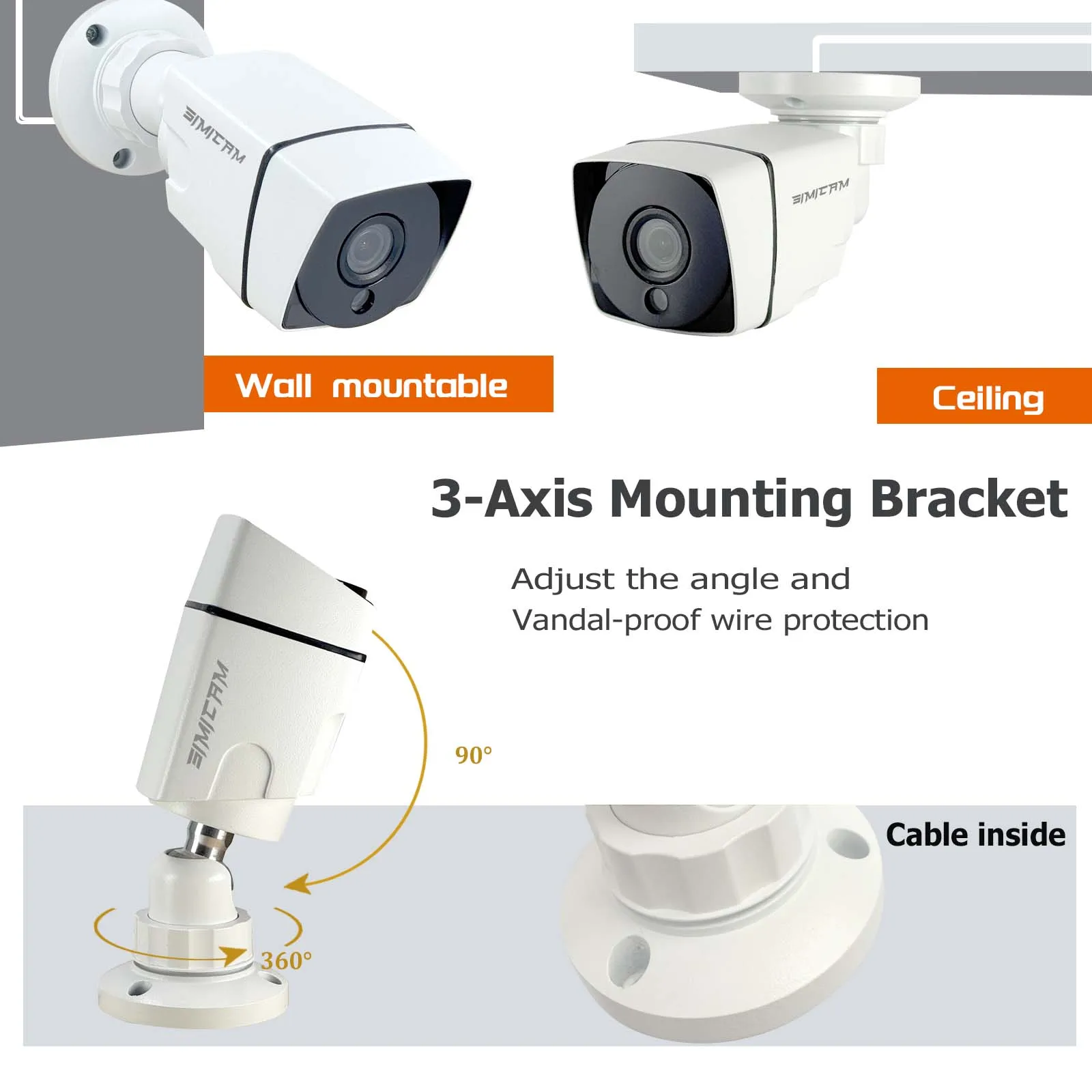

Universal bracket, you can manually adjust the camera to any angle.
Packing List
1080P/720P AHD CAMERA *1
Screw package * 1
